WIRELESS TRANSACTION PROTOCOL (WTP) By Pathfinders

WIRELESS TRANSACTION PROTOCOL (WTP) By Pathfinders

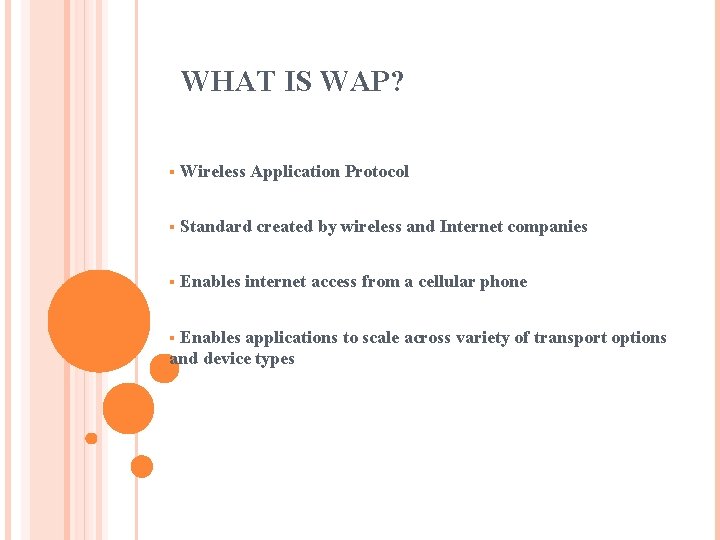

WHAT IS WAP? § Wireless Application Protocol § Standard created by wireless and Internet

WHAT IS WAP? § Wireless Application Protocol § Standard created by wireless and Internet companies § Enables internet access from a cellular phone Enables applications to scale across variety of transport options and device types §

PROTOCOL STACK FOR WAP Application Layer (WAE) Other Services And Applications Session Layer (WSP)

PROTOCOL STACK FOR WAP Application Layer (WAE) Other Services And Applications Session Layer (WSP) Transaction Layer (WTP) Security Layer (WTLS) Transport Layer (WDP) SMS USSD CSD IS-136 CDMA CDPD PDC-P Etc

WAP ARCHITECTURE WAP Gateway WMLScript WTAI Etc. Web Server WML Encoder WSP/WTP WMLScript Compiler

WAP ARCHITECTURE WAP Gateway WMLScript WTAI Etc. Web Server WML Encoder WSP/WTP WMLScript Compiler Protocol Adapters HTTP CGI Scripts etc. Content WML Decks with WML-Script Client

WHAT IS WTP? § Light weight transaction oriented protocol § Runs on top of

WHAT IS WTP? § Light weight transaction oriented protocol § Runs on top of datagram service § Chops data packets into lower level datagram's § Concatenates received datagram's into useful data Operates above WDP to provide simple protocol suitable for low bandwidth mobile station §

HOW IT IS DESIGNED FORWIRELESS ENVIRONMENT § no explicit connection setup or tear down

HOW IT IS DESIGNED FORWIRELESS ENVIRONMENT § no explicit connection setup or tear down §optimized setup (data carried in first packet of protocol exchange) § seeks to reduce 3 -way handshake on initial request supports User acknowledgement or Stack acknowledgement option [acks may be forced from the WTP user (upper layer) default is stack ack] §

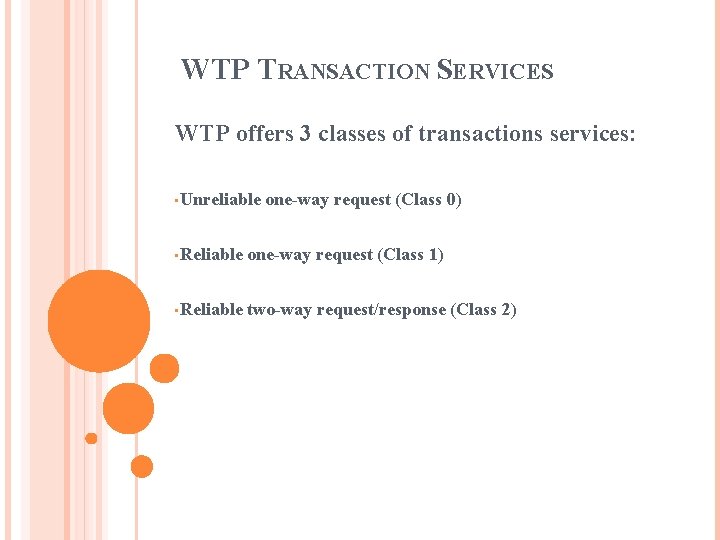

WTP TRANSACTION SERVICES WTP offers 3 classes of transactions services: • Unreliable one-way request

WTP TRANSACTION SERVICES WTP offers 3 classes of transactions services: • Unreliable one-way request (Class 0) • Reliable one-way request (Class 1) • Reliable two-way request/response (Class 2)

OPERATION OF CLASS 0 Initiator TR-Invoke/ Request Responder Invoke PDU (TID=N, TG, C=0, …)

OPERATION OF CLASS 0 Initiator TR-Invoke/ Request Responder Invoke PDU (TID=N, TG, C=0, …) TR-Invoke/ Indication

BASIC OPERATION OF CLASS 1 Initiator TR-Invoke/ Request Responder Invoke PDU (TID=N, TG, C=1,

BASIC OPERATION OF CLASS 1 Initiator TR-Invoke/ Request Responder Invoke PDU (TID=N, TG, C=1, …) TR-Invoke/ Indication Ack PDU (TID=N*) TR-Invoke/ Confirm

CLASS 1 – WITHU‘ SER’ ACKNOWLEDGEMENT Initiator TR-Invoke/ Request Responder Invoke PDU (TID=N, TG,

CLASS 1 – WITHU‘ SER’ ACKNOWLEDGEMENT Initiator TR-Invoke/ Request Responder Invoke PDU (TID=N, TG, C=1, …) TR-Invoke/ Indication Ack PDU (TID=N*) TR-Invoke/ Confirm TR-Invoke/ Response

BASIC OPERATION OF CLASS 2 Initiator TR-Invoke/ Request Responder Invoke PDU (TID=N, TG, C=2,

BASIC OPERATION OF CLASS 2 Initiator TR-Invoke/ Request Responder Invoke PDU (TID=N, TG, C=2, …) TR-Invoke/ Indication Result PDU TR-Invoke/ Confirm TR-Invoke/ Request TR-Result/ Indication TR-Result/ Response Ack PDU TR-Result/ Confirm

CLASS 2 - WITH H ‘ OLD ON’ ACKNOWLEDGEMENT Initiator TR-Invoke/ Request Responder Invoke

CLASS 2 - WITH H ‘ OLD ON’ ACKNOWLEDGEMENT Initiator TR-Invoke/ Request Responder Invoke PDU (TID=N, TG, C=2, …) TR-Invoke/ Indication Ack PDU TR-Invoke/ Confirm Result PDU TR-Result/ Indication TR-Result/ Response TR-Invoke/ Request Ack PDU TR-Result/ Confirm

CLASS 2 - WITH U ‘ SER’ ACKNOWLEDGEMENT Initiator TR-Invoke/ Request Responder Invoke PDU

CLASS 2 - WITH U ‘ SER’ ACKNOWLEDGEMENT Initiator TR-Invoke/ Request Responder Invoke PDU (TID=N, TG, C=2, …) TR-Invoke/ Indication Ack PDU TR-Invoke/ Response Result PDU TR-Invoke/ Request TR-Invoke/ Confirm TR-Result/ Indication TR-Result/ Response Ack PDU TR-Result/ Confirm

WTP MANAGEMENT ENTITY § Interface between WTP layer and environment of device § Monitors

WTP MANAGEMENT ENTITY § Interface between WTP layer and environment of device § Monitors the state of mobile environment § Deals with all the issues related to § Initialization § Configuration § Resources as they pertain to WTP layer

WTP FEATURES Provides reliable, efficient data transfer based on request/reply paradigm § § Supports

WTP FEATURES Provides reliable, efficient data transfer based on request/reply paradigm § § Supports selective re-transmission § Message oriented (not stream) § Supports Abort function § Supports concatenation of PDUs

MOBILE WWW

MOBILE WWW

REFERENCES AND RESOURCES § Books - Understanding WAP § Official Website (specifications) - www.

REFERENCES AND RESOURCES § Books - Understanding WAP § Official Website (specifications) - www. wapforum. org
