Wireless sensor and actor networks: research challenges Ian F. Akyildiz, Ismail H. Kasimoglu Elsevier Ad Hoc Networks 2004 JY Hong 2008. 9. 11 KAIST

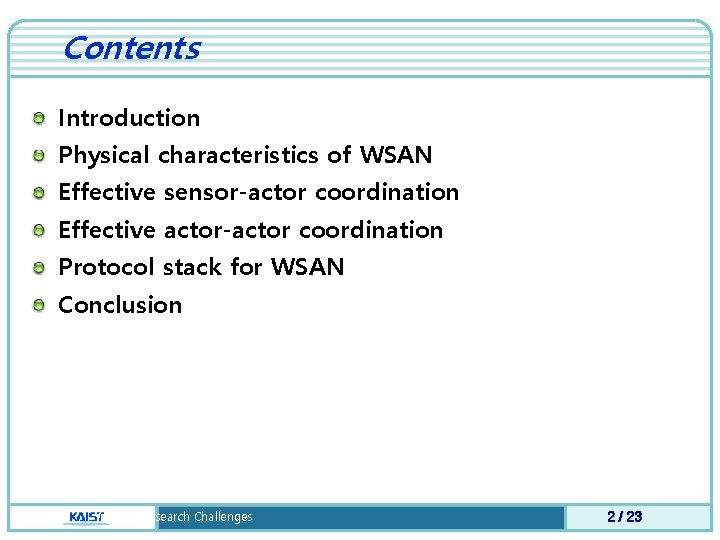

Contents Introduction Physical characteristics of WSAN Effective sensor-actor coordination Effective actor-actor coordination Protocol stack for WSAN Conclusion WSAN : Research Challenges 2 / 23

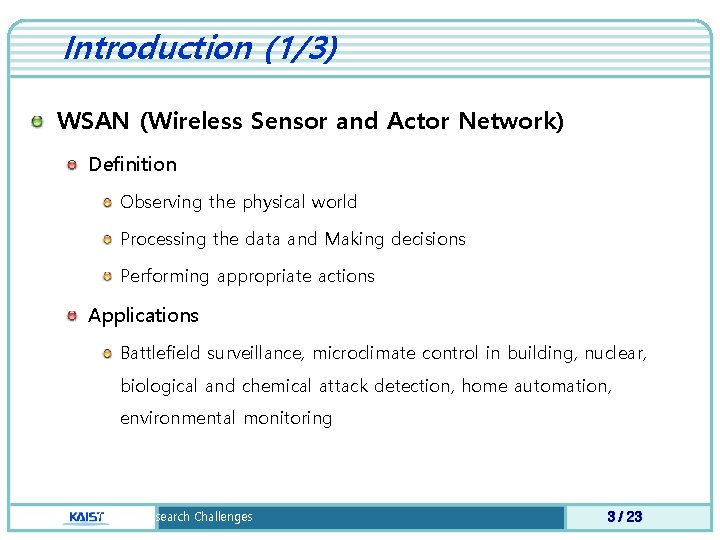

Introduction (1/3) WSAN (Wireless Sensor and Actor Network) Definition Observing the physical world Processing the data and Making decisions Performing appropriate actions Applications Battlefield surveillance, microclimate control in building, nuclear, biological and chemical attack detection, home automation, environmental monitoring WSAN : Research Challenges 3 / 23

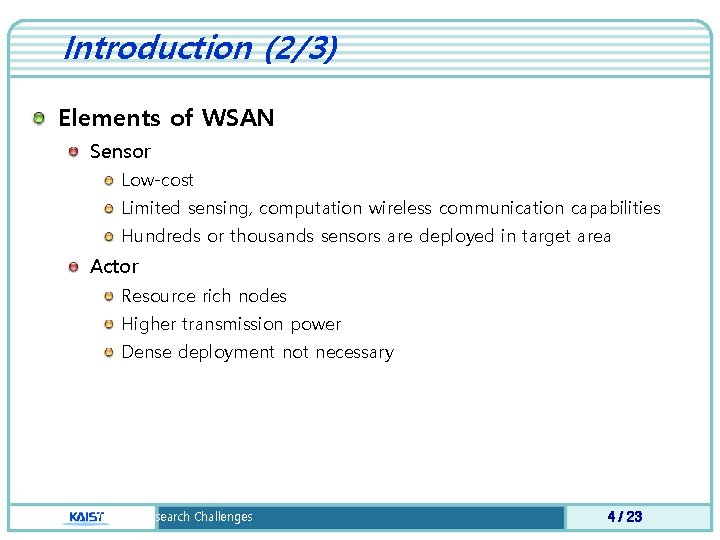

Introduction (2/3) Elements of WSAN Sensor Low-cost Limited sensing, computation wireless communication capabilities Hundreds or thousands sensors are deployed in target area Actor Resource rich nodes Higher transmission power Dense deployment not necessary WSAN : Research Challenges 4 / 23

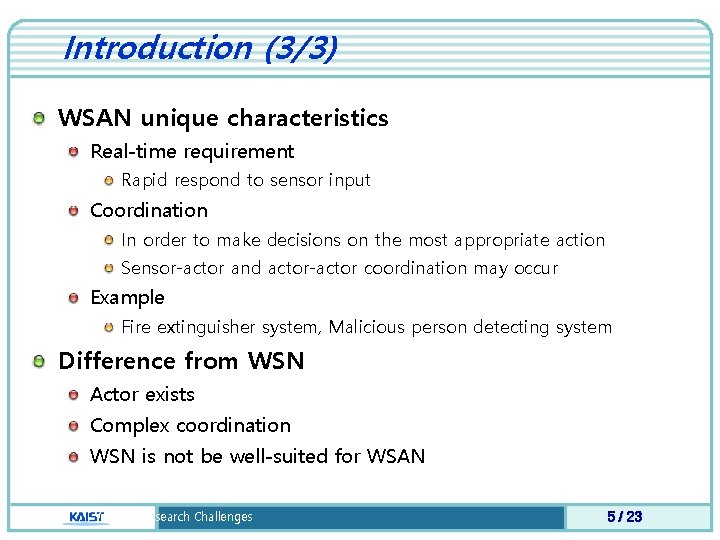

Introduction (3/3) WSAN unique characteristics Real-time requirement Rapid respond to sensor input Coordination In order to make decisions on the most appropriate action Sensor-actor and actor-actor coordination may occur Example Fire extinguisher system, Malicious person detecting system Difference from WSN Actor exists Complex coordination WSN is not be well-suited for WSAN : Research Challenges 5 / 23

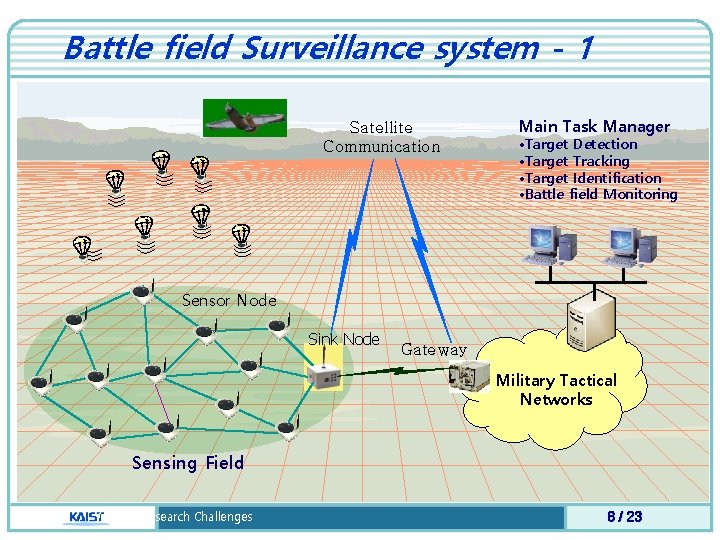

Battle field Surveillance system - 1 Satellite Communication Main Task Manager • Target Detection • Target Tracking • Target Identification • Battle field Monitoring Sensor Node Sink Node Gateway Military Tactical Networks Sensing Field WSAN : Research Challenges 6 / 23

Battle field Surveillance system - 2 Types of actors WSAN : Research Challenges 7 / 23

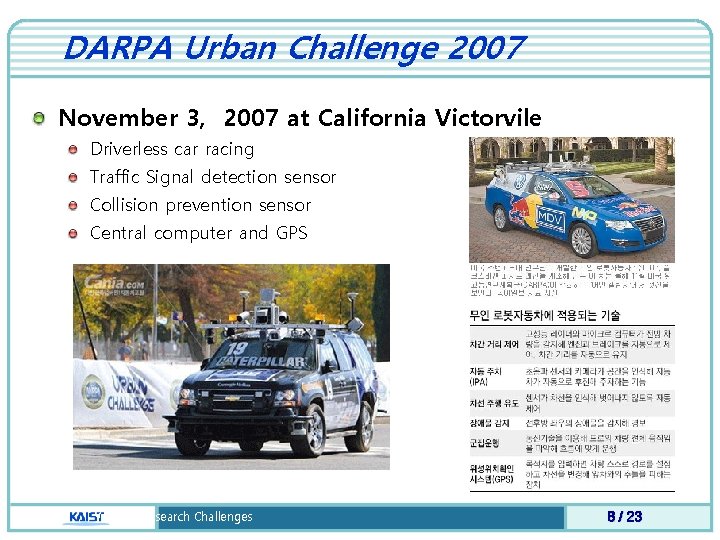

DARPA Urban Challenge 2007 November 3, 2007 at California Victorvile Driverless car racing Traffic Signal detection sensor Collision prevention sensor Central computer and GPS WSAN : Research Challenges 8 / 23

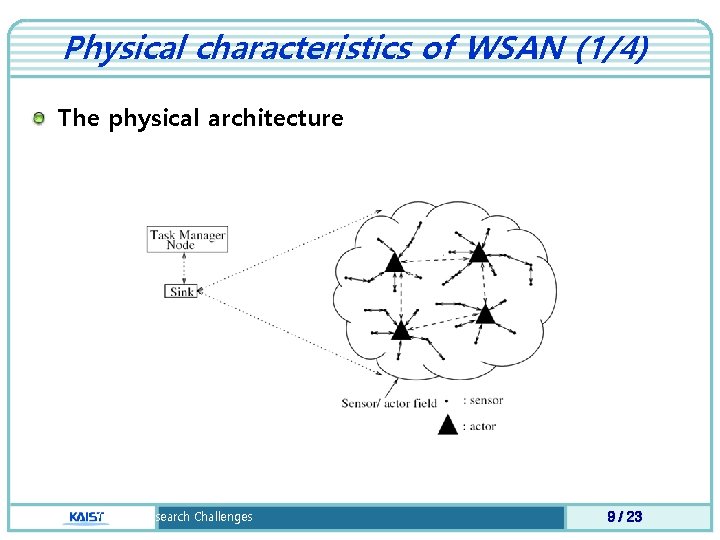

Physical characteristics of WSAN (1/4) The physical architecture WSAN : Research Challenges 9 / 23

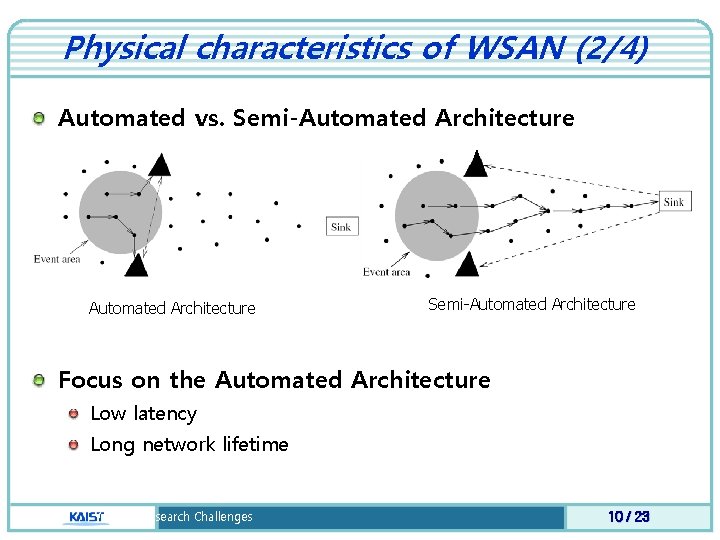

Physical characteristics of WSAN (2/4) Automated vs. Semi-Automated Architecture Focus on the Automated Architecture Low latency Long network lifetime WSAN : Research Challenges 10 / 23

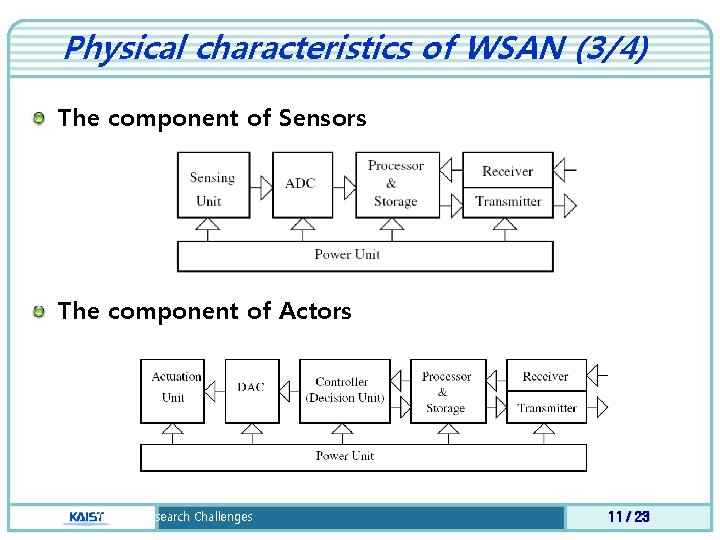

Physical characteristics of WSAN (3/4) The component of Sensors The component of Actors WSAN : Research Challenges 11 / 23

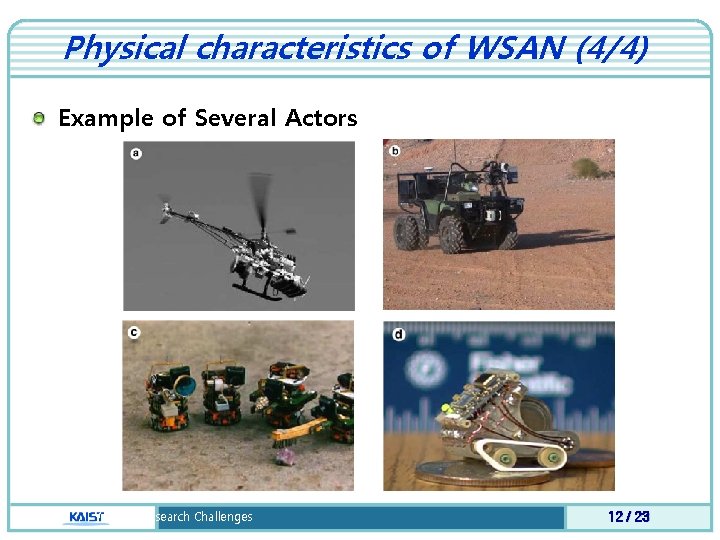

Physical characteristics of WSAN (4/4) Example of Several Actors WSAN : Research Challenges 12 / 23

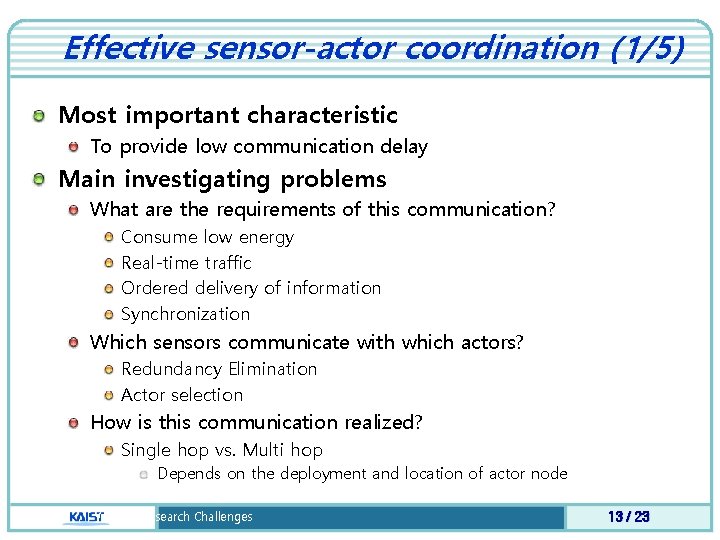

Effective sensor-actor coordination (1/5) Most important characteristic To provide low communication delay Main investigating problems What are the requirements of this communication? Consume low energy Real-time traffic Ordered delivery of information Synchronization Which sensors communicate with which actors? Redundancy Elimination Actor selection How is this communication realized? Single hop vs. Multi hop Depends on the deployment and location of actor node WSAN : Research Challenges 13 / 23

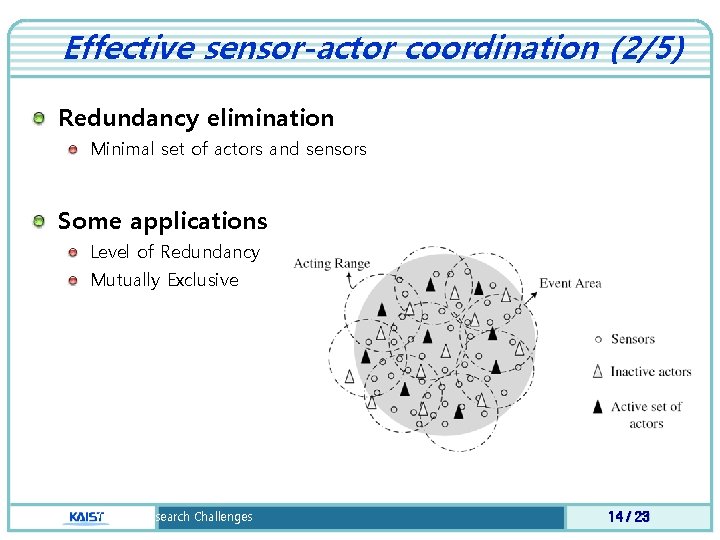

Effective sensor-actor coordination (2/5) Redundancy elimination Minimal set of actors and sensors Some applications Level of Redundancy Mutually Exclusive WSAN : Research Challenges 14 / 23

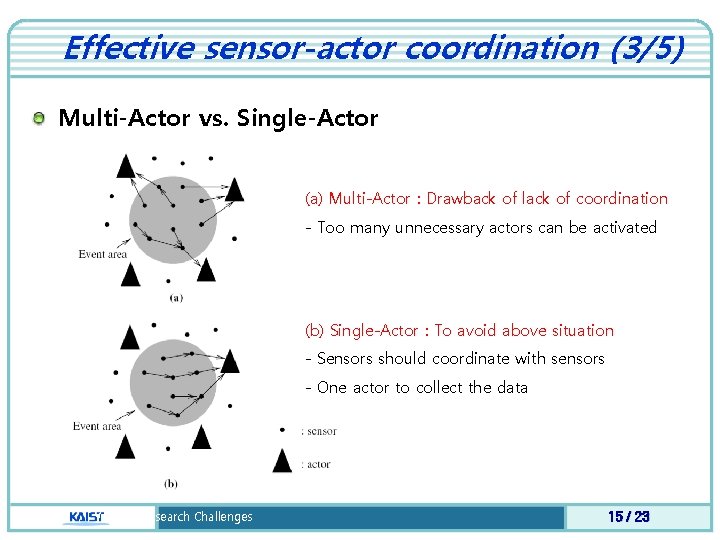

Effective sensor-actor coordination (3/5) Multi-Actor vs. Single-Actor (a) Multi-Actor : Drawback of lack of coordination - Too many unnecessary actors can be activated (b) Single-Actor : To avoid above situation - Sensors should coordinate with sensors - One actor to collect the data WSAN : Research Challenges 15 / 23

Effective sensor-actor coordination (4/5) Single Actor Main challenges is to determine the single actor node Select SA based on below criteria Distance Minimum energy path The action range of the actor ü No guarantee One actor is not well-suited due to the coverage and energy constraints Actor-Actor Coordination Actor publishes the announcement message Select one or more other actors to perform the appropriate actions WSAN : Research Challenges 16 / 23

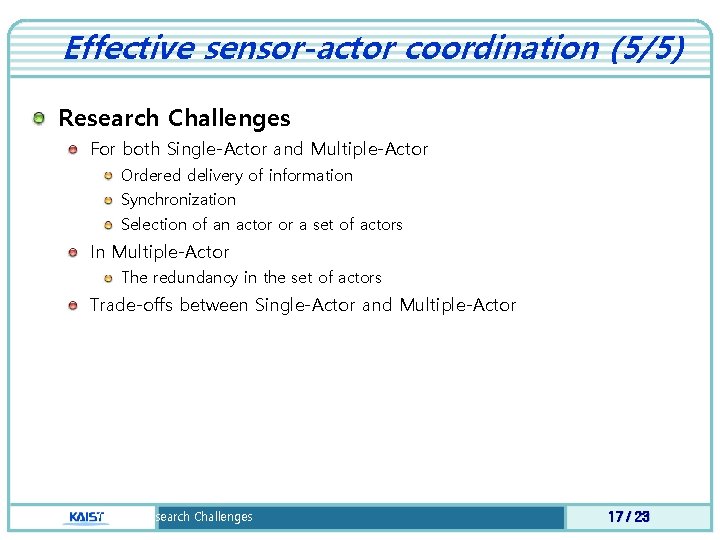

Effective sensor-actor coordination (5/5) Research Challenges For both Single-Actor and Multiple-Actor Ordered delivery of information Synchronization Selection of an actor or a set of actors In Multiple-Actor The redundancy in the set of actors Trade-offs between Single-Actor and Multiple-Actor WSAN : Research Challenges 17 / 23

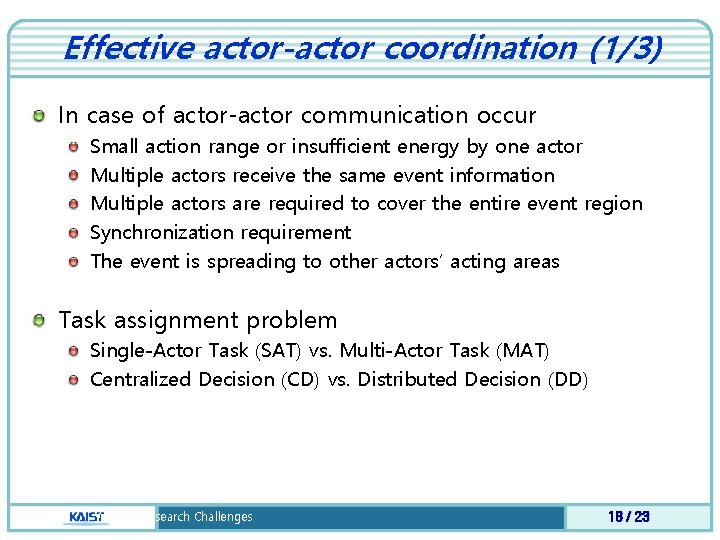

Effective actor-actor coordination (1/3) In case of actor-actor communication occur Small action range or insufficient energy by one actor Multiple actors receive the same event information Multiple actors are required to cover the entire event region Synchronization requirement The event is spreading to other actors’ acting areas Task assignment problem Single-Actor Task (SAT) vs. Multi-Actor Task (MAT) Centralized Decision (CD) vs. Distributed Decision (DD) WSAN : Research Challenges 18 / 23

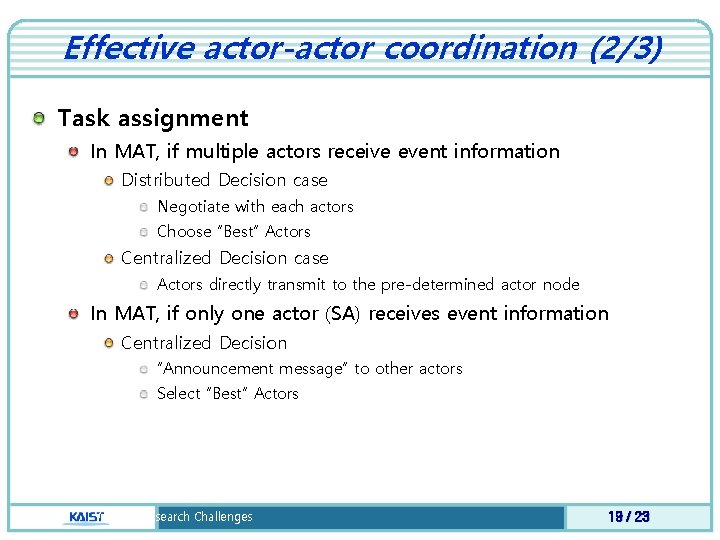

Effective actor-actor coordination (2/3) Task assignment In MAT, if multiple actors receive event information Distributed Decision case Negotiate with each actors Choose “Best” Actors Centralized Decision case Actors directly transmit to the pre-determined actor node In MAT, if only one actor (SA) receives event information Centralized Decision “Announcement message” to other actors Select “Best” Actors WSAN : Research Challenges 19 / 23

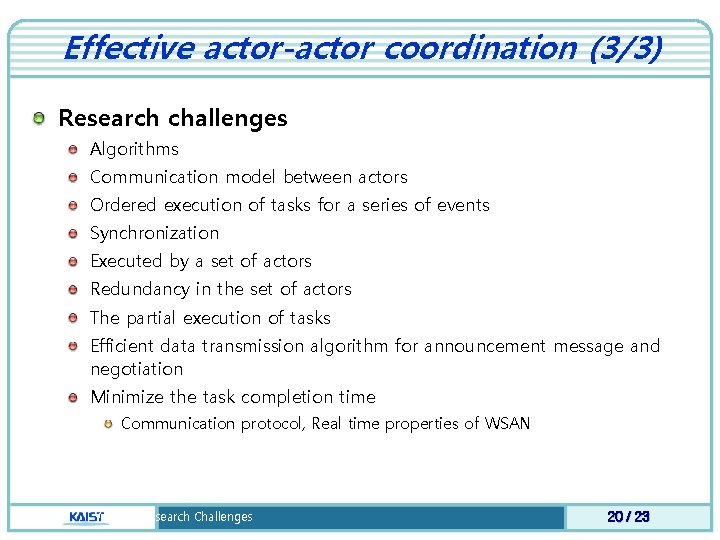

Effective actor-actor coordination (3/3) Research challenges Algorithms Communication model between actors Ordered execution of tasks for a series of events Synchronization Executed by a set of actors Redundancy in the set of actors The partial execution of tasks Efficient data transmission algorithm for announcement message and negotiation Minimize the task completion time Communication protocol, Real time properties of WSAN : Research Challenges 20 / 23

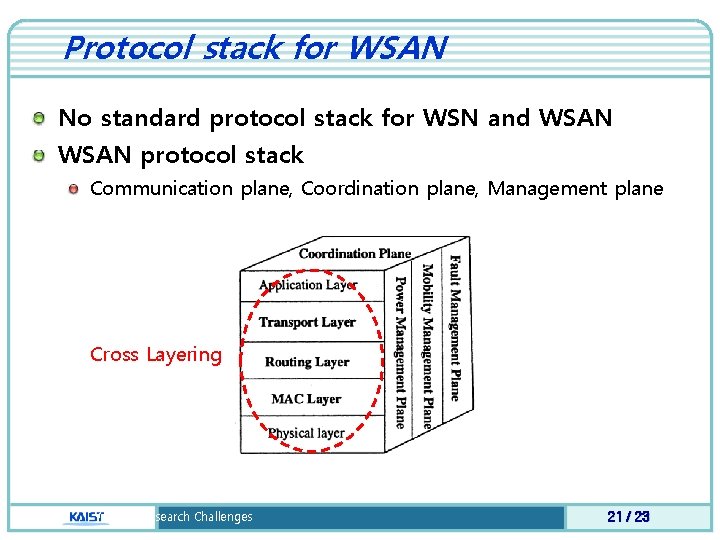

Protocol stack for WSAN No standard protocol stack for WSN and WSAN protocol stack Communication plane, Coordination plane, Management plane Cross Layering WSAN : Research Challenges 21 / 23

Conclusion The effectiveness of WSN will be increased The actors are deployed in the network , WSAN Many applications Realization of WSAN Satisfy the requirements of the coexistence of sensors and actors We investigated research challenge Real-time communication protocol Sensor-Actor coordination Actor-Actor coordination WSAN : Research Challenges 22 / 23
