Wireless Mesh Product Portfolio CONECTOR Tecnología Aplicada www. conector. com. mx BDMF 00001 -A 02

Agenda Corporate Overview Mesh Overview Bel. Air Product Portfolio Key Applications Industry Solutions Summary BELAIR NETWORKS CONFIDENTIAL 2 BDMF 00001 -A 02

Bel. Air Networks • Private technology company funded by leading VCs, mobile and cable operators • Single Focus: § Mobile Broadband Multi-Service Mesh Networks • Field-Proven Performance § Deployed in over 250 installations § Customers in North America, Asia, Europe, Latin America • Comprehensive product family § Multi, dual, and single radio platforms supporting Wi-Fi, Wi. MAX, and Cellular § Industry-leading performance and scalability § Designed to deliver carrier-class capacity and reliability § The only solution optimized for carrier-grade voice services BELAIR NETWORKS CONFIDENTIAL 3 BDMF 00001 -A 02

The Mobile Broadband Multi-Media Challenge • Supporting a rapidly evolving broadband access and backhaul landscape § Wi-Fi, Wi. MAX, Cellular… • Finding a Highly Scaleable and Flexible architecture § Deploy a network for today that adapts to tomorrow • Enabling Seamless Mobility § Meeting the wired expectation in a wireless world • Delivering Network Resiliency and Performance § Always on, Always reliable, Always secure, Always fast • Addressing the Cost of Coverage & Capacity § Match investment to opportunity and adjust over time BELAIR NETWORKS CONFIDENTIAL 4 BDMF 00001 -A 02

The Bel. Air Vision • Mobile Broadband Multi-Service Mesh Network • Support Range of Users and Applications § Voice, Video and Data § Service Providers, Government, Enterprises and Hospitality • Leverage Leading Wireless Networking Technologies § Wi-Fi, Wi. MAX, Cellular • Deliver Carrier-Grade Performance and Capacity § True broadband performance for users § Scalable bandwidth, supporting hundreds of Mbps per square mile § Integrate with existing infrastructure § Cost-effective to deploy yet sustainable for long-term BELAIR NETWORKS CONFIDENTIAL 5 BDMF 00001 -A 02

Bel. Air is everywhere… Ottawa Toronto Ashland Minneapolis Chicago Syracuse Cooperstown Omaha York Long Roseville Springfield Philadelphia. Island Galt Livermore San Francisco Lake Tahoe. Kansas City Charleston Dallas Charlotte Pleasanton Fort Worth Atlanta Santa Clara Jackson Athens Beverly Hills Austin Baton Rouge Statesboro San Antonio Jacksonville Houston Los Cabos Monterrey. Fort Meyers Guadalajara Cancún St. Maarten Pto. Vallarta San Juan St. Thomas Aberdeen Bristol Kingston Islington London Bratislava Parma Seoul Riyadh Mumbai Manila Campinas … global presence with over 250 deployments BELAIR NETWORKS CONFIDENTIAL 6 BDMF 00001 -A 02

Bel. Air’s Extended Family Complementary Solution Partners BELAIR NETWORKS CONFIDENTIAL 7 BDMF 00001 -A 02

Agenda Corporate Overview Mesh Overview Bel. Air Product Portfolio Key Applications Industry Solutions Summary BELAIR NETWORKS CONFIDENTIAL 8 BDMF 00001 -A 02

Mesh Technology Steps 1. Shared Mesh 2. Switched Mesh 3. Multi-Service Mesh • Similar to shared Ethernet • Similar to Switched Ethernet • Voice capable • Video capable • Qo. S • Scaleable • 10 x capacity advantage • For cellular carriers, MSOs, other carriers, government for public safety, mission critical • Integration of access technologies with backhaul • Low cost equipment • No voice • No video • Limited Qo. S • No big capacity advantage • For some municipalities • Uncertain business case Most current competitors • Multiple access § Wi-Fi, Wi. MAX, Cell • Multiple backhaul § Unlicensed, licensed • For carriers, government, enterprise Bel. Air started here in 2002! 2005 2006 BELAIR NETWORKS CONFIDENTIAL 9 2007 BDMF 00001 -A 02

Mesh Types C 148 Channel 11 C 148 Channel 6 Channel 1 C 148 Channel 11 Single radio – Shared Lowest cost to cover Best effort data services Dual radio – Shared Multi radio – Switched Compromise Data and some voice Highest performance Multi-media services Not all meshes are created equal ! BELAIR NETWORKS CONFIDENTIAL 10 BDMF 00001 -A 02

Mesh Options: single radio shared mesh • Each node has a single radio § Access and backhaul share radio § All nodes tune to same frequency • Mesh is formed using omni-directional antennas to send and receive to all the other nodes within range § Mesh nodes and clients share available bandwidth § Backhaul is a shared network f 1 § System capacity is very low f 1 § Latency is high and unpredictable • Most mesh products today are single radio f 1 § Simple, but won’t scale to a large system • • Cannot support many broadband users Not usable for Carrier Grade Voice f 1 • Think of this like a hub or shared media Ethernet Low capacity coverage only No carrier-grade voice due to high latency and jitter BELAIR NETWORKS CONFIDENTIAL 11 BDMF 00001 -A 02

Mesh Options: dual radio shared mesh • Each node has two radios § Access and backhaul are separate § 2 frequency bands used • Mesh is formed using omni-directional antennas § Multipoint-to-multipoint f 11 f 6 a 1 f 11 § Backhaul is a shared network operating a 1 on a single channel § System capacity is low f 1 a 1 f 6 a 1 • Dual radio mesh is an improvement § Removes the client device from the forwarding equations • Still limited capacity and scalability, works for small networks • Not suited for voice • This works like a hub as well Low capacity coverage only Limited carrier-grade voice due to high latency and jitter BELAIR NETWORKS CONFIDENTIAL 12 BDMF 00001 -A 02

Mesh Options: multi radio switched mesh • Each node has multiple radios § Client access and mesh backhaul are completely independent • Mesh formed with multiple point-to-point links, dedicated radios, directional antennas § Backhaul is an independent network operating on multiple channels • Independent backhaul links provide greater capacity • Point-to-point links enable greater separation of mesh nodes § Backhaul mesh has performance of wired network • Think of this like an Ethernet Switch Coverage and capacity scale to large network Delivers voice, video, TDM and data BELAIR NETWORKS CONFIDENTIAL 13 BDMF 00001 -A 02

Agenda Corporate Overview Mesh Overview Bel. Air Product Portfolio Key Applications Industry Solutions Summary BELAIR NETWORKS CONFIDENTIAL 14 BDMF 00001 -A 02

Industry’s Broadest Product Portfolio • 0. 9/1. 9 GHz • 2. 3 GHz • 2. 4 GHz • 2. 5 GHz • 4. 9 GHz • 5. 2 -5. 8 GHz • T 1 • Point to point • Fiber • Point to multipoint • Copper • DOCSIS® • Multipoint to multipoint • Wi-Fi • Wi. MAX • Cellular BELAIR NETWORKS CONFIDENTIAL 15 BDMF 00001 -A 02

Industry’s Most Flexible Product Portfolio • Shared mesh Clusters at the edge § Bel. Air 50 C single radio § Divided into Clusters § Wi-Fi Mesh in 2. 4 GHz band § Street level mesh • Point-to-multipoint backhaul connecting Clusters to Zones § Bel. Air 100 and Bel. Air 200 § Pre-Wi. MAX 5 GHz § Rooftop Lo. S • Point-to-point backhaul interconnecting Zones to Super Zones § Bel. Air 200 § Pre-Wi. MAX 5 GHz § Rooftop Lo. S All Bel. Air solution – mesh access and backhaul Covers up to 15 sq. mi. with one wired egress! BELAIR NETWORKS CONFIDENTIAL 16 BDMF 00001 -A 02

Bel. Air 200 Wireless Multi-service Switch Router – multi radio • Four Slot Modular Design § Supports both Backhaul and Access Radio Modules § Modules are compatible with Bel. Air 100 family § Supports Wi-Fi, Wi. MAX, Cellular and 4. 9 GHz • Integration into existing “wired” networks § Line Interface Modules supports Ethernet & Cable networks • Enterprise-class Layer 2 Switching § Traffic Management via: • IEEE 802. 1 Q VLANs • IEEE 802. 1 p Prioritization • Egress and Ingress Rate Limiting § User Authentication via IEEE 802. 1 X • Comprehensive Management § Supporting Bel. View NMS, Element Management and CLI § Providing Configuration, Control and Fault Management § Utilizing industry standards like SNMPv 1/v 2/v 3 • Security § WPA, AES, TKIP, VPNs BELAIR NETWORKS CONFIDENTIAL 17 BDMF 00001 -A 02

Bel. Air 100 Wireless Multi-service Node – dual radio • Two Radio Multi-service Node § Shares ARM and BRM radio modules with Bel. Air 50 & Bel. Air 200 § Provides both backhaul and access support § Supports Wi-Fi, Wi. MAX, Cellular and 4. 9 GHz • Integrated antennas § One directional Backhaul antenna (10. 5 d. Bi) § One directional Access antenna (8 d. Bi) • Layer 2 Networking Capabilities § 1 -port 10/100 BASE-TX § Traffic Management via IEEE 802. 1 Q VLANs, IEEE 802. 1 p § User Authentication via IEEE 802. 1 X • Wireless Networking Capabilities § Supports up to 16 SSIDs per Bel. Air 100 C § MBSSID support for up to 8 virtual APs per Bel. Air 100 C • Comprehensive Management § Supporting Bel. View NMS, Element Management & CLI § Providing Configuration, Control and Fault Management § Utilizing industry standards like SNMPv 1/v 2/v 3 • Security § WPA, AES, TKIP, VPNs BELAIR NETWORKS CONFIDENTIAL 18 BDMF 00001 -A 02

Bel. Air 100 S Strand-Mounted Wireless Multi-service Node – dual radio • Two Radio Multi-service Node § Shares ARM and BRM radio modules with Bel. Air 50 & Bel. Air 200 § Provides both backhaul and access support § Standards compliant Wi-Fi IEEE 802. 11 b/g • Integrated antennas § One directional Backhaul antenna (10. 5 d. Bi) § One directional Access antenna (8 d. Bi) • Cable ready § Strand-Mounted § Integrated DOCSIS® 2. 0 § Dual Diversity 8 d. Bi Antennas • Network Features § Multiple SSID & VLAN support § Layer 2 Qo. S and prioritization § Seamless Mobility utilizing L 2 TP ® DOCSIS is a trademark of Cable. Labs BELAIR NETWORKS CONFIDENTIAL 19 BDMF 00001 -A 02

Bel. Air 100 C Wireless Mesh Node – dual radio • Delivers low cost multipoint to multipoint mesh • Dual radio design for dedicated access (ARM 3) & backhaul (BRM 3) § ARM 3 connects to IEEE 802. 11 b/g clients and operates in the 2. 4 GHz frequency band § BRM 3 supports frequency ranges from 5. 25 to 5. 875 GHz § Dual Diversity 8 d. Bi Antennas • Layer 2 Networking Capabilities § 1 -port 10/100 BASE-TX § Traffic Management via IEEE 802. 1 Q VLANs, IEEE 802. 1 p § User Authentication via IEEE 802. 1 X • Wireless Networking Capabilities § Supports up to 16 SSIDs per Bel. Air 100 C § MBSSID support for up to 8 virtual APs per Bel. Air 100 C • Comprehensive Management § Supporting Bel. View NMS, Element Management & CLI § Providing Configuration, Control and Fault Management § Utilizing industry standards like SNMPv 1/v 2/v 3 • Security § WPA, AES, TKIP, VPNs BELAIR NETWORKS CONFIDENTIAL 20 BDMF 00001 -A 02

Bel. Air 50 C Wireless Mesh Node - single radio • Delivers low cost multipoint to multipoint mesh • Shared access and backhaul § Connects to IEEE 802. 11 b/g clients § Operates in the 2. 4 GHz frequency band § Dual Diversity 8 d. Bi Antennas • Layer 2 Networking Capabilities § 1 -port 10/100 BASE-TX § Traffic Management via IEEE 802. 1 Q VLANs, IEEE 802. 1 p § User Authentication via IEEE 802. 1 X • Wireless Networking Capabilities § Supports up to 16 SSIDs per Bel. Air 50 C § MBSSID support for up to 8 virtual APs per Bel. Air 50 C • Comprehensive Management § Supporting Bel. View NMS, Element Management & CLI § Providing Configuration, Control and Fault Management § Utilizing industry standards like SNMPv 1/v 2/v 3 • Security § WPA, AES, TKIP, VPNs BELAIR NETWORKS CONFIDENTIAL 21 BDMF 00001 -A 02

Bel. Air Wireless Radio Modules • Supports Wi-Fi, Wi. MAX & 4. 9 Public Safety • Three Different Models § ARM – Access Radio Modules § BRM – Backhaul Radio Modules § WRX – Wi. MAX Radio Modules • Extensive Frequency Band Support • Industry Standard Compliant § IEEE 802. 11 a/b/g & IEEE 802. 16 • Multiple Topology Options § Multiple Point-to-point § Point-to-Multipoint § Multipoint-to-multipoint BELAIR NETWORKS CONFIDENTIAL 22 BDMF 00001 -A 02

Radio Module Specifications Module Radio Band Frequency Range Spectrum Category Industry Standard ARM 3 2. 4 - 2. 4835 GHz ISM Unlicensed Wi-Fi (IEEE 802. 11 b/g) BRM 3 5. 25 - 5. 35 GHz UNII-2 Unlicensed (Mid range) Wi-Fi (IEEE 802. 11 a) BRM 3 5. 47 - 5. 725 GHz Unlicensed Wi-Fi (IEEE 802. 11 a) BRM 3 5. 725 - 5. 825 GHz UNII-3 Unlicensed (Long range) Wi-Fi (IEEE 802. 11 a) BRM 3 5. 825 - 5. 875 GHz ISM Unlicensed Wi-Fi (IEEE 802. 11 a) BRM 3 - 4. 940 - 4. 990 GHz Licensed Public Safety WRM 2. 30 - 2. 36 GHz WCS Licensed Wi. MAX (IEEE 802. 16 d) WRM 2. 495 - 2. 690 GHz MMDS Licensed Wi. MAX (IEEE 802. 16 d) BELAIR NETWORKS CONFIDENTIAL 23 BDMF 00001 -A 02

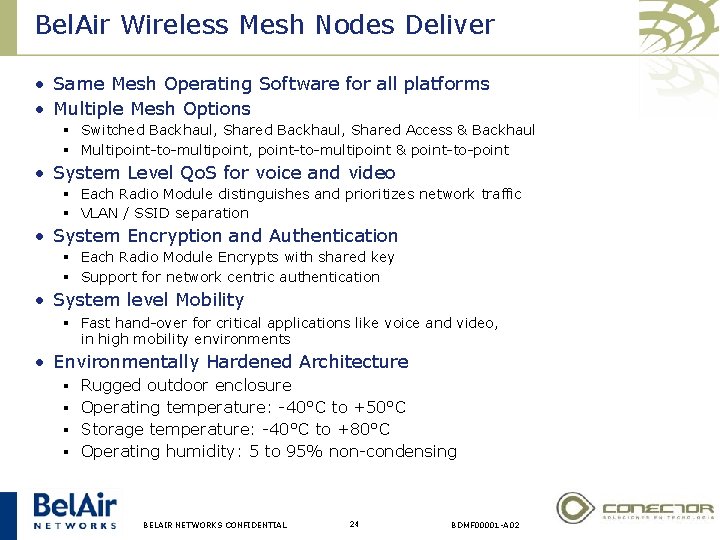

Bel. Air Wireless Mesh Nodes Deliver • Same Mesh Operating Software for all platforms • Multiple Mesh Options § Switched Backhaul, Shared Access & Backhaul § Multipoint-to-multipoint, point-to-multipoint & point-to-point • System Level Qo. S for voice and video § Each Radio Module distinguishes and prioritizes network traffic § VLAN / SSID separation • System Encryption and Authentication § Each Radio Module Encrypts with shared key § Support for network centric authentication • System level Mobility § Fast hand-over for critical applications like voice and video, in high mobility environments • Environmentally Hardened Architecture § § Rugged outdoor enclosure Operating temperature: -40°C to +50°C Storage temperature: -40°C to +80°C Operating humidity: 5 to 95% non-condensing BELAIR NETWORKS CONFIDENTIAL 24 BDMF 00001 -A 02

Network Management • Bel. View NMS § Manages all Bel. Air products via SMNP § Network View • Auto-discovery and topology update • Network configuration through Web interface and CLI • Performance monitoring • Analyze, filter and aggregate network data • Real time graphical display • Multiple views • Scalable Client Server architecture BELAIR NETWORKS CONFIDENTIAL 25 BDMF 00001 -A 02

Bel. View NMS Delivers • A scalable and flexible client server architecture § Each server supports up to 10 clients with the ability to assign different user access privileges § Each client can support multi-mesh management which means that the network administrators can manage multi-customer networks § Operates on either Microsoft Windows XP or SUN Solaris • Comprehensive network management that provides Configuration, Control, Analysis, Planning and Security § Network configuration of nodes and wireless mesh § Fault, Performance, Inventory and Security Management • Integration into existing NMS/OSS § Utilizing standard northbound interface (s) BELAIR NETWORKS CONFIDENTIAL 26 BDMF 00001 -A 02

Agenda Corporate Overview Mesh Overview Bel. Air Product Portfolio Key Applications Industry Solutions Summary BELAIR NETWORKS CONFIDENTIAL 27 BDMF 00001 -A 02

Municipal Video Applications - Stationary Video Surveillance - Downtown • Typical users § Public Safety; Law Enforcement § Public Works; Highway Department § Private Security Companies • Typical deployment § Downtown and/or high crime areas § Corporate buildings and campuses § Along highways and downtown grids • Technical Enablers Highway Monitoring § Application Prioritization § Bandwidth management (VLANs, Queuing) § Network Performance & Resiliency § Scalability & Coverage BELAIR NETWORKS CONFIDENTIAL 28 BDMF 00001 -A 02

Municipal Video Applications - Mobile Transportation Monitoring • Typical users § Public safety; police, fire and emergency medical personnel § Public works; Transportation Dept • Typical deployment § Police cruisers, fire trucks and ambulances § City buses and trains Video Surveillance – Police Chase • Technical Enablers § “Standards Based” Seamless Mobility § Flow based accounting & rate limiting § Dedicated Bandwidth via Switched Mesh § Network Scalability & Resiliency BELAIR NETWORKS CONFIDENTIAL 29 BDMF 00001 -A 02

Wi-Fi from the Outside • Nodes positioned around building • Connectivity via wireless mesh • Outdoor coverage as well as indoor 54 Mbps Point to Point Backhaul Links BELAIR NETWORKS CONFIDENTIAL 30 BDMF 00001 -A 02

Agenda Corporate Overview Mesh Overview Bel. Air Product Portfolio Key Applications Industry Solutions Summary BELAIR NETWORKS CONFIDENTIAL 31 BDMF 00001 -A 02

Public Access Solutions CPE BELAIR NETWORKS CONFIDENTIAL 32 BDMF 00001 -A 02

Public Works Solution – Highway Monitoring BELAIR NETWORKS CONFIDENTIAL 33 BDMF 00001 -A 02

Public Safety Solution – Video Surveillance Bel. Air nodes with 4. 9 GHz Bel. View NMS BELAIR NETWORKS CONFIDENTIAL 34 BDMF 00001 -A 02

Cellular Backhaul (Pseudo Wire) – Ecosystem BELAIR NETWORKS CONFIDENTIAL 35 BDMF 00001 -A 02

Seamless Mobility – Ecosystem Subscriber Management System (SMS): L 2 TP Default Gateway: Tunnel End Point: BELAIR NETWORKS CONFIDENTIAL 36 BDMF 00001 -A 02

Agenda Corporate Overview Mesh Overview Bel. Air Product Portfolio Key Applications Industry Solutions Summary BELAIR NETWORKS CONFIDENTIAL 37 BDMF 00001 -A 02

Only With Bel. Air: complete city-wide Wi-Fi Wired Backhaul 100 Mbps Metro Ethernet DS 3, cable or multiple T 1 s Pre-Wi. MAX Wireless Backhaul 5 GHz Wireless Wi-Fi Access 2. 4 GHz Wireless Mesh Standard Wi-Fi Clients 802. 11 b or 802. 11 g 2. 4 GHz Bel. Air provides complete infrastructure for municipal Wi-Fi. Integrated pre-Wi. MAX wireless backhaul and Wi-Fi access. BELAIR NETWORKS CONFIDENTIAL 38 BDMF 00001 -A 02

Only With Bel. Air: Scalable Wireless Capacity Highest Performance Node Types Radio Nodes Mesh Nodes Capacity Per Egress Capacity Per Sq. Mile / 2. 6 Sq. Km (@ 30 Nodes) • Point to Point • Point to Multipoint Switched 72 Mbps 150 -600 Mbps Multi-Radio Carrier-grade Vo. IP Quality Video Dual-Radio • Point to Point • Point to Multipoint Shared Backhaul 5 -10 Mbps 25 -100 Mbps • Multipoint to Multipoint Shared Access And Backhaul 2 -6 Mbps 5 -50 Mbps Full Multimedia High-Speed Internet Single-Radio Lowest Cost Basic Data Service Design and grow network to match application and budget BELAIR NETWORKS CONFIDENTIAL 39 BDMF 00001 -A 02

Only With Bel. Air: match investment to opportunity Multi & Dual Radio Architecture for business class data, video & Vo. IP Dual Radio Architecture for DSL/Cable Equivalent Service Offerings Single & Dual Radio Architecture for basic nomadic data services BELAIR NETWORKS CONFIDENTIAL 40 BDMF 00001 -A 02

Only With Bel. Air: the features and flexibility to support a growing number of applications Video-Enabled Networks Public Safety Networks Voice Networks with Seamless Mobility BELAIR NETWORKS CONFIDENTIAL Integrated Mobile Broadband Network: Wi-Fi, Wi. MAX and Cellular 41 BDMF 00001 -A 02

Why Bel. Air? 1. Highest Capacity Mesh Make Money • Independent, RF isolated links – Switched mesh • Lowest cost / Mbps 2. Lowest Latency Mesh • Only Mesh able to carry voice, T 1/E 1, video • Voice support in Access, Switching and Backhaul Modules 3. Most Advanced Networking • Qo. S, VLAN, Partitioned Networks, fiber interface, T 1/E 1 interface • IMS and Fixed mobile convergence 4. Wi-Fi Coverage from Outside In • Verified up to 36 floors Save Money 5. Broadest Portfolio • 4 Platforms from lowest cost to highest performance • Multi-service capabilities (Wi-Fi, Wi. MAX, Cellular) • Platforms share modules 6. Longest Reach Mesh • Measured 6. 4 km with internal antennas • More coverage/fewer nodes 7. Modular Platforms • Wi-Fi, Upgrade to Wi. MAX, Cellular • Future-proof deployments BELAIR NETWORKS CONFIDENTIAL 42 BDMF 00001 -A 02

Bel. Air Networks • Leader in Mobile Broadband Mesh Networking • Field-Proven Performance and Reliability § Over 250 installations worldwide • Most Comprehensive Product Family § Designed for the realities of urban, outdoor environments • Technology Leader § Industry’s 1 st Multi-Service Mesh – combining Wi-Fi, Wi. MAX, and Cellular § Industry’s 1 st FCC-certified Wi. MAX Mesh § Industry’s 1 st Cable-optimized Wireless Mesh § Industry’s 1 st Live GSM Call Over Mesh § Industry’s 1 st and only wireless mesh networks supporting metro scale multimedia mobility BELAIR NETWORKS CONFIDENTIAL 43 BDMF 00001 -A 02

GRACIAS! BELAIR NETWORKS CONFIDENTIAL 44 BDMF 00001 -A 02
