Introduction l Advantage of PLANET’s Solution l Product Overview l Product Features l Solutions l Roadmap www. planet. com. tw 2 / 63

PLANET Advantages n n n Full Range of Products for Indoor/ Outdoor WLAN Applications • Access Points/ Bridge • Routers • Adapters Reliable Protection for Secure WLAN Communication • Wireless Protected Setup (WPS) • Wi-Fi Protected Access (WPA/ WPA 2) • WPA-PSK (Pre-Shared Key) • 802. 1 x Authentication • Wired Equivalent Privacy (WEP) Encryption Advanced Technologies Deployment • 300 Mbps 802. 11 n • MIMO (Multiple Input, Multiple Output) www. planet. com. tw 3 / 63

Product Overview Model Wireless Mesh Network Outdoor Wireless Indoor Wireless 802. 11 n Indoor Wireless 802. 11 b/g MAP-3100 Description Layer 2 / Layer 3 802. 11 a/b/g Indoor MESH AP (Multiple VLAN/SSID) MAP-3020 Layer 2 802. 11 a/b/g Outdoor MESH AP (Multiple VLAN/SSID, High Power) MAP-3120 Layer 2 802. 11 a/b/g Indoor MESH AP (Multiple VLAN/SSID) MAP-2100 MAP-2000 / MAP-2000 R Wireless Adapter MAP-2105 Layer 3 802. 11 a/b/g Indoor MESH AP Layer 3 802. 11 a/b/g Outdoor MESH AP (IP 66, -20~70 o. C) Mobile IP Roaming Gateway for Wireless MESH Network www. planet. com. tw 4 / 63

Product Overview Wireless Mesh Network Model Description WAP-8000 802. 11 a/b/g High Power Wireless LAN Outdoor AP / Bridge (WISP support) WAP-7000 802. 11 a Wireless LAN Outdoor Bridge WAP-6000 802. 11 g Wireless LAN Outdoor AP / Bridge WAP-6100 802. 11 g Wireless LAN Outdoor AP / Bridge (12 db patch antenna) WAP-6200 802. 11 g High Power Wireless LAN Outdoor AP / Router (14 db patch antenna, WISP support) Outdoor Wireless Indoor Wireless 802. 11 n Indoor Wireless 802. 11 b/g Wireless Adapter www. planet. com. tw 5 / 63

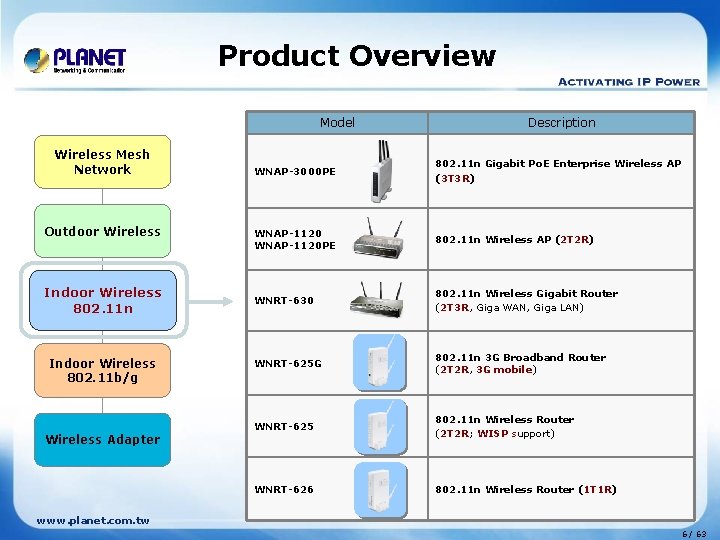

Product Overview Model Wireless Mesh Network Outdoor Wireless Indoor Wireless 802. 11 n Indoor Wireless 802. 11 b/g Description WNAP-3000 PE 802. 11 n Gigabit Po. E Enterprise Wireless AP (3 T 3 R) WNAP-1120 PE 802. 11 n Wireless AP (2 T 2 R) WNRT-630 802. 11 n Wireless Gigabit Router (2 T 3 R, Giga WAN, Giga LAN) WNRT-625 G 802. 11 n 3 G Broadband Router (2 T 2 R, 3 G mobile) WNRT-625 802. 11 n Wireless Router (2 T 2 R; WISP support) WNRT-626 802. 11 n Wireless Router (1 T 1 R) Wireless Adapter www. planet. com. tw 6 / 63

Product Overview Model Wireless Mesh Network Outdoor Wireless WAP-4060 PE Super G 54/108 Mbps Enterprise Po. E Wireless AP WAP-4033 PE 54 Mbps Po. E Wireless AP WAP-4033 WAP-4036 Indoor Wireless 802. 11 n Indoor Wireless Indoor 802. 11 b/g Wireless Adapter 54 Mbpw Wireless AP (AP/ AP Client/ Bridge Pt. P, Pt. MP/ WDS/ Repeater) 54 Mbps Wireless AP (AP/AP Client/ WDS/ AP+WDS/ Repeater) WRT-414 54 Mbps Wireless Router (Qo. S / WISP support) WRT-416 54 Mbps Wireless Router WPG-110 54 Mbps Wireless Presentation Gateway ADW-4401 A 54 Mbps Wireless ADSL 2/2+ Router WSG-404 54 Mbps Wireless Hot Spot Gateway WLS-1280 www. planet. com. tw Description Wireless LAN Switch / Security Gateway (Central Managed APs: WAP-4060 PE/4033 PE) 7 / 63

Product Overview Model Description 802. 11 n Wireless Adapter Wireless Mesh Network Outdoor Wireless Indoor Wireless 802. 11 n WNL-U 552 802. 11 n Wireless USB Adapter (2 T 2 R) WNL-U 553 802. 11 n Wireless USB Adapter (1 T 2 R) WNL-U 554 802. 11 n Wireless USB Adapter (1 T 1 R) WNL-U 554 A 802. 11 n Wireless USB Adapter (1 T 1 R, RP-SMA connector) WNL-9320 802. 11 n Wireless PCI card (2 T 3 R) WNL-9330 802. 11 n Wireless PCI card (1 T 2 R) WNL-9500 802. 11 n Wireless PCI Express Card (2 T 3 R) 802. 11 g Wireless Adapter Indoor Wireless 802. 11 b/g WL-U 357 Super G 54 / 108 Mbs 802. 11 g Wireless USB Adapter WL-3560 Super G 54 / 108 Mbps 802. 11 g Wireless PCI Adapter WL-U 356 L 802. 11 g Wireless USB Adapter WL-U 356 A 802. 11 g Wireless USB Adapter (RP-SMA connector) WL-8317 802. 11 g Wireless PC card WML-3565 802. 11 g Wireless PC card (MIMO) Wireless Adapter www. planet. com. tw 8 / 63

Features l Wireless Mesh Network l Outdoor Wireless LAN l Indoor Wireless LAN l Wireless Adapter www. planet. com. tw 9 / 63

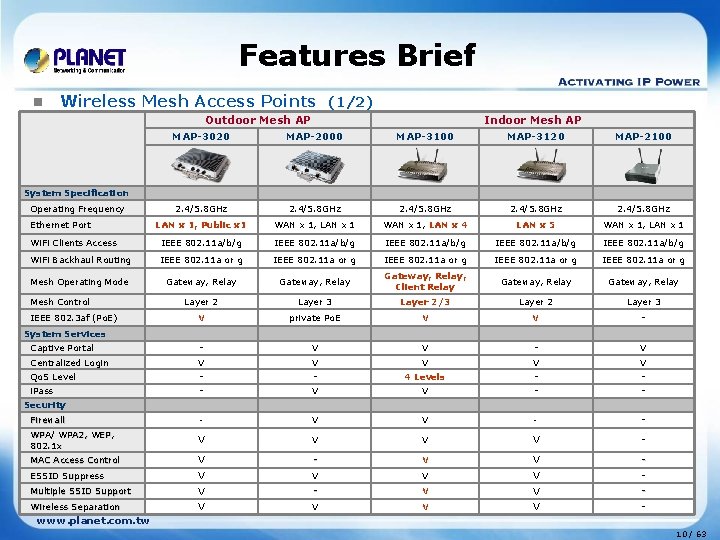

Features Brief n Wireless Mesh Access Points (1/2) Outdoor Mesh AP Indoor Mesh AP MAP-3020 MAP-2000 MAP-3120 MAP-2100 2. 4/5. 8 GHz LAN x 1, Public x 1 WAN x 1, LAN x 4 LAN x 5 WAN x 1, LAN x 1 Wi. Fi Clients Access IEEE 802. 11 a/b/g Wi. Fi Backhaul Routing IEEE 802. 11 a or g Mesh Operating Mode Gateway, Relay, Client Relay Gateway, Relay Layer 2 Layer 3 Layer 2/3 Layer 2 Layer 3 V private Po. E V V - System Specification Operating Frequency Ethernet Port Mesh Control IEEE 802. 3 af (Po. E) System Services 　 　 Captive Portal - V V - 　 V Centralized Login V V V Qo. S Level - - 4 Levels - - i. Pass - V V - - Firewall - V V - - WPA/ WPA 2, WEP, 802. 1 x V V - MAC Access Control V - V V - ESSID Suppress V V - Multiple SSID Support V - V V - Wireless Separation V V - Security www. planet. com. tw 10 / 63

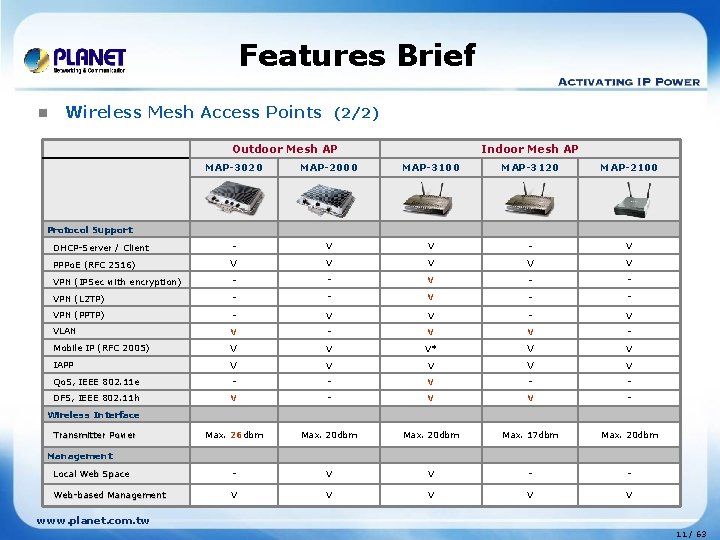

Features Brief n Wireless Mesh Access Points (2/2) Outdoor Mesh AP Indoor Mesh AP MAP-3020 MAP-2000 MAP-3120 MAP-2100 DHCP-Server / Client - V V - V PPPo. E (RFC 2516) V V VPN (IPSec with encryption) - - VPN (L 2 TP) - - VPN (PPTP) - V VLAN V - V V - Mobile IP (RFC 2005) V V V* V V IAPP V V V Qo. S, IEEE 802. 11 e - - V - - DFS, IEEE 802. 11 h V - V V - Max. 26 dbm Max. 20 dbm Max. 17 dbm Max. 20 dbm Local Web Space - V V - - Web-based Management V V V Protocol Support Wireless Interface Transmitter Power Management www. planet. com. tw 11 / 63

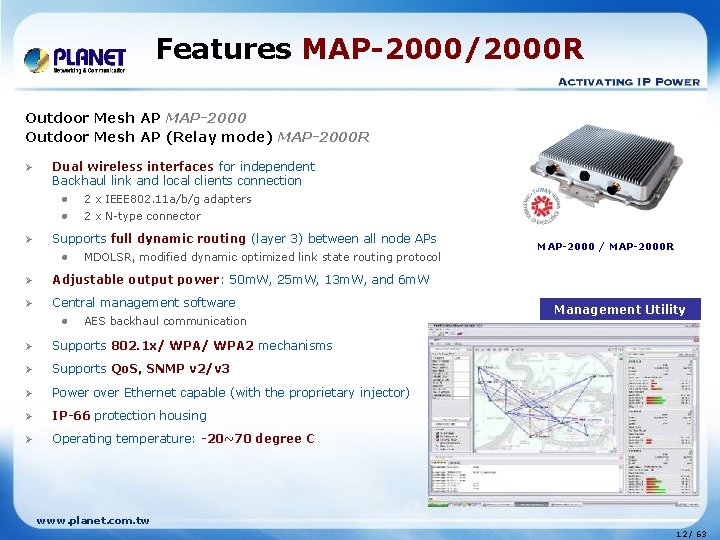

Features MAP-2000/2000 R Outdoor Mesh AP MAP-2000 Outdoor Mesh AP (Relay mode) MAP-2000 R Ø Ø Dual wireless interfaces for independent Backhaul link and local clients connection l 2 x IEEE 802. 11 a/b/g adapters l 2 x N-type connector Supports full dynamic routing (layer 3) between all node APs l MDOLSR, modified dynamic optimized link state routing protocol Ø Adjustable output power: 50 m. W, 25 m. W, 13 m. W, and 6 m. W Ø Central management software l AES backhaul communication Ø Supports 802. 1 x/ WPA 2 mechanisms Ø Supports Qo. S, SNMP v 2/v 3 Ø Power over Ethernet capable (with the proprietary injector) Ø IP-66 protection housing Ø Operating temperature: -20~70 degree C MAP-2000 / MAP-2000 R Management Utility www. planet. com. tw 12 / 63

Features MAP-2000 n Typical installation Sector Coverage with VSAT Backbone Access by VSAT Backend Internet connection Headquarter Server Farm MAP-2000 (Relay) MAP-2000 (Gateway) Sector Area – Wireless Mesh Network Coverage MAP-2000 (Relay) www. planet. com. tw 13 / 63

Comparison MAP-2000 Brand PLANET MAP-2000 Fire. Tide Hotport 3100 Tropos 3210 1 box 2. 4/5. 0 GHz 2. 4 Ghz LAN Extension port 1 4 1 Wi. Fi Clients Access 11 a/b/g - 11 b/g Layer 3 DHCP-Server V V V DHCP-Client V V V PPPo. E V - - DNS-Client V VPN V V V Firewall V V V NAT V V V NTP-Client V V - Captive Portal V - - Next Release V V Mobile IP V - V IAPP V - - Traffic shaping V - - 4 levels 3 levels - Features Architecture Operating Frequency Mesh Control System Services VLAN Qo. S www. planet. com. tw 14 / 63

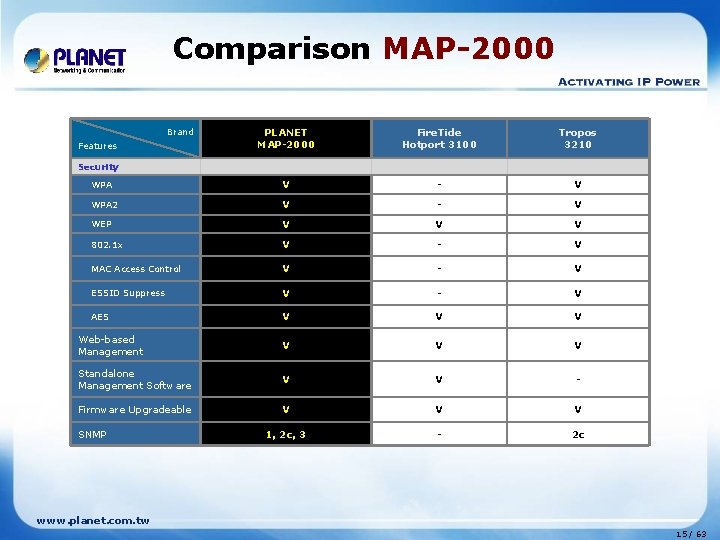

Comparison MAP-2000 Brand PLANET MAP-2000 Fire. Tide Hotport 3100 Tropos 3210 WPA V - V WPA 2 V - V WEP V V V 802. 1 x V - V MAC Access Control V - V ESSID Suppress V - V AES V V V Web-based Management V V V Standalone Management Software V V - Firmware Upgradeable V V V 1, 2 c, 3 - 2 c Features Security SNMP www. planet. com. tw 15 / 63

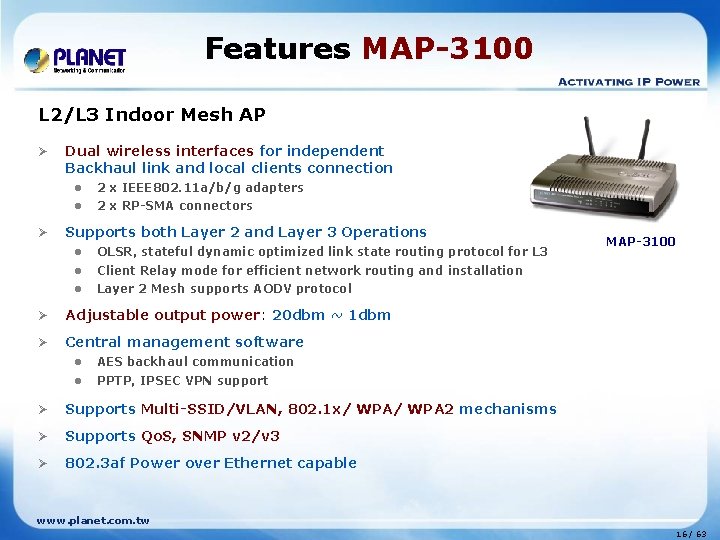

Features MAP-3100 L 2/L 3 Indoor Mesh AP Ø Ø Dual wireless interfaces for independent Backhaul link and local clients connection l 2 x IEEE 802. 11 a/b/g adapters l 2 x RP-SMA connectors Supports both Layer 2 and Layer 3 Operations l OLSR, stateful dynamic optimized link state routing protocol for L 3 l Client Relay mode for efficient network routing and installation l Layer 2 Mesh supports AODV protocol Ø Adjustable output power: 20 dbm ~ 1 dbm Ø Central management software l AES backhaul communication l PPTP, IPSEC VPN support Ø Supports Multi-SSID/VLAN, 802. 1 x/ WPA 2 mechanisms Ø Supports Qo. S, SNMP v 2/v 3 Ø 802. 3 af Power over Ethernet capable MAP-3100 www. planet. com. tw 16 / 63

Features MAP-3120 / MAP-3020 L 2 Indoor / Outdoor Mesh AP Ø Ø Dual wireless interfaces for independent Backhaul link and local clients connection l 2 x IEEE 802. 11 a/b/g adapters l 2 x RP-SMA connectors Supports Layer 2 Operation l Better performance l Single IP segment to ease the management task l Suitable for smaller network Ø Adjustable output power: 20 dbm ~ 1 dbm (MAP-3120) 26 dbm ~ 1 dbm (MAP-3020) Ø Central management software l MAP-3120 L 2 Indoor Mesh AP AES backhaul communication Ø Supports 802. 1 x/ WPA 2 mechanisms Ø 802. 3 af Power over Ethernet capable Ø High power design (MAP-3020) MAP-3020 L 2 Outdoor Mesh AP www. planet. com. tw 17 / 63

Features MAP-2100 Indoor Mesh AP Ø Same as MAP-2000 but with palm-sized plastic enclosure Ø Dual wireless interfaces for independent Backhaul link and local clients connection Ø l 2 x IEEE 802. 11 a/b/g adapters l 2 x RP-SMA for different type antenna Supports full dynamic routing (layer 3) between all node APs l MDOLSR, modified dynamic optimized link state routing protocol Ø Adjustable output power: 50 m. W, 25 m. W, 13 m. W, and 6 m. W Ø Central management software l AES backhaul communication Ø Supports 802. 1 x/ WPA 2 mechanisms Ø Supports Qo. S, SNMP v 2/v 3 Ø Operating temperature: 0~50 degree C MAP-2100 www. planet. com. tw 18 / 63

Features MAP-2105 Mobile IP Roaming Gateway Ø Purpose: Provide full “Mobility” to all users in MESH network Not like the layer-2 only capability in ordinary AP, the “mobility” defined in Mobile IP Gateway is the ability of a user to change its attached node from one mesh AP to another while maintaining all existing communications and using the same IP address at this new link all the time. Ø Advantage: Users can have continuous network services, such as Vo. IP communications and file transfers, while roaming from node to node without the fear of connection broken. Ø Features: § Provides 1 WAN port for Internet connection § Secured HTTP management § Supports VPN client § Optimized for up to 500 users MAP-2105 www. planet. com. tw 19 / 63

Features l Wireless Mesh Network l Outdoor Wireless LAN l Indoor Wireless LAN l Wireless Adapter www. planet. com. tw 20 / 63

Features Brief n Outdoor Wireless Access Points / Bridges WAP-8000 WAP-7000 WAP-6100 WAP-6200 Wireless Standard 802. 11 a/b/g 802. 11 a 802. 11 g / Super G 802. 11 g Frequency Band 2. 4 / 5 GHz 2. 4 GHz Max. Data Rate 108 Mbps 54 Mbps AP - - V V V Bridge V V V Repeater - - V V V AP Client V - V V V WPA -PSK V - V V V WPA 2 -PSK V - - - V WEP V V V 802. 1 x - - V Clear Channel Auto Select V V V Adjustable Output Power V V V SNMP Support V V - - - WISP V - - - V Routing Function - - V Model Feature Operatio n Mode Security www. planet. com. tw 21 / 63

Features WAP-8000 802. 11 a/b/g 108 Mbps Outdoor WLAN AP Ø 2. 4/5 GHz operating frequency with less interference Ø Super A/G mode, Data rate up to 108 Mbps Ø Available channels selectable Ø High Power design up to 400 m. W, with multiple Adjustable output power Ø Case designed with IP 68 code for waterproof Ø Power over Ethernet capable (with the proprietary injector) Ø SNMP management Ø Operating temperature: -40~85 degree C WAP-8000 www. planet. com. tw 22 / 63

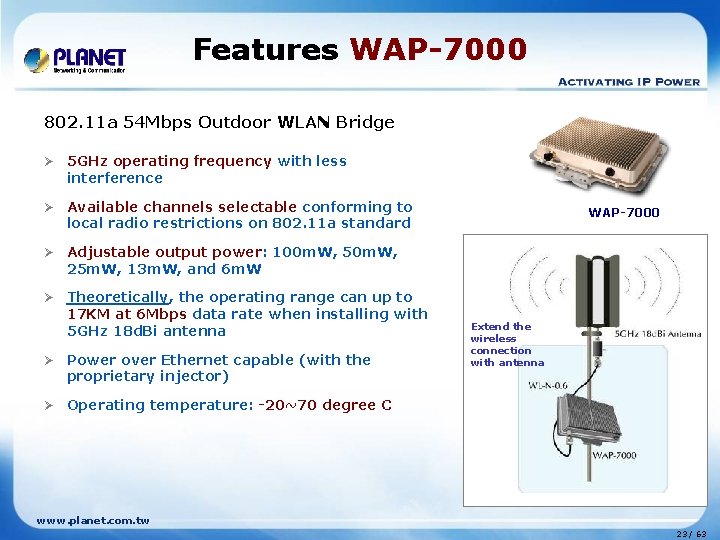

Features WAP-7000 802. 11 a 54 Mbps Outdoor WLAN Bridge Ø 5 GHz operating frequency with less interference Ø Available channels selectable conforming to local radio restrictions on 802. 11 a standard Ø Adjustable output power: 100 m. W, 50 m. W, 25 m. W, 13 m. W, and 6 m. W Ø Theoretically, the operating range can up to 17 KM at 6 Mbps data rate when installing with 5 GHz 18 d. Bi antenna Ø Power over Ethernet capable (with the proprietary injector) Ø Operating temperature: -20~70 degree C WAP-7000 Extend the wireless connection with antenna www. planet. com. tw 23 / 63

Features WAP-6000 802. 11 g 54 Mbps Outdoor WLAN AP with Bridge Ø Operation modes: AP, Bridge, Wireless client, Repeater Ø Robust WLAN security support : • • • WPA (Wi-Fi Protected Access) WAP-6000 WPA-PSK (Pre-Shared Key) WEP encryption Ø Adjustable output power: 65 m. W, 32 m. W, 16 m. W, 8 m. W, and 4 m. W Ø Theoretically, the operating range can up to 18 KM at 6 Mbps data rate when installing with ANT-SE 18 (18 d. Bi antenna) Ø Power over Ethernet capable (with the proprietary injector) Ø Operating temperature: -20~70 degree C www. planet. com. tw 24 / 63

Features WAP-6100 802. 11 g 54 Mbps Outdoor WLAN CPE AP Ø Operation modes: AP, Bridge, Wireless client, Repeater Ø Robust WLAN security support : • WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key) • WEP encryption Ø Adjustable output power: full, half, quarter, eighth, minimum Ø Built-in 12 d. Bi patch antenna Ø Power over Ethernet capable (with the proprietary injector) Ø Operating temperature: -10~70 degree C WAP-6100 www. planet. com. tw 25 / 63

Features WAP-6200 802. 11 g Outdoor WLAN CPE AP/ Router Ø Operation modes: AP, WDS (Bridge), AP+WDS, Wireless client, Repeater & WISP Ø Robust WLAN security with WEP, WPA-PSK, WAP 2, WPA 2 -PSK, 802. 1 x Ø Adjustable output power: 400 m. W, 200 m. W, 100 m. W, 50 m. W, 25 m. W Ø Built-in 14 d. Bi patch antenna Ø Power over Ethernet capable (with the proprietary injector) Ø Operating temperature: -10~60 degree C WAP-6200 www. planet. com. tw 26 / 63

Features l Wireless Mesh Network l Outdoor Wireless LAN l Indoor Wireless LAN § 802. 11 n AP/ Router § 802. 11 g AP/ Router § Wireless LAN Switch § Hot-Spot Gateway l Indoor Wireless Adapter www. planet. com. tw 27 / 63

Features Brief n 802. 11 n Indoor Wireless AP/Router Model WNAP-3000 PE WNAP-1120 PE WNRT-630 WNRT-625 G WNRT-625 WNRT-626 Feature 802. 11 n 3 G protocol 802. 11 n 2. 4 GHz 300 Mbps 300 Mbps 150 Mbps V V V V V V WISP - - - V V - WEP V V V 802. 1 x V V V WPA / WPS V V V Hardware RF ON/OFF - - - V V V QOS - V V V Po. E www. planet. com. tw V V (PE model) - - Wireless Standard Frequency Band Data Rate AP Bridge Operation Repeater Mode AP client Security Features 28 / 63

Features WNAP-3000 PE 802. 11 n Gigabit Po. E Wireless AP Ø 300 Mbps for high speed wireless connection l 3 T 3 R technology Ø 802. 11 n draft 2. 0 compliant wireless technology backward compatible with 802. 11 b/g standards Ø IEEE 802. 3 af compliant Ø Multiple Wireless mode: AP, AP Client, Bridge P 2 P/P 2 m. P, Repeater Ø Supports WPA (PSK)/WPA 2 (PSK) & 64/128 -bit WEP & 802. 11 x Encryption Ø Supports SNMP v 1, v 2, v 3 Ø Multiple-SSID / 802. 11 Q tagging function Ø SSL Web-based advanced user interface, Telnet/CLI Ø Universal Plug and Play (UPn. P) WNAP-3000 PE www. planet. com. tw 29 / 63

Features WNAP-1120 / WNAP-1120 PE 802. 11 n 300 Mbps WLAN AP with Bridge Ø IEEE 802. 11 n provides data rate up to 300 Mbps Ø IEEE 802. 3 af compliant (WNAP-1120 PE) Ø Supports Wi-Fi Protected Setup (WPS) Ø Four operating modes: AP, AP client, Bridge, WDS, Repeater Ø Support WPA (Wi-Fi Protected Access) for 802. 1 x and WPA-PSK Ø Multiple SSID / 802. 11 Q tagging function Ø Built-in Radius Server function WNAP-1120 PE www. planet. com. tw 30 / 63

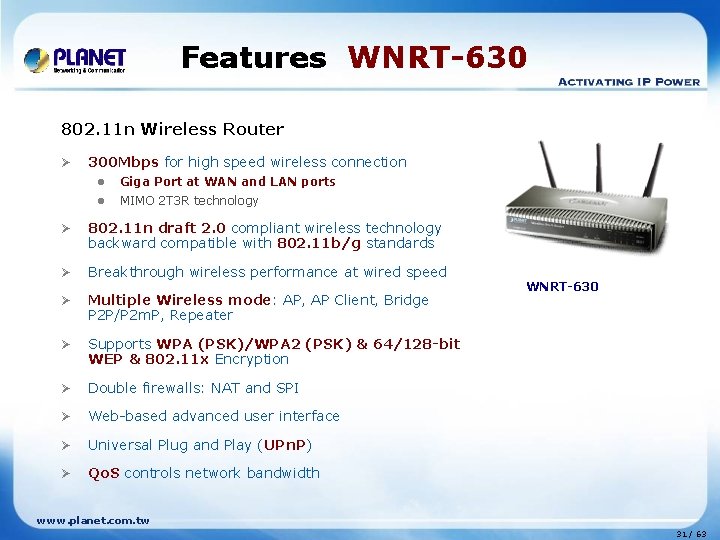

Features WNRT-630 802. 11 n Wireless Router Ø 300 Mbps for high speed wireless connection l Giga Port at WAN and LAN ports l MIMO 2 T 3 R technology Ø 802. 11 n draft 2. 0 compliant wireless technology backward compatible with 802. 11 b/g standards Ø Breakthrough wireless performance at wired speed Ø Multiple Wireless mode: AP, AP Client, Bridge P 2 P/P 2 m. P, Repeater Ø Supports WPA (PSK)/WPA 2 (PSK) & 64/128 -bit WEP & 802. 11 x Encryption Ø Double firewalls: NAT and SPI Ø Web-based advanced user interface Ø Universal Plug and Play (UPn. P) Ø Qo. S controls network bandwidth WNRT-630 www. planet. com. tw 31 / 63

Features WNRT-625 G 802. 11 n Wireless Router Ø Dual WAN Interfaces: WAN port for cable or wired DSL service + 3 G mobile connection Ø Supports UMTS/HSDPA Mobile Internet Service Ø 300 Mbps for high speed wireless connection l 2 T 2 R technology Ø 802. 11 n draft 2. 0 compliant wireless technology backward compatible with 802. 11 b/g standards Ø Breakthrough wireless performance at wired speed Ø Supports WPA (PSK)/WPA 2 (PSK) & 64/128 -bit WEP & 802. 11 x Encryption Ø Double firewalls: NAT and SPI Ø Web-based advanced user interface Ø Universal Plug and Play (UPn. P) Ø Qo. S controls network bandwidth WNRT-625 G www. planet. com. tw 32 / 63

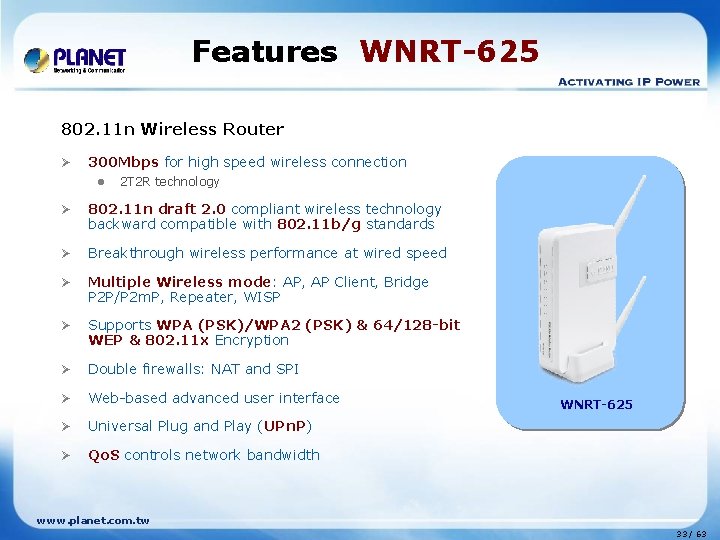

Features WNRT-625 802. 11 n Wireless Router Ø 300 Mbps for high speed wireless connection l 2 T 2 R technology Ø 802. 11 n draft 2. 0 compliant wireless technology backward compatible with 802. 11 b/g standards Ø Breakthrough wireless performance at wired speed Ø Multiple Wireless mode: AP, AP Client, Bridge P 2 P/P 2 m. P, Repeater, WISP Ø Supports WPA (PSK)/WPA 2 (PSK) & 64/128 -bit WEP & 802. 11 x Encryption Ø Double firewalls: NAT and SPI Ø Web-based advanced user interface Ø Universal Plug and Play (UPn. P) Ø Qo. S controls network bandwidth WNRT-625 www. planet. com. tw 33 / 63

Features WNRT-626 802. 11 n Cost Effective Wireless Router Ø 802. 11 n high speed wireless connection l 11 n 1 T 1 R technology Ø 802. 11 n draft 2. 0 compliant wireless technology backward compatible with 802. 11 b/g standards Ø Breakthrough wireless performance at wired speed Ø Multiple Wireless mode: AP, AP Client, Bridge P 2 P/P 2 m. P, Repeater Ø Supports WPA (PSK)/WPA 2 (PSK) & 64/128 -bit WEP & 802. 11 x Encryption Ø Double firewalls: NAT and SPI Ø Web-based advanced user interface Ø Universal Plug and Play (UPn. P) Ø Qo. S controls network bandwidth WNRT-626 www. planet. com. tw 34 / 63

11 n 300 Mbps Wireless Network WNL-U 552 WNL-U 554 • 300 Mbps High Speed • 3 x Wireless Coverage WNRT-630 WNL-9320 www. planet. com. tw 35 / 63

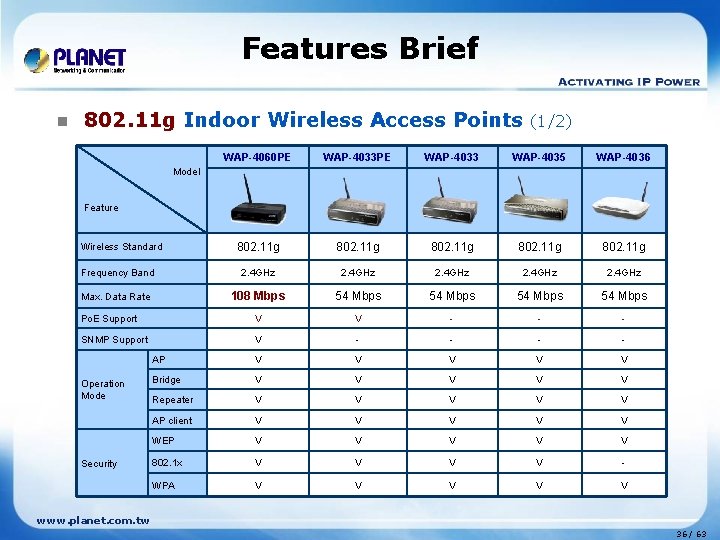

Features Brief n 802. 11 g Indoor Wireless Access Points (1/2) WAP-4060 PE WAP-4033 WAP-4035 WAP-4036 802. 11 g Frequency Band 2. 4 GHz Max. Data Rate 108 Mbps 54 Mbps Po. E Support V V - - - SNMP Support V - - AP V V V Bridge V V V Repeater V V V AP client V V V WEP V V V 802. 1 x V V - WPA V V V Model Feature Wireless Standard Operation Mode Security www. planet. com. tw 36 / 63

Features Brief n 802. 11 g Indoor Wireless Access Points (2/2) WAP-4060 PE WAP-4033 WAP-4035 WAP-4036 Region (Domain) Selection V - - Automatic Channel Selection V - - Wireless Client Isolation V - - Rogue AP Detection V - - VLAN Identifier V - - RADIUS Server Built-in - - - RADIUS MAC Authentication V - - RADIUS Accounting V - - Multiple SSID V - - CLI (Command Line Interface) V - - Enterprise SOHO User Model Feature Market Position www. planet. com. tw 37 / 63

Features WAP-4060 PE 54/108 Mbps 11 g Enterprise Po. E Wireless Access Point Ø Comply with IEEE 802. 11 b/g standard Ø IEEE 802. 3 af Po. E compliant Ø Robust network security with 802. 1 x authentication, 64/128 -bit WEP encryption Ø Support WPA (Wi-Fi Protected Access) for 802. 1 x and WPA-PSK Ø Data rate up to 108 Mbps with Super G mode Ø Support Multiple SSIDs, Multiple SSID isolation, 802. 1 Q VLAN, RADIUS MAC authentication, Rogue AP detection, Access Control Ø Five operation modes: AP/ AP Client/ Wireless Bridge/ Multiple Bridge/ Repeater Ø With the reversed-polarity SMA male connector, WAP-4060 PE can connect with external antenna to extend the wireless distance WAP-4060 PE ─ ─ ─ Po. E Data Power FGSW-2620 PVS WAP-4060 PE File Server www. planet. com. tw 38 / 63

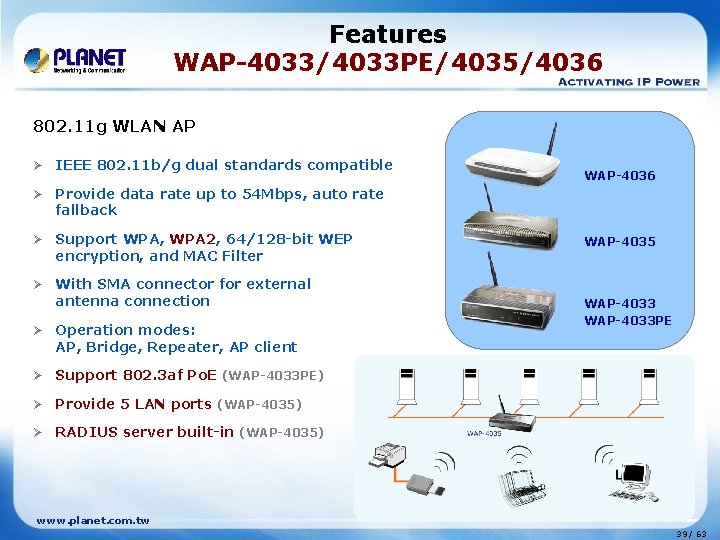

Features WAP-4033/4033 PE/4035/4036 802. 11 g WLAN AP Ø IEEE 802. 11 b/g dual standards compatible Ø Provide data rate up to 54 Mbps, auto rate fallback Ø Support WPA, WPA 2, 64/128 -bit WEP encryption, and MAC Filter Ø With SMA connector for external antenna connection Ø Operation modes: AP, Bridge, Repeater, AP client Ø Support 802. 3 af Po. E (WAP-4033 PE) Ø Provide 5 LAN ports (WAP-4035) Ø RADIUS server built-in (WAP-4035) WAP-4036 WAP-4035 WAP-4033 PE www. planet. com. tw 39 / 63

Features Brief n 802. 11 g Indoor Wireless Routers WRT-414 WRT-416 ADW-4401 A/B Wireless Standard 802. 11 g Max. Data Rate 54 Mbps 54 Mbps RJ-45 or RF (WISP mode) RJ-45 RJ-11 - - ADSL 2/2+ AP, Bridge, WDS Repeater AP V V V - - VPN Pass-Through VPN Pass-through 4 IPSec / 4 PPTP tunnels DMZ V Virtual Server V V V MAC filter, IP filter, URL blocking, Qo. S MAC filter, URL blocking MAC filter, TCP/UDP port filter, IP filter, Packet filter SOHO / Home Use / WISP CPE SOHO / Home Use Model Feature WAN Port ADSL Standard Operating Mode WEP Wireless WPA-PSK Security WPA-RADIUS VPN Feature Filters Market Position WISP, AP Client, Bridge, WDS Repeater V www. planet. com. tw 40 / 63

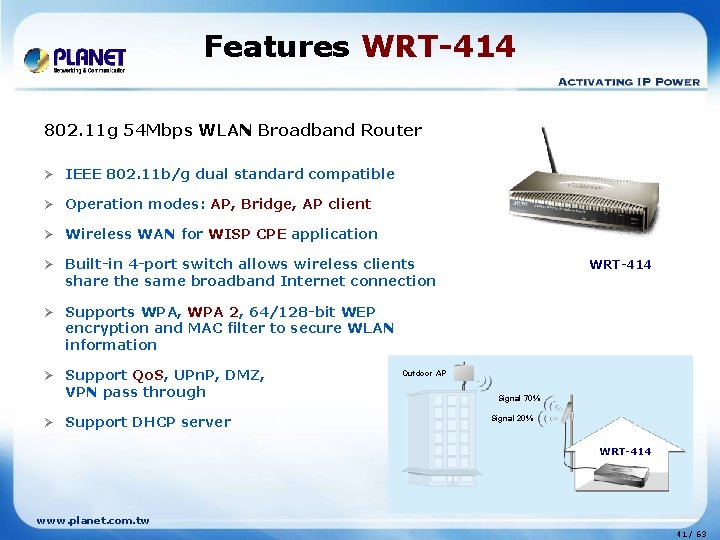

Features WRT-414 802. 11 g 54 Mbps WLAN Broadband Router Ø IEEE 802. 11 b/g dual standard compatible Ø Operation modes: AP, Bridge, AP client Ø Wireless WAN for WISP CPE application Ø Built-in 4 -port switch allows wireless clients share the same broadband Internet connection Ø Supports WPA, WPA 2, 64/128 -bit WEP encryption and MAC filter to secure WLAN information Ø Support Qo. S, UPn. P, DMZ, VPN pass through Ø Support DHCP server WRT-414 Outdoor AP Signal 70% Signal 20% WRT-414 www. planet. com. tw 41 / 63

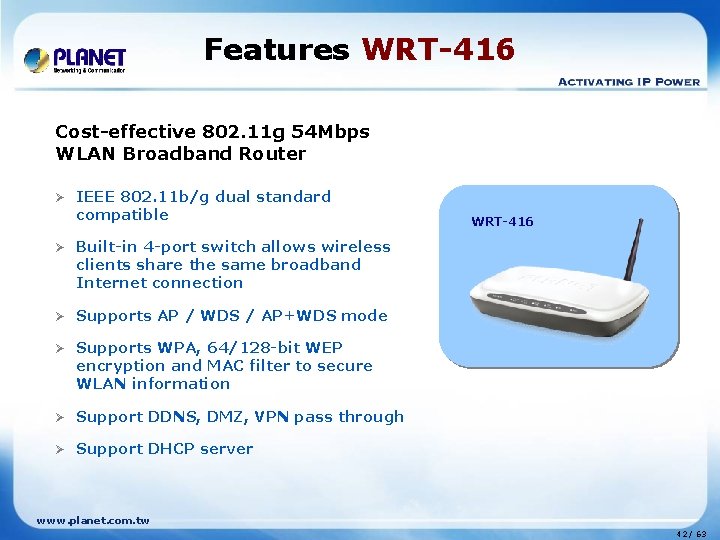

Features WRT-416 Cost-effective 802. 11 g 54 Mbps WLAN Broadband Router Ø IEEE 802. 11 b/g dual standard compatible Ø Built-in 4 -port switch allows wireless clients share the same broadband Internet connection Ø Supports AP / WDS / AP+WDS mode Ø Supports WPA, 64/128 -bit WEP encryption and MAC filter to secure WLAN information Ø Support DDNS, DMZ, VPN pass through Ø Support DHCP server WRT-416 www. planet. com. tw 42 / 63

Feature ADW-4401 A 802. 11 g Wireless ADSL 2/2+ Router Ø IEEE 802. 11 b/g standards compatible Ø Compliant with ADSL 2+ standard Ø Backward compatible with ADSL, ADSL 2 standard Ø Data transmission up to 24 Mbps downstream and 3. 5 Mbps upstream Ø Built-in 4 -port switch with auto MDI/MDI-X capability Ø Supports IPSec and PPTP VPN Ø Supports NAT, DHCP, DMZ, virtual server Ø Supports Firewall, Access Control, Packet Filter Ø Supports Dynamic DNS server and UPn. P Ø SNMP management with SNMPv 2 ADW-4401 A (Annex A, POTS) www. planet. com. tw 43 / 63

Features WLS-1280 Wireless LAN Switch Ø Manageable 12 APs include WAP-4033, WAP-4033 PE and WAP-4060 PE Ø Supports up to 120 concurrent users Ø Provides 500 local accounts and 2000 demand accounts Ø Multiple User login method via local database, RADIUS, POP 3, NT domain Ø Role-based and Policy-based access control, bandwidth control Ø Supports monitor IP on 3 rd party Access Points Ø Managed APs support WEP, WPA, and WPA 2 Ø Supports VPN termination of IPSec tunnels for secured wired/wireless connection Ø Supports MAC Access Control List WLS-1280 WAN LAN on- IPSec VPN Encrypted Network www. planet. com. tw 44 / 63

Features WSG-404 54 Mbps 11 g Hot Spot Wireless Subscriber Gateway Ø Plug-n-Play IP Internet access, no configuration changes required Ø Comply with 802. 11 g wireless standard • Work with any Wi. Fi adapters such as Centrino Notebook, 11 g 54 Mbps adapters or 11 b adapters Ø Built-in or RADIUS AAA support (Authentication, Authorization and Accounting) Ø Built-in RC 4 WEP Encryption, secure HTML login page (SSL), VLAN Security for Wireless, VPN (IPSec/PPTP) Pass through Ø Operate with the compact thermal printer (WSG-ACG 4) to print out billing information in a minute Ø Right for any places that provide public access to the Internet, such as Cyber Café, Airport, Government, and etc. WSG-404 www. planet. com. tw 45 / 63

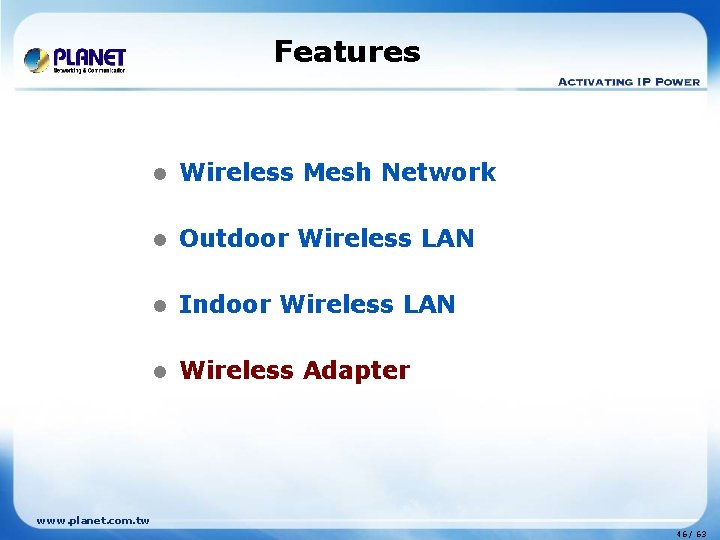

Features l Wireless Mesh Network l Outdoor Wireless LAN l Indoor Wireless LAN l Wireless Adapter www. planet. com. tw 46 / 63

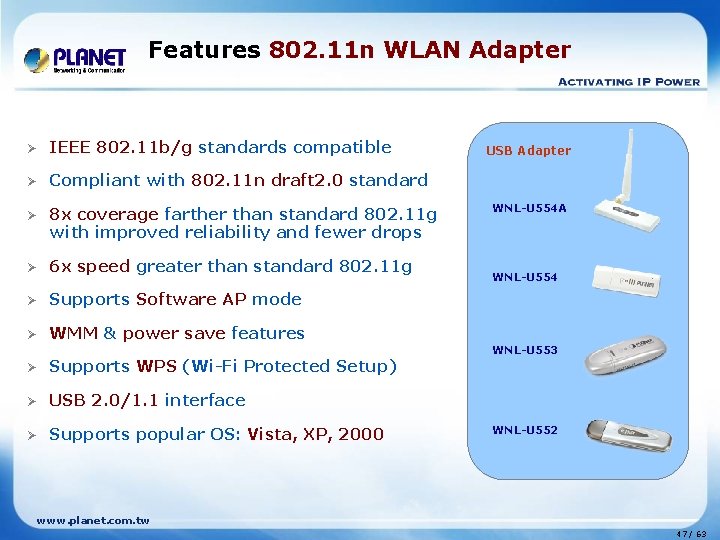

Features 802. 11 n WLAN Adapter Ø IEEE 802. 11 b/g standards compatible Ø Compliant with 802. 11 n draft 2. 0 standard Ø 8 x coverage farther than standard 802. 11 g with improved reliability and fewer drops Ø 6 x speed greater than standard 802. 11 g Ø Supports Software AP mode Ø WMM & power save features Ø Supports WPS (Wi-Fi Protected Setup) Ø USB 2. 0/1. 1 interface Ø Supports popular OS: Vista, XP, 2000 USB Adapter WNL-U 554 A WNL-U 554 WNL-U 553 WNL-U 552 www. planet. com. tw 47 / 63

Features 802. 11 n WLAN Adapter Ø IEEE 802. 11 b/g standards compatible Ø Compliant with 802. 11 n draft 2. 0 standard Ø 8 x coverage farther than standard 802. 11 g with improved reliability and fewer drops Ø 6 x speed greater than standard 802. 11 g Supports Software AP mode Ø WMM & power save features Ø Supports WPS (Wi-Fi Protected Setup) Ø PCI 2. 2 / PCI Express interface Ø Supports popular OS: Vista, XP, 2000 PCI Bus Adapter WNL-9320 WNL-9330 PCI Express Adapter WNL-9500 www. planet. com. tw 48 / 63

Features Super G WLAN Adapter Ø IEEE 802. 11 b/g standards compatible PCMCIA Adapter WL-3560 Ø Base on 2. 4 GHz DSSS (Direct Sequence Spread Spectrum) technology and support the modulation of OFDM mode Ø Super G mode provide data rate up to 108 Mbps Ø Support e. Xtended Range mode Ø Supports WPA for 802. 1 x and WPA-PSK Ø Driver supports most of the popular operating systems USB Adapter WL-U 357 www. planet. com. tw 49 / 63

Features 11 g WLAN MIMO Adapter Ø MIMO technology enhanced Ø IEEE 802. 11 g standards compatible Ø Supports WMM (Wi-Fi Multi-Media) Ø Supports WPA/WPA 2 and 64/128 -bit WEP encryption Ø Driver supports most popular operating systems PCMCIA Adapter WML-3565 www. planet. com. tw 50 / 63

Features 11 g WLAN Adapter Ø IEEE 802. 11 g standards compatible Ø Provide data rate up to 54 Mbps Ø Supports WPA-PSK and 64/128 -bit WEP encryption Ø Driver supports most popular operating systems PCI Bus Adapter WL-8317 USB Adapter WL-U 356 L WL-U 356 A (with SMA Connector) www. planet. com. tw 51 / 63

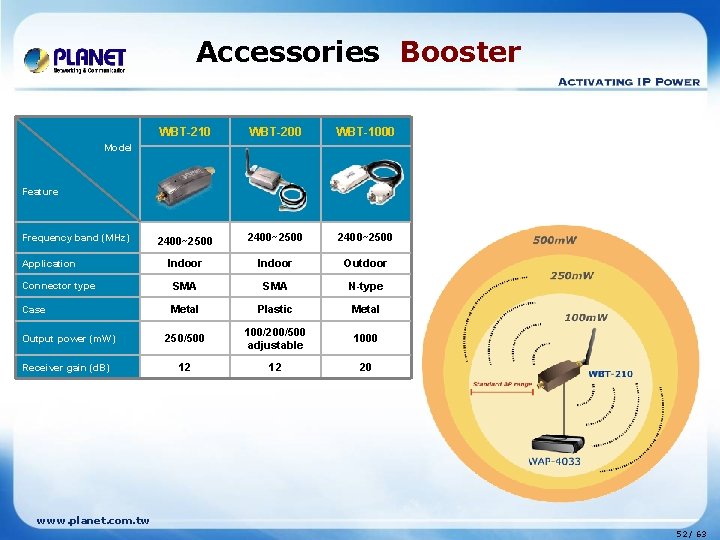

Accessories Booster WBT-210 WBT-200 WBT-1000 2400~2500 Indoor Outdoor Connector type SMA N-type Case Metal Plastic Metal Output power (m. W) 250/500 100/200/500 adjustable 1000 Receiver gain (d. B) 12 12 20 Model Feature Frequency band (MHz) Application www. planet. com. tw 52 / 63

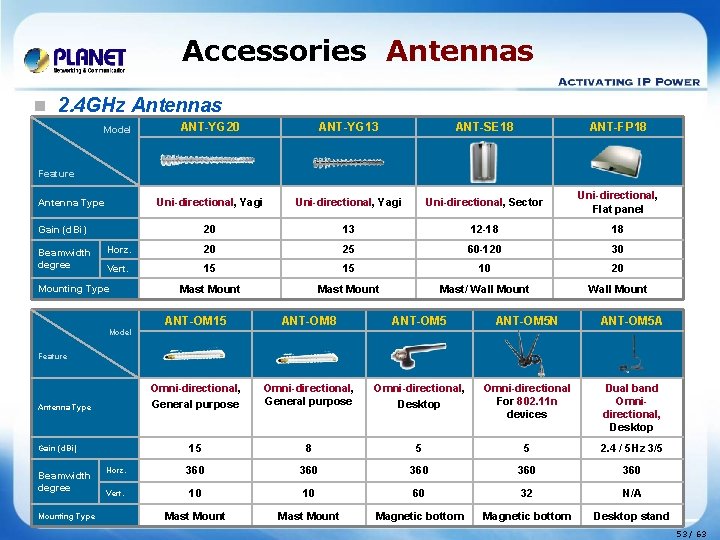

Accessories Antennas n 2. 4 GHz Antennas ANT-YG 20 ANT-YG 13 ANT-SE 18 ANT-FP 18 Uni-directional, Yagi Uni-directional, Sector Uni-directional, Flat panel 20 13 12 -18 18 Horz. 20 25 60 -120 30 Vert. 15 15 10 20 Mast Mount Mast/ Wall Mount Model Feature Antenna Type Gain (d. Bi) Beamwidth degree Mounting Type ANT-OM 15 ANT-OM 8 ANT-OM 5 N ANT-OM 5 A Omni-directional, General purpose Omni-directional, Desktop Omni-directional For 802. 11 n devices Dual band Omnidirectional, Desktop 15 8 5 5 2. 4 / 5 Hz 3/5 Horz. 360 360 360 Vert. 10 10 60 32 N/A Mast Mount Magnetic bottom Desktop stand Model Feature Antenna Type Gain (d. Bi) Beamwidth degree Mounting Type www. planet. com. tw 53 / 63

Accessories Antennas n 5 GHz Antennas ANT-SE 17 A ANT-FP 18 A ANT-OM 10 A ANT-OM 5 A Uni-directional, Sector Uni-directional, Flat panel Omni-directional Dual band Omni-directional, Desktop 16. 5 18 10 2. 4 / 5 Hz 3/5 Horz. 120 10 360 Vert. 10 10 6 N/A Pole or Wall Mount Desktop stand Model Feature Antenna Type Gain (d. Bi) Beamwidth degree Mounting Type www. planet. com. tw 54 / 63

Accessories Antennas n 2. 4/ 5 GHz Antennas Model ANT-CM 5 Feature Antenna Type 3 d. Bi@2. 4 GHz / 4 d. Bi@5 GHz Gain (d. Bi) Beamwidth degree Omni-directional Horz. 45 Vert. 75 Mounting Type Ceiling / Wall Mount www. planet. com. tw 55 / 63

Solutions www. planet. com. tw

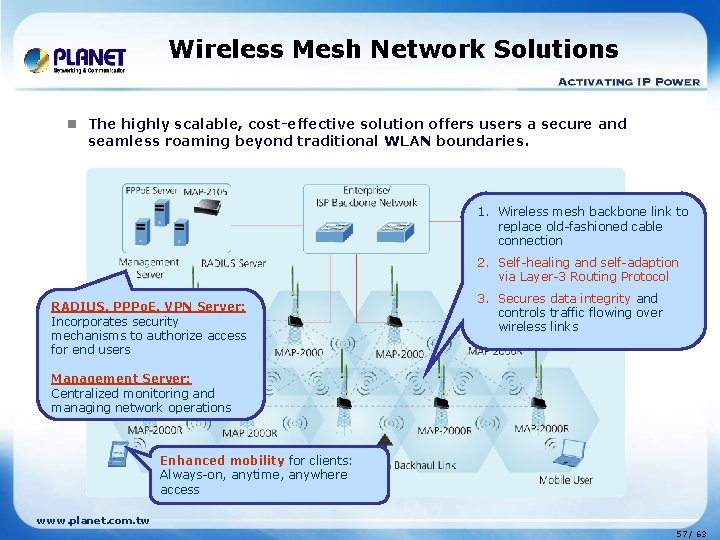

Wireless Mesh Network Solutions n The highly scalable, cost-effective solution offers users a secure and seamless roaming beyond traditional WLAN boundaries. 1. Wireless mesh backbone link to replace old-fashioned cable connection 2. Self-healing and self-adaption via Layer-3 Routing Protocol RADIUS, PPPo. E, VPN Server: Incorporates security mechanisms to authorize access for end users 3. Secures data integrity and controls traffic flowing over wireless links Management Server: Centralized monitoring and managing network operations Enhanced mobility for clients: Always-on, anytime, anywhere access www. planet. com. tw 57 / 63

Outdoor AP Solutions n Outdoor Inter-Building Wireless Solution Compared with traditional T 1/E 1 line, the wireless bridge application provides a fast and cost-effective solution for inter-building connection. Central site Along with the Omni-directional antenna, the WAP-6000 can provide 360º wireless coverage for remote clients. Satellite sites With built-in 12 d. Bi patch antenna, the WAP-6100 in satellite site can directly point to the destination bridge, thus reduce the unnecessary signal scattering. www. planet. com. tw 58 / 63

WISP Solutions n WISP (AP-AP Client Connection) § Flexible in installation § Flexible in wiring distance § Saving wiring cost WISP mode When WISP mode is enabled, CPE AP router acts as an AP client to connect the building to local WISP provider or nearby AP. WISP Provider www. planet. com. tw 59 / 63

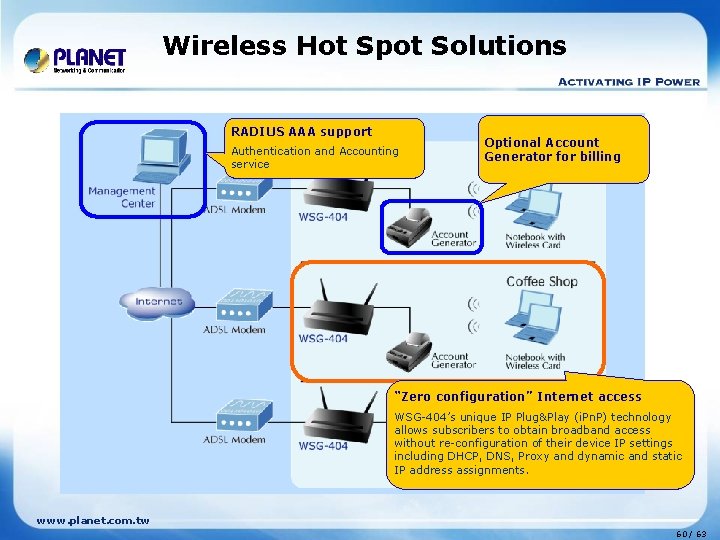

Wireless Hot Spot Solutions RADIUS AAA support Authentication and Accounting service Optional Account Generator for billing “Zero configuration” Internet access WSG-404’s unique IP Plug&Play (i. Pn. P) technology allows subscribers to obtain broadband access without re-configuration of their device IP settings including DHCP, DNS, Proxy and dynamic and static IP address assignments. www. planet. com. tw 60 / 63

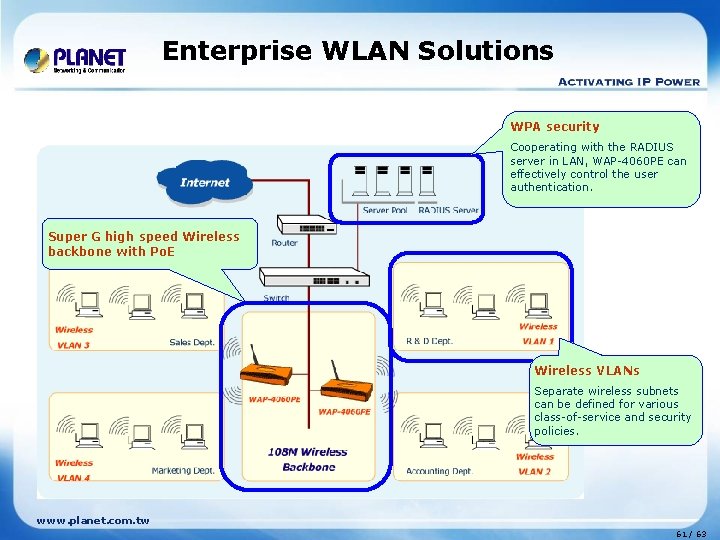

Enterprise WLAN Solutions WPA security Cooperating with the RADIUS server in LAN, WAP-4060 PE can effectively control the user authentication. Super G high speed Wireless backbone with Po. E Wireless VLANs Separate wireless subnets can be defined for various class-of-service and security policies. www. planet. com. tw 61 / 63

Roadmap Indoor L 3/L 2 Mesh AP Outdoor L 2 Mesh AP MAP-3020 MAP-3100 / MAP-3120 Outdoor WLAN AP/ Bridge Outdoor 11 a/b/g AP/ Bridge WAP-8000 11 a Bridge WAP-7000 Outdoor Dual Radio AP / Bridge Wi. MAX 16 d CPE Outdoor Router Dual band 11 n 300 Mbps Router WDRT-600 Wi. MAX 16 e CPE Indoor Router 11 b/g AP Bridge WAP-6000/6100 11 n Gigabit /Po. E AP WNAP-3000 PE 11 n 300 Mbps AP Indoor WLAN AP/Router WNAP-1120/1120 PE 11 n 3 G Router 300 Mbps WNRT-625 G 11 n Router cost effective WNRT-626 1 T 1 R 11 n USB adapter Wireless Adapter/ Accessories WNL-U 554 / WNL-U 554 A Cost Effective 1 T 2 R 11 n USB WNL-U 553 11 g PCI/PCI-E adapter 1 W 11 a indoor/outdoor Booster WBT-300 500 m. W 11 b/g Booster WBT-210 WNL-9320 / WNL-9500 www. planet. com. tw 2009/Q 2 2009/Q 3 62 / 63
