Wireless LAN Technology Introduction n Why look at

Wireless LAN Technology

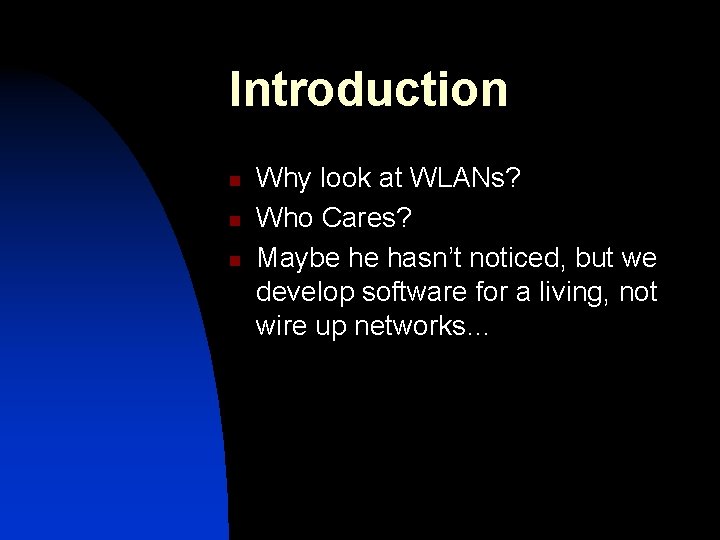

Introduction n Why look at WLANs? Who Cares? Maybe he hasn’t noticed, but we develop software for a living, not wire up networks…

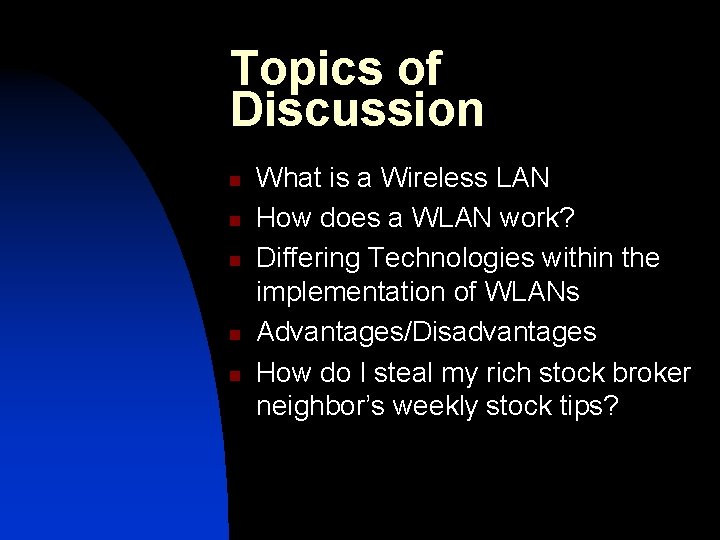

Topics of Discussion n n What is a Wireless LAN How does a WLAN work? Differing Technologies within the implementation of WLANs Advantages/Disadvantages How do I steal my rich stock broker neighbor’s weekly stock tips?

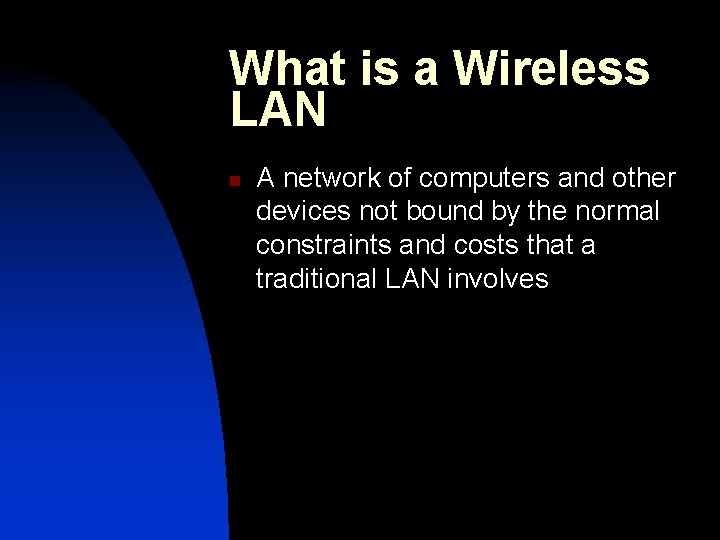

What is a Wireless LAN n A network of computers and other devices not bound by the normal constraints and costs that a traditional LAN involves

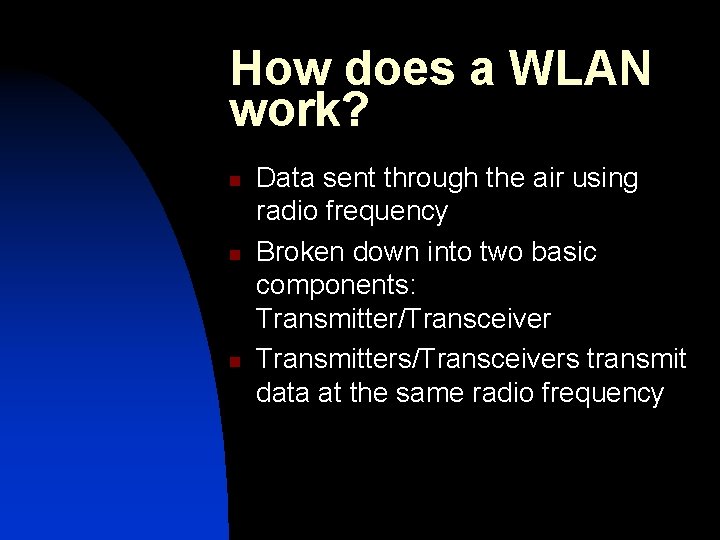

How does a WLAN work? n n n Data sent through the air using radio frequency Broken down into two basic components: Transmitter/Transceiver Transmitters/Transceivers transmit data at the same radio frequency

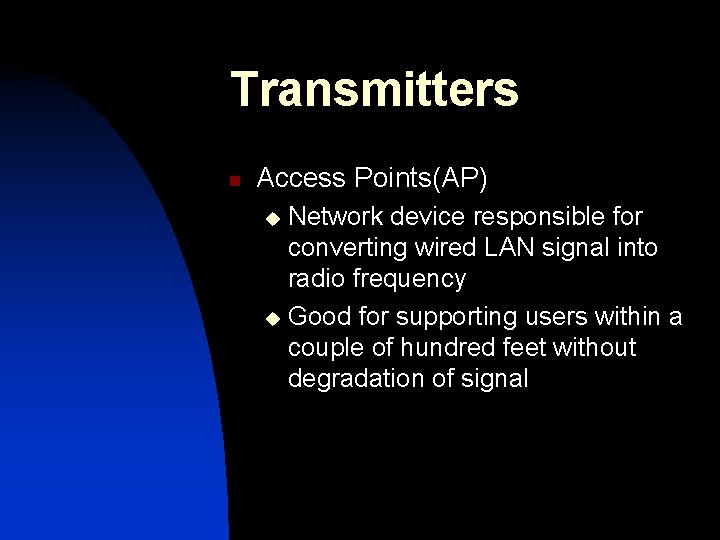

Transmitters n Access Points(AP) Network device responsible for converting wired LAN signal into radio frequency u Good for supporting users within a couple of hundred feet without degradation of signal u

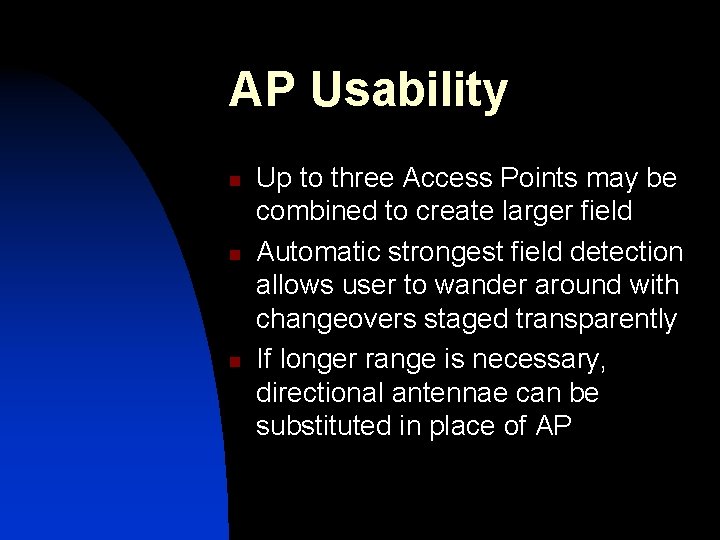

AP Usability n n n Up to three Access Points may be combined to create larger field Automatic strongest field detection allows user to wander around with changeovers staged transparently If longer range is necessary, directional antennae can be substituted in place of AP

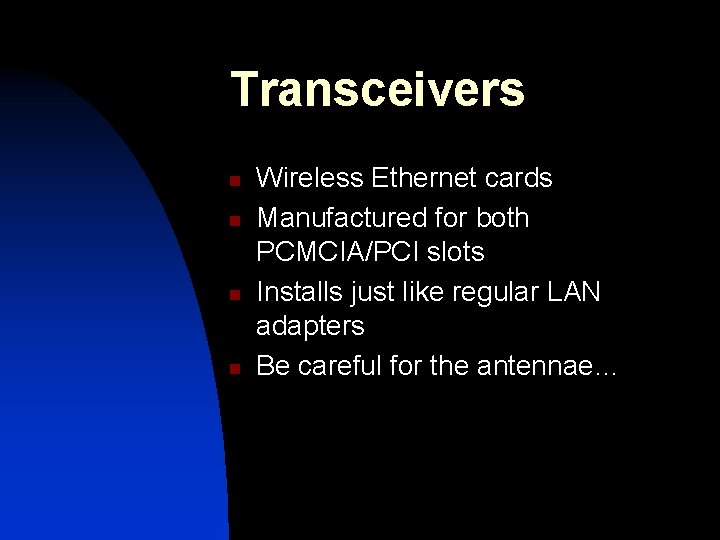

Transceivers n n Wireless Ethernet cards Manufactured for both PCMCIA/PCI slots Installs just like regular LAN adapters Be careful for the antennae…

The 802. 11/11 b Standard n n Standard developed for WLAN technologies Lays out: FH – Frequency Hopping u DSSS – Direct Sequence Spread Spectrum u Diffused infrared u

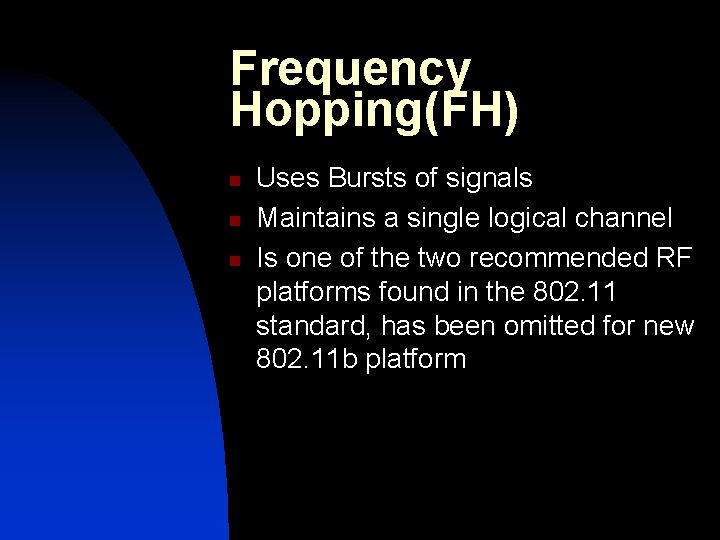

Frequency Hopping(FH) n n n Uses Bursts of signals Maintains a single logical channel Is one of the two recommended RF platforms found in the 802. 11 standard, has been omitted for new 802. 11 b platform

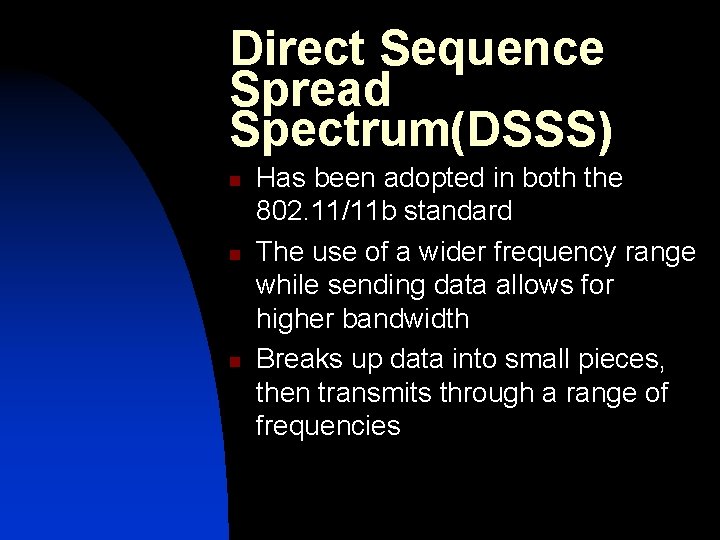

Direct Sequence Spread Spectrum(DSSS) n n n Has been adopted in both the 802. 11/11 b standard The use of a wider frequency range while sending data allows for higher bandwidth Breaks up data into small pieces, then transmits through a range of frequencies

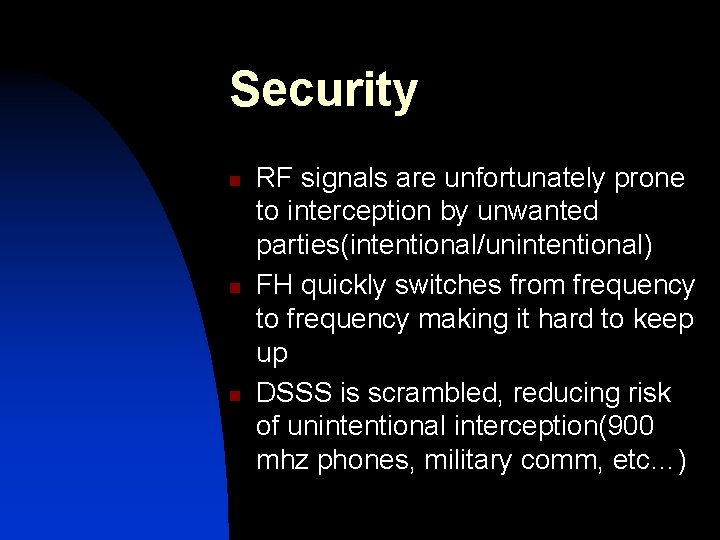

Security n n n RF signals are unfortunately prone to interception by unwanted parties(intentional/unintentional) FH quickly switches from frequency to frequency making it hard to keep up DSSS is scrambled, reducing risk of unintentional interception(900 mhz phones, military comm, etc…)

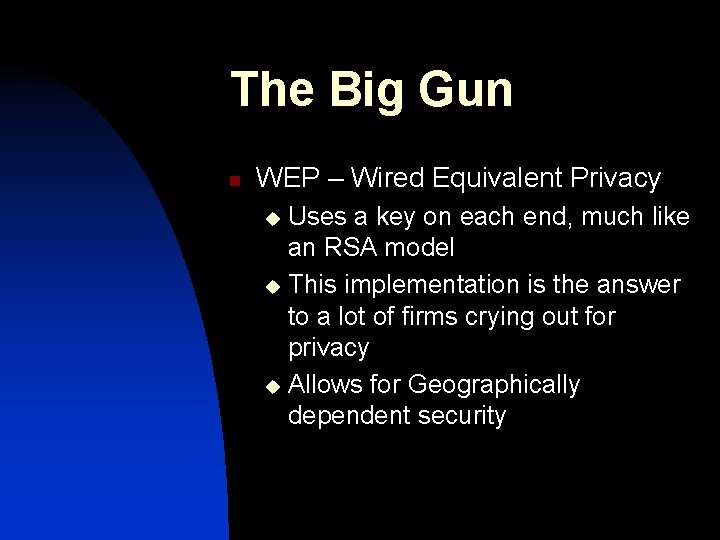

The Big Gun n WEP – Wired Equivalent Privacy Uses a key on each end, much like an RSA model u This implementation is the answer to a lot of firms crying out for privacy u Allows for Geographically dependent security u

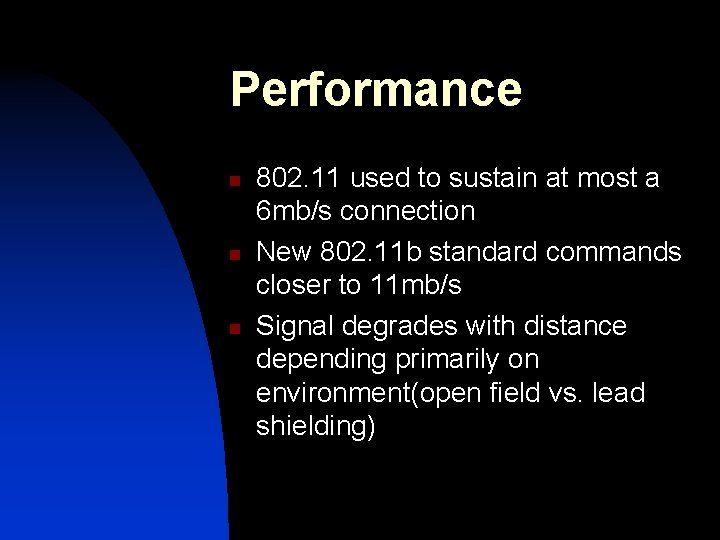

Performance n n n 802. 11 used to sustain at most a 6 mb/s connection New 802. 11 b standard commands closer to 11 mb/s Signal degrades with distance depending primarily on environment(open field vs. lead shielding)

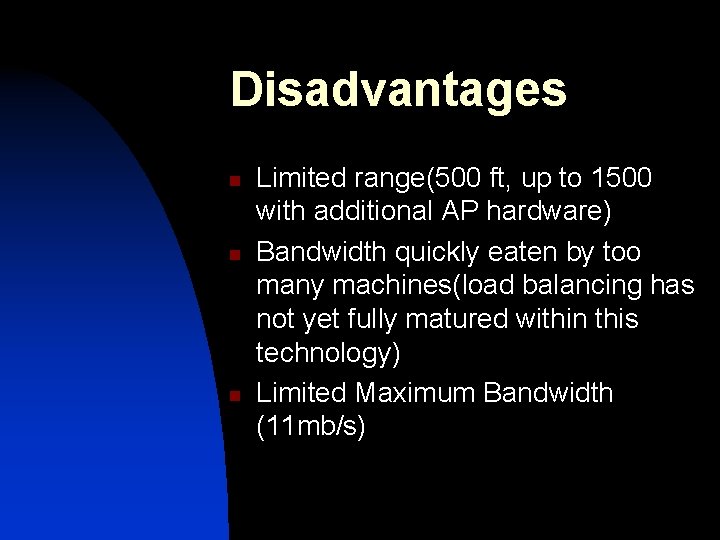

Disadvantages n n n Limited range(500 ft, up to 1500 with additional AP hardware) Bandwidth quickly eaten by too many machines(load balancing has not yet fully matured within this technology) Limited Maximum Bandwidth (11 mb/s)

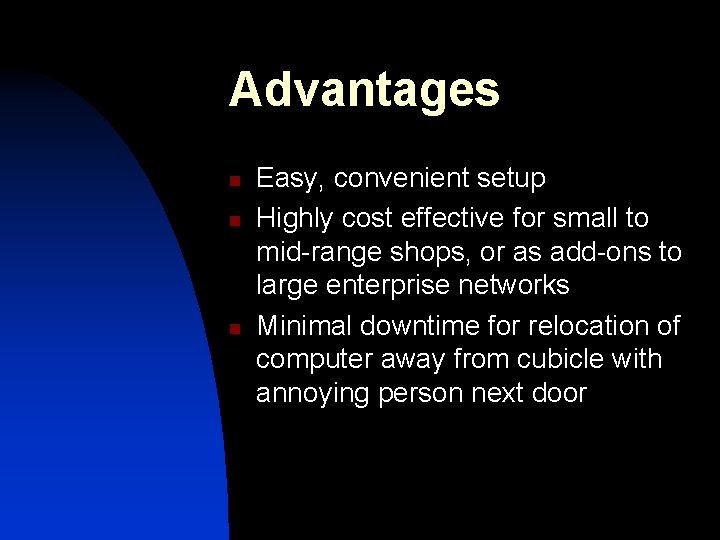

Advantages n n n Easy, convenient setup Highly cost effective for small to mid-range shops, or as add-ons to large enterprise networks Minimal downtime for relocation of computer away from cubicle with annoying person next door

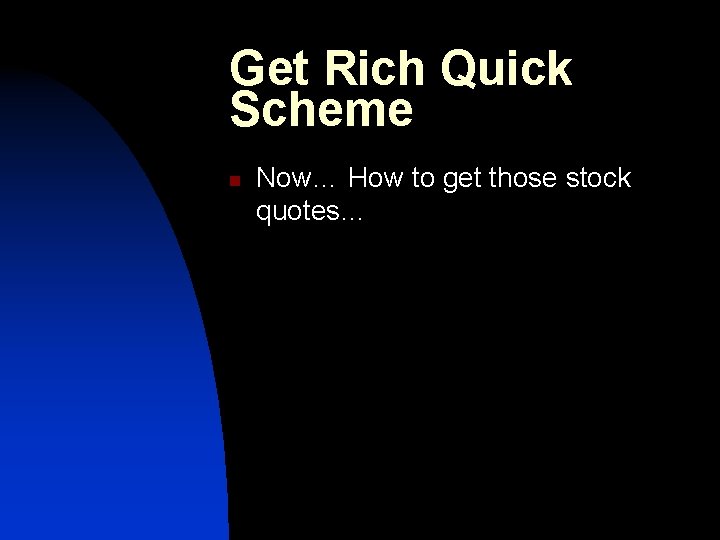

Get Rich Quick Scheme n Now… How to get those stock quotes…

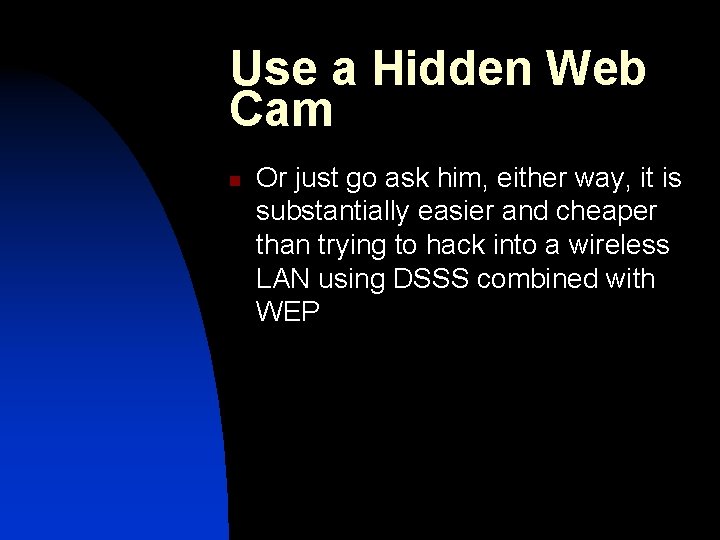

Use a Hidden Web Cam n Or just go ask him, either way, it is substantially easier and cheaper than trying to hack into a wireless LAN using DSSS combined with WEP

Any Questions?
