Wireless LAN Application Mobility High Speed Efficiency 2

Wireless LAN Application Mobility High Speed Efficiency 2

Outdoor Wireless Products Dual Band 2. 4 GHz (2. 4 GHz + 5 GHz)

Outdoor Wireless Products Dual Band 2. 4 GHz (2. 4 GHz + 5 GHz) 300 Mbps 1200 Mbps 5 GHz 900 Mbps IP 55 IP 67 IP 55 WDAP-702 AC WBS-502 AC (RP-SMA x 4) WAP-200 N WNAP-6350 (RP-SMA x 2) (N-Type x 2) 600 Mbps IP 66 IP 55 WBS-200 N WDAP-8350 (8 d. Bi ANT) (N-Type x 4) (19 d. Bi ANT) 300 Mbps IP 55 WBS-500 N (10 d. Bi ANT) IP 55 WAP-500 N (RP-SMA x 2) 3

Weatherproof Design 4

Weatherproof Design 4

Long Distance Applications 5 G (25 km) 2. 4 G (30 km) 5 G

Long Distance Applications 5 G (25 km) 2. 4 G (30 km) 5 G (20 km) 5

Dual-band 11 ac Outdoor Wireless AP u IEEE 802. 11 a/b/g/n/ac Wireless standard compliant

Dual-band 11 ac Outdoor Wireless AP u IEEE 802. 11 a/b/g/n/ac Wireless standard compliant u Dual band 2. 4 GHz and 5 GHz connectivity u 1200 Mbps (300+900 Mbps) wireless data rate u Gigabit Ethernet connection u High Output Power up to 500 m. W u Weatherproof IP 55, aluminum heatsink u -20 ~ 70 o. C wide operating temperature u Built-in 4 RP-SMA connectors, 5 d. Bi antennas included u Built-in Ground terminal, 24 V Passive Po. E support u SSIDs to VLANs tagging, VLAN over WDS Bridge u Guest Network, RSSI Threshold, Band Steering u IPv 4 and IPv 6 dual-stack management networks WDAP-702 AC 6

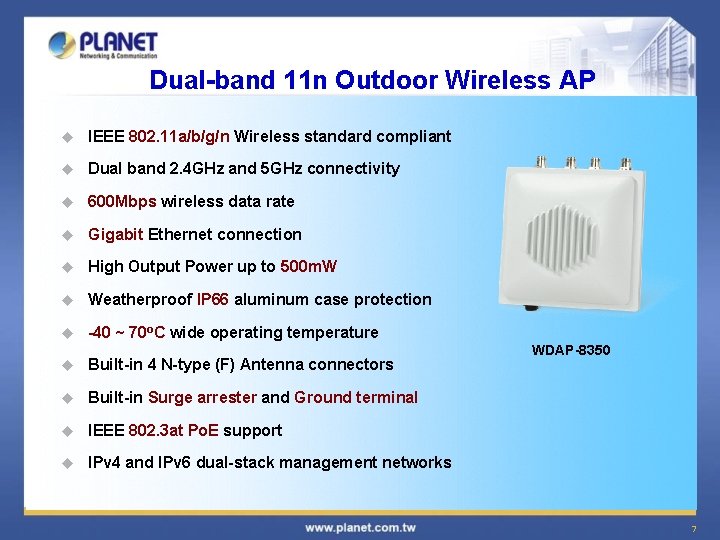

Dual-band 11 n Outdoor Wireless AP u IEEE 802. 11 a/b/g/n Wireless standard compliant

Dual-band 11 n Outdoor Wireless AP u IEEE 802. 11 a/b/g/n Wireless standard compliant u Dual band 2. 4 GHz and 5 GHz connectivity u 600 Mbps wireless data rate u Gigabit Ethernet connection u High Output Power up to 500 m. W u Weatherproof IP 66 aluminum case protection u -40 ~ 70 o. C wide operating temperature u Built-in 4 N-type (F) Antenna connectors u Built-in Surge arrester and Ground terminal u IEEE 802. 3 at Po. E support u IPv 4 and IPv 6 dual-stack management networks WDAP-8350 7

5 GHz 11 ac Outdoor Wireless CPE u IEEE 802. 11 a/n/ac 5 GHz

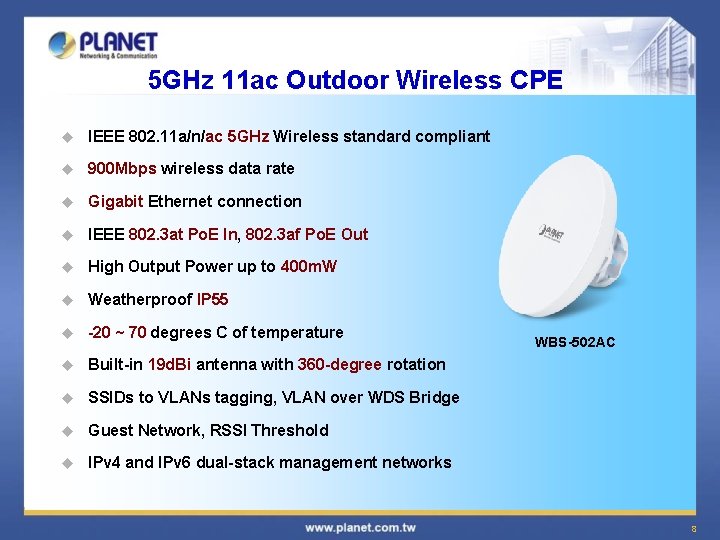

5 GHz 11 ac Outdoor Wireless CPE u IEEE 802. 11 a/n/ac 5 GHz Wireless standard compliant u 900 Mbps wireless data rate u Gigabit Ethernet connection u IEEE 802. 3 at Po. E In, 802. 3 af Po. E Out u High Output Power up to 400 m. W u Weatherproof IP 55 u -20 ~ 70 degrees C of temperature u Built-in 19 d. Bi antenna with 360 -degree rotation u SSIDs to VLANs tagging, VLAN over WDS Bridge u Guest Network, RSSI Threshold u IPv 4 and IPv 6 dual-stack management networks WBS-502 AC 8

5 GHz 11 n Outdoor Wireless AP/CPE u IEEE 802. 11 a/n 5 GHz

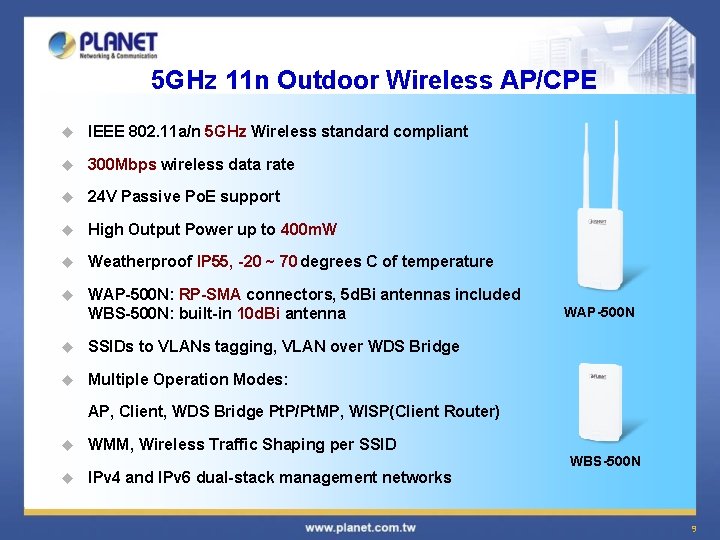

5 GHz 11 n Outdoor Wireless AP/CPE u IEEE 802. 11 a/n 5 GHz Wireless standard compliant u 300 Mbps wireless data rate u 24 V Passive Po. E support u High Output Power up to 400 m. W u Weatherproof IP 55, -20 ~ 70 degrees C of temperature u WAP-500 N: RP-SMA connectors, 5 d. Bi antennas included WBS-500 N: built-in 10 d. Bi antenna u SSIDs to VLANs tagging, VLAN over WDS Bridge u Multiple Operation Modes: WAP-500 N AP, Client, WDS Bridge Pt. P/Pt. MP, WISP(Client Router) u u WMM, Wireless Traffic Shaping per SSID IPv 4 and IPv 6 dual-stack management networks WBS-500 N 9

2. 4 GHz 11 n Outdoor Wireless AP/CPE u IEEE 802. 11 b/g/n 2.

2. 4 GHz 11 n Outdoor Wireless AP/CPE u IEEE 802. 11 b/g/n 2. 4 GHz Wireless standard compliant u 300 Mbps wireless data rate u 24 V Passive Po. E support u High Output Power up to 400 m. W u Weatherproof IP 55, -20 ~ 70 degrees C of temperature u WAP-200 N: RP-SMA connectors, 5 d. Bi antennas included WBS-200 N: built-in 8 d. Bi antenna u SSIDs to VLANs tagging, VLAN over WDS Bridge u Multiple Operation Modes: WAP-200 N AP, Client, WDS Bridge Pt. P/Pt. MP, WISP(Client Router) u WMM, Wireless Traffic Shaping per SSID u IPv 4 and IPv 6 dual-stack management networks WBS-200 N 10

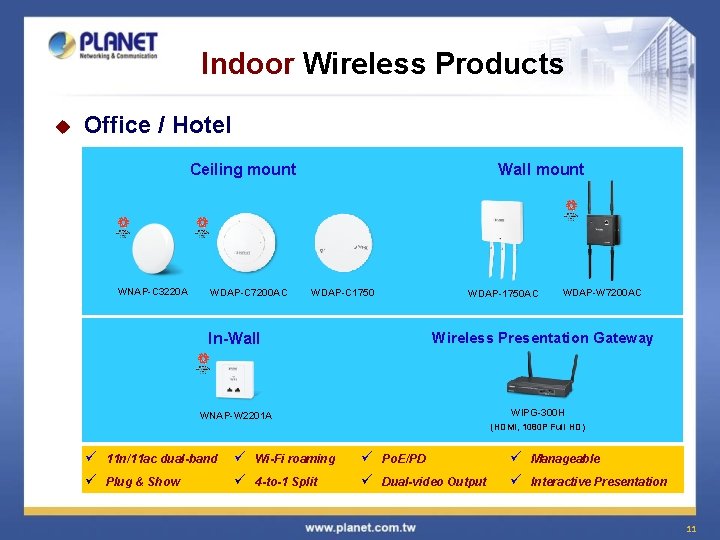

Indoor Wireless Products u Office / Hotel Ceiling mount WNAP-C 3220 A WDAP-C 7200

Indoor Wireless Products u Office / Hotel Ceiling mount WNAP-C 3220 A WDAP-C 7200 AC Wall mount WDAP-C 1750 In-Wall WDAP-1750 AC WDAP-W 7200 AC Wireless Presentation Gateway WIPG-300 H WNAP-W 2201 A (HDMI, 1080 P Full HD) ü 11 n/11 ac dual-band ü Wi-Fi roaming ü Po. E/PD ü Manageable ü Plug & Show ü 4 -to-1 Split ü Dual-video Output ü Interactive Presentation 11

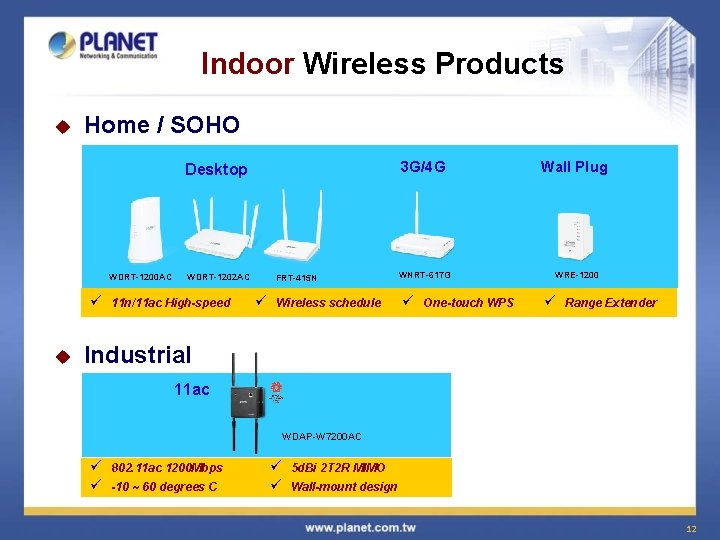

Indoor Wireless Products u Home / SOHO 3 G/4 G Desktop WDRT-1200 AC WDRT-1202

Indoor Wireless Products u Home / SOHO 3 G/4 G Desktop WDRT-1200 AC WDRT-1202 AC ü 11 n/11 ac High-speed u FRT-415 N ü Wireless schedule WNRT-617 G ü One-touch WPS Wall Plug WRE-1200 ü Range Extender Industrial 11 ac WDAP-W 7200 AC ü 802. 11 ac 1200 Mbps ü -10 ~ 60 degrees C ü 5 d. Bi 2 T 2 R MIMO ü Wall-mount design 12

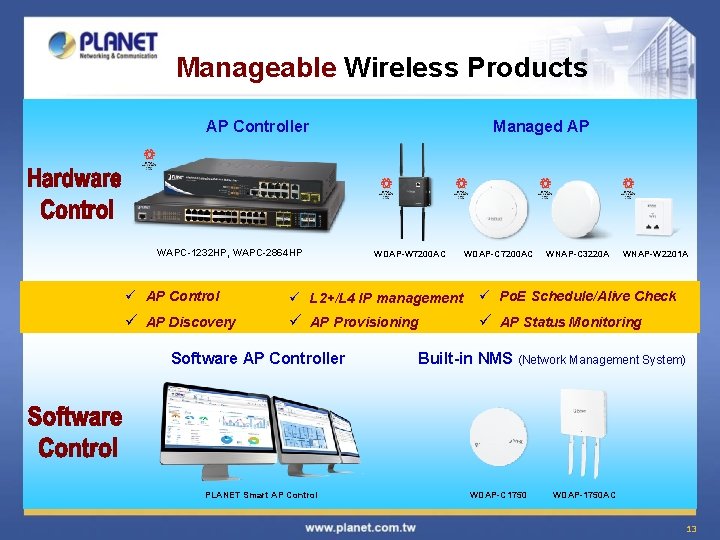

Manageable Wireless Products AP Controller WAPC-1232 HP, WAPC-2864 HP Managed AP WDAP-W 7200 AC

Manageable Wireless Products AP Controller WAPC-1232 HP, WAPC-2864 HP Managed AP WDAP-W 7200 AC ü AP Control ü L 2+/L 4 IP management ü AP Discovery ü AP Provisioning Software AP Controller PLANET Smart AP Control WDAP-C 7200 AC ü ü WNAP-C 3220 A WNAP-W 2201 A Po. E Schedule/Alive Check AP Status Monitoring Built-in NMS (Network Management System) WDAP-C 1750 WDAP-1750 AC 13

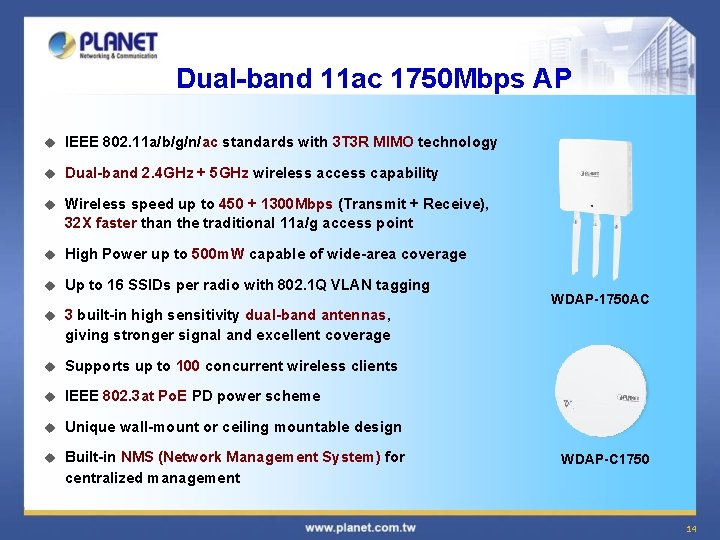

Dual-band 11 ac 1750 Mbps AP u IEEE 802. 11 a/b/g/n/ac standards with 3

Dual-band 11 ac 1750 Mbps AP u IEEE 802. 11 a/b/g/n/ac standards with 3 T 3 R MIMO technology u Dual-band 2. 4 GHz + 5 GHz wireless access capability u Wireless speed up to 450 + 1300 Mbps (Transmit + Receive), 32 X faster than the traditional 11 a/g access point u High Power up to 500 m. W capable of wide-area coverage u Up to 16 SSIDs per radio with 802. 1 Q VLAN tagging u 3 built-in high sensitivity dual-band antennas, giving stronger signal and excellent coverage u Supports up to 100 concurrent wireless clients u IEEE 802. 3 at Po. E PD power scheme u Unique wall-mount or ceiling mountable design u Built-in NMS (Network Management System) for centralized management WDAP-1750 AC WDAP-C 1750 14

Wireless AP Controller Solutions 256 64 Managed AP AP Central Management Solution WAPC HW

Wireless AP Controller Solutions 256 64 Managed AP AP Central Management Solution WAPC HW Controller WAPC-1232 HP/WAPC-2864 HP Smart AP Control • AP Discovery, Status Monitoring V V • AP Control, Cluster Management V V • RF Profile Creating, Bulk Provisioning V V • Bulk Firmware Upgrade V V • Floor Plan/Signal Heat Map View V V • Built-in DHCP Server V - • L 2+/L 4 IP management V - • Po. E Schedule, Alive Check V - 32/64 256 $0 $0 • Support AP Quantity • AP License Fee 15

Wireless AP Management WAPC-1232 HP WAPC-2864 HP 16

Wireless AP Management WAPC-1232 HP WAPC-2864 HP 16

Wireless AP Management VIRTUALIZATION FEATURES SPEED UP WI-FI PLANNING AND ANALYSIS l Graphical Statistics

Wireless AP Management VIRTUALIZATION FEATURES SPEED UP WI-FI PLANNING AND ANALYSIS l Graphical Statistics l Dashboard l Zone Plan ü Wi-Fi at a glance ü Effective management ü Entire system summary ü Custom floor plans ü Properties control ü Coverage heat map ü AP real-time statistics ü Troubleshoot anomalies ü RF interference detection 17

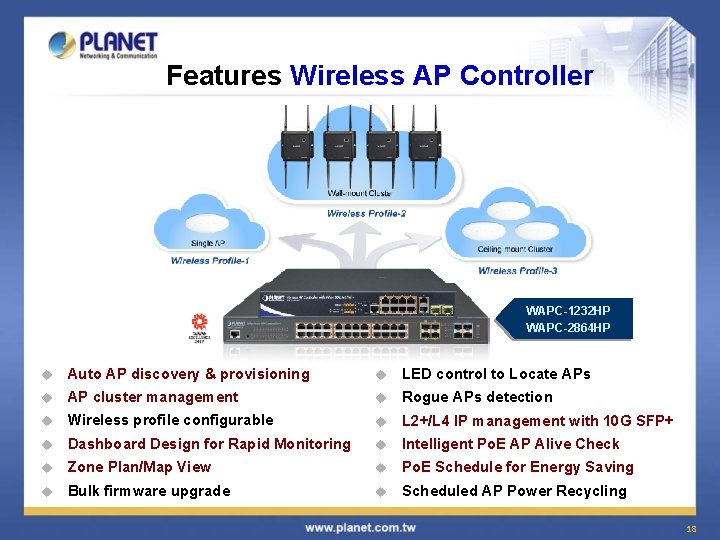

Features Wireless AP Controller WAPC-1232 HP WAPC-2864 HP u Auto AP discovery & provisioning

Features Wireless AP Controller WAPC-1232 HP WAPC-2864 HP u Auto AP discovery & provisioning u LED control to Locate APs u AP cluster management u Rogue APs detection u Wireless profile configurable u L 2+/L 4 IP management with 10 G SFP+ u Dashboard Design for Rapid Monitoring u Intelligent Po. E AP Alive Check u Zone Plan/Map View u Po. E Schedule for Energy Saving u Bulk firmware upgrade u Scheduled AP Power Recycling 18

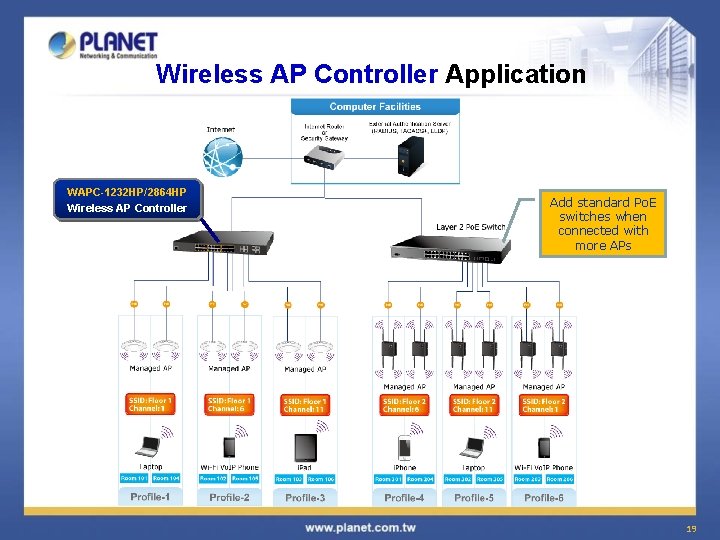

Wireless AP Controller Application WAPC-1232 HP/2864 HP Wireless AP Controller Add standard Po. E

Wireless AP Controller Application WAPC-1232 HP/2864 HP Wireless AP Controller Add standard Po. E switches when connected with more APs 19

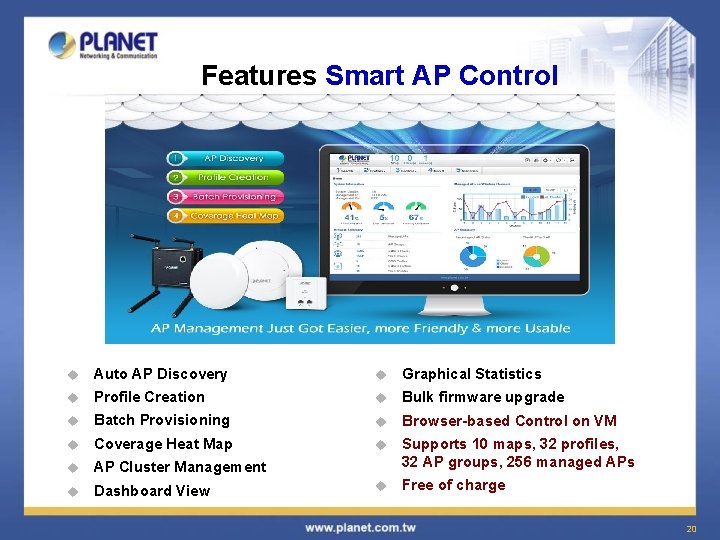

Features Smart AP Control u Auto AP Discovery u Graphical Statistics u Profile Creation

Features Smart AP Control u Auto AP Discovery u Graphical Statistics u Profile Creation u Bulk firmware upgrade u Batch Provisioning u Browser-based Control on VM u Coverage Heat Map u u AP Cluster Management Supports 10 maps, 32 profiles, 32 AP groups, 256 managed APs u Dashboard View u Free of charge 20

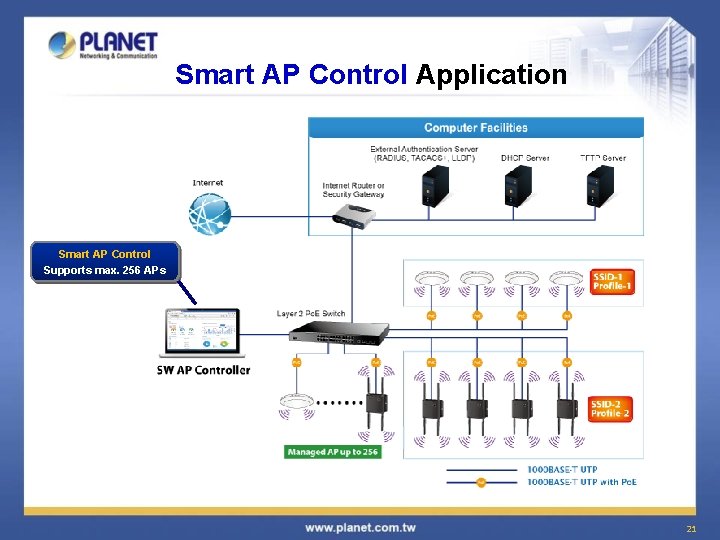

Smart AP Control Application Smart AP Control Supports max. 256 APs 21

Smart AP Control Application Smart AP Control Supports max. 256 APs 21

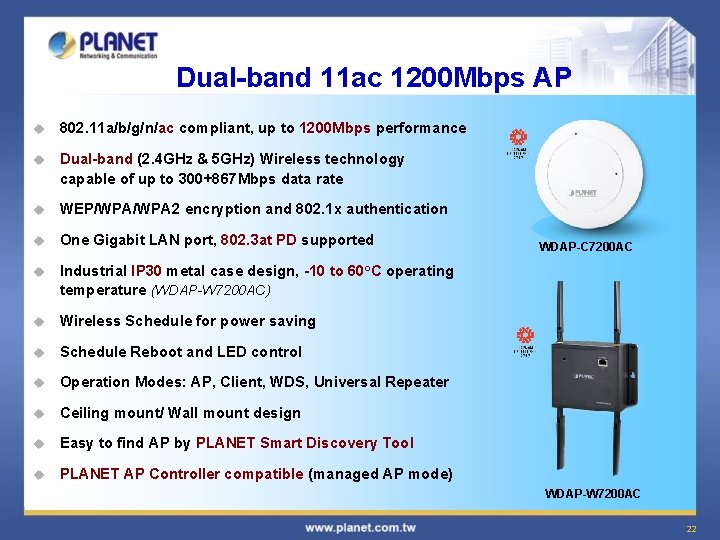

Dual-band 11 ac 1200 Mbps AP u 802. 11 a/b/g/n/ac compliant, up to 1200

Dual-band 11 ac 1200 Mbps AP u 802. 11 a/b/g/n/ac compliant, up to 1200 Mbps performance u Dual-band (2. 4 GHz & 5 GHz) Wireless technology capable of up to 300+867 Mbps data rate u WEP/WPA 2 encryption and 802. 1 x authentication u One Gigabit LAN port, 802. 3 at PD supported u Industrial IP 30 metal case design, -10 to 60 o. C operating temperature (WDAP-W 7200 AC) u Wireless Schedule for power saving u Schedule Reboot and LED control u Operation Modes: AP, Client, WDS, Universal Repeater u Ceiling mount/ Wall mount design u Easy to find AP by PLANET Smart Discovery Tool u PLANET AP Controller compatible (managed AP mode) WDAP-C 7200 AC WDAP-W 7200 AC 22

Wi-Fi Office Networking ü Incredibly ultra high speed and perfect coverage 5 GHz 802.

Wi-Fi Office Networking ü Incredibly ultra high speed and perfect coverage 5 GHz 802. 11 a/n/ac 2. 4 GHz 802. 11 b/g/n 23

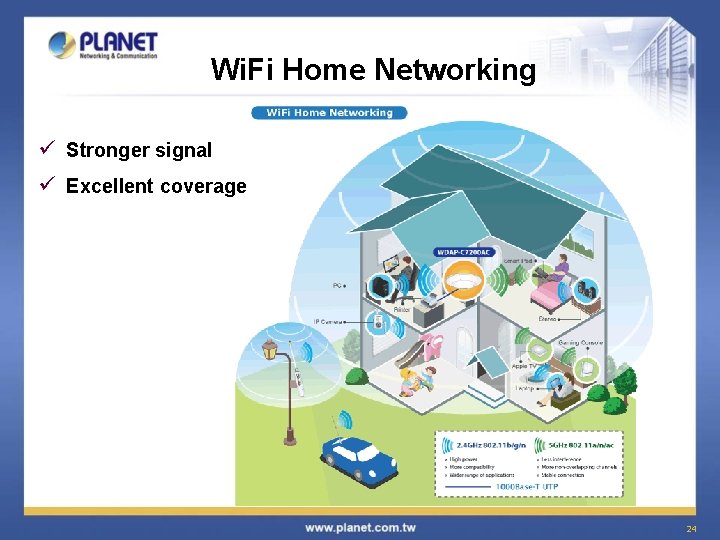

Wi. Fi Home Networking ü Stronger signal ü Excellent coverage 24

Wi. Fi Home Networking ü Stronger signal ü Excellent coverage 24

11 n Wireless AP u 802. 11 n Wi-Fi up to 300 Mbps u

11 n Wireless AP u 802. 11 n Wi-Fi up to 300 Mbps u Backward compatible with IEEE 802. 11 b/g u 10/100 Mbps LAN port, 802. 3 af/at PD supported u WEP/WPA 2 encryption and 802. 1 x authentication u Wireless Schedule for power saving u Schedule Reboot and LED control u Operation Modes: AP, Client, WDS, Universal Repeater u Ceiling mount/ Wall mount design u Easy to find AP by PLANET Smart Discovery Tool u PLANET AP Controller manageable WNAP-C 3200 A WNAP-W 2201 A 25

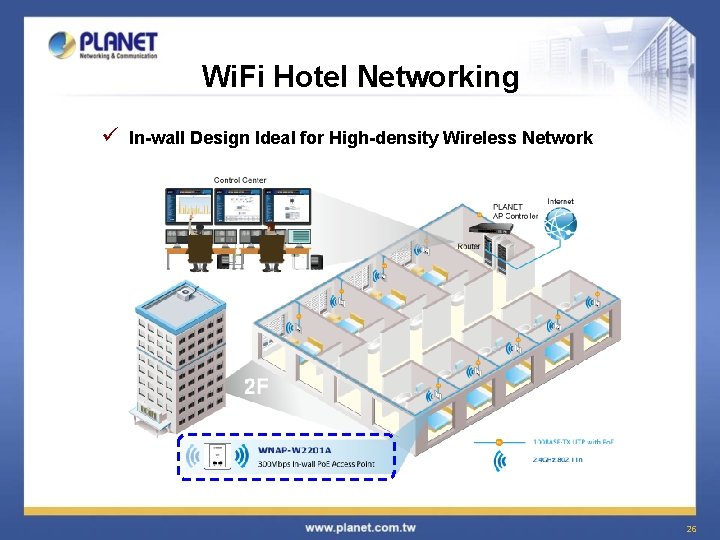

Wi. Fi Hotel Networking ü In-wall Design Ideal for High-density Wireless Network 26

Wi. Fi Hotel Networking ü In-wall Design Ideal for High-density Wireless Network 26

Dual-band 11 ac 1200 Mbps Router u 802. 11 a/b/g/n/ac compliant, up to 1200

Dual-band 11 ac 1200 Mbps Router u 802. 11 a/b/g/n/ac compliant, up to 1200 Mbps performance u Dual-band (2. 4 GHz & 5 GHz) Wireless technology capable of up to 300+867 Mbps data rate u Four Gigabit LAN ports u Wireless Schedule for power saving u Schedule Reboot and parent control u Easy for file sharing and charging mobile devices with USB 2. 0 port u Built-in DLNA Media Server allows DLNA-enabled devices to share and stream multimedia files over home network u Guest SSID to allow users to access different networks through one single AP WDRT-1202 AC 27

Wi. Fi Home Applications ü Next-generation Wireless High-speed Connection 28

Wi. Fi Home Applications ü Next-generation Wireless High-speed Connection 28
