Wireless Intelligent Networking HLR SCP Overview We will

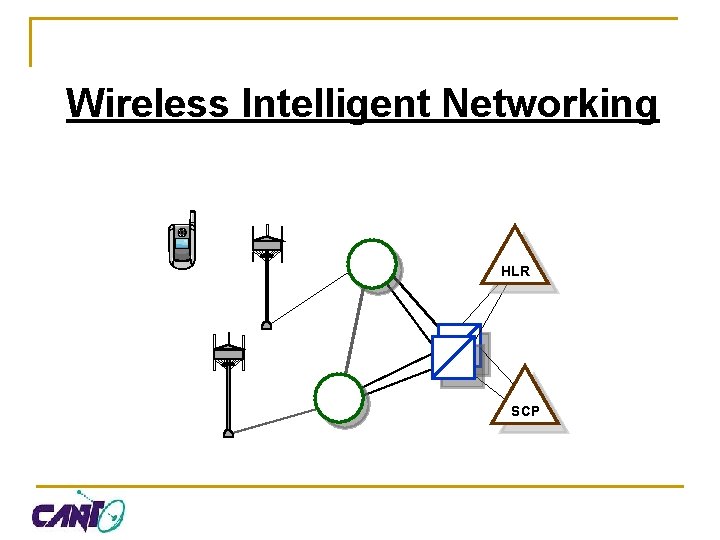

Wireless Intelligent Networking HLR SCP

Overview We will discuss the following topics: · What Intelligent Networking is · What are the principles of Intelligent Networking · Where Intelligent Networking is defined today · What services are defined for Intelligent Networking · What the overall architecture is for an Intelligent Network

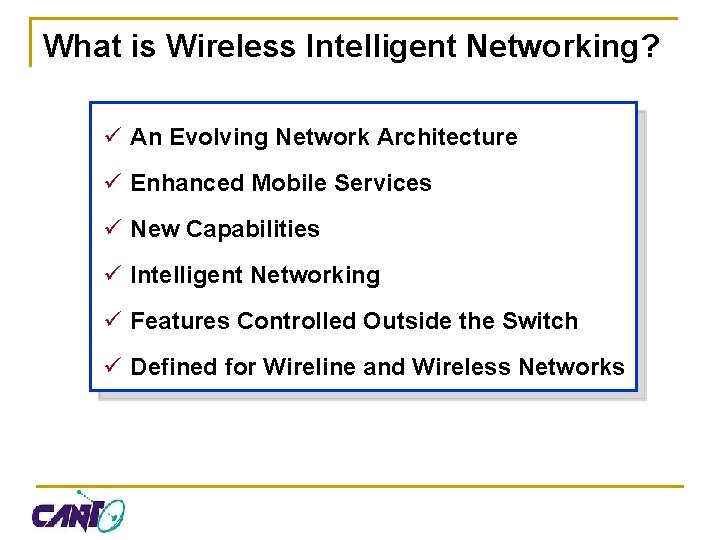

What is Wireless Intelligent Networking? ü An Evolving Network Architecture ü Enhanced Mobile Services ü New Capabilities ü Intelligent Networking ü Features Controlled Outside the Switch ü Defined for Wireline and Wireless Networks

Intelligent Network Characteristics ü It allows for rapid introduction of new services ü It is customer and telephone provider programmable ü It is supplier transparent and independent ü It supports enhanced service provider access

Intelligent Networking Terms What is AIN? What is INAP? What is WIN? What is CAMEL?

Principles of Intelligent Networking Service #1 Service Plane POI BCP SIB POR SIB Global Functional Plane SIB SIB SIB Distributed Functional Plane Hardware Physical Plane

Intelligent Network Conceptual Model An Overview Service Plane Service #1 SF SF Global Functional Plane Distributed Functional Plane Physical Plane Services, Service Features POI BCP SIB POR FE FE FEs and IFs FE FE Hardware SSP Hardware ISCP SIBs Hardware IP PEs

Intelligent Networking Standards Customized Applications for Mobile network Enhanced Logic (CAMEL) Resp Year GSM Release ETSI ETSI 3 GPP 3 GPP 1991 1994 1996 1997 1998 1999 2000 2002 2004 2006 Phase 1 Phase 2+ R 96 Phase 2+ R 97 Phase 2+ R 98 3 G R 99 3 G Rel-4 3 G Rel-5 3 G Rel-6 3 G Rel-7 CAMEL Phase CAMEL Stage 1 CAMEL Stage 2 CAMEL Stage 3 Phase 1 Phase 2 Phase 3 Phase 4 GSM TS 02. 78 3 GPP TS 22. 078 GSM 03. 78 3 GPP TS 23. 078 3 GPP TS 23. 278 GSM TS 09. 78 3 GPP TS 29. 078

Intelligent Networking Standards Wireless Intelligent Networking (WIN) 7 -97 4 -98 12 -98 7 -00 10 -00 01 -04 06 -04 Intersystem Standards CNAM (IS-764) WIN Phase 1 (IS-771) WIN PPC (IS-826) WIN Phase 2 (IS-848) 3 GPP 2 X. S 0010 -A 3 GPP 2 X. S 0009 -0 TIA/EIA-41 TIA/EIA-664 TIA/EIAIS-764 TIA/EIA-41 TIA/EIA-664 TIA/EIA/IS-751 TIA/EIA/IS-771 TIA/EIA-41 TIA/EIA-664 TIA/EIA/IS-730 TIA/EIA/IS-751 TIA/EIA/IS-764 TIA/EIA/IS-771 TIA/EIA/IS-826 TIA/EIA-41 TIA/EIA-664 TIA/EIA/IS-737 TIA/EIA/IS-807 TIA/EIA/IS-826 TIA/EIA/IS-841 TIA/EIA/IS-848 DMH TIA/EIA-41 TIA/EIA-664 TIA/EIA/IS-771 TIA/EIA/IS-848 J-STD-036 -A DMH TIA/EIA/IS-826 TIA-881

Intelligent Networking Phases CAMEL Phase 1 ü Control of MO, MT and MF calls ü Any time interrogation CAMEL Phase 2 ü Additional EDPs ü interaction between a user and a service using announcements, voice prompting and information collection via in-band or USSD interaction; ü Control of call duration and transfer of Ao. C Information to the ms; ü The CSE can be informed about the invocation of the supplementary services ECT, CD and MPTY; ü For easier post-processing, charging information from a serving node can be integrated in normal call records. CAMEL Phase 3 ü ü ü ü Support of facilities to avoid overload; Capabilities to support Dialed Services; Capabilities to handle mobility events, such as not-reachable and roaming; Control of GPRS sessions and PDP contexts; Control of mobile originating SMS through both CS and PS serving network entities; Interworking with So. LSA (Support of Localized Service Area) (optional) The CSE can be informed about the invocation of the SS CCBS. ü ü ü ü ü Support of Optimal Routing for CS mobile to mobile calls; Capability of the CSE to create additional parties in an existing call; Capability for the CSE to create a new call unrelated to any other existing call; Capabilities for the enhanced handling of call party connections; Capability for the CSE to control sessions in the IP Multimedia Subsystem (IMS); Enhanced CSE capability for dialed services; The capability to report basic service changes during ongoing call; The CSE capability to select between preferred and less preferred bearer services; The capability for the CSE to control trunk originated calls; The capability for the CSE to request additional dialed digits; Release 5 CAMEL Phase 4 Release 6 Release 7

Intelligent Networking Phases WIN Phase 1 ü Voice Controlled Services ü Incoming Call Screening ü Calling Name Delivery WIN Pre-Paid Charging ü Pre-Paid Charging (Voice) WIN Phase 2 ü ü ü Enhanced Charging Services Triggers for Preferred Language Advice of Charge Rejection of Undesired Annoying Calls Premium Rate Charging Freephone 3 GPP 2 X. S 0010 -A ü PPC Enhancements for Circuit-Switched Data and SMS 3 GPP 2 X. S 0009 -0 ü WIN Support for Location Based Services

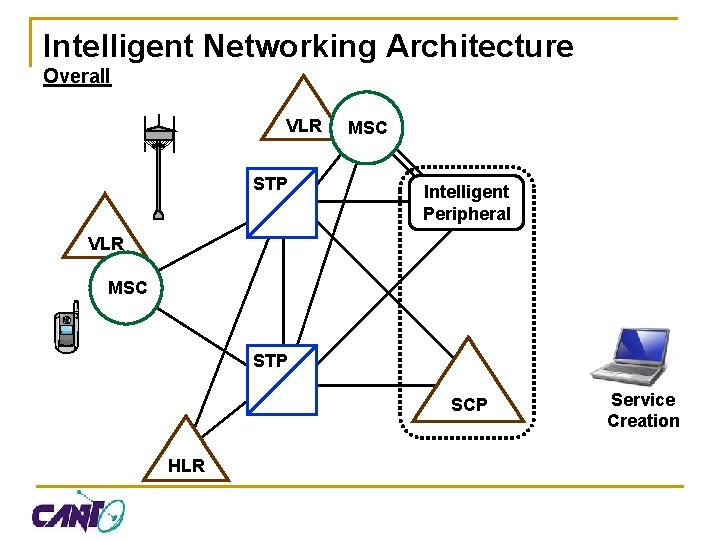

Intelligent Networking Architecture Overall VLR STP MSC Intelligent Peripheral VLR MSC STP SCP HLR Service Creation

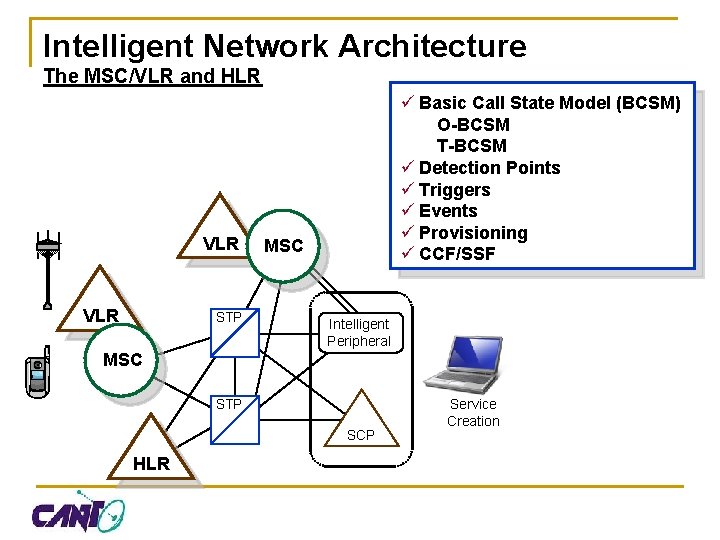

Intelligent Network Architecture The MSC/VLR and HLR VLR STP ü Basic Call State Model (BCSM) O-BCSM T-BCSM ü Detection Points ü Triggers ü Events ü Provisioning ü CCF/SSF MSC Intelligent Peripheral MSC STP SCP HLR Service Creation

Intelligent Network Architecture The Signaling Network ü STP Translations Routes GTT ü Links LSL, HSL, IP ü Monitor Signaling Traffic ü Interconnection Issues ü Gateway Screening VLR MSC STP VLR Intelligent Peripheral MSC STP SCP HLR Service Creation

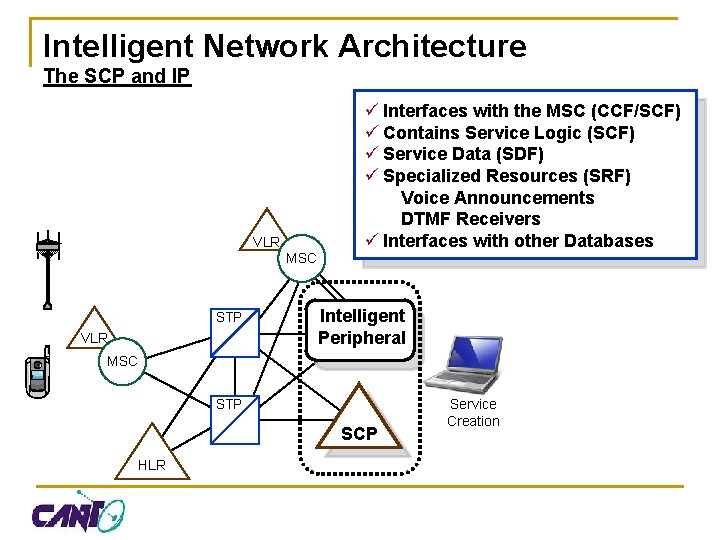

Intelligent Network Architecture The SCP and IP VLR MSC STP VLR ü Interfaces with the MSC (CCF/SCF) ü Contains Service Logic (SCF) ü Service Data (SDF) ü Specialized Resources (SRF) Voice Announcements DTMF Receivers ü Interfaces with other Databases Intelligent Peripheral MSC STP SCP HLR Service Creation

Intelligent Network Architecture Service Creation ü Service Design ü Service Provisioning ü Service Validation & Testing ü Service Activation ü Service Assurance VLR MSC STP VLR Intelligent Peripheral MSC STP SCP HLR Service Creation

Intelligent Networking Protocol Applications TCAP SCCP MTP 7 I S D N U P T U P D U P 4, 5, 6 3 Network Link Data Link …the fundamental idea of the SS 7 protocol is to divide functions into MTP and various user parts. . . 2 1

Sample Call Flow Scenario CAMEL Pre-Paid gsm. SSF gsm. SCF VLR MSC SCP Initial. DP 1 Request Report BCSM; Establish Temporary Connection Disconnect Forward Connection; Request Report BCSM; Continue 2 3 Event Report BCSM 4 Apply Charging; Request Report BCSM; Continue 5 Apply Charging Report 6 Event Report BCSM 7 Release Call 8

Sample Call Flow Scenario Serving System WIN Pre-Paid VLR IP MSC SCP Balance above threshold Origination_Attempt_Authorized ORREQ (MSCID, MSID, MDN, BILLID, DGTSDIAL, TRIGTYPE) orreq (DMH_SVCID = PPC) call origination Calling_Routing_Address_Available SEIZERES (SRFCapability, PLIND) seizeres (TLDN) ANYLZD (MSCID, TRANSCAP, WINCAP, MSID, MDN, BILLID, DGTSDIAL, Routin. Info, TRIGTYPE, TOD, TDO) CONNRES (DSTDGTS, CARDGTS, ROUTDGTS) call setup to IP INSTREQ SRFDIR (ANNLIST) announcement srfdir anylzd call release instreq call setup answer O_Answer OANSWER (MSCID, MSID, MDN, BILLID, TRIGTYPE, TOD, TDO) O_Disconnect ODISCONNECT (MSCID, MSID, MDN, BILLID, TRIGTYPE, RELCAUSE, TOD, TDO) odisconnect call release answer disconnect

In Conclusion · Wireless Intelligent Networking allows the service provider to rapidly introduce new services · Mobile Pre-Pay is a common application · There are two overall standards employed today – CAMEL and WIN · Maintaining and monitoring the Common Channel Signaling (CCS) network is critical to its success · Understanding and troubleshooting the SS 7 protocol is a key part of that success.
