Wi-Fi Mounting Solutions: an emerging opportunity - Widely adopted, but not yet pervasive, in healthcare vertical - Recently adopted in Department of Defense installations - “Pervasive wireless” is being driven by industry leaders - Enterprise opportunities include corporate, education, government, healthcare, hospitality, logistics/transportation, and retail - Simple concept, value added up-sell 6/08 Oberon Wireless Mounting Solutions

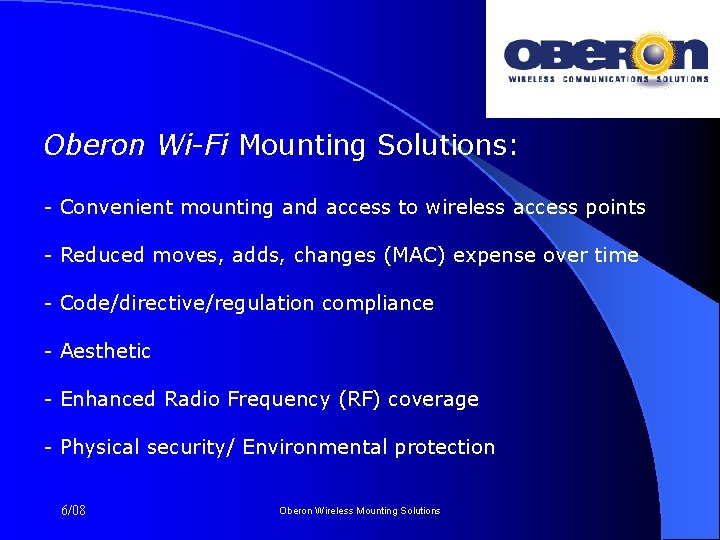

Oberon Wi-Fi Mounting Solutions: - Convenient mounting and access to wireless access points - Reduced moves, adds, changes (MAC) expense over time - Code/directive/regulation compliance - Aesthetic - Enhanced Radio Frequency (RF) coverage - Physical security/ Environmental protection 6/08 Oberon Wireless Mounting Solutions

Code/Directive/Regulation Compliance • Designed for compliance with National Electric Code (NEC) paragraphs 300 -22 and 23 for products to be used in the plenum space • UL 50 Listed for code compliance, where Authority Having Jurisdiction (AHJ) mandates UL listed products • Certain Oberon products have been tested to UL 2043 for use in the plenum space • UL 94 V 5 A listed plastic enclosure domes and antennas • State of California OSHPD Pre-Approval (OPA) number assigned, anchorage drawings available. • Many hospitals require use of ceiling enclosures to minimize openings in the plenum space. 6/08 Oberon Wireless Mounting Solutions

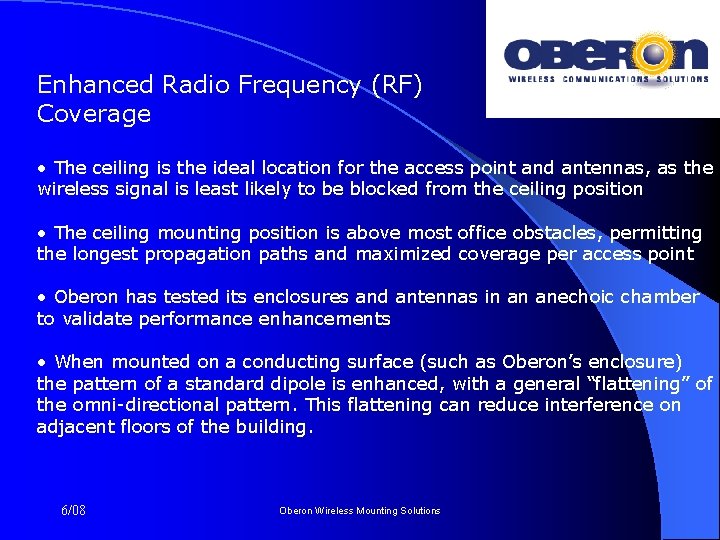

Enhanced Radio Frequency (RF) Coverage • The ceiling is the ideal location for the access point and antennas, as the wireless signal is least likely to be blocked from the ceiling position • The ceiling mounting position is above most office obstacles, permitting the longest propagation paths and maximized coverage per access point • Oberon has tested its enclosures and antennas in an anechoic chamber to validate performance enhancements • When mounted on a conducting surface (such as Oberon’s enclosure) the pattern of a standard dipole is enhanced, with a general “flattening” of the omni-directional pattern. This flattening can reduce interference on adjacent floors of the building. 6/08 Oberon Wireless Mounting Solutions

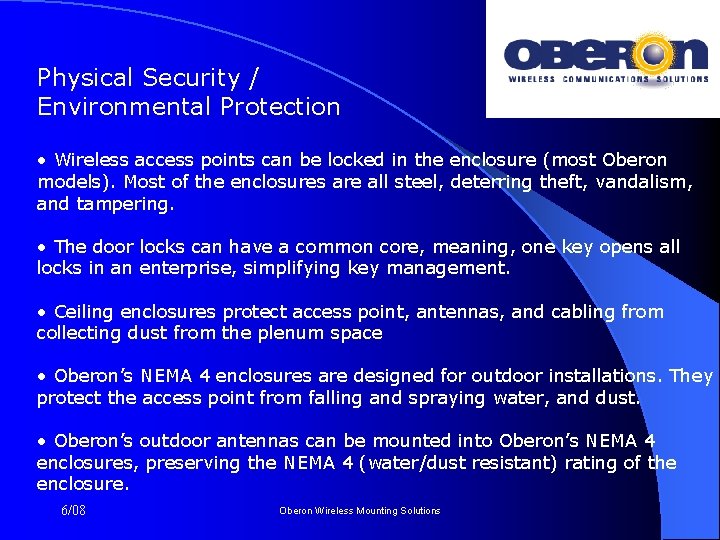

Physical Security / Environmental Protection • Wireless access points can be locked in the enclosure (most Oberon models). Most of the enclosures are all steel, deterring theft, vandalism, and tampering. • The door locks can have a common core, meaning, one key opens all locks in an enterprise, simplifying key management. • Ceiling enclosures protect access point, antennas, and cabling from collecting dust from the plenum space • Oberon’s NEMA 4 enclosures are designed for outdoor installations. They protect the access point from falling and spraying water, and dust. • Oberon’s outdoor antennas can be mounted into Oberon’s NEMA 4 enclosures, preserving the NEMA 4 (water/dust resistant) rating of the enclosure. 6/08 Oberon Wireless Mounting Solutions

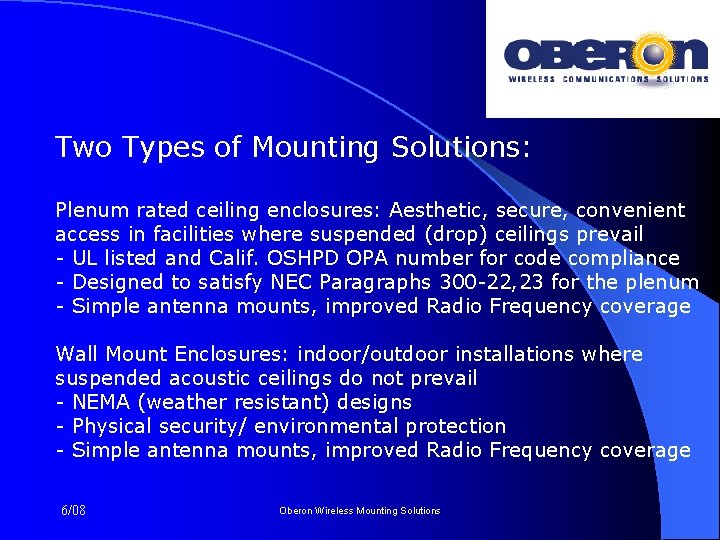

Two Types of Mounting Solutions: Plenum rated ceiling enclosures: Aesthetic, secure, convenient access in facilities where suspended (drop) ceilings prevail - UL listed and Calif. OSHPD OPA number for code compliance - Designed to satisfy NEC Paragraphs 300 -22, 23 for the plenum - Simple antenna mounts, improved Radio Frequency coverage Wall Mount Enclosures: indoor/outdoor installations where suspended acoustic ceilings do not prevail - NEMA (weather resistant) designs - Physical security/ environmental protection - Simple antenna mounts, improved Radio Frequency coverage 6/08 Oberon Wireless Mounting Solutions

Oberon Model 1053 -06 - Ceiling enclosure large enough for the Cisco 1250 access point and other “ 802. 11 n” access points. - Mounting features on locking door for dipole antennas. Shown with Oberon’s “Z” antennas - Aesthetic, powder coated all steel construction - Provides ideal rf coverage - Simplify install, moves, adds and changes 6/08 Shown with optional Oberon “Z” antenna Oberon Wireless Mounting Solutions

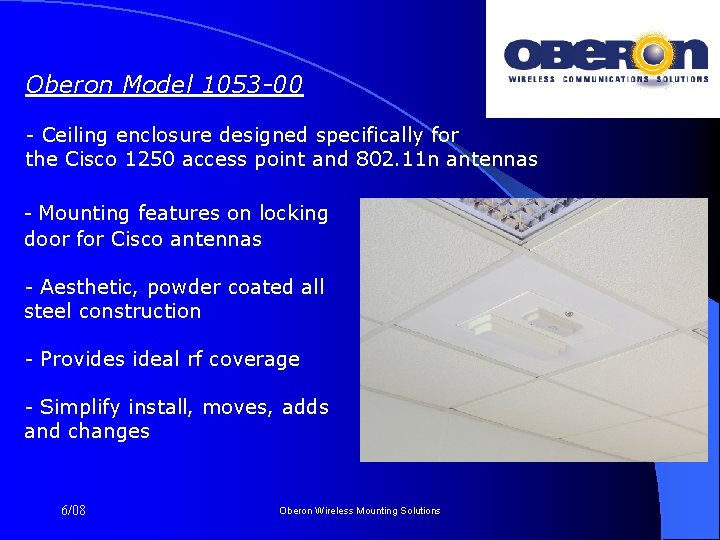

Oberon Model 1053 -00 - Ceiling enclosure designed specifically for the Cisco 1250 access point and 802. 11 n antennas - Mounting features on locking door for Cisco antennas - Aesthetic, powder coated all steel construction - Provides ideal rf coverage - Simplify install, moves, adds and changes 6/08 Oberon Wireless Mounting Solutions

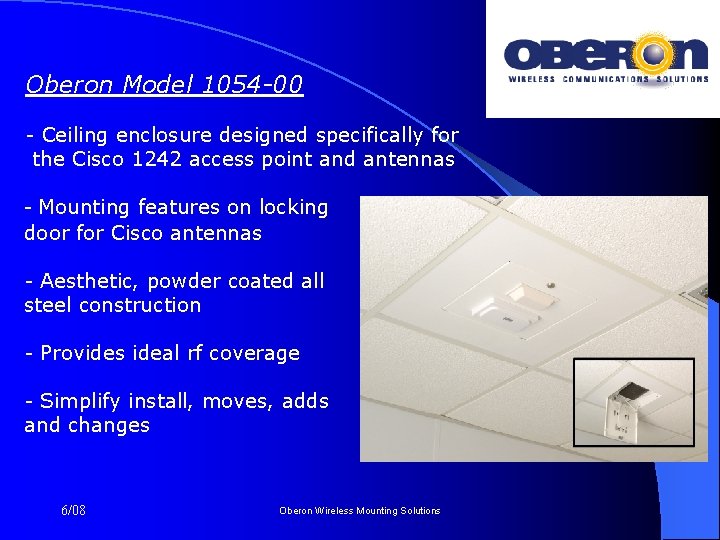

Oberon Model 1054 -00 - Ceiling enclosure designed specifically for the Cisco 1242 access point and antennas - Mounting features on locking door for Cisco antennas - Aesthetic, powder coated all steel construction - Provides ideal rf coverage - Simplify install, moves, adds and changes 6/08 Oberon Wireless Mounting Solutions

Oberon Model 1052 -00 - Ceiling enclosure designed specifically for the Cisco 1242, and Aruba Networks AP 70 - Aesthetic, and provides ideal rf coverage - Simplify install, moves, adds and changes - Antenna options include Oberon “Z” antennas or vendors dipole antennas with bulkhead mounting kit - Optional universal mounting plate accommodates AP from most vendors 6/08 Shown with optional Oberon “Z” antenna Oberon Wireless Mounting Solutions

Oberon Model 1059 - Ceiling enclosure designed to accommodate access points from virtually all manufacturers - Aesthetic, and provides ideal rf coverage - Simplify install, moves, adds and changes - Accommodates access points with non-detachable antennas - Locking, impact resistant ABS dome is UL-94 V 5 A listed, and is virtually transparent to RF 6/08 Oberon Wireless Mounting Solutions

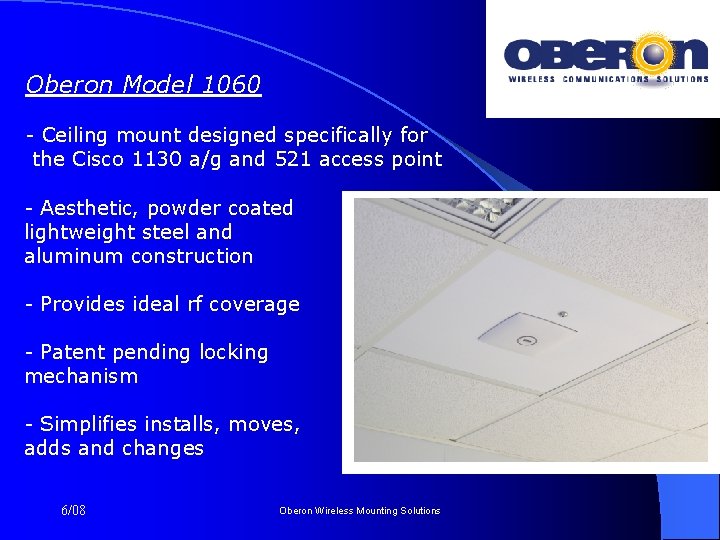

Oberon Model 1060 - Ceiling mount designed specifically for the Cisco 1130 a/g and 521 access point - Aesthetic, powder coated lightweight steel and aluminum construction - Provides ideal rf coverage - Patent pending locking mechanism - Simplifies installs, moves, adds and changes 6/08 Oberon Wireless Mounting Solutions

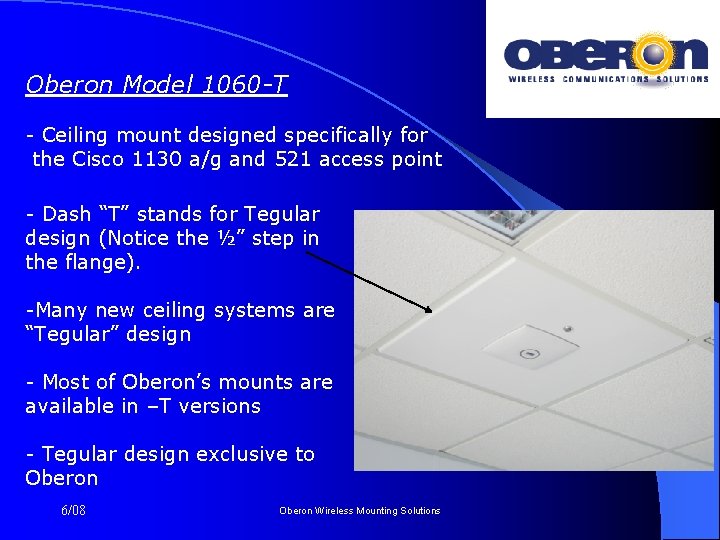

Oberon Model 1060 -T - Ceiling mount designed specifically for the Cisco 1130 a/g and 521 access point - Dash “T” stands for Tegular design (Notice the ½” step in the flange). -Many new ceiling systems are “Tegular” design - Most of Oberon’s mounts are available in –T versions - Tegular design exclusive to Oberon 6/08 Oberon Wireless Mounting Solutions

Oberon Model 1058 - Economical ceiling enclosure designed specifically for the Cisco 1242, and 1232 APs - Aesthetic, powder coated all steel construction - Provides ideal rf coverage - Simplify install, moves, adds and changes - Cisco dipole antennas connect directly to the access point 6/08 Oberon Wireless Mounting Solutions

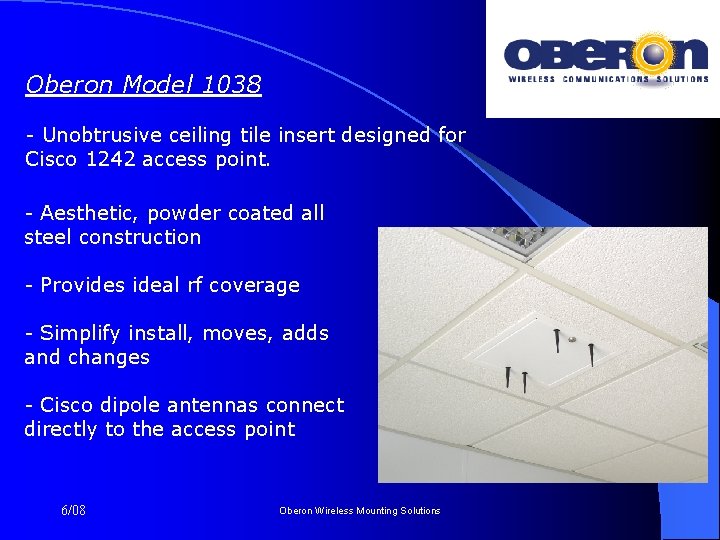

Oberon Model 1038 - Unobtrusive ceiling tile insert designed for Cisco 1242 access point. - Aesthetic, powder coated all steel construction - Provides ideal rf coverage - Simplify install, moves, adds and changes - Cisco dipole antennas connect directly to the access point 6/08 Oberon Wireless Mounting Solutions

Oberon Model 1027 - Ceiling enclosure designed for “hard-lid” ceilings, accommodates access points from virtually all manufacturers - Aesthetic, powder coated all steel construction - Provides ideal rf coverage - Simplify install, moves, adds and changes - Antenna options include Oberon “Z” antennas or vendors dipole antennas with bulkhead mounting kit 6/08 Shown with optional Oberon “Z” antenna Oberon Wireless Mounting Solutions

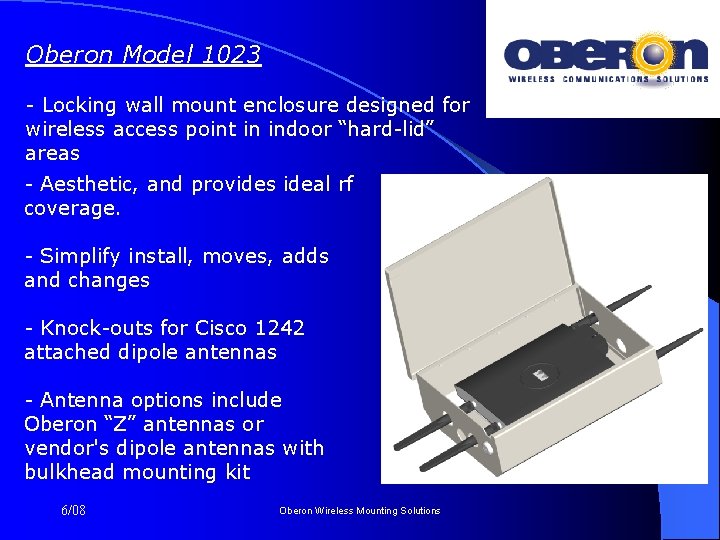

Oberon Model 1023 - Locking wall mount enclosure designed for wireless access point in indoor “hard-lid” areas - Aesthetic, and provides ideal rf coverage. - Simplify install, moves, adds and changes - Knock-outs for Cisco 1242 attached dipole antennas - Antenna options include Oberon “Z” antennas or vendor's dipole antennas with bulkhead mounting kit 6/08 Oberon Wireless Mounting Solutions

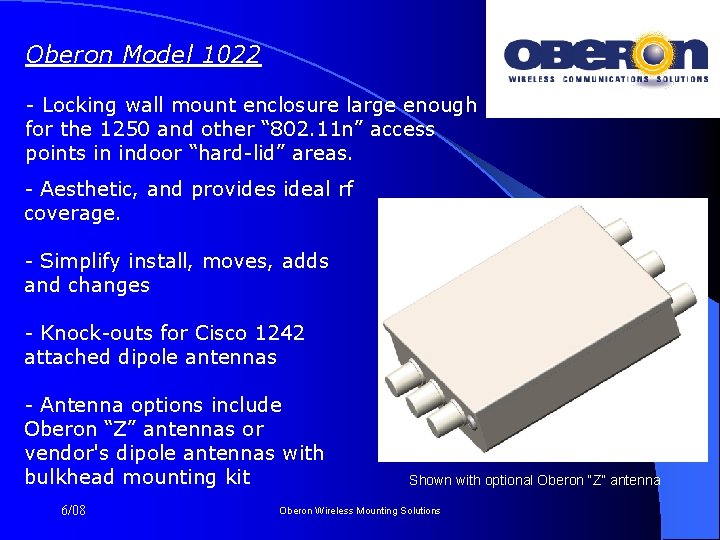

Oberon Model 1022 - Locking wall mount enclosure large enough for the 1250 and other “ 802. 11 n” access points in indoor “hard-lid” areas. - Aesthetic, and provides ideal rf coverage. - Simplify install, moves, adds and changes - Knock-outs for Cisco 1242 attached dipole antennas - Antenna options include Oberon “Z” antennas or vendor's dipole antennas with bulkhead mounting kit 6/08 Shown with optional Oberon “Z” antenna Oberon Wireless Mounting Solutions

Oberon Model 1024 - Indoor/Outdoor locking NEMA 4 enclosure large enough for the Cisco 1250 and other “ 802. 11 n” access points - Designed to meet NEMA 4 requirements for dust and water protection. - Options include - outdoor dual band antennas, - weather proof Ethernet jacks, Conduit clamps lightning / surge protection heaters and thermostats Shown with optional 34 -BMANT 24 outdoor antennas 6/08 Oberon Wireless Mounting Solutions

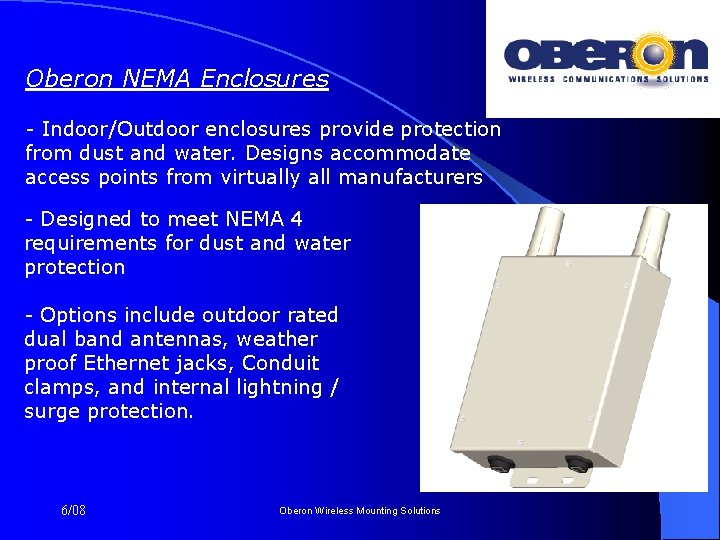

Oberon NEMA Enclosures - Indoor/Outdoor enclosures provide protection from dust and water. Designs accommodate access points from virtually all manufacturers - Designed to meet NEMA 4 requirements for dust and water protection - Options include outdoor rated dual band antennas, weather proof Ethernet jacks, Conduit clamps, and internal lightning / surge protection. 6/08 Oberon Wireless Mounting Solutions

Digital Media Player enclosure and heater Designed to heat and protect Cisco’s 4305 G Digital Media Player in difficult environments - Includes thermostatically controlled heater - Allows the DMP to be mounted close to the display - Ideal for sports venues (Yankees Stadium), Warehouses, retail environments 6/08 Oberon Wireless Mounting Solutions

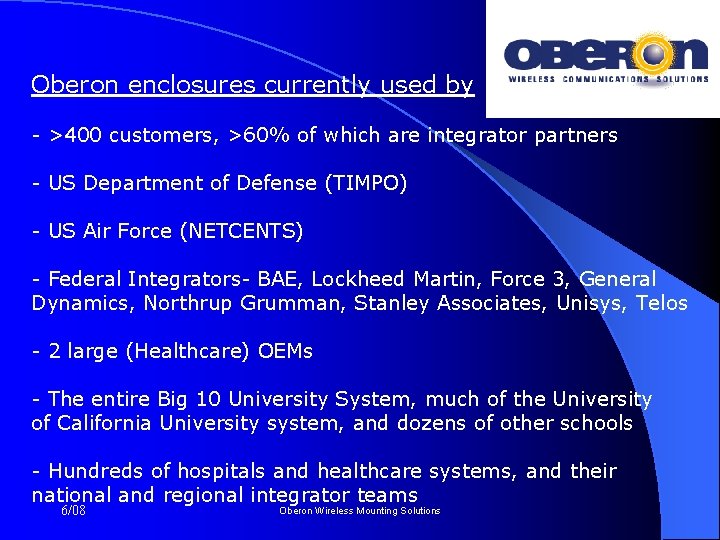

Oberon enclosures currently used by - >400 customers, >60% of which are integrator partners - US Department of Defense (TIMPO) - US Air Force (NETCENTS) - Federal Integrators- BAE, Lockheed Martin, Force 3, General Dynamics, Northrup Grumman, Stanley Associates, Unisys, Telos - 2 large (Healthcare) OEMs - The entire Big 10 University System, much of the University of California University system, and dozens of other schools - Hundreds of hospitals and healthcare systems, and their national and regional integrator teams 6/08 Oberon Wireless Mounting Solutions
