Wireless Access Point Mounting Solutions For Enterprise Cisco

Wireless Access Point Mounting Solutions For Enterprise Cisco Wi-Fi Deployments 7/08 Oberon Wireless Mounting Solutions

Oberon Wi-Fi Mounting Solutions: - Convenient mounting and access to wireless access points - Reduced moves, adds, changes (MAC) expense over time - Code/directive/regulation compliance - Aesthetic - Enhanced Radio Frequency (RF) coverage - Physical security/ Environmental protection 7/08 Oberon Wireless Mounting Solutions

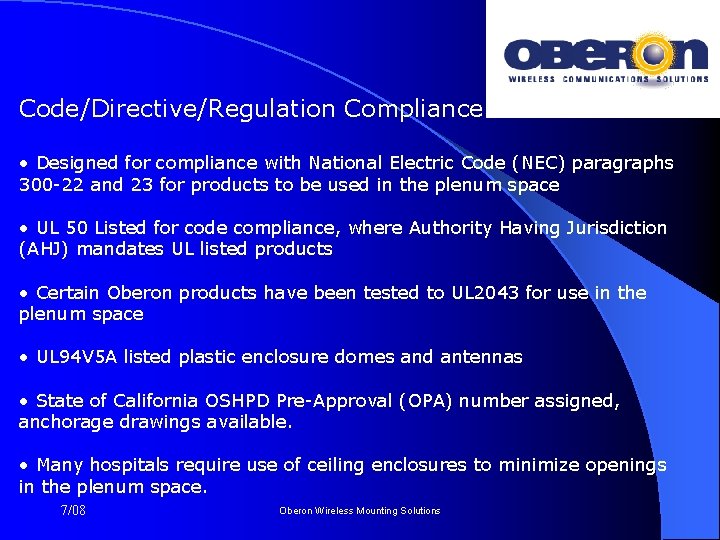

Code/Directive/Regulation Compliance • Designed for compliance with National Electric Code (NEC) paragraphs 300 -22 and 23 for products to be used in the plenum space • UL 50 Listed for code compliance, where Authority Having Jurisdiction (AHJ) mandates UL listed products • Certain Oberon products have been tested to UL 2043 for use in the plenum space • UL 94 V 5 A listed plastic enclosure domes and antennas • State of California OSHPD Pre-Approval (OPA) number assigned, anchorage drawings available. • Many hospitals require use of ceiling enclosures to minimize openings in the plenum space. 7/08 Oberon Wireless Mounting Solutions

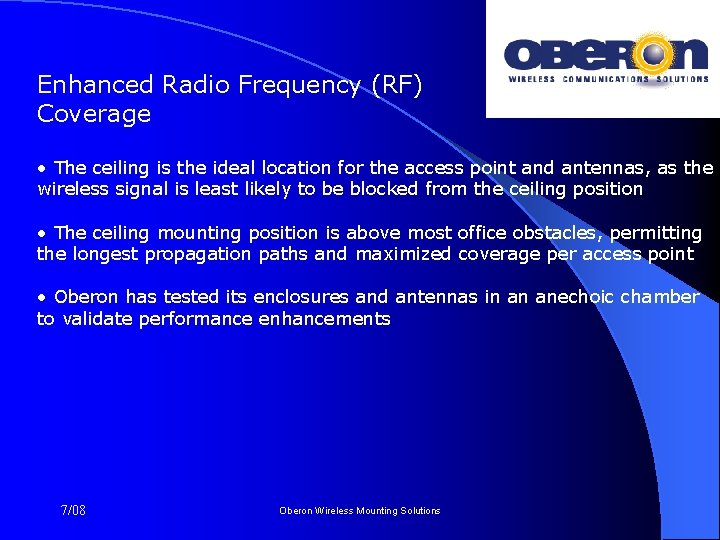

Enhanced Radio Frequency (RF) Coverage • The ceiling is the ideal location for the access point and antennas, as the wireless signal is least likely to be blocked from the ceiling position • The ceiling mounting position is above most office obstacles, permitting the longest propagation paths and maximized coverage per access point • Oberon has tested its enclosures and antennas in an anechoic chamber to validate performance enhancements 7/08 Oberon Wireless Mounting Solutions

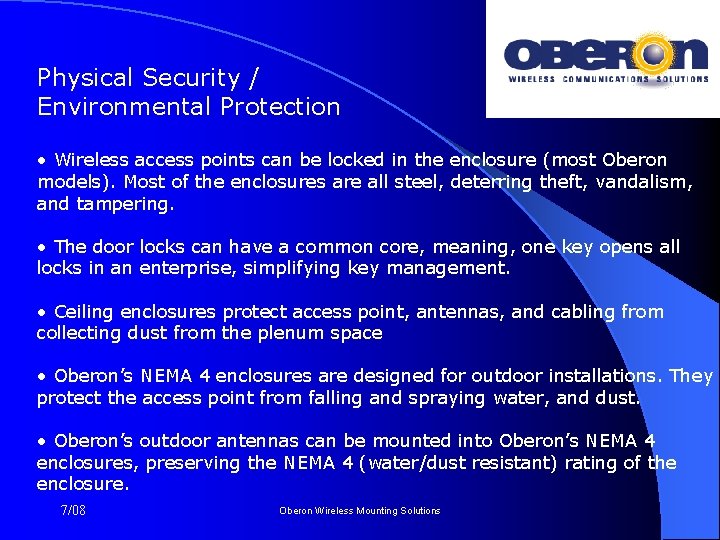

Physical Security / Environmental Protection • Wireless access points can be locked in the enclosure (most Oberon models). Most of the enclosures are all steel, deterring theft, vandalism, and tampering. • The door locks can have a common core, meaning, one key opens all locks in an enterprise, simplifying key management. • Ceiling enclosures protect access point, antennas, and cabling from collecting dust from the plenum space • Oberon’s NEMA 4 enclosures are designed for outdoor installations. They protect the access point from falling and spraying water, and dust. • Oberon’s outdoor antennas can be mounted into Oberon’s NEMA 4 enclosures, preserving the NEMA 4 (water/dust resistant) rating of the enclosure. 7/08 Oberon Wireless Mounting Solutions

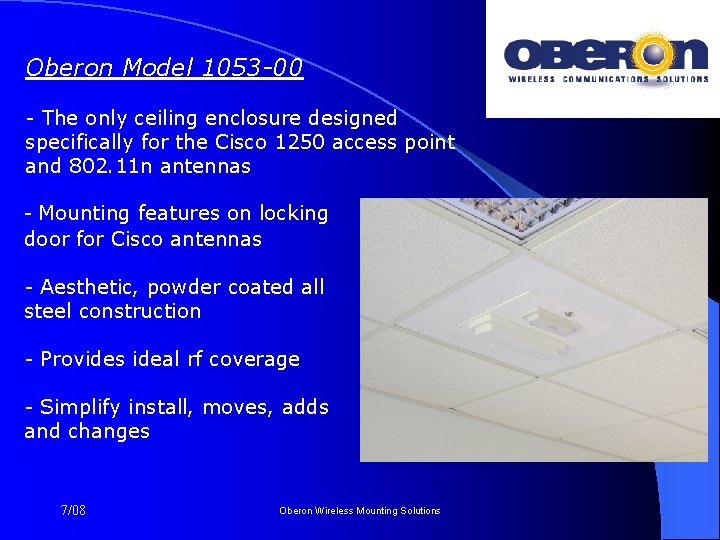

Oberon Model 1053 -00 - The only ceiling enclosure designed specifically for the Cisco 1250 access point and 802. 11 n antennas - Mounting features on locking door for Cisco antennas - Aesthetic, powder coated all steel construction - Provides ideal rf coverage - Simplify install, moves, adds and changes 7/08 Oberon Wireless Mounting Solutions

Oberon Model 1054 -00 - Ceiling enclosure designed specifically for the Cisco 1242 access point and antennas - Mounting features on locking door for Cisco antennas - Aesthetic, powder coated all steel construction - Provides ideal rf coverage - Simplify install, moves, adds and changes 7/08 Oberon Wireless Mounting Solutions

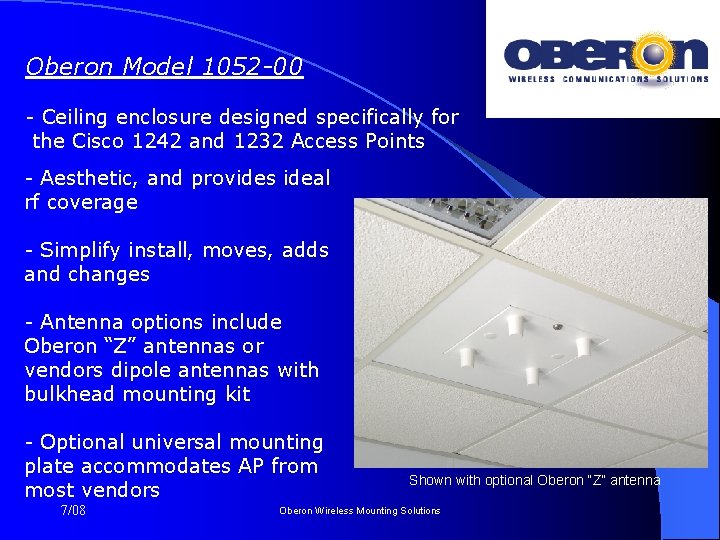

Oberon Model 1052 -00 - Ceiling enclosure designed specifically for the Cisco 1242 and 1232 Access Points - Aesthetic, and provides ideal rf coverage - Simplify install, moves, adds and changes - Antenna options include Oberon “Z” antennas or vendors dipole antennas with bulkhead mounting kit - Optional universal mounting plate accommodates AP from most vendors 7/08 Shown with optional Oberon “Z” antenna Oberon Wireless Mounting Solutions

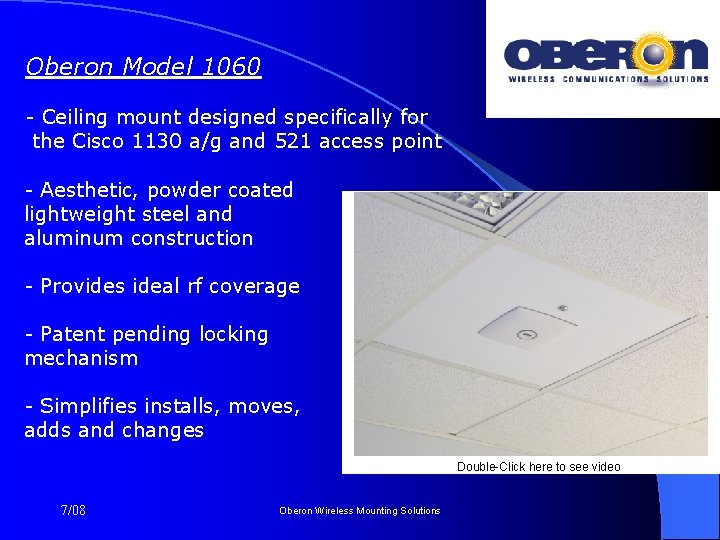

Oberon Model 1060 - Ceiling mount designed specifically for the Cisco 1130 a/g and 521 access point - Aesthetic, powder coated lightweight steel and aluminum construction - Provides ideal rf coverage - Patent pending locking mechanism - Simplifies installs, moves, adds and changes Double-Click here to see video 7/08 Oberon Wireless Mounting Solutions

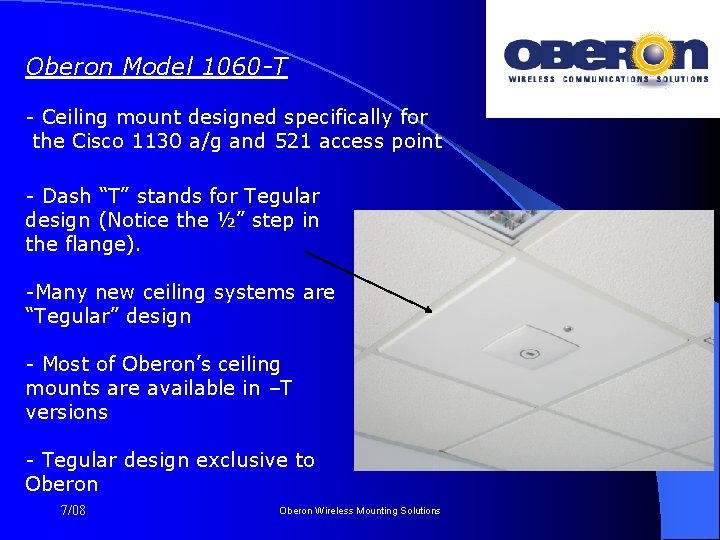

Oberon Model 1060 -T - Ceiling mount designed specifically for the Cisco 1130 a/g and 521 access point - Dash “T” stands for Tegular design (Notice the ½” step in the flange). -Many new ceiling systems are “Tegular” design - Most of Oberon’s ceiling mounts are available in –T versions - Tegular design exclusive to Oberon 7/08 Oberon Wireless Mounting Solutions

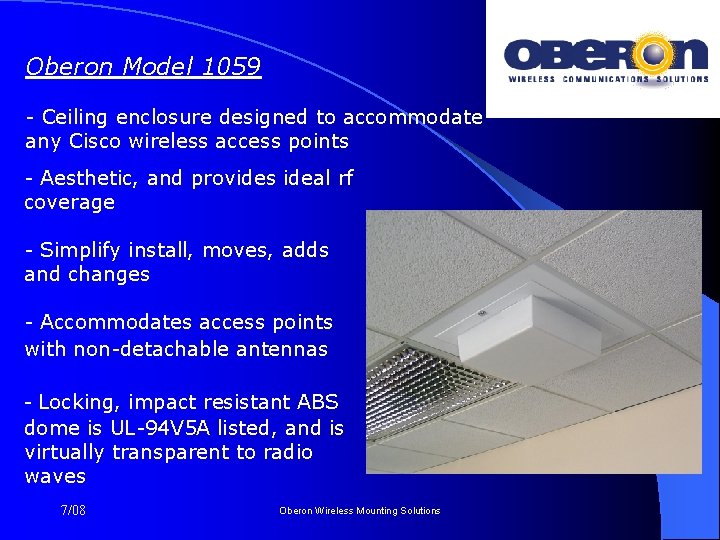

Oberon Model 1059 - Ceiling enclosure designed to accommodate any Cisco wireless access points - Aesthetic, and provides ideal rf coverage - Simplify install, moves, adds and changes - Accommodates access points with non-detachable antennas - Locking, impact resistant ABS dome is UL-94 V 5 A listed, and is virtually transparent to radio waves 7/08 Oberon Wireless Mounting Solutions

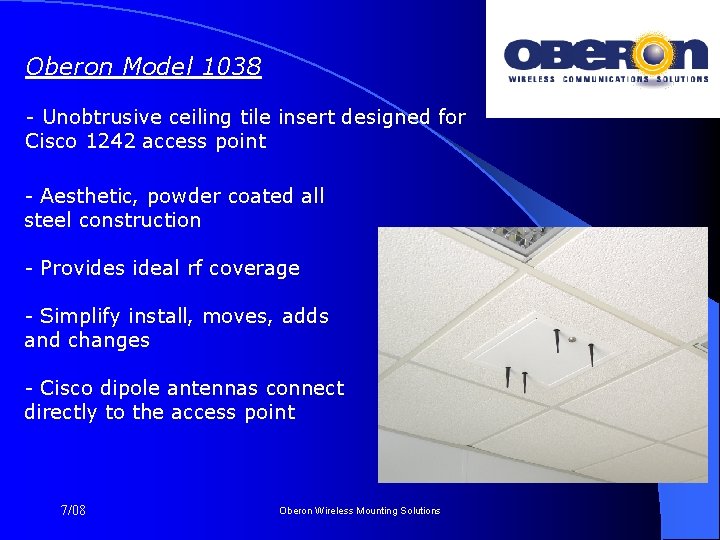

Oberon Model 1038 - Unobtrusive ceiling tile insert designed for Cisco 1242 access point - Aesthetic, powder coated all steel construction - Provides ideal rf coverage - Simplify install, moves, adds and changes - Cisco dipole antennas connect directly to the access point 7/08 Oberon Wireless Mounting Solutions

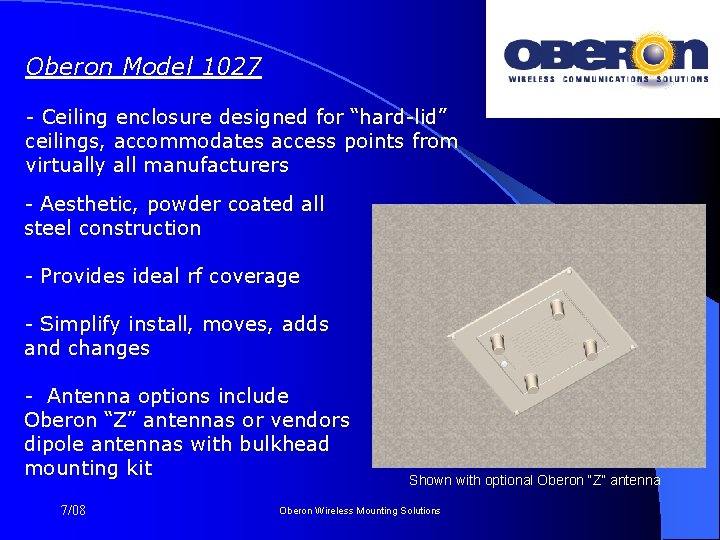

Oberon Model 1027 - Ceiling enclosure designed for “hard-lid” ceilings, accommodates access points from virtually all manufacturers - Aesthetic, powder coated all steel construction - Provides ideal rf coverage - Simplify install, moves, adds and changes - Antenna options include Oberon “Z” antennas or vendors dipole antennas with bulkhead mounting kit 7/08 Shown with optional Oberon “Z” antenna Oberon Wireless Mounting Solutions

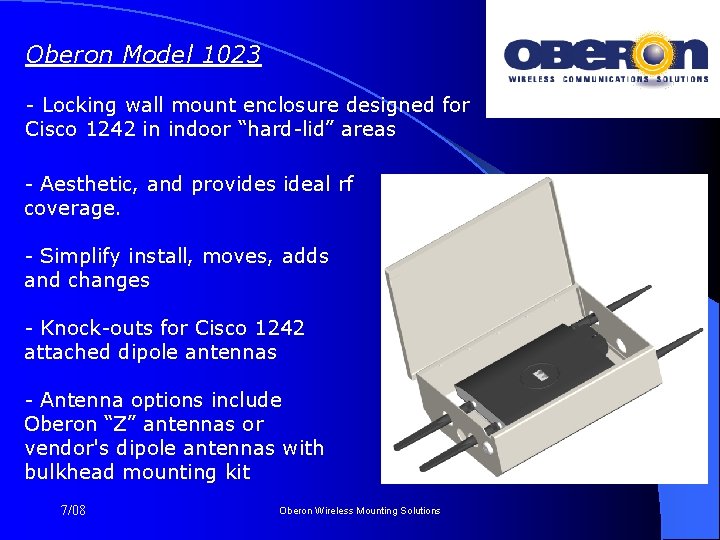

Oberon Model 1023 - Locking wall mount enclosure designed for Cisco 1242 in indoor “hard-lid” areas - Aesthetic, and provides ideal rf coverage. - Simplify install, moves, adds and changes - Knock-outs for Cisco 1242 attached dipole antennas - Antenna options include Oberon “Z” antennas or vendor's dipole antennas with bulkhead mounting kit 7/08 Oberon Wireless Mounting Solutions

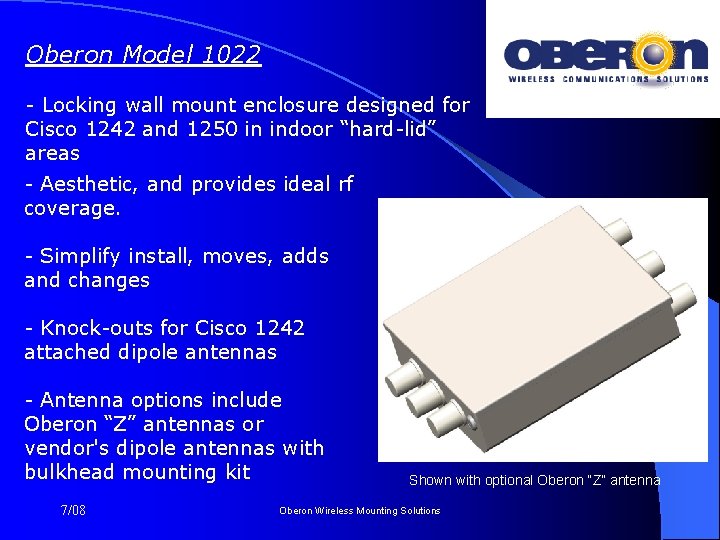

Oberon Model 1022 - Locking wall mount enclosure designed for Cisco 1242 and 1250 in indoor “hard-lid” areas - Aesthetic, and provides ideal rf coverage. - Simplify install, moves, adds and changes - Knock-outs for Cisco 1242 attached dipole antennas - Antenna options include Oberon “Z” antennas or vendor's dipole antennas with bulkhead mounting kit 7/08 Shown with optional Oberon “Z” antenna Oberon Wireless Mounting Solutions

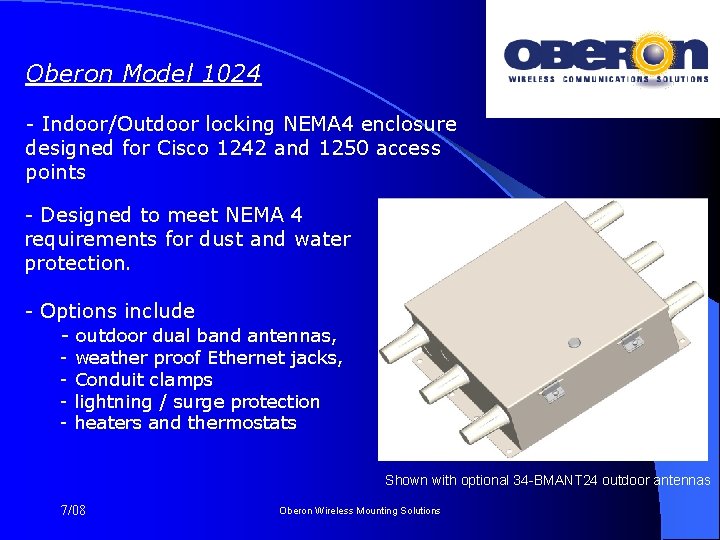

Oberon Model 1024 - Indoor/Outdoor locking NEMA 4 enclosure designed for Cisco 1242 and 1250 access points - Designed to meet NEMA 4 requirements for dust and water protection. - Options include - outdoor dual band antennas, - weather proof Ethernet jacks, Conduit clamps lightning / surge protection heaters and thermostats Shown with optional 34 -BMANT 24 outdoor antennas 7/08 Oberon Wireless Mounting Solutions

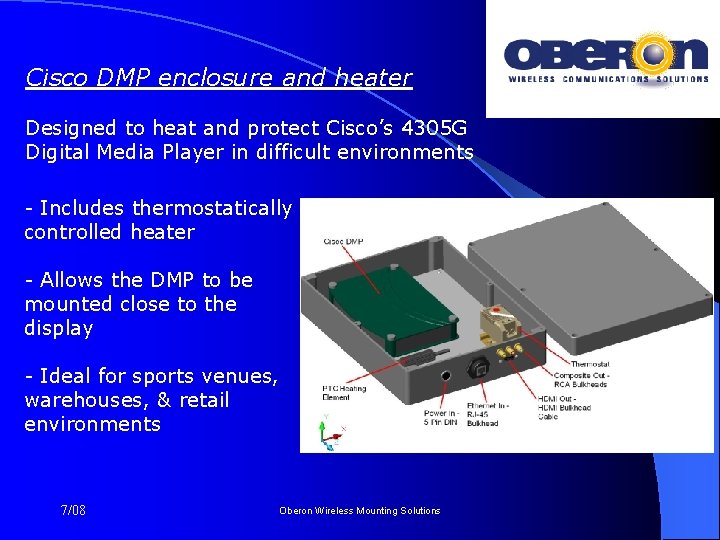

Cisco DMP enclosure and heater Designed to heat and protect Cisco’s 4305 G Digital Media Player in difficult environments - Includes thermostatically controlled heater - Allows the DMP to be mounted close to the display - Ideal for sports venues, warehouses, & retail environments 7/08 Oberon Wireless Mounting Solutions
