Wire Mount Models Modelling Notes Windchill PDM Anode

Wire Mount Models Modelling Notes Windchill PDM

Anode Wire Mount Right 24 A 3954 A SI-1000 -0090

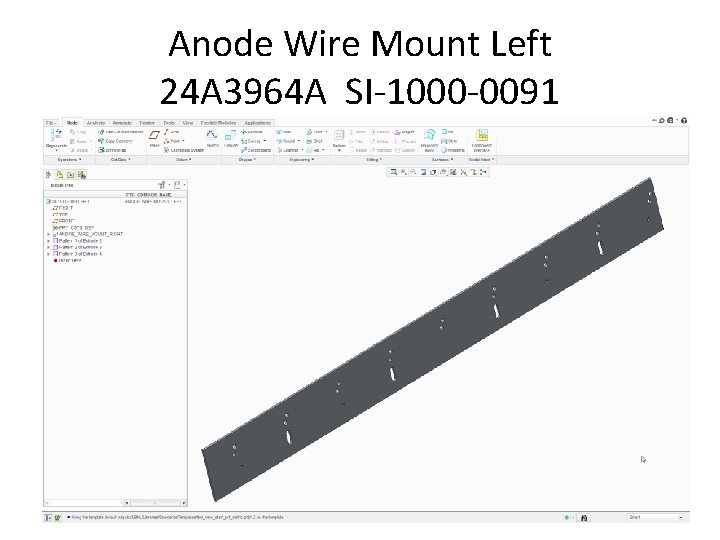

Anode Wire Mount Left 24 A 3964 A SI-1000 -0091

Anode Wire Mount Left 24 A 3964 A • 24 A 3651 -P 1 is a board layout drawing • Note also—no indication of part name/number etched in DWG • Likely made in artwork of circuit board

Gated Grid Wire Mount Extrusion 24 A 4023 A SI-1000 -0092

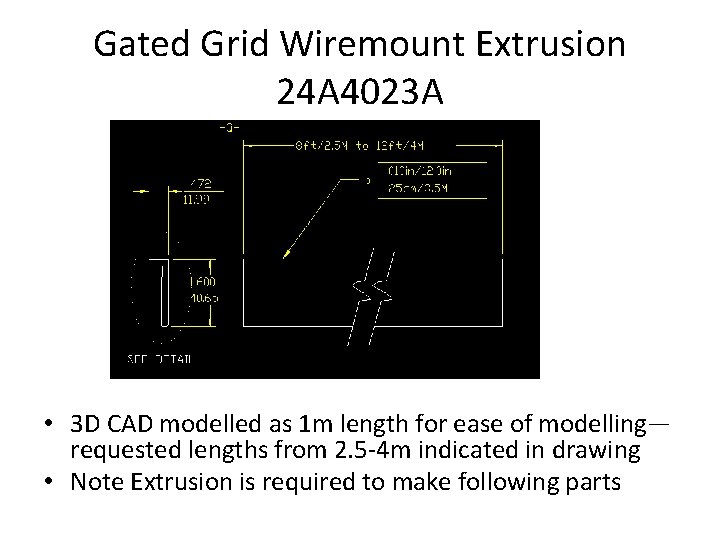

Gated Grid Wiremount Extrusion 24 A 4023 A • 3 D CAD modelled as 1 m length for ease of modelling— requested lengths from 2. 5 -4 m indicated in drawing • Note Extrusion is required to make following parts

Gated Grid Wire Mount Right 24 A 4004 A SI-1000 -0093

Gated Grid Wire Mount Left 24 A 4014 A SI-1000 -0094

Gated Grid Wire Mount, Right 24 A 4004 A • Hole with c’bore note drawn 0. 266 dia, call out indicates 0. 203—modelled called out in 3 D • Drawn properly on 24 A 4014 A

Shield Wire Mount, Right, G-10 24 A 4594 A SI-1000 -0097

Shield Wire Mount, Right, G-10 24 A 4594 A STRIP • Made from 24 A 4541 -P 1 • Features circled on left are confusing • Top view indicates slot depth in section view • Front view indicates slot stops at Cu strip with special features (modelled stopped slot with rounded features, pulled dimension from DWG) • Later given: 24 A 4543 M 1 and 24 A 4543 M 2 detailing Cu and plating

Shield Wire Mount Left G 10 24 A 4964 A—SI-1000 -0099
