Windows NT Server Brief Overview of NT Server

Windows NT Server • Brief Overview of NT Server History, Architecture, System Concept. • Installation procedure and related concepts. • Material adapted from – Inside Windows NT by Helen Custer – Windows NT Technical Support, MS press – Supporting IIS Server, MS press 10/22/2021 C. Edward Chow 1

Window NT OS Effort • Bill Gate hired Dave Culter from Digital in Oct 1988 to build a team for design a new OS. • Dave Culter was the designer of a real time multitasking system called RSX-11 M that ran in 32 KB on PDP-11 minicomputers. It took 18 month, introduced in 1973. • He lead the effort building VMS for VAX-11 architecture. • He also lead a group that build the Micro. Vax workstation. 10/22/2021 C. Edward Chow 2

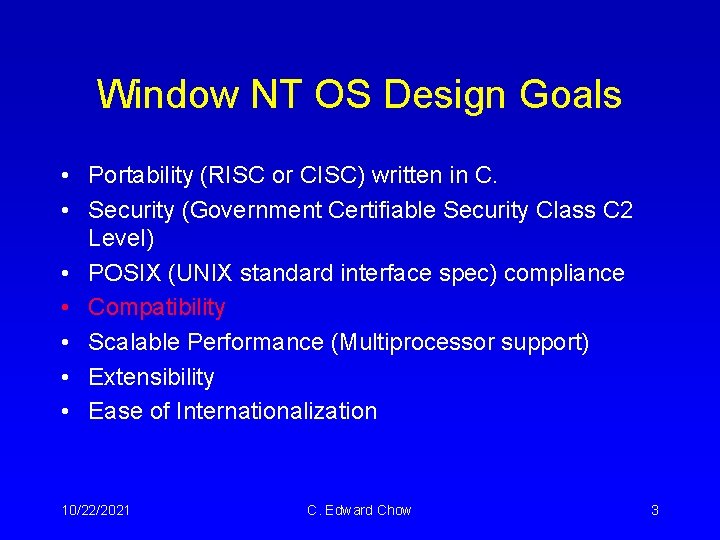

Window NT OS Design Goals • Portability (RISC or CISC) written in C. • Security (Government Certifiable Security Class C 2 Level) • POSIX (UNIX standard interface spec) compliance • Compatibility • Scalable Performance (Multiprocessor support) • Extensibility • Ease of Internationalization 10/22/2021 C. Edward Chow 3

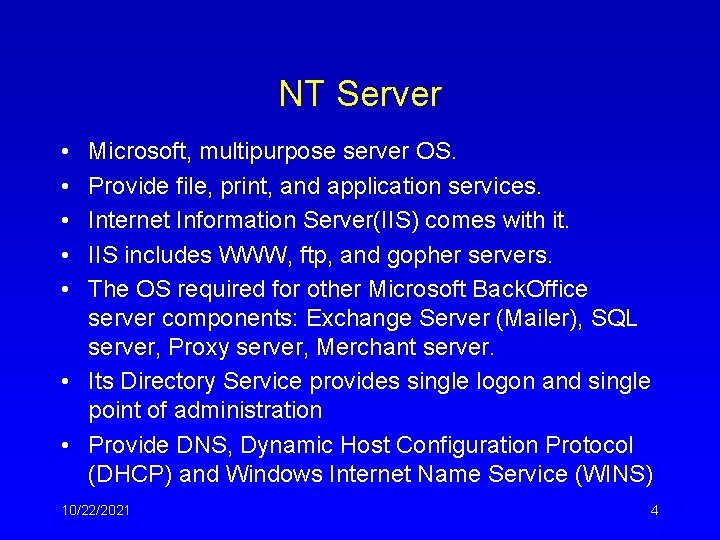

NT Server • • • Microsoft, multipurpose server OS. Provide file, print, and application services. Internet Information Server(IIS) comes with it. IIS includes WWW, ftp, and gopher servers. The OS required for other Microsoft Back. Office server components: Exchange Server (Mailer), SQL server, Proxy server, Merchant server. • Its Directory Service provides single logon and single point of administration • Provide DNS, Dynamic Host Configuration Protocol (DHCP) and Windows Internet Name Service (WINS) 10/22/2021 4

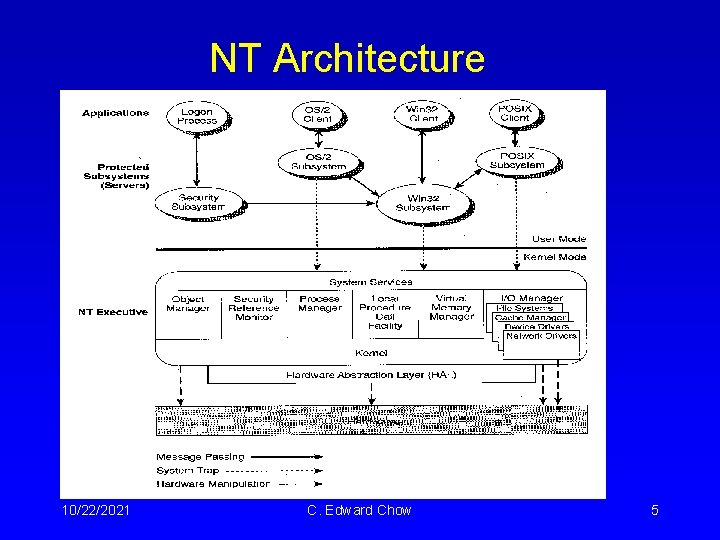

NT Architecture 10/22/2021 C. Edward Chow 5

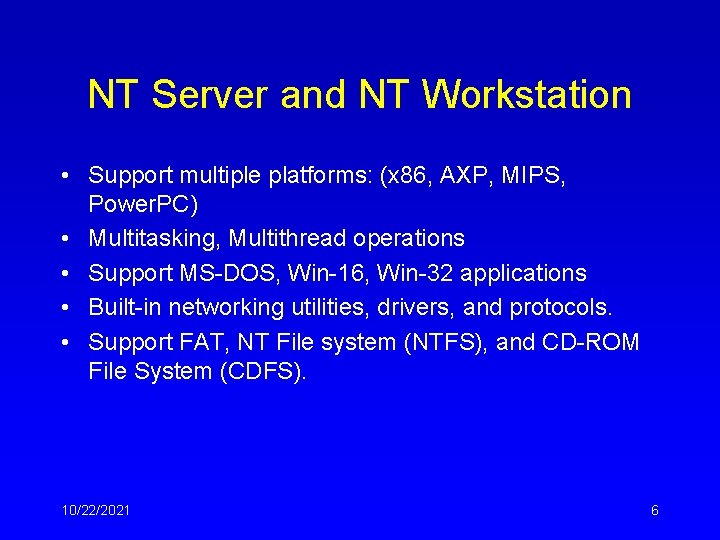

NT Server and NT Workstation • Support multiple platforms: (x 86, AXP, MIPS, Power. PC) • Multitasking, Multithread operations • Support MS-DOS, Win-16, Win-32 applications • Built-in networking utilities, drivers, and protocols. • Support FAT, NT File system (NTFS), and CD-ROM File System (CDFS). 10/22/2021 6

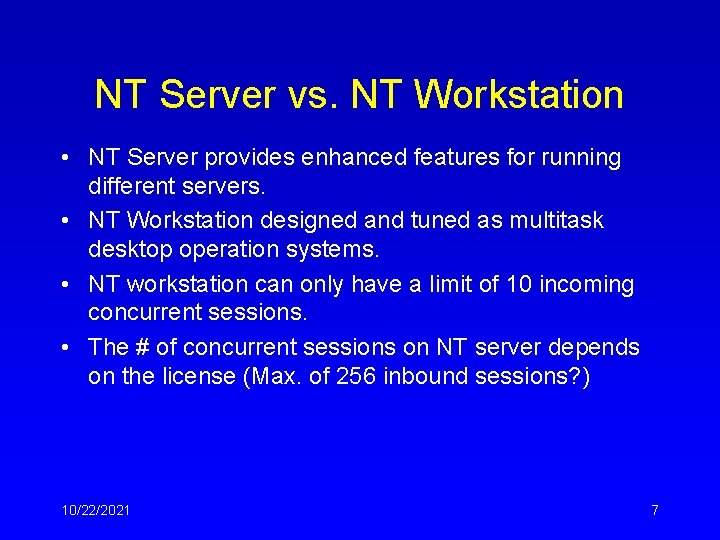

NT Server vs. NT Workstation • NT Server provides enhanced features for running different servers. • NT Workstation designed and tuned as multitask desktop operation systems. • NT workstation can only have a limit of 10 incoming concurrent sessions. • The # of concurrent sessions on NT server depends on the license (Max. of 256 inbound sessions? ) 10/22/2021 7

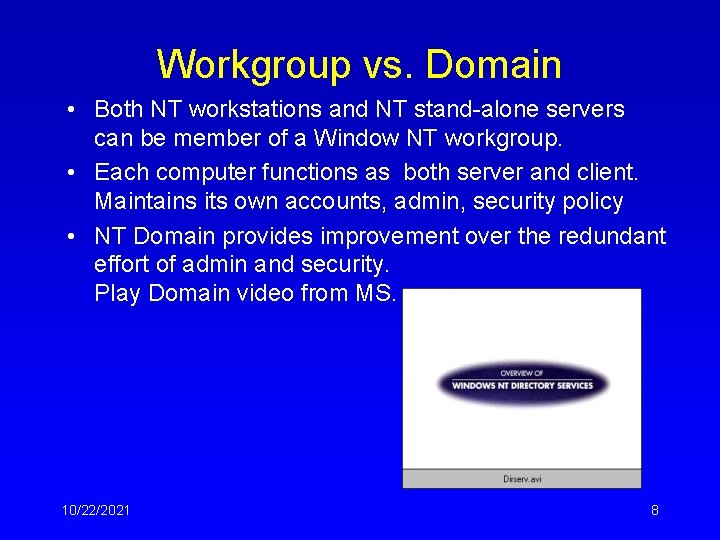

Workgroup vs. Domain • Both NT workstations and NT stand-alone servers can be member of a Window NT workgroup. • Each computer functions as both server and client. Maintains its own accounts, admin, security policy • NT Domain provides improvement over the redundant effort of admin and security. Play Domain video from MS. 10/22/2021 8

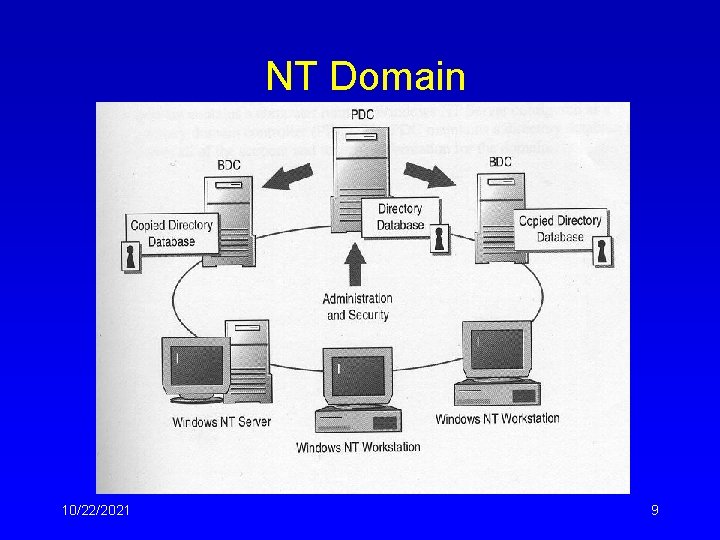

NT Domain 10/22/2021 9

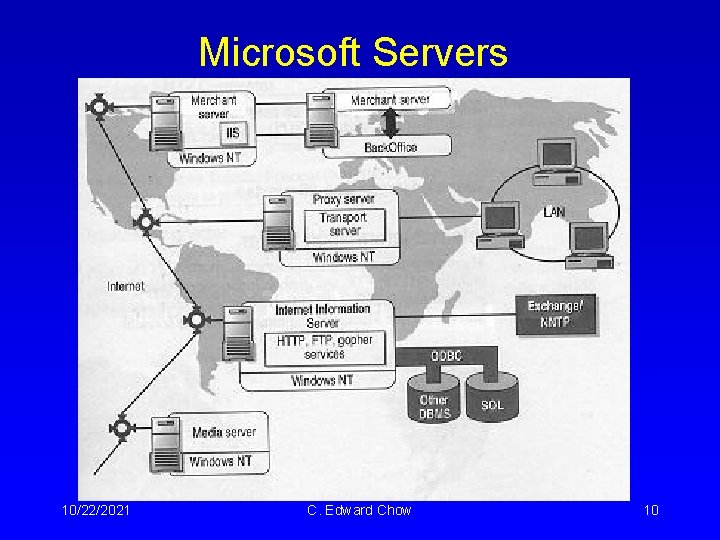

Microsoft Servers 10/22/2021 C. Edward Chow 10

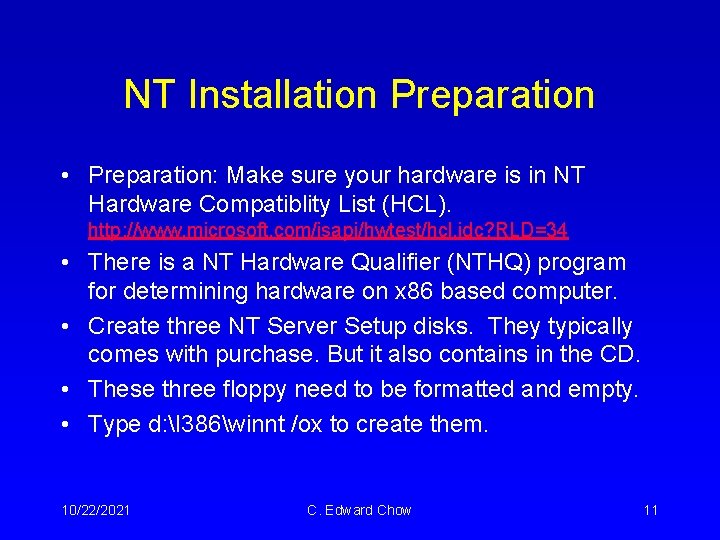

NT Installation Preparation • Preparation: Make sure your hardware is in NT Hardware Compatiblity List (HCL). http: //www. microsoft. com/isapi/hwtest/hcl. idc? RLD=34 • There is a NT Hardware Qualifier (NTHQ) program for determining hardware on x 86 based computer. • Create three NT Server Setup disks. They typically comes with purchase. But it also contains in the CD. • These three floppy need to be formatted and empty. • Type d: I 386winnt /ox to create them. 10/22/2021 C. Edward Chow 11

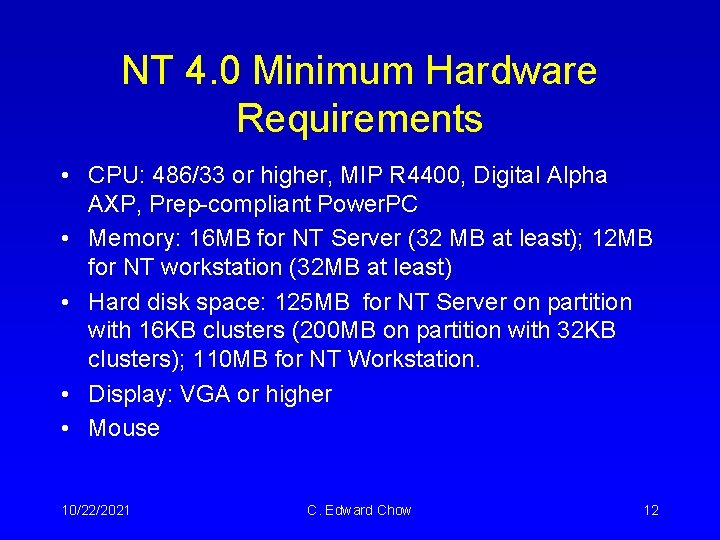

NT 4. 0 Minimum Hardware Requirements • CPU: 486/33 or higher, MIP R 4400, Digital Alpha AXP, Prep-compliant Power. PC • Memory: 16 MB for NT Server (32 MB at least); 12 MB for NT workstation (32 MB at least) • Hard disk space: 125 MB for NT Server on partition with 16 KB clusters (200 MB on partition with 32 KB clusters); 110 MB for NT Workstation. • Display: VGA or higher • Mouse 10/22/2021 C. Edward Chow 12

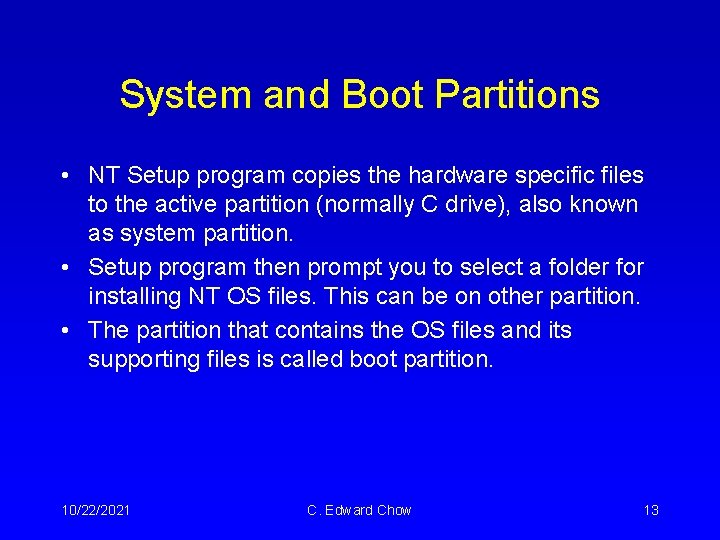

System and Boot Partitions • NT Setup program copies the hardware specific files to the active partition (normally C drive), also known as system partition. • Setup program then prompt you to select a folder for installing NT OS files. This can be on other partition. • The partition that contains the OS files and its supporting files is called boot partition. 10/22/2021 C. Edward Chow 13

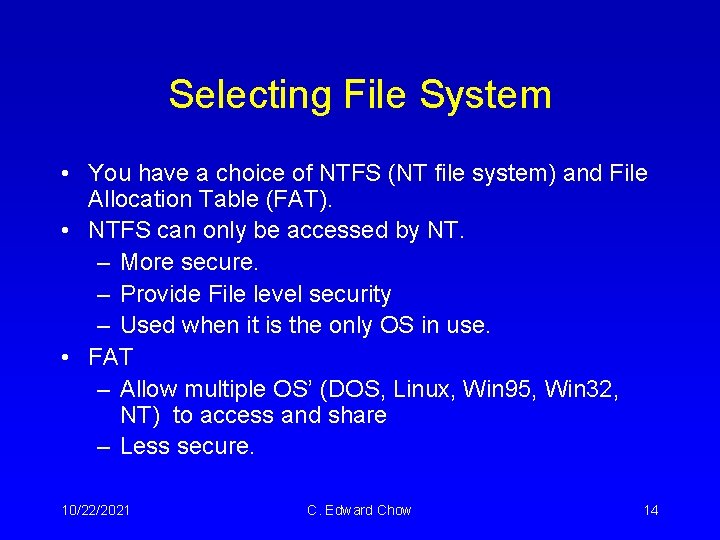

Selecting File System • You have a choice of NTFS (NT file system) and File Allocation Table (FAT). • NTFS can only be accessed by NT. – More secure. – Provide File level security – Used when it is the only OS in use. • FAT – Allow multiple OS’ (DOS, Linux, Win 95, Win 32, NT) to access and share – Less secure. 10/22/2021 C. Edward Chow 14

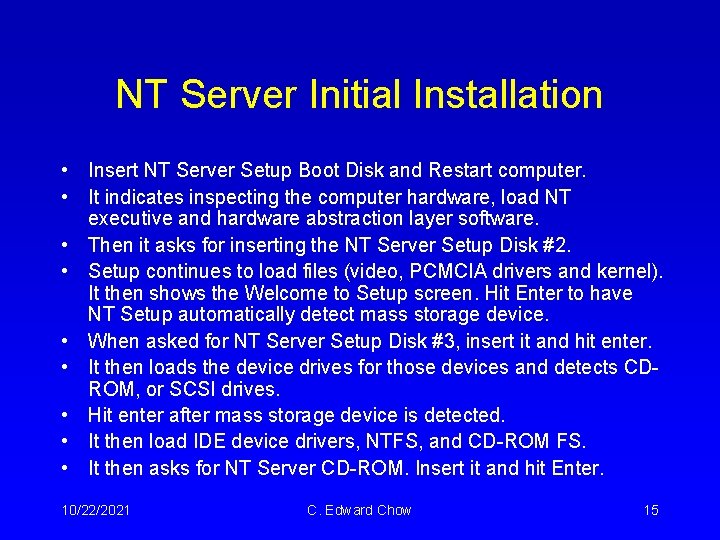

NT Server Initial Installation • Insert NT Server Setup Boot Disk and Restart computer. • It indicates inspecting the computer hardware, load NT executive and hardware abstraction layer software. • Then it asks for inserting the NT Server Setup Disk #2. • Setup continues to load files (video, PCMCIA drivers and kernel). It then shows the Welcome to Setup screen. Hit Enter to have NT Setup automatically detect mass storage device. • When asked for NT Server Setup Disk #3, insert it and hit enter. • It then loads the device drives for those devices and detects CDROM, or SCSI drives. • Hit enter after mass storage device is detected. • It then load IDE device drivers, NTFS, and CD-ROM FS. • It then asks for NT Server CD-ROM. Insert it and hit Enter. 10/22/2021 C. Edward Chow 15

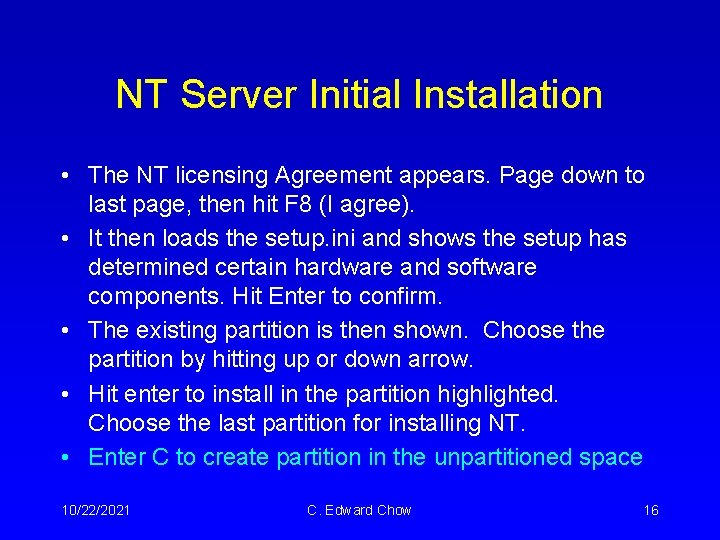

NT Server Initial Installation • The NT licensing Agreement appears. Page down to last page, then hit F 8 (I agree). • It then loads the setup. ini and shows the setup has determined certain hardware and software components. Hit Enter to confirm. • The existing partition is then shown. Choose the partition by hitting up or down arrow. • Hit enter to install in the partition highlighted. Choose the last partition for installing NT. • Enter C to create partition in the unpartitioned space 10/22/2021 C. Edward Chow 16

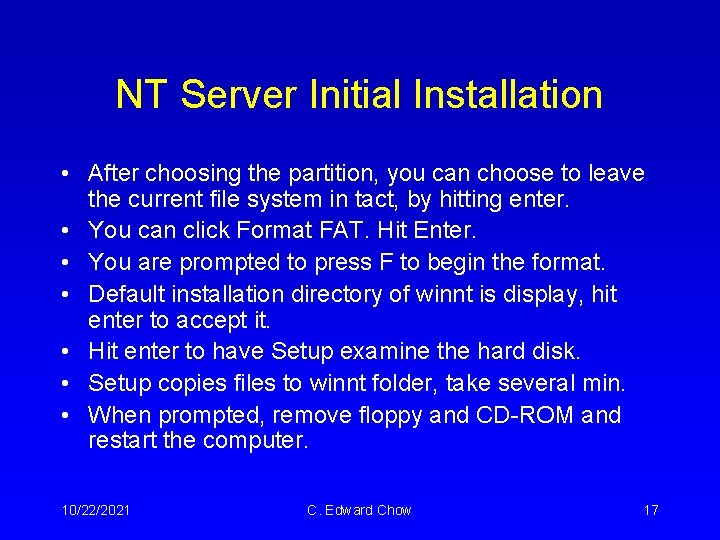

NT Server Initial Installation • After choosing the partition, you can choose to leave the current file system in tact, by hitting enter. • You can click Format FAT. Hit Enter. • You are prompted to press F to begin the format. • Default installation directory of winnt is display, hit enter to accept it. • Hit enter to have Setup examine the hard disk. • Setup copies files to winnt folder, take several min. • When prompted, remove floppy and CD-ROM and restart the computer. 10/22/2021 C. Edward Chow 17

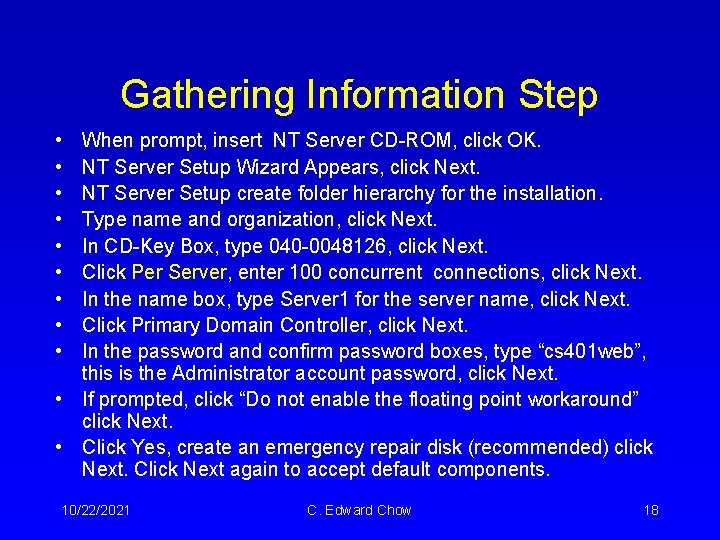

Gathering Information Step • • • When prompt, insert NT Server CD-ROM, click OK. NT Server Setup Wizard Appears, click Next. NT Server Setup create folder hierarchy for the installation. Type name and organization, click Next. In CD-Key Box, type 040 -0048126, click Next. Click Per Server, enter 100 concurrent connections, click Next. In the name box, type Server 1 for the server name, click Next. Click Primary Domain Controller, click Next. In the password and confirm password boxes, type “cs 401 web”, this is the Administrator account password, click Next. • If prompted, click “Do not enable the floating point workaround” click Next. • Click Yes, create an emergency repair disk (recommended) click Next. Click Next again to accept default components. 10/22/2021 C. Edward Chow 18

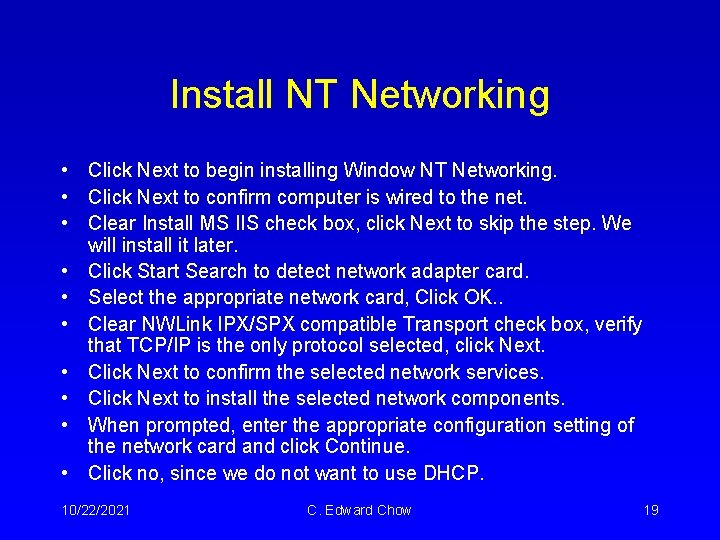

Install NT Networking • Click Next to begin installing Window NT Networking. • Click Next to confirm computer is wired to the net. • Clear Install MS IIS check box, click Next to skip the step. We will install it later. • Click Start Search to detect network adapter card. • Select the appropriate network card, Click OK. . • Clear NWLink IPX/SPX compatible Transport check box, verify that TCP/IP is the only protocol selected, click Next. • Click Next to confirm the selected network services. • Click Next to install the selected network components. • When prompted, enter the appropriate configuration setting of the network card and click Continue. • Click no, since we do not want to use DHCP. 10/22/2021 C. Edward Chow 19

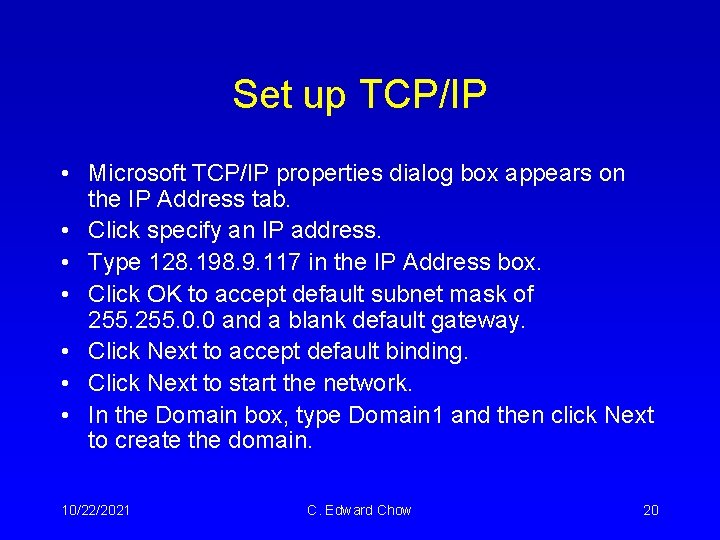

Set up TCP/IP • Microsoft TCP/IP properties dialog box appears on the IP Address tab. • Click specify an IP address. • Type 128. 198. 9. 117 in the IP Address box. • Click OK to accept default subnet mask of 255. 0. 0 and a blank default gateway. • Click Next to accept default binding. • Click Next to start the network. • In the Domain box, type Domain 1 and then click Next to create the domain. 10/22/2021 C. Edward Chow 20

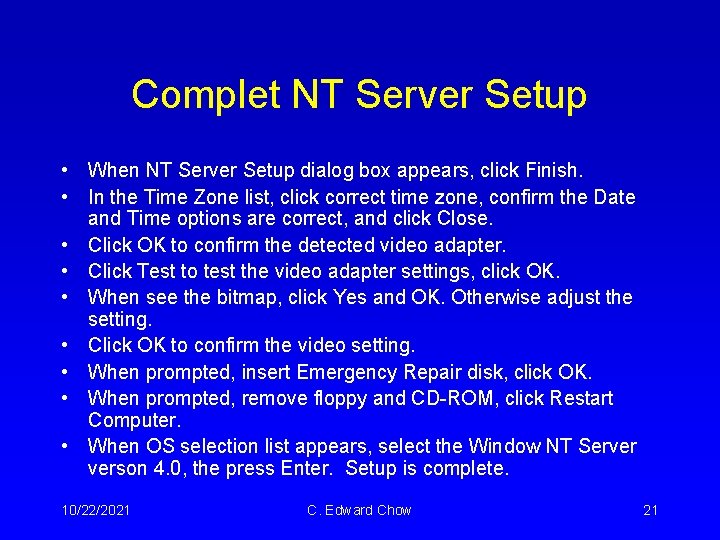

Complet NT Server Setup • When NT Server Setup dialog box appears, click Finish. • In the Time Zone list, click correct time zone, confirm the Date and Time options are correct, and click Close. • Click OK to confirm the detected video adapter. • Click Test to test the video adapter settings, click OK. • When see the bitmap, click Yes and OK. Otherwise adjust the setting. • Click OK to confirm the video setting. • When prompted, insert Emergency Repair disk, click OK. • When prompted, remove floppy and CD-ROM, click Restart Computer. • When OS selection list appears, select the Window NT Server verson 4. 0, the press Enter. Setup is complete. 10/22/2021 C. Edward Chow 21

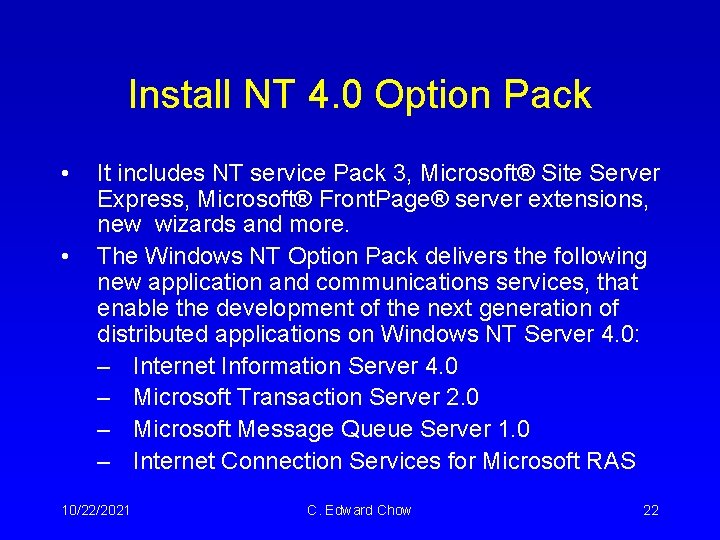

Install NT 4. 0 Option Pack • • It includes NT service Pack 3, Microsoft® Site Server Express, Microsoft® Front. Page® server extensions, new wizards and more. The Windows NT Option Pack delivers the following new application and communications services, that enable the development of the next generation of distributed applications on Windows NT Server 4. 0: – Internet Information Server 4. 0 – Microsoft Transaction Server 2. 0 – Microsoft Message Queue Server 1. 0 – Internet Connection Services for Microsoft RAS 10/22/2021 C. Edward Chow 22

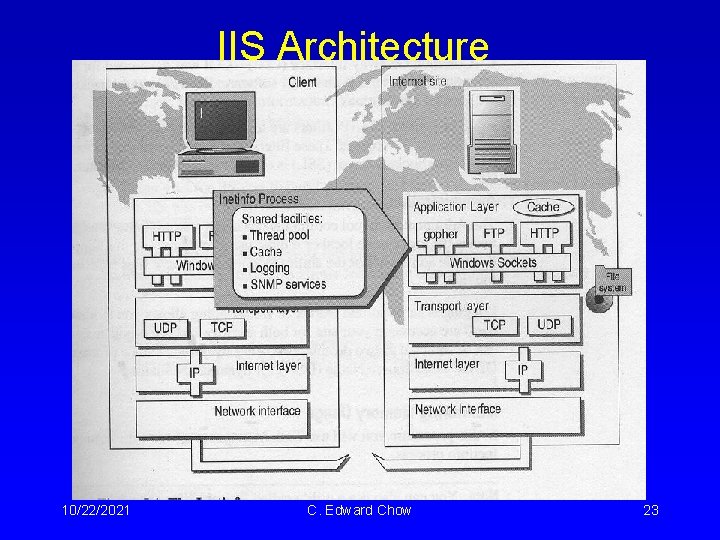

IIS Architecture 10/22/2021 C. Edward Chow 23

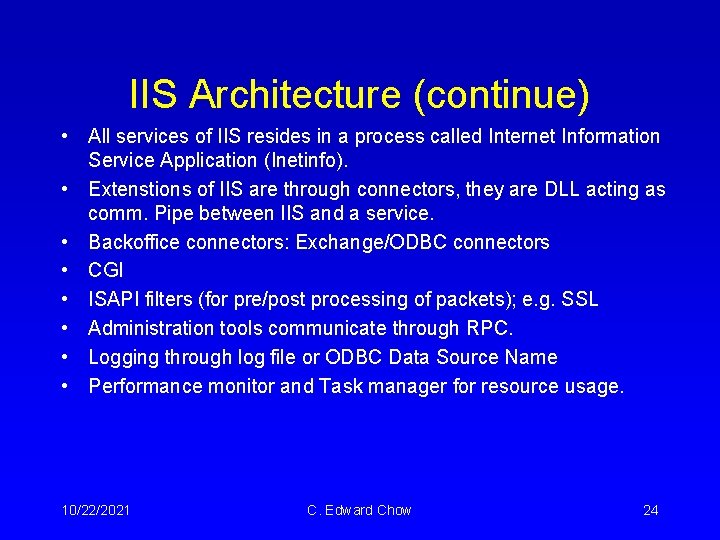

IIS Architecture (continue) • All services of IIS resides in a process called Internet Information Service Application (Inetinfo). • Extenstions of IIS are through connectors, they are DLL acting as comm. Pipe between IIS and a service. • Backoffice connectors: Exchange/ODBC connectors • CGI • ISAPI filters (for pre/post processing of packets); e. g. SSL • Administration tools communicate through RPC. • Logging through log file or ODBC Data Source Name • Performance monitor and Task manager for resource usage. 10/22/2021 C. Edward Chow 24

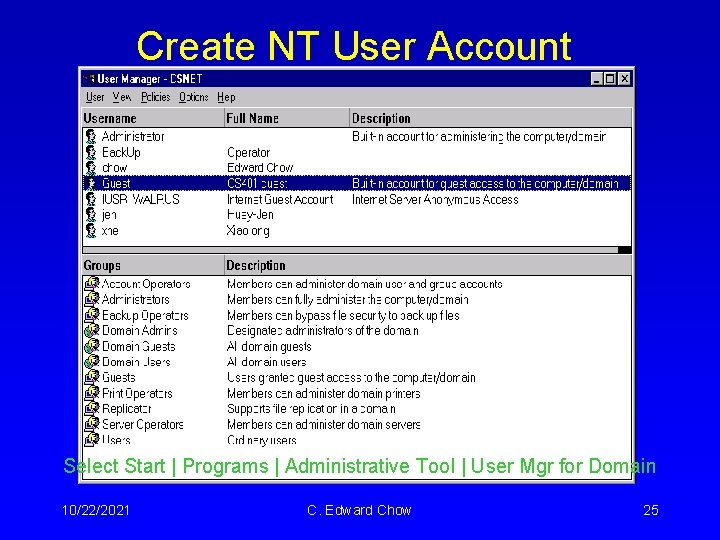

Create NT User Account Select Start | Programs | Administrative Tool | User Mgr for Domain 10/22/2021 C. Edward Chow 25

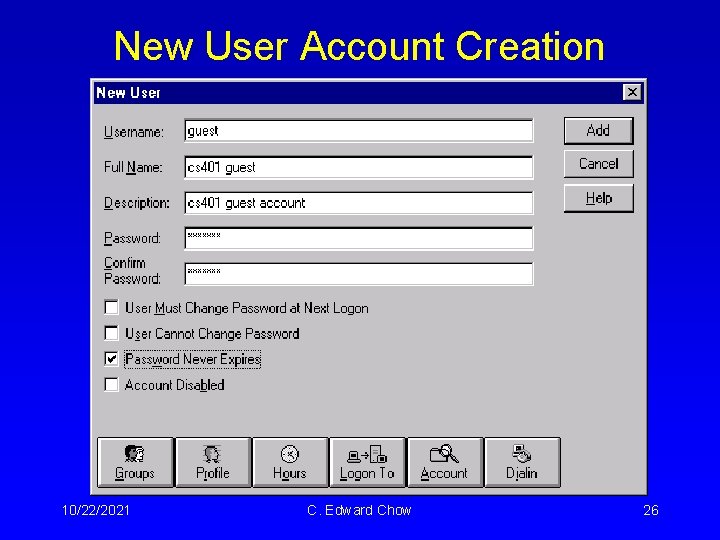

New User Account Creation 10/22/2021 C. Edward Chow 26

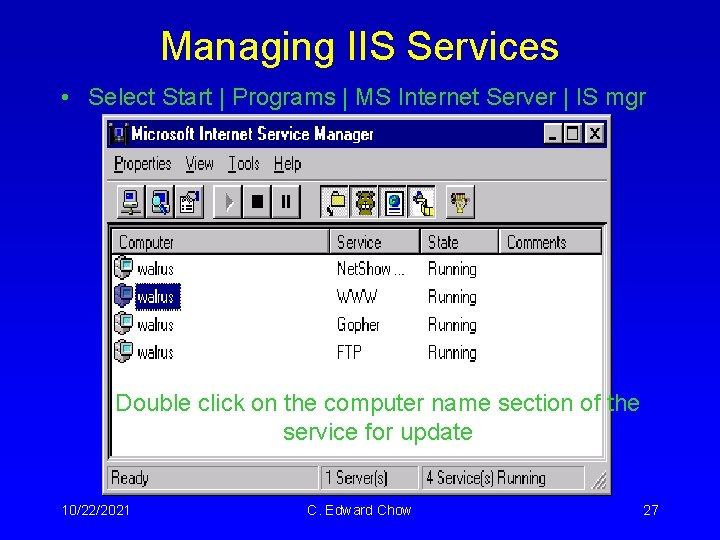

Managing IIS Services • Select Start | Programs | MS Internet Server | IS mgr Double click on the computer name section of the service for update 10/22/2021 C. Edward Chow 27

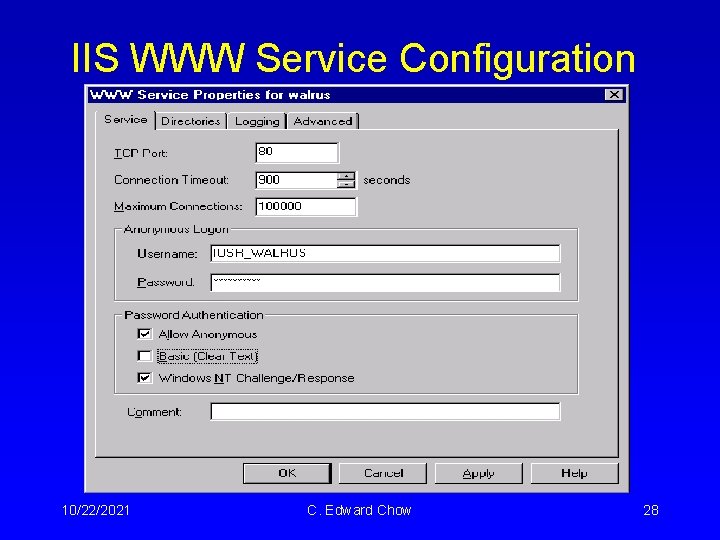

IIS WWW Service Configuration 10/22/2021 C. Edward Chow 28

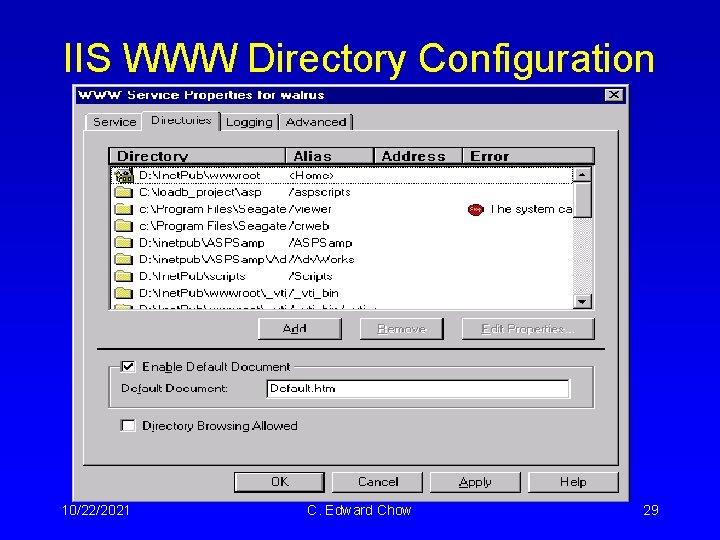

IIS WWW Directory Configuration 10/22/2021 C. Edward Chow 29

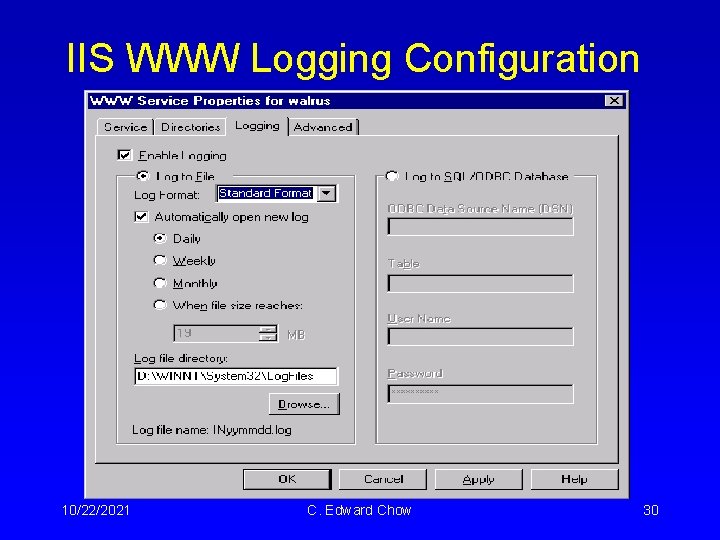

IIS WWW Logging Configuration 10/22/2021 C. Edward Chow 30

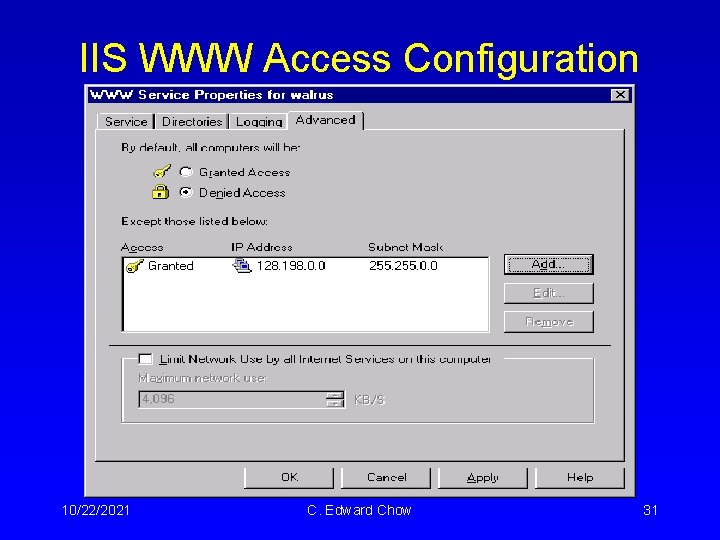

IIS WWW Access Configuration 10/22/2021 C. Edward Chow 31

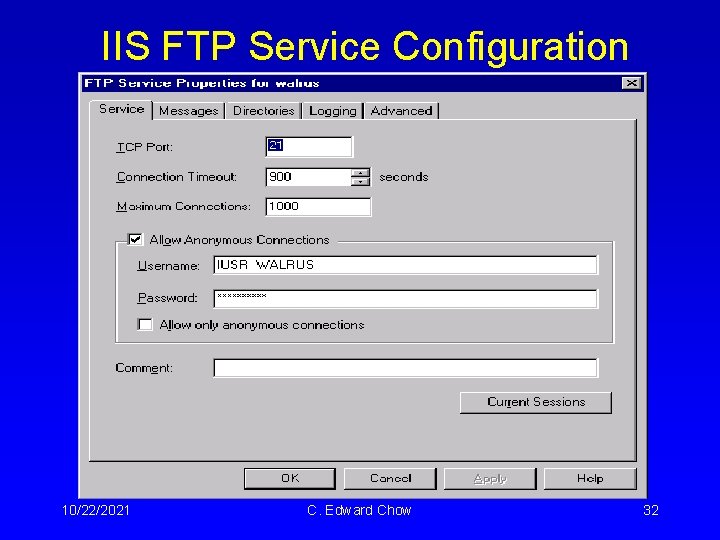

IIS FTP Service Configuration 10/22/2021 C. Edward Chow 32

IIS FTP Message Configuration 10/22/2021 C. Edward Chow 33

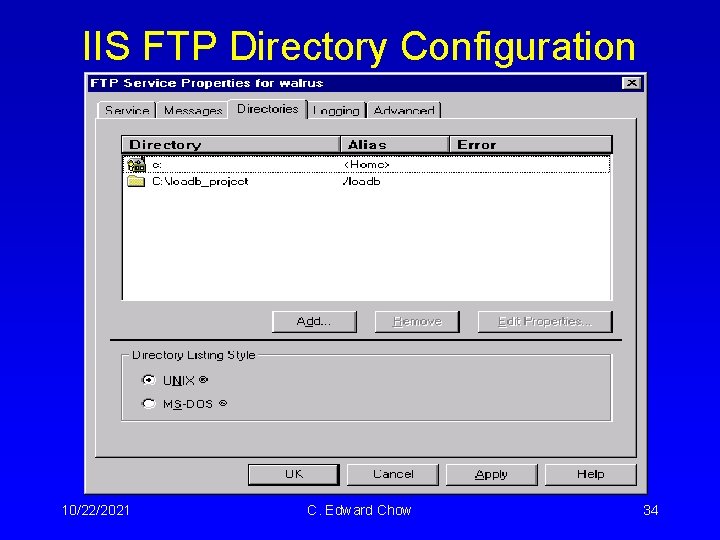

IIS FTP Directory Configuration 10/22/2021 C. Edward Chow 34

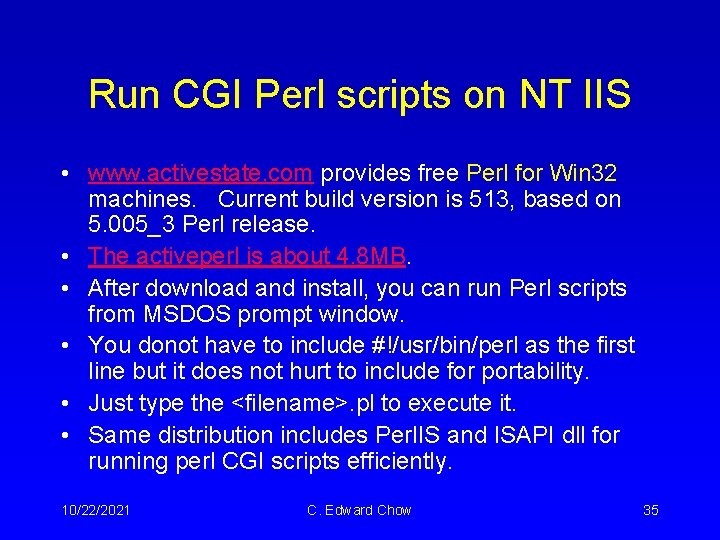

Run CGI Perl scripts on NT IIS • www. activestate. com provides free Perl for Win 32 machines. Current build version is 513, based on 5. 005_3 Perl release. • The activeperl is about 4. 8 MB. • After download and install, you can run Perl scripts from MSDOS prompt window. • You donot have to include #!/usr/bin/perl as the first line but it does not hurt to include for portability. • Just type the <filename>. pl to execute it. • Same distribution includes Perl. IS and ISAPI dll for running perl CGI scripts efficiently. 10/22/2021 C. Edward Chow 35

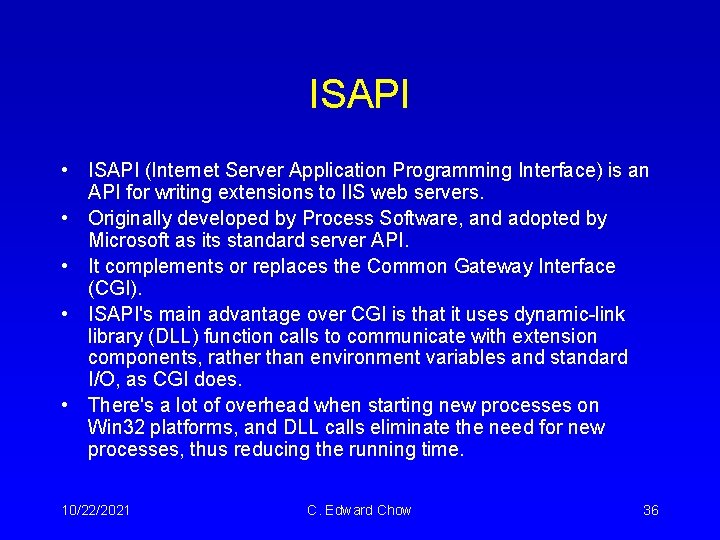

ISAPI • ISAPI (Internet Server Application Programming Interface) is an API for writing extensions to IIS web servers. • Originally developed by Process Software, and adopted by Microsoft as its standard server API. • It complements or replaces the Common Gateway Interface (CGI). • ISAPI's main advantage over CGI is that it uses dynamic-link library (DLL) function calls to communicate with extension components, rather than environment variables and standard I/O, as CGI does. • There's a lot of overhead when starting new processes on Win 32 platforms, and DLL calls eliminate the need for new processes, thus reducing the running time. 10/22/2021 C. Edward Chow 36

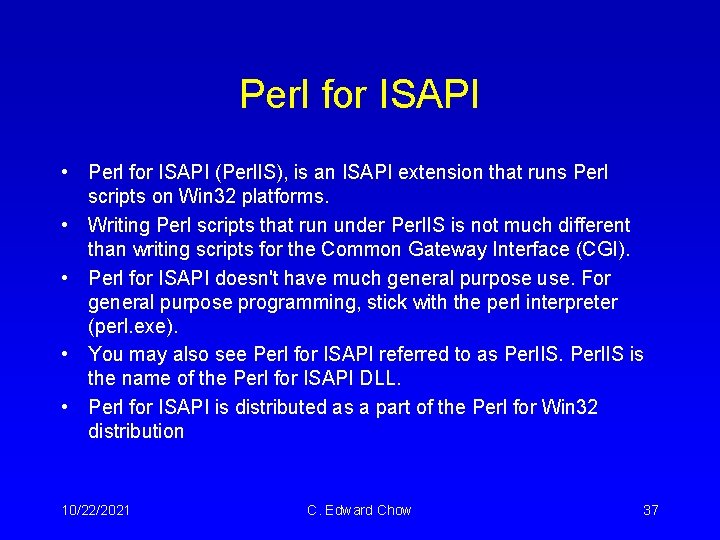

Perl for ISAPI • Perl for ISAPI (Perl. IS), is an ISAPI extension that runs Perl scripts on Win 32 platforms. • Writing Perl scripts that run under Perl. IS is not much different than writing scripts for the Common Gateway Interface (CGI). • Perl for ISAPI doesn't have much general purpose use. For general purpose programming, stick with the perl interpreter (perl. exe). • You may also see Perl for ISAPI referred to as Perl. IS is the name of the Perl for ISAPI DLL. • Perl for ISAPI is distributed as a part of the Perl for Win 32 distribution 10/22/2021 C. Edward Chow 37

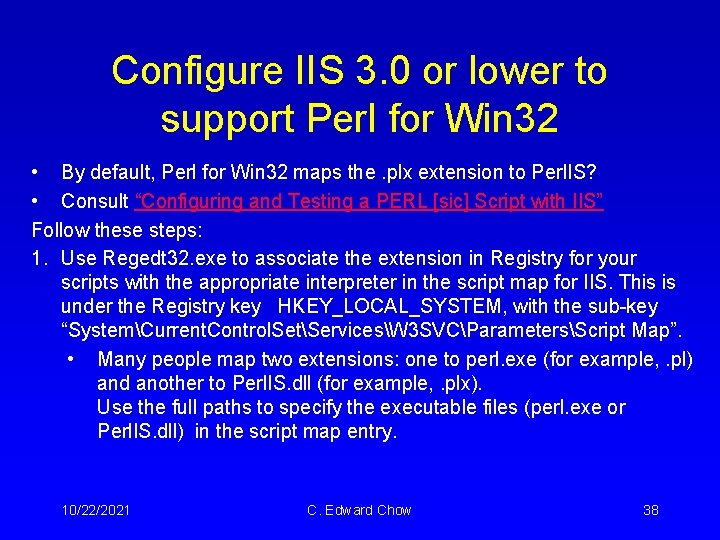

Configure IIS 3. 0 or lower to support Perl for Win 32 • By default, Perl for Win 32 maps the. plx extension to Perl. IS? • Consult “Configuring and Testing a PERL [sic] Script with IIS” Follow these steps: 1. Use Regedt 32. exe to associate the extension in Registry for your scripts with the appropriate interpreter in the script map for IIS. This is under the Registry key HKEY_LOCAL_SYSTEM, with the sub-key “SystemCurrent. Control. SetServicesW 3 SVCParametersScript Map”. • Many people map two extensions: one to perl. exe (for example, . pl) and another to Perl. IS. dll (for example, . plx). Use the full paths to specify the executable files (perl. exe or Perl. IS. dll) in the script map entry. 10/22/2021 C. Edward Chow 38

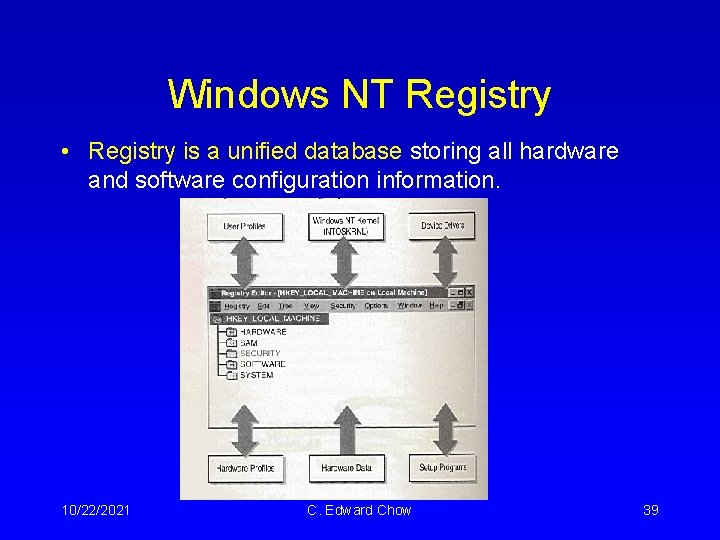

Windows NT Registry • Registry is a unified database storing all hardware and software configuration information. 10/22/2021 C. Edward Chow 39

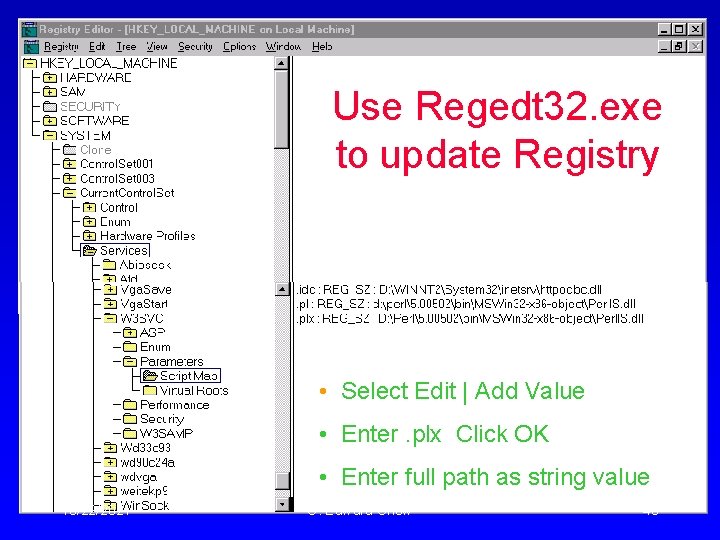

Use Regedt 32. exe to update Registry • Select Edit | Add Value • Enter. plx Click OK • Enter full path as string value 10/22/2021 C. Edward Chow 40

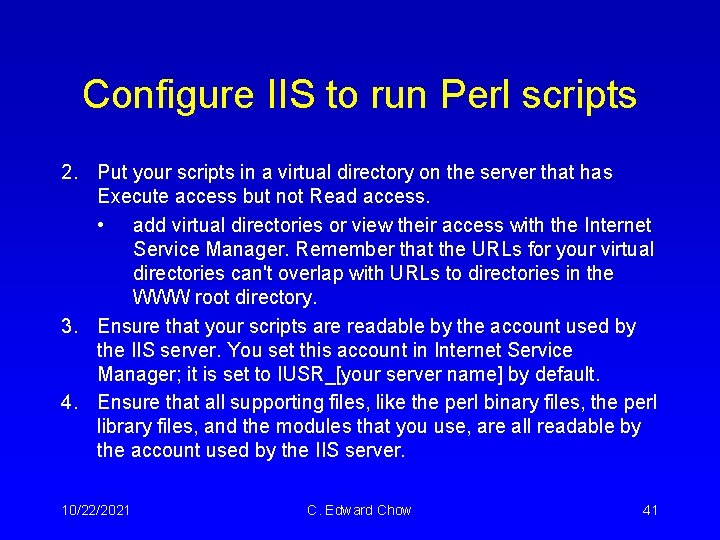

Configure IIS to run Perl scripts 2. Put your scripts in a virtual directory on the server that has Execute access but not Read access. • add virtual directories or view their access with the Internet Service Manager. Remember that the URLs for your virtual directories can't overlap with URLs to directories in the WWW root directory. 3. Ensure that your scripts are readable by the account used by the IIS server. You set this account in Internet Service Manager; it is set to IUSR_[your server name] by default. 4. Ensure that all supporting files, like the perl binary files, the perl library files, and the modules that you use, are all readable by the account used by the IIS server. 10/22/2021 C. Edward Chow 41

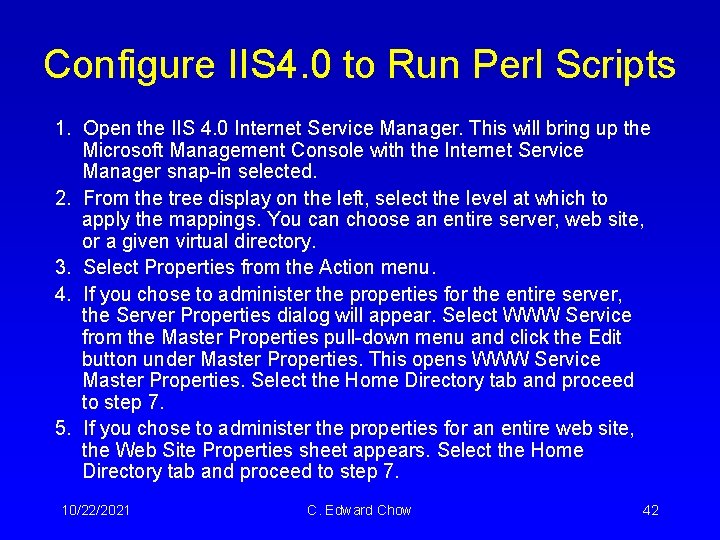

Configure IIS 4. 0 to Run Perl Scripts 1. Open the IIS 4. 0 Internet Service Manager. This will bring up the Microsoft Management Console with the Internet Service Manager snap-in selected. 2. From the tree display on the left, select the level at which to apply the mappings. You can choose an entire server, web site, or a given virtual directory. 3. Select Properties from the Action menu. 4. If you chose to administer the properties for the entire server, the Server Properties dialog will appear. Select WWW Service from the Master Properties pull-down menu and click the Edit button under Master Properties. This opens WWW Service Master Properties. Select the Home Directory tab and proceed to step 7. 5. If you chose to administer the properties for an entire web site, the Web Site Properties sheet appears. Select the Home Directory tab and proceed to step 7. 10/22/2021 C. Edward Chow 42

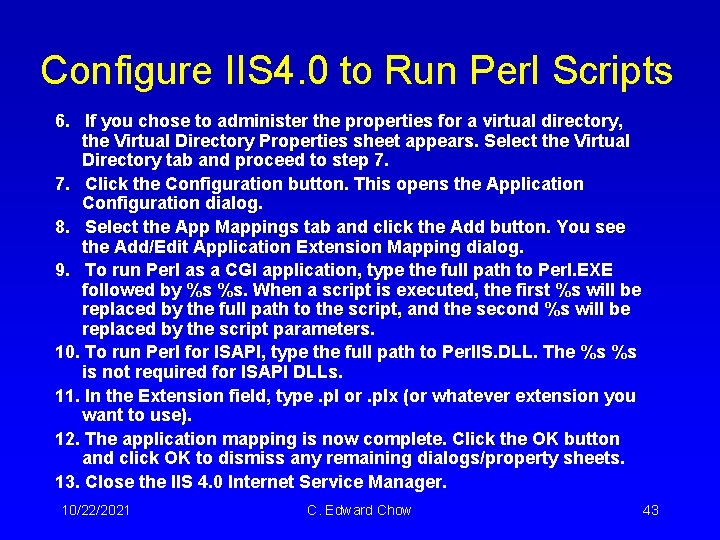

Configure IIS 4. 0 to Run Perl Scripts 6. If you chose to administer the properties for a virtual directory, the Virtual Directory Properties sheet appears. Select the Virtual Directory tab and proceed to step 7. 7. Click the Configuration button. This opens the Application Configuration dialog. 8. Select the App Mappings tab and click the Add button. You see the Add/Edit Application Extension Mapping dialog. 9. To run Perl as a CGI application, type the full path to Perl. EXE followed by %s %s. When a script is executed, the first %s will be replaced by the full path to the script, and the second %s will be replaced by the script parameters. 10. To run Perl for ISAPI, type the full path to Perl. IS. DLL. The %s %s is not required for ISAPI DLLs. 11. In the Extension field, type. pl or. plx (or whatever extension you want to use). 12. The application mapping is now complete. Click the OK button and click OK to dismiss any remaining dialogs/property sheets. 13. Close the IIS 4. 0 Internet Service Manager. 10/22/2021 C. Edward Chow 43

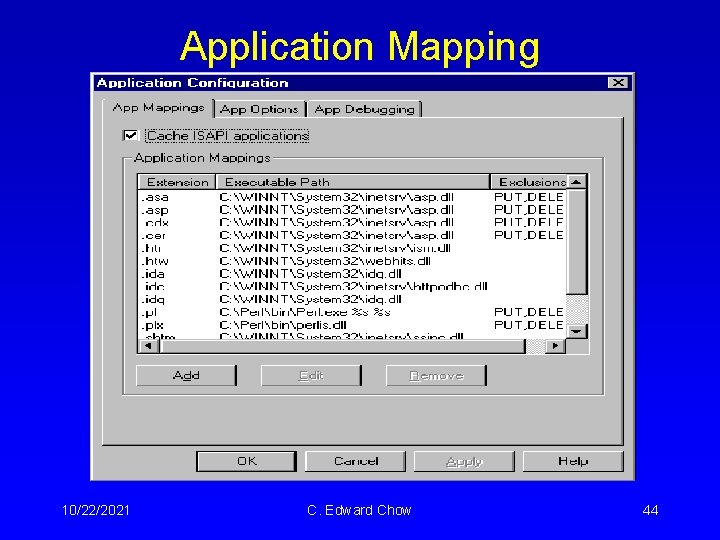

Application Mapping 10/22/2021 C. Edward Chow 44

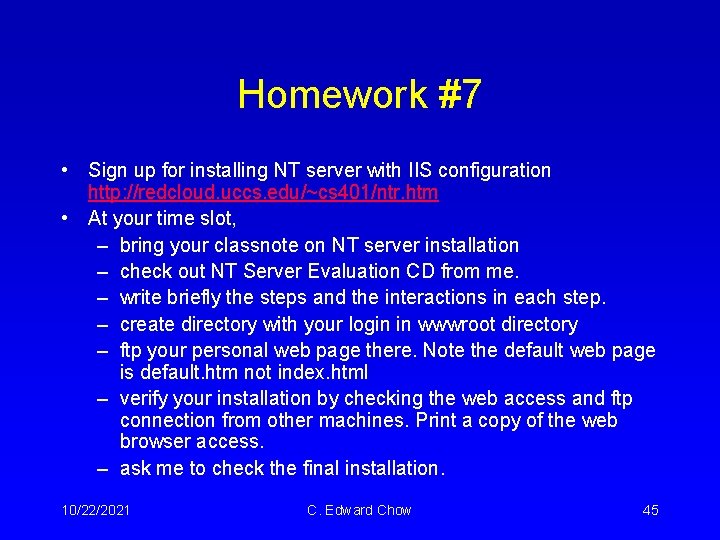

Homework #7 • Sign up for installing NT server with IIS configuration http: //redcloud. uccs. edu/~cs 401/ntr. htm • At your time slot, – bring your classnote on NT server installation – check out NT Server Evaluation CD from me. – write briefly the steps and the interactions in each step. – create directory with your login in wwwroot directory – ftp your personal web page there. Note the default web page is default. htm not index. html – verify your installation by checking the web access and ftp connection from other machines. Print a copy of the web browser access. – ask me to check the final installation. 10/22/2021 C. Edward Chow 45
