Windows Data Protection Global Leader Backup Exec. Windows Server 12 표준 제안서 서린정보기술㈜ Symantec Korea
1. 2 Symantec 회사 연혁 • 2008년 6월: Swap. Drive 인수 • 2008년 4월: App. Stream 인수 • 2008년 1월: Transparent Logic 인수 • 2007년 12월: Vontu 인수 • 2007년 4월: Altiris 인수 • 2007년 2월: 4 Front. Security 인수 • 2006년 12월: Company-i 인수 • 2006년 2월: Relicore 인수, IMlogic 인수 • 2006년 1월: Bindview 인수 • 2005년 10월: Sygate 인수, Whole. Security 인수 • 2005년 7월: 베리타스 합병 • 2005년 5월: Xtream. Lok 인수 • 2005년 4월: DCT 인수 • 2004년 12월: Platform Logic 인수 • 2004년 10월: @stake 인수, LIRIC Associates 인수 • 2004년 9월: KVault Software Limited 인수 • 2004년 7월: Turn. Tide 인수, Invio Software, Inc 인수 • 2004년 6월: Brightmail 인수 • 2004년 2월: ON Technology 인수 • 2004년 1월: Ejasent, Inc 인수 -4 - 시만텍 솔루션 제안서 • 2003년 12월: Power. Quest 인수 • 2003년 10월: Safe. Web, Inc 인수 • 2003년 6월: Precise Software Solutions 인수 • 2003년 1월: Jareva Technologies 인수 • 2002년 8월: Riptech, Inc, Recourse Technologies, Security. Focus 인수 • 2002년 7월: Mountain Wave 인수 • 2001년 10월: Lindner & Pelc 인수 • 2001년 7월: Foster-Melliar 인수 • 2000년 12월: AXENT Technologies 인수 • 2000년 2월: L-3 Network Security 인수
2. 3 Backup Exec 12 Editions 종류 • Backup Exec 12 for Windows Servers는 운영체제의 종류에 따라 두 가지 Edition 으로 구분되어 제공됩니다. • Backup Exec 12 for Windows Servers – Small Business Server를 제외한 모든 버전의 Windows 2000, Windows Server 2003, Window 2008을 지원합니다. (자세한 내용 은 Software Compatibility 참고) • Backup Exec 12 for Small Business Server – Windows NT/2000/2003 Small Business Server (Premium/Standard Edition)를 지원합니다. • 참고: 각 에디션은 기본적으로 stand-alone drive를 무제한 지원하며, 테이프 라이 브러리의 경우 1개의 드라이브만을 지원합니다. (multi-drive 테이프 라이브러리를 사 용하고자 하는 경우 Library Expansion Option을 별도로 구매해야 함. ) -8 - 시만텍 솔루션 제안서

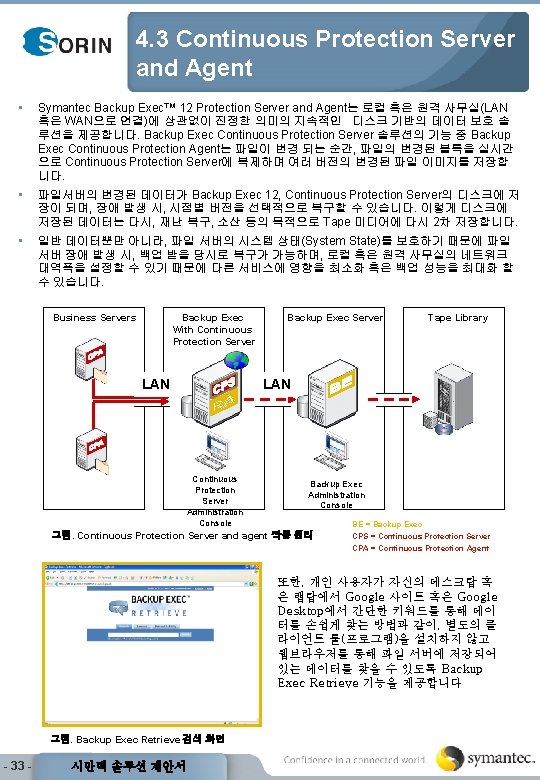

2. 4 Backup Exec Agents 설명 -9 - Backup Exec Agents 기능 설명 Continuous Protection Server and Agent Backup Exec Continuous Protection Agent는 실시간으로 파일 의 변화가 있을 때 변경된 부분을 블럭 레벨로 백업하며, 또한 각 파일서버의 System state information을 보호 NEW! Agent for Enterprise Vault Symantec Enterprise Vault 2007 를 위한 통합 백업/복구 기능 이 제공 됩니다. ENHANCED! Remote Agent for Active Directory 사용자 계정, 프린터, OU의 복구성능을 더욱 개선하였으면 DC 를 재시작하지 않고 개별단위로 신속한 복구를 지원합니다. NEW! Agent for DB 2 on windows Servers DB 2 8. 2 32/64비트 데이터 베이스를 쉽고 빠르게 백업/복구 기 능을 지원 합니다. ENHANCED! Agent for Lotus Domino* IBM Domino 7. x, 8. x 환경을 위한 통합 데이터 보호 기능을 제 공 ENHANCED! Agent for Microsoft Exchange Server 5. 5, 2000, 2003 데이타의 유연한 온라인 백 업/복구를 위한 기능을 제공 Agent for Microsoft SQL Server* 32/64 비트 시스템에 구현된 SQL Server 2000, 2005 데이타베 이스 및 파일 그룹에 대한 온라인 백업/복구를 지원 ENHANCED! Agent for Microsoft Share. Point Server* Share. Point Portal Server 2001/2003 지식 기반 시스템을 위한 고성능 데이타 백업 및 복구 기능을 제공 Agent for Oracle RAC on Windows or Linux servers Oracle 10 g 9 i RAC 환경의 32/64비트 무중단 데이터 베이스 보 호 환경을 지원 합니다. Agent for Oracle on Windows and Linux Servers* Oracle 10 g, 9 i, 8 i 및 8. x 데이터베이스를 위한 무중단 데이타 보 호 환경을 제공 Agent for SAP Applications* 온라인 상태의 SAP 애플리케이션을 보호하기 위한 백업 및 복 구 기능을 제공 CHANGE! Remote Agent for Windows Systems 32/64비트 원격 Windows 서버의 데이타 보호 기능을 제공하고 최적화된 데이타 전송 환경을 구현 Remote Agent for Linux or UNIX Servers 32/64비트 원격 Linux 및 Unix 서버를 위한 고성능 데이타 보호 기능을 제공 NEW! Remote Agent for Macintosh systems Mac OS X 10. 3, 10. 4, 10. 5 운영체제의 서버데이터 보호 기능 을 제공 합니다. Remote Agent for Netware Servers Novell 버전 5. 1, 6. 0, 6. 5의 32비트 운영체제 서버데이터 보호 기능을 제공 합니다. 시만텍 솔루션 제안서
2. 7 Backup Exec 12 향상된 기능 • Backup Exec 작업 모니터를 통해서 로컬 또는 원격 시스템에 위치한 미디어 서버들의 device, job, alert를 중앙에서 모니터링하기 위한 콘솔을 제공하며, 콘솔을 통해 아래와 같은 작업을 수행할 수 있습니다. – Backup Job monitoring: 미디어 서버의 active, scheduled, completed job 에 대한 모니터링 – 미디어 서버와 디바이스의 pause/resume – Backup Job canceling: Job 실행 취소 – Backup Job execution: 스케줄 된 Job의 실행 및 예약 보류 – Backup Event monitoring: Alert 메시지 확인 – Backup job 이벤트의 email 또는 pager notification Backup Exec 12 Protected Servers - 15 - 시만텍 솔루션 제안서 Backup Exec 12 Media Server
2. 7 Backup Exec 12 향상된 기능 • Microsoft Virtual Server 2005 지원 • MSVS 2005 SP 1 VSS 백업시 – – Microsoft Virtual Server R 2 SP 1이상 지원 – – Guest Virtual Machines (online or offline)의 Full 백업 지원 Microsoft Virtual Server (MSVS)는 백업 선택 목록에서 Shadow Copy Components에 서 관리 되며 Virtual Server Host configuration settings 자동 백업 • MSVS 2005 SP 1 VSS 복구시 – – 전체 Virtual Server 이미지만 복구 가능 Virtual Server Configuration 파일 복구 가능 그림. Intelligent Disaster Recovery 마법사 - 20 - 시만텍 솔루션 제안서
2. 9 Backup Exec Editions 비교 Server Key Functionalities Edition Microsoft Windows 2003 Server Family support Microsoft Windows 2000 Server Family support Microsoft Windows Storage Server 2003 and Windows-Powered SAK 2. 0 or higher NAS appliances support SBS Edition Microsoft Small Business Server 2003 Standard Edition support Microsoft Small Business Server 2003 Premium Edition support Microsoft Small Business Server 2000 support Single Tape Drive support Exec. View (web-based monitoring) Backup Exec Remote Administrator (remote management) Client protection for Windows workstations Client protection for Macintosh workstations Online documentation and knowledgebase Management Pack for Microsoft Operations Manager Backup Exec Agent for Exchange Server Backup Exec Agent for SQL Server Backup Exec Support for Share. Point Team Services Backup Exec Agent for Share. Point Portal Server Backup Exec Agent for Lotus Domino Backup Exec Agent for Oracle on Windows Servers Backup Exec Agent for SAP R/3 Backup Exec Desktop and Laptop Option Backup Exec Intelligent Disaster Recovery Option Backup Exec Advanced Open File Option Backup Exec Central Admin Server Option Backup Exec Advanced Disk-based Backup Option Backup Exec Library Expansion Option Backup Exec SAN Shared Storage Option Backup Exec Remote Agent for Windows or Netware Servers Backup Exec Remote Agent for Linux or UNIX Servers = Included in base license = Licensed separately - 23 - 시만텍 솔루션 제안서
3. 6 Agent for Share. Point Portal Server • Share. Point Portal Server 2001/2003 지식 기반 시스템을 위한 고성능 데이타 백업 및 복구 기능을 제공합니다. • 새로운 에이전트는 Share. Point Portal Sever 2003에 추가된 Server Farm 구성을 완벽하게 지원합니다. • Web Storage System, Search Service, Server Configuration 파일, Application 폴더 등의 포 탈 컴포넌트가 모두 데이타 보호 대상에 포함됩니다. • 복구 옵션으로는 데이타베이스 및 관련 데이타의 전체 복구, 대체 서버로의 복구 등이 제공 됩니다. 또한 다른 워크스페이스에 영향을 미치지 않은 상태에서 기존 SPS information store나 대체 SPS information store 중 하나를 선택하여 복구 작업을 수행할 수 있습니다. • • Standard Farm 지원 • • Single Server – One server playing all roles Small Server Farm – Two servers; one hosting databases Medium Server Farm – At least 3 servers hosting primary roles Large Server Farm – At least 6 servers in 5 roles Roles: Share. Point farm 배치에 참여하는 서버들은 front-end Web, Index, Search, Database, Optional backward compatible library 등의 여러 role을 갖습니다. 그림. Agent for Share. Point Resources - 30 - 시만텍 솔루션 제안서

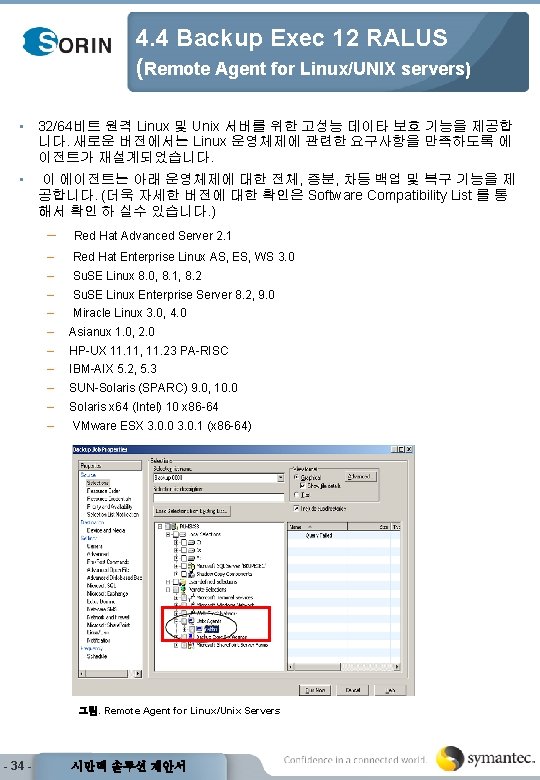

4. 4 Backup Exec 12 RALUS (Remote Agent for Linux/UNIX servers) • 32/64비트 원격 Linux 및 Unix 서버를 위한 고성능 데이타 보호 기능을 제공합 니다. 새로운 버전에서는 Linux 운영체제에 관련한 요구사항을 만족하도록 에 이전트가 재설계되었습니다. • 이 에이전트는 아래 운영체제에 대한 전체, 증분, 차등 백업 및 복구 기능을 제 공합니다. (더욱 자세한 버전에 대한 확인은 Software Compatibility List 를 통 해서 확인 하 실수 있습니다. ) – Red Hat Advanced Server 2. 1 – – – – – Red Hat Enterprise Linux AS, ES, WS 3. 0 Su. SE Linux 8. 0, 8. 1, 8. 2 Su. SE Linux Enterprise Server 8. 2, 9. 0 Miracle Linux 3. 0, 4. 0 Asianux 1. 0, 2. 0 HP-UX 11. 11, 11. 23 PA-RISC IBM-AIX 5. 2, 5. 3 SUN-Solaris (SPARC) 9. 0, 10. 0 Solaris x 64 (Intel) 10 x 86 -64 VMware ESX 3. 0. 0 3. 0. 1 (x 86 -64) 그림. Remote Agent for Linux/Unix Servers - 34 - 시만텍 솔루션 제안서
5. 3 SAN 환경을 이용한 테이프 라이브러리의 통합 • SAN SSO는 대용량/고속 백업이 요구되는 윈도우즈 서버 환경을 지원하기 위한 옵션입니다. SAN SSO를 적용함으로써, 여러 대의 백업 서버가 SAN 환경 상에서 하나 또는 여러 대의 테이프 라이브러리를 공유하여 사용할 수 있도록 구성할 수 있습니다. • SAN이 제공하는 초고속(100 Mbytes/sec)의 대역폭을 활용할 수 있다는 이점이 있을 뿐만 아니라, multi-drive 테이프 라이브러리를 사용하는 경우 각 백업 서버에서 보내진 작업을 병 렬로 수행 가능하기 때문에 백업 성능을 한층 더 향상시킬 수 있습니다. Mail Server (5 EA) • Windows 2003 • Exchange 2003 Network Backup Media Server A Media (database Media Server E Server D server) Server B Server C Agent for Exchange 5 LAN Database Servers (5 EA) • Windows 2000 • MS SQL 2000 SAN Switch (or HUB) Fiber-to-SCSI Bridge Tape Library (4 drive, 40 slots) Parallel Job Execution over SAN Backup Exec for Windows Servers 5 SAN SSO(Share Storage Option) 5 Agent for SQL Server 5 SRO 5 LEO (Library Expansion Option) 3 그림. SAN SSO를 이용한 백업 네트워크 구성 - 41 - 시만텍 솔루션 제안서
5. 5 Cluster 환경에서의 백업 구성 • Backup Exec 12에서는 Microsoft Cluster Server (MSCS) 및 VERITAS Cluster Server (VCS)를 지원하여 클러스터에 의해 서비스 되는 가상 서버를 지원합니 다. • 백업 클라이언트가 SQL, Exchange, Oracle database를 클러스터로 구성할 때 , Active/Passive 혹은 Active/Active 환경을 모두 지원하고 있습니다. SQL Exchange Active Node Backup Exec 1 Agent for SQL 2 Agent for Exchange 2 o r Backup Exec 1 Agent for SQL or Exchange 1 SQL Exchange Active Node o r SQL Exchange 그림. 클러스터 환경에 따른 백업 구성 - 43 - 시만텍 솔루션 제안서 Passive Node
5. 8 Continuous Protection Server 구성 • Backup Exec 12 for Windows Server는 Backup Exec Server와 Continuous Protection Server, Continuous Protection Agent로 구성 됩니다. • Windows 파일 서버에 Continuous Protection Agent를 설치하여 보호하고자 하는 파일 혹은 폴더, 드라이브를 지정하여 Continuous Protection Server에 실시간 복제를 합니다. 이때 Continuous Protection Server와 Backup Exec를 함께 혹은 별도의 서버로 구성할 수 있으며 , 아래 그림과 같은 프로시저로 데이터를 보호할 수 있습니다. - 46 - 시만텍 솔루션 제안서
감사합니다 ! Revision 01 - Aug/07/2008 윤주병 대리 / 서린정보기술㈜ jbyoon@sorin. co. kr 02 -519 -3612 / 010 -2044 -4198 Copyright © 2007 Symantec Corporation. All rights reserved. Symantec and the Symantec Logo are trademarks or registered trademarks of Symantec Corporation or its affiliates in the U. S. and other countries. Other names may be trademarks of their respective owners. This document is provided for informational purposes only and is not intended as advertising. All warranties relating to the information in this document, either express or implied, are disclaimed to the maximum extent allowed by law. The information in this document is subject to change without notice.
