Window Vista Deployment with Microsoft Deployment Toolkit Stu

Window Vista Deployment with Microsoft Deployment Toolkit Stu Fox Microsoft New Zealand http: //blogs. technet. com/stufox

Agenda MDT Overview Vista Deployment – 5 minute refresh Lite Touch Deployment of Vista MDT Integration with Config Mgr Troubleshooting Some cool stuff (time permitting) 2

MDT Overview

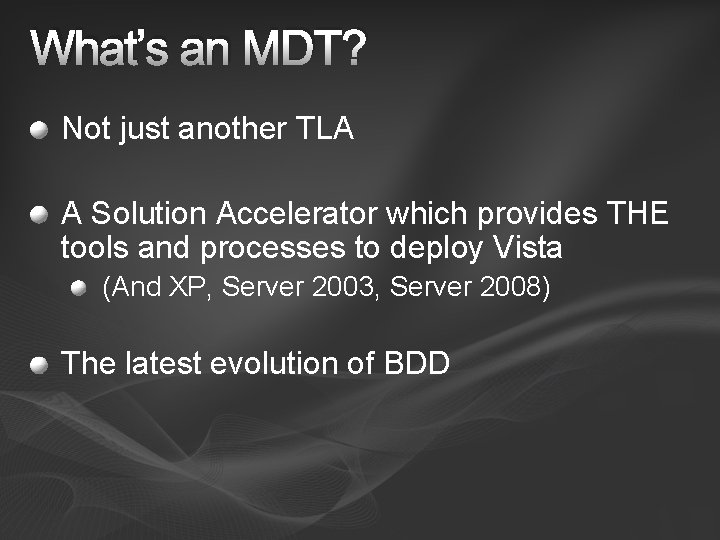

What’s an MDT? Not just another TLA A Solution Accelerator which provides THE tools and processes to deploy Vista (And XP, Server 2003, Server 2008) The latest evolution of BDD

But What About BDD 2007? Microsoft Deployment Toolkit 2008 BDD 2007 Microsoft Deployment Toolkit 2008 is the continuation of the line, replacing BDD 2007 and Microsoft Deployment No further updates to BDD 2007 or Microsoft Deployment are planned BDD 2007 Update 2 was released to add Windows Vista SP 1 support

Microsoft Deployment Lite Touch • Aligns with Config. Mgr • Simple upgrade from BDD 2007 • Evolutionary refinements • Adds server support Zero Touch with SMS 2003 • Aligns with Config. Mgr • Simple upgrade from BDD 2007 • Evolutionary refinements Zero Touch with Configuration Manager 2007 • New! • Fully integrated experience • Single console • Adds server support • Extends and enhances Leverages core deployment tools Provides process and tool guidance

MDT Features Support for Vista SP 1 Support for server deployment Full support for Windows Server 2003 Support for Windows Server 2008, including Server Core installation option Install Server Roles – Hyper-V, AD etc Lite Touch enhancements Support for multicast deployments with Windows Server 2008 Windows Deployment Services Enhanced disk configuration and NIC configuration capabilities Shift from builds to task sequences to better align with Config. Mgr Support for multiple task sequence templates, including those that don’t deploy an operating system

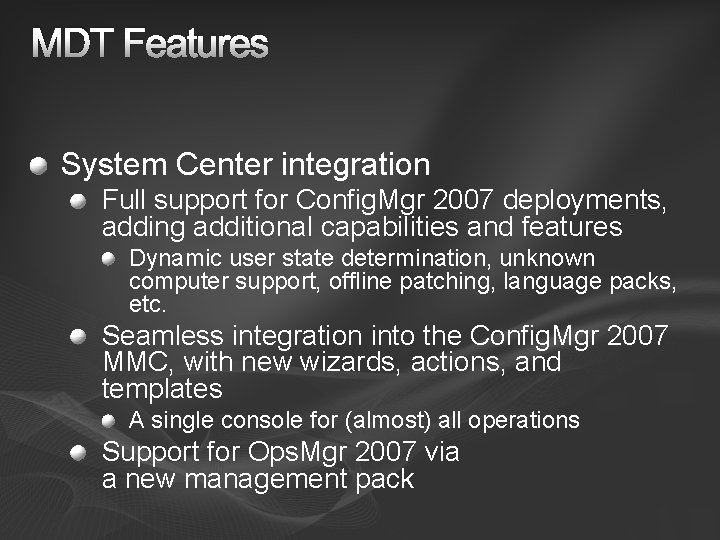

MDT Features System Center integration Full support for Config. Mgr 2007 deployments, adding additional capabilities and features Dynamic user state determination, unknown computer support, offline patching, language packs, etc. Seamless integration into the Config. Mgr 2007 MMC, with new wizards, actions, and templates A single console for (almost) all operations Support for Ops. Mgr 2007 via a new management pack

Mass Storage Driver Handling Lite Touch enhancement Designed to make Windows XP and Windows Server 2003 deployment easier Two separate capabilities For unattended installs, automate the handling of TEXTMODE driver support For image deployments, automate the population of the sysprep. inf [Sysprep. Mass. Storage] section for all available mass storage drivers With Lite Touch, you still need to build a new image to support additional mass storage drivers No support for injecting mass storage drivers during an XP/2003 image deployment Config. Mgr does provide this support

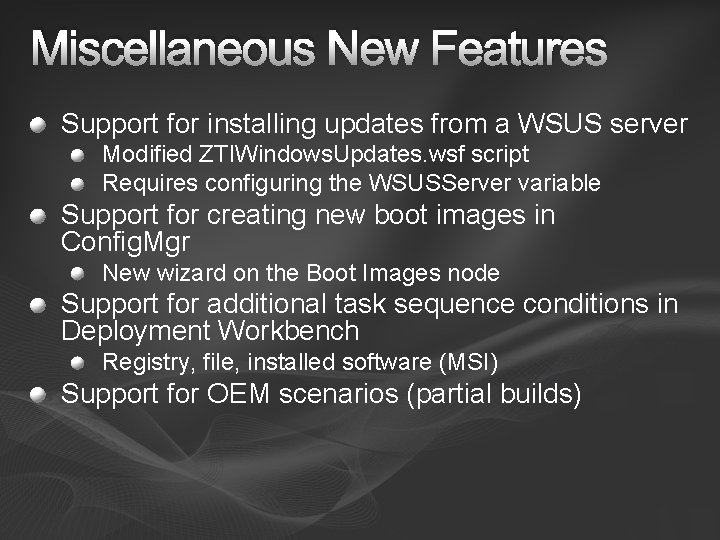

Miscellaneous New Features Support for installing updates from a WSUS server Modified ZTIWindows. Updates. wsf script Requires configuring the WSUSServer variable Support for creating new boot images in Config. Mgr New wizard on the Boot Images node Support for additional task sequence conditions in Deployment Workbench Registry, file, installed software (MSI) Support for OEM scenarios (partial builds)

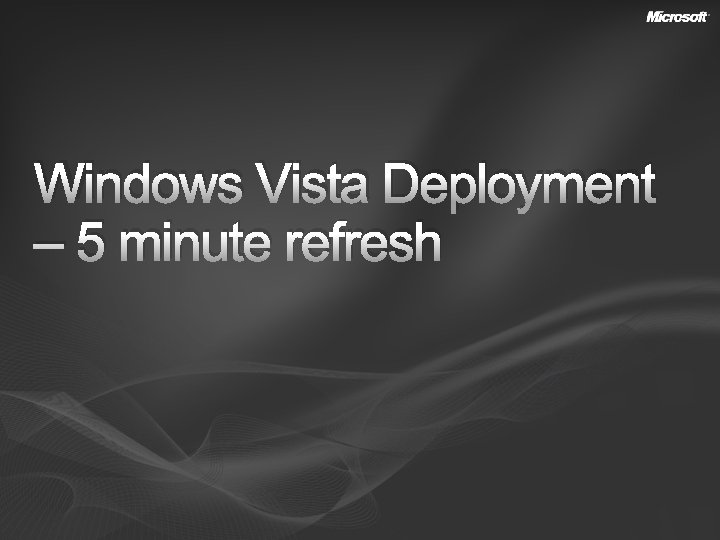

Windows Vista Deployment – 5 minute refresh

Vista Deployment Image based installation format (install. wim) Multiple images, single file, single instance Offline servicing Hardware independent Windows PE based setup Unattend. xml Replaces multiple files (unattend. txt, winbom. ini, sysprep. inf, cmdlines. txt) WAIK System Image Manager Image. X

Vista Deployment Configuration Passes Windows. PE offline. Servicing Generalize Specialize audit. System audit. User oobe. System

MDT Detail

MDT Requirements Software Windows AIK 1. 1 USMT 3. 01 Infrastructure DNS, DHCP Windows Deployment Services Active Directory

MDT Configuration Files Bootstrap. ini Customsettings. ini Scripts Task Sequences Unattend. xml All stored in the distribution share

The Distribution Share Distribution – shared as Distribution$ $OEM$ Applications Boot Captures Control Operating Systems Out-of-Box Drivers Packages Scripts Servicing Tools

Custom. Settings. ini Standard INI file containing Sections Properties Settings [Settings] <- Section Priority = Default, MACAddress <Property> = <Setting> Priority is a special property, defines the sequence of sections [Settings] section is mandatory

Custom. Settings. ini Sections can be applied to groups of computers or individual computers [Default. Gateway] [Local. Data. Name] [Custom Section] [Default. Gateway] Local. Data. Name E. g. [02: 00: 54: 55: 4 E: 01] E. g. [HP] Custom. Section

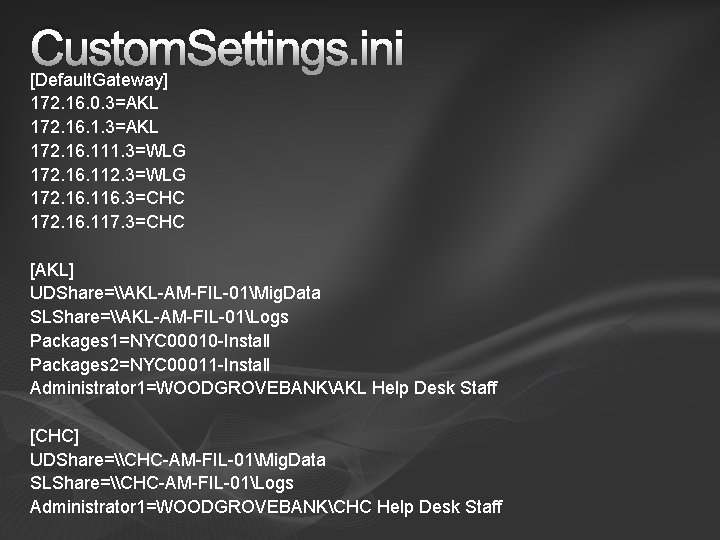

Custom. Settings. ini [Default. Gateway] 172. 16. 0. 3=AKL 172. 16. 111. 3=WLG 172. 16. 112. 3=WLG 172. 16. 116. 3=CHC 172. 16. 117. 3=CHC [AKL] UDShare=\AKL-AM-FIL-01Mig. Data SLShare=\AKL-AM-FIL-01Logs Packages 1=NYC 00010 -Install Packages 2=NYC 00011 -Install Administrator 1=WOODGROVEBANKAKL Help Desk Staff [CHC] UDShare=\CHC-AM-FIL-01Mig. Data SLShare=\CHC-AM-FIL-01Logs Administrator 1=WOODGROVEBANKCHC Help Desk Staff

LTI Deployment

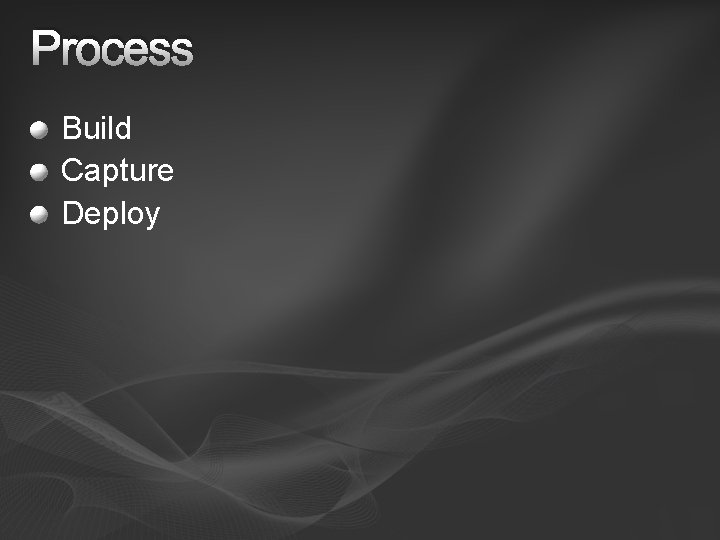

Process Build Capture Deploy

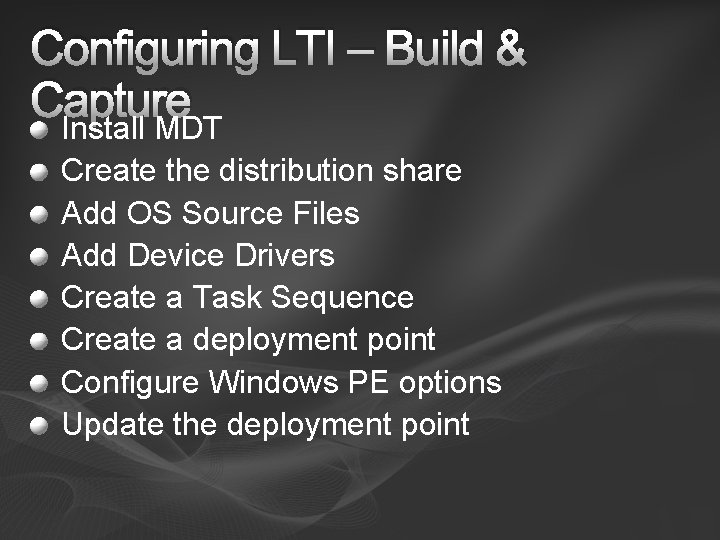

Configuring LTI – Build & Capture Install MDT Create the distribution share Add OS Source Files Add Device Drivers Create a Task Sequence Create a deployment point Configure Windows PE options Update the deployment point

Configuring LTI – Build & Capture Create LTI Bootable media Or configure WDS Start Reference computer with LTI bootable media/PXE

Configuring LTI - Deploy Add captured OS image Create a task sequence Start target computer with LTI bootable media/PXE

Demo MDT Workbench Overview

Demo MDT Driver Management

Demo MDT Lite Touch OS Management

Demo MDT Lite Touch Multicast Deployment

ZTI Deployment

ZTI – Build & Capture Install MDT on Config Mgr Server Configure integration Install USMT 3. 01 Create folders & shares Add OS Source Files Add Device Drivers Create driver packages

ZTI – Build & Capture (2) Import a MDT Task Sequence Follow the wizard Customise the MDT Configuration Files Distribute packages to DP’s Customise the task sequence Advertise the task sequence Boot the reference computer with bootable media/PXE

Configuring ZTI - Deploy Add captured OS image Import a MDT task sequence Follow the wizard Customise the MDT Configuration Files Distribute packages to DP’s Advertise the task sequence Start target computer with LTI bootable media/PXE

Demo MDT Integration with Configuration Manager

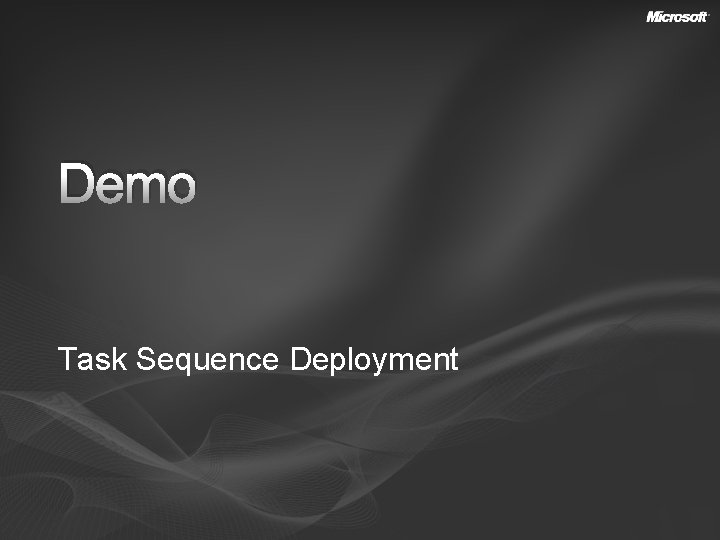

Demo Task Sequence Deployment

Other Stuff

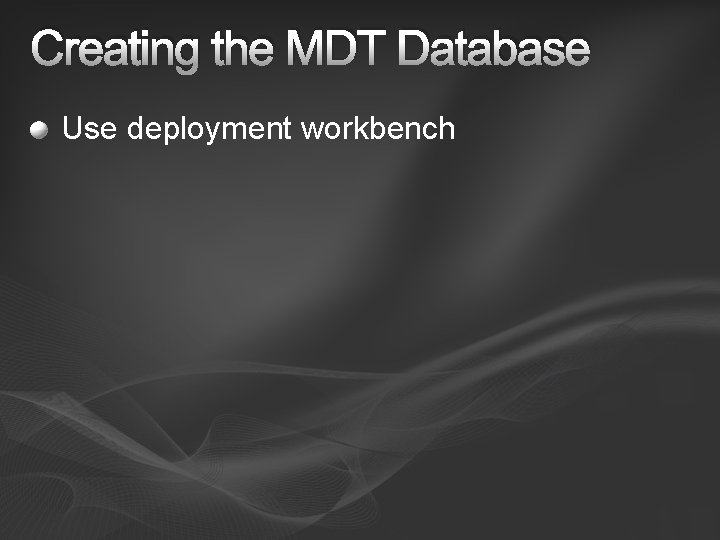

Creating the MDT Database Use deployment workbench

The MDT Database Can configure based on: Site – defined by IP gateways Make/model – defined using WMI information Computer – defined by MAC, asset tag, or SMBIOS UUID Role – arbitrarily assigned to sites, make/model, and computers Stores: General settings Applications to install (list) Administrator members to add (list) Roles to assign (list)

The MDT Database Contents maintained by the Deployment Workbench MMC snap-in Initially created by a wizard New entries added by a wizard Queries performed by “Gather” step early in the task sequence Wizard to add the rules to Custom. Settings. ini, indicating what to query Generally, first value found wins, so order of queries might be important (and computer and collection variables would normally win) Global variables set as a result of the queries Global variables consumed by the task sequence steps as they execute

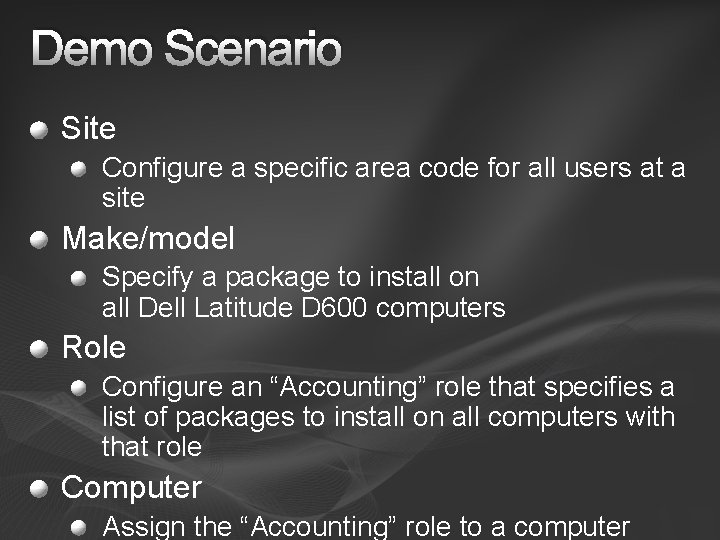

Demo Scenario Site Configure a specific area code for all users at a site Make/model Specify a package to install on all Dell Latitude D 600 computers Role Configure an “Accounting” role that specifies a list of packages to install on all computers with that role Computer Assign the “Accounting” role to a computer

Demo Creating the MDT Database

Other Cool Stuff MDT 2008 “Gather” action can query any SQL Server database Select queries or stored procedures Named pipes or TCP/IP Integrated (Windows) or standard security Columns returned should match the variable names, or can be remapped Can also query Web Services Can customise Wizard screens (or create your own new ones)

Demo Querying Another Database

Demo Customising the Wizard screens

It’s all gone horribly wrong!

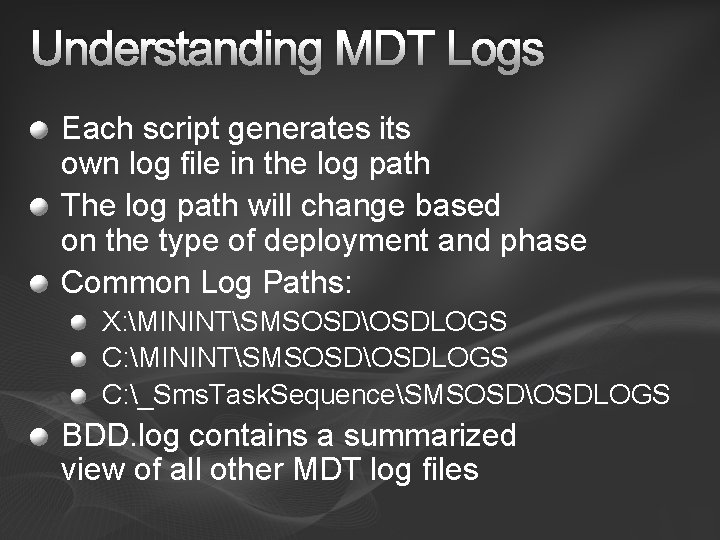

Understanding MDT Logs Each script generates its own log file in the log path The log path will change based on the type of deployment and phase Common Log Paths: X: MININTSMSOSDOSDLOGS C: _Sms. Task. SequenceSMSOSDOSDLOGS BDD. log contains a summarized view of all other MDT log files

Task Sequencer Logs SMSTS. log. Created by the Task Sequencer and describes all Task Sequencer transactions. Depending on the deployment scenario, it may reside in %TEMP%, %WINDIR%System 32ccmlogs, C: _Sms. Task. SequenceLogs, or C: SMSTSLog.

Operating System Logs Windows Vista Netsetup. log. Resides in %WINDIR%Debug; useful when troubleshooting domain join issues Setupact. log. Resides in %WINDIR%panther; lists installation actions and is useful when investigating failed installations Setupapi. dev. log. Resides in %WINDIR%inf; useful when investigating failed driver installations Setuperr. log. Resides in %WINDIR%panther; details errors that occurred during installation

Summary MDT is THE way to deploy Vista (and XP, and Server 2003, and Server 2008) LTI for when you don’t have Config Mgr ZTI for when you do (or SMS 2003) We have only scratched the surface of what you can do Download Microsoft Deployment Toolkit 2008 http: //www. microsoft. com/deployment

Resources Blogs Team blog: http: //blogs. technet. com/msdeployment Mike Niehaus: http: //blogs. technet. com/mniehaus Deployment Guys: http: //blogs. technet. com/deploymentguys Tools MDT Wizard Editor: http: //www. codeplex. com/MDTWizard. Editor
