Wind scale Global warming increased surface temperature due

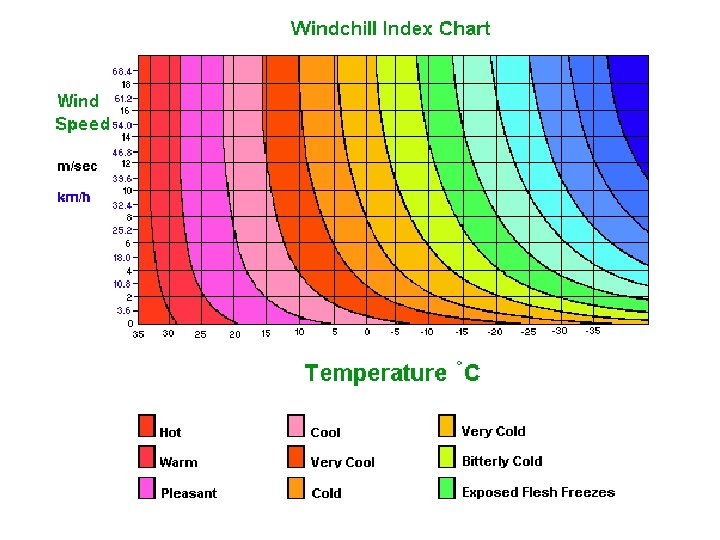

Wind scale

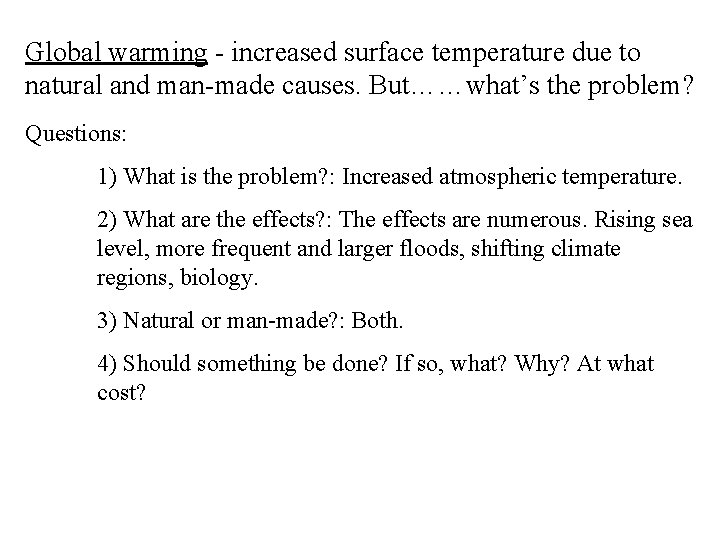

Global warming - increased surface temperature due to natural and man-made causes. But……what’s the problem? Questions: 1) What is the problem? : Increased atmospheric temperature. 2) What are the effects? : The effects are numerous. Rising sea level, more frequent and larger floods, shifting climate regions, biology. 3) Natural or man-made? : Both. 4) Should something be done? If so, what? Why? At what cost?

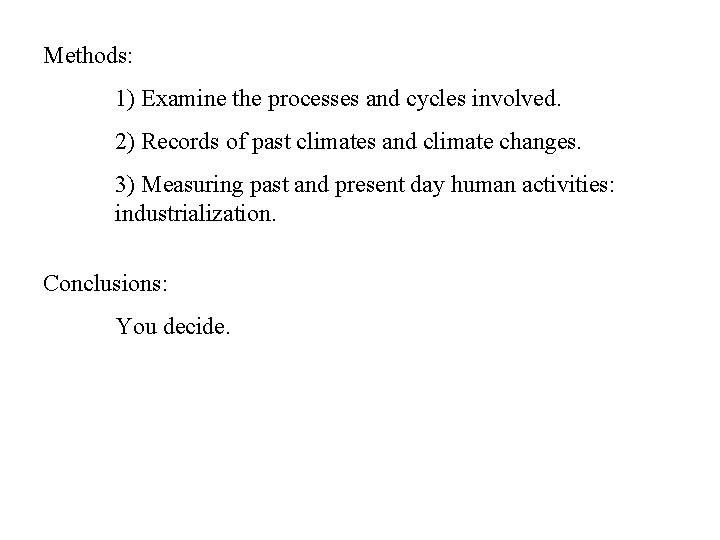

Methods: 1) Examine the processes and cycles involved. 2) Records of past climates and climate changes. 3) Measuring past and present day human activities: industrialization. Conclusions: You decide.

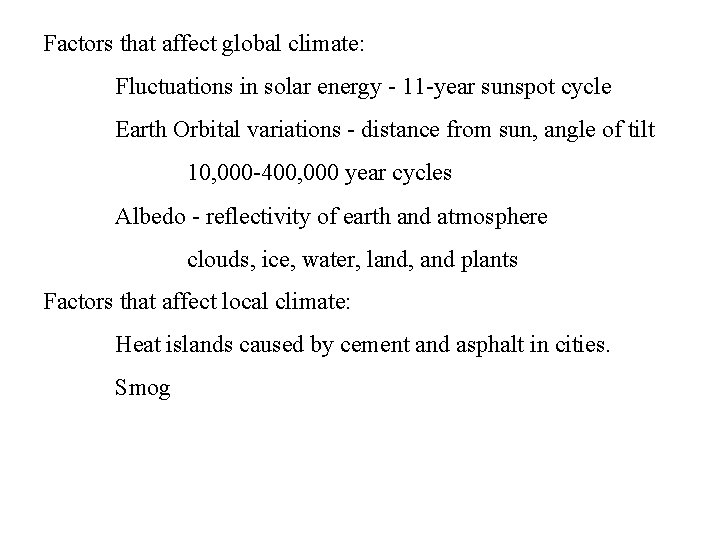

Factors that affect global climate: Fluctuations in solar energy - 11 -year sunspot cycle Earth Orbital variations - distance from sun, angle of tilt 10, 000 -400, 000 year cycles Albedo - reflectivity of earth and atmosphere clouds, ice, water, land, and plants Factors that affect local climate: Heat islands caused by cement and asphalt in cities. Smog

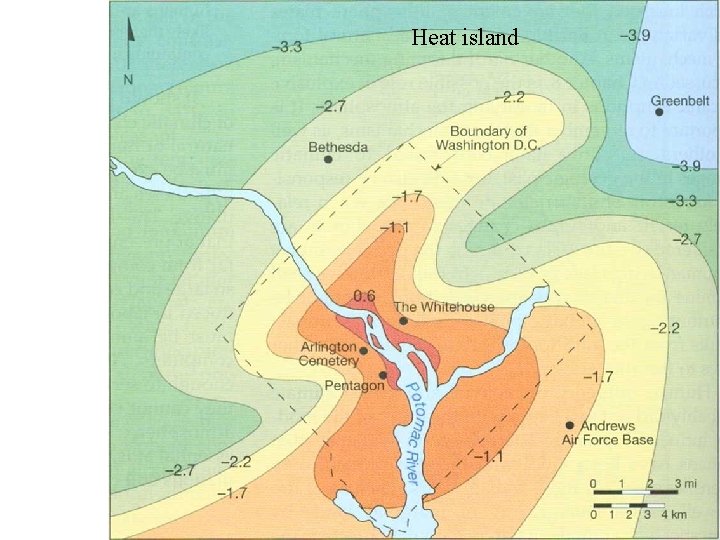

Heat island

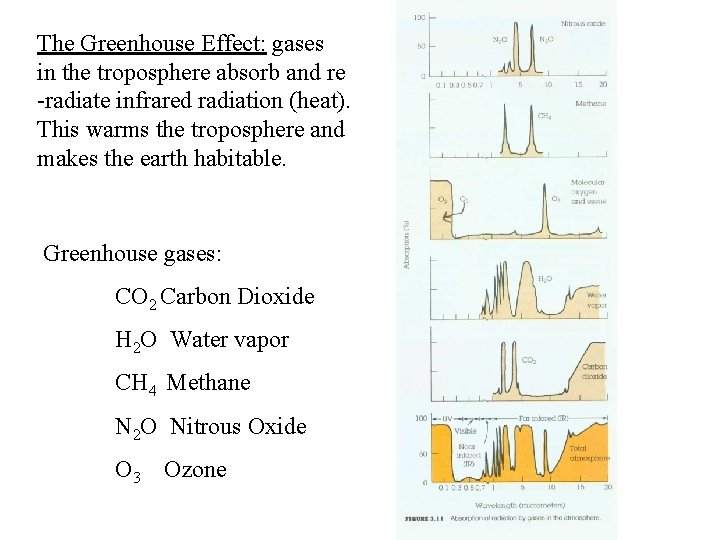

The Greenhouse Effect: gases in the troposphere absorb and re -radiate infrared radiation (heat). This warms the troposphere and makes the earth habitable. Greenhouse gases: CO 2 Carbon Dioxide H 2 O Water vapor CH 4 Methane N 2 O Nitrous Oxide O 3 Ozone

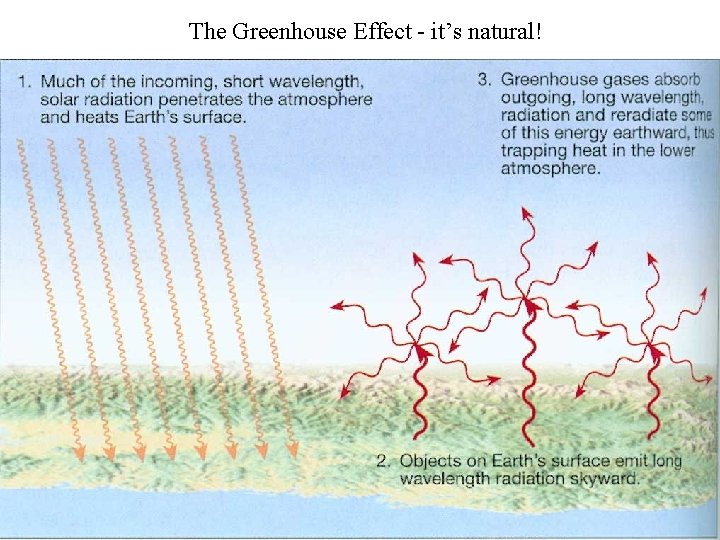

The Greenhouse Effect - it’s natural!

The problem is: Enhanced Greenhouse Effect. Causes: Increased concentration of greenhouse gases. i. e. CO 2 Decreased concentrations of ozone in the stratosphere. First: What are the paths of carbon on the earth?

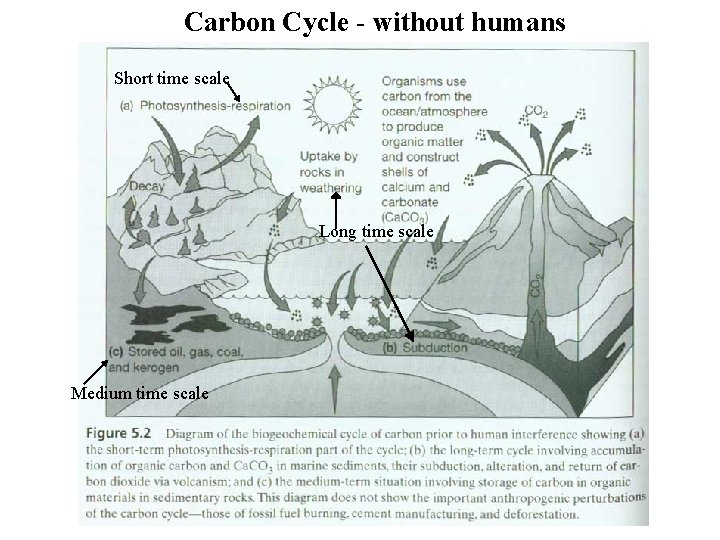

Carbon Cycle - without humans Short time scale Long time scale Medium time scale

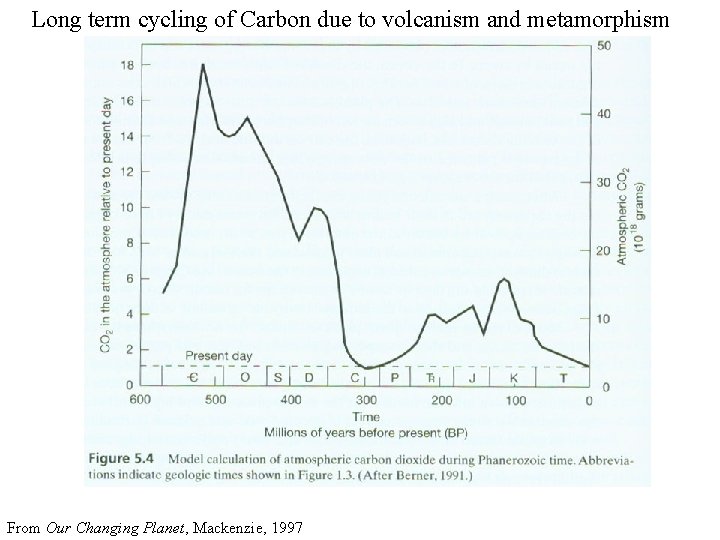

Long term cycling of Carbon due to volcanism and metamorphism From Our Changing Planet, Mackenzie, 1997

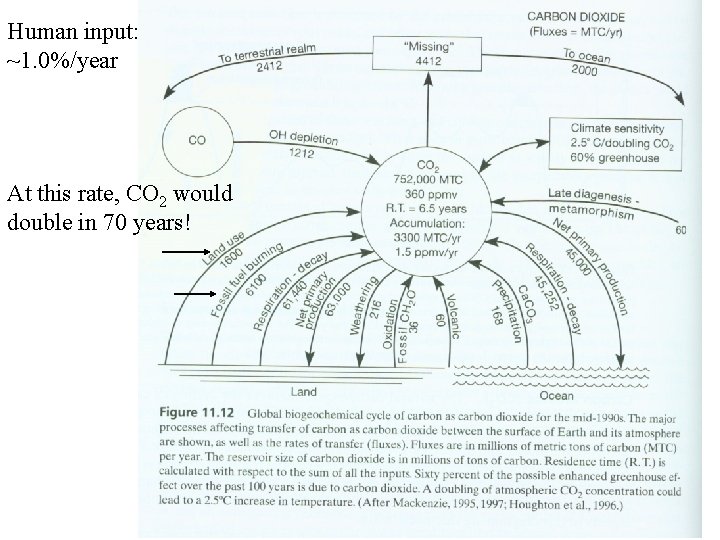

Human input: ~1. 0%/year At this rate, CO 2 would double in 70 years!

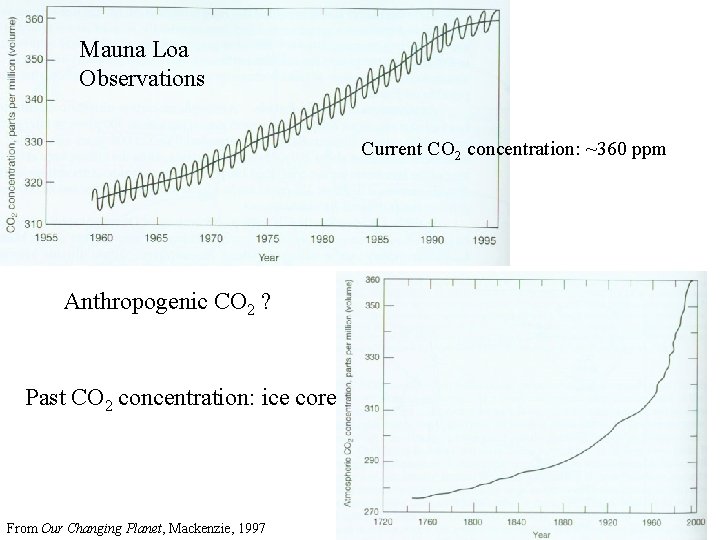

Mauna Loa Observations Current CO 2 concentration: ~360 ppm Anthropogenic CO 2 ? Past CO 2 concentration: ice core From Our Changing Planet, Mackenzie, 1997

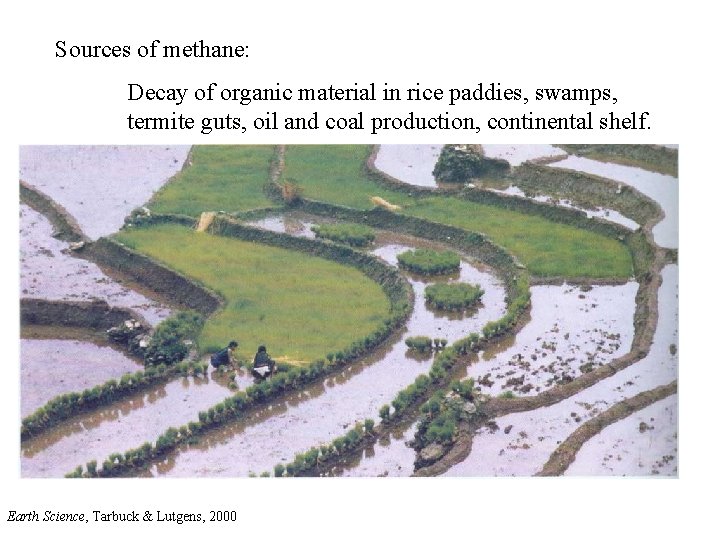

Sources of methane: Decay of organic material in rice paddies, swamps, termite guts, oil and coal production, continental shelf. Earth Science, Tarbuck & Lutgens, 2000

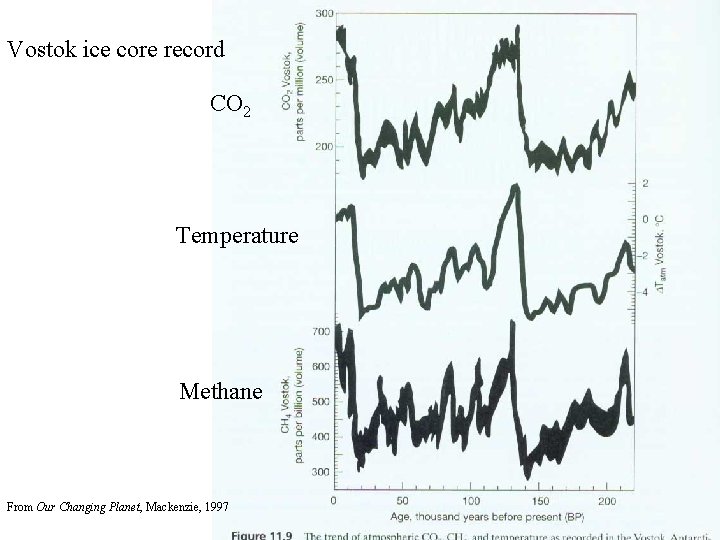

Vostok ice core record CO 2 Temperature Methane From Our Changing Planet, Mackenzie, 1997

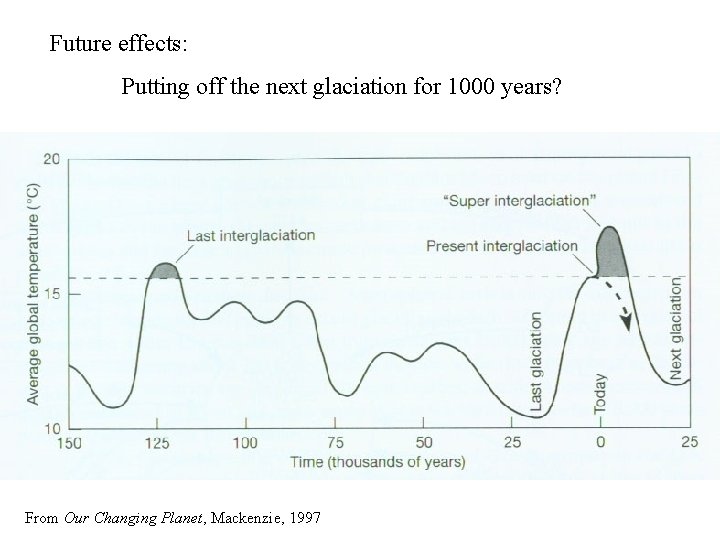

Future effects: Putting off the next glaciation for 1000 years? From Our Changing Planet, Mackenzie, 1997

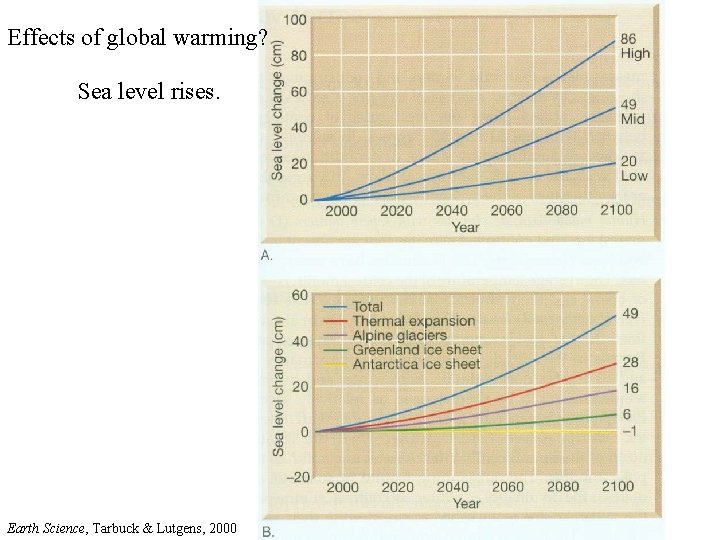

Effects of global warming? Sea level rises. Earth Science, Tarbuck & Lutgens, 2000

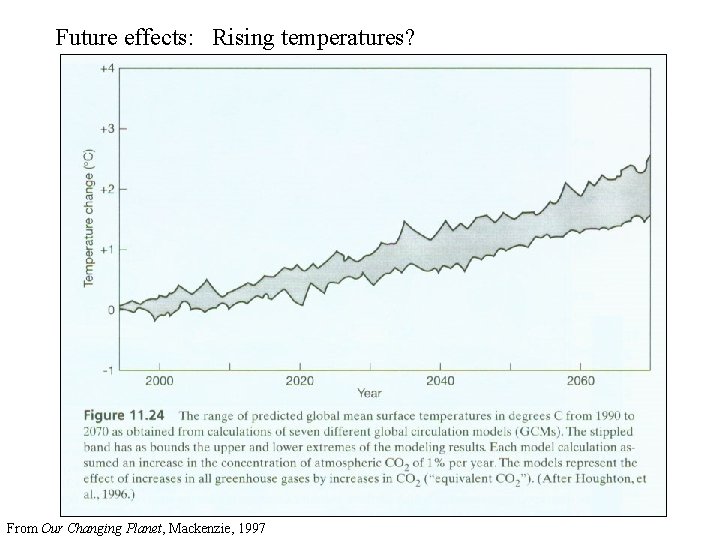

Future effects: Rising temperatures? From Our Changing Planet, Mackenzie, 1997

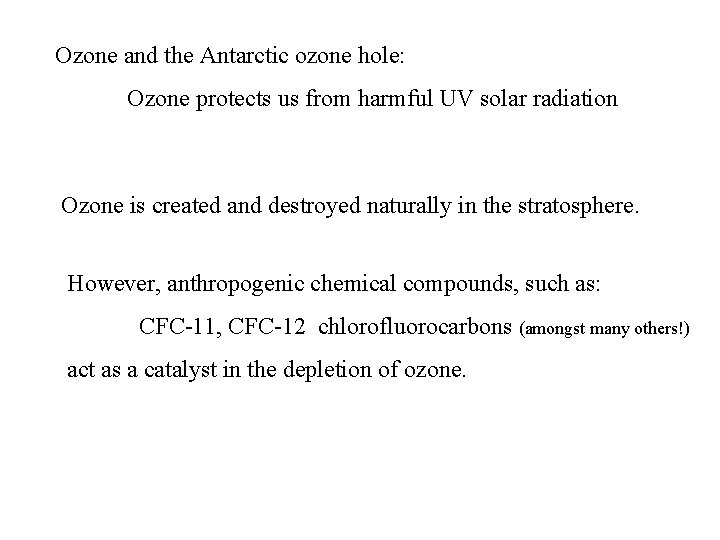

Ozone and the Antarctic ozone hole: Ozone protects us from harmful UV solar radiation Ozone is created and destroyed naturally in the stratosphere. However, anthropogenic chemical compounds, such as: CFC-11, CFC-12 chlorofluorocarbons (amongst many others!) act as a catalyst in the depletion of ozone.

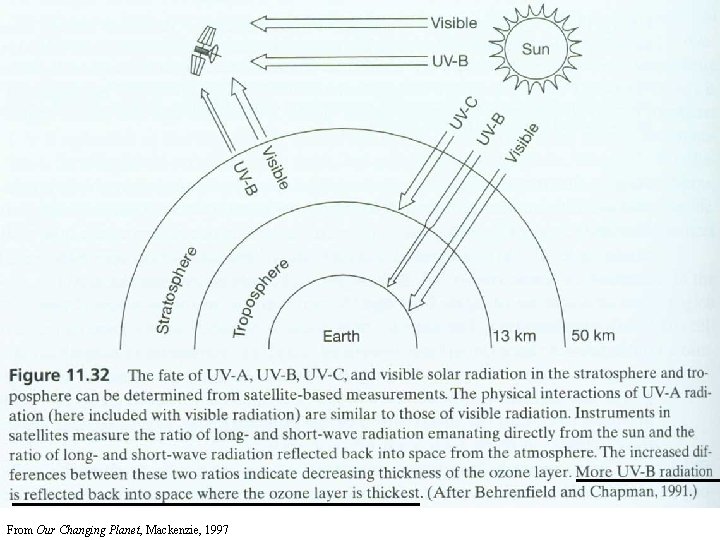

From Our Changing Planet, Mackenzie, 1997

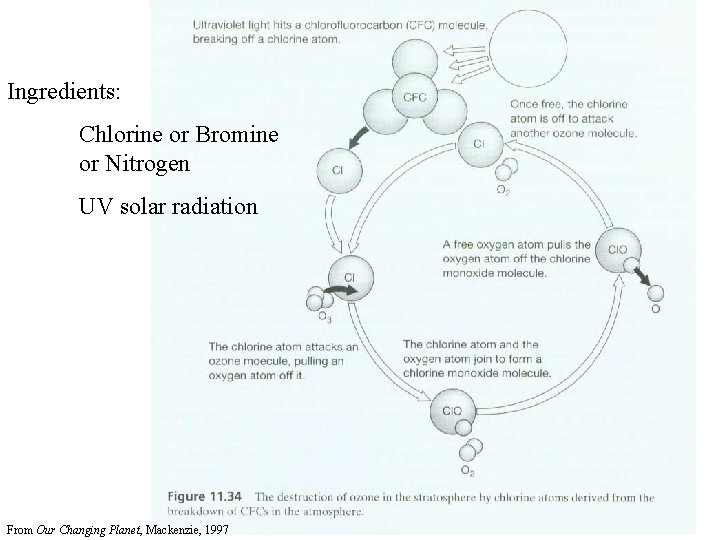

Ingredients: Chlorine or Bromine or Nitrogen UV solar radiation From Our Changing Planet, Mackenzie, 1997

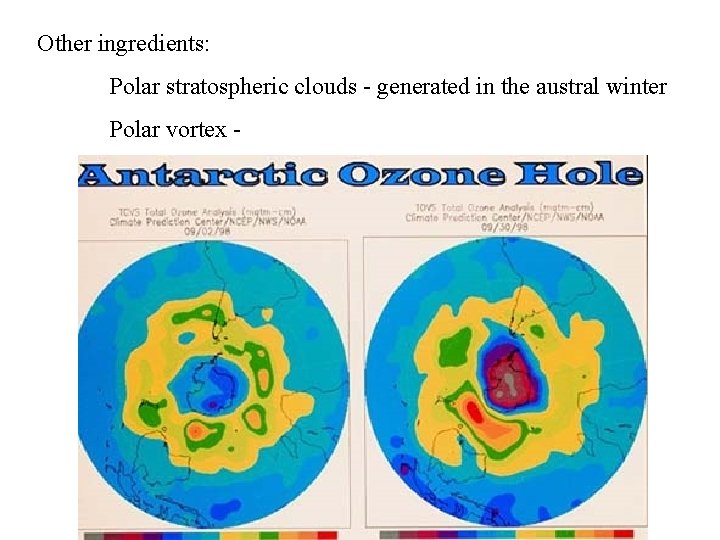

Other ingredients: Polar stratospheric clouds - generated in the austral winter Polar vortex -

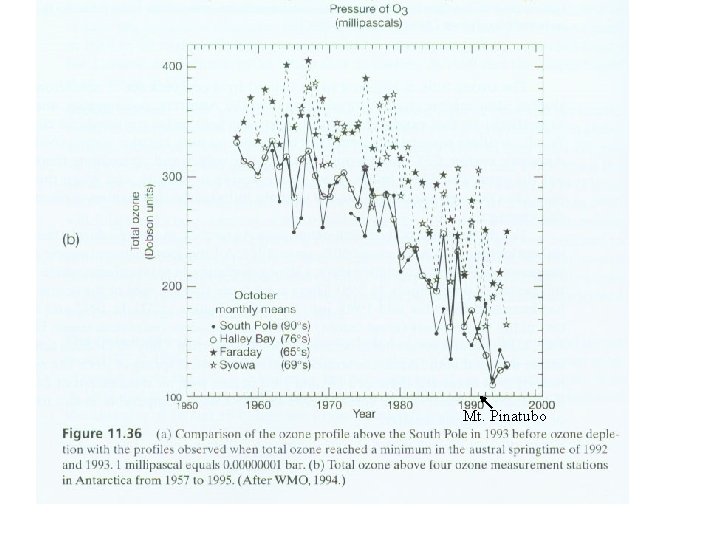

Mt. Pinatubo

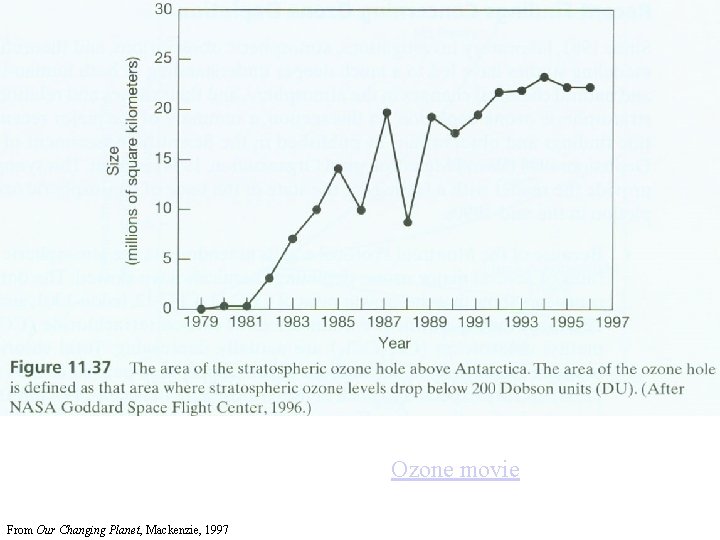

Ozone movie From Our Changing Planet, Mackenzie, 1997
