Wind Energy Educators Workshop The Kidwind Project and
- Slides: 72
Wind Energy Educators’ Workshop The Kidwind Project and Wind. Wise
What is Kid. Wind? The Kid. Wind Project is a team of teachers, students, engineers and practitioners exploring the science behind wind energy in classrooms around the US. Our goal is to introduce as many people as possible to the elegance of wind power through hands-on science activities which are challenging, engaging and teach basic science principles. Kid. Wind Project | www. kidwind. org
Wind Power - Yesterday & Today - Key Issues - The Wind Resource - Technology - Wind in the Classroom - Resources & Opportunities Kid. Wind Project | www. kidwind. org

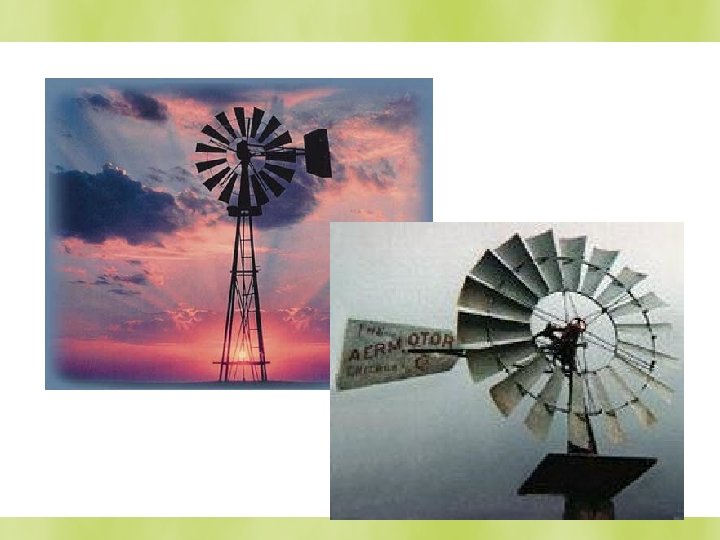

Yesterday & Today Holland & Colonial America First documented windmill: Afghanistan (900 AD) Greece
Jacobs Turbine – 1920 - 1960 Win. Charger – 1930 s – 40 s Smith-Putnam Turbine Vermont, 1940's
Modern Small Wind Turbines: • Technically Advanced • Minimal Moving Parts • Very Low Maintenance Requirements • Proven: ~ 5, 000 On-Grid • American Companies are the Market and Technology Leaders 10 k. W 400 W 50 k. W 900 W (Not to scale)
Orientation Turbines can be categorized into two overarching classes based on the orientation of the rotor Vertical Axis Horizontal Axis
Vertical Axis Turbines Advantages • Omnidirectional Disadvantages • Rotors generally near ground where wind poorer – Accepts wind from any angle • Centrifugal force stresses blades & components • Components can be mounted at ground • Poor self-starting capabilities Windspire level • Requires support at top of – Ease of service turbine rotor – Lighter weight • Requires entire rotor to be towers removed to replace bearings • Can theoretically use • Overall poor performance less materials to and reliability/less efficient capture the same • Have never been amount of wind commercially successful (large scale) Savonious
Horizontal Axis Wind Turbines • Rotors are usually Up-wind of tower • Some machines have down -wind rotors, but only commercially available ones are small turbines • Proven, viable technology
Large Wind Turbines • • 450’ base to blade Each blade 112’ Span greater than 747 163+ tons total Foundation 20+ feet deep Rated at 1. 5 – 5 megawatt Supply at least 350 homes

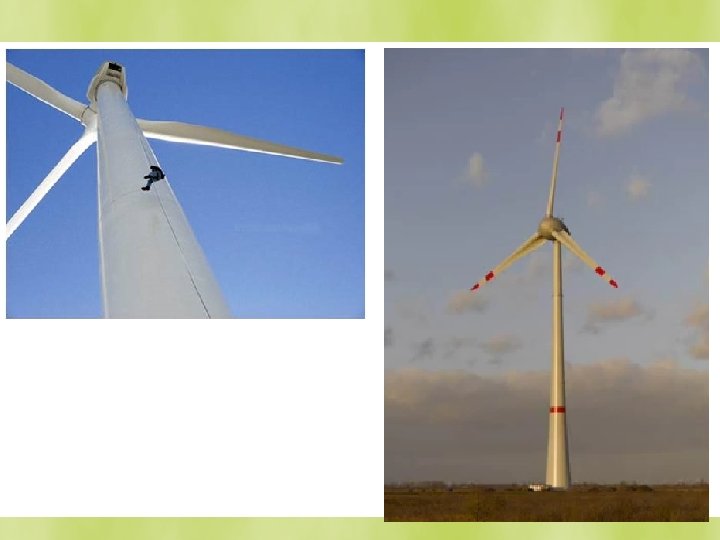

Wind Turbine Perspective Workers Blade 112’ long Nacelle 56 tons Tower 3 sections
Turbines Being Tested
Wind Energy is a Growing Industry • 50% growth rate! • US total installed wind energy capacity now over 43, 635 MW as of Sept 2011 per Wind. Powering. America. com • Enough electricity to power the equivalent of over 7 million households!
Kid. Wind Project | www. kidwind. org
US Capacity is Growing in fits and starts
Wind Energy Industry Growth 1979: 40 cents/k. Wh 2000: 4 -6 cents/k. Wh • Increased Turbine Size • R&D Advances • Manufacturing Improvements NSP 107 MW Lake Benton wind farm 4 cents/k. Wh (unsubsidized) 2004: 3 – 4. 5 cents/k. Wh

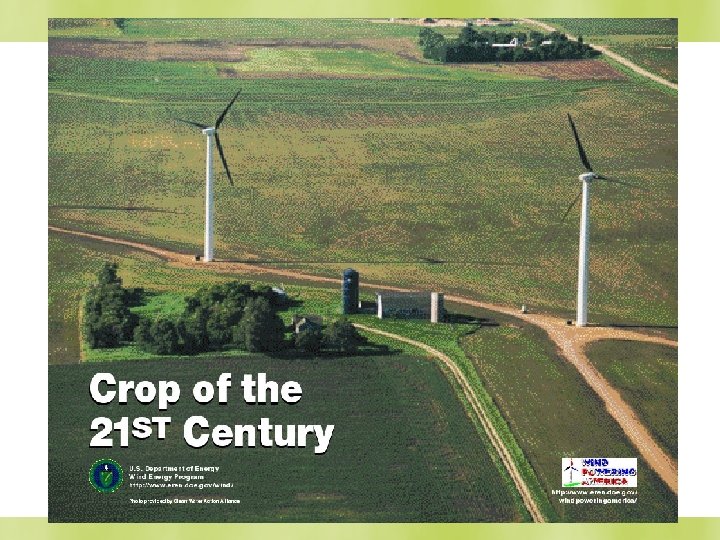

Wind Farms
Off-Shore Wind Farms
Middelgrunden
Key Issues
Fighting windmills has a long history! Don Quixote fighting “Giants”
Costs & Benefits
Where do we get our electricity? Kid. Wind Project | www. kidwind. org
What’s in Common Here? v Nitrous oxides, sulfur oxides leading to sulfuric and nitric acid formation v Toxic heavy metals including mercury, arsenic and others v Volatile organic compounds v Surface ozone pollution v Soot particles v Hydrocarbons v Greenhouse gases 28
And linked to… v. Asthma & breathing troubles v. Cancer & other health problems v. Damaged lakes and forest ecosystems v. Damaged monuments v. Injury to trees and other plants v. Injury to animals v. Haze, smog and poor visibility v. Oil spills v. Poisoned water supplies v. Strip mined mountains v. Conflict among people 29
Burning fossil fuels contributes to many serious issues impacting our health, environment, society and security …including global warming 4 in 10 adults cannot name a fossil fuel. 6 in 10 adults cannot name a renewable energy source. -Public Agenda 30
Kid. Wind Project | www. kidwind. org
Accidents & Troubles “So far no evacuation zone has been declared. There are no threats to sea life, and the fallout from the disaster was not detectable thousands of miles away. Cleanup efforts are in progress, and will not include covering the area in a giant concrete dome. No workers have been asked to give their lives in order to save their countrymen from the menace of this fallen wind turbine. ” – Christopher Mims Kid. Wind Project | www. kidwind. org
1980’s California Wind Farm Older Technology + Higher RPMs + Lower Elevations + Lattice Towers + Poorly Sited = Bad News!
• In the November-December Audubon Magazine, John Flicker, President of National Audubon Society, wrote a column stating that Audubon "strongly supports wind power as a clean alternative energy source, " pointing to the link between global warming and the birds and other wildlife that scientist say it will kill.
Impacts of Wind Power: Noise • Modern turbines are relatively quiet • Rule of thumb – stay about 3 x hub-height away from houses
Kid. Wind Project | www. kidwind. org
The Transmission Challenge • Where is the wind? • Where are the population centers? • Where are the wind farms? • How do we get wind energy from the wind farms to the population centers?

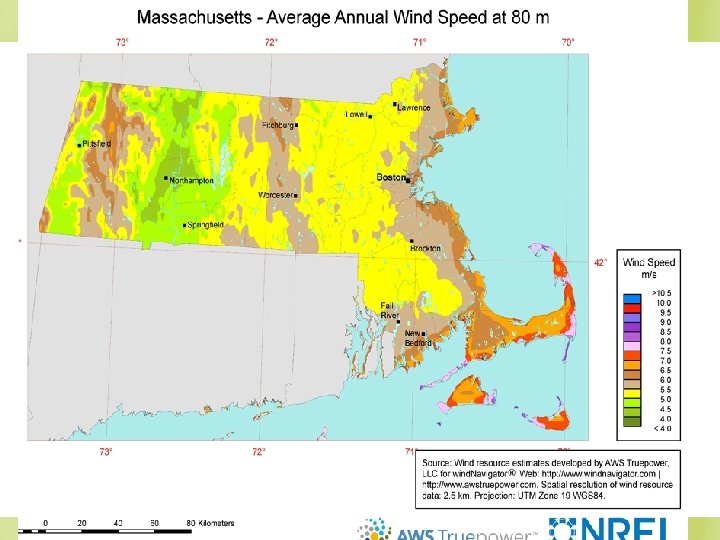

Importance of Wind Speed • No other factor is more important to the amount of power available in the wind than the speed of the wind • Power is a cubic function of wind speed – V X V • 20% increase in wind speed means 73% more power • Doubling wind speed means 8 times more power
Calculation of Wind Power • Power in the wind 3 Power in the Wind = ½ρAV – Effect of swept area, A – Effect of wind speed, V – Effect of air density, Swept Area: A = πR 2 Area of the circle swept by the rotor (m 2). R
Why do wind turbines need to be high in the sky? ?
Turbulent wind is bad wind

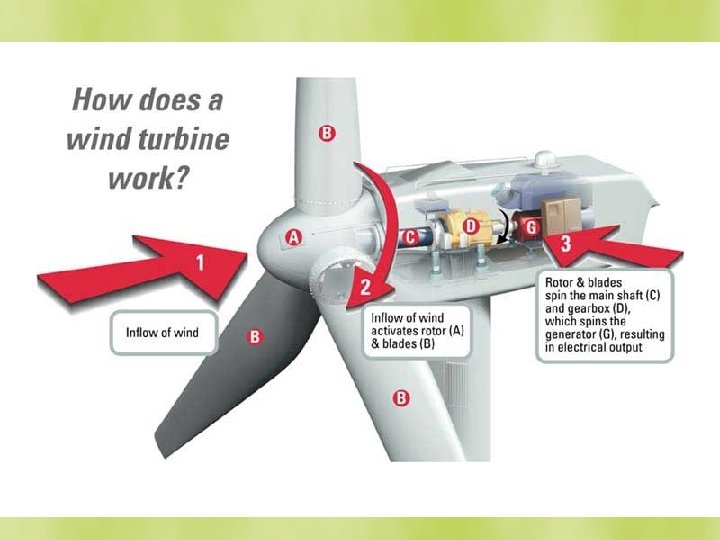

Technology
Kid. Wind Project | www. kidwind. org
How does a generator generate electricity?
Airfoil Shape Just like the wings of an airplane, wind turbine blades use the airfoil shape to create lift and maximize efficiency. The Bernoulli Effect
Lift & Drag Forces • The Lift Force is perpendicular to the direction of motion. We want to make this force BIG. • The Drag Force is parallel to the direction of motion. We want to make this force small. α = low α = medium <10 degrees α = High Stall!!
Pitch Control Mechanisms Kid. Wind Project | www. kidwind. org
Twist & Taper • Speed through the air of a point on the blade changes with distance from hub • To optimize angle of attack all along blade, it must twist from root to tip Fastest Faster Fast
Tip-Speed Ratio Tip-speed ratio is the ratio of the speed of the rotating blade tip to the speed of the free stream wind. There is an optimum angle of attack which creates the highest lift to drag ratio. Because angle of attack is dependant on wind speed, there is an optimum tip-speed ratio ΩR TSR = V Where, Ω = rotational speed in radians /sec R = Rotor Radius V = Wind “Free Stream” Velocity ΩR R
Performance Over Range of Tip Speed Ratios • Power Coefficient Varies with Tip Speed Ratio • Characterized by Cp vs Tip Speed Ratio Curve
Betz Limit All wind power cannot be captured by rotor or air would be completely still behind rotor and not allow more wind to pass through. Theoretical limit of rotor efficiency is 59% Most modern wind turbines are in the 35 – 45% range
Rotor Solidity is the ratio of total rotor planform area to total swept area Low solidity (0. 10) = high speed, low torque R a A High solidity (>0. 80) = low speed, high torque Solidity = 3 a/A
Over-Speed Protection During High Winds Upward Furling: The rotor tilts back during high winds Angle Governor: The rotor turns up and to one side
Yawing – Facing the Wind • Active Yaw (all medium & large turbines produced today, & some small turbines from Europe) • Anemometer on nacelle tells controller which way to point rotor into the wind • Yaw drive turns gears to point rotor into wind • Passive Yaw (Most small turbines) • Wind forces alone direct rotor • Tail vanes • Downwind turbines

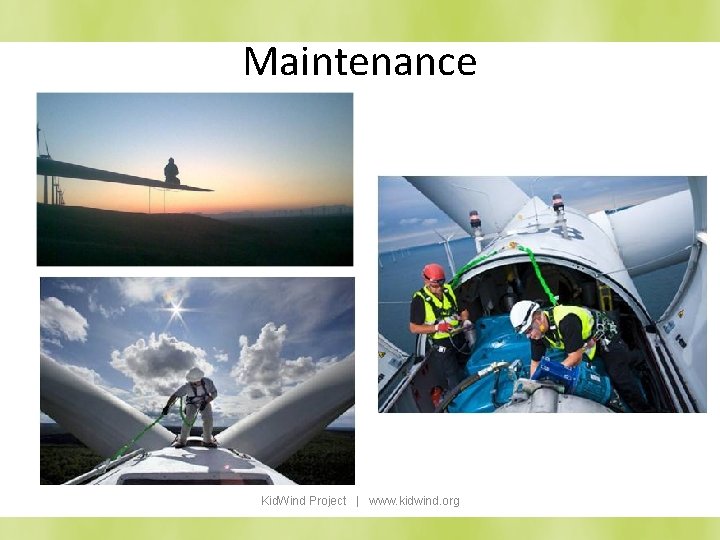

Maintenance Kid. Wind Project | www. kidwind. org
Wind Energy in the Classroom
Many Topics Addressed §Use of Simple Tools & Equipment §Forces Cause Change §Energy Transformations (Forms of Energy) §Circuits/Electricity/Magnetism §Weather Patterns §Renewable – Non Renewable Energy Kid. Wind Project | www. kidwind. org
Scientific & Engineering Practices New National Frameworks 1. 2. 3. 4. 5. 6. 7. 8. Asking questions & defining problems Developing & using models Planning & carrying out investigations Analyzing & interpreting data Using mathematics & computational thinking Developing explanations & designing solutions Engaging in argument from evidence Obtaining, evaluating & communicating information

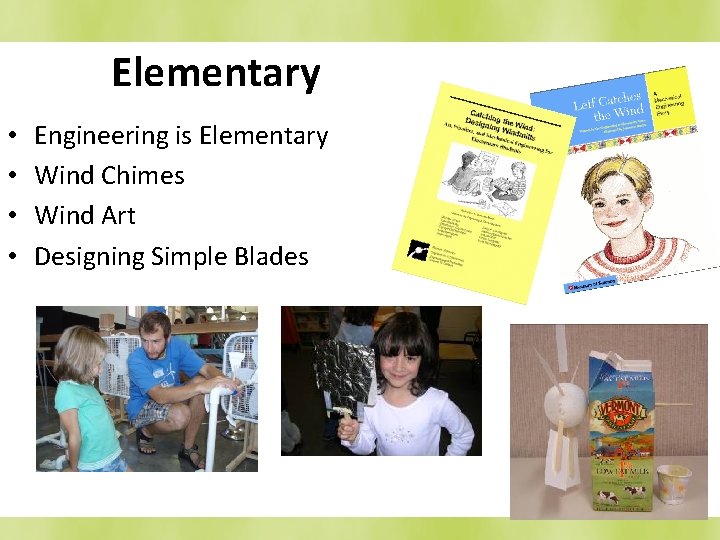

Elementary • • Engineering is Elementary Wind Chimes Wind Art Designing Simple Blades
Upper Elementary/Middle balloon ~3 m streamers Kite or balloon string • Building Wind Turbines • Assessing Wind Resource • Mathematics
Secondary • • • Advanced Blade Design School Siting Projects Data Analysis Mathematics Download lessons
Wind Turbine Blade Challenge • Students perform experiments and design different wind turbine blades • Use simple wind turbine models • Test one variable while holding others constant • Record performance with a multimeter or other load device • Goals: Produce the most voltage, pump the most water, lift the most weight – Minimize Drag – Maximize LIFT – Harness the POWER of the wind!
Kid. Wind Project | www. kidwind. org

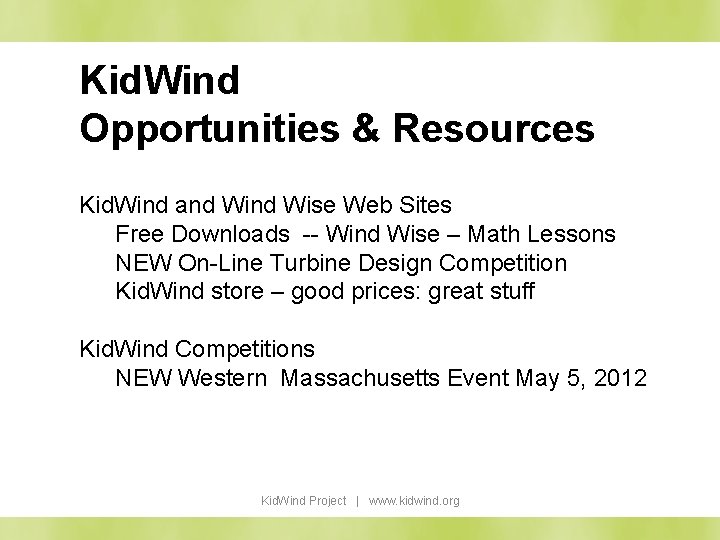

Kid. Wind Opportunities & Resources Kid. Wind and Wise Web Sites Free Downloads -- Wind Wise – Math Lessons NEW On-Line Turbine Design Competition Kid. Wind store – good prices: great stuff Kid. Wind Competitions NEW Western Massachusetts Event May 5, 2012 Kid. Wind Project | www. kidwind. org
Kid. Wind Project | www. kidwind. org
N I O J ! S U Register On-Line at Kid. Wind. See link below: Kid. Wind Project | www. kidwind. org
The Kid. Wind Project www. kidwind. org Presenters: Susan Reyes Science & Sustainability Educator Kid. Wind Senator sreyes 7@mac. com Lynda Elie NYSERDA - Energy & Sustainability Educator Kid. Wind - Wind. Wise Curriculum Presenter lynda@kidwind. org
