Wind Energy Basics
Outline 1. What is a wind plant? 2. Power production a. b. c. Wind power equation Wind speed vs. height Usable speed range 3. Problems with wind; potential solutions

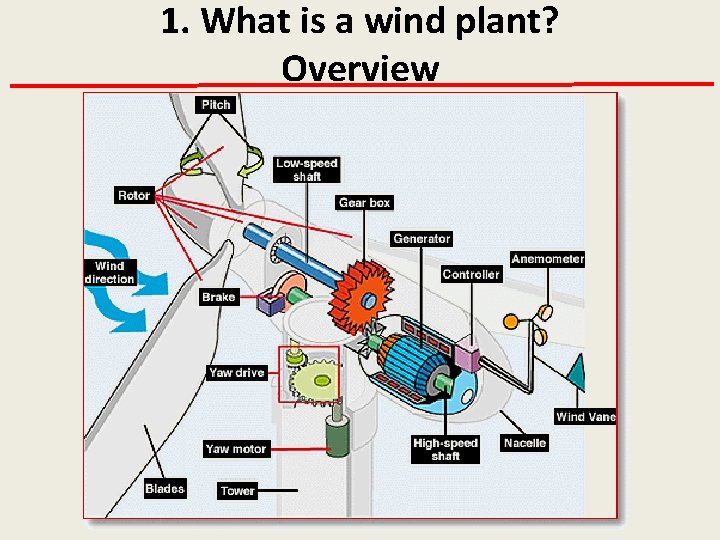

1. What is a wind plant? Overview

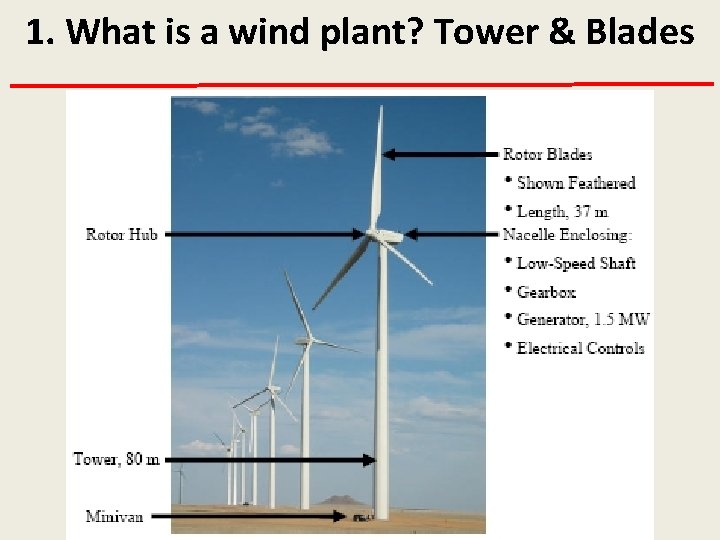

1. What is a wind plant? Tower & Blades 4

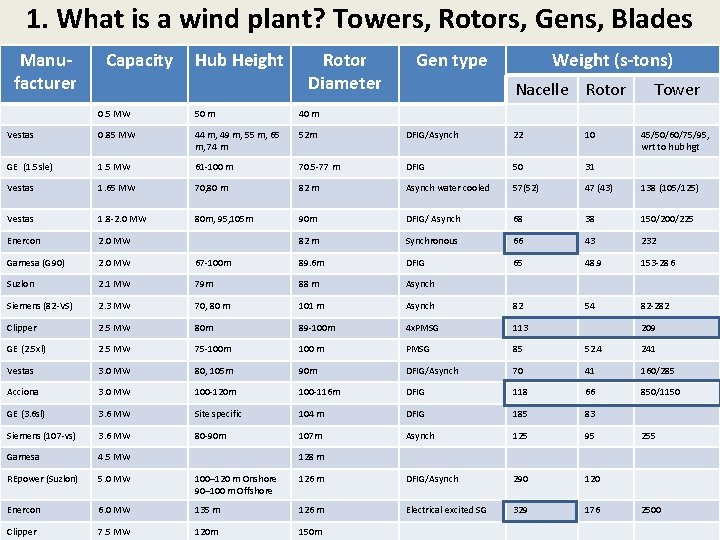

1. What is a wind plant? Towers, Rotors, Gens, Blades Manufacturer Capacity Hub Height Rotor Diameter Gen type Weight (s-tons) Nacelle Rotor Tower 0. 5 MW 50 m 40 m Vestas 0. 85 MW 44 m, 49 m, 55 m, 65 m, 74 m 52 m DFIG/Asynch 22 10 GE (1. 5 sle) 1. 5 MW 61 -100 m 70. 5 -77 m DFIG 50 31 Vestas 1. 65 MW 70, 80 m 82 m Asynch water cooled 57(52) 47 (43) 138 (105/125) Vestas 1. 8 -2. 0 MW 80 m, 95, 105 m 90 m DFIG/ Asynch 68 38 150/200/225 Enercon 2. 0 MW 82 m Synchronous 66 43 232 Gamesa (G 90) 2. 0 MW 67 -100 m 89. 6 m DFIG 65 48. 9 153 -286 Suzlon 2. 1 MW 79 m 88 m Asynch Siemens (82 -VS) 2. 3 MW 70, 80 m 101 m Asynch 82 54 82 -282 Clipper 2. 5 MW 80 m 89 -100 m 4 x. PMSG 113 GE (2. 5 xl) 2. 5 MW 75 -100 m 100 m PMSG 85 52. 4 241 Vestas 3. 0 MW 80, 105 m 90 m DFIG/Asynch 70 41 160/285 Acciona 3. 0 MW 100 -120 m 100 -116 m DFIG 118 66 850/1150 GE (3. 6 sl) 3. 6 MW Site specific 104 m DFIG 185 83 Siemens (107 -vs) 3. 6 MW 80 -90 m 107 m Asynch 125 95 Gamesa 4. 5 MW REpower (Suzlon) 5. 0 MW 100– 120 m Onshore 90– 100 m Offshore 126 m DFIG/Asynch 290 120 Enercon 6. 0 MW 135 m 126 m Electrical excited SG 329 176 Clipper 7. 5 MW 120 m 150 m 45/50/60/75/95, wrt to hub hgt 209 255 128 m 5 2500

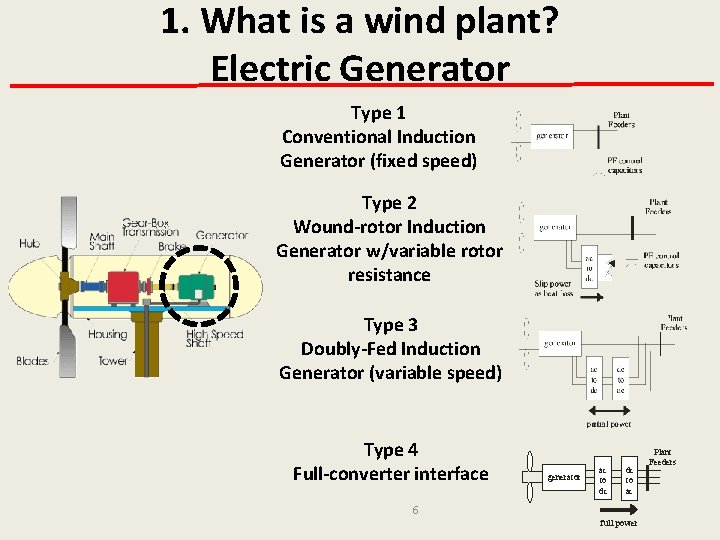

1. What is a wind plant? Electric Generator Type 1 Conventional Induction Generator (fixed speed) Type 2 Wound-rotor Induction Generator w/variable rotor resistance Type 3 Doubly-Fed Induction Generator (variable speed) Type 4 Full-converter interface generator ac to dc dc to ac 6 full power Plant Feeders

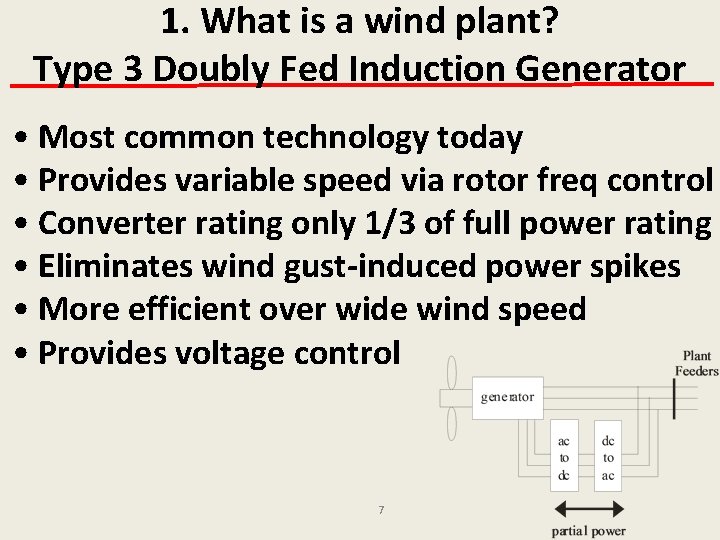

1. What is a wind plant? Type 3 Doubly Fed Induction Generator • Most common technology today • Provides variable speed via rotor freq control • Converter rating only 1/3 of full power rating • Eliminates wind gust-induced power spikes • More efficient over wide wind speed • Provides voltage control 7
1. What is a wind plant? Collector Circuit • Distribution system, often 34. 5 8

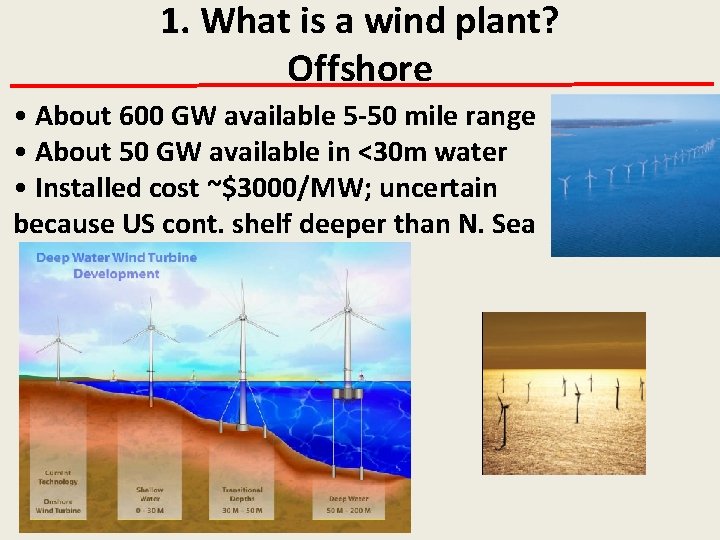

1. What is a wind plant? Offshore • About 600 GW available 5 -50 mile range • About 50 GW available in <30 m water • Installed cost ~$3000/MW; uncertain because US cont. shelf deeper than N. Sea 9

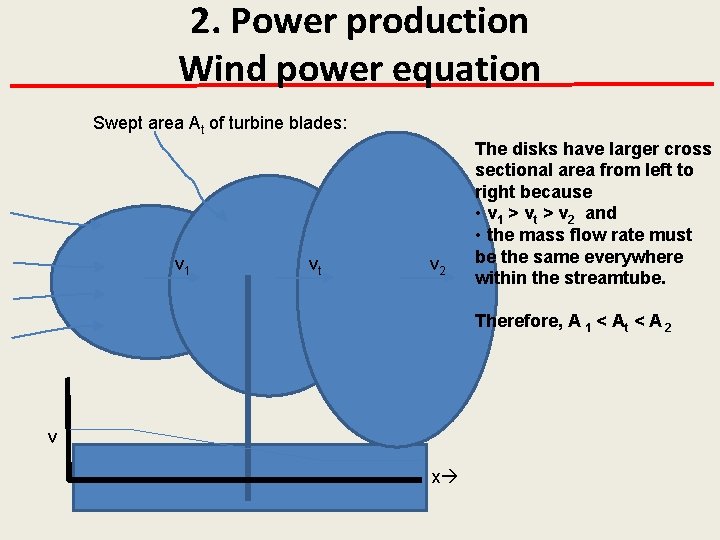

2. Power production Wind power equation Swept area At of turbine blades: v 1 vt v 2 The disks have larger cross sectional area from left to right because • v 1 > vt > v 2 and • the mass flow rate must be the same everywhere within the streamtube. Therefore, A 1 < At < A 2 v x

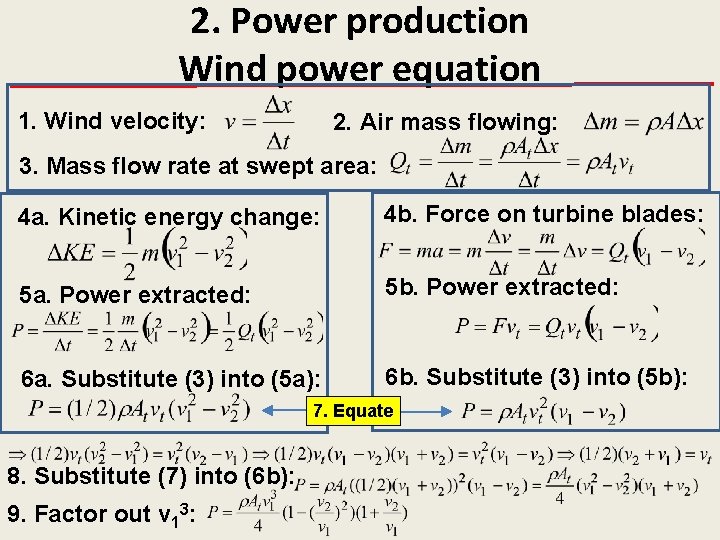

2. Power production Wind power equation 1. Wind velocity: 2. Air mass flowing: 3. Mass flow rate at swept area: 4 a. Kinetic energy change: 4 b. Force on turbine blades: 5 a. Power extracted: 5 b. Power extracted: 6 a. Substitute (3) into (5 a): 6 b. Substitute (3) into (5 b): 7. Equate 8. Substitute (7) into (6 b): 9. Factor out v 13:

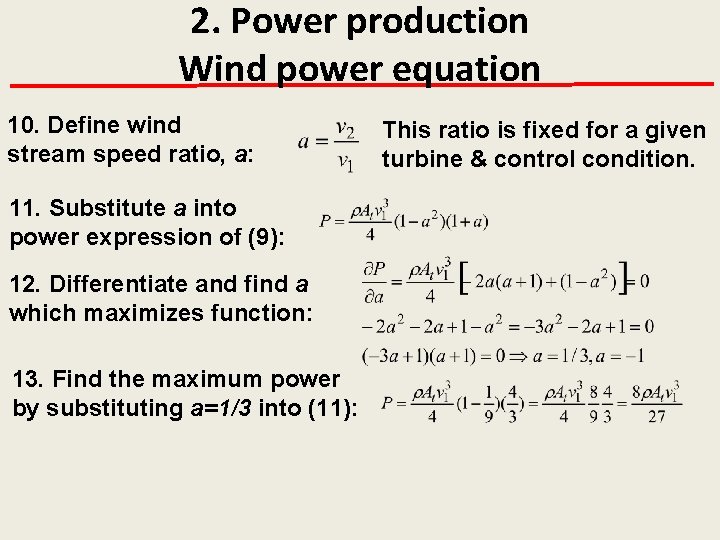

2. Power production Wind power equation 10. Define wind stream speed ratio, a: 11. Substitute a into power expression of (9): 12. Differentiate and find a which maximizes function: 13. Find the maximum power by substituting a=1/3 into (11): This ratio is fixed for a given turbine & control condition.

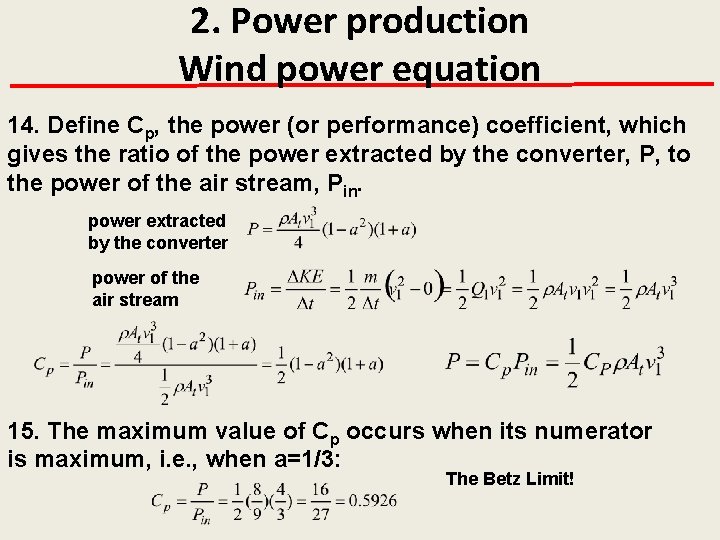

2. Power production Wind power equation 14. Define Cp, the power (or performance) coefficient, which gives the ratio of the power extracted by the converter, P, to the power of the air stream, Pin. power extracted by the converter power of the air stream 15. The maximum value of Cp occurs when its numerator is maximum, i. e. , when a=1/3: The Betz Limit!

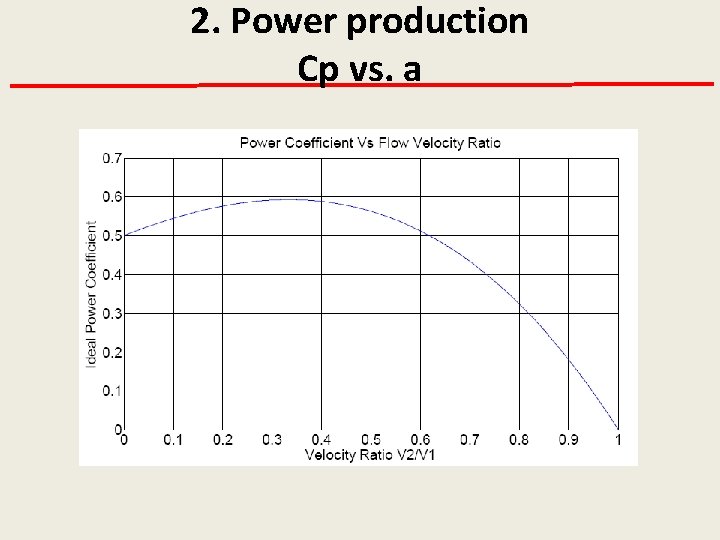

2. Power production Cp vs. a

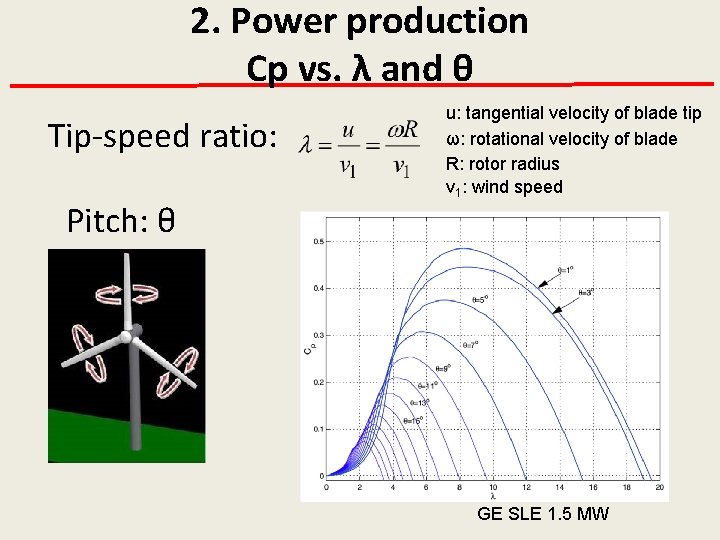

2. Power production Cp vs. λ and θ Tip-speed ratio: Pitch: θ u: tangential velocity of blade tip ω: rotational velocity of blade R: rotor radius v 1: wind speed GE SLE 1. 5 MW
2. Power production Cp vs. λ and θ Tip-speed ratio: Pitch: θ u: tangential velocity of blade tip ω: rotational velocity of blade R: rotor radius v 1: wind speed GE SLE 1. 5 MW

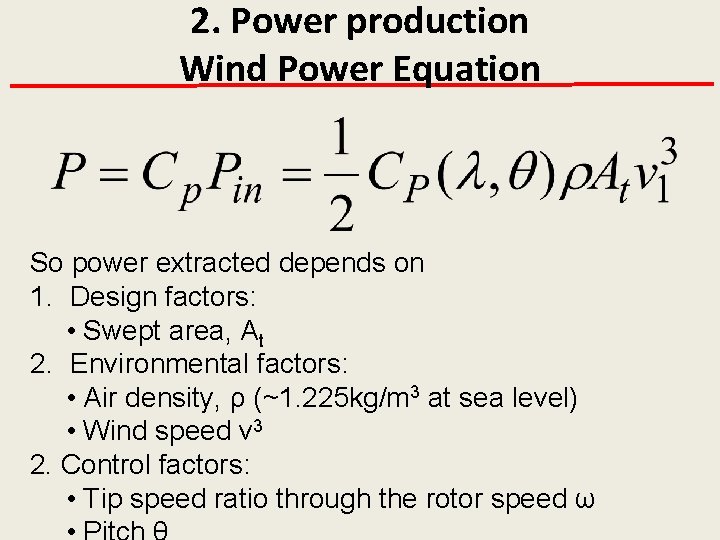

2. Power production Wind Power Equation So power extracted depends on 1. Design factors: • Swept area, At 2. Environmental factors: • Air density, ρ (~1. 225 kg/m 3 at sea level) • Wind speed v 3 2. Control factors: • Tip speed ratio through the rotor speed ω

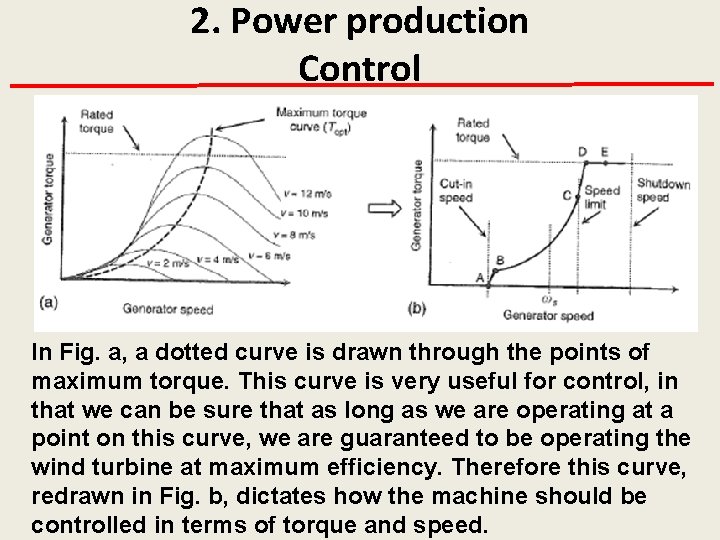

2. Power production Control In Fig. a, a dotted curve is drawn through the points of maximum torque. This curve is very useful for control, in that we can be sure that as long as we are operating at a point on this curve, we are guaranteed to be operating the wind turbine at maximum efficiency. Therefore this curve, redrawn in Fig. b, dictates how the machine should be controlled in terms of torque and speed.

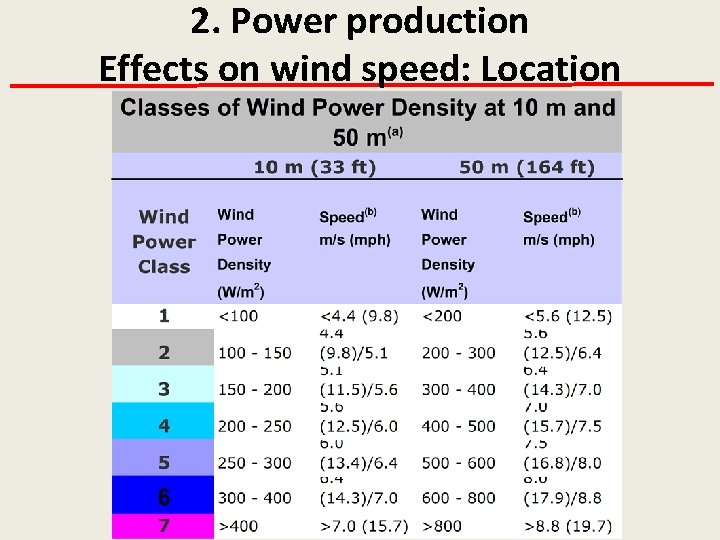

2. Power production Effects on wind speed: Location

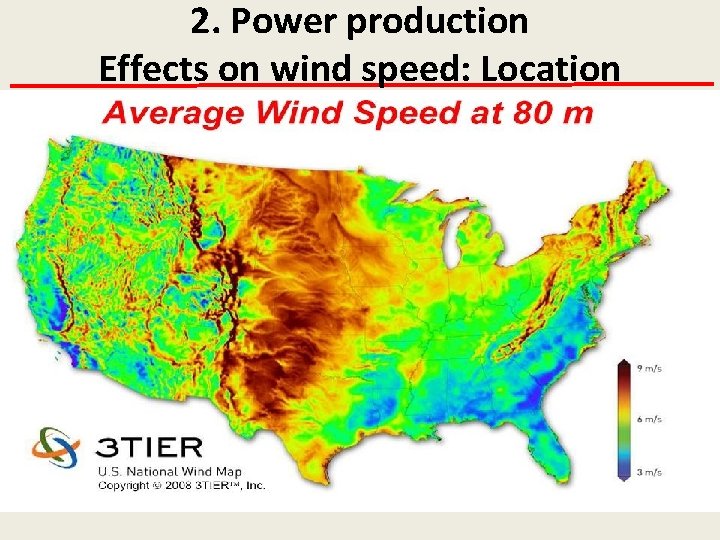

2. Power production Effects on wind speed: Location

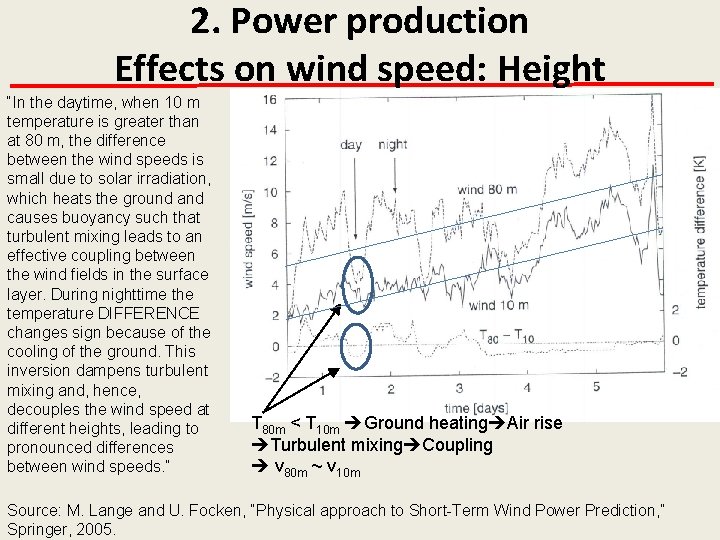

2. Power production Effects on wind speed: Height “In the daytime, when 10 m temperature is greater than at 80 m, the difference between the wind speeds is small due to solar irradiation, which heats the ground and causes buoyancy such that turbulent mixing leads to an effective coupling between the wind fields in the surface layer. During nighttime the temperature DIFFERENCE changes sign because of the cooling of the ground. This inversion dampens turbulent mixing and, hence, decouples the wind speed at different heights, leading to pronounced differences between wind speeds. ” T 80 m < T 10 m Ground heating Air rise Turbulent mixing Coupling v 80 m ~ v 10 m Source: M. Lange and U. Focken, “Physical approach to Short-Term Wind Power Prediction, ” Springer, 2005.

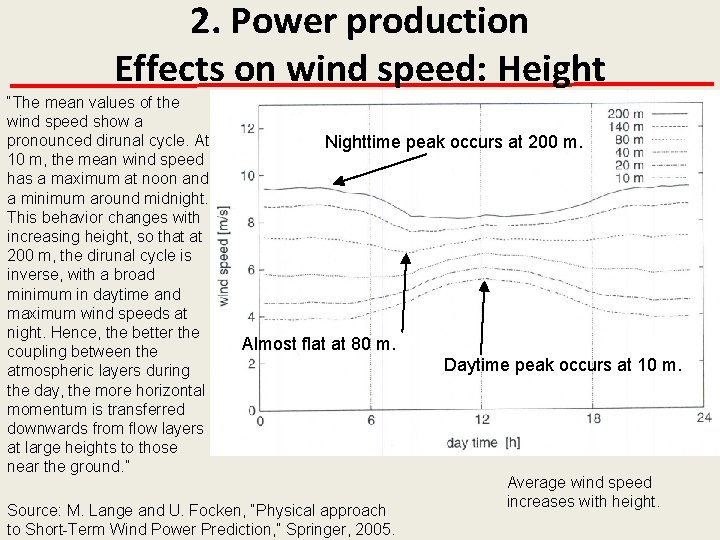

2. Power production Effects on wind speed: Height “The mean values of the wind speed show a pronounced dirunal cycle. At 10 m, the mean wind speed has a maximum at noon and a minimum around midnight. This behavior changes with increasing height, so that at 200 m, the dirunal cycle is inverse, with a broad minimum in daytime and maximum wind speeds at night. Hence, the better the coupling between the atmospheric layers during the day, the more horizontal momentum is transferred downwards from flow layers at large heights to those near the ground. ” Nighttime peak occurs at 200 m. Almost flat at 80 m. Source: M. Lange and U. Focken, “Physical approach to Short-Term Wind Power Prediction, ” Springer, 2005. Daytime peak occurs at 10 m. Average wind speed increases with height.

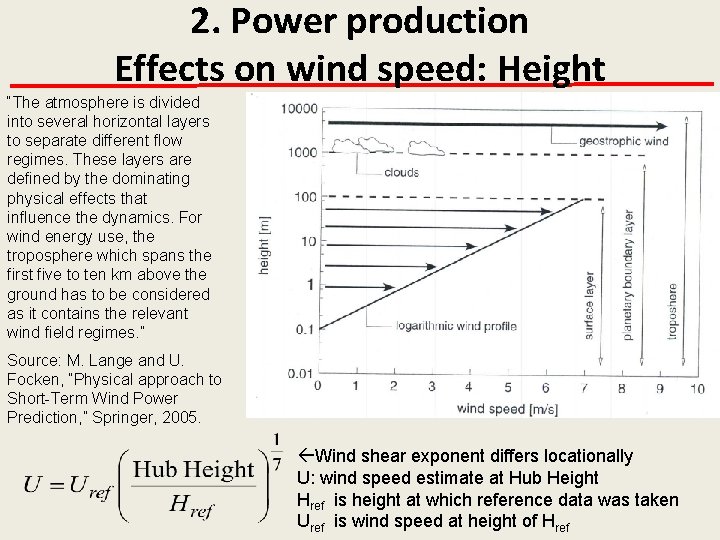

2. Power production Effects on wind speed: Height “The atmosphere is divided into several horizontal layers to separate different flow regimes. These layers are defined by the dominating physical effects that influence the dynamics. For wind energy use, the troposphere which spans the first five to ten km above the ground has to be considered as it contains the relevant wind field regimes. ” Source: M. Lange and U. Focken, “Physical approach to Short-Term Wind Power Prediction, ” Springer, 2005. Wind shear exponent differs locationally U: wind speed estimate at Hub Height Href is height at which reference data was taken Uref is wind speed at height of Href

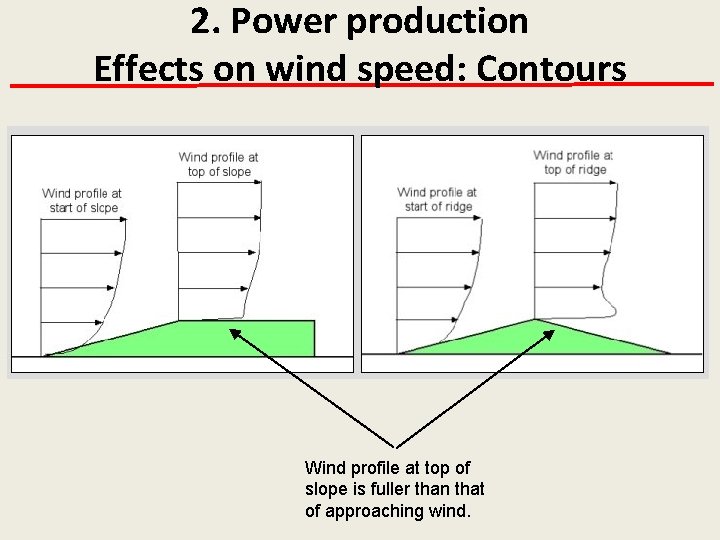

2. Power production Effects on wind speed: Contours Wind profile at top of slope is fuller than that of approaching wind.

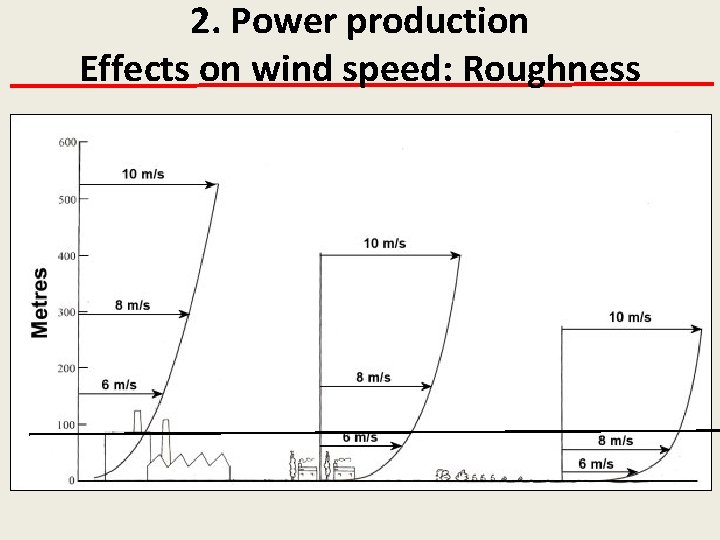

2. Power production Effects on wind speed: Roughness

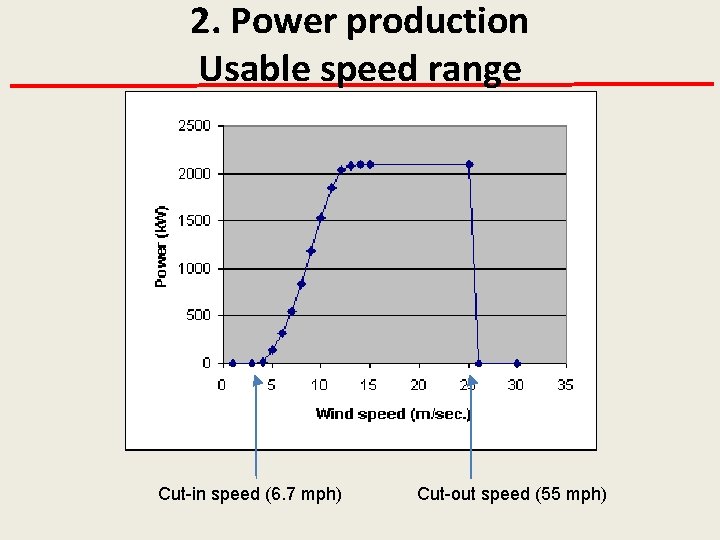

2. Power production Usable speed range Cut-in speed (6. 7 mph) Cut-out speed (55 mph)

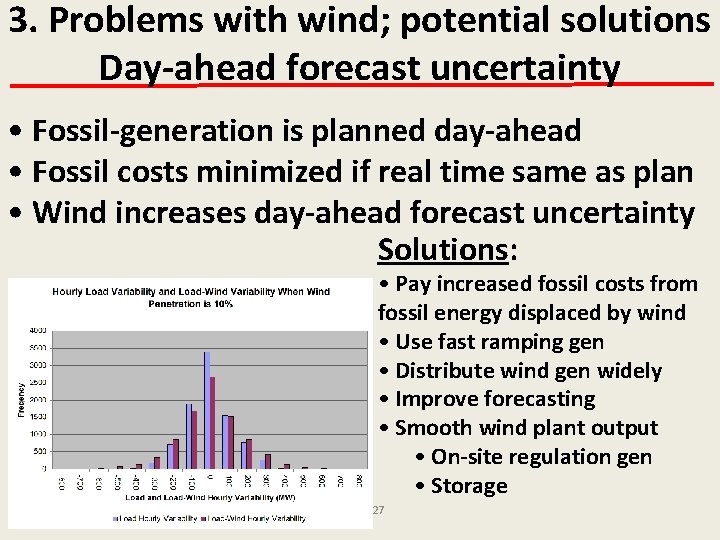

3. Problems with wind; potential solutions Day-ahead forecast uncertainty • Fossil-generation is planned day-ahead • Fossil costs minimized if real time same as plan • Wind increases day-ahead forecast uncertainty Solutions: • Pay increased fossil costs from fossil energy displaced by wind • Use fast ramping gen • Distribute wind gen widely • Improve forecasting • Smooth wind plant output • On-site regulation gen • Storage 27

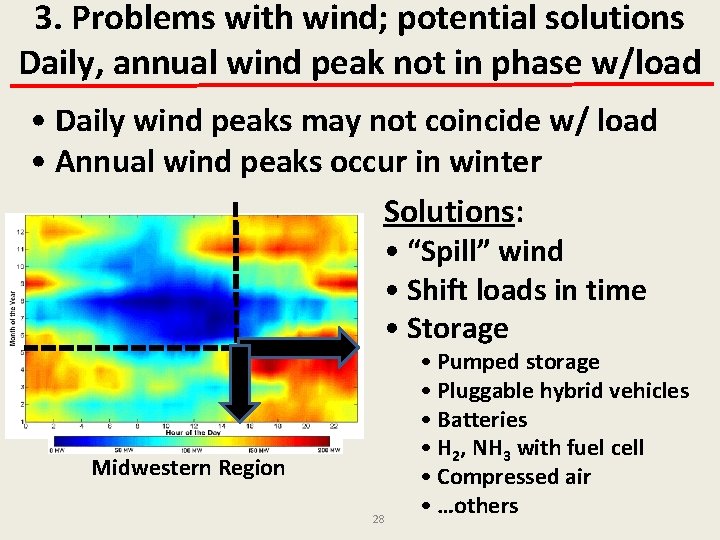

3. Problems with wind; potential solutions Daily, annual wind peak not in phase w/load • Daily wind peaks may not coincide w/ load • Annual wind peaks occur in winter Solutions: • “Spill” wind • Shift loads in time • Storage Midwestern Region 28 • Pumped storage • Pluggable hybrid vehicles • Batteries • H 2, NH 3 with fuel cell • Compressed air • …others

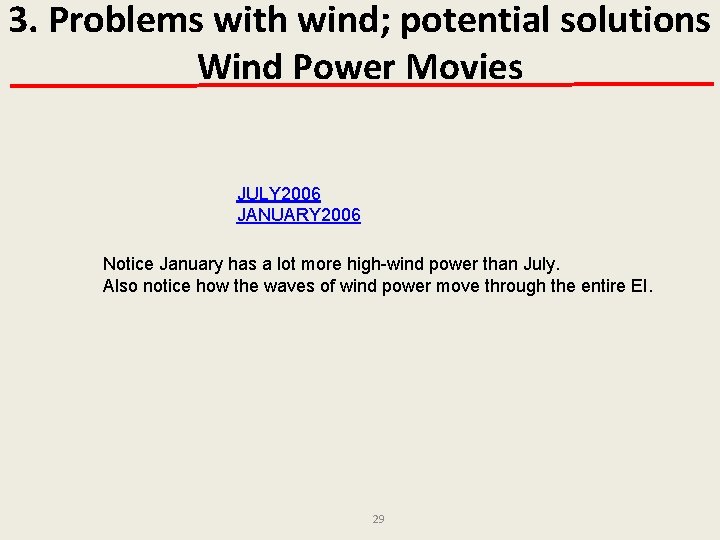

3. Problems with wind; potential solutions Wind Power Movies JULY 2006 JANUARY 2006 Notice January has a lot more high-wind power than July. Also notice how the waves of wind power move through the entire EI. 29

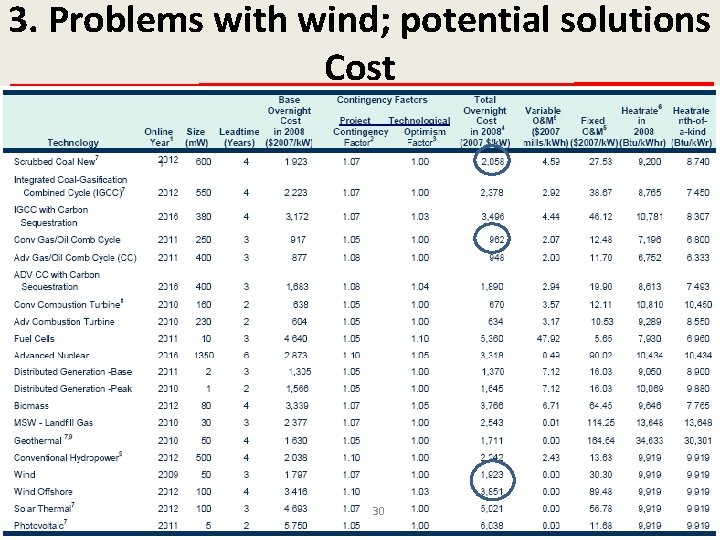

3. Problems with wind; potential solutions Cost 30

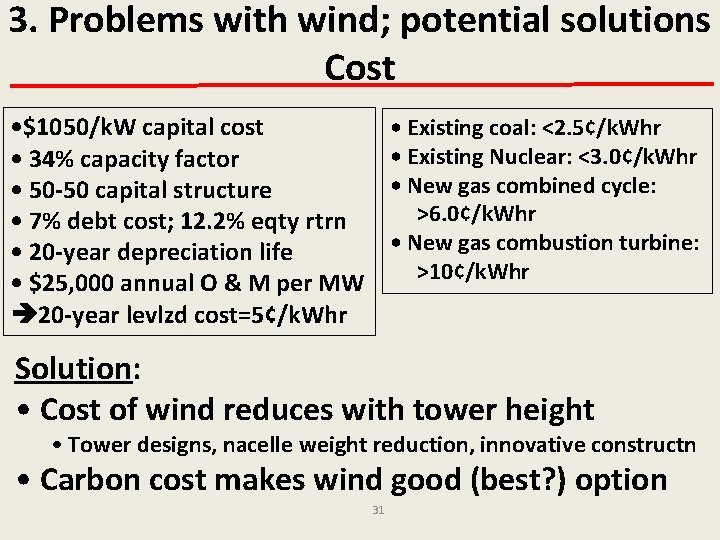

3. Problems with wind; potential solutions Cost • $1050/k. W capital cost • 34% capacity factor • 50 -50 capital structure • 7% debt cost; 12. 2% eqty rtrn • 20 -year depreciation life • $25, 000 annual O & M per MW 20 -year levlzd cost=5¢/k. Whr • Existing coal: <2. 5¢/k. Whr • Existing Nuclear: <3. 0¢/k. Whr • New gas combined cycle: >6. 0¢/k. Whr • New gas combustion turbine: >10¢/k. Whr Solution: • Cost of wind reduces with tower height • Tower designs, nacelle weight reduction, innovative constructn • Carbon cost makes wind good (best? ) option 31

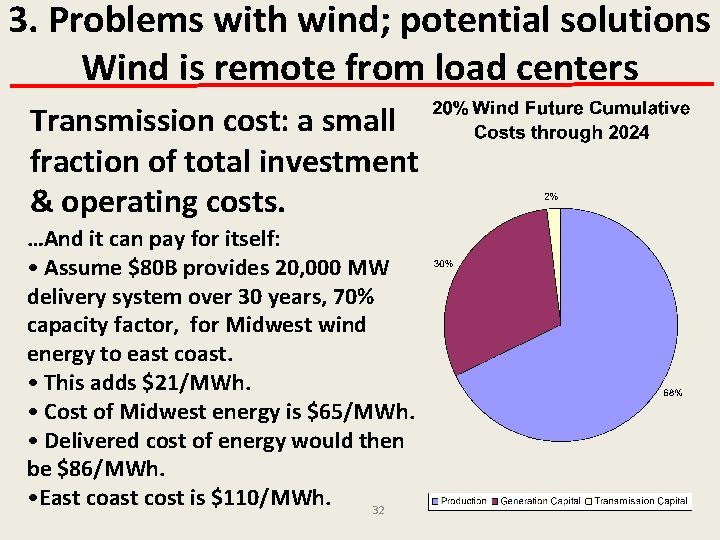

3. Problems with wind; potential solutions Wind is remote from load centers Transmission cost: a small fraction of total investment & operating costs. …And it can pay for itself: • Assume $80 B provides 20, 000 MW delivery system over 30 years, 70% capacity factor, for Midwest wind energy to east coast. • This adds $21/MWh. • Cost of Midwest energy is $65/MWh. • Delivered cost of energy would then be $86/MWh. • East cost is $110/MWh. 32

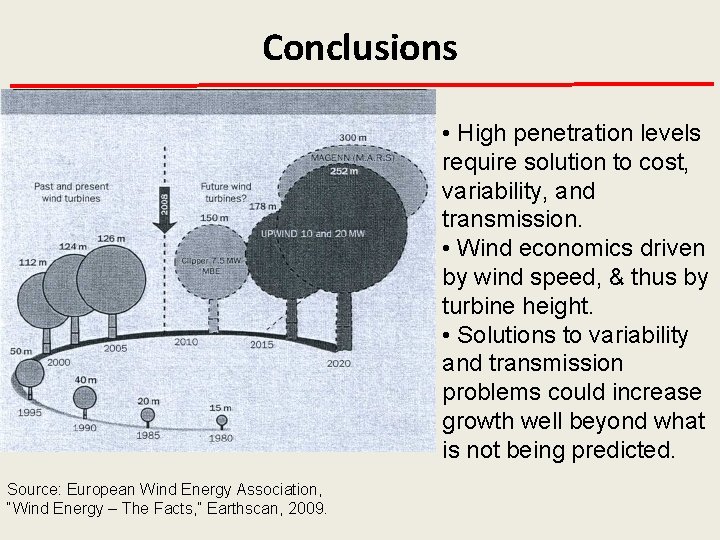

Conclusions • High penetration levels require solution to cost, variability, and transmission. • Wind economics driven by wind speed, & thus by turbine height. • Solutions to variability and transmission problems could increase growth well beyond what is not being predicted. Source: European Wind Energy Association, “Wind Energy – The Facts, ” Earthscan, 2009.
