WILKERSON ® C O R P O R A T I O N Training For Growth Into the 21 st Century A Marketing Services Presentation © 1998 Wilkerson Corporation

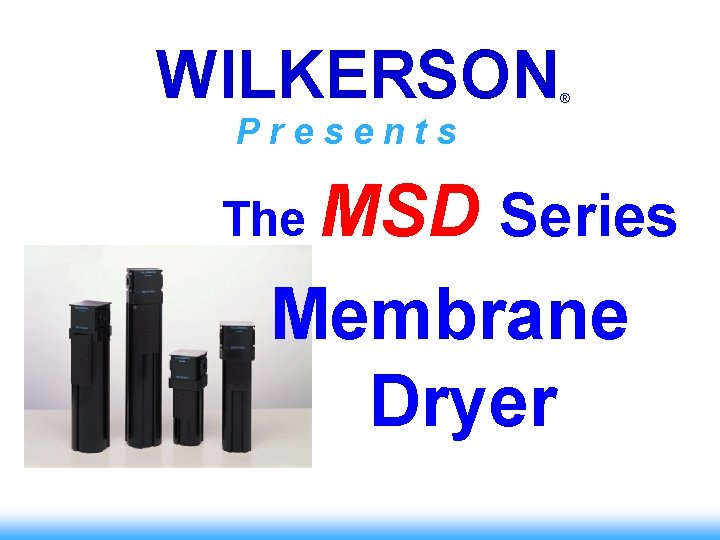

WILKERSON ® Presents The MSD Series Membrane Dryer
The MSD Membrane Dryer
The MSD Membrane Dryer : Compact design u Simple and space-saving design u Compatible with 18/28 Series modular product line ÌNo electrical connections u Suitable for hazardous areas ÌNo CFC’s / FC’s u Environmentally friendly 9 No Moving parts u Simplified maintenance u No user purge adjustment
The MSD Membrane Dryer
The MSD Membrane Dryer Applications : On a specific application leg off of a larger system : As THE dryer on a stand-alone system
The MSD Membrane Dryer Applications : On a specific application leg off of a larger system : As THE dryer on a stand-alone system To system System dryer MSD Appl.

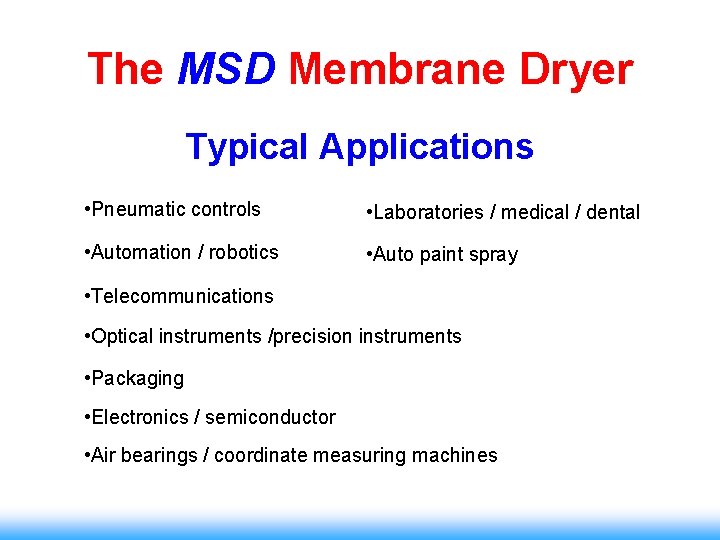

The MSD Membrane Dryer Typical Applications • Pneumatic controls • Laboratories / medical / dental • Automation / robotics • Auto paint spray • Telecommunications • Optical instruments /precision instruments • Packaging • Electronics / semiconductor • Air bearings / coordinate measuring machines
MSD Series Membrane Dryers
The MSD Membrane Dryer
The MSD Membrane Dryer “Proven Technology for reliable, dependable performan M 18 Filter MSD Dryer Individual Membrane Tube Membrane Bundle
“The system approach” MSD Dryer Air Purge Water Oil “A coalescing prefilter is NOT an option with a Membrane Dryer! It is an integral part of the system. ” - a famous pneumatic trainer
“The system approach” A good coalescing prefilter is necessary to remove bulk liquids and aerosols of oil and water at the inlet of the membrane dryer. Hydrocarbon (oil) molecules are much larger than water molecules, and will quickly plug the membrane pores, rendering it ineffective. Air Water Oil
Principle of Operation - Membrane Technology MSD Dryer Air Purge Water
The MSD Membrane Dryer “Proven Technology for reliable, dependable performan M 18 Filter MSD Dryer Individual Membrane Tube Membrane Bundle
Cutaway and Close-up of Membrane Module Individual Membrane Tube Membrane Bundle Consists of thousands of individual membrane tubes
Membrane Technology Air (individual membrane tube enlarged for clarity) Membrane Bundle Purge Water Membrane Pores Purge orifice

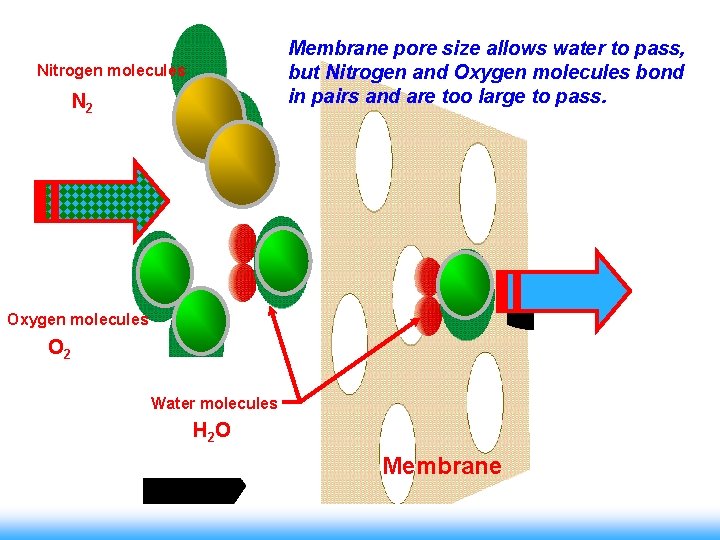

Membrane pore size allows water to pass, but Nitrogen and Oxygen molecules bond in pairs and are too large to pass. Nitrogen molecules N 2 Oxygen molecules O 2 Water molecules H 2 O Membrane
Oil (hydrocarbon) molecules are much larger than water molecules, and will quickly plug the membrane pores, causing dryer failure. Water molecule Oil molecule Membrane
The partial pressure of water vapor is usually referred to as the vapor pressure. It is the pressure the water vapor would exert if it existed alone at the temperature and volume of the mixture. P = Pa + Pv (k. Pa) Where: P = pressure of atmospheric air Pa= partial pressure of dry air P v=partial pressure of water vapor
Membrane Technology Air (individual membrane tube enlarged for clarity) Purge Water Membrane technology: (A. ) The process is simple. Saturated (wet) air has a higher partial vapor pressure than dry air. Water molecules migrate through the membrane from higher partial vapor pressure to lower partial vapor pressure. Membrane Pores Purge orifice
Membrane Technology Air (individual membrane tube enlarged for clarity) Purge Water Membrane technology: (B. )As air at system pressure expands through the purge orifice, its partial vapor pressure lowers. This air then “sweeps” over the outer surface of the membrane, causing the water molecules (with higher partial vapor pressure) inside the system to migrate across the membrane. Membrane Pores Water molecules migrate through membrane to purge air side Purge orifice
Additional Technical Information
MSD Membrane Dryer Bowl adapter mounting screws Set screw Purge exhaust cover KA 1 KA 2 front view KB 1 KB 2
MSD Membrane Dryer Cutaway In Out Body casting w/ cover Purge air exhaust Membrane Module Bowl Purge orifice (Not a true cross-sectional drawing)
MSD Membrane Dryers Coalescing Prefilters are a must with membrane dryers. Hydrocarbon (oil) molecules will rapidly plug the membrane pores, quickly rendering the membrane ineffective. Automatic mechanical drain removes liquid oil and water contaminants from the system.
Key Features of the MSD Membrane Dryer w/ Prefilter: Mechanical DP indicator Patented Modular Joiner set with mounting bracket Easily serviced, no adjustments OUT IN Purge exhaust has cover 0. 01 micron Coalescing Prefilter Exceeds ISO Class 1 for particulates and oil content Membrane technology tried and proven ISO 8573 -1: 1991(E) Auto float drain
Air flows DOWN through membrane tubes from this end Then UP through center tube to outlet Top end view UP
Purge air exits here. Protective cover Purge orifice Membrane bundle Center tube Plastic sheath directs purge air over outside of membrane bundle
Literature MSD Membrane Dryer

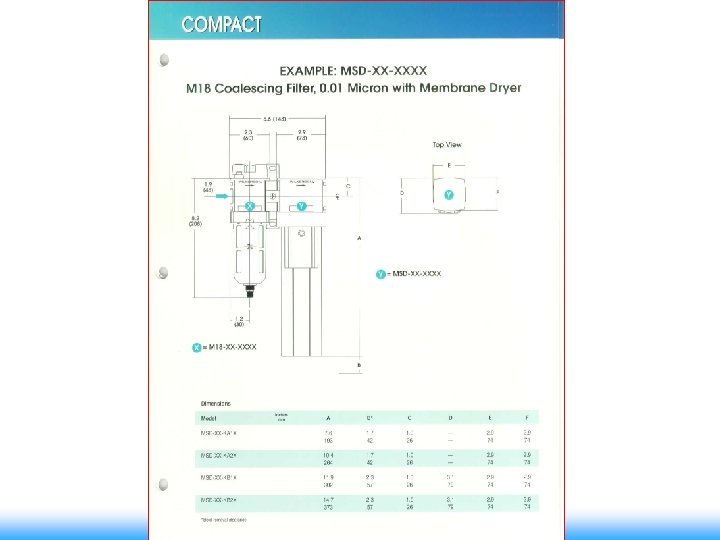

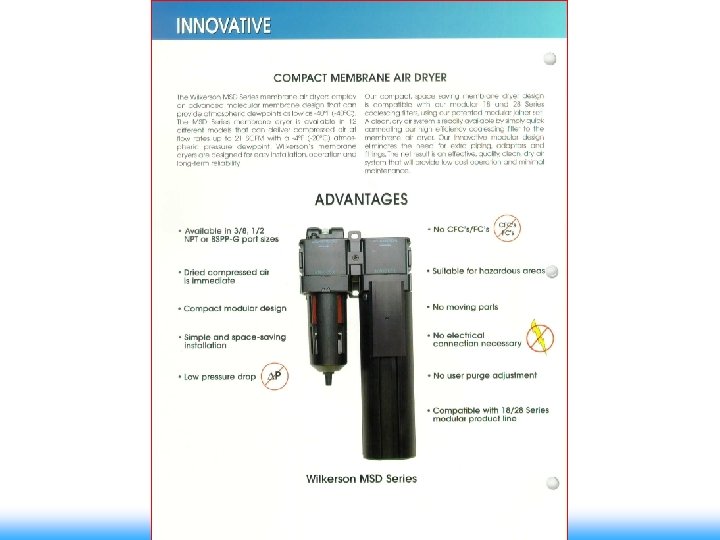

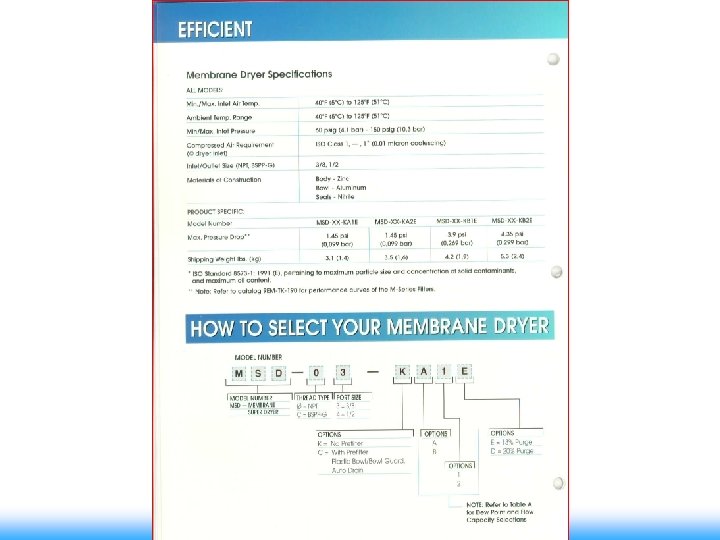

Sales Brochure 9 CW-DX-233 7/98
We will add photos of specific applications and installations in the future
Powerpoint presentation uses same graphics as brochure for clarity and reinforcement

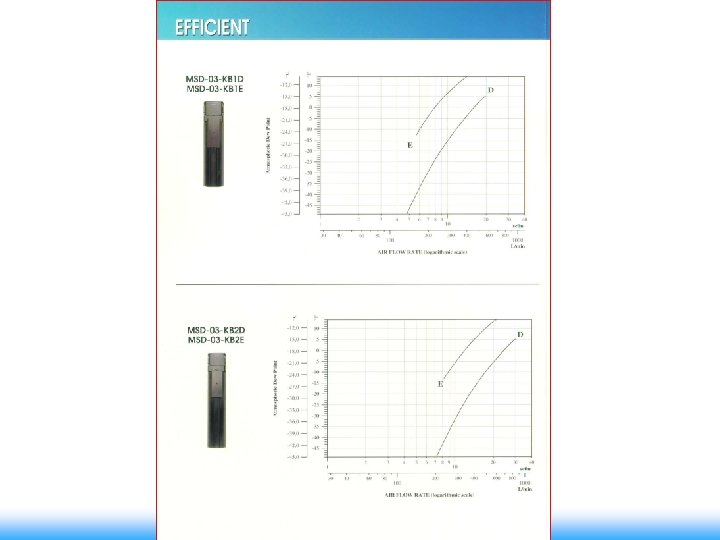

. To read this graph: Plot actual application point (dewpoint and adjusted flow rate) on chart. Closest curve DOWN and RIGHT of point is correct model for application. EXAMPLE: 3 SCFM @ 0ºF ADP. Model MSD-03 -KA 1 D is correct model. Front of fold-out page in Brochure 9 CW-DX-233 7/98. Applies to selecting dryers on all four graphs
See previous slide
Th Un is de pag rr e ev is io n
Better customer support!
Competitive Analysis and Pricing MSD Membrane Dryer
“The Pipe”
Which is better, THIS. . .

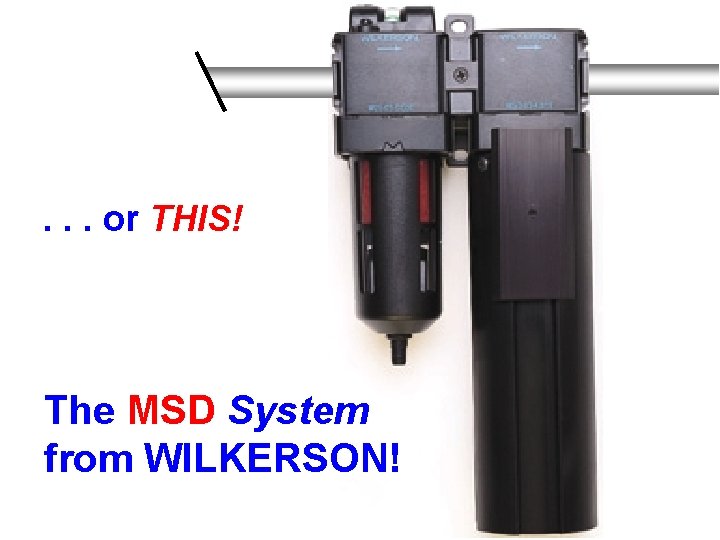

. . . or THIS! The MSD System from WILKERSON!
The MSD Membrane Dryer Typical Applications : : : : : Pneumatic controls Optical instruments /precision instruments Automation / robotics Packaging Telecommunications Electronics / semiconductor Air bearings / coordinate measuring machines Laboratories / medical / dental Auto paint spray
The MSD Membrane Dryer : Compact design : Compatible with 18/28 Series modular product line - SYSTEMS APPROACH : No electrical connections : No CFC’s / FC’s Environmentally friendly : Simplified maintenance and installation : Versatile
The Wilkerson MSD Membrane Dryer System. . .
Make it…. .
