Wikitology Wikipedia as an Ontology Tim Finin UMBC

Wikitology Wikipedia as an Ontology Tim Finin, UMBC Zareen Syed and Anupam Joshi University of Maryland, Baltimore County James Mayfield, Paul Mc. Namee and Christine Piatko JHU Human Language Technology Center of Excellence

Overview • Introduction • Wikipedia as an ontology • Applications • Discussion • Conclusion introduction wikitology applications discussion conclusion

Wikis and Knowledge • Wikis are a great way to collaborate on knowledge encoding – Wikipedia is an archetype for this, but there are many examples • Ongoing research is exploring how to integrate this with structured knowledge – DBpedia, Semantic Media Wiki, Freebase, etc. • I’ll describe an approach we’ve taken and experiments in using it – We came at this from an IR/HLT perspective introduction wikitology applications discussion conclusion

Wikipedia is the new black • Wikipedia is a great resource for knowledge • Its being widely used as a source of knowledge for many systems • Such as… introduction wikitology applications discussion conclusion

Wikipedia data in RDF introduction wikitology applications discussion conclusion

Populating Freebase KB introduction wikitology applications discussion conclusion

Populating Powerset’s KB introduction wikitology applications discussion conclusion

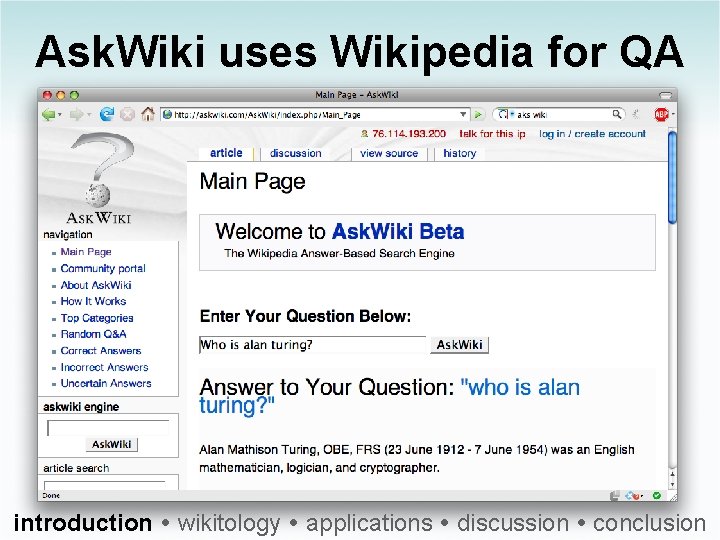

Ask. Wiki uses Wikipedia for QA introduction wikitology applications discussion conclusion

With sometimes surprising results introduction wikitology applications discussion conclusion

True. Knowledge mines Wikipedia introduction wikitology applications discussion conclusion

Wikipedia pages as tags introduction wikitology applications discussion conclusion

Wikitology We are exploring an approach to deriving an ontology from Wikipedia that is useful in a variety of language processing tasks introduction wikitology applications discussion conclusion

Our original problem (2006) • Problem: describe what an analyst has been working on to support collaboration • Idea: track documents she reads and map these to terms in an ontology, aggregate to produce a short list of topics • Approach: use Wikipedia articles as ontology terms, use document article similarity for the mapping, and spreading activation for aggregation introduction wikitology applications discussion conclusion

What’s a document about? Two common approaches: (1) Select words and phrases using TF IDF that characterize the document (2) Map document to a list of terms from a controlled vocabulary or ontology (1) is flexible and does not require creating and maintaining an ontology (2) can tie documents to a rich knowledge base introduction wikitology applications discussion conclusion

Wikitology ! • Using Wikipedia as an ontology offers the best of both approaches – each article (~3 M) is a concept in the ontology – terms linked via Wikipedia’s category system (~200 k) and inter article links – Lots of structured and semi structured data • It’s a consensus ontology created and maintained by a diverse community • Broad coverage, multilingual, very current • Overall content quality is high introduction wikitology applications discussion conclusion

Wikitology features • Terms have unique IDs (URLs) and are “self describing” for people • Underlying graphs provide structure and associations: categories, article links, disambiguation, aliases (redirects), … • Article history contains useful meta data for trust, provenance, controversy, … • External sources provide more info (e. g. , Google’s Page. Rank) • Annotated with structured data from DBpedia, Freebase, Geonames & LOD introduction wikitology applications discussion conclusion

Problems as an Ontology Treating Wikipedia as an ontology reveals many problems • Uncategorized and miscategorized articles • Single document in too many categories: – George W. Bush is included in about 30 categories • Links between articles belonging to very different categories – John F. Kennedy has a link for “coincidence theory” which belongs to the Mathematical Analysis/ Topology/Fixed Points introduction wikitology applications discussion conclusion

Problems as an Ontology • Article links in text are not “typed” • Uneven category articulation – Some categories are under represented where as others have many articles • Administrative categories, e. g. – Clean up from Sep 2006 – Articles with unsourced statements • Over linking, e. g. – A mention of United States linked to the page United_states – Mentions of 1949 linked to the year 1949 introduction wikitology applications discussion conclusion

Problems as an Ontology Wikipedia’s infobox templates have great potential for have several problems • Multiple templates for same class • Multiple attribute names for same property – E. g. , six attributes for a person’s birth date • Attributes lack domains or datatypes – E. g. , value can be string or link introduction wikitology applications discussion conclusion

Wikitology 1, 2, 3 • We’ve addressed some of of these problems in developing Wikitology • The development has been driven by several use cases and applications introduction wikitology applications discussion conclusion

Wikitology Use Cases • Identifying user context in a collaboration system from documents viewed (2006) • Improve IR accuracy of by adding Wikitology tags to documents (2007) • Cross document co reference resolution for named entities in text (2008) • Knowledge Base population from text (2009) • Improve Web search engine by tagging documents and queries (2009) introduction wikitology applications discussion conclusion

Wikitology 1. 0 (2007) • Structured Data – Specialized concepts (article titles) – Generalized concepts (category titles) – Inter category and article links as relations between concepts graphs – Article category links as relations between specialized and generalized concepts text • Un Structured Data – Article text • Algorithms to remove useless categor ies and links, infer categories, and select, rank and aggregate concepts using the hybrid knowledge base Human input & editing introduction wikitology applications discussion conclusion

Experiments • Goal: given one or more documents, compute a ranked list of the top Wikipedia articles and/or categories that describe it. • Basic metric: document similarity between Wikipedia article and document(s) • Variations: role of categories, eliminating uninteresting articles, use of spreading activation, using similarity scores, weighing links, number of spreading activation pulses, individual or set of query documents, etc. introduction wikitology applications discussion conclusion

Method 1 Using Wikipedia article text & categories to predict concepts Input Query doc(s) similar to 0. 2 Cosine similarity 0. 8 0. 1 Similar Wikipedia Articles 0. 2 introduction wikitology applications discussion conclusion

Method 1 Using Wikipedia article text & categories to predict concepts Wikipedia Category Graph Input Query doc(s) similar to 0. 2 0. 8 0. 1 Similar Wikipedia Articles 0. 2 Cosine similarity 0. 3 introduction wikitology applications discussion conclusion

Method 1 Using Wikipedia article text & categories to predict concepts Output Rank Categories 1. Links 2. Cosine similarity Wikipedia Category Graph 0. 9 3 Input Query doc(s) similar to 0. 2 0. 8 0. 1 Similar Wikipedia Articles 0. 2 Cosine similarity 0. 3 introduction wikitology applications discussion conclusion

Method 2 Using spreading activation on category link graph to get aggregated concepts Spreading Activation Output Ranked Concepts based Wikipedia Category Graph on Final Activation Score Input Query doc(s) Similar to 0. 2 0. 8 0. 1 0. 2 Cosine similarity 0. 3 Input Function Output Function introduction wikitology applications discussion conclusion

Method 3 Input Using spreading activation on article link graph Query Similar To doc(s) Edge Weights: Cosine similarity between linked articles Threshold: Ignore Spreading Activation to articles with less than 0. 4 Cosine similarity score Wikipedia Article Links Graph Spreading Activation Node Input Function Node Output Function Output Ranked Concepts based on Final Activation Score

Evaluation • An initial informal evaluation compared results against our own judgments • Used to select promising combinations of ideas and parameter settings • Formal evaluation: – Selected Wikipedia articles for testing; remove from Lucene index and graphs – For each, use methods to predict categories and linked articles – Compare results using precision and recall to known categories and linked articles introduction wikitology applications discussion conclusion

Example Prediction for Set of Test Documents Test Document Titles in the Set: (Wikipedia Articles) Crop_rotation Permaculture Beneficial_insects Neem Lady_Bird Principles_of_Organic_Agriculture Concept not in the Rhizobia Category Hierarchy Biointensive Inter cropping Green_manure Method 1 Method 2 (2 pulses) Method 3 (2 pulses) Ranking Categories Directly Spreading Activation on Category links Graph Spreading Activation on Article Links Graph Agriculture Sustainable_technologies Crops Agronomy Permaculture Skills Applied_sciences Land_management Food_industry Agriculture Organic_farming Sustainable_agriculture Organic_gardening Agriculture Companion_planting

Category prediction evaluation • Spreading activation with two pulses worked best • Only considering articles with similarity > 0. 5 was a good threshold introduction wikitology applications discussion conclusion

Article prediction evaluation • Spreading activation with one pulse worked best • Only considering articles with similarity > 0. 5 was a good threshold introduction wikitology applications discussion conclusion

Improving IR performance (2008 -09) • Improving IR performance for a collection by adding semantic terms to documents • Query with blind relevance feedback may benefit from the semantic terms • Initial evaluation with NIST TREC 2005 collection in collaboration with Paul Mc. Namee, JHU HLTCOE • Ongoing: integration into River. Glass MORAG search engine introduction wikitology applications discussion conclusion

Improving IR performance Doc: FT 921 -4598 (3/9/92). . . Alan Turing, described as a brilliant mathematician and a key figure in the breaking of the Nazis' Enigma codes. Prof IJ Good says it is as well that British security was unaware of Turing's homosexuality, otherwise he might have been fired 'and we might have lost the war'. In 1950 Turing wrote the seminal paper 'Computing Machinery And Intelligence', but in 1954 killed himself. . . Turing_machine, Turing_test, Church_Turing_thesis, Halting_problem, Computable_number, Bombe, Alan_Turing, Recusion_theory, Formal_methods, Computational_models, Theory_of_computation, Theoretical_computer_science, Artificial_Intelligence introduction wikitology applications discussion conclusion

Evaluation • Mixed results on NIST evaluation • Slightly worse on mean average precision • Slightly better for precision at 10 MAP P@10 base 0. 2076 0. 4207 Base + rf 0. 2470 0. 4480 Concepts + rf 0. 2400 0. 4553 introduction wikitology applications discussion conclusion

MORAG Search Engine • Concept features generated using Wikipedia (ESA) • Feature Selection using pseudo relevance feedback • Merged Ranking of Concept scores and BOW scores introduction wikitology applications discussion conclusion

Information Extraction • Problem: resolve entities found by a named entity recognition system across documents to a KB entries • ACE 2008: NIST run Automatic Extrac tion Conference is focused on this task – We were part of a team lead by JHU Human Language Technology Center of Excellence – Use Wikitology to map document entities to KB entities introduction wikitology applications discussion conclusion

Wikitology 2. 0 (2008) RDF Freebase KB Databases RDF graphs text Yago Human input & editing Word. Net

Global Coreference Task • Start with entities and relations produced by a within document extraction system – Produce ‘Global’ clusters for PERSON and ORGANIZATION entities William Wallace (living British Lord) William Wallace (of Braveheart fame) Abu Abbas aka Muhammad Zaydan aka Muhammad Abbas – Only evaluate over instances of entities with a name • Challenges: – Very limited development data • ACE released 49 files in English, none in Arabic • MITRE released English ACE 05 corpus, but annotation is noisy and data has few ambiguous entities – Within document mistakes are propagated to cross document system – 10 K document evaluation set required work on scalability of approaches introduction wikitology applications discussion conclusion

Global Coreference Resolution Approach • Serif for intra document processing • Entity Filtering Document Entities: – Collect all pairs of SERIF entities – Filter entity pairs with heuristics (e. g. , string similarity of mentions) to get high recall set of pairs significantly smaller than n 2 possible pairs • Feature generation • Training E 1: Abu Abbas was arrested … E 2: Palestinian President Mahmoud Abbas. . . E 3: … election of Abu Mazen E 4: … president George Bush Filtered Pairs: E 1, E 2 (shared word) E 1, E 3 (shared word) E 2, E 3 (known alias) – Train SVM to identify coreferent pairs • Entity Clustering – Cluster predicted pairs – Each connected component forms a global entity Features: E 1, E 2: character overlap: 5 E 1, E 2: distinct Freebase entities: true E 1, E 3: character overlap: 3 E 1, E 3: distinct Freebase entities: false …. • Relation Identification – Every pair of SERIF identified relations whose types are identical and whose endpoints are coreferent are deemed to be coreferent Entity Clusters: Abu Mazen Mahmoud Abbas Palestinian Leader convicted terrorist Muhammed Abbas Abu Abbas introduction wikitology applications discussion conclusion

Wikitology tagging • Using Serif’s output, we produced an entity document for each entity. Included the entity’s name, nominal and pronom inal mentions, APF type and subtype, and words in a window around the mentions • We tagged entity documents using Wiki tology producing vectors of (1) terms and (2) categories for the entity • We used the vectors to compute fea tures measuring entity pair similarity/dissimilarity introduction wikitology applications discussion conclusion

Entity Document & Tags <DOC> <DOCNO>ABC 19980430. 1830. 0091. LDC 2000 T 44 E 2 <DOCNO> <TEXT> Webb Hubbell PER Individual NAM: "Hubbell” "Hubbells” "Webb Hubbell” "Webb_Hubbell" NAM: "Mr. " "friend” "income" PRO: "he” "him” "his" , . abc's accountant after again ago alleges alone also and arranged attorney avoid been before being betray but came can cat charges cheating circle clearly close concluded conspiracy cooperate counsel's department did disgrace do dog dollars earned eightynine enough evasion feel financial firm first four friends going got grand happening has he help him hi s hope house hubbells hundred hush income increase independent indicted indictment inner investigating jackie_judd jail jordan judd jury justice kantor ken knew lady late law left lie little make many mickey mid money mr my nineteen nineties ninetyfour nothing now office others paying peter_jennings president's pressured probe prosecutors questions reported reveal rock saddened said schemed seen seven since starr statement such taxes tell them they thousand time today ultimately vernon washington webb_hubbell were what's whether which whitewater why wife years </TEXT> </DOC> Wikitology article tag vector Webster_Hubbell 1. 000 Hubbell_Trading_Post National Historic Site 0. 379 United_States_v. _Hubbell 0. 377 Hubbell_Center 0. 226 Whitewater_controversy 0. 222 Wikitology category tag vector Clinton_administration_controversies 0. 204 American_political_scandals 0. 204 Living_people 0. 201 1949_births 0. 167 People_from_Arkansas 0. 167 Arkansas_politicians 0. 167 American_tax_evaders 0. 167 Arkansas_lawyers 0. 167

Wikitology derived features • Seven features measured entity similarity using cosine similarity of various length article or category vectors • Five features measured entity dissimilarity: • • two PER entities match different Wikitology persons two entities match Wikitology tags in a disambiguation set two ORG entities match different Wikitology organizations two PER entities match different Wikitology persons, weighted by 1 abs(score 1 score 2) • two ORG entities match different Wikitology orgs, weighted by 1 abs(score 1 score 2) introduction wikitology applications discussion conclusion

COE Features • Character level features – Exact Match of NAM mentions • • Longest mention exact match Some mention exact match Multiple mention exact match All mention exact match – Partial Match • Dice score, character bigrams • Dice score, longest mention character bigrams • Last word of longest string match – Matching nominals and pronominals • • Exact match Multiple exact match All match Dice score of mention strings • Document level features – Words • • Dice score, words in document Dice score, words around mentions Cosine score, words in document Cosine score, words around mentions – Entities • Dice score, entities in document • Dice score, entities around mentions • Metadata features – Speech/text – News/non news – Same document – Social context features • Heuristic • Probabilistic introduction wikitology applications discussion conclusion

More COE Features • KB features ontology • KB features instances – Known alias • Also derived aliases from test collection – BBN name match – Famous singleton • KB features semantic match – – – – – Entity type match Sex match Number match Occupation match Fuzzy occupation match Nationality match Spouse match Parent match Sibling match – Wikitology • • Top Wikitology category matches Top Wikitology article matches Different top Wikitology person Different top Wikitology organization • Top Wikitology categories in disambiguation set – Reuters topics • Cosine score, words in document • Cosine score, words around mentions – Thesaurus concepts • Cosine score, words in document • Cosine score, words around mentions introduction wikitology applications discussion conclusion

Clustering • Approach – Assign score to each entity pair (SVM or heuristic) – Eliminate pairs whose score does not exceed threshold (0. 95 for SVM runs) – Identify connected components in resulting graph • Large clusters – AP (good) – Clinton (bad; conflates William and Hillary) – Sources of large clusters varied • Connected components clustering • SERIF errors • Insufficient features to distinguish separate entities introduction wikitology applications discussion conclusion

Results on ACE 08 Pilot Data • A few caveats – Small data set (49 files, 5 interesting entities) – Trained off “ambiguated” ACE 2005 data; probably not our best configuration (given connected components clustering) COE System PER B 3 79. 6 Val 08 83. 3 ORG B 3 44. 8 Val 08 70. 5 ALL B 3 68. 0 Val 08 79. 1 introduction wikitology applications discussion conclusion

Feature Ablation A post hoc feature ablation evaluation showed contribution of KB features introduction wikitology applications discussion conclusion

Features with High F 1 scores • Recall that F 1 = 2*P*R/(P+R) • Variants of exact name match, in general, especially: a name mention in one entity exactly matches one in the other (83. 1%) • Cosine similarity of the vectors of top Wikitology article matches (75. 1%) • Top Wikitology article for the two entities matched (38. 1%) • An entity contained a mention that was a known alias of a mention found in the other (47. 5%) introduction wikitology applications discussion conclusion

High Precision Features • High precision/low recall features are useful when applicable • Features with precision > 95% include: – A name mentioned by each entity matches exactly one person in Wikipedia – The entities have the same parent – The entities have the same spouse – All name mentions have an exact match across the two entities – Longest named mention has exact match introduction wikitology applications discussion conclusion

Knowledge Base Population • The 2009 NIST Text Analysis Confer ence (TAC) will include a new Knowledge Base Population track • Goal: discover information about named entities (people, organizations, places) and incorporate it into a KB • TAC KBP has two related tasks: – Entity linking: doc. entity mention > KB entity – Slot filling: given a document entity mention, find missing slot values in large corpus introduction wikitology applications discussion conclusion

KBs and IE are Symbiotic KB info helps interpret text Knowledge Base Information Extraction from Text IE helps populate KBs introduction wikitology applications discussion conclusion

Planned Extensions • Make greater use of data from Linked Open Data (LOD) resources: DBpedia, Geonames, Freebase • Replace ad hoc processing of RDF data in Lucene with a triple store • Add additional graphs (e. g. , derived from infobox links and develop algorithms to exploit them • Develop a better hybrid query creation tools introduction wikitology applications discussion conclusion

Wikitology 3. 0 (2009) Application Specific Algorithms IR collection Articles Wikitology Code RDF reasoner Relational Database Triple Store Category Infobox. Links Graph Infobox Page Link Graph Linked Semantic Web data & ontologies

Challenges • Wikitology tagging is expensive – ~3 seconds/document – ACE English: ~150 K entities (~24 hr on Bluegrit) – A spreading activation algorithm on the underlying graphs improves accuracy at even more cost • Exploit the RDF metadata and the underlying graphs – requires reasoning and graph processing • Extract entities from Wiki text to find more relations – More graph processing introduction wikitology applications discussion conclusion

Next Steps • Construct a Web based API and demo system to facilitate experimentation • Process Wikitology updates in real time • Exploit machine learning to classify pages and improve performance • Better use of cluster using Hadoop, etc. • Exploit cell technology for spreading activation and other graph based algorithms – e. g. , recognize people by the graph of relations they are part of introduction wikitology applications discussion conclusion

Remembering Cyc’s Roots • There’s a history of using Encyclopedias to develop knowledge bases • Cyc’s original goal (c. 1984) was to encode the knowledge in a desktop encyclopedia • Wikipedia is comparable to Cyc’s original desktop encyclopedia target • But we’ve moved from manual to automatic encoding introduction wikitology applications discussion conclusion

Dbpedia ontology • Dbpedia 3. 2 (Nov 2008) added a manually constructed ontology with Place – 170 classes in a subsumption hierarchy – 880 K instances – 940 properties with domain and range 248, 000 Person 214, 000 Work 193, 000 Species 90, 000 Org. 76, 000 Building 23, 000 • A partial, manual mapping was constructed from infobox attributes to these term • Current domain and range constraints are “loose” • Namespace: http: //dbpedia. org/ontology/

Person 56 properties

Sample of 56 Person properties : Person : death. Cause owl: Thing : Person : deathplace : Populated. Place : Person : birthname xls: string : Person : employer : Organisation : Person : occupation owl: Thing : Person : education : Educational. Institution : Person : networth xls: string : Person : relations : Person : salary xls: string : Person : home. Town : Populated. Place : Person : spouse : Person : party owl: Thing … : Athlete : current. Number xls: integer : Athlete : former. Team : Sports. Team : Athlete : current. Position xls: string

Organisation 50 properties

Sample of 50 Org properties : Organisation : key. Person. Position xls: string : Organisation : number. Of. Employees xls: integer : Organisation : foundationplace : Populated. Place : Organisation : foundationdate xls: date : Organisation : foundationperson : Person : Broadcast : sister_stations : Broadcast : broadcast. Area : Populated. Place : Military. Unit : anniversaries xls: date : Radio. Station : frequency xls: string : Legislature : meeting. City : Company : locationcity : Populated. Place : Educational. Institution : dean : Person : Educational. Institution : undergraduates xls: integer : Educational. Institution : students xls: integer : Educational. Institution : mascot xls: string

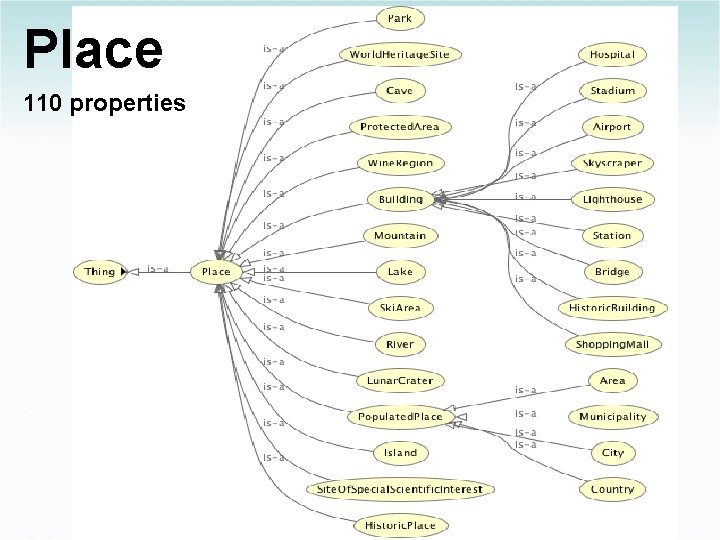

Place 110 properties

Sample of 100 Place properties : Place : nearest. City : Populated. Place : maximum. Depth xls: string : Place : elevation xls: string : Place : area. Total xls: string : Place : native. Name xls: string : Building : address xls: string : Building : architecturalstyle owl: Thing : River : source. Place owl: Thing : Populated. Place : demonym xls: string : Populated. Place : area. Magnitude xls: string : Wine. Region : growing. Grape : Island : archipelago : Island : Historic. Place : added xls: date

Exploiting Linked Data

Conclusion • Our initial applications shows that the Wikitology idea has merit • Wikipedia is increasingly being used as a knowledge source of choice • Easily extendable to other wikis and collaborative KBs, e. g. , Intellipedia • Serious use may require exploiting cluster machines and cell processing • We need to move beyond Wikipedia to exploit the LOD cloud introduction wikitology applications discussion conclusion
