WIKA Calibration Line Calibration instruments - Temperature Can be used as reference temperature standards Accuracy pyramid Industrial solution Portable solution High-End PT 100 and thermocouple thermometers < ± 20 ppb Temperature Calibrator Bathes. Dry wells, Multi Temperature Hand-Helds ≥ 0. 05 °C

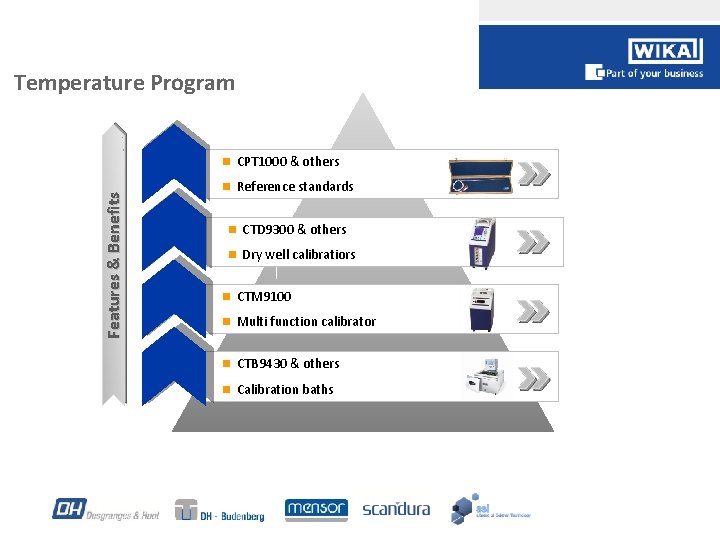

Temperature Program Features & Benefits n CPT 1000 & others n Reference standards n CTD 9300 & others n Dry well calibratiors n CTM 9100 n Multi function calibrator n CTB 9430 & others n Calibration baths

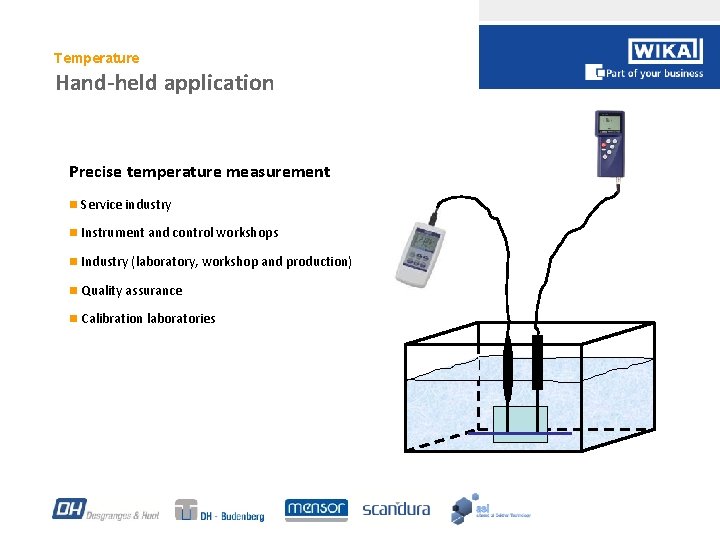

Temperature Hand-held application Precise temperature measurement n Service industry n Instrument and control workshops n Industry (laboratory, workshop and production) n Quality assurance n Calibration laboratories

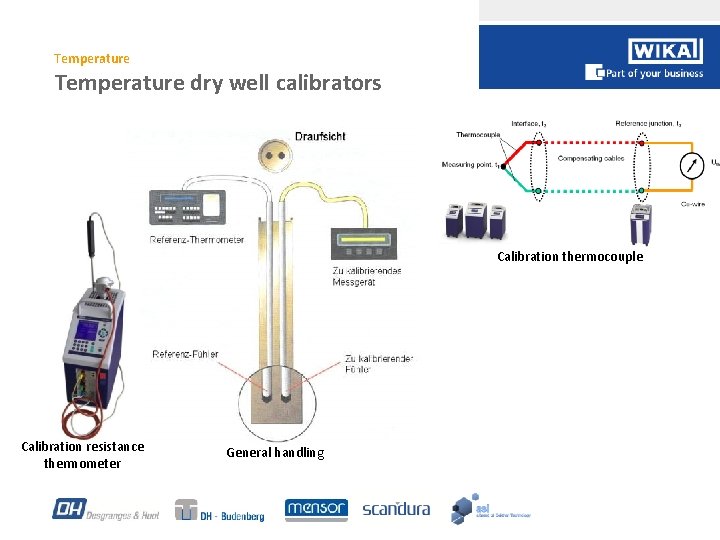

Temperature dry well calibrators Calibration thermocouple Calibration resistance thermometer General handling

Temperature Applications dry well calibrators Short description: n On-site calibration of resistance thermometers or thermocouples n with or without external reference thermometer depending on the depth of immersion Short description: n Using in the process portable Calibration equipment n Calibration of short stem thermometers Using an external reference

Temperature 干井式温度校验仪 Temperature dry well calibrator CTD 9300 -165 CTD 9300 -650 ØTemperature range -35⁰C to +165⁰C by Peltier elements ØTemperature range +40⁰C to 650⁰C by resistance heating ØAccuracy down to ± 0. 1 K, resolution 0. 01 K ØImmersion depth 150 mm ØHeating up time 12 min from 20 ⁰C to 165 ⁰C ØTemperature ramp function ØAutomated calibration ØIntegratable measuring instrument for RTD, TC, m. A & thermostats ØDry block temperature is user adjustable by a 6 points calibration Data sheet CT 41. 38

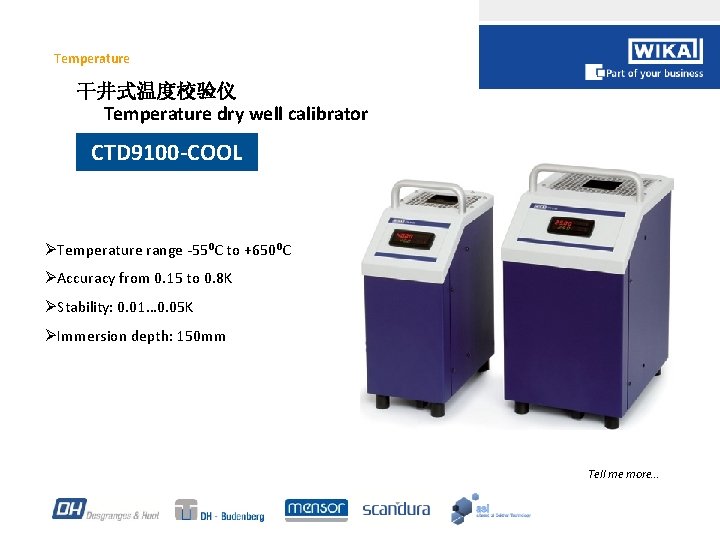

Temperature 干井式温度校验仪 Temperature dry well calibrator CTD 9100 -COOL ØTemperature range -55⁰C to +650⁰C ØAccuracy from 0. 15 to 0. 8 K ØStability: 0. 01… 0. 05 K ØImmersion depth: 150 mm Tell me more…

Temperature Compact temperature dry well calibrator CTD 9100 -375 CTD 9100 -ZERO CTD 9100 -1000 ØMeasuring range: Tamb to 375⁰C ØAccuracy 0. 2 K ØStability 0. 05 K ØImmersion depth: 100 mm

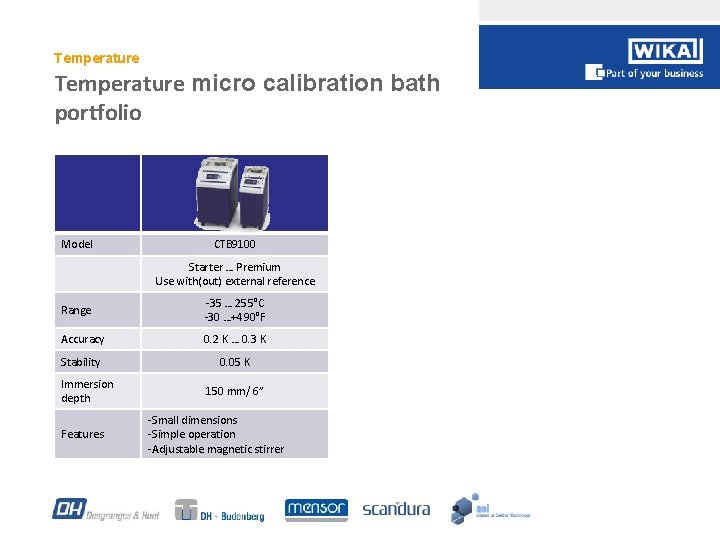

Temperature micro calibration bath portfolio Model CTB 9100 Starter … Premium Use with(out) external reference Range -35 … 255°C -30 …+490°F Accuracy 0. 2 K … 0. 3 K Stability 0. 05 K Immersion depth Features 150 mm/ 6” -Small dimensions -Simple operation -Adjustable magnetic stirrer

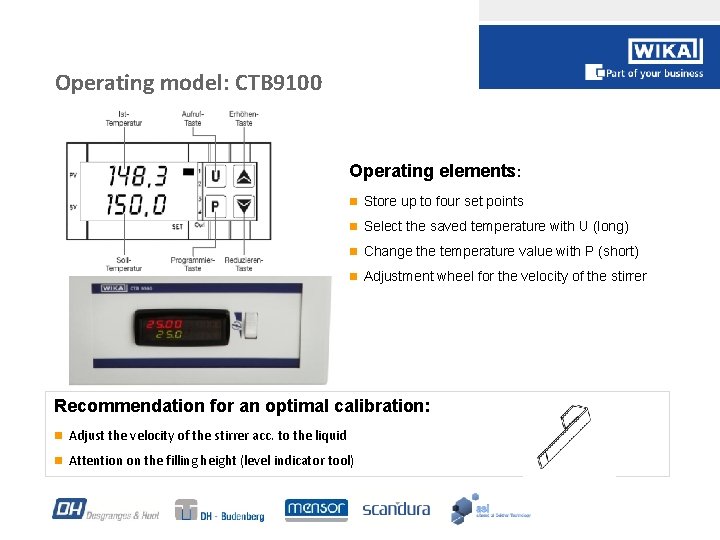

Operating model: CTB 9100 Operating elements: n Store up to four set points n Select the saved temperature with U (long) n Change the temperature value with P (short) n Adjustment wheel for the velocity of the stirrer Recommendation for an optimal calibration: n Adjust the velocity of the stirrer acc. to the liquid n Attention on the filling height (level indicator tool)

Micro calibration bath CTB 9100 -165 CTB 9100 -225 ØTemperature range -35⁰C to +225⁰C ØAccuracy from 0. 2 to 0. 3 K ØStability: ± 0. 05 K ØShort heating and cooling times Tell me more…

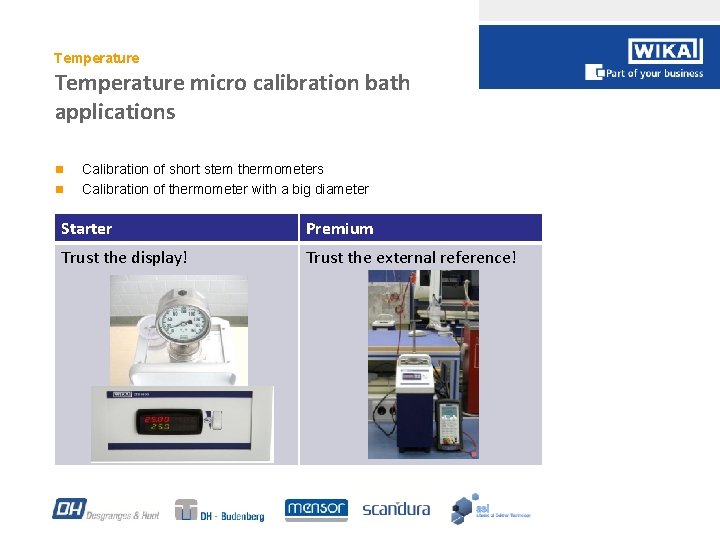

Temperature micro calibration bath applications n n Calibration of short stem thermometers Calibration of thermometer with a big diameter Starter Premium Trust the display! Trust the external reference!

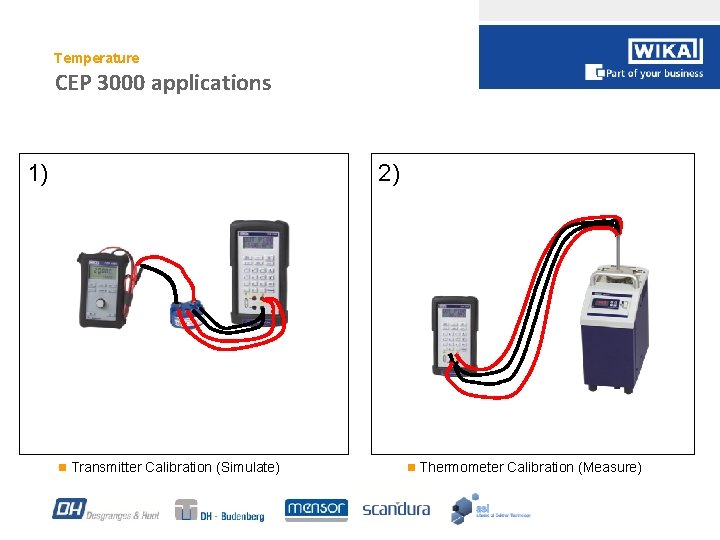

Temperature CEP 3000 applications 1) 2) n Transmitter Calibration (Simulate) n Thermometer Calibration (Measure)

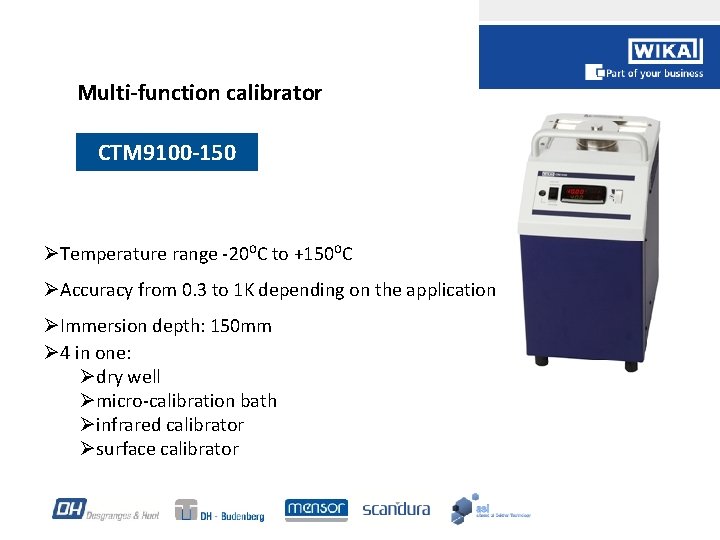

Multi-function calibrator CTM 9100 -150 ØTemperature range -20⁰C to +150⁰C ØAccuracy from 0. 3 to 1 K depending on the application ØImmersion depth: 150 mm Ø 4 in one: Ødry well Ømicro-calibration bath Øinfrared calibrator Øsurface calibrator

Temperature multifunctional calibrator portfolio Model CTM 9100 -150 Range -35 …+165°C Micro- calibration bath -30 …+330°F Micro- calibration bath Accuracy +/+/- 0. 1 K 0. 3 K 1 K 1 K Micro-calibration bath Drywell calibrator Infrared Black Body source Surface temperature calibrator Stability +/+/- 0. 05 K 0. 2 K Micro-calibration bath Drywell calibrator Infrared Black Body source Surface temperature calibrator Immersion depth Features -20 … +150°C all other applications -4 … +300°F all other applications 150 mm / 6” -Small dimensions -Simple operation

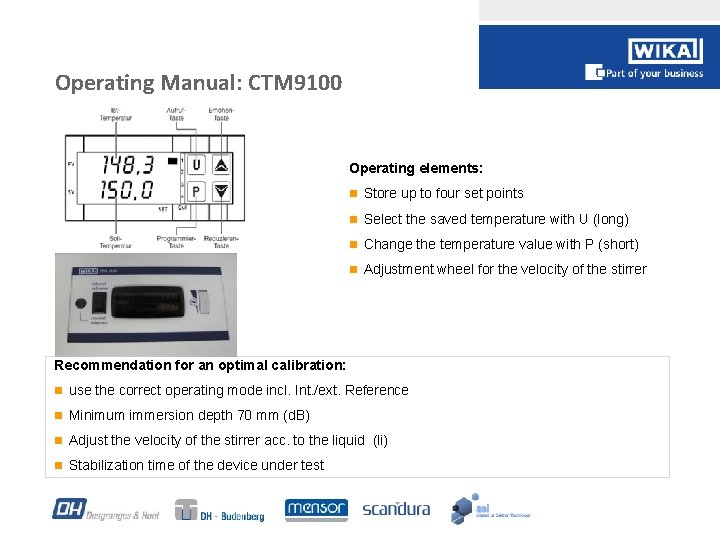

Operating Manual: CTM 9100 -150 Operating elements: n Store up to four set points n Select the saved temperature with U (long) n Change the temperature value with P (short) n Adjustment wheel for the velocity of the stirrer Recommendation for an optimal calibration: n use the correct operating mode incl. Int. /ext. Reference n Minimum immersion depth 70 mm (d. B) n Adjust the velocity of the stirrer acc. to the liquid (li) n Stabilization time of the device under test

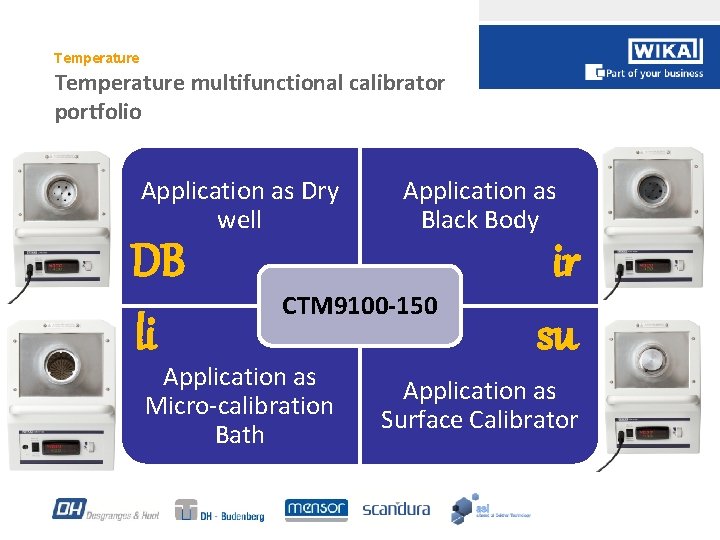

Temperature multifunctional calibrator portfolio Application as Dry well DB li Application as Black Body CTM 9100 -150 Application as Micro-calibration Bath ir su Application as Surface Calibrator

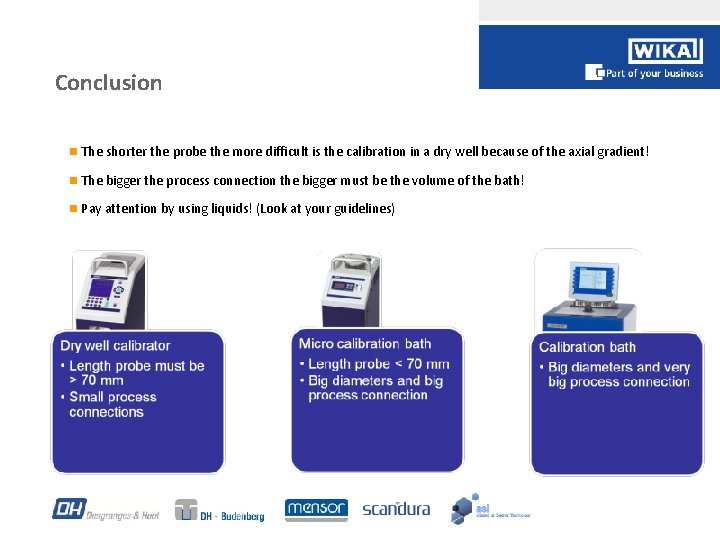

Conclusion n The shorter the probe the more difficult is the calibration in a dry well because of the axial gradient! n The bigger the process connection the bigger must be the volume of the bath! n Pay attention by using liquids! (Look at your guidelines)

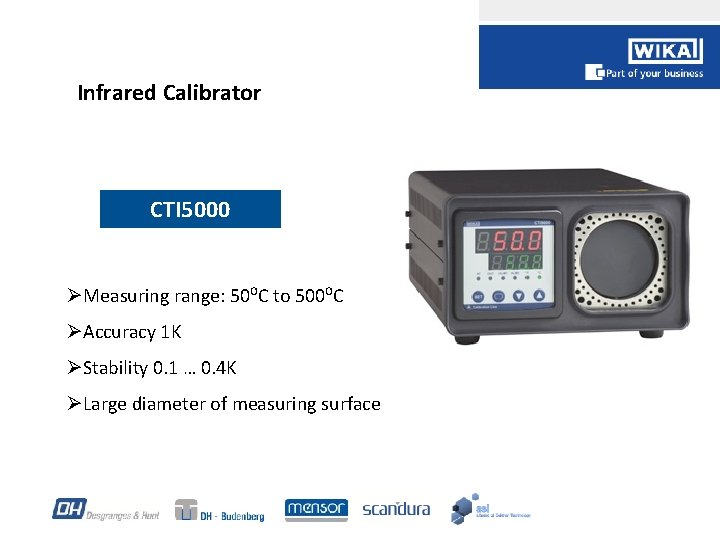

Infrared Calibrator CTI 5000 ØMeasuring range: 50⁰C to 500⁰C ØAccuracy 1 K ØStability 0. 1 … 0. 4 K ØLarge diameter of measuring surface
