WIGOS Metadata Representation XML Schema Luisa Ickes WIGOS

WIGOS Metadata Representation: XML Schema Luisa Ickes, WIGOS Project Office Jörg Klausen, Meteo. Swiss Dominic Lowe Tom Kralidis, Environment Canada

Learning Objectives • Understand how WIGOS Metadata Standard (WMDS) is formalized as a WIGOS Metadata Representation (WMDR) • Understand how WMDR is described in XSD and how to handle XML • Manipulate and upload an XML file

WIGOS Metadata standard (WMDS) • WMDS = container of metadata • WMDS describes concepts and principles = descriptive • 10 categories • Need formal specification of metadata items Metadata: - What kind of chips? - Flavor? - How are they made? - Where do they come from?

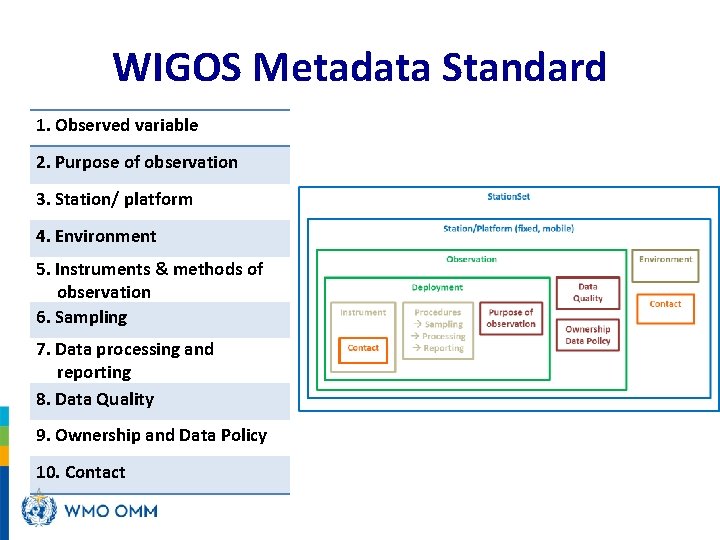

WIGOS Metadata Standard 1. Observed variable 2. Purpose of observation 3. Station/ platform 4. Environment 5. Instruments & methods of observation 6. Sampling 7. Data processing and reporting 8. Data Quality 9. Ownership and Data Policy 10. Contact

Formalizing WIGOS Metdata: from Standard to Use validate Conceptual Principles Formal Specification WIGOS Metadata Standard WIGOS Metadata Model Application Rules WIGOS Metadata Schema • Templates • «Best practice» • Custom tools Packaged Content WIGOS Metadata XML Files OSCAR/Surface WIGOS Metadata Archive API submit generate WIGOS Metadata Use API extract

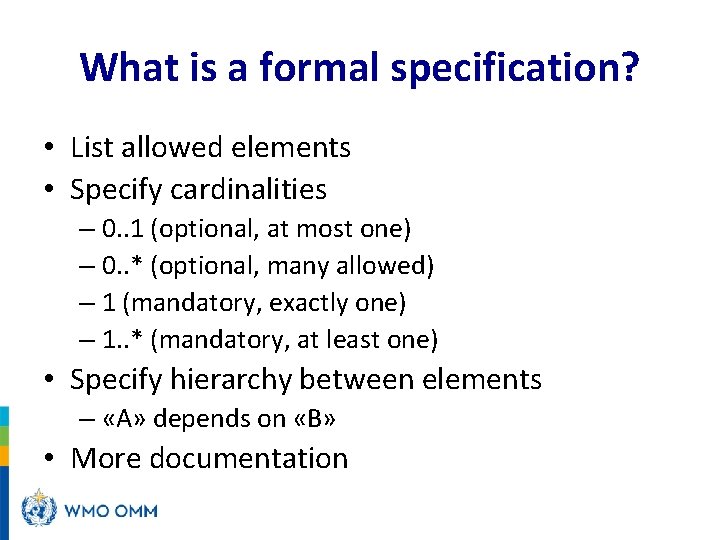

What is a formal specification? • List allowed elements • Specify cardinalities – 0. . 1 (optional, at most one) – 0. . * (optional, many allowed) – 1 (mandatory, exactly one) – 1. . * (mandatory, at least one) • Specify hierarchy between elements – «A» depends on «B» • More documentation

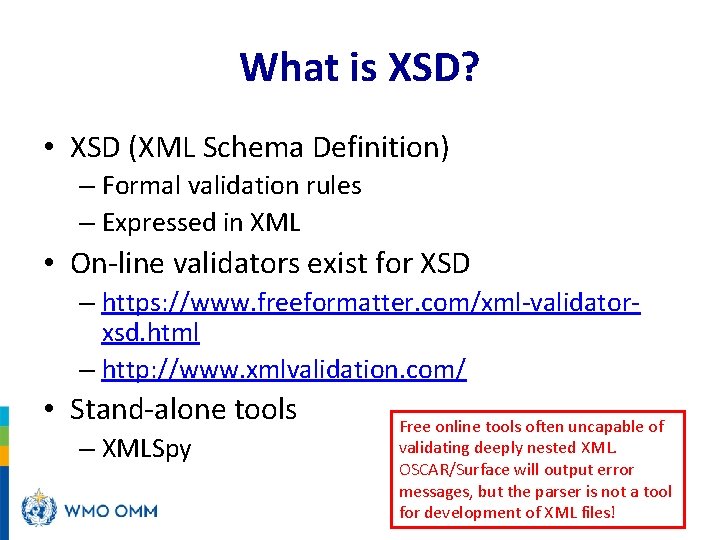

What is XSD? • XSD (XML Schema Definition) – Formal validation rules – Expressed in XML • On-line validators exist for XSD – https: //www. freeformatter. com/xml-validatorxsd. html – http: //www. xmlvalidation. com/ • Stand-alone tools – XMLSpy Free online tools often uncapable of validating deeply nested XML. OSCAR/Surface will output error messages, but the parser is not a tool for development of XML files!

The WMDR XML file • Can contain whole station information or parts of it (container for metadata information) • Sections for metadata information: Observing. Facility: describes a measurement station / site / platform /observatory / … OM_Observation: describes a time series of observations of an observed. Property obtained using an OM_Process

The WMDR XML file Equipment, Deployment: describes – when, where, why (application. Area), what Equipment has been used – configurations, maintenance and calibration routines – instrument operating status as a function of time – Data. Generation processes Data. Generation: describes – Sampling – Processing – Reporting according to a – Schedule

Reference documents and more information • Blog on XML-file: https: //etrp. wmo. int/mod/oublog/view. php? id=10232 • WIGOS Metadata Standard: https: //library. wmo. int/opac/doc_num. php? explnum_i d=3653 • WIGOS Metadata Schema: schemas. wmo. int/wmdr/ • WMDS Code Lists: https: //github. com/wmoim/wmds/tree/master/tables_en (will soon be on http: //codes. wmo. int/)

Learning Objectives • Understand how WIGOS Metadata Standard (WMDS) is formalized as a WIGOS Metadata Representation (WMDR) • Understand how WMDR is described in XSD and how to handle XML • Manipulate and upload an XML file

Thank you Merci

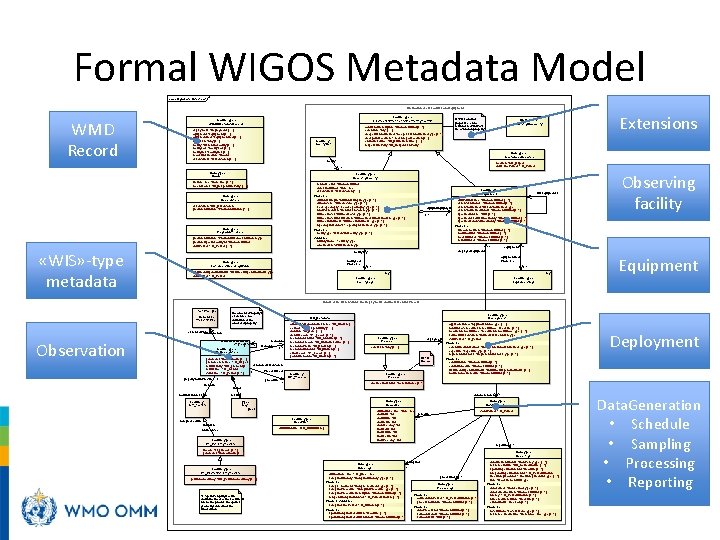

Formal WIGOS Metadata Model class High. Level. Overview Information about Facilities and Equipment WMD Record «Feature. Type» Abstract. Environmental. Monitoring. Facility «Feature. Type» WIGOSMetadata. Record + + + + + deployment : Deployment [0. . *] equipment : Equipment [0. . *] equipment. Log : Equipment. Log [0. . *] extension : Any [0. . *] facility : Observing. Facility [0. . *] facility. Log : Facility. Log [0. . *] facility. Set : Facility. Set [0. . *] header. Information : Header observations : Observation [0. . *] + + + «Feature. Ty. . . Facility. Set INSPIRE or other properties can be included in WIGOS via the extension property. additional. Description : Character. String [0. . 1] extension : Any [0. . *] geopositioning. Method : Geoposistioning. Method. Type [0. . 1] geospatial. Location : Timestamped. Location [0. . *] online. Resource : CI_Online. Resource [0. . *] responsible. Party : CI_Responsible. Party «Data. Type» Timestamped. Location 0. . * +facility + + 1. . * «Data. Type» Header location : GM_Object valid. Time. Period : TM_Period «Feature. Type» Observing. Facility + file. Date. Time : Date. Time [0. . 1] + record. Owner : CI_Responsible. Party [0. . 1] + + + «Data. Type» Observation belongs. To. Set : Character. String date. Established : Date. Time observations : Observation [1. . *] «Feature. Type» Equipment «Phase 3» + altitude. Or. Depth : Altitude. Or. Depth. Type [0. . 1] + climate. Zone : Climate. Zone. Type [0. . 1] + local. Topography : Local. Topography. Type [0. . 1] + relative. Elevation : Relative. Elevation. Type [0. . 1] + surface. Cover : Surface. Cover. Type [0. . 1] + surface. Cover. Classification : Surface. Cover. Classification. Type [0. . 1] + surface. Roughness : Surface. Roughness. Type [0. . 1] + topographic. Context : Topographic. Context. Type [0. . 1] + observation : OM_Observation + program. Affiliation : Program. Affiliation [1. . *] «Data. Type» Program. Affiliation + + 0. . * + +equipment. Host +hosted. Equipment 0. . 1 «voidable» + territory. Name : Territory. Type + wmo. Region : WMORegion. Type +facility. Log «Phase 2» «Data. Type» Instrument. Operating. Status + instrument. Operating. Status : Instrument. Operating. Status. Type + valid. Period : TM_Period +sub. Equipment 0. . * drift. Per. Unit. Time : Character. String [0. . 1] observable. Range : Character. String [0. . 1] observing. Method : Observing. Method. Type observing. Method. Details : Character. String [0. . 1] specification. Link : URI [0. . 1] specified. Absolute. Uncertainty : Character. String [0. . 1] specified. Relative. Uncertainty : Character. String [0. . 1] Observing facility «Phase 3» + firmware. Version : Character. String [0. . 1] + manufacturer : Character. String [0. . 1] + model. Number : Character. String [0. . 1] + serial. Number : Character. String [0. . 1] «Phase 2» + facility. Type : Observing. Facility. Type [0. . 1] + program. Affiliation : Program. Or. Network. Affiliation. Type + program. Specific. Facility. Id : Character. String + valid. Period : TM_Period [0. . 1] «WIS» -type metadata Extensions «Informative» Observing. Capability 1 +equipment 1 +deployed. Equipment 1 +equipment. Log «Phase 2» 0. . 1 Log «Feature. Type» Facility. Log Equipment «Feature. Type» Equipment. Log Details of the Observations, the Deployments and the Observing Process Identified. Type the observed. Property is a reference to a definition of the observed property. «Metaclass» Property. Type 1 +observed. Property Phenomenon +related. Observation 0. . * Any. Feature 0. . * Observation «Feature. Type» OM_Observation + + + parameter : Named. Value [0. . *] phenomenon. Time : TM_Object result. Quality : DQ_Element [0. . *] +generated. Observation result. Time : TM_Instant Process. Used 0. . * valid. Time : TM_Period [0. . 1] +property. Value. Provider 0. . * Domain +feature. Of. Interest 1 +procedure alternative. Metadata. Reference : CI_Citation [0. . *] contact : CI_Responsibility [1. . *] date. Info : CI_Date [1. . *] default. Locale : PT_Locale [0. . 1] metadata. Identifier : MD_Identifier [0. . 1] metadata. Linkage : CI_Online. Resource [0. . *] metadata. Profile : CI_Citation [0. . *] metadata. Standard : CI_Citation [0. . *] other. Locale : PT_Locale [0. . *] parent. Metadata : CI_Citation [0. . 1] extension : Any [0. . *] + + + «Feature. Type» Process + Deployment control. Schedule : Character. String [0. . 1] instrument. Operating. Status : Instrument. Operating. Status [0. . *] maintenance. Schedule : Character. String [0. . 1] documentation. Ref : Generic. Name [0. . 1] +data. Generation +result «Data. Type» Schedule «type» Any {root} 1. . * Intention «Feature. Type» Result. Set + distribution. Info : MD_Distribution [0. . *] «Feature. Type» SF_Sampling. Feature + + + + + positional. Accuracy : DQ_Positional. Accuracy [0. . 2] SF_Spatial. Sampling. Feature should be used as the Feature Of Interest to provide the spatial geometry/domain of the Observation. 1. . * «Data. Type» Data. Generation diurnal. Base. Time : Date. Time +schedule end. Hour : int end. Minute : int 1 end. Month : int end. Weekday : int start. Hour : int start. Minute : int start. Month : int start. Weekday : int + valid. Period : TM_Period +reporting lineage : LI_Lineage [0. . 1] parameter : Named. Value [0. . *] «Feature. Type» SF_Spatial. Sampling. Feature + «Feature. Type» Process + «Feature. Ty. . . OM_Process 1 «informative» + + + application. Area : Application. Area. Type [1. . *] + height. Above. Local. Reference. Surface : Measure [0. . 1] + local. Reference. Surface : Local. Reference. Surface. Type [0. . 1] + source. Of. Observation : Source. Of. Observation. Type +deployment + valid. Period : TM_Period «Phase 2» 1. . * + communication. Method : Data. Communication. Method. Type [0. . 1] + exposure : Exposure. Type [0. . 1] + representativeness : Representativeness. Type [0. . 1] METCE «Phase 3» Process + configuration : Character. String [0. . 1] Range «Feature. Ty. . . GFI_Feature +sampled. Feature «Feature. Type» Deployment MD_Metadata + + +metadata + + Metadata 0. . 1 + + + 1 «Data. Type» Reporting «Data. Type» Sampling + + diurnal. Base. Time : TM_Clock. Time sampling. Strategy : Sampling. Strategy. Type [0. . 1] «Phase 3» + sample. Treatment : Sample. Treatment. Type [0. . 1] + sampling. Procedure : Sampling. Procedure. Type [0. . 1] + sampling. Procedure. Description : Character. String [0. . 1] + temporal. Sampling. Interval : TM_Period. Duration [0. . 1] «Phase 3, voidable» + sampling. Time. Period : TM_Duration [0. . 1] «Phase 2» + spatial. Sampling. Resolution : Measure [0. . 1] + spatial. Sampling. Resolution. Details : Character. String [0. . 1] +sampling 1 +processing 0. . 1 «Data. Type» Processing «Phase 2» + aggregation. Period : TM_Period. Duration [0. . 1] + processing. Centre : Character. String [0. . 1] «Phase 3» + data. Processing : Character. String [0. . 1] + software. Details : Character. String [0. . 1] + software. URL : URI [0. . 1] + + + data. Use. Constraints : Data. Policy. Type [0. . 1] reference. Datum : CD_Vertical. Datum [0. . 1] spatial. Reporting. Interval : Measure [0. . 1] temporal. Reporting. Interval : TM_Period. Duration time. Stamp. Meaning : Time. Stamp. Meaning. Type [0. . 1] uom : Measurement. Unit. Type «Phase 3» + data. Format : Data. Format. Type [0. . 1] + data. Format. Version : Character. String [0. . 1] + latency : TM_Period. Duration [0. . 1] + numerical. Resolution : Measure [0. . 1] + official. Status : Boolean [0. . 1] «Phase 2» + level. Of. Data : Level. Of. Data. Type [0. . 1] + reference. Time. Source : Reference. Time. Type [0. . 1] Data. Generation • Schedule • Sampling • Processing • Reporting
