Why Wireless ? TCO, End-User Convenience, Time To Market, Right of Way 1 © Nokia 2018 Nokia proprietary - Workshop for India
Fixed Wireless Access Key features Nokia Wireless PON • Extend fiber networks • Unlicensed 60 GHz 802. 11 ad • 1. 5 Gbit/s aggregate throughput up to 100 m • 180 x 60 Field of View (3 antennas in diversity mode) • 35 d. Bm EIRP, 19 d. Bi Antenna Gain • Gigabit Ethernet to CPE / RGW • Power over Ethernet fed Key benefits • • • Gigabit speeds – Fiber equivalent Small, barely noticeable on building Simple installation No need to aim the antenna Robust design for harsh conditions (IP 66)
WPON Relay propagation Usage of multi channel env 3 © Nokia 2018
Wireless PON provides a wireless drop on PON/fiber networks Self backhaul Home unit • Small, unobtrusive and easy to install • Wireless connection to AP Nokia Optical Line Terminal • Add Wireless PON to existing network • Manage as part of your PON network Fiber OLT Access point Home Unit CPE WPON Access Point • Mount to poles or building façade • Connect wirelessly to home units 4 © 2018 Nokia Smart Home Gateway • Same robust home experience as PON • Ethernet interface to home unit

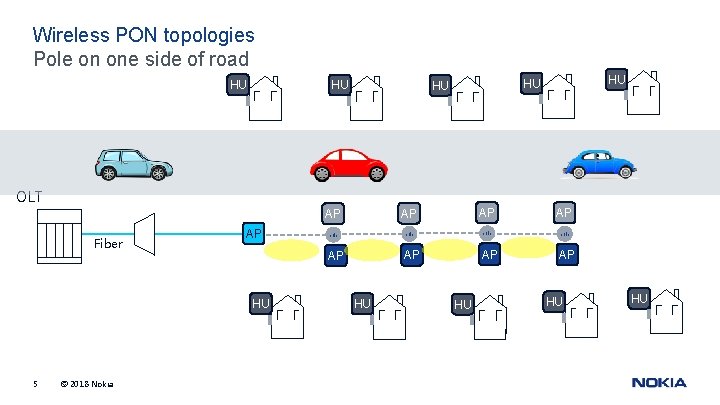

Wireless PON topologies Pole on one side of road HU HU HU OLT Fiber AP HU 5 © 2018 Nokia AP AP pole AP AP HU HU
WPON moving into Enterprise market Reliable Gigabit Connectivity High Bandwidth • 4 k video cameras • Campus services Wireless PON • Extension of POL network • Rapid deployment Passive Optical LAN • Main communications infrastructure Campus Services • Video monitoring • Security and safety • IP PBX • Access control • Internet and cloud 6 © 2018 Nokia Logistics center Access point Outbuildings . Monitoring Center Home Unit Security gate

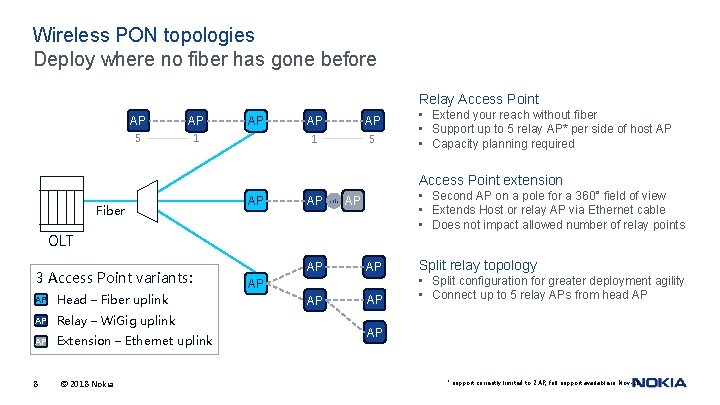

Wireless PON topologies Deploy where no fiber has gone before Relay Access Point AP AP 5 1 AP AP AP 1 5 • Extend your reach without fiber • Support up to 5 relay AP* per side of host AP • Capacity planning required Access Point extension Fiber AP AP pole • Second AP on a pole for a 360° field of view • Extends Host or relay AP via Ethernet cable • Does not impact allowed number of relay points AP OLT 3 Access Point variants: AP • Head – Fiber uplink AP • Relay – Wi. Gig uplink AP • Extension – Ethernet uplink 8 © 2018 Nokia AP AP AP Split relay topology • Split configuration for greater deployment agility • Connect up to 5 relay APs from head AP AP * support currently limited to 2 AP, full support available in Nov-18
Home unit connectivity HU 1 AP HU 8 Fiber AP (1) OLT (2) AP 9 © 2018 Nokia HU Home units per access point • Up to 8 Home Units per access point • Engineer for oversubscription Resiliency • (1) Home Unit initial connection strongest AP • (2) Connects to next best AP if signal is obstructed • Future mesh support
