Why Windows 98 Understanding the nature of the

Why Windows 98? Understanding the nature of the problem • Windows 95 did not fail gracefully • 95 was too reliant on customer knowledge • Routine troubleshooting steps were too troublesome • Backward compatibility and additional features increased complexity

The aim of Windows 98 • Integrate the Operating System and the internet • Multiple levels of support are available from Microsoft’s server via the Internet • An Active Desktop that can be used to display a Web page or a movie • Networking tools to share information easier • Enhanced multimedia that provides TV and streaming audio and video

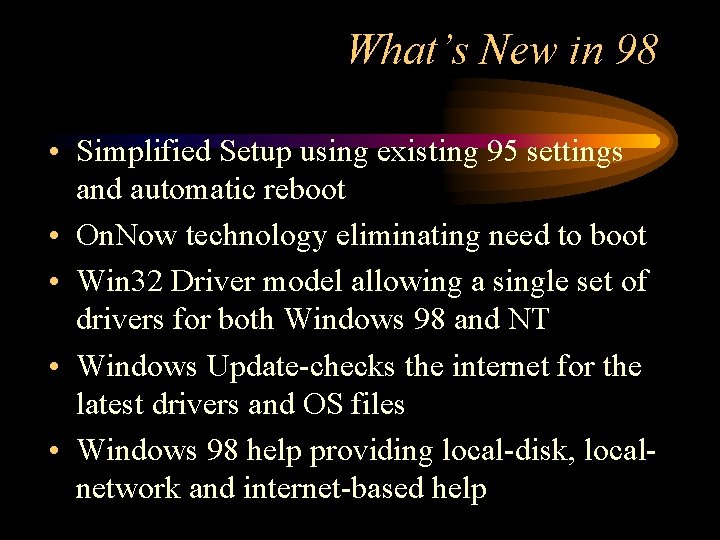

What’s New in 98 • Simplified Setup using existing 95 settings and automatic reboot • On. Now technology eliminating need to boot • Win 32 Driver model allowing a single set of drivers for both Windows 98 and NT • Windows Update-checks the internet for the latest drivers and OS files • Windows 98 help providing local-disk, localnetwork and internet-based help

More new Features • System Information utility that provides information similar to the old MSInfo utility but in a Windows Explorer-like window. • Year 2000 support will help solve the many problems older software has with the millennium change. Providing a systemwide setting for aplications to use for interpreting a two-digit year.

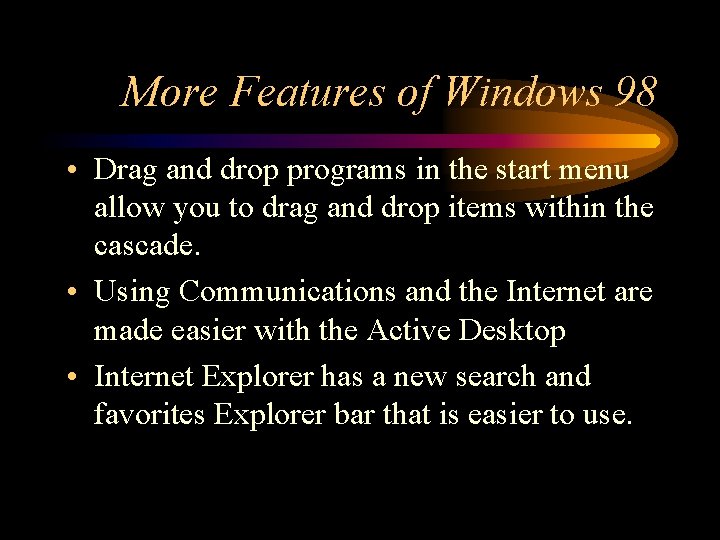

More Features of Windows 98 • Drag and drop programs in the start menu allow you to drag and drop items within the cascade. • Using Communications and the Internet are made easier with the Active Desktop • Internet Explorer has a new search and favorites Explorer bar that is easier to use.

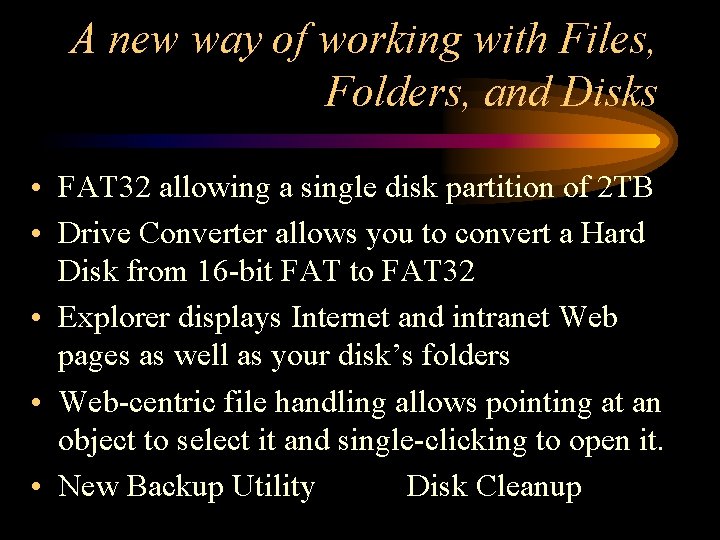

A new way of working with Files, Folders, and Disks • FAT 32 allowing a single disk partition of 2 TB • Drive Converter allows you to convert a Hard Disk from 16 -bit FAT to FAT 32 • Explorer displays Internet and intranet Web pages as well as your disk’s folders • Web-centric file handling allows pointing at an object to select it and single-clicking to open it. • New Backup Utility Disk Cleanup

How does Windows 98 improve supportability? • • Self-healing Gathering system information Automating troubleshooting Reducing compatibility issues

Self -healing If failing is inevitable, fail gracefully • Registry Checker • Scan. Disk after Bad Shutdown • Automatic Skip Driver

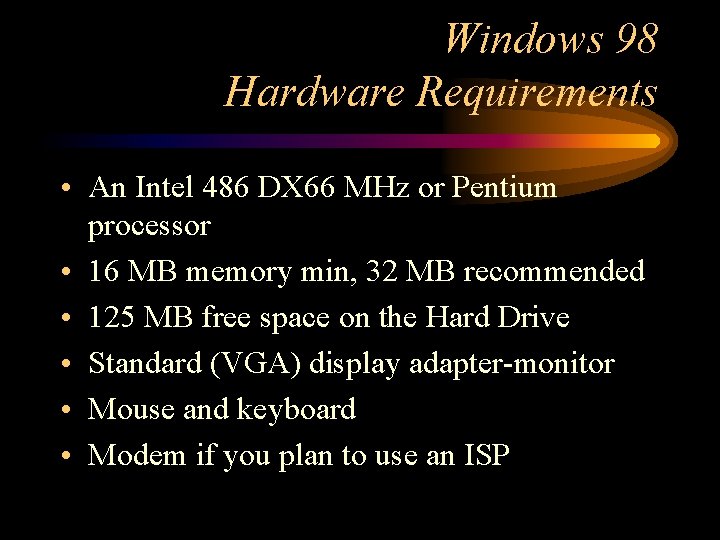

Windows 98 Hardware Requirements • An Intel 486 DX 66 MHz or Pentium processor • 16 MB memory min, 32 MB recommended • 125 MB free space on the Hard Drive • Standard (VGA) display adapter-monitor • Mouse and keyboard • Modem if you plan to use an ISP

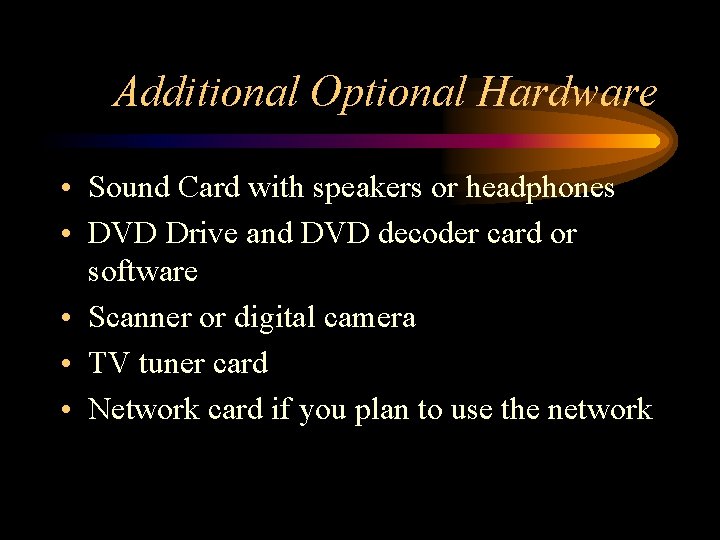

Additional Optional Hardware • Sound Card with speakers or headphones • DVD Drive and DVD decoder card or software • Scanner or digital camera • TV tuner card • Network card if you plan to use the network

Gathering system information Collects available data to diagnose problems • • Microsoft MS-DOS Report Tool Microsoft Windows Report Tool Microsoft System Information Use Dr. Watson to diagnose system faults takes a snapshot of your system whenever a system fault occurs. It intercepts software faults, identifies the software that faulted, and offers course of action.

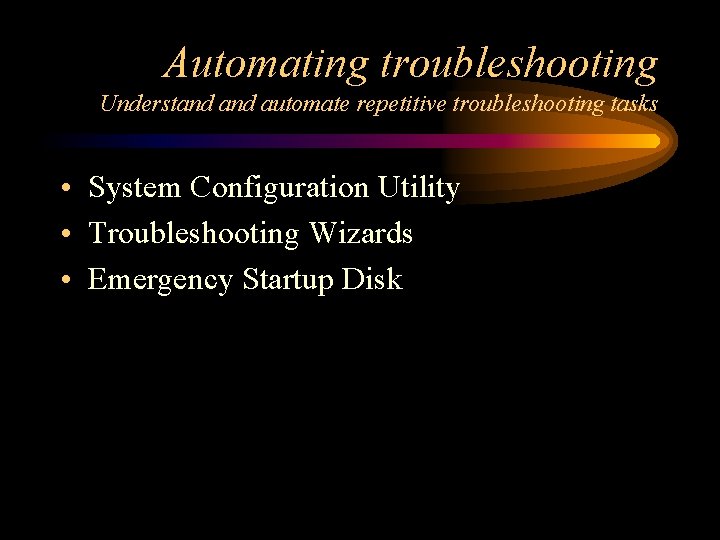

Automating troubleshooting Understand automate repetitive troubleshooting tasks • System Configuration Utility • Troubleshooting Wizards • Emergency Startup Disk

Automatic Skip Driver • Identifies the specific failed device on start up. • After two failed attempts to load, ASD disables the device driver or stops the operation that caused system startup to fail. Windows will no longer attempt to identify the component.

Registry Checker • SCANREGW automatically scans registry for corruption and deleted entries, backing up the configuration files once daily. • If Registry Checker detects corruption in the Registry it will guide the user through the restoration process.

Reporting Tools WINREP • An Internet-based reporting tool that can be invoked from a Web page, and when submitting the report it hosts a Web page that programs it. • WINREP creates an info file uploads it across the internet, allows the support engineer to inspect the system as if sitting in front of it.

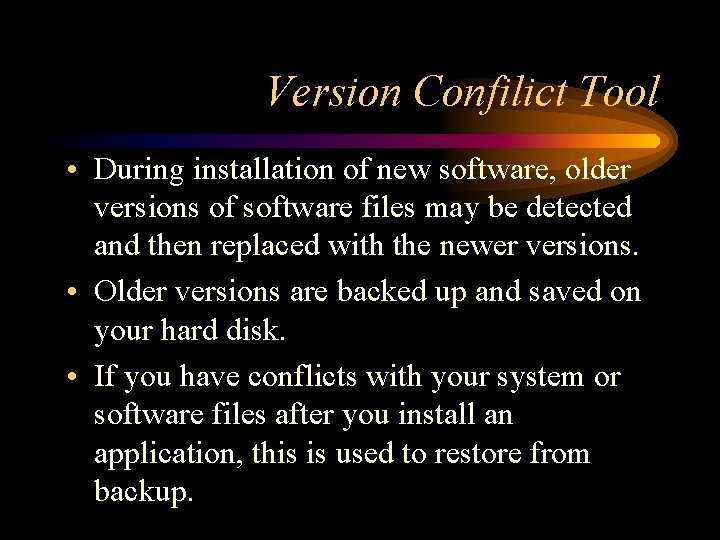

Version Confilict Tool • During installation of new software, older versions of software files may be detected and then replaced with the newer versions. • Older versions are backed up and saved on your hard disk. • If you have conflicts with your system or software files after you install an application, this is used to restore from backup.

Before you install Windows 98 • Verify that your system meets minimum requirements • Back up important files • Print or save to floppy your autoexec. bat and config. sys files

Installing Windows 98 • Install Upgrade or Full Install on a blank hard disk for the cleanest possible environment • Upgrade requires a copy of the old media (either CD or Floppy) be available for proof of ownership • Upgrade may be done from Windows 3. 1 or Windows 95
