Why PKI Scott Rea Boulder CO November 15

Why PKI (Scott Rea) Boulder CO November 15, 2007

Identity Theft Is On the Rise • Identify theft is the fastest growing crime in America: – 8. 9 million victims in past year – 900, 000 new victims each year – Cost to businesses more than $50 billion – Cost per incident to consumer $6, 383 Source: 2006 Javelin Survey 2

Campuses Are A Prime Target • Dramatic increase in identity theft: – In 2004, only seven cases of identity theft were reported in higher education. – In 2005, this number leapt to 64 – an 89% increase over the previous year. – In 2006, this number expected to increase yet again • NY Times Dec 18, 2006: “…educational institutions have particularly acute problem when it comes to nation's leaky data issue; study by Public Policy Institute for AARP last July, using data compiled by Identity Theft Resource Center, determined that of 90 million records reportedly compromised in various breaches between Jan 1, 2005, and May 26, 2006, 43 percent were at educational institutions. ” • Most data is accessed from stolen computers and laptops or by hackers capturing data on unprotected networks. 3

Beware the Hackers and Thieves • University of Minnesota: – In August, two computers containing information on more than 13, 000 students, were stolen from an employee’s desk. http: //www. twincities. com/mld/twincities/news/state/minnesota/15807799. htm • Western Illinois University: – Hackers retrieved names, addresses, credit card numbers and Social Security numbers on nearly 180, 000 users. http: //news. com/Illinois+university+hit+with+security+breach/2100 -7349_3 -6090860. html • University of California, Los Angeles: – In December, hackers infiltrated a database containing the personal information on 800, 000 people, in one of the worst computer breaches ever at a U. S. university http: //today. reuters. com/news/articlenews. aspx? type=technology. News&storyid=2006 -1212 T 214001 Z_01_N 12361703_RTRUKOC_0_US-USA-UCLA-HACKER. xml 4

Beware the Hackers and Thieves • Dartmouth College: – July 2004 Security Incident – Potential 17, 000 Dartmouth affiliates affected – HR staff keeping unencrypted personal data on servers that anyone with a password could access – 8 servers impacted – FBI investigated with assistance from student security researchers in Prof. Sean Smith’s Computer Science group – Network vulnerability assessments on a regular basis were recommended – e. Tokens now deployed as mandatory requirement for HE staff who require access to this data http: //www. dartmouth. edu/comp/support/library/safecomputing/threats/id-theft/incidents/2004 -07 -28. html 5

Students Frequently Victimized • 1 in 3 victims is under 30 years old. Common risks: – Compromise of passwords protecting sensitive data • Stolen laptops or weak or no passwords on sensitive, or no encryption on data/passwords traversing networks – Dormitory burglaries – Driver’s license/student ID theft – Credit card offers • 30% of students throw these out without destroying them. – Social Security numbers • 48% of students have had grades posted by Social Security number 6

Sensitive Data • Greater access levels to sensitive or personally identifying information than ever before • How do we protect against ignorant or lazy users or poorly designed applications? • How do we meet legislative requirements to contain and protect sensitive data? – FERPA – HIPAA – CALEA • How can we be sure who is accessing the data? 7

How Do We Protect Our Students/Staff/Faculty • While debate continues on what type of technology is best suited to prevent identity theft, many experts believe that a combination of PKI infrastructure and twofactor authentication offers the greatest promise of protection. Source: Financial Services Technology, Preventing Identity Theft 8

Authentication Factors • Three Factors of Authentication: – Something you know • e. g. password, secret, URI, graphic – Something you have • e. g. key, token, smartcard, badge – Something you are • e. g. fingerprint, iris scan, face scan, signature 9

Authentication Factors • Single Factor of Authentication is most common – Passwords (something you know) are the most common single factor • At least Two Factor Authentication is recommended for securing important assets – e. g. ATM card + PIN (have + know) • 2 x Single Factor Authentication ≠ Two Factor Authentication – e. g. Password + Graphic is NOT equivalent to Smartcard + PIN (although it may be better than a single instance of One Factor Authentication) • Without Two Factor Authentication, some secure communications may be vulnerable to disclosure – Especially in wireless networks 10

Problems With Centralized Passwords…

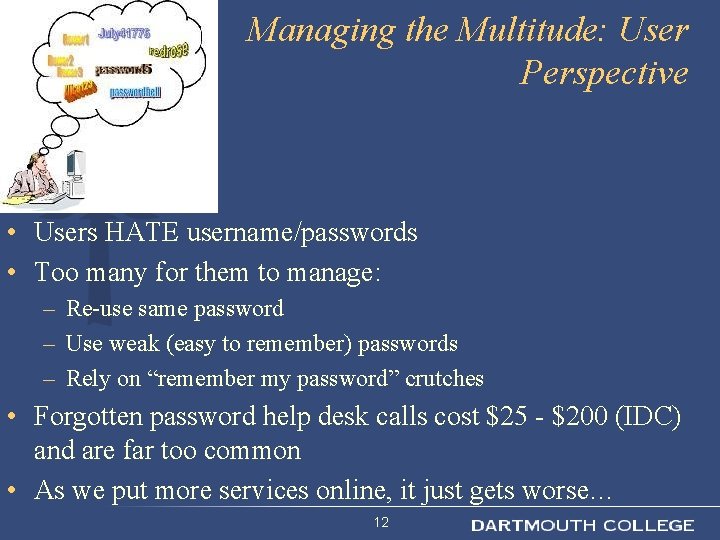

Managing the Multitude: User Perspective • Users HATE username/passwords • Too many for them to manage: – Re-use same password – Use weak (easy to remember) passwords – Rely on “remember my password” crutches • Forgotten password help desk calls cost $25 - $200 (IDC) and are far too common • As we put more services online, it just gets worse… 12

Managing the Multitude: Admin Perspective • Many different username/password schemes to learn, set up, and administer: – Backups, password resets, revoking access, initial password values, etc. • Multiple administrators have access usernames/passwords – many points of failure 13

Ending the Madness • Traditional approaches – Single password – Single sign-on, fewer sign-ons • PKI – Local password management by end user – Two factor authentication 14

Single Password • Users like it, but… • Requires synchronizing passwords (inherently problematic) – actually makes admin madness worse! • Single username/password becomes single point of failure… Hack weakest application and get passwords to all applications! • Costly to maintain and difficult to make work well. 15

All Your Eggs in One Basket • Traditional username/password authentication requires access to passwords database from network servers or authentication server: – Bad guys have network access, can use this to crack individual accounts or worse, get many or all passwords in one grand hack. How would you like to have to notify thousands of users to satisfy FERPA requirements when their accounts are breached? This happened! – Multiple (possibly many) system administrators have access to user passwords. • Traditional Single Sign-on or Fewer Sign-on means once a username/password is compromised, access to multiple services is compromised. 16

Password Sharing • Corrupts value of username/password for authentication and authorization. • Users do share passwords: PKI Lab survey of 171 undergraduates revealed that 75% of them shared their password and fewer than half of those changed it after sharing. • We need two factor authentication to address password sharing. 17

Password Authentication • General issues with Authentication using Password technology – – – Passwords easily shared with others (in violation of access policy) Easily captured over a network if no encrypted channel used Vulnerable to dictionary attacks even if encrypted channels are used Weak passwords can be guessed or brute forced offline Vulnerable to keyboard sniffing/logging attacks on public or compromised systems – Cannot provide non-repudiation since they generally require that the user be enrolled at the service provider, and so the service provider also knows the user's password – Vulnerable to Social Engineering attacks – Single factor of Authentication only 18

Password Authentication • Definition of a Weak Password – The password contains less than eight characters – The password is a word found in a dictionary (English or foreign) – The password is a common usage word such as: • Names of family, pets, friends, co-workers, fantasy characters, etc. • Computer terms and names, commands, sites, companies, hardware, software. • Words using the company name or any derivation. • Birthdays and other personal information such as addresses and phone numbers. • Word or number patterns like aaabbb, qwerty, zyxwvuts, 123321, etc. • Any of the above spelled backwards. • Any of the above preceded or followed by a digit (e. g. , secret 1, 1 secret) 19

Password Authentication • Definition of a Strong Password – Contain both upper and lower case characters (e. g. , a-z, A-Z) – Have digits and punctuation characters as well as letters (e. g. , 09, !@#$%^&*()_+|~-=`{}[]: ”; ’<>? , . /) – Are greater than eight alphanumeric characters long. – Are not a word in any language, slang, dialect, jargon, etc. – Are not based on personal information, names of family, etc. – Passwords should never be written down or stored on-line without encryption protection. 20

Password Authentication • Specific issues with Authentication using Password technology – Too many passwords to remember if requiring a different one for each application • Leads to users writing them down and not storing them securely • Leads to use of insecure or weak passwords (more secure ones are generally harder to remember) • Leads to higher helpdesk costs due to resetting of forgotten passwords. • Leads to re-use of passwords outside institutions’ domain where protection mechanisms may be much lower 21

Password Authentication • Specific issues with Authentication using Password technology – Potential single point of failure for multiple applications if same password used • • Strong passwords not consistently supported in all applications Weak passwords leads to widespread compromises Passwords not consistently protected for all applications Password expiration not synchronized across applications Limited character set for input No control over use of passwords outside Dartmouth’s domain Offline attacks against passwords may be possible 22

PKI’s Answer to Password Woes • Users manage their own (single or few) passwords. • Two factor authentication. • Widely supported alternative for authentication to all sorts of applications (both web-based and otherwise). 23

PKI Passwords Are Local to Client • PKI can eliminate user passwords on network servers. • Password to PKI credentials are local in the application key store or in hardware token. • User manages the password and only has one per set of credentials (likely one or two). • Still need process forgotten password, but it is only one for all applications using PKI authentication, and users are much less likely to forgot it since they use it frequently and control it themselves. 24

Single Sign-on, Fewer Sign-ons • More secure & provides some relief for users, but… • Requires infrastructure (e. g. Web. ISO or Kerberos sidecar). • Fewer sign-ons still has synchronization problems. • Single sign-on solutions are for web applications only. • Kerberos sidecar has problems with address translation and firewalls and is not widely supported. 25

PKI Enables Single Password and Single Sign-on • User maintains password on their credentials. • PKI credentials authenticate user to the various services they use via PKI standards. • No need for password synchronization. • No additional infrastructure other than standard PKI and simple, standard hooks for PKI authentication in applications. • Typically less effort to enable PKI authentication than other SSO methods. 26

PKI Facilitates Two Factor Authentication • Requires something the user has (credentials stored in the application or a smartcard or token) in addition to something a user knows (local password for the credentials). • Significant security improvement, especially with smartcard or token (a post-it next to the screen is no longer a major security hole). • Reduces risk of password sharing. 27

The PKI Solution • Solution to Password vulnerabilities -Public Key Infrastructure (PKI) – PKI consists of a key pair – 1 public, stored in a certificate, 1 private, stored in a protected file or smartcard – Allows exchange of session secrets in a protected (encrypted) manner without disclosing private key – PKI lets users authenticate without giving their passwords away to the service that needs to authenticate them • Dartmouth’s own password-hunting experiences, written up in EDUCAUSE Quarterly, shows that users happily type their user ID and password into any reasonable-looking web site, because so many of them require it already. • PKI is a very effective measure against phishing 28

PKI Solution • Solution to Password vulnerabilities -Public Key Infrastructure (PKI) – PKI lets users directly authenticate across domains • Researchers can collaborate more easily • Students can easily access materials from other institutions providing broader educational opportunities – PKI allows decentralized handling of authorization • Students on a project can get access to a web site or some other resource because Prof Smith delegated it to them • PKI simplifies this process – no need for a centralized bureaucracy, lowers overheads associated with research – Private key is never sent across the wire so cannot be compromised by sniffing – Not vulnerable to dictionary attacks – Brute force is not practical for given key lengths – Facilitates encryption of sensitive data to protect it even if a data stream or source is captured by a malicious entity 29

PKI Solution • Solution to Password vulnerabilities -Public Key Infrastructure (PKI) – 1024 -bit keys are better than 128 character passwords (they are not subject to a limited character input set) • This is far stronger than our current Blitzmail or DND password based authentication • As one researcher said recently “the Sun will burn out before we break these” Quote from Prof Smith: “In the long run: user authentication and authorization in the broader information infrastructure is a widely recognized grand challenge. The best bet will likely be some combination of PKI and user tokens. ” – Failing to look ahead in our IT choices means failing in our research and educational mission. 30

Additional PKI Benefits • Additional drivers for PKI in Higher Education (besides stronger authentication): – Better protection of digital assets from disclosure, theft, tampering, and destruction – More efficient workflow in distributed environments – Greater ability to collaborate and reliably communicate with colleagues and peers – Greater access (and more efficient access) to external resources – Facilitation of research funding opportunities – Compliance 31

Additional PKI Benefits • Applications that utilize PKI in Higher Education – – – – Secure Wireless S/MIME email Paperless Office workflow (Documentum) Encrypted File Systems (protecting mobile data assets) Strong SSO Shibboleth/Federations GRID Computing Enabled for Federations E-grants facilitation 32

Summary • Identity theft if the fastest growing crime in the US, Institutions of Higher Education are a prime target - 43% of this activity results from Campus compromises – – – • There has been an exponential increase in the number of reported cases each year UCLA recently had the worst computer breach ever at a US university (800, 000 people impacted) in December 2006 Dartmouth has already had a security breach (17, 000 people impacted in 2004) Protecting sensitive data with passwords is no longer sufficient – Two Factor Authentication is recommended – – Passwords by nature are vulnerable to many different easily replicable attacks No consistency in policy and implementation, allowing exploits for weak, reused, unmonitored passwords • Applications now have better support for PKI, making it very useable for everyday users as vendors recognize the importance of this technology to securing digital assets • PKI facilitates a broader range of educational opportunities through decentralized authorization and cross-domain authentication with Federated identities • The PKI solution provides a number of promising additional benefits - not just the required stronger authentication 33

For More Information Dartmouth PKI Outreach: http: //www. dartmouth. edu/~deploypki/ Dartmouth PKI Lab: http: //www. dartmouth. edu/~pkilab/ Scott Rea - Scott. Rea@dartmouth. edu 34
