Why Odin? Odin Tele. Systems Inc. has been servicing the Telecom industry for over a decade by offering a variety of Telecom Adapter Boards and Software Packages for Telecom, Internet Telephony, and Test and Measurement systems. Our products and solutions are: Open Powerful Flexible
Odin International Sales Odin’s products are used in over 25 different countries within North America, South America, Asia, Europe, and Australia.

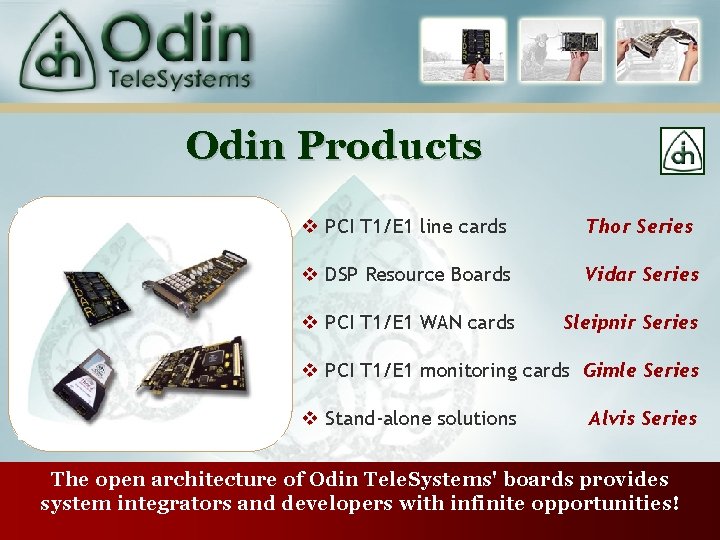

Odin Products v PCI T 1/E 1 line cards Thor Series v DSP Resource Boards Vidar Series v PCI T 1/E 1 WAN cards Sleipnir Series v PCI T 1/E 1 monitoring cards Gimle Series v Stand-alone solutions Alvis Series The open architecture of Odin Tele. Systems' boards provides system integrators and developers with infinite opportunities!
T 1/E 1 PCI Line Cards Software selectable between T 1 and E 1 modes Value Economy Highly Scalable: Up to 8 T 1/E 1 lines on a single PCI slot 32 -Bit Data DMA feature for reduced host CPU utilization Optional DSP Resources for Tone signaling / Codec / Echo Cancellation Performance
T 1/E 1 PCI Adapter boards Thor Series Feature Highlights ü Thor-2 -PCI Dual-access T 1/E 1 PCI Adapter ü Thor-8 -PCI Eight-access T 1/E 1 PCI Adapter ü H. 100 Computer Telephony bus allows multiple cards to interconnect (Also supports SC Bus and MVIP) ü Ribbon Cable ü Broad OS Support: Windows, and Linux ü Allows custom DSP algorithm development ü Optional DSP resources offers tone signaling/codec/ echo cancellation/fax support ü 256 timeslot full duplex interconnect to H. 100 bus ü 4 -channel onboard audio codec ü Integrated CSU/DSU ü Supports both fractional and full T 1/E 1/J 1 ü Multiple clocking options • Thor-2 -PCI-Plus • Thor-4 -PCI-Plus • Thor-8 -PCI-Plus-2. 0 • Thor-2 -PCI-Express

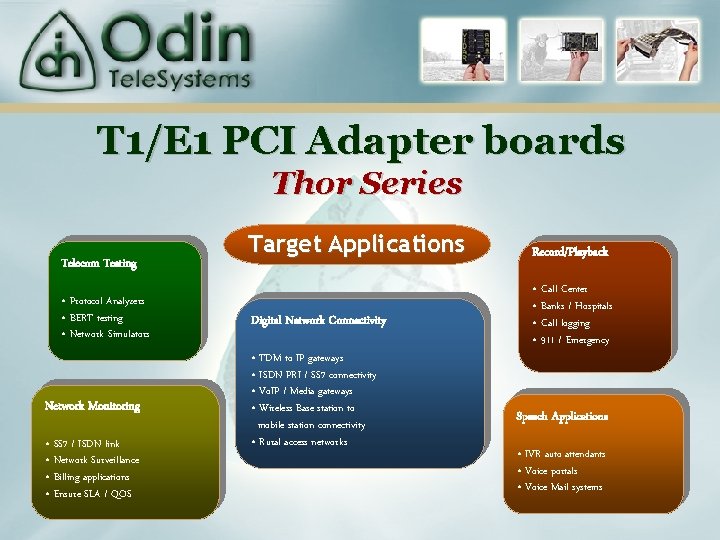

T 1/E 1 PCI Adapter boards Thor Series Telecom Testing • Protocol Analyzers • BERT testing • Network Simulators Network Monitoring • SS 7 / ISDN link • Network Surveillance • Billing applications • Ensure SLA / QOS Target Applications Digital Network Connectivity • TDM to IP gateways • ISDN PRI / SS 7 connectivity • Vo. IP / Media gateways • Wireless Base station to mobile station connectivity • Rural access networks Record/Playback • Call Center • Banks / Hospitals • Call logging • 911 / Emergency Speech Applications • IVR auto attendants • Voice portals • Voice Mail systems
T 1/E 1 PCI Adapter boards Thor-8 -PCI-Plus-2. 0 For reliable testing and measurement capabilities or superior passive monitoring, the Thor-8 -PCI-Plus-2. 0 provides the highest integration solution where high port density of T 1/E 1/J 1 interfaces is required. Feature Highlights NEW! • 8 T 1/E 1/J 1 interface; software switchable between T 1, E 1 and J 1 • PCI host bus interface (full-size board) • 32 -Bit Data DMA transfer • H. 100 Computer Telephony bus interface • 4 -channel Codec • Software switchable line termination (75 and 100/120 ohm) • Optional high stability oven controlled oscillator • T 1/E 1 span frequency measurement • Support for all common T 1/E 1/J 1 Frame Formats and Line Codes
T 1/E 1 PCI Adapter boards Gimle-16 -PCIe The Gimle-16 -PCIe card allows PCs and other systems with a PCIe bus to monitor up to 8 T 1/E 1 bi-directional links. It has 16 T 1/E 1/J 1 receive interfaces which can be used for nonintrusive monitoring of ISDN, SS 7 links and other protocols. Feature Highlights NEW! • Software configurable 16 T 1 or E 1 receive accesses • Ideal for non-intrusive monitoring of ISDN, SS 7, Frame Relay links • Full or fractional T 1 or E 1 • Integrated CSU/DSU • RJ-48 C, BNC, or Type-43 rack-mountable connector option • 32 -bit DMA Burst over the PCIe interface • Can be used in a 1 -lane, 4 -lane, 8 -lane, or 16 -lane PCIe slot • Multiple clocking options • T 1/E 1 span voltage meters and frequency counters
DSP Resource boards Texas Instruments DSPs. Highly scalable from 320 MIPS to 1600 MIPS of processing power External JTAG support for emulators Supports TI Code Composer H. 100 CT Bus on the PCI card allows multiple cards to interconnect Full flexibility for customization
DSP Resource boards Vidar Series Vidar-5 x 4 -ASM-PRO Vidar-5 x 16 -PCI • PCI based • H. 100 CT Bus • 16 TI TMS 320 C 548 DSPs with 1280 MIPS • 2 MB SDRAM • JTAG connector Vidar-5 x 4 -ASM-EX • Daughter board • 4 TI TMS 320 C 54910 A DSPs with 640 MIPS • 256 or 1024 kword SDRAM • 32 kwords RAM per DSP • Daughter board • 4 TI TMS 320 C 5416 DSPs with 640 MIPS • 256 or 1024 kword SDRAM • 64 kwords RAM per DSP Vidar-5 x 4 -ASM-CST Vidar-55 x 4 -ASM • Powerful daughter board • 4 TI TMS 320 VC 5510 DSPs with 1600 MIPS • 64 MB SDRAM • 180 kwords RAM per DSP • Daughter board • 4 TI TMS 320 C 54 CST DSPs with 480 MIPS • 256 kword SDRAM • 48 kwords RAM per DSP • Packed with telephony algorithms: DTMF, G. 726, MF, G. 168, VAD, CNG etc.
DSP Resource boards Alvis-PCIe The Alvis-PCIe offers the most processing power for demanding Vo. IP and video streaming applications , soft-switch systems, media gateways, transcoding systems (e. g. Asterisk® voice transcoding accelerator), and similar applications. Feature Highlights NEW! • Up to eight Texas Instruments TMS 320 DM 6443 dual core processors with 4752 DSP MIPS and 297 MHZ ARM 9 processing power each • 256 MB DDR 2 memory per processor • 128 MB NAND shared flash memory • Includes support for the most popular Vo. IP and Video algorithms like G. 723. 1, G. 729 AB, AMR, DTMF, and MF. H. 264 and MPEG. 4 can be supported via third party software. • 10/1000 Ethernet port • Very powerful for transcoding applications
DSP Resource boards Alvis-ASM The Alvis-ASM provide the ultimate industry solution for voice (Vo. IP) and video streaming applications (TVo. IP) essential for soft-switch systems, media gateways and transcoding applications Feature Highlights NEW! • Up to four Texas Instruments TMS 320 DM 6443 dual core processors with 4752 DSP MIPS and 400 MIPS ARM processing power each • 256 MB DDR 2 memory per processor • 128 MB NAND shared flash memory • Support for most popular Vo. IP and Video algorithms • Hardware Watch. Dog Timer on each DM device controlled by the ARM • Compatibility with TI x. DM (XDAIS) specification • OTX Codec. Engine Servers for common SPM • Odin ASM (application specific module) interface with 4 PCM highways

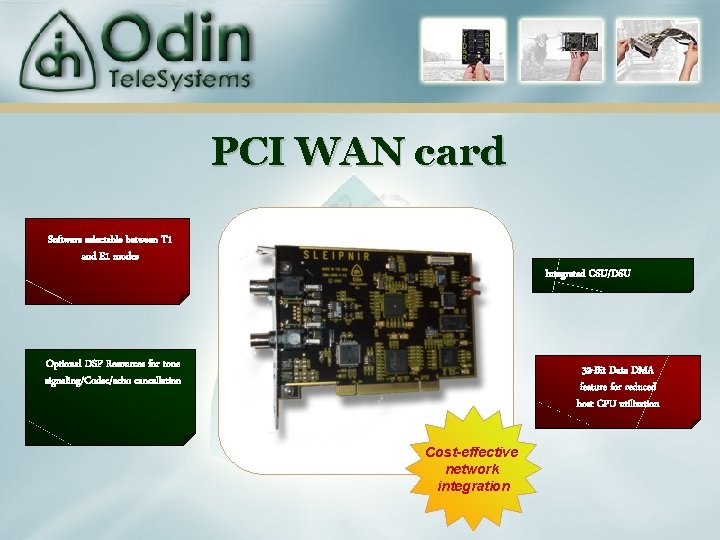

PCI WAN card Software selectable between T 1 and E 1 modes Integrated CSU/DSU Optional DSP Resources for tone signaling/Codec/echo cancellation 32 -Bit Data DMA feature for reduced host CPU utilization Cost-effective network integration
PCI WAN card Sleipnir-1 -PCI-WAN The Sleipnir-1 -PCI-WAN bridges the gap between LAN and WAN by providing network connectivity using E 1 or T 1 service. It is delivered with a Windows NDIS miniport driver which features standard TCP/IP networking using the standard Windows networking methods. Telecom testing Feature Highlights Electronic commerce • Windows (NDIS miniport) driver • Single T 1/E 1/J 1 interface. Software switchable between T 1, E 1 and J 1 • Integrated CSU/DSU. Full or Fractional T 1 or E 1 • PCI host bus interface (half-size board) • BNC or RJ-48 C connector options • Link status LEDs • Multiple clocking options • Support for all common T 1/E 1/J 1 Frame Formats and Line Codes
Stand-alone Solutions Alvis-CSI The Alvis-CSI provides the ultimate industry solution for voice (Vo. IP) and video streaming applications (TVo. IP) essential for softswitch systems, media gateways and transcoding applications. Complete System Integration NEW! • Alvis-E-CSI • Alvis-4 M-CSI • Alvis-8 M-CSI Feature Highlights • One or Two Texas Instruments TMS 320 DM 6443 dual core processor with 4752 DSP MIPS and 297 MHz ARM 9 processing power each • 256 MB DDR 2 memory; 128 MB NAND shared flash memory • Zero, Four or Eight T 1/E 1 interfaces • Includes support for most popular Vo. IP and Video algorithms like G. 723. 1, G. 729 AB, G. 726, DTMF, etc. • Web interface for ease of configuration and status check • 10/100 Ethernet port for data transfer and remote access • Compatibility with TI x. DM (XDAIS) specification
Stand-alone Solutions Alvis-PBX Fully compatible with Asterisk® The innovative Alvis-PBX system designed to meet and exceed most requirements for a flexible and feature-rich PBX. Alvis. PBX is a perfect choice of a PBX for small- and medium-sized businesses that needs cost-effective and reliable high-speed telephone exchange service. NEW! • Alvis-0 -PBX • Alvis-2 -PBX • Alvis-4 -PBX • Alvis-8 -PBX Feature Highlights • Multiple Texas Instruments TMS 320 DM 6443 dual core processors with 4752 DSP MIPS and 297 MHz ARM 9 processing power each • 256 MB DDR 2 memory; 128 MB NAND shared flash memory • Support for ISDN PRI and SS 7 digital communication protocols • Built-in Web interface (Free. PBX GUI) • SNMP traps and monitoring (reporting of problems in remote systems) • Native Bridging Mode • Supports up to 300 channels of simultaneous voice codec transcoding • Hardware Line / Network Echo Cancellation (EC)
Odin Solutions OTX Platform The award winning OTX (Odin Telecom framewor. X) software platform provides a flexible, powerful, and open platform for a broad spectrum of telecom/telephony applications. The OTX platform consists of interchangeable building blocks comprised of a flexible hardware driver, an open software development kit, and a powerful application program interfaces which allows for rapid software application development and deployment - thus reducing the time to market. Benefits of OTX: • OTX supports multiple Operating System platforms: Windows 2000/XP/2003 Server, Vista/7, Red Hat Linux 2. 4 x, and 2. 6 x • A single programming platform across the entire family of Odin's OTX hardware cards • Extensive documentation, demonstration programs with sample code reducing the developer's effort. v Open Architecture Scalable v Modular platform v Portable v Extensible v Data Driven v Sample Demo Programs with source code
Odin Solutions OTX Platform Highlights of OTX: Solutions based on OTX Platform • H. 100 (CT Bus) switching support • Support for super-channels and sub-channels • Tone detection and generation • Support for ring tone, busy tone, and FSK (Caller ID) • BER Testing • File recording and playback • CAS signaling and Robbed Bit signaling • DSP SDK available for Texas Instruments C 54 x, C 55 x, C 64 x DSPs • Dynamic link libraries (DLL) • HDLC generators and receivers • Silence detection • Audio Mixing • Trunk interface (on hook/ off hook) • C# and VB interface wrapper example
Odin Solutions OTX Libraries The OTX software libraries were designed for the industry’s award-winning OTX HDLC Odin Telecom Library framewor. X (OTX) hardware API to integrate with different telecom OTX BERT protocols. Library Uses the standard OTX HW SDK API OTX TRAU Library OTX TONE Library Highlyoptimised OTX Libraries OTX ISDN Library OTX SIP Library OTX RTP Library OTX ATM Library Decoding / encoding functionality Multiple boards are supported. Supported by Win 32, Win 64, Linux and Davinci systems Demo applications are available.
Odin Solutions OTX T 1/E 1 Analyzer The OTX T 1 E 1 Analyzer provides a feature-rich and complete set of tools for low level T 1 and E 1 analysis. It contains modules such as Record and Playback of individual timeslots, Bit Error Rate Testing (BERT), and HDLC transmission and reception. Features: • Recording of individual or multiple timeslots over multiple T 1/E 1 spans • Playback of individual or multiple timeslots over multiple T 1/E 1 spans • Bit Error Rate Test module with support for a variety of standard test patterns as well as customized patterns • Recorded data can be saved in a variety of formats making it easy to export the recorded data into other tools • The Playback module can play file of various formats imported from other tools • HDLC module providing encoding/decoding over multiple timeslots and multiple spans • Listen to selected timeslots via the soundcard in the PC

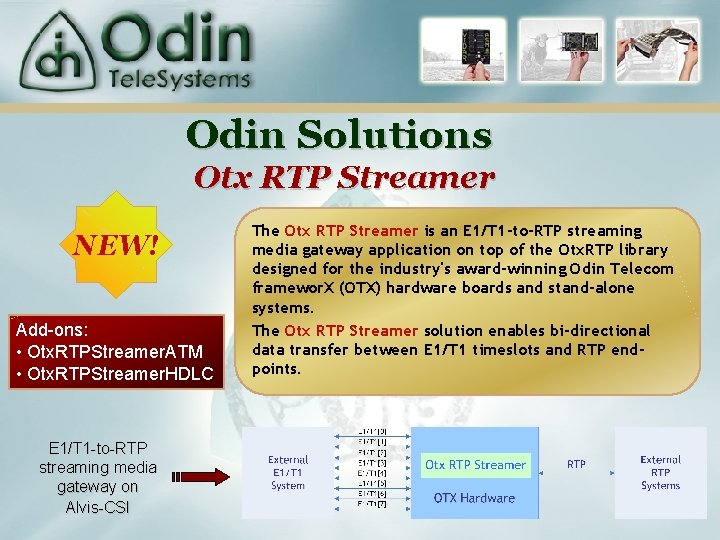

Odin Solutions Otx RTP Streamer NEW! Add-ons: • Otx. RTPStreamer. ATM • Otx. RTPStreamer. HDLC E 1/T 1 -to-RTP streaming media gateway on Alvis-CSI The Otx RTP Streamer is an E 1/T 1 -to-RTP streaming media gateway application on top of the Otx. RTP library designed for the industry's award-winning Odin Telecom framewor. X (OTX) hardware boards and stand-alone systems. The Otx RTP Streamer solution enables bi-directional data transfer between E 1/T 1 timeslots and RTP endpoints.
Odin Solutions RTP Streamer Features Alvis-CSI case: • Simultaneous data transfer from up to 8 E 1/T 1 spans (Alvis-CSI) or 40 E 1/T 1 spans (x 86) to various RTP remote nodes (bi-directional). • Enables the remote control; it is possible as a static configuration when the program starts, so the dynamic connection/disconnection using the telnet interface (correlation of E 1/T 1 timeslot with RTP connection). • Implements encoding of voice data (G. 723, G. 726, G. 729, AMR) from E 1/T 1 to RTP, and decoding of the input RTP data to G. 711 (on the base of TI TMS 320 DM 6443). • Integrated SNMP monitoring using the Otx. SNMP Library (SNMP Layer 1) and LED Alarms indication. • Built-in jitter compensation for RTP packets sequence violations (while transmitting over Internet channels). • Passive monitoring feature enables system to connect to E 1/T 1 streams in non-intrusive mode. • Optimized data processing using DSP core and OTX Da. Vinci kernel-to-DSP mode of the OTX Da. Vinci driver. • Easy customization of customer’s requirements. General features: • Multi-session mode; the user can create any numbers of listening ports on one system. • Multi-party conference mode. • Monitoring sessions in real-time. • Customizable communication between high and low levels of the RTP protocol. • Supports IETF RFC 1889, RFC 1890 RTP/RTCP Transport, TCP, UDP, H. 323 and SIP standard protocols. • Compatible with the OTX SDK API.
Odin Solutions Gimle Groomer Improves network performance The Gimle. Groomer application is E 1/T 1 grooming application using a number of Gimle-16 -PCI-Plus boards connected to a number of Thor boards (Thor-2 -PCI-Plus, Thor-4 -PCI-Plus, Thor-8 -PCI-Plus) over the H. 100 bus. Features: Reduces line costs The Gimle boards receive a number of timeslots from 16 E 1/T 1 spans. The timeslots are cross-connected to selected timeslots on outgoing E 1/T 1 spans on the Thor boards. The goal of the Gimle. Groomer compressor is to use E 1/T 1 links on Thor boards at their maximum capacity. • Grooms timeslots on up to 16 E 1/T 1 spans over 2 E 1/T 1 outgoing spans • Increases efficiency in networks by optimizing payload transport • Reduces line costs by aggregating fractional E 1/T 1 s
Odin Solutions SS 7 HSL-to-HDLC converter The purpose of the SS 7 HSL-to-HDLC converter solution is to convert an SS 7 over HSL data stream to SS 7 over HDLC supporting multilink operation. This solution allows a multi-link configuration i. e. using the Thor-8 -PCI-Plus board (4 converter links). Also it is possible to combine a multiple ATM HSL SS 7 links into a one HDLC-load-balancing span. Specifications: NEW! • ATM: I. 361, I. 432. 1, G. 804 • MTP 2 b: SSCOP: Q. 2110 SSCF-NNI: Q. 2140 • MTP 3: Q. 704 • MTP 2: Q. 703 • MTP 1: Q. 702
Odin Solutions OTX TRAU EX The OTXTRAUEX library accepts incoming compressed 16 kbps TRAU data including payload overhead and decodes it to a 64 kbps A/u-law G. 711 data stream. NEW! Features: • Facilitates the compression (decompression) of speech data from 64 kbps G. 711 to 16 kbps GSM TRAU (from 16 kbps to 64 kbps) • A-law and u-law companding are supported • Uses burst DMA mode of Odin's OTX card to transfer data buffer • Capturing and decoding of TRAU frames such as FR (Full Rate GSM 6. 10) • TRAU data converting directly to IP (optional) • TRAU streams may be decoded/encoded on any T 1/E 1 timeslot • Supports a flexible sub-channel mask inside timeslot • Multiple sub-channels on various T 1/E 1 spans can be processed simultaneously • The overhead decoding layer provides error checking and error recovery on-the-go

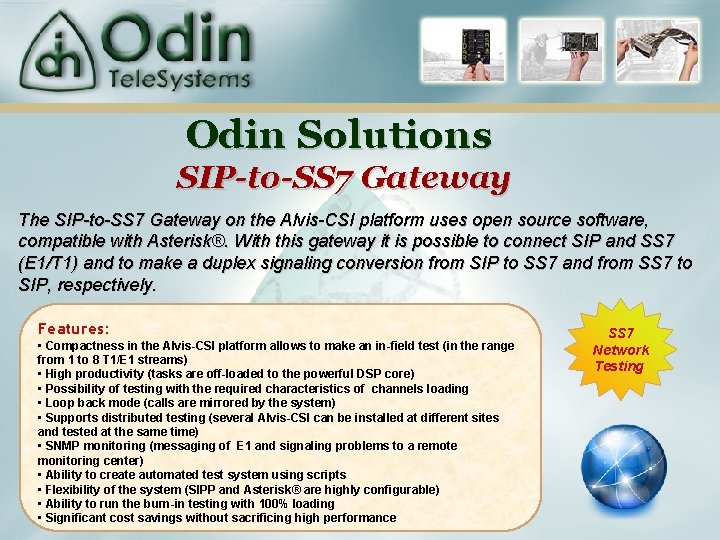

Odin Solutions SIP-to-SS 7 Gateway The SIP-to-SS 7 Gateway on the Alvis-CSI platform uses open source software, compatible with Asterisk®. With this gateway it is possible to connect SIP and SS 7 (E 1/T 1) and to make a duplex signaling conversion from SIP to SS 7 and from SS 7 to SIP, respectively. Features: • Compactness in the Alvis-CSI platform allows to make an in-field test (in the range from 1 to 8 T 1/E 1 streams) • High productivity (tasks are off-loaded to the powerful DSP core) • Possibility of testing with the required characteristics of channels loading • Loop back mode (calls are mirrored by the system) • Supports distributed testing (several Alvis-CSI can be installed at different sites and tested at the same time) • SNMP monitoring (messaging of E 1 and signaling problems to a remote monitoring center) • Ability to create automated test system using scripts • Flexibility of the system (SIPP and Asterisk® are highly configurable) • Ability to run the burn-in testing with 100% loading • Significant cost savings without sacrificing high performance SS 7 Network Testing

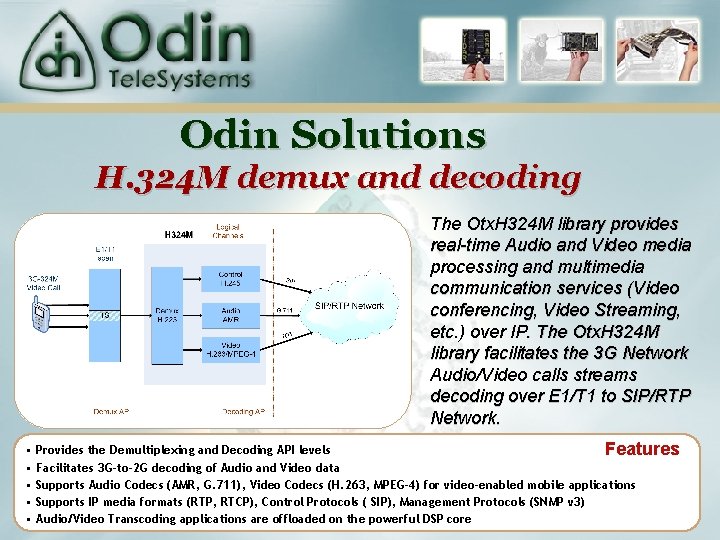

Odin Solutions H. 324 M demux and decoding The Otx. H 324 M library provides real-time Audio and Video media processing and multimedia communication services (Video conferencing, Video Streaming, etc. ) over IP. The Otx. H 324 M library facilitates the 3 G Network Audio/Video calls streams decoding over E 1/T 1 to SIP/RTP Network. Features • Provides the Demultiplexing and Decoding API levels • Facilitates 3 G-to-2 G decoding of Audio and Video data • Supports Audio Codecs (AMR, G. 711), Video Codecs (H. 263, MPEG-4) for video-enabled mobile applications • Supports IP media formats (RTP, RTCP), Control Protocols ( SIP), Management Protocols (SNMP v 3) • Audio/Video Transcoding applications are offloaded on the powerful DSP core

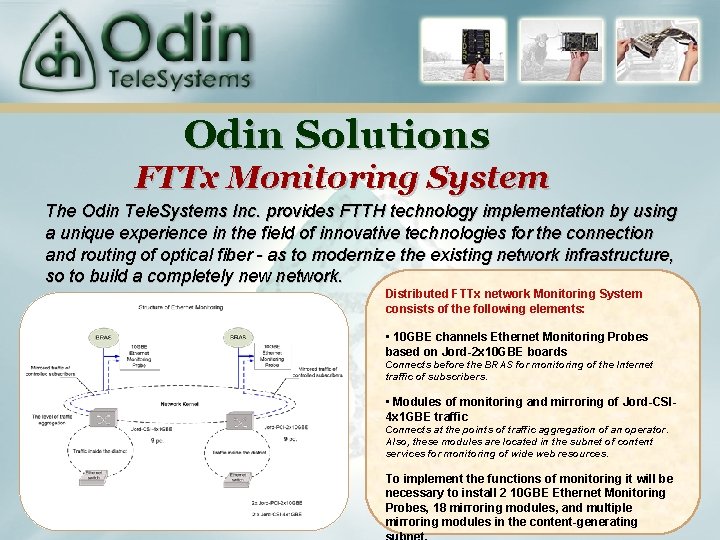

Odin Solutions FTTx Monitoring System The Odin Tele. Systems Inc. provides FTTH technology implementation by using a unique experience in the field of innovative technologies for the connection and routing of optical fiber - as to modernize the existing network infrastructure, so to build a completely new network. Distributed FTTx network Monitoring System consists of the following elements: • 10 GBE channels Ethernet Monitoring Probes based on Jord-2 x 10 GBE boards Connects before the BRAS for monitoring of the Internet traffic of subscribers. • Modules of monitoring and mirroring of Jord-CSI 4 x 1 GBE traffic Connects at the points of traffic aggregation of an operator. Also, these modules are located in the subnet of content services for monitoring of wide web resources. To implement the functions of monitoring it will be necessary to install 2 10 GBE Ethernet Monitoring Probes, 18 mirroring modules, and multiple mirroring modules in the content-generating

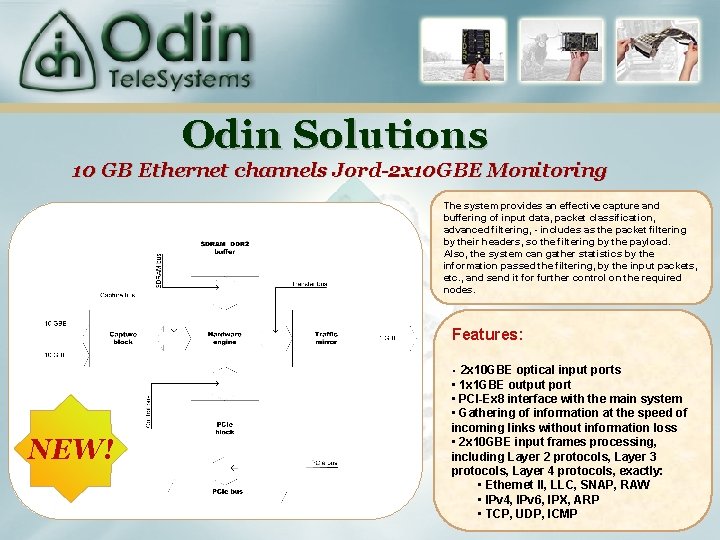

Odin Solutions 10 GB Ethernet channels Jord-2 x 10 GBE Monitoring The system provides an effective capture and buffering of input data, packet classification, advanced filtering, - includes as the packet filtering by their headers, so the filtering by the payload. Also, the system can gather statistics by the information passed the filtering, by the input packets, etc. , and send it for further control on the required nodes. Features: 2 x 10 GBE optical input ports • 1 x 1 GBE output port • PCI-Ex 8 interface with the main system • Gathering of information at the speed of incoming links without information loss • 2 x 10 GBE input frames processing, including Layer 2 protocols, Layer 3 protocols, Layer 4 protocols, exactly: • Ethernet II, LLC, SNAP, RAW • IPv 4, IPv 6, IPX, ARP • TCP, UDP, ICMP • NEW!
Odin Solutions 10 GB Ethernet channels Jord-CSI-4 x 1 gbe Monitoring and Transferring Device Features: NEW! • 4 x 1 Gbe input ports • Gathering of information at the speed of incoming links without information loss • Data buffering • 4 x 1 GBE input frames processing, including Layer 2 protocols, Layer 3 protocols, Layer 4 protocols, exactly: • Ethernet II, LLC, SNAP, RAW • IPv 4, IPv 6, IPX, ARP • TCP, UDP, ICMP • Module DMM DM 644 x for system management • Hardware encryption of connection with the central system • Optional HDD for temporary data storage in case of violation of the integrity of the network operator and of the connection to the central system
Odin Solutions Asterisk® Support Systems built on Asterisk® software leading in the field of telephony and distributed as the open source. This allows you to quickly build a flexible telephone system. Features: • Compactness in the Alvis-PBX platform allows to make an in-field test (on the range from 1 to 8 E 1 streams) • High productivity (tasks are offloaded to the powerful DSP core) • Possibility of testing with the required characteristics of channels loading • Loop back mode (calls are mirrored by the system) • Possibility of distributed testing (several Alvis-PBX are installed at the different sites and tested at the same time) • SNMP monitoring (messaging of the E 1 and signaling problems to a remote monitoring center) • Ability to create automated test system using scripts • Flexibility of the system (SIPP and Asterisk® have many parameters that can be set) • Ability to run the burn-in testing with 100% loading • Significant cost savings without sacrificing high performance Free. PBX GUI

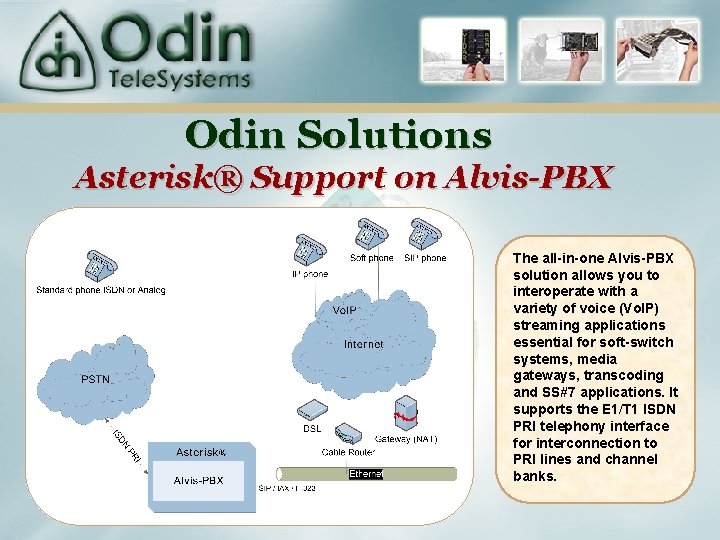

Odin Solutions Asterisk® Support on Alvis-PBX The all-in-one Alvis-PBX solution allows you to interoperate with a variety of voice (Vo. IP) streaming applications essential for soft-switch systems, media gateways, transcoding and SS#7 applications. It supports the E 1/T 1 ISDN PRI telephony interface for interconnection to PRI lines and channel banks.
Odin Solutions Asterisk® Support Features • Creating a unified telephone network makes it possible to collect geographically separated offices in a single numbering plan. It enables to build inter-regional and international networks with a very low cost within the network. In addition, this significantly reduces the number of urban lines in each office. Note also that it is possible as to connect to the existing telephone exchange, so the organization of telephone communication "from scratch". • Design of the registration plan at your discretion, with no limit on the number of incoming / outgoing numbers (as in most PBX), as well as the possibility of flexible recruitment policy: no need to dial 0 or 9 before exit to the city, you can assign numbers of subscribers different from the 3 -digit (e. g. , 11, 12, 1001). • Ability of automatically search for the subscriber if necessary, switching to other channels of communication. It greatly saves time, facilitates the organization of conferences and call forwarding. The operator on the phone is not tied to a particular place and can serve several remote sites simultaneously. • To connect additional phones it is used a local computer network, including wireless; so for connecting additional phone numbers you do not have to lay additional cables for telephone lines. • Ability to use Soft-Phones with the function of the organization of conferences on the speakerphone, including the possibility of using mobile phones software (for example, on a Windows Mobile platform, Symbian, Android, Apple i. Phone, etc. ) • Possibility of dynamic calls routing, for example, in the absence of employees in the workplace or the use of alternative means of communication.
Odin Solutions Asterisk® Support Features • Easy making of conference: managers can connect to the necessary specialist directly from the console of the phone and manage the order of the conference. • Possibility of flexible time schedules, depending on customer requirements (not just the "day" and "night", as in the majority of PBXs). You can also control the state “Do Not Disturb” (DND). • Ability to build Call Centers with a customizable call processing algorithms, creation of an unlimited number of queues and operators. Operators can manage their status and calls as from the phone, so through a program installed on a PC. • Ability to integrate with CRM, ERP-systems and databases, including the possibility of creating a dynamic IVR, prioritization of VIP customers’ calls, personalization of customers. • Optimization of costs on long distance / international calls, ease of integration with the various providers of IPtelephony, such as: SIPNET, Terra. Sip, Skype, etc. • Ability to create the secure communication channels. • Possibility to create multi-level voice response (IVR), automated services, and flexible scripting of incoming calls based on caller’s number. • In the case of PRI ISDN channels on the screen of the IP-phone displays the caller's number. • Ability to build large corporate and public telephone systems with software features hot backup services, encryption of traffic, the availability of RADIUS-authentication, also the easy construction of systems of video telephony and videoconferencing.
Contact Us If you are interested in our products and solutions, we are ready to showcase them. We are able to give free advice on the preliminary calculation of the cost of equipment, its configuration, installation, in accordance with your requirements. Odin Tele. Systems Inc. 800 E. Campbell Road Suite 334 Richardson, TX 75081 -1873 USA +1 -972 -664 -0100 Telephone +1 972 -664 -0855 Fax Sales@odin. TS. com http: //www. Odin. TS. com Thank you!
