Why Do They Call It Wireless? Behind the Radios in Multi. Radio Contest Stations By Contest Station Builders Worldwide Collected and Edited by Pete Smith, N 4 ZR

The approach Identify the challenges in the design and construction of complex contest stations (other than antennas). n Collect and present solutions from station builders worldwide. n Thanks, VE 1 JF

Caveats Successful contest stations come in all varieties, from fully-engineered to “growed like topsy. ” n There is no single “right way” n Presentation based on input from station builders – not comprehensive n

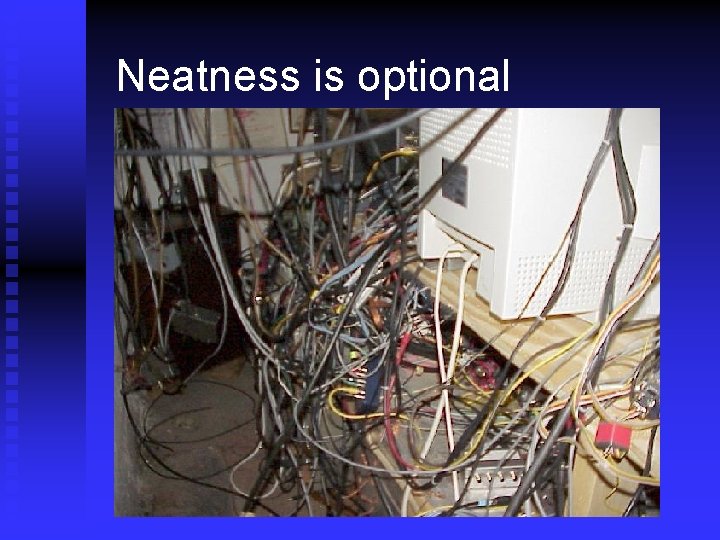

Neatness is optional

Challenge – Basic design decisions n “Architecture” choices u Degree of automation. u Location of physical antenna switching/phasing. u Layout of operating position and cable runs

Solutions Full automatic/remote RF switching n Hybrid approach n Manual 2 X 6 6 X 2 switching n Other manual approaches u Mechanical switch w/interlock u Patch panel u Cables on the floor n

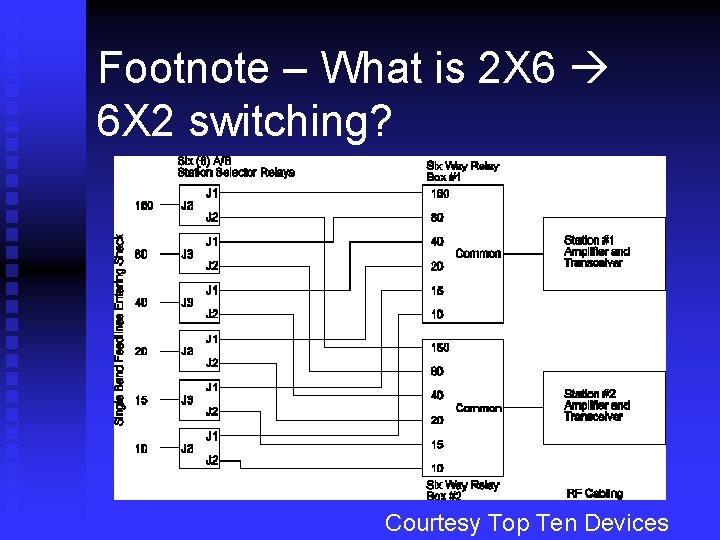

Footnote – What is 2 X 6 6 X 2 switching? Courtesy Top Ten Devices

Full automation/remote RF switching SO 2 R switching and antenna selection done remotely, but controlled from the operating position. Maximum computer integration. Cable for data, not RF. n Backup manual systems or spares are essential. n

For Example …. K 4 JA

Equally simple from the back K 4 JA

But lots of hardware required to support the up-front simplicity K 4 JA

Especially at a multi-multi KC 1 XX

Remote antenna selection KC 1 XX

Hybrid approach Most stations have been evolving for years. n Can’t always do everything at once. n

For example …. W 9 RE

Homebrew 6 X 2 relay box W 9 RE

Manual antenna selection W 9 RE

Manual 2 X 6 6 X 2 switching … KQ 2 M

A Scottish solution GM 4 AFF

Ultimate simplicity? W 5 KFT

And simpler yet K 1 KI

Challenge – Cable entry n How to get feedlines and control cables into the shack area

Solution - Through-wall panel K 4 OJ

On a larger scale …. KC 1 XX

The dryer-vent approach K 5 ZD

Or through the siding K 4 JA

With the connections made inside… K 4 JA

Challenge – Lightning protection Some measures essential n Protect vs disconnect n

Solution - disconnect everything K 5 ZD

Control cables, too K 4 OJ

Solution – protectors on coax, control lines. Inside, VE 1 JF

… or at the tower base N 3 RR

Inside the box N 3 RR

Grounding at the entry panel N 1 LO

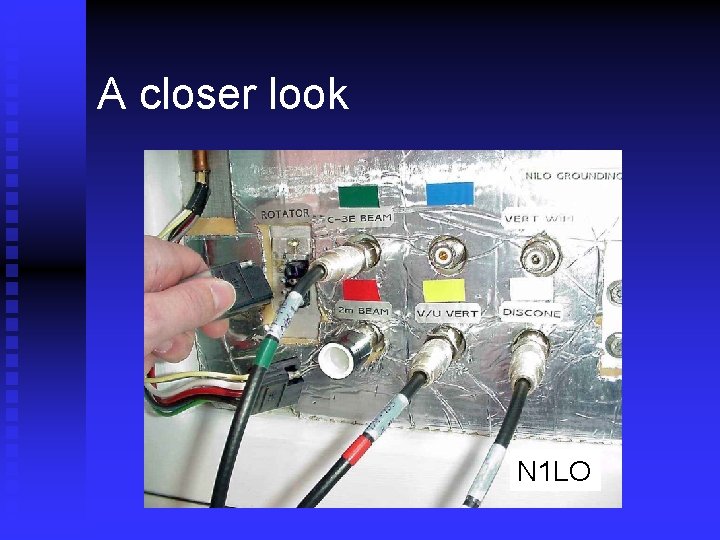

A closer look N 1 LO

Cable support and lowinductance grounding N 1 LO

Challenge – cable support, protection and management Keep them out from underfoot n Protect against accidental damage n Retain flexibility for easy change, maintenance n

Suspend from ceiling joists K 9 NS/K 9 HMB

Bundle by band, type (RF, control, etc. ) K 9 NS/K 9 HMB

Use a cable tray WX 0 B

Other options (no pictures) Contractors’ snap-open wire hangers n “Panduit” extruded plastic cable trays and associated fixtures – separate cables by function n Bicycle hangers, vinyl dipped huge screw hooks, etc. n

Challenge – Access to cabling Free-standing operating table with access from rear n Cable closet n Console on wheels n

Access from rear GM 4 AFF

Cable closet K 4 JA

Another more spacious approach K 9 NS/K 9 HMB

Console on wheels VK 5 GN

Cable marking techniques Labelmakers – Dymo, P-Touch, Casio, etc. with clear heat-shrink or tape n Colored tape – use resistor color code n MS Word/Magic Tape n Paint pen w/ silver ink n

Cable bundling techniques Color-coded Velcro ties n Tie-wraps – reusable or disposable n THHN wire twisted n Spiral wrap tubing (Alpha or Panduit) n Split-loom tubing (SPC or Panduit) n

Other cabling hints n Use pigtails with terminal strips to ease the task of changing radio-specific connectors HC 8 N

And more… Use unique connectors to reduce risk of mistakes when recabling n Use multiple conductor cables where possible n Careful attention to grounding can reduce inter-station interference n

Documentation Station notebook is essential n Document everything in one place u Schematics u Cable lengths u Measured resistances, SWRs, etc. u Critical computer info u Everything you might need at 4 AM n

Special solutions for special problems Phasing multiple antennas on separate towers on 10 m – OK 2 RZ n Managing multiple receiving antennas on 160 – W 8 JI n

OK 2 RZ 8 antennas/45 elements on 5 towers, including 3 -high stack – 10 m only n Ability to drive either 2 or 4 simultaneously n Phasing line length determined experimentally n

OK 2 RZ 10 m antennas

OK 2 RZ antenna phasing

W 8 JI Primarily a 160 m station n Three operating positions n Many receiving antennas/arrays n Challenge – how to make antennas available to all operating positions simultaneously n

Receiving multicoupler

SO 2 R Audio/CW Controller Options Commercial units u Top Ten Devices u Array Solutions n Homebrew approaches n

Array Solutions SO 2 R www. arraysolutions. com

Top. Ten DX Doubler http: //www. qth. com/topten/

Homebrewers K 6 LL

More examples N 6 TR – One of the first http: //www. kkn. net/~k 5 tr/trlog/switch. pdf n S 56 A – relayless SO 2 R controllers http: //artinian. bit. si/radio. htm n KG 5 U – manual – audio and antennas http: //www. hal-pc. org/~kg 5 u/2 radctlr. html n W 2 UP – audio only http: //w 2 up. home. mindspring. com/SO 2 R-audiocontroller. doc n K 5 FD – full auto w/ antenna switching www. qsl. net/k 5 fd n
