Whole Body Color 3 D Scanner by Cyberware

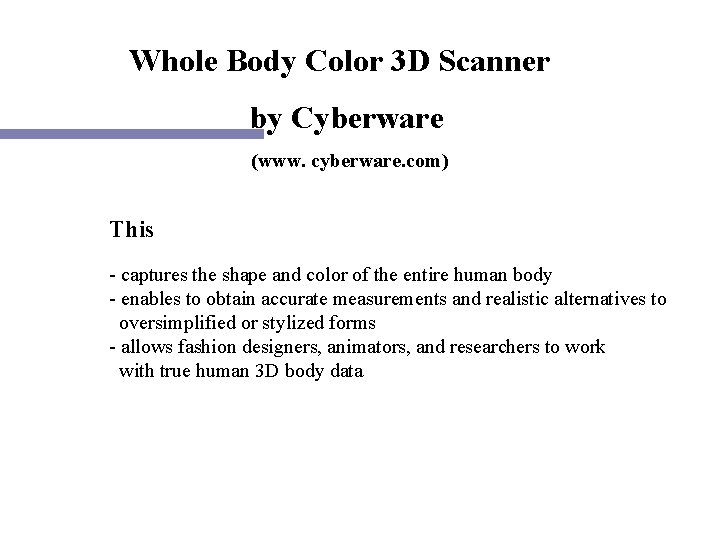

Whole Body Color 3 D Scanner by Cyberware (www. cyberware. com) This - captures the shape and color of the entire human body - enables to obtain accurate measurements and realistic alternatives to oversimplified or stylized forms - allows fashion designers, animators, and researchers to work with true human 3 D body data

Features (1) - rapid scanning time (as little as 17 seconds) - captures the intricacies of the human body in one pass (the scanning instruments start at the person's head and move down only once to scan the entire body) - has improved accuracy on the sides of the body and in difficult-to-reach areas, such as under a person's arms - scans a cylindrical volume 2 meters (79") high with a diameter of 1. 2 meters (47"). These dimensions accommodate the vast majority of the human population. For even larger subjects, software enables the user to combine two or more scans quickly into a complete 3 D color model

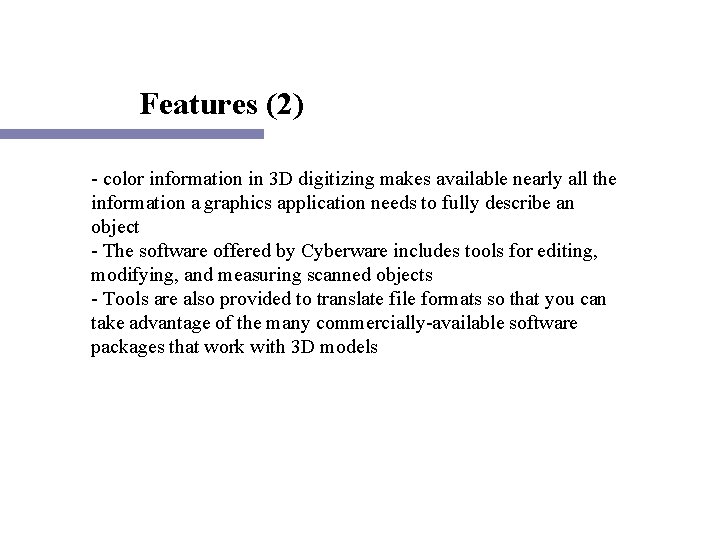

Features (2) - color information in 3 D digitizing makes available nearly all the information a graphics application needs to fully describe an object - The software offered by Cyberware includes tools for editing, modifying, and measuring scanned objects - Tools are also provided to translate file formats so that you can take advantage of the many commercially-available software packages that work with 3 D models

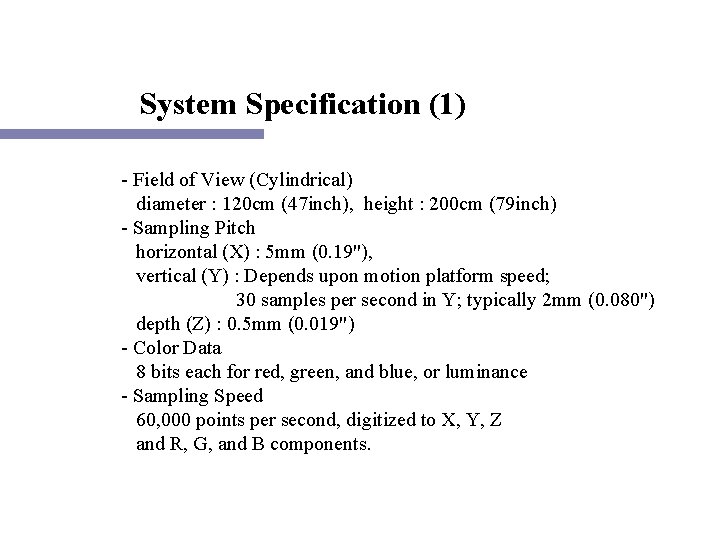

System Specification (1) - Field of View (Cylindrical) diameter : 120 cm (47 inch), height : 200 cm (79 inch) - Sampling Pitch horizontal (X) : 5 mm (0. 19"), vertical (Y) : Depends upon motion platform speed; 30 samples per second in Y; typically 2 mm (0. 080") depth (Z) : 0. 5 mm (0. 019") - Color Data 8 bits each for red, green, and blue, or luminance - Sampling Speed 60, 000 points per second, digitized to X, Y, Z and R, G, and B components.

System Specification (2) - Size width : 360 cm (144"), height : 292 cm (117") depth : 300 cm (120"), weight : 450 Kg (992 lbs) - Output Formats Echo, PLY, 3 D Studio, OBJ, STL, ASCII, DXF (3 D FACES), DXF, IGES 106 110 112 124, VRML, IGES 128 NURBS, Inventor, Digital Arts (SGI), MOVIE. BYU (SGI), SCR (Mesh & Slice) (SGI)

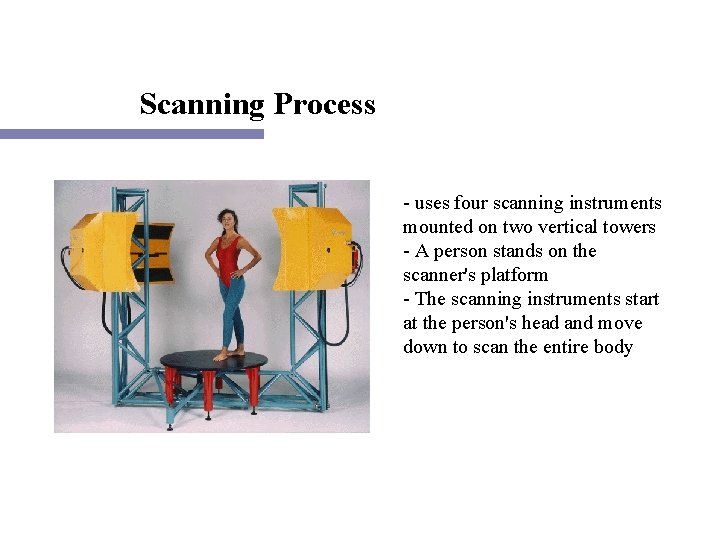

Scanning Process - uses four scanning instruments mounted on two vertical towers - A person stands on the scanner's platform - The scanning instruments start at the person's head and move down to scan the entire body

Sample Scan Data (1)

Sample Scan Data (2)

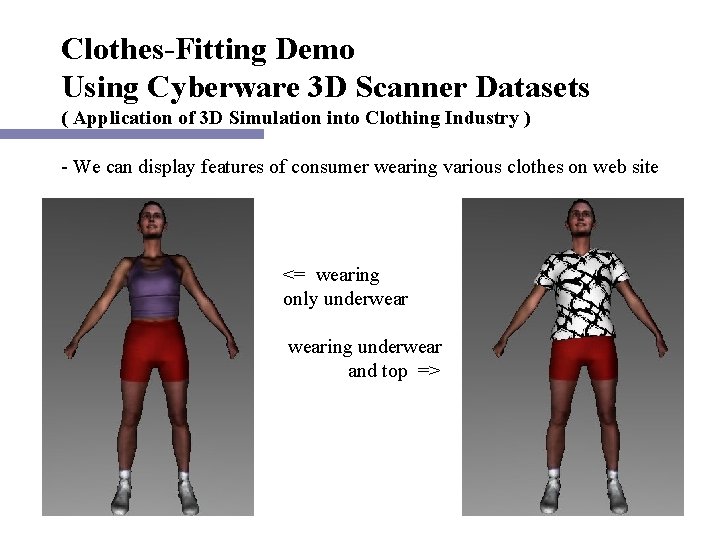

Clothes-Fitting Demo Using Cyberware 3 D Scanner Datasets ( Application of 3 D Simulation into Clothing Industry ) - We can display features of consumer wearing various clothes on web site <= wearing only underwearing underwear and top =>

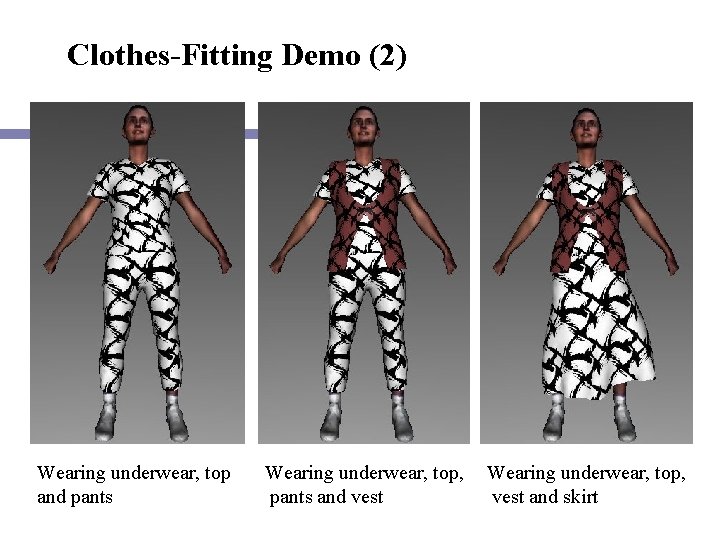

Clothes-Fitting Demo (2) Wearing underwear, top and pants Wearing underwear, top, pants and vest Wearing underwear, top, vest and skirt

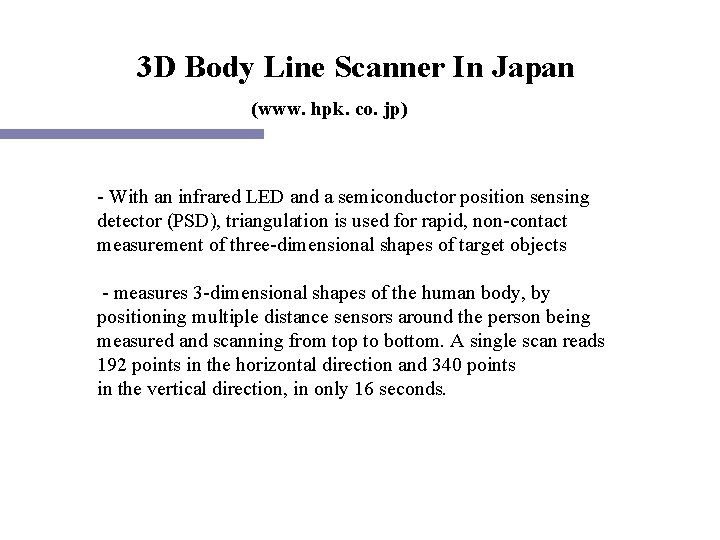

3 D Body Line Scanner In Japan (www. hpk. co. jp) - With an infrared LED and a semiconductor position sensing detector (PSD), triangulation is used for rapid, non-contact measurement of three-dimensional shapes of target objects - measures 3 -dimensional shapes of the human body, by positioning multiple distance sensors around the person being measured and scanning from top to bottom. A single scan reads 192 points in the horizontal direction and 340 points in the vertical direction, in only 16 seconds.

Features - measures 3 -dimensional shapes of the human body in only 16 seconds, and displays it on monitor 1 minutes later - has accuracy within 0. 5% error extent - Scannig volume height : 2 m, thickness : 5 m, width : 9 m - developed sotfware(Body Line Manager, BLM). This software extracts landmarks(42 poins) and measures 53 lists automatically. Also posssible to simulate wearing figures. - possibly apply to clothing, medical, engineering field

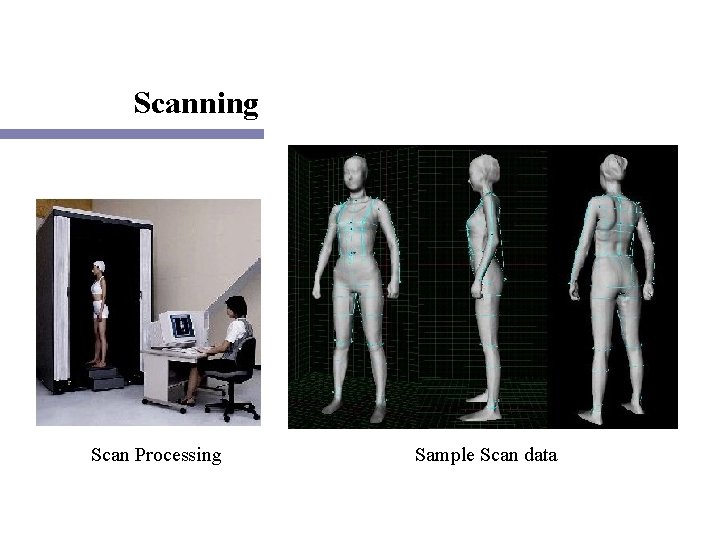

Scanning Scan Processing Sample Scan data

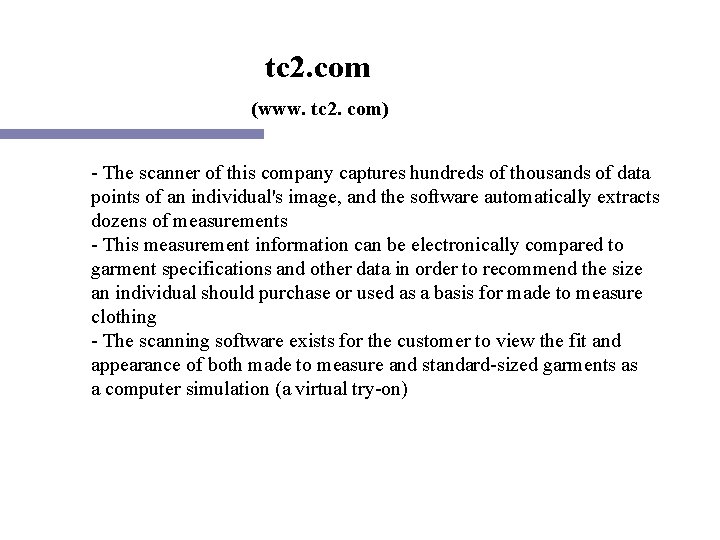

tc 2. com (www. tc 2. com) - The scanner of this company captures hundreds of thousands of data points of an individual's image, and the software automatically extracts dozens of measurements - This measurement information can be electronically compared to garment specifications and other data in order to recommend the size an individual should purchase or used as a basis for made to measure clothing - The scanning software exists for the customer to view the fit and appearance of both made to measure and standard-sized garments as a computer simulation (a virtual try-on)

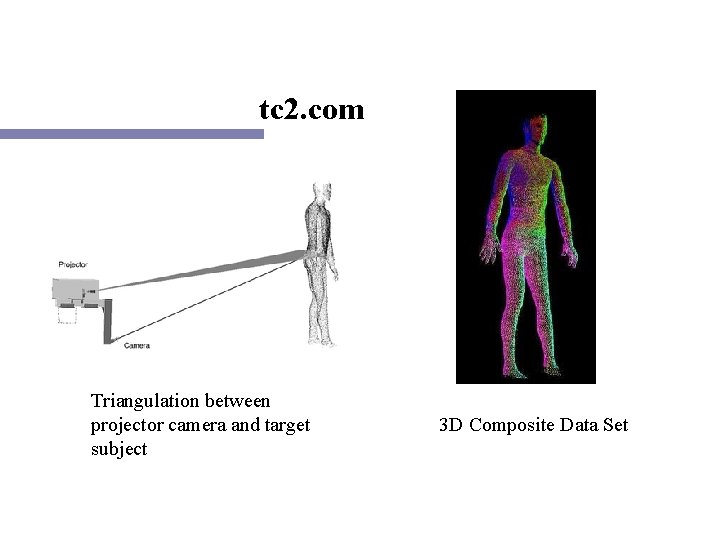

tc 2. com Triangulation between projector camera and target subject 3 D Composite Data Set

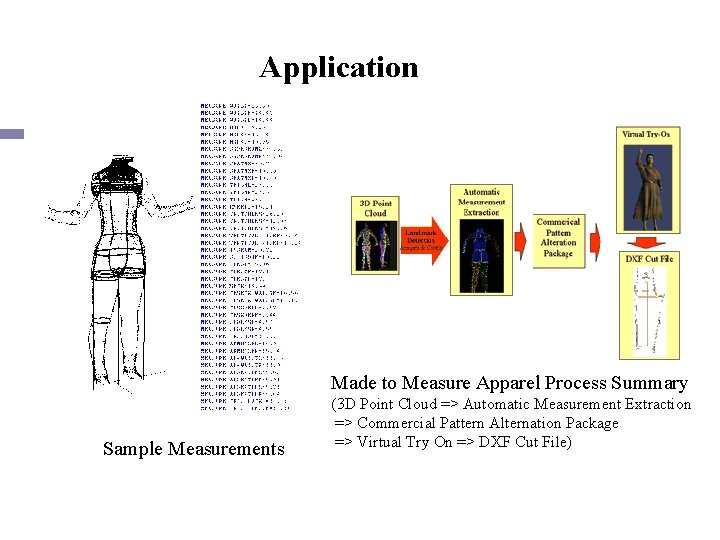

Application Made to Measure Apparel Process Summary Sample Measurements (3 D Point Cloud => Automatic Measurement Extraction => Commercial Pattern Alternation Package => Virtual Try On => DXF Cut File)

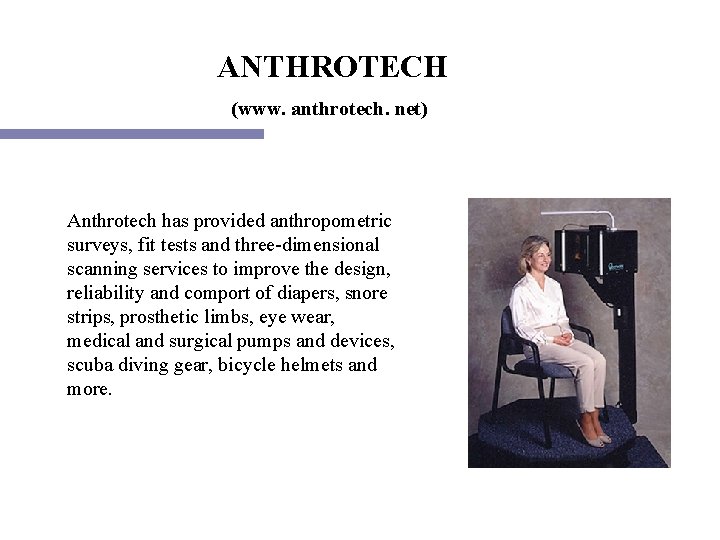

ANTHROTECH (www. anthrotech. net) Anthrotech has provided anthropometric surveys, fit tests and three-dimensional scanning services to improve the design, reliability and comport of diapers, snore strips, prosthetic limbs, eye wear, medical and surgical pumps and devices, scuba diving gear, bicycle helmets and more.

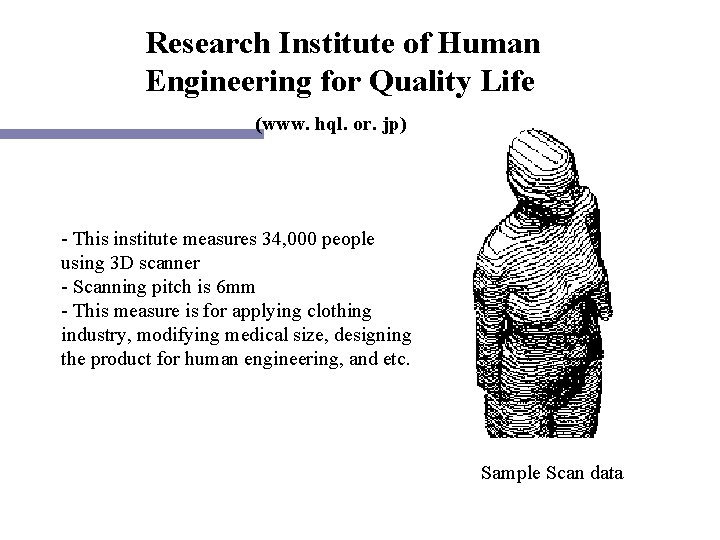

Research Institute of Human Engineering for Quality Life (www. hql. or. jp) - This institute measures 34, 000 people using 3 D scanner - Scanning pitch is 6 mm - This measure is for applying clothing industry, modifying medical size, designing the product for human engineering, and etc. Sample Scan data

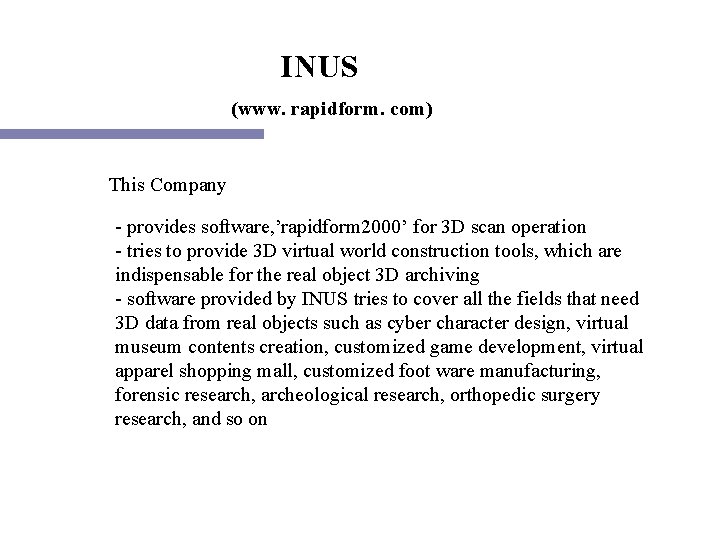

INUS (www. rapidform. com) This Company - provides software, ’rapidform 2000’ for 3 D scan operation - tries to provide 3 D virtual world construction tools, which are indispensable for the real object 3 D archiving - software provided by INUS tries to cover all the fields that need 3 D data from real objects such as cyber character design, virtual museum contents creation, customized game development, virtual apparel shopping mall, customized foot ware manufacturing, forensic research, archeological research, orthopedic surgery research, and so on

Sample Scan data

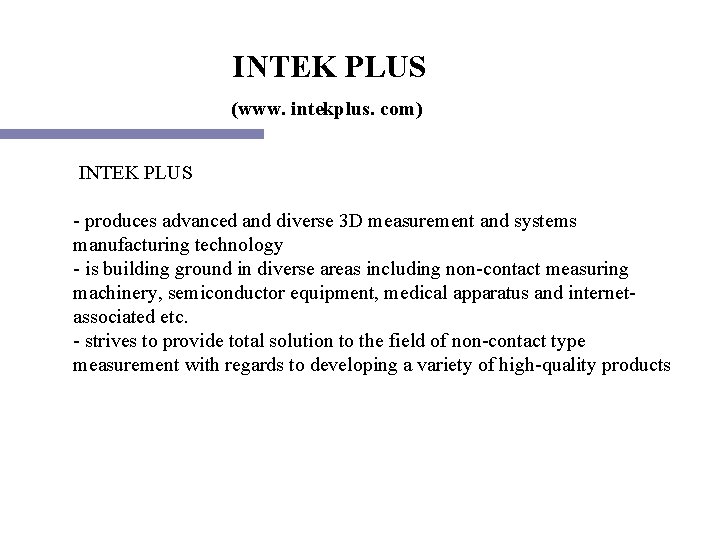

INTEK PLUS (www. intekplus. com) INTEK PLUS - produces advanced and diverse 3 D measurement and systems manufacturing technology - is building ground in diverse areas including non-contact measuring machinery, semiconductor equipment, medical apparatus and internetassociated etc. - strives to provide total solution to the field of non-contact type measurement with regards to developing a variety of high-quality products

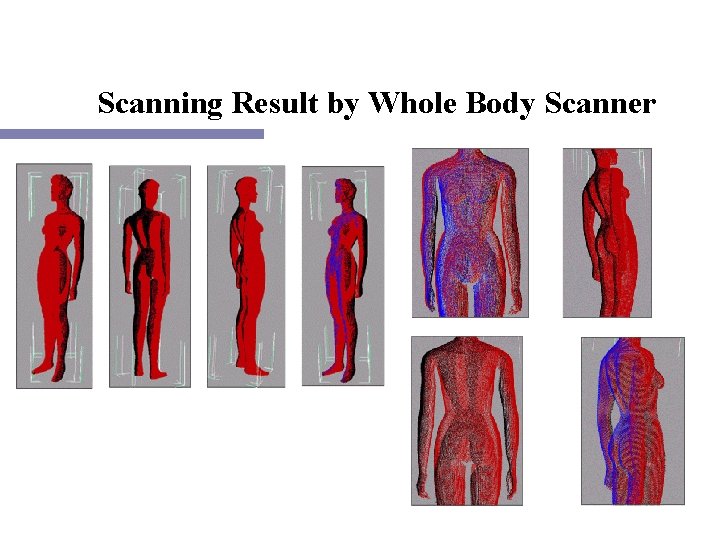

Scanning Result by Whole Body Scanner

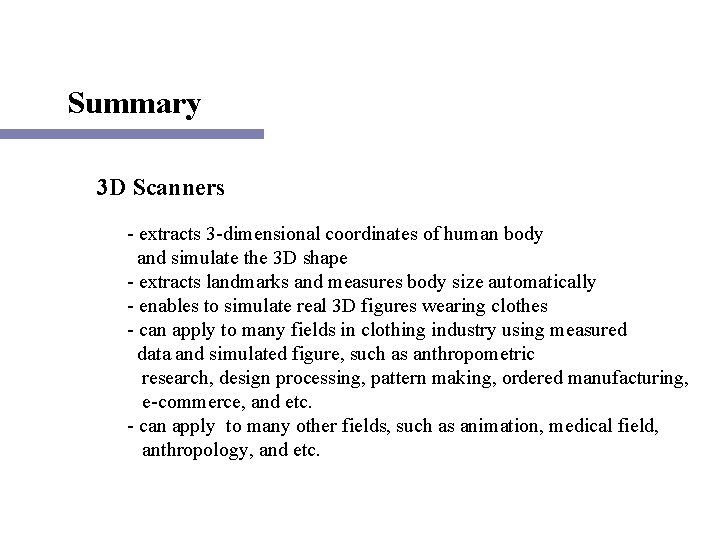

Summary 3 D Scanners - extracts 3 -dimensional coordinates of human body and simulate the 3 D shape - extracts landmarks and measures body size automatically - enables to simulate real 3 D figures wearing clothes - can apply to many fields in clothing industry using measured data and simulated figure, such as anthropometric research, design processing, pattern making, ordered manufacturing, e-commerce, and etc. - can apply to many other fields, such as animation, medical field, anthropology, and etc.
