Who is Trans Tel Incorporated in 1992 Trans

Who is Trans. Tel Incorporated in 1992, Trans. Tel Communications designs, manufactures and distributes Digital Telephone Systems, Automated Attendant and Voice Processing Systems along with other related peripheral devices for the communications industry. Among our United States customers are well known companies and government agencies like the Federal Aviation Administration, Century 21, Remax, and Ace Hardware to name a few. Other applications known to us are in Law Firms, Doctor's Offices, Hair Salons, Hotel/Motels, and many private residences. Our systems are deployed in defense and military installations by various countries throughout the world. Designed with robust architecture, convenience, flexibility and price in mind, Trans. Tel has committed to providing market leading features for the 21 st century. Trans. Tel's new line of Digital Telephone and Voice Mail Systems brings features previously found only in much larger systems to the small business user. We've done it at a price that makes sense in these economic times.

Introducing the Trans. Tel Lynx The Small, Flexible Trans. Tel Lynx is the most powerful phone system in its class. It delivers virtually all of the advanced features expected from a larger system; enabling even the smallest business to access advanced telecommunication tools thus giving a competitive business advantage The Trans. Tel Lynx can be literally be installed out of the box and offer the Customer a flexible and fully featured solution, on top of this the Lynx can then be customized using the full Power of its Advanced Software Engine. The Trans. Tel Lynx Digital telephone system is a state of the art, fully digital solution that has been designed for small business with the ability to grow and change with the needs of any business.

Introducing the Trans. Tel Lynx Pre-configured for your convenience with 3 outside (CO) Lines, 8 Digital Extensions, Full Feature Voice Mail and Fax-DUET as standard. The Trans. Tel Lynx capability can also be further expanded and enhanced by a the addition of various expansion cards which include a 4 x Vo. IP Trunk Card, 8 x Digital expansion card, and a 308 CO Line / Analogue card. The Trans. Tel Lynx sets a new professional communications bench mark for the small business, delivering smart, agile functionality normally associated with larger corporate PBX systems; and combining this intelligence with a solid reliable hardware platform for future growth. All of this delivered in one small box - ready to go! Ideal Solution for customers on standard lines preparing to move onto Vo. IP Lines

Main Digital System

Specifications & Capacity 　Interface Analog CO Line Standard Expansion 3 +3 / 6 max Vo. IP Lines 4 Digital Key Station 8 +8 / 16 Max Analogue Extensions 0 +8 / (+2 future) Auto Attendant, Operator Delay (4 Channels) Voice Mail (4 Channels) Number of Mail Boxes (Assignable) RS 232 Port Battery Backup (Optional) Yes / 2. 5 Hours 8 Yes (4 Hrs +) External MOH (Internal VMU as well) Yes External Paging Yes KSU Dimension- L x W x H (mm) Weight 290 x 230 x 76 1. 2 Kg

Standard Specifications LYNX 8 x System Phones Telecom Network 3 x PSTN Lines External MOH* Voice Mail Call Logging* *Additional Equipment Required

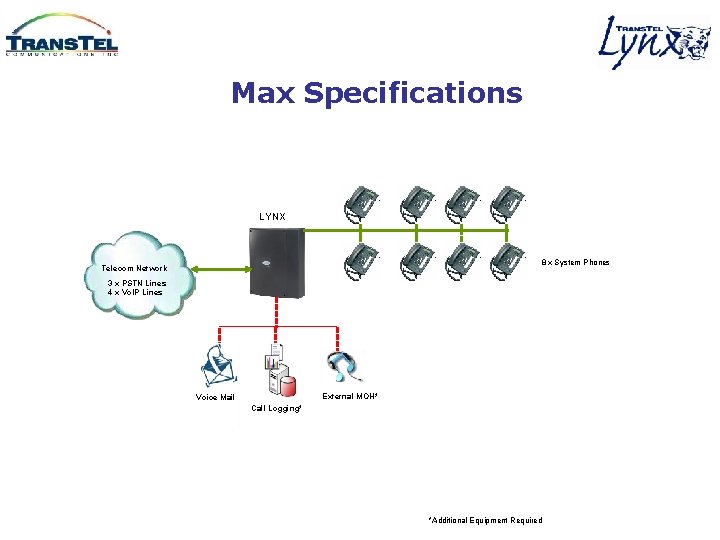

Max Specifications LYNX 8 x System Phones Telecom Network 3 x PSTN Lines 4 x Vo. IP Lines External MOH* Voice Mail Call Logging* *Additional Equipment Required

Max Specifications LYNX 8 x System Phones Telecom Network 3 x PSTN Lines 4 x Vo. IP Lines 8 x System Phones External MOH* Voice Mail Call Logging* *Additional Equipment Required

Max Specifications Future LYNX 8 x System Phones Telecom Network 3 x PSTN Lines 4 x Vo. IP Lines 2 x Analogue Ports External MOH* Voice Mail Call Logging* *Additional Equipment Required

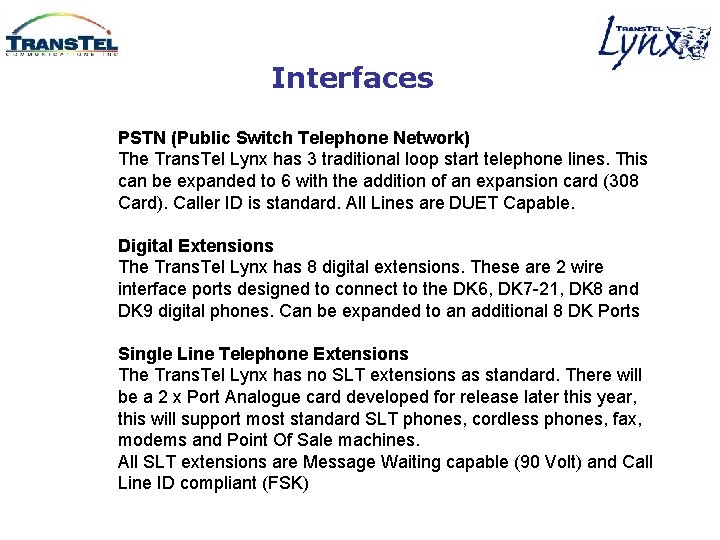

Interfaces PSTN (Public Switch Telephone Network) The Trans. Tel Lynx has 3 traditional loop start telephone lines. This can be expanded to 6 with the addition of an expansion card (308 Card). Caller ID is standard. All Lines are DUET Capable. Digital Extensions The Trans. Tel Lynx has 8 digital extensions. These are 2 wire interface ports designed to connect to the DK 6, DK 7 -21, DK 8 and DK 9 digital phones. Can be expanded to an additional 8 DK Ports Single Line Telephone Extensions The Trans. Tel Lynx has no SLT extensions as standard. There will be a 2 x Port Analogue card developed for release later this year, this will support most standard SLT phones, cordless phones, fax, modems and Point Of Sale machines. All SLT extensions are Message Waiting capable (90 Volt) and Call Line ID compliant (FSK)

Interfaces RS 232 Port The Trans. Tel Lynx has an RS 232 port on the main board as standard. This can be used for call accounting and software upgrades to the system. External Music on Hold Port A 3. 5 mm Din plug is available for providing the system with an external music source. Standard on the system. Relay, Sensor and Paging Port The Trans. Tel Lynx comes complete with relay, sensor and paging port for connection to External Paging Systems. Standard on the system. Battery Backup Input The Trans. Tel Lynx has an external battery port, this allows the connection and charging of an external battery pack for power fail situations. Interface is standard. Batteries are optional.

Main Digital System Hardware

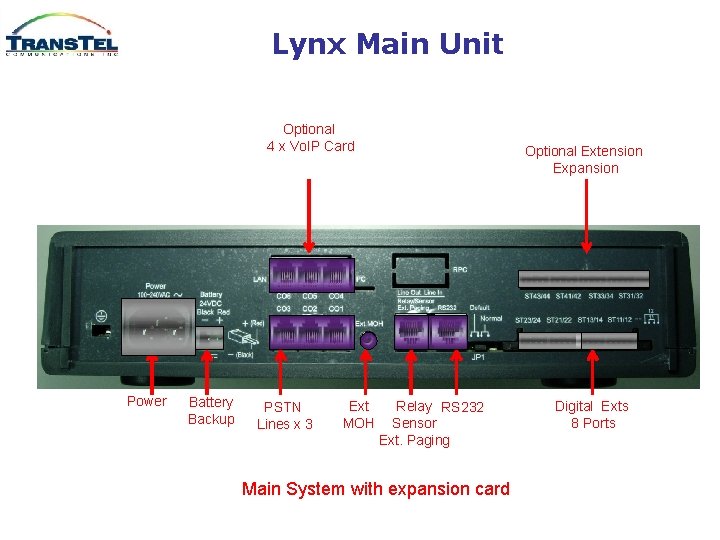

Lynx Main Unit Optional 4 x Vo. IP Card Power Battery Backup PSTN Lines x 3 Ext MOH Optional Extension Expansion Relay RS 232 Sensor Ext. Paging Main System with expansion card Digital Exts 8 Ports

DK 7 -21 Phone Hands Free Digital Phone

DK 7 -21 Phone Hands Free Digital Phone

DK 7 -21 Phone Hands Free Digital Phone Key points • 2 Line display • 8 handset volume levels • 8 speaker volume levels • 8 ringer frequencies • Gradual Ringing • Hands free Speech - Trunk and Intercom • Auto Answer options • 10 Programmable keys • Software Phone Control (Speaker, Mic, Handset etc) • Headset Capable (through Handset Port)

Compatible Phones

Software Engine

As Easy As Plug and Play The Transtel LYNX system has be setup with a program default to enable you to plug it in, turn it on and then use the system with little or no programming changes. This Transtel LYNX has been programmed for the most common needs, the customer can set features as per the User Guides and program the system commands described in this Manual.

Easy Out Of Box Plug and Play. The LYNX system is set up for plug and play right out of the box. Outside lines are assigned and set up on the phones as well as intercom numbers and commonly used features. Below are some of the programmed features. Numbering Scheme • Dial 9 for outside line • Dial 0 for Operator Position • Extensions: 11 – 18 with standard System, with expansion card 19 – 26 will be added • Virtual Extensions 41 and 42 can be used as Voice Mail Answer points I. e Day / Night Mode • Dial 89 to Record Main System Greetings (From Console, Ext 11) • Dial 86 for Extension Voice Mail Ringing Assignments • Extension 11 will ring on all incoming calls in Day Mode • Extension 11, 12, 13, 14 will ring on all incoming calls in Night Mode

Easy Out Of Box Plug and Play. General Setup • • • Extensions 11, 12, 13, 14 and virtual extensions 41 and 42 have Voice Mail assigned Single Line Telephone Hook Switch Time on System set to 600 ms Centrex / Gateway Flash Time set to 80 ms Music On Hold will use internal music source (Voice Mail Card) System Enabled for Clear Forward On Outside Lines (Loop open disconnect) Hot Keys enabled on System Phones Toll COS 0 Allows all calls Toll COS 1 setup to Bar Toll calls but allow 1800 Toll COS 2 setup to Restrict International Call

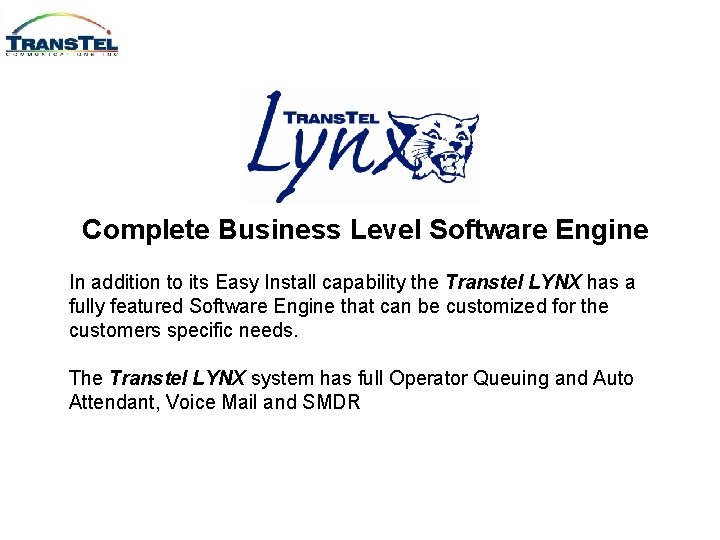

Complete Business Level Software Engine In addition to its Easy Install capability the Transtel LYNX has a fully featured Software Engine that can be customized for the customers specific needs. The Transtel LYNX system has full Operator Queuing and Auto Attendant, Voice Mail and SMDR

Software Specifications The Lynx has a fully featured Office Based software engine, feature lists include: • Auto Attendant (Standard) Standard 4 ports to answer incoming 4 calls simultaneously. Options 1 -5 and dial directly to extensions on Day Mode / Night Mode and Lunch Mode • Ringing Assignments The Lynx has 3 Modes of Operation for ringing assignments, Day Mode, Lunch Mode and Night Mode. AA can answer immediate or after delay in all modes. • Delay Operator delay announcement is available using the voice card for incoming calls to the operator queue. Two messages are available, the first of which is used to say that the operator is busy. A second optional message can be used if the operator is still unavailable and the customer wants to indicate this to the outside caller • Announcement Message All Auto Attendant, Delay Operator and Wakeup calls have 60 seconds record time standard.

Software Specifications Named Trunk Lines Each CO line on the Lynx can be named with up to 8 characters, you can also program different ringing tones per line. This facility is ideal for a customer who wishes to be able to identify different lines. Named Extensions Each extension can be named with up to 11 characters, which is ideal for knowing who is calling you. Name Speed Dial Each speed dial number can be named with up to 11 digits to make administration easier. Speed dials can be integrated with Caller ID to display customer name. Search By Name / Dial By Name A key can be set-up on the system phone to search for names on either the extensions or speed dials. This name, once found, can be dialed by simply pressing the speaker key. Name DDI Number Each DDI number can be named for incoming calls so user can see what number / company was dialed.

Software Specifications • Intrusion The Lynx has eight levels of intrusion so that different people can interrupt other phones conversations, i. e. A secretary can intrude on her boss phone call to inform him of an urgent call. • Monitor The Lynx has eight levels of monitor; monitor operates like a silent intrusion except neither party on the call will hear or be aware of the third party using the Monitor facility. . • Whisper Mode The Lynx has Whisper Mode feature, an internal extension call another extension (Digital Phone) that is talking to an external party, the internal extension dials post digit 1, a warning tone is sounded to both the called parties, the internal extension can then talk to the internal party, the external party will not hear the person in Whisper Mode.

Software Specifications • • • • LCR Muti-Language LCD display set per extension Caller ID - PSTN / Pass through to Extensions CLI name display instead of CLI number for PSTN (Digital Phones) CLI transmitted to SLT extensions Security functionality (ACP Phones) 90 Volt Message Waiting DUET Detect on all CO Lines Trunk to Trunk Transfer Day / Night / Lunch Mode Ring Assignments Battery Backup Option (Up to 4 hours +) Call Accounting output Busy Tone Detect / Polarity Detect on Trunk line System software upgrade by computer. No Chip Swap. FLASH Memory for System Data storage (no Battery to replace)

Sales Opportunity

Selling the Lynx The Lynx is a basic 308 system • Lynx Main KSU configured : – 3 CO Lines – 8 Digital Ports – 4 Port Voice Mail /AA etc – RS 232 – External Music Port – Paging Port – External Relay • • Add Vo. IP now or later Easy setup for Vo. IP, install with CO lines and then when sorted setup Vo. IP lines and Port when ready Unbelievable Value and Features •

Thank you ！
