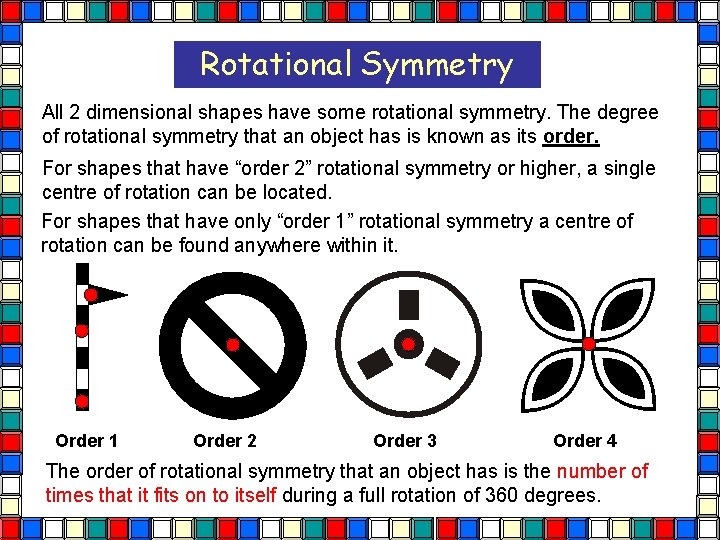

Rotational Symmetry All 2 dimensional shapes have some rotational symmetry. The degree of rotational symmetry that an object has is known as its order. For shapes that have “order 2” rotational symmetry or higher, a single centre of rotation can be located. For shapes that have only “order 1” rotational symmetry a centre of rotation can be found anywhere within it. Order 1 Order 2 Order 3 Order 4 The order of rotational symmetry that an object has is the number of times that it fits on to itself during a full rotation of 360 degrees.

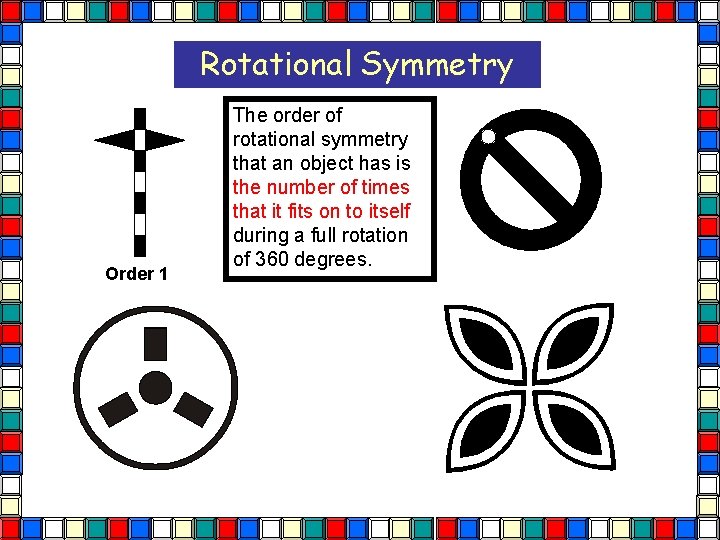

Rotational Symmetry Order 1 The order of rotational symmetry that an object has is the number of times that it fits on to itself during a full rotation of 360 degrees.

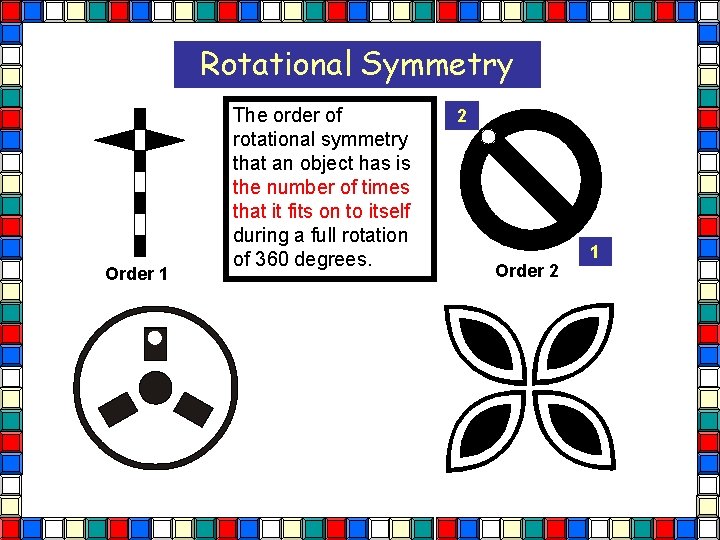

Rotational Symmetry Order 1 The order of rotational symmetry that an object has is the number of times that it fits on to itself during a full rotation of 360 degrees. 2 Order 2 1

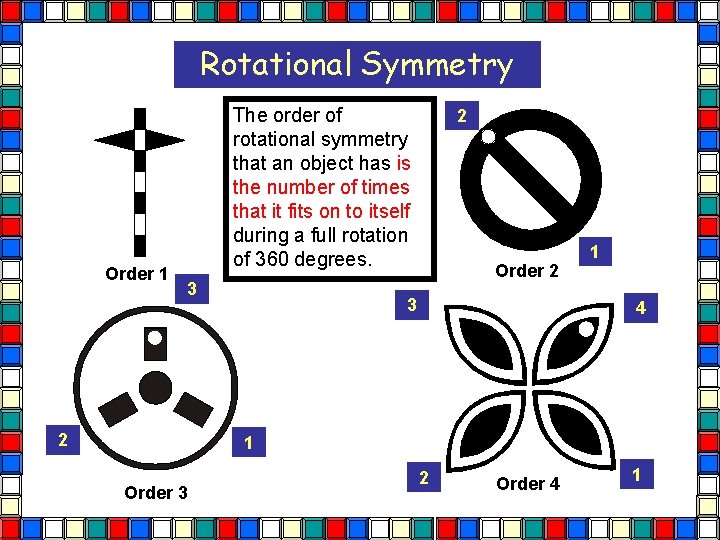

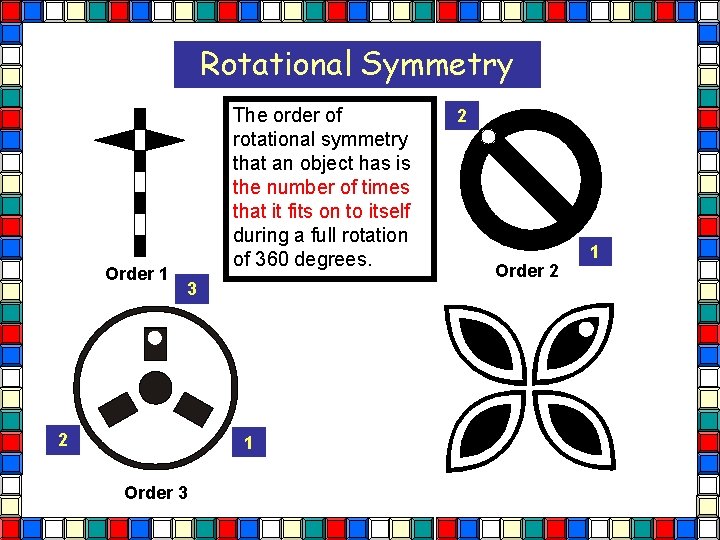

Rotational Symmetry Order 1 The order of rotational symmetry that an object has is the number of times that it fits on to itself during a full rotation of 360 degrees. 3 2 1 Order 3 2 Order 2 1

Rotational Symmetry Order 1 The order of rotational symmetry that an object has is the number of times that it fits on to itself during a full rotation of 360 degrees. 3 2 2 Order 2 3 1 4 1 Order 3 2 Order 4 1

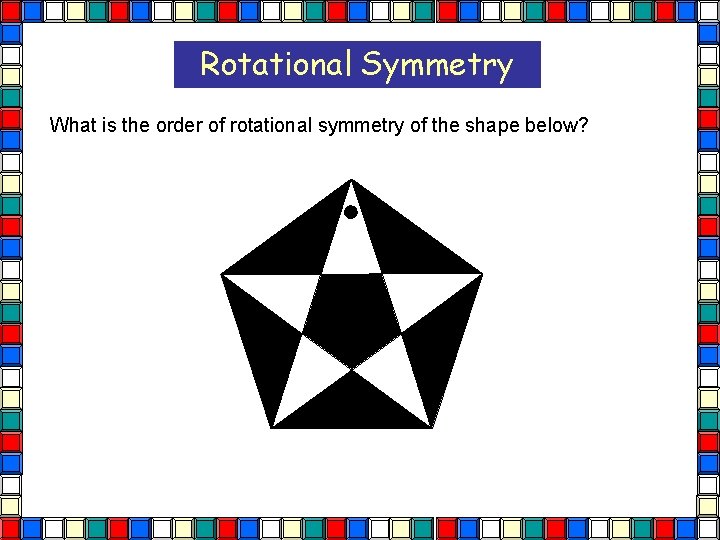

Rotational Symmetry What is the order of rotational symmetry of the shape below?

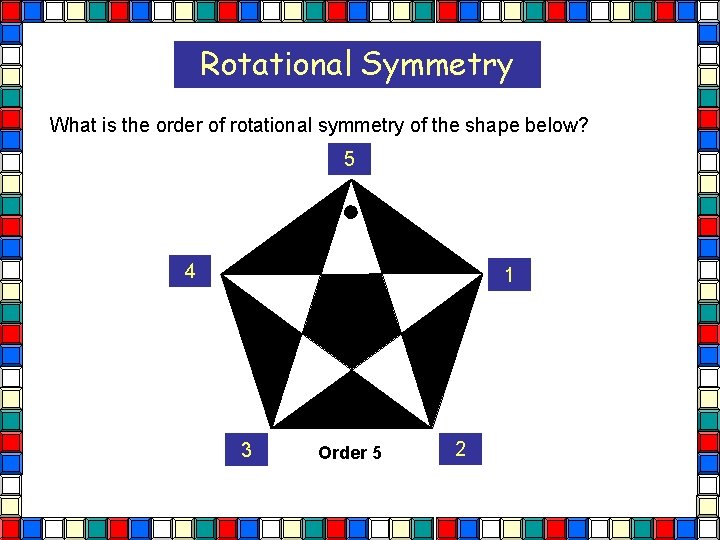

Rotational Symmetry What is the order of rotational symmetry of the shape below? 5 4 1 3 Order 5 2

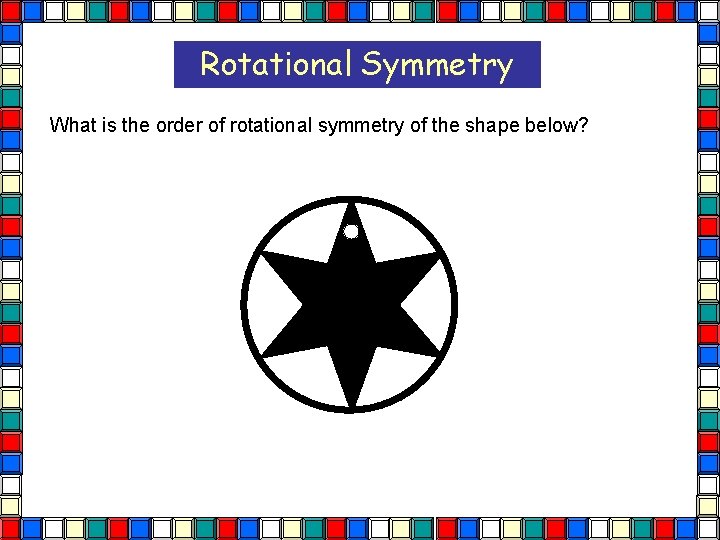

Rotational Symmetry What is the order of rotational symmetry of the shape below?

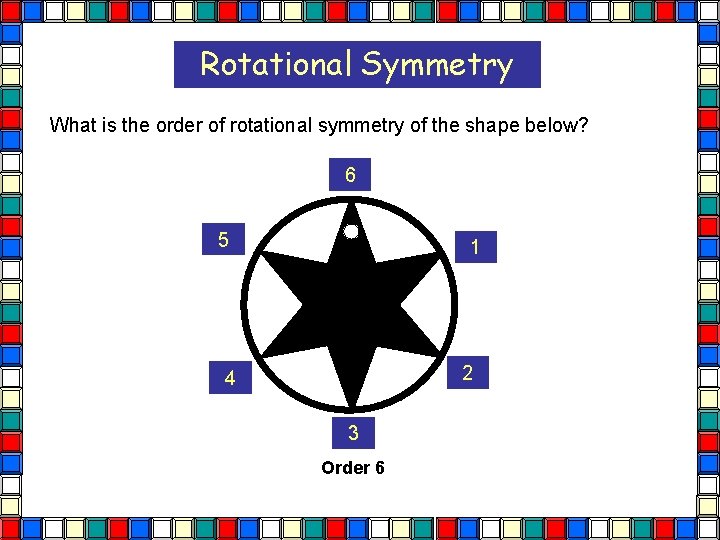

Rotational Symmetry What is the order of rotational symmetry of the shape below? 6 5 1 2 4 3 Order 6

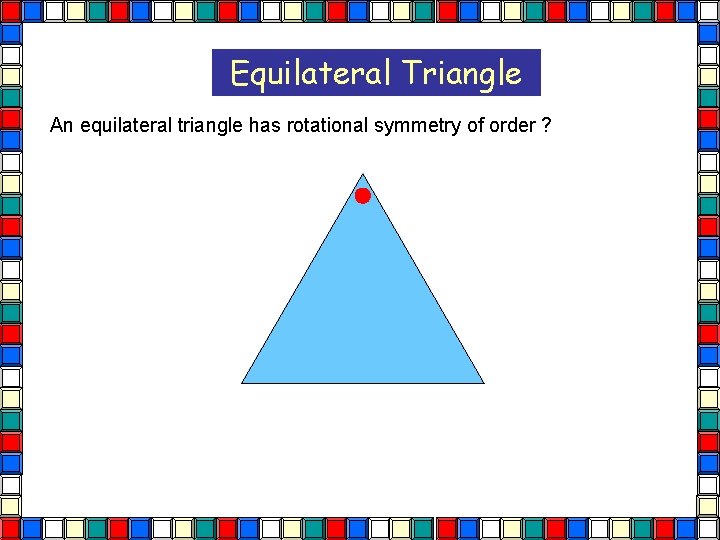

Equilateral Triangle An equilateral triangle has rotational symmetry of order ? Regular Polygons

Equilateral Triangle An equilateral triangle has rotational symmetry of order ?

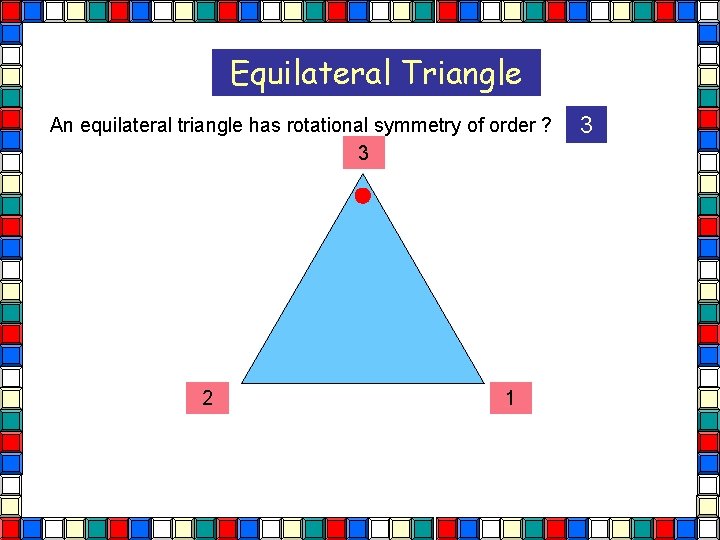

Equilateral Triangle An equilateral triangle has rotational symmetry of order ? 3 2 1 3

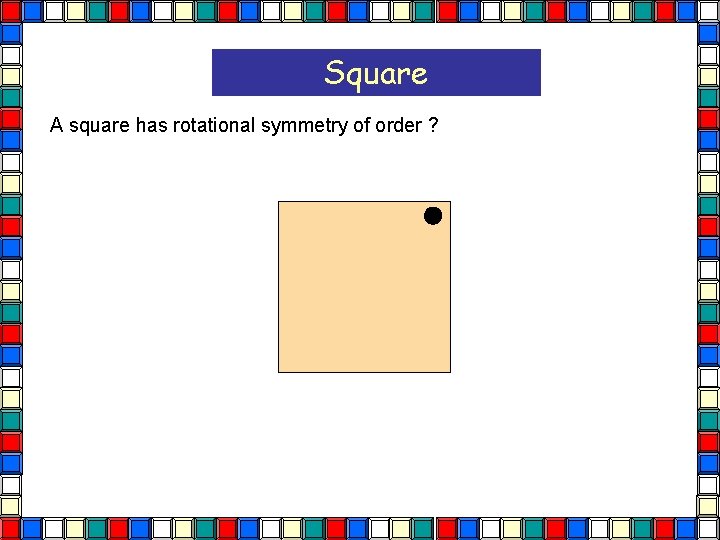

Square A square has rotational symmetry of order ? Square

Square A square has rotational symmetry of order ?

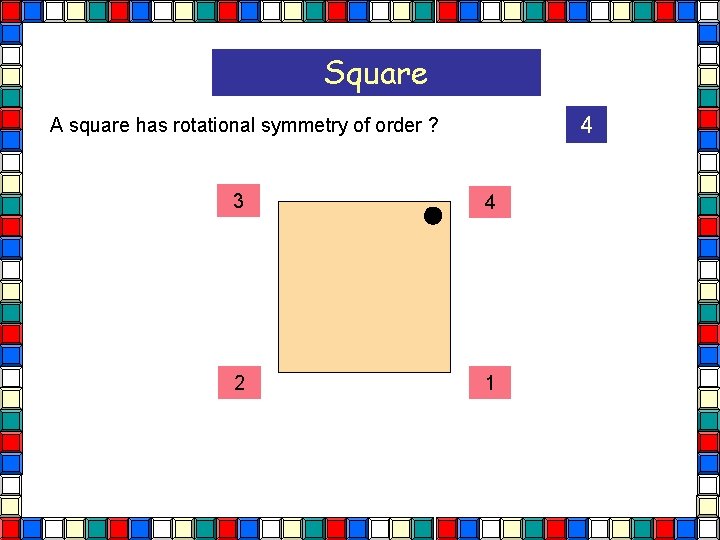

Square 4 A square has rotational symmetry of order ? 3 4 2 1

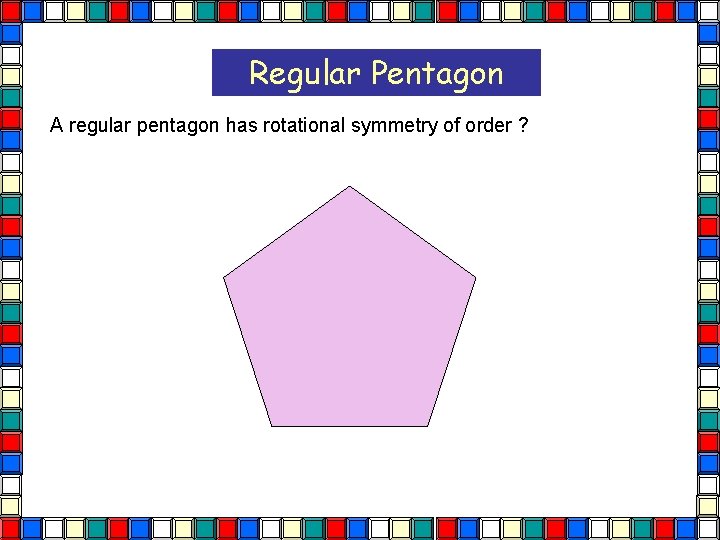

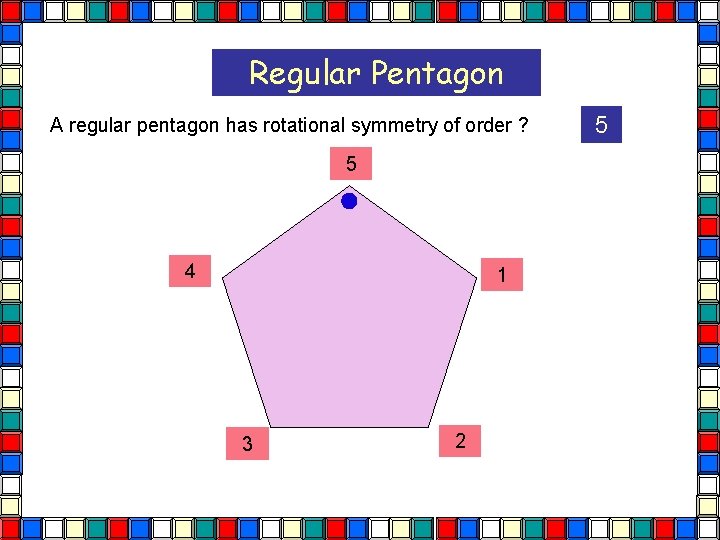

Regular Pentagon A regular pentagon has rotational symmetry of order ? Pentagon

Regular Pentagon A regular pentagon has rotational symmetry of order ?

Regular Pentagon A regular pentagon has rotational symmetry of order ? 5 4 1 3 2 5

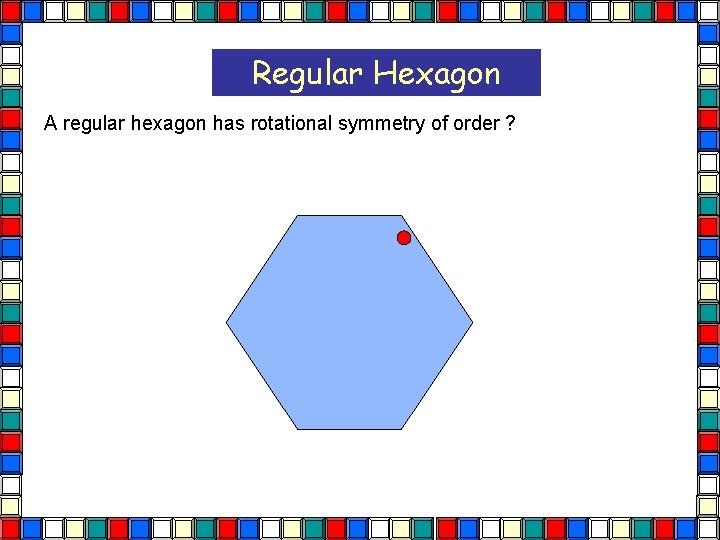

Regular Hexagon A regular hexagon has rotational symmetry of order ? Hexagon

Regular Hexagon A regular hexagon has rotational symmetry of order ?

Regular Hexagon A regular hexagon has rotational symmetry of order ? 5 6 1 4 3 2 6

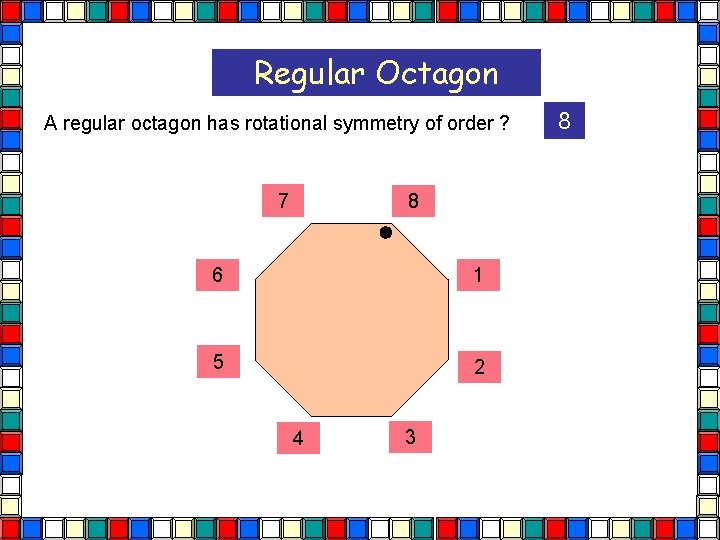

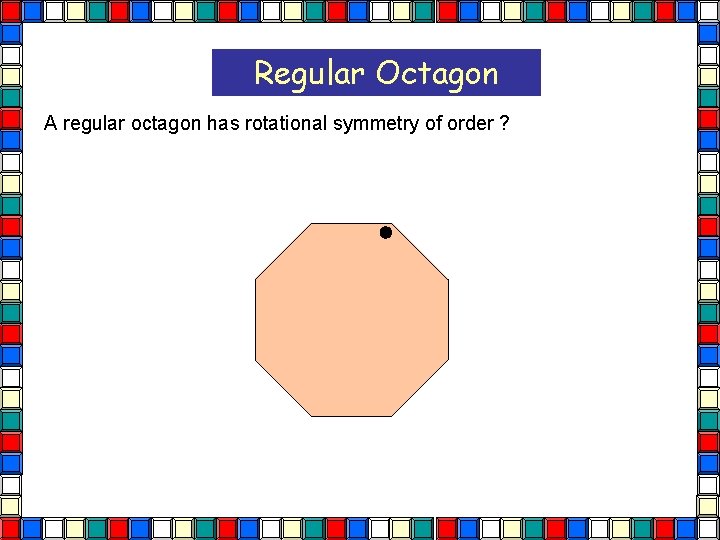

Regular Octagon A regular octagon has rotational symmetry of order ? Octagon

Regular Octagon A regular octagon has rotational symmetry of order ? 7 8 6 1 5 2 4 3 8

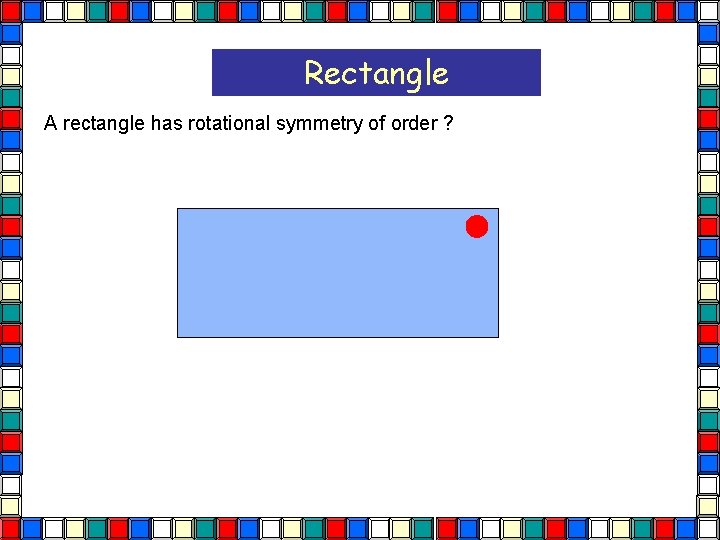

Rectangle A rectangle has rotational symmetry of order ? Rectangle

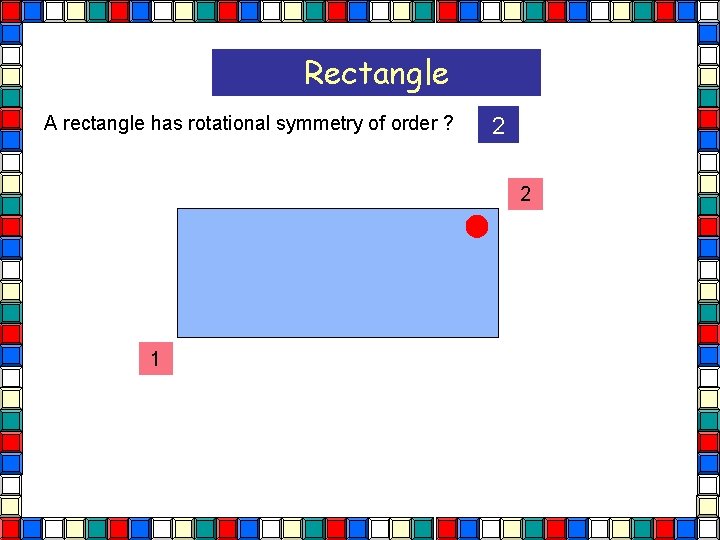

Rectangle A rectangle has rotational symmetry of order ? 2 2 1

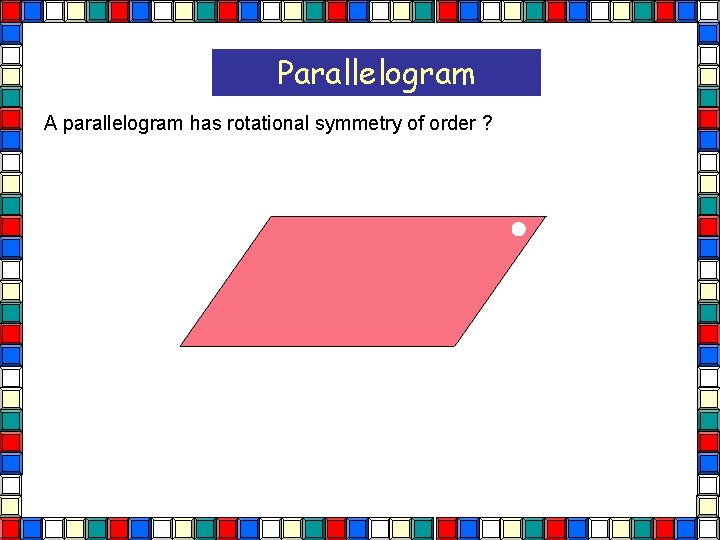

Parallelogram A parallelogram has rotational symmetry of order ? Parallelogram

Parallelogram A parallelogram has rotational symmetry of order ? 2 2 1

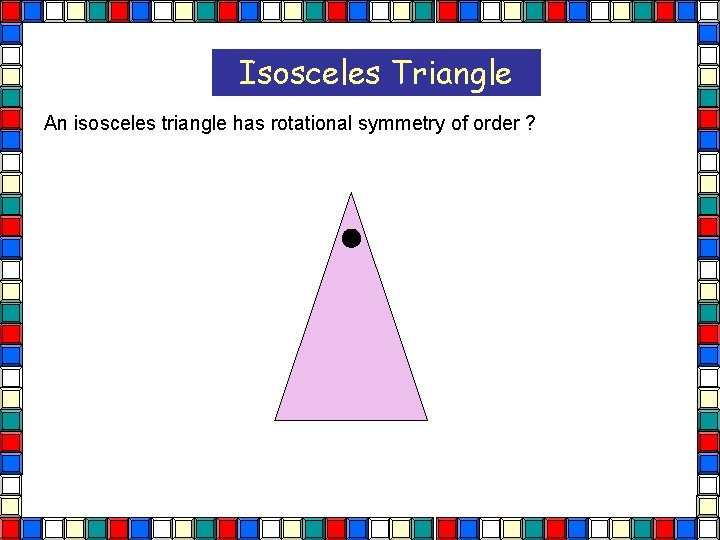

Isosceles Triangle An isosceles triangle has rotational symmetry of order ? Isos Tri

Isosceles Triangle An isosceles triangle has rotational symmetry of order ? 1 Isos Tri 1

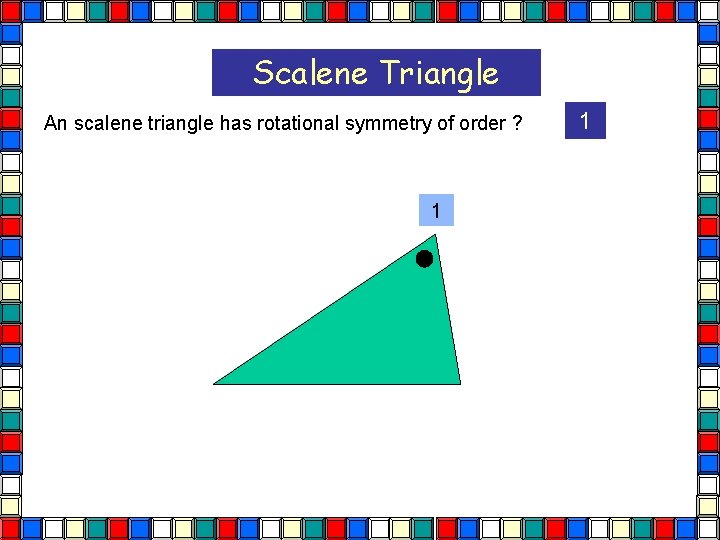

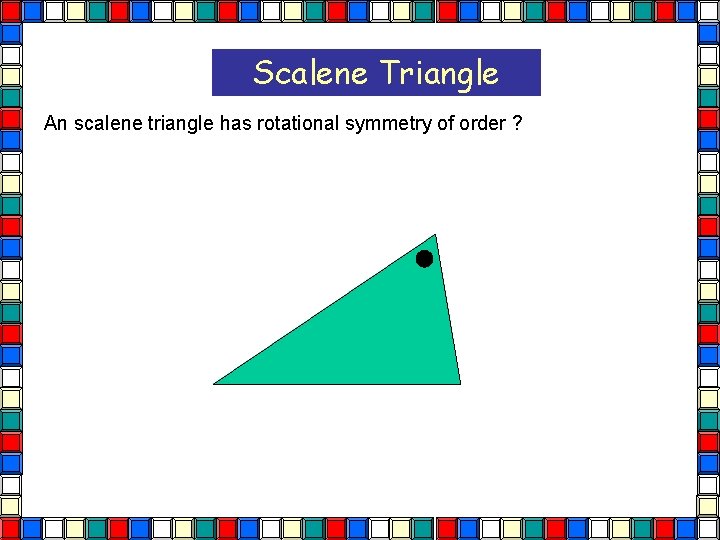

Scalene Triangle An scalene triangle has rotational symmetry of order ? Scalene Tri

Scalene Triangle An scalene triangle has rotational symmetry of order ? 1 1

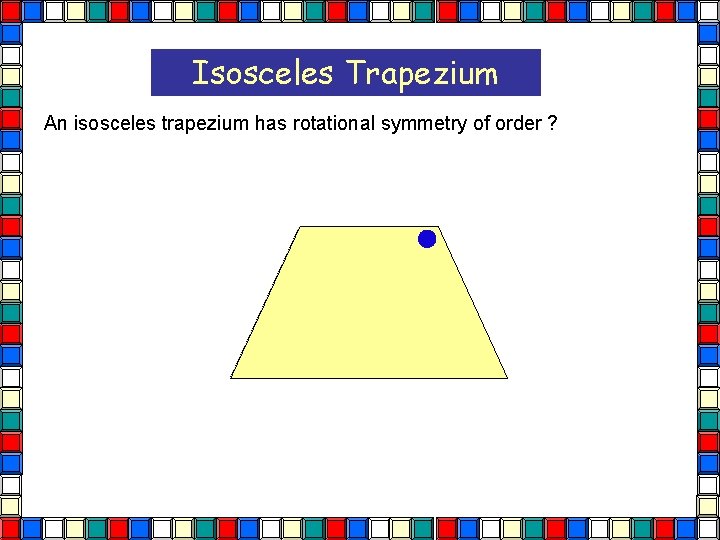

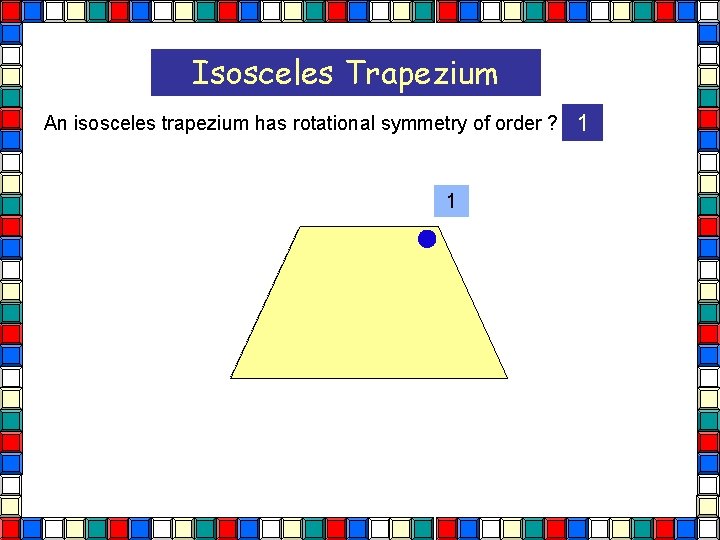

Isosceles Trapezium An isosceles trapezium has rotational symmetry of order ? Isos Trapezium

Isosceles Trapezium An isosceles trapezium has rotational symmetry of order ? 1 1

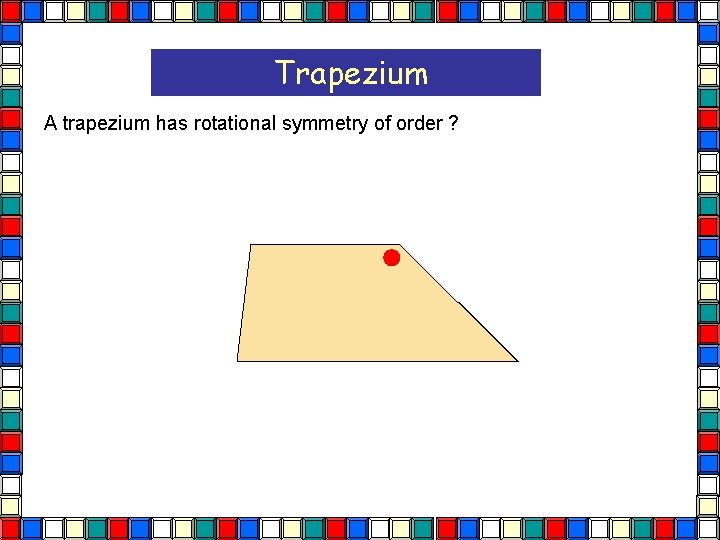

Trapezium A trapezium has rotational symmetry of order ? Trapezium

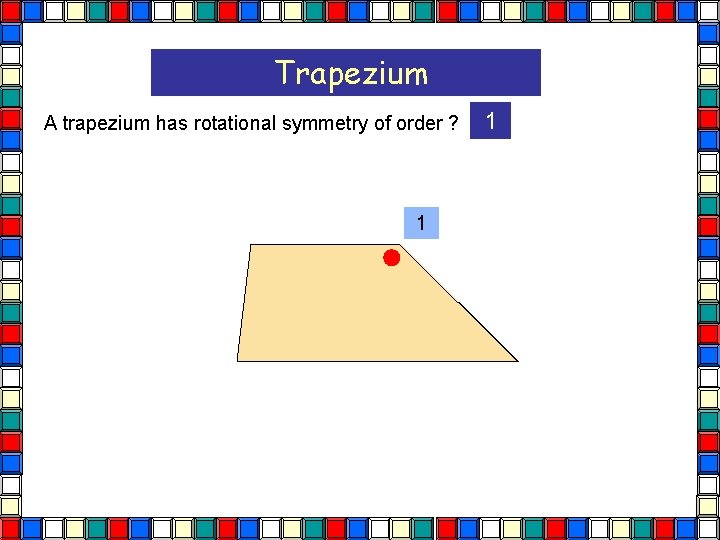

Trapezium A trapezium has rotational symmetry of order ? 1 1

Kite A kite has rotational symmetry of order ? Kite

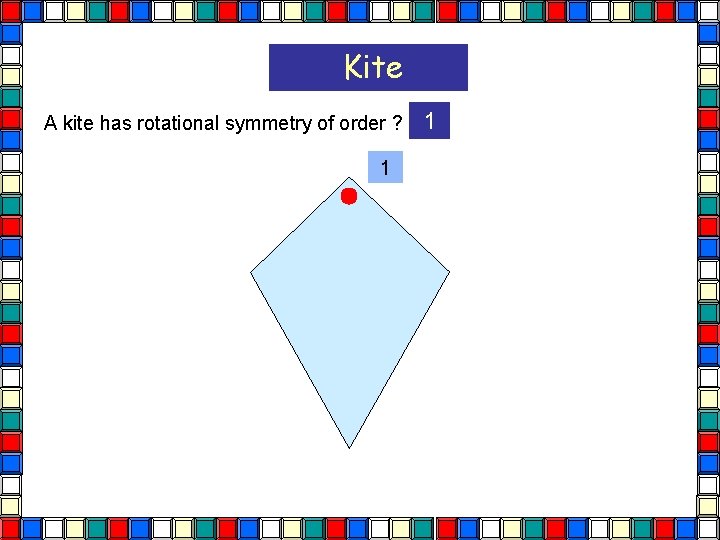

Kite A kite has rotational symmetry of order ? 1 1

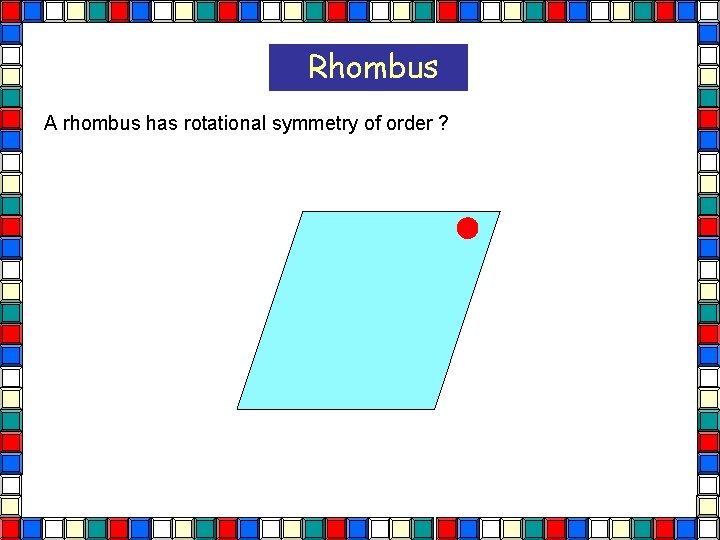

Rhombus A rhombus has rotational symmetry of order ? Rhombus

Rhombus A rhombus has rotational symmetry of order ? 2 2 1

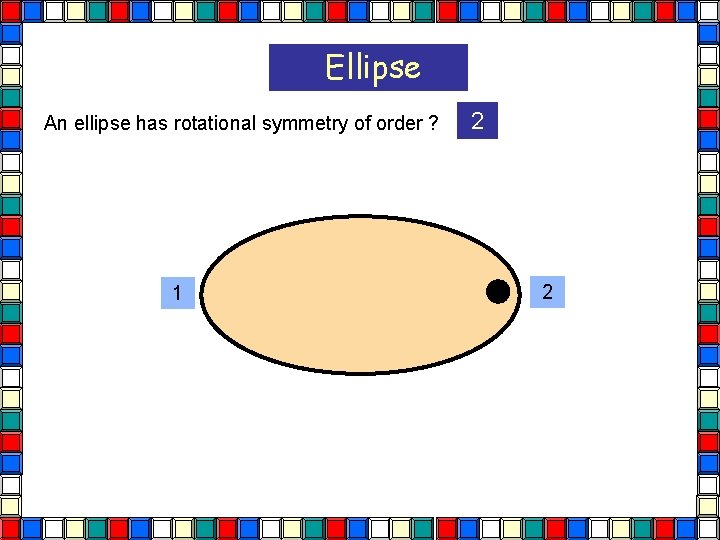

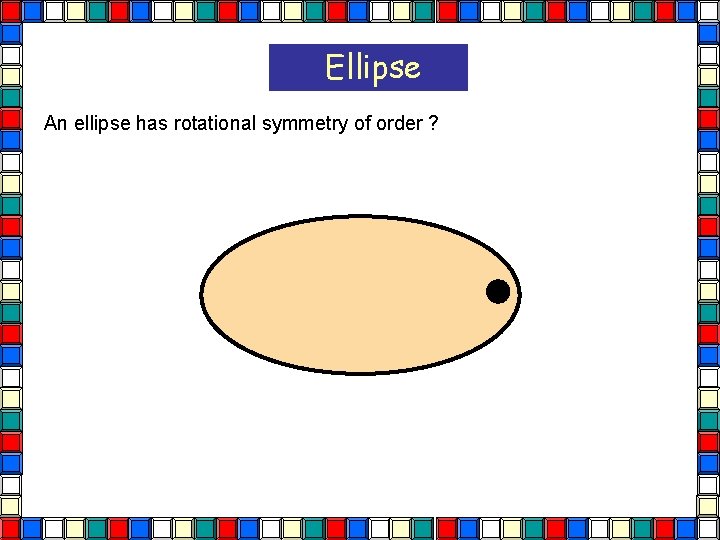

Ellipse An ellipse has rotational symmetry of order ? Ellipse

Ellipse An ellipse has rotational symmetry of order ? 1 Ellipse 2 2

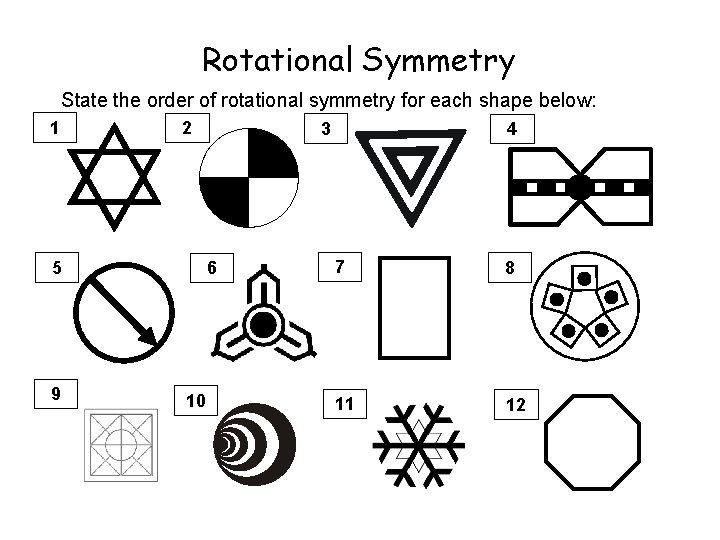

Rotational Symmetry State the order of rotational symmetry for each shape below: 1 2 3 Order 6 7 6 10 Questions 1 Order 4 Order 1 8 Order 5 Order 2 Order 3 Order 1 Order 2 Order 3 Order 2 5 9 4 11 12 Order 6 Order 8

Rotational Symmetry State the order of rotational symmetry for each shape below: 1 2 5 9 3 6 10 Worksheet 1 4 7 8 11 12

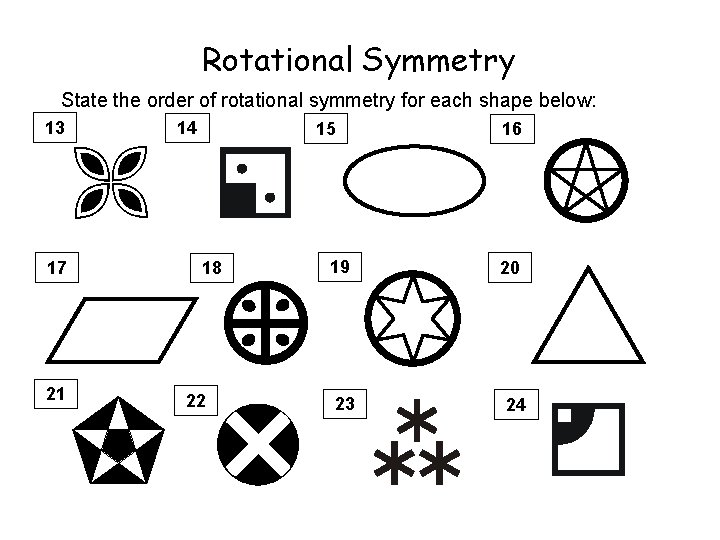

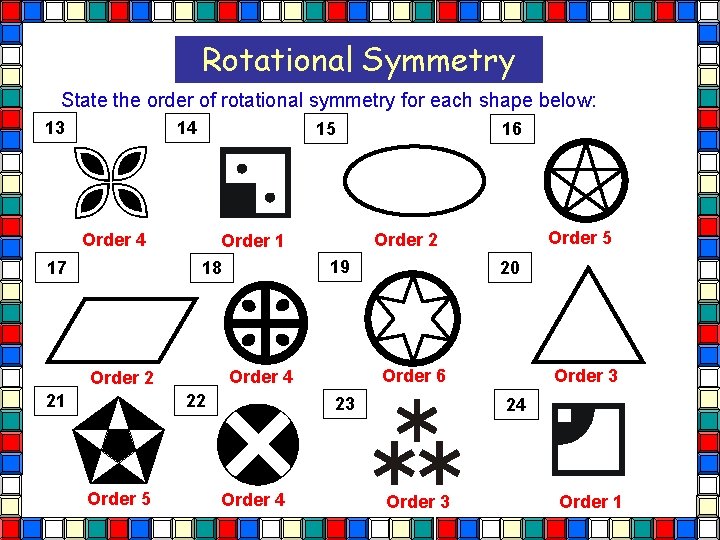

Rotational Symmetry State the order of rotational symmetry for each shape below: 13 14 Order 4 17 15 Order 1 18 21 22 Questions 2 Order 5 Order 4 Order 5 Order 2 19 20 Order 3 Order 6 Order 4 Order 2 16 23 24 Order 3 Order 1

Rotational Symmetry State the order of rotational symmetry for each shape below: 13 17 21 14 15 18 22 Worksheet 2 19 23 16 20 24
