White Box Basics Part 3 Complexity 1 HOMEWORK

White Box Basics – Part 3 Complexity – 1 HOMEWORK (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

COMPLEXITY – Basics What did we learn so far ? We found out about Edges – Kanten Nodes – Knoten Cyclomatic Complexity – Zyklomatische Zahl (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

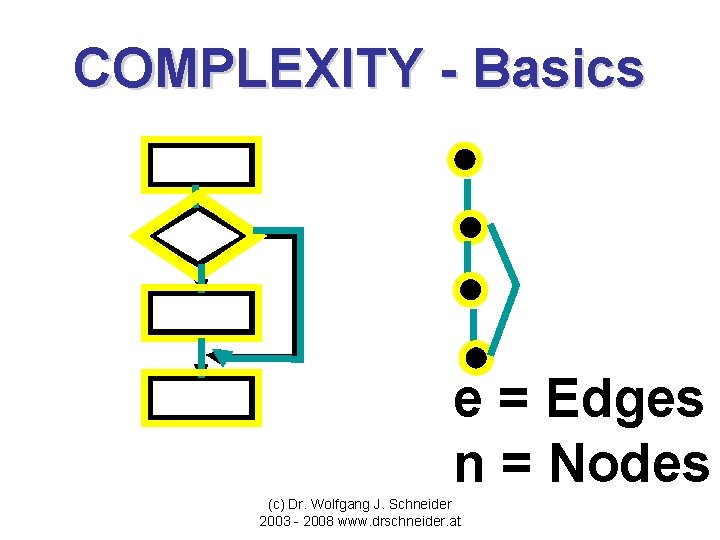

COMPLEXITY - Basics e = Edges n = Nodes (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

COMPLEXITY - Basics Cyclomatic Complexity Zyklomatische Zahl e–n+2 (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

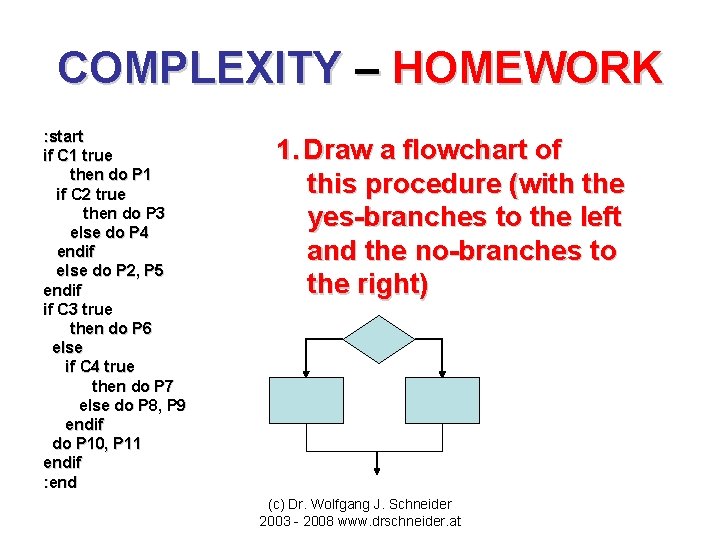

COMPLEXITY – HOMEWORK : start if C 1 true then do P 1 if C 2 true then do P 3 else do P 4 endif else do P 2, P 5 endif if C 3 true then do P 6 else if C 4 true then do P 7 else do P 8, P 9 endif do P 10, P 11 endif : end 1. Draw a flowchart of this procedure (with the yes-branches to the left and the no-branches to the right) (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

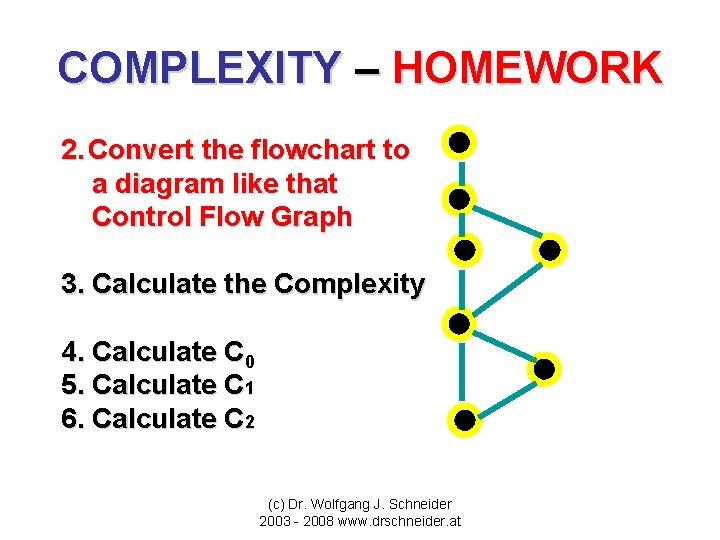

COMPLEXITY – HOMEWORK 2. Convert the flowchart to a diagram like that Control Flow Graph 3. Calculate the Complexity 4. Calculate C 0 5. Calculate C 1 6. Calculate C 2 (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

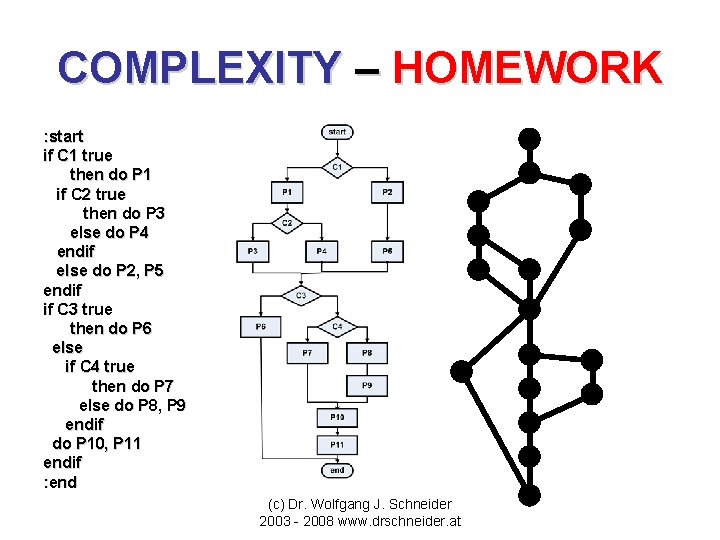

COMPLEXITY – HOMEWORK : start if C 1 true then do P 1 if C 2 true then do P 3 else do P 4 endif else do P 2, P 5 endif if C 3 true then do P 6 else if C 4 true then do P 7 else do P 8, P 9 endif do P 10, P 11 endif : end (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

COMPLEXITY – HOMEWORK Calculate the Complexity (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

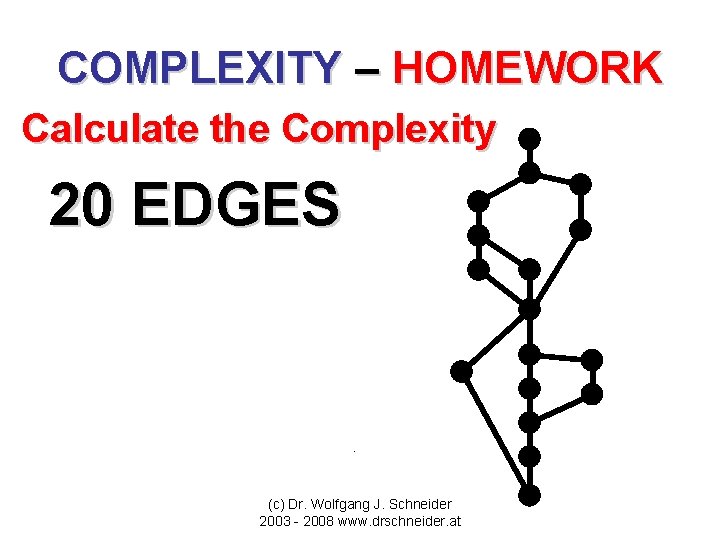

COMPLEXITY – HOMEWORK Calculate the Complexity 20 EDGES (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

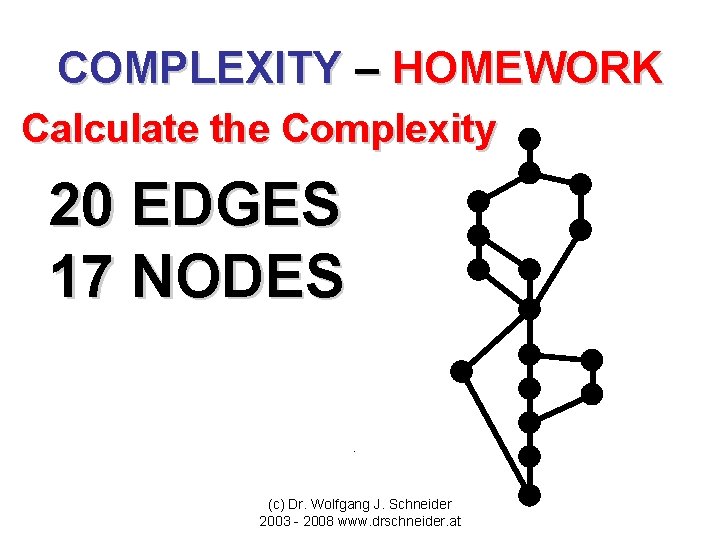

COMPLEXITY – HOMEWORK Calculate the Complexity 20 EDGES 17 NODES (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

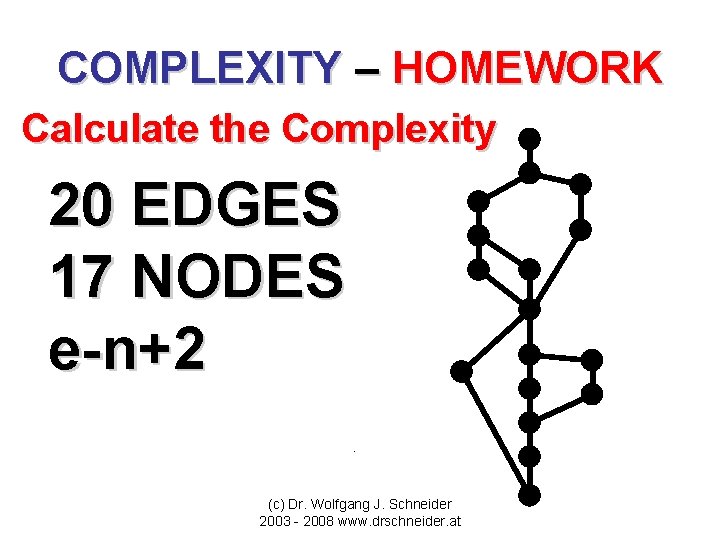

COMPLEXITY – HOMEWORK Calculate the Complexity 20 EDGES 17 NODES e-n+2 (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

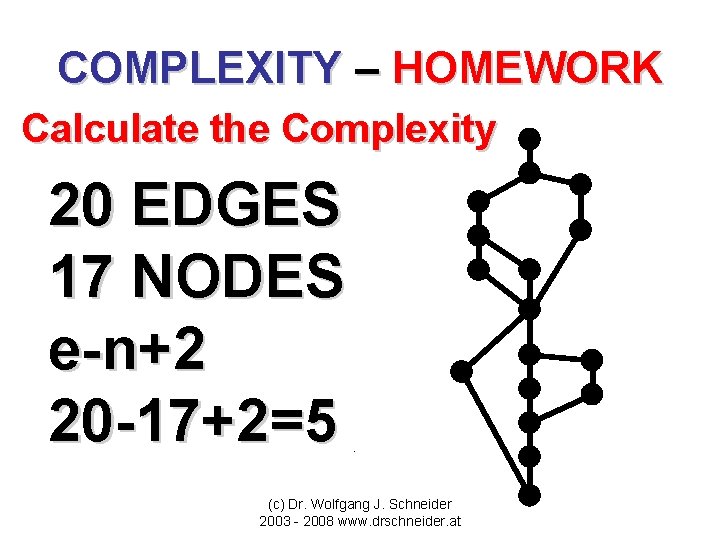

COMPLEXITY – HOMEWORK Calculate the Complexity 20 EDGES 17 NODES e-n+2 20 -17+2=5 (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

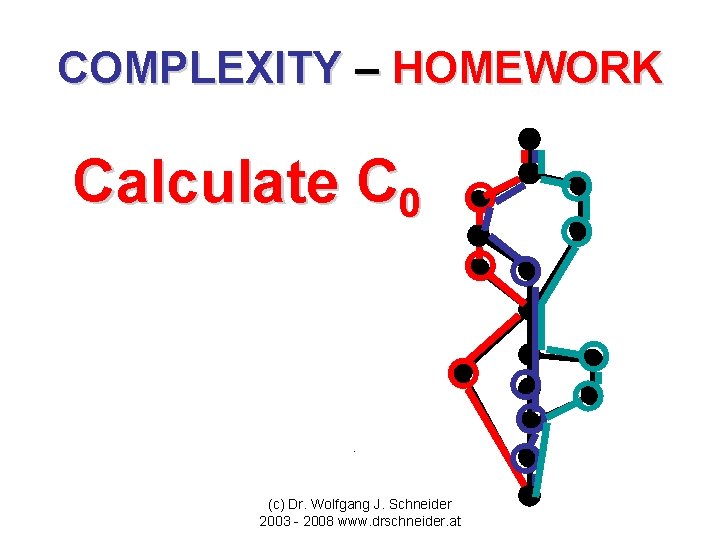

COMPLEXITY – HOMEWORK Calculate C 0 (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

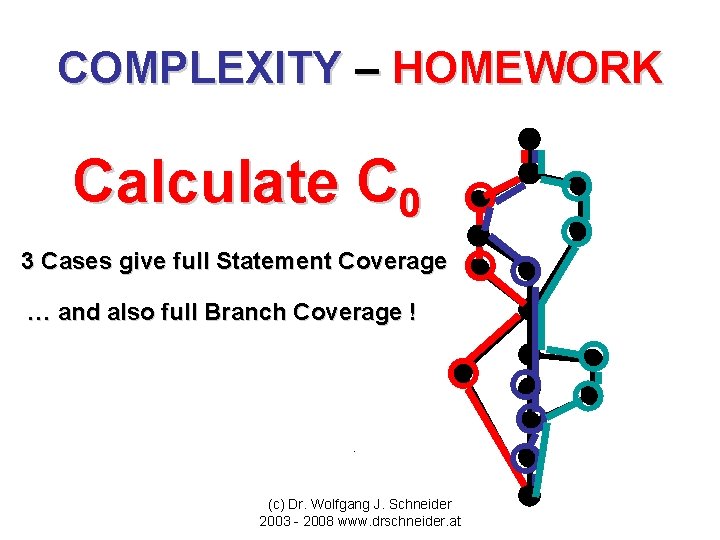

COMPLEXITY – HOMEWORK Calculate C 0 3 Cases give full Statement Coverage … and also full Branch Coverage ! (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

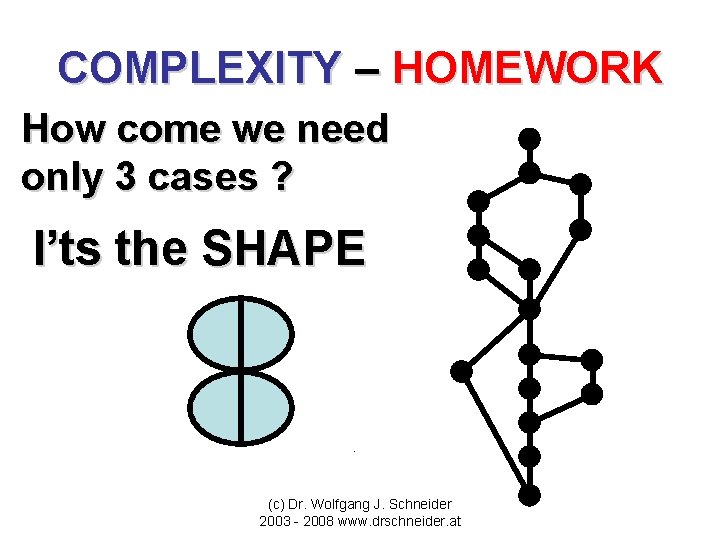

COMPLEXITY – HOMEWORK How come we need only 3 cases ? I’ts the SHAPE (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at

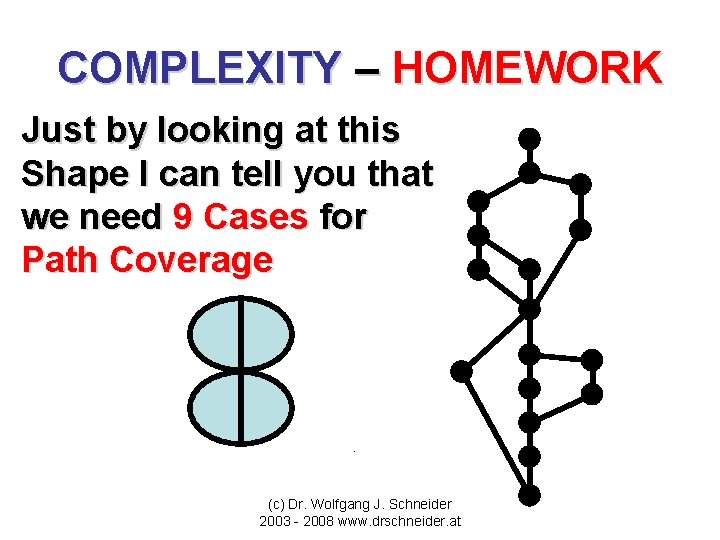

COMPLEXITY – HOMEWORK Just by looking at this Shape I can tell you that we need 9 Cases for Path Coverage (c) Dr. Wolfgang J. Schneider 2003 - 2008 www. drschneider. at
