Which map best shows the most probable areas

Which map best shows the most probable areas of precipitation associated with these weather systems?

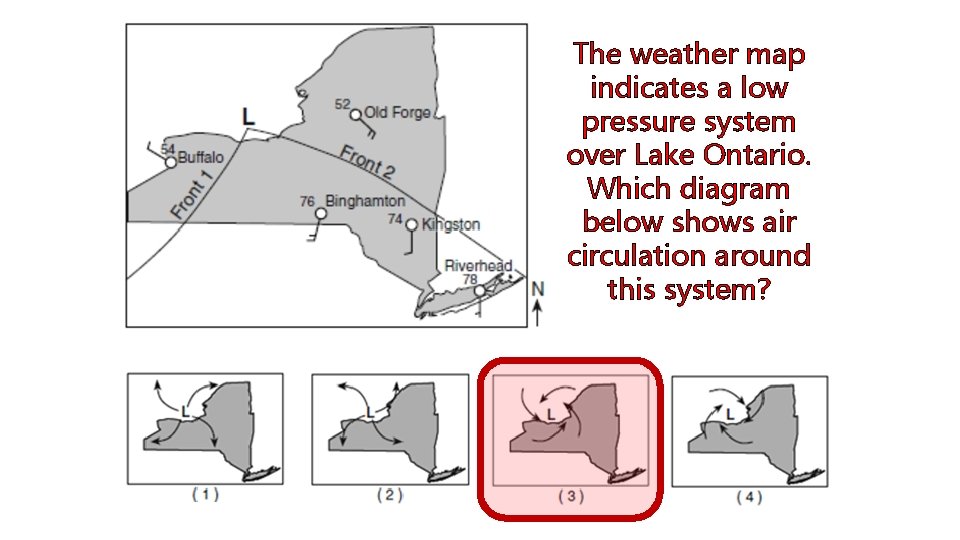

The weather map indicates a low pressure system over Lake Ontario. Which diagram below shows air circulation around this system?

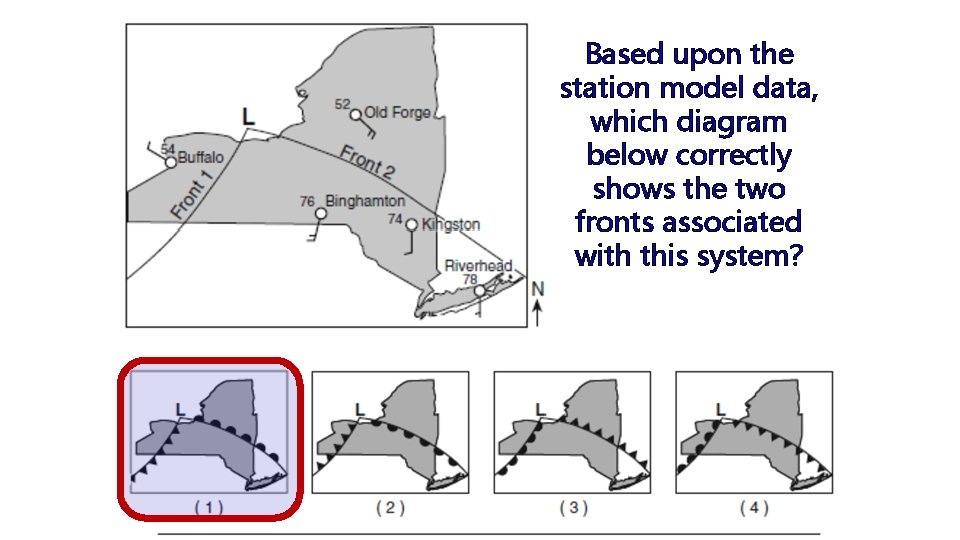

Based upon the station model data, which diagram below correctly shows the two fronts associated with this system?

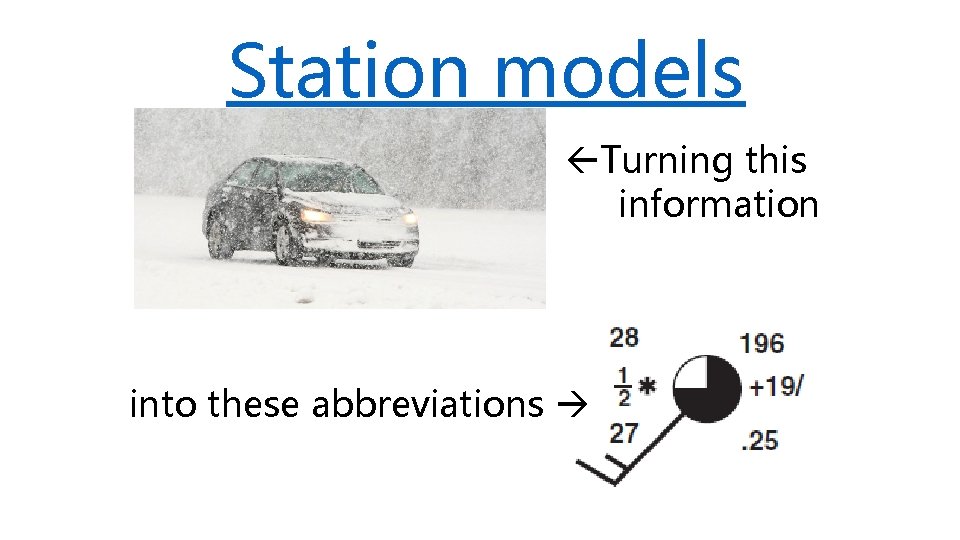

Station models Turning this information into these abbreviations

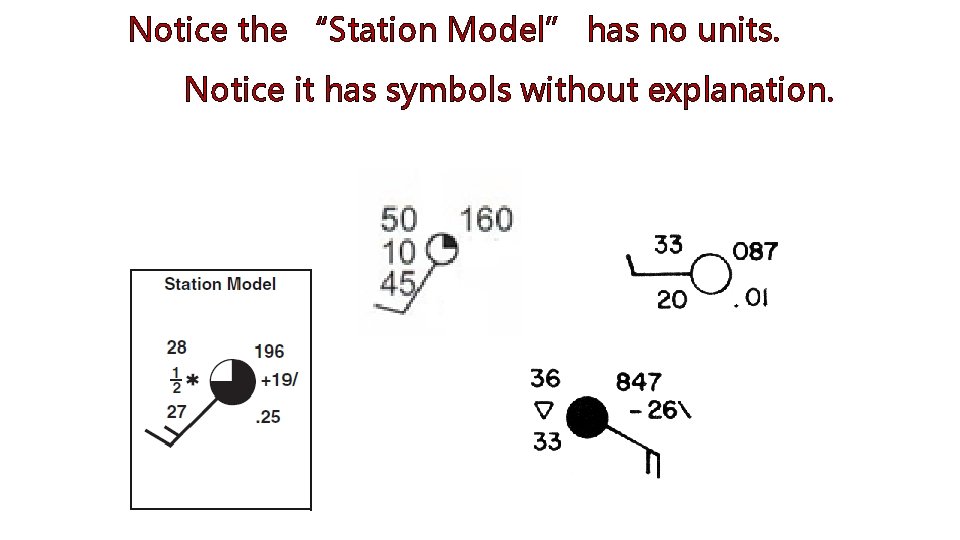

Notice the “Station Model” has no units. Notice it has symbols without explanation.

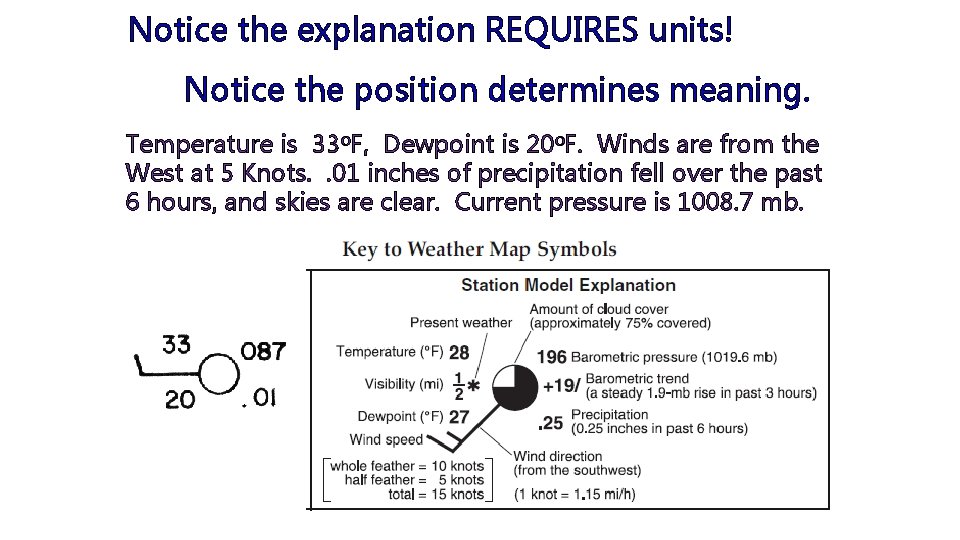

Notice the explanation REQUIRES units! Notice the position determines meaning. Temperature is 33 o. F, Dewpoint is 20 o. F. Winds are from the West at 5 Knots. . 01 inches of precipitation fell over the past 6 hours, and skies are clear. Current pressure is 1008. 7 mb.

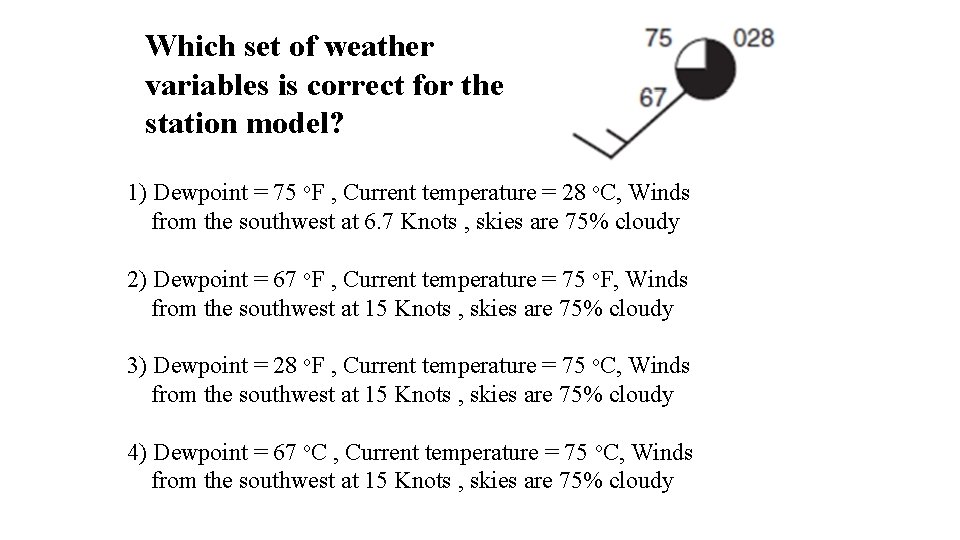

Which set of weather variables is correct for the station model? 1) Dewpoint = 75 o. F , Current temperature = 28 o. C, Winds from the southwest at 6. 7 Knots , skies are 75% cloudy 2) Dewpoint = 67 o. F , Current temperature = 75 o. F, Winds from the southwest at 15 Knots , skies are 75% cloudy 3) Dewpoint = 28 o. F , Current temperature = 75 o. C, Winds from the southwest at 15 Knots , skies are 75% cloudy 4) Dewpoint = 67 o. C , Current temperature = 75 o. C, Winds from the southwest at 15 Knots , skies are 75% cloudy

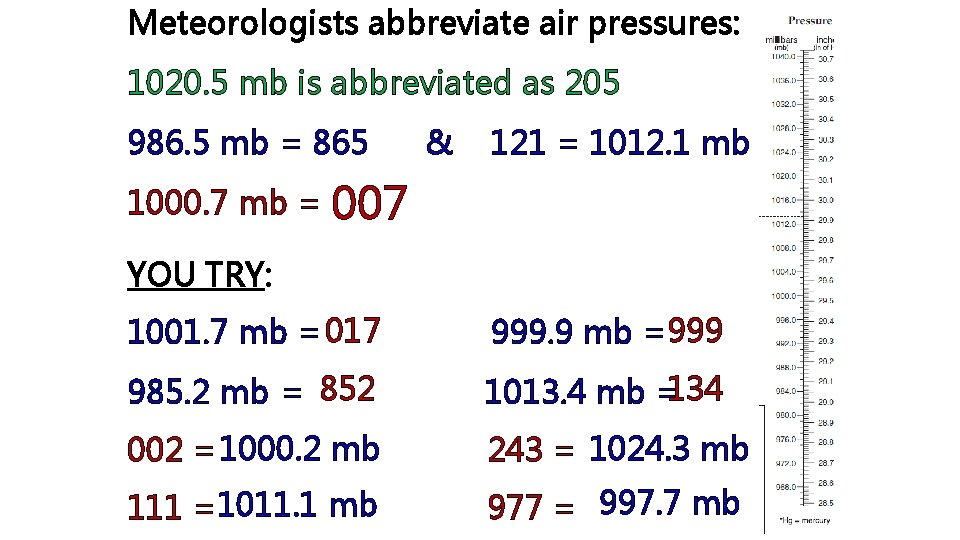

Meteorologists abbreviate air pressures: 1020. 5 mb is abbreviated as 205 986. 5 mb = 865 & 121 = 1012. 1 mb 1000. 7 mb = 007 YOU TRY: 1001. 7 mb = 017 999. 9 mb =999 985. 2 mb = 852 1013. 4 mb =134 002 = 1000. 2 mb 243 = 1024. 3 mb 111 =1011. 1 mb 977 = 997. 7 mb

STILL DON’T GET IT?

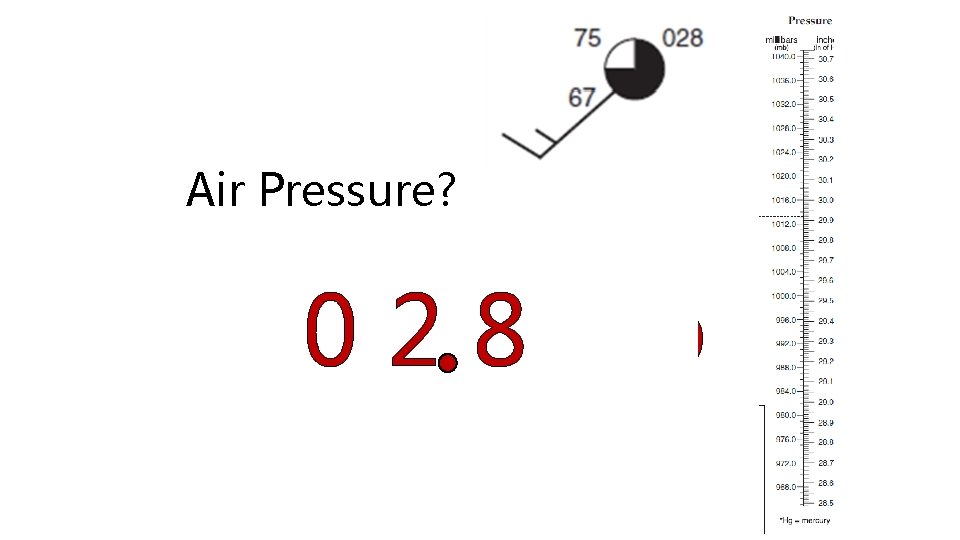

Air Pressure? 1 0 0 2 8 mb

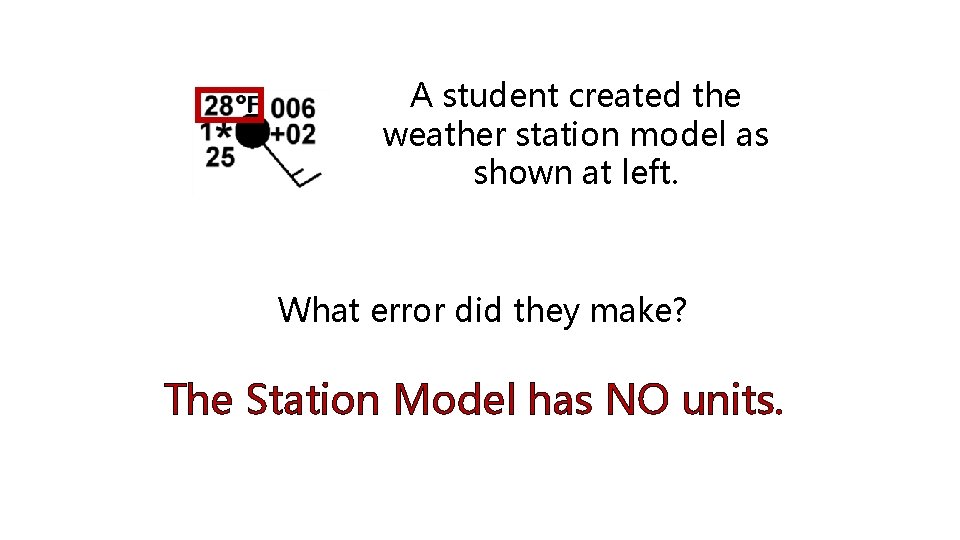

A student created the weather station model as shown at left. What error did they make? The Station Model has NO units.

Remember the Station Model has NO units. Remember you MUST include them when explaining the answers!

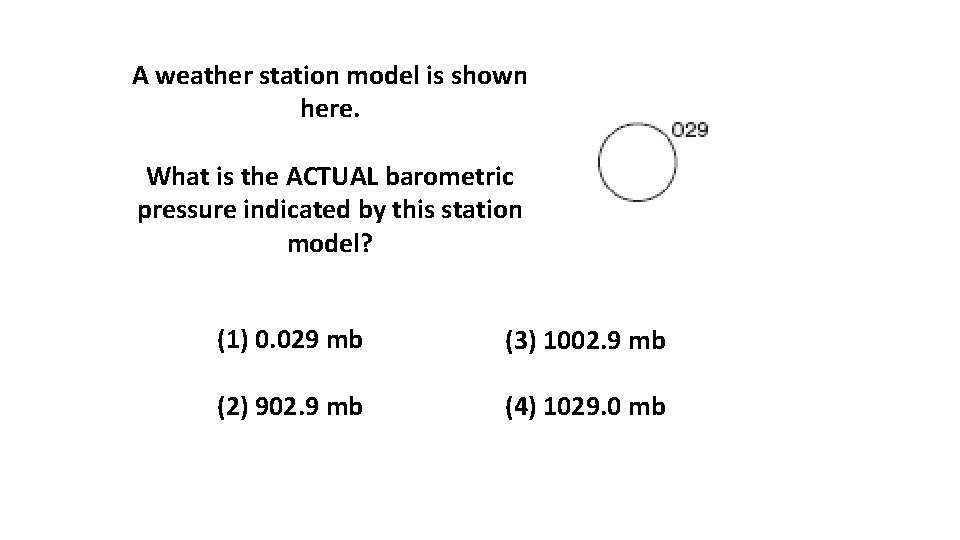

A weather station model is shown here. What is the ACTUAL barometric pressure indicated by this station model? (1) 0. 029 mb (3) 1002. 9 mb (2) 902. 9 mb (4) 1029. 0 mb

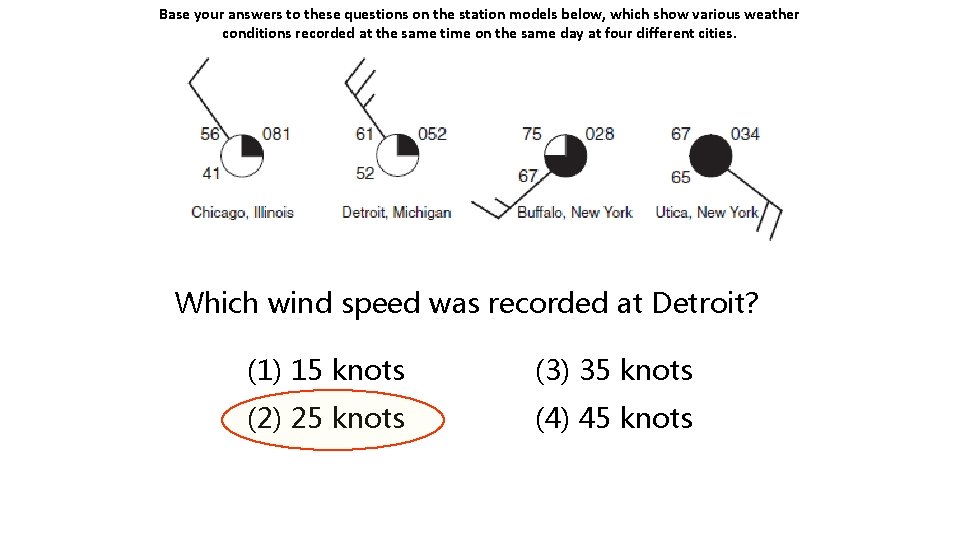

Base your answers to these questions on the station models below, which show various weather conditions recorded at the same time on the same day at four different cities. Which wind speed was recorded at Detroit? (1) 15 knots (3) 35 knots (2) 25 knots (4) 45 knots

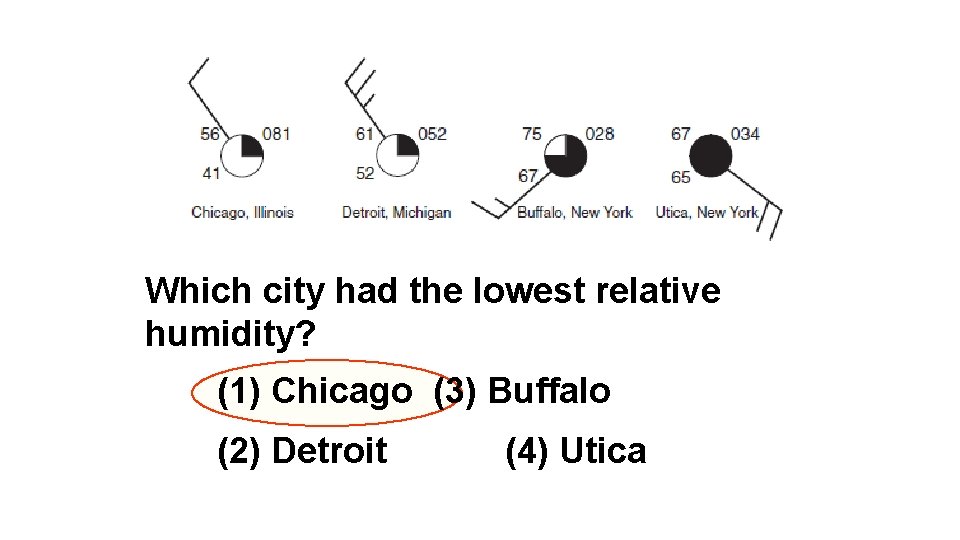

Which city had the lowest relative humidity? (1) Chicago (3) Buffalo (2) Detroit (4) Utica

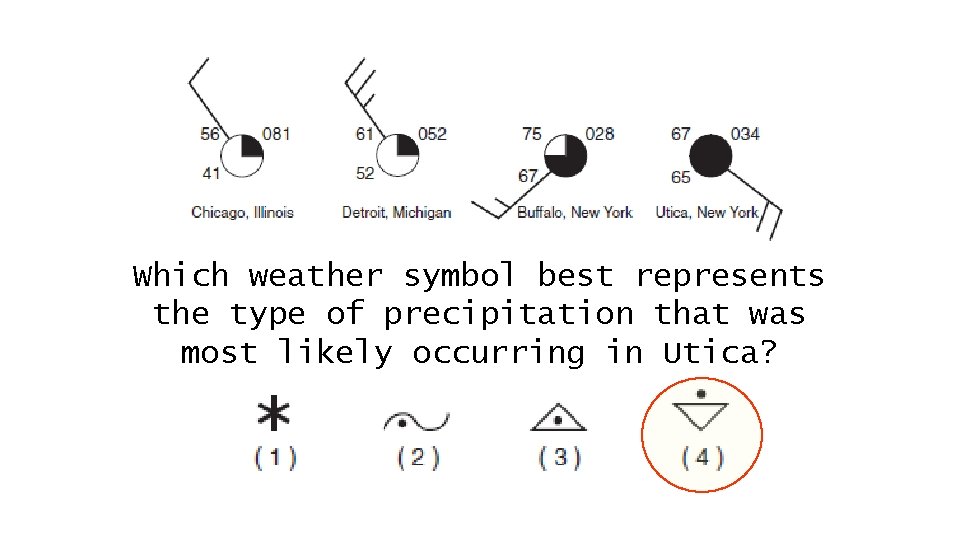

Which weather symbol best represents the type of precipitation that was most likely occurring in Utica?
