Where it started Kitware Medical Weather Imaging Visualization
- Slides: 51
Where it started Kitware • • • Medical / Weather Imaging Visualization Toolkit Engine Open source Cluster capable OOD
Programming with E 2 VO Students Robert Maynard Lead Programmer
Where it was • Paraview -> Paraview. Geo • OPEN – Major challenge for mining – Switch from Go. Cad / Data. Mine • 2. 5 month Experiment – Mentorship – Tool development

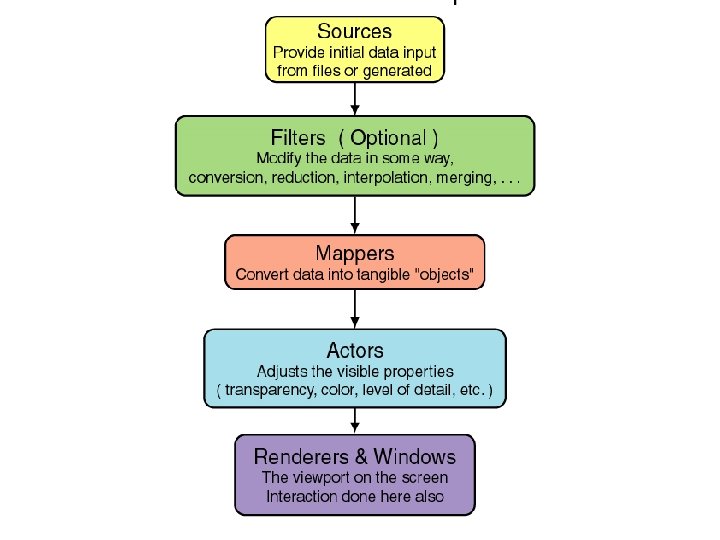

My Job • Teacher – Programming (Python / VTK) – 3 week course • Mentor – Resource for daily programming problems • Developer
Finite-Discrete Element Method • Para. View. Geo Reader • Reads files generated by Y program
Why? • Geomechanics Group @ U of T
Why Para. View. Geo? • • • Time Support Data Analysis Animation Pan Zoom Rotate
Customizing Para. View. Geo
Customizing Para. View. Geo “Floating” Detached View Manager
Fullscreen Para. View. Geo Server Client
Cross Section Loading
Cross Section Loading

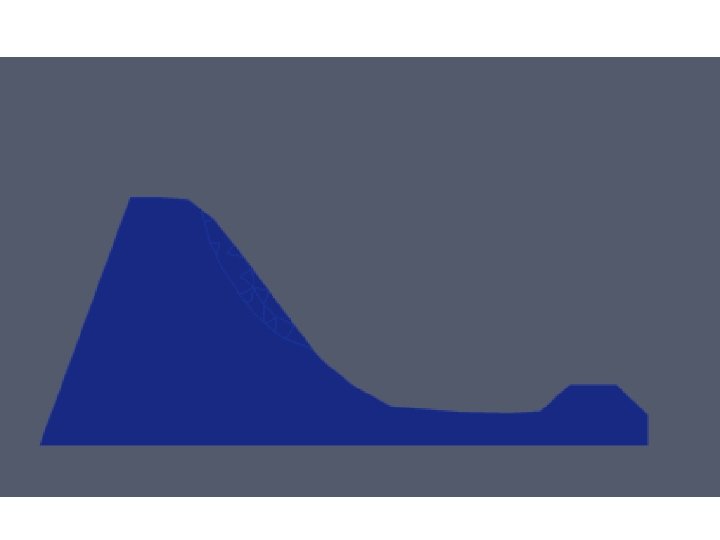

Surface Reconstruction
Surface Reconstruction
Information Visualization • Mining Mind Map • Mine Planning and SOT • Para. View. Geo Implementation
Mining Mind Map Scheduling
Scheduling
SOT Data Schedule Parameters: Guidance Formula Capacity Net Present Value Mine Life Village Similarity
Para. View. Geo Implementation
Paper Space vs. Model Space • Auto. CAD has 2 separate work spaces – Paper space – Model space • Two different scales – Automatic scaling • Para. View. Geo does not scale automatically
Model Space
Paper Space
Combined
In Para. View. Geo
2 D and 3 D • Para. View. Geo now has support for both 2 D and 3 D DXF files
2 D Files - Para. View. Geo
3 D Files Auto. CAD Para. View. Geo
Layers and Blocks • Data grouped by layer/block • Coloured by layer Layer Entities Block
Extensive Object Support • Supported objects – Points – Lines – Polylines – Circles – Arcs – Text – 3 DFaces (polygons) – 3 D Polyface meshing
Drill. Hole Compositing • User-defined analysis region • Intersection detection

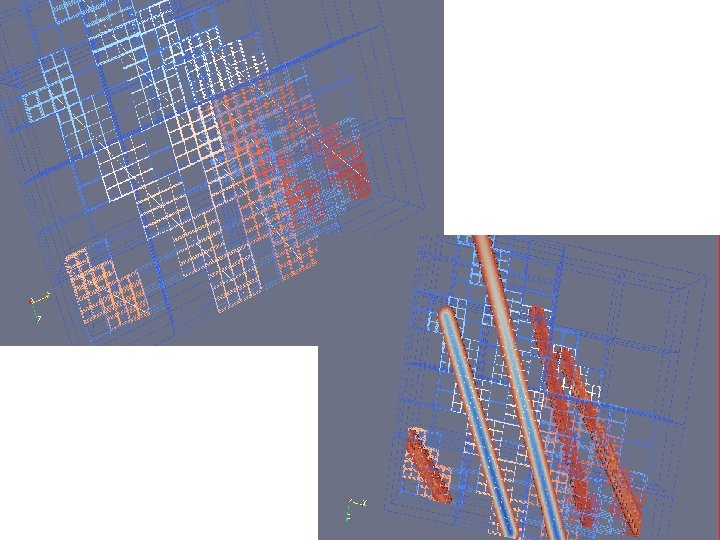

Drill. Hole Visualization Hierarchical Datasets
MINE 24 D to MAP 3 D
MINE 24 D to MAP 3 D
Volume Tetrahedralization Tetrahedralized objects Slicing the objects
SGe. MS Reader/Writer Cartesian Grid in SGe. Ms Cartesian Grid in Paraview
Discover Abitibi Cross Sections • ID, position, value, unit • Value + Unit = Thickness of Surficial Sediments Database → Text File → Para. View. Geo
2 D vs. 3 D Cross Sections We started with 2 D We made it 3 D

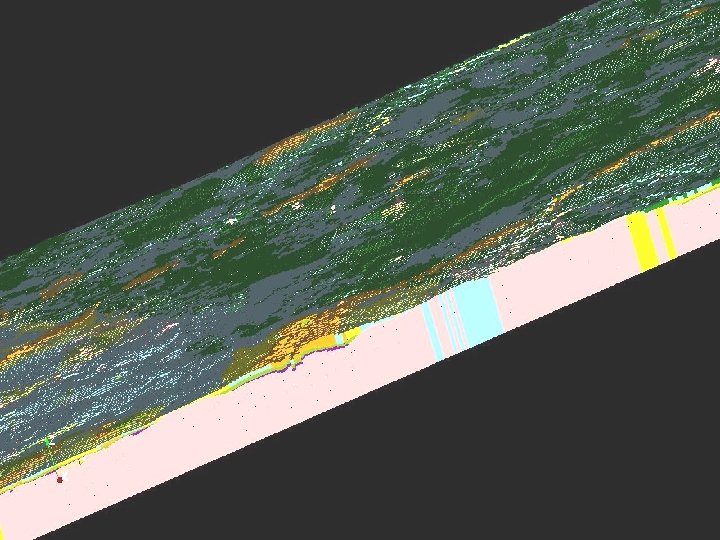

Discover Abitibi Gravity and Magnetic Shells Binary → Para. View. Geo VRML→ with Python
Gravity and Magnetic Shells
Go. Cad Reader / Writer
MIRARCO Drillhole Manager
MIRARCO Seismic Database Complete Seismic Data Set Ellipsoid Clusters Cluster Intersections
Para. View. Geo Filters • • • Convert Polygons to Grid Distance to Grid Drillhole Compositing Drillhole to Hierarchical Dataset Map Attributes Between Datasets Peak Particle Velocity Proximity Threshold Sequence Arrows Surface Reconstruction Time Threshold Volume Tetrahedralization Wireframe Intersection
Para. View. Geo Readers • • • Autocad DXF Block. Model (ASCII – CSV) Datamine FEM/DEM Go. Cad Geo Referenced Cross Section Images • Geo Referenced Plane Images • Geo. Soft • • • Gemcom (ASCII – CSV) Map 3 D Maptek Vulcan MIRARCO Drillhole Database MIRARCO Seismic Database MIRARCO SOT-EPS Minesight SGe. Ms VTK
Para. View. Geo Wiki http: //paraviewgeo. mirarco. org • • • Download About Features Functionality Tutorials
