Where hard problems are 1028 Phase Transition Homework

Where hard problems are 10/28 Phase Transition Homework 3 returned Homework 4 socket opened (No office hours today)

Davis-Putnam-Logeman-Loveland Procedure detect failure

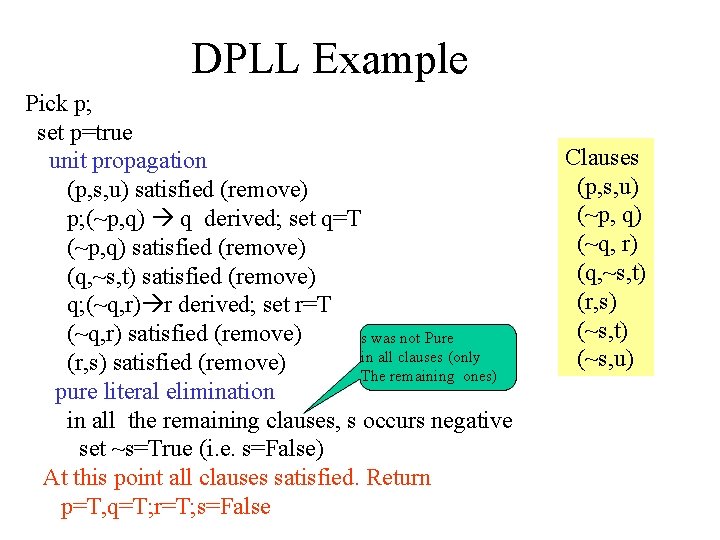

DPLL Example Pick p; set p=true unit propagation (p, s, u) satisfied (remove) p; (~p, q) q derived; set q=T (~p, q) satisfied (remove) (q, ~s, t) satisfied (remove) q; (~q, r) r derived; set r=T (~q, r) satisfied (remove) s was not Pure in all clauses (only (r, s) satisfied (remove) The remaining ones) pure literal elimination in all the remaining clauses, s occurs negative set ~s=True (i. e. s=False) At this point all clauses satisfied. Return p=T, q=T; r=T; s=False Clauses (p, s, u) (~p, q) (~q, r) (q, ~s, t) (r, s) (~s, t) (~s, u)

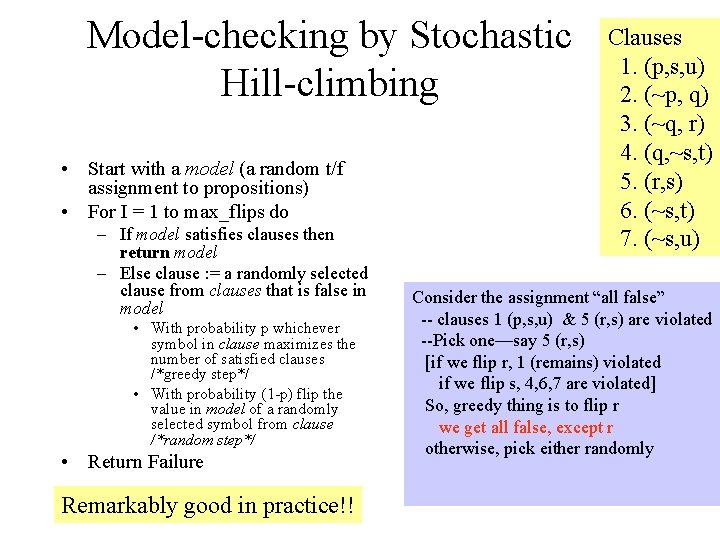

Model-checking by Stochastic Hill-climbing • Start with a model (a random t/f assignment to propositions) • For I = 1 to max_flips do – If model satisfies clauses then return model – Else clause : = a randomly selected clause from clauses that is false in model • With probability p whichever symbol in clause maximizes the number of satisfied clauses /*greedy step*/ • With probability (1 -p) flip the value in model of a randomly selected symbol from clause /*random step*/ • Return Failure Remarkably good in practice!! Clauses 1. (p, s, u) 2. (~p, q) 3. (~q, r) 4. (q, ~s, t) 5. (r, s) 6. (~s, t) 7. (~s, u) Consider the assignment “all false” -- clauses 1 (p, s, u) & 5 (r, s) are violated --Pick one—say 5 (r, s) [if we flip r, 1 (remains) violated if we flip s, 4, 6, 7 are violated] So, greedy thing is to flip r we get all false, except r otherwise, pick either randomly

Theoretically we only know that phase transition ratio occurs between 3. 26 and 4. 596. Experimentally, it seems to be close to 4. 3 (We also have a proof that 3 -SAT has sharp threshold) Phase Transition in SAT

Progress in nailing the bound. . (just FYI) Not discussed in class http: //www. ipam. ucla. edu/publications/ptac 2002_dachlioptas_formulas. pdf

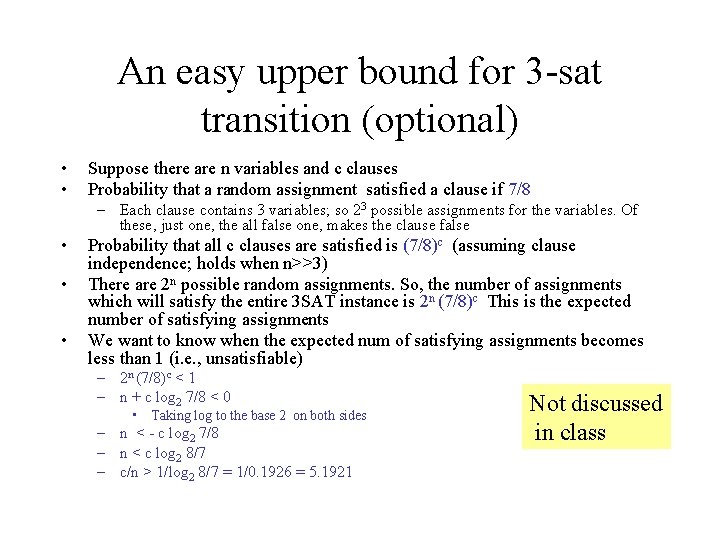

An easy upper bound for 3 -sat transition (optional) • • Suppose there are n variables and c clauses Probability that a random assignment satisfied a clause if 7/8 – Each clause contains 3 variables; so 23 possible assignments for the variables. Of these, just one, the all false one, makes the clause false • • • Probability that all c clauses are satisfied is (7/8)c (assuming clause independence; holds when n>>3) There are 2 n possible random assignments. So, the number of assignments which will satisfy the entire 3 SAT instance is 2 n (7/8)c This is the expected number of satisfying assignments We want to know when the expected num of satisfying assignments becomes less than 1 (i. e. , unsatisfiable) – 2 n (7/8)c < 1 – n + c log 2 7/8 < 0 • Taking log to the base 2 on both sides – n < - c log 2 7/8 – n < c log 2 8/7 – c/n > 1/log 2 8/7 = 1/0. 1926 = 5. 1921 Not discussed in class

CSP: SAT with multi-valued variables • It is easy to generalize the SAT problem to handle non-boolean variables – CSP problem • Given a set of discrete variables and their domains • And a set of constraints (expressed as legal value combinations that can be taken by various subsets of the variables) – Clausal constraints (such as p=>q ) can be seen in this way too • Find a model (an assignment of domain values to the variables) that satisfies all constraints – SAT is a boolean CSP

We can model any CSP problem also as a SAT problem Consider the variables “WA-is-red” “WA-is-green”…. |V|*|D| boolean variables --but this leads to some loss of structure

We will mostly talk about discrete domain variables All CSPs can be compiled to binary CSPs (by introducing additional variables) Most early work on CSP concentrated on binary CSPs

10/30 Counseling today during office hours

Backtracking Search As is the case for SAT, basic search For CSP is in the space of partial Assignments --extend the assignment by selecting a variable and considering all its values (in different branches) --prune any (even partial) assignment if it violates a constraint Most of the SAT improvements work for CSP too. Main differences are: --Variable selection heuristics CSP solvers typically consider most constrained variable first heuristic (i. e. , heuristic with the smallest domain) --Value selection heuristics CSP solvers consider “least constraining value first” heuristic -- Lookahead Instead of unit propagation, CSP solvers use variety of constraint propagation algorithms (forward checking, arc-consistency, path consistency) Red Violates

Variable Ordering Strategies Notice that for “boolean CSPs” (SAT), most constrained variable heuristics are less effective (since all variables have domains of size 2 (normal), 1 (have a specific value) or 0 (backtrack)

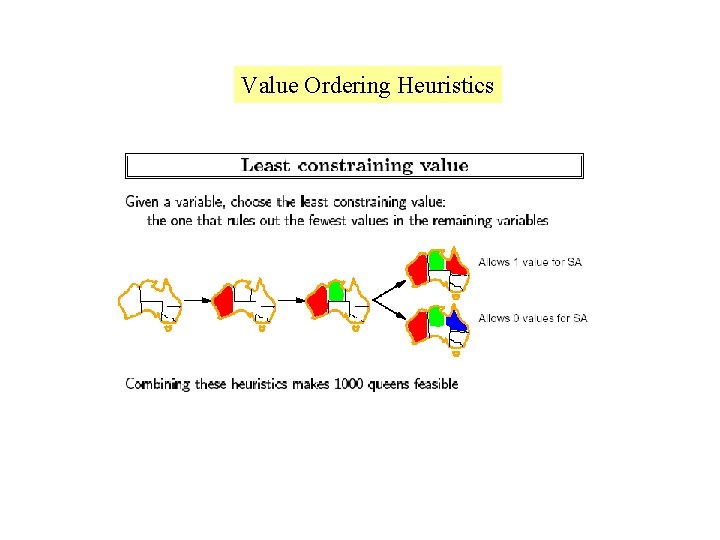

Value Ordering Heuristics

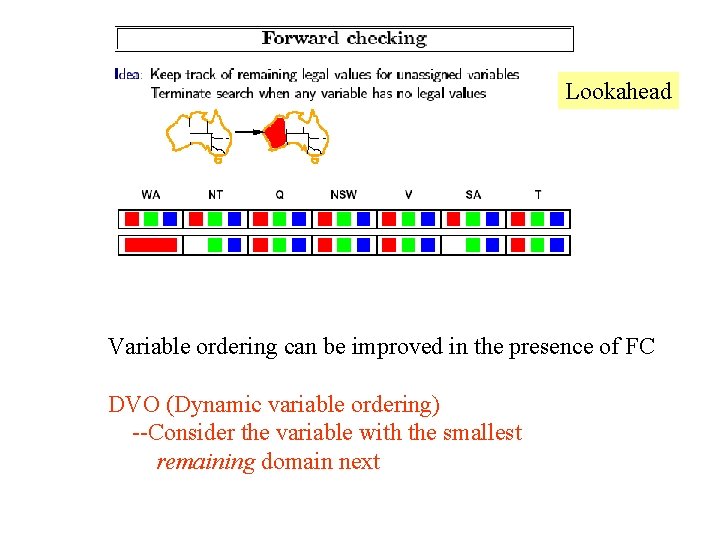

Lookahead Variable ordering can be improved in the presence of FC DVO (Dynamic variable ordering) --Consider the variable with the smallest remaining domain next

2 -consistency Forward checking will stop thinking everyone has non-empty domains. Graphplan mutex propagation can be Seen as a form of 3 -consistency Enforcement. . However, NT is blue; if you propagate that we know that SA cannot be blue. This means SA is empty domain

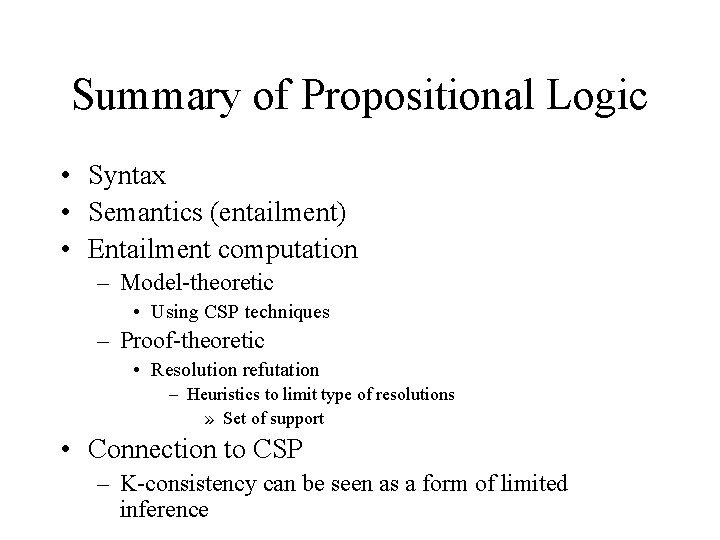

Summary of Propositional Logic • Syntax • Semantics (entailment) • Entailment computation – Model-theoretic • Using CSP techniques – Proof-theoretic • Resolution refutation – Heuristics to limit type of resolutions » Set of support • Connection to CSP – K-consistency can be seen as a form of limited inference

Why FOPC If your thesis is utter vacuous Use first-order predicate calculus. With sufficient formality The sheerest banality Will be hailed by the critics: "Miraculous!"

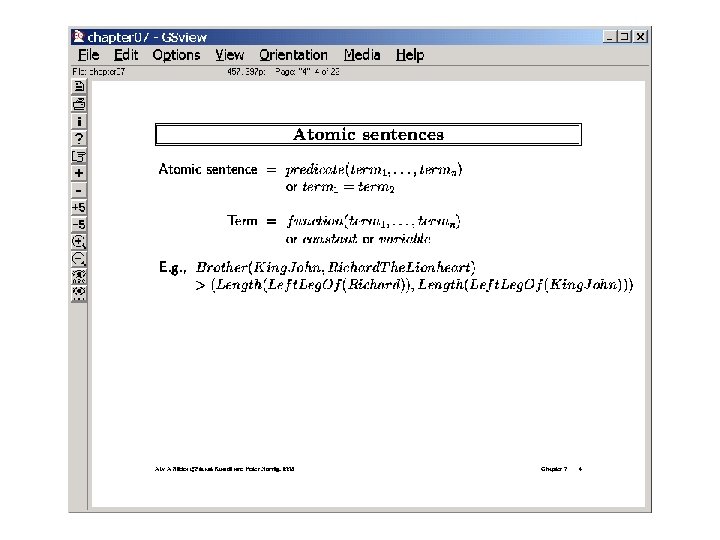

Tarskian Interpretations Left-leg-of

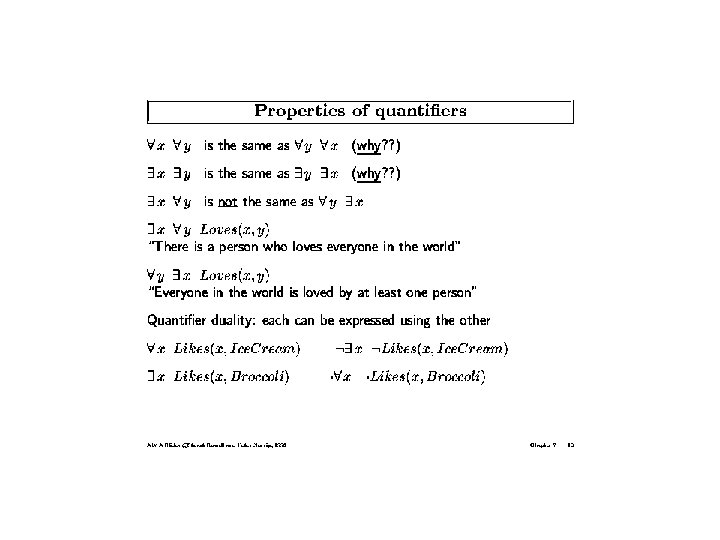

Inference in first order logic • For “ground” sentences (i. e. , sentences without any quantification), all the old rules work directly – P(a, b)=> Q(a); P(a, b) |= Q(a) – ~P(a, b) V Q(a) resolved with P(a, b) gives Q(a) • What about quantified sentences? – Universal Instantiation (a universally quantified statement entails every instantiation of it) • Can we combine these (so we can avoid unnecessary instantiations? ) Yes. Generalized modus ponens • Needs UNIFICATION
