When two parallel lines are cut by a
When two parallel lines are cut by a transversal, which of the resulting pairs of angles are congruent? 3. 2 Notes: Angles and Parallel Lines

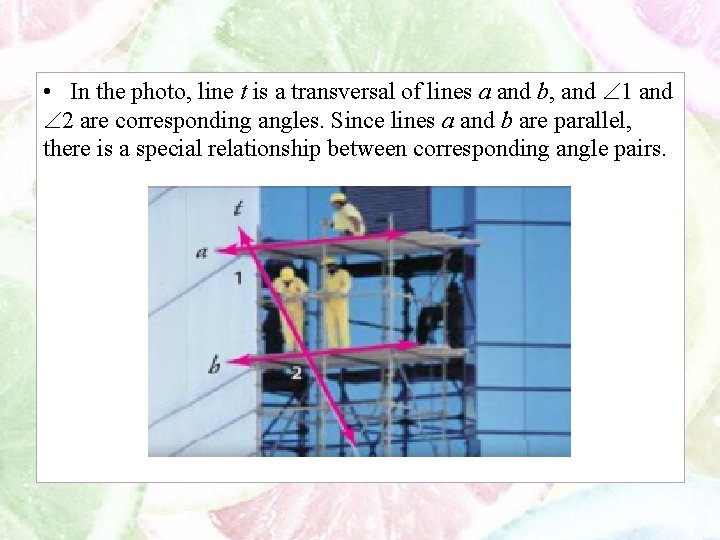

• In the photo, line t is a transversal of lines a and b, and 1 and 2 are corresponding angles. Since lines a and b are parallel, there is a special relationship between corresponding angle pairs.
Vocab! ***If 2 parallel lines are cut by a transversal, then… Corresponding Angle Postulate - Each pair of corresponding angles is CONGRUENT. List them: Alternate Interior Angles Theorem - Each pair of alternate interior angles is CONGRUENT. List them:

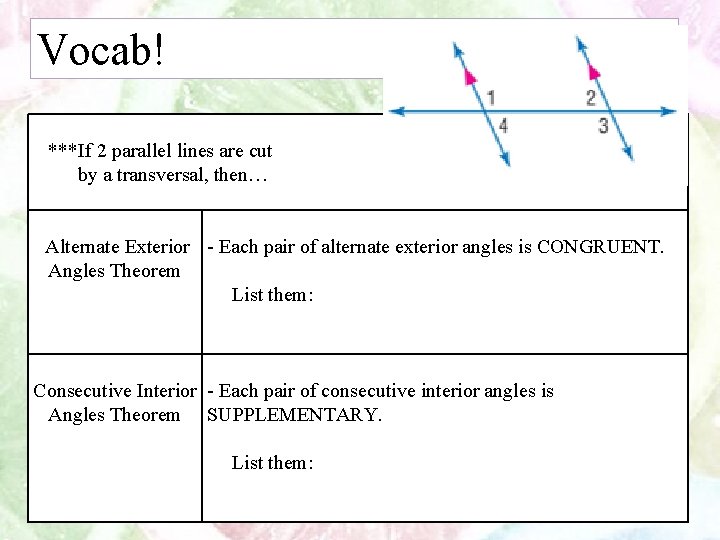

Vocab! ***If 2 parallel lines are cut by a transversal, then… Alternate Exterior - Each pair of alternate exterior angles is CONGRUENT. Angles Theorem List them: Consecutive Interior - Each pair of consecutive interior angles is Angles Theorem SUPPLEMENTARY. List them:

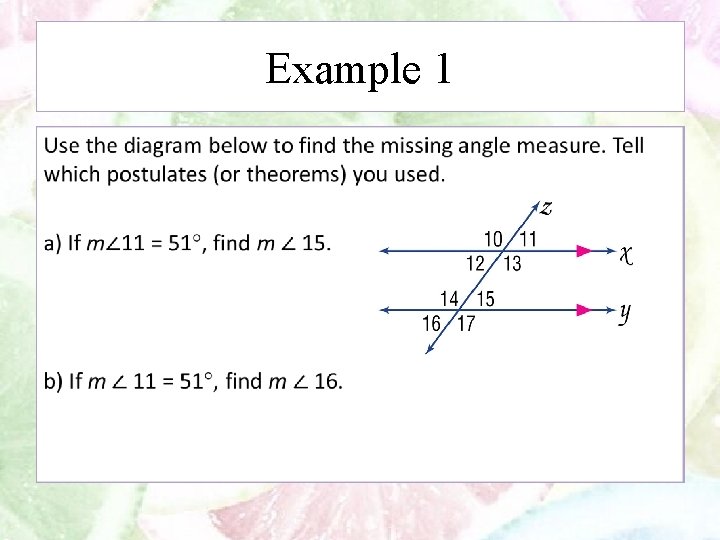

Example 1 •

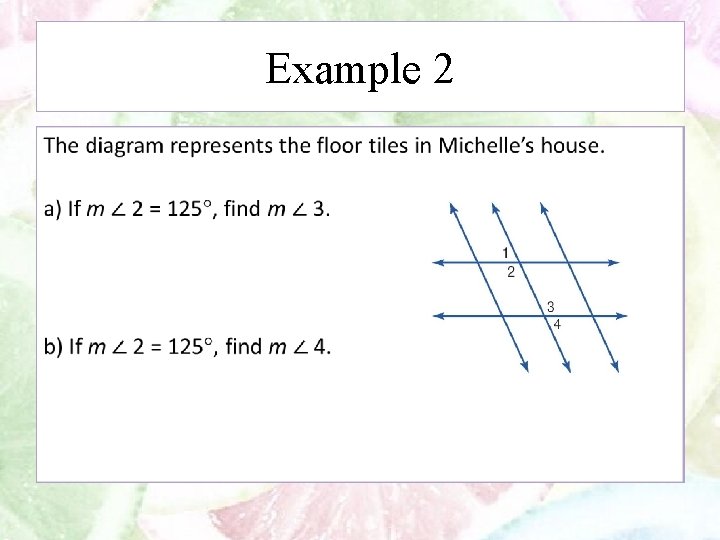

Example 2 •

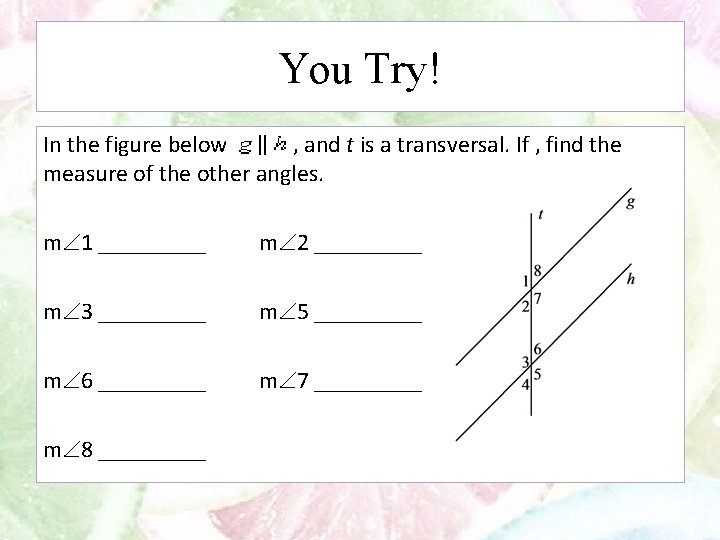

You Try! In the figure below , and t is a transversal. If , find the measure of the other angles. m 1 _____ m 2 _____ m 3 _____ m 5 _____ m 6 _____ m 7 _____ m 8 _____

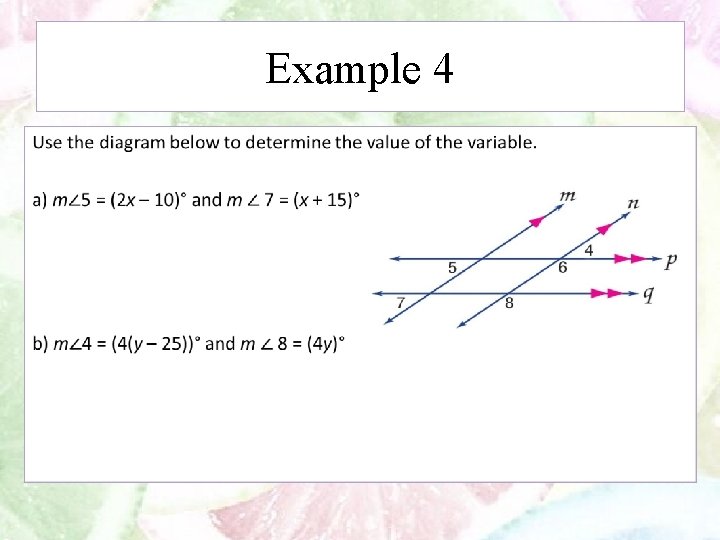

Example 4 •

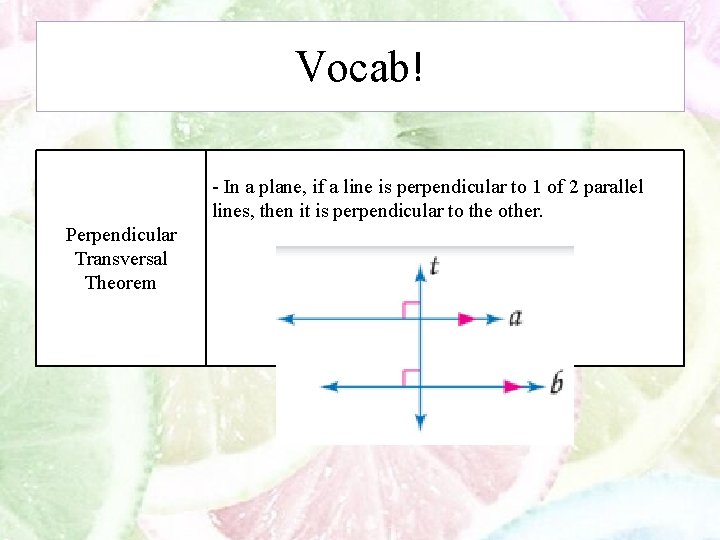

Vocab! - In a plane, if a line is perpendicular to 1 of 2 parallel lines, then it is perpendicular to the other. Perpendicular Transversal Theorem

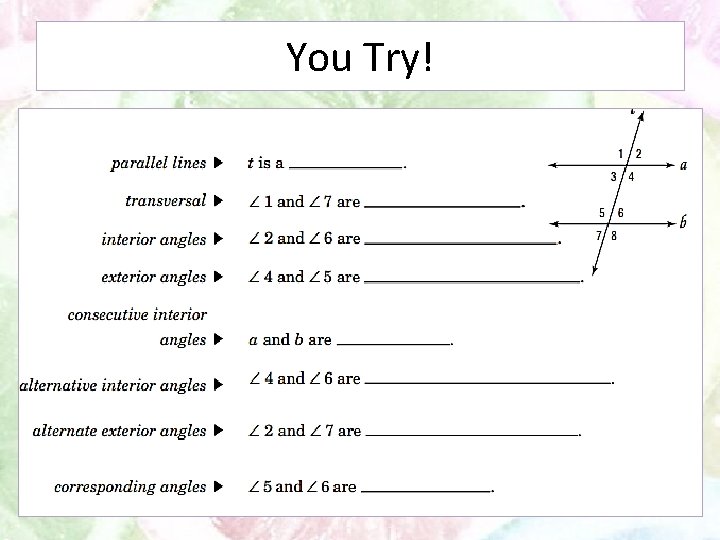

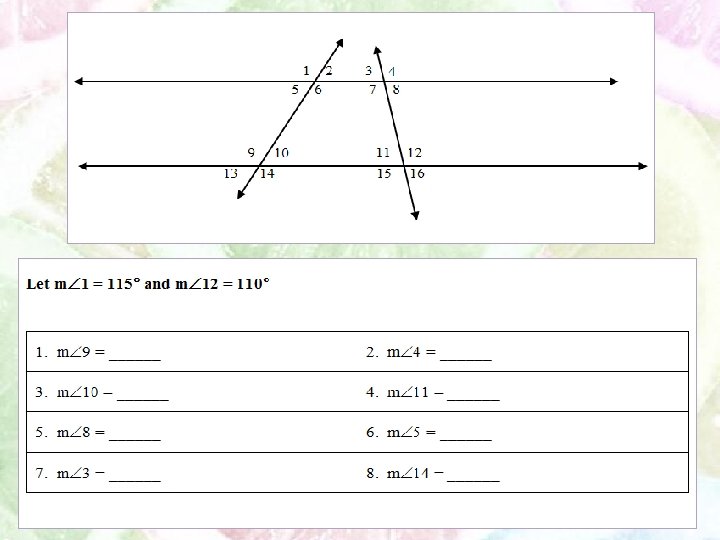

You Try!

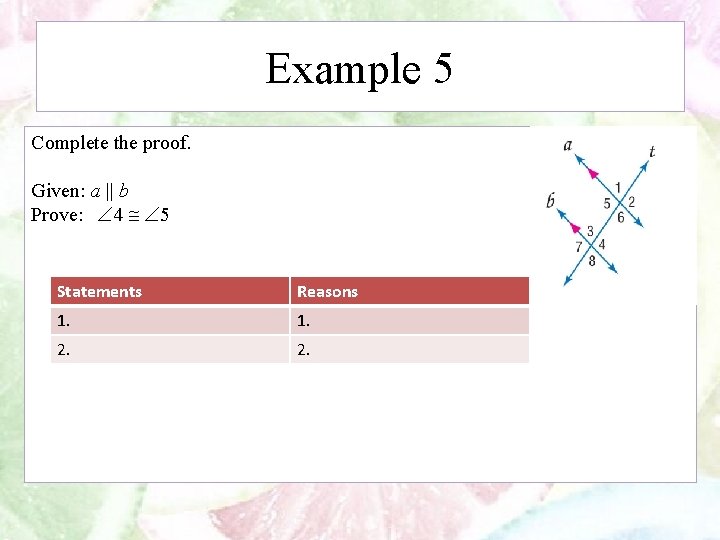

Example 5 Complete the proof. Given: a || b Prove: 4 5 Statements Reasons 1. 2.

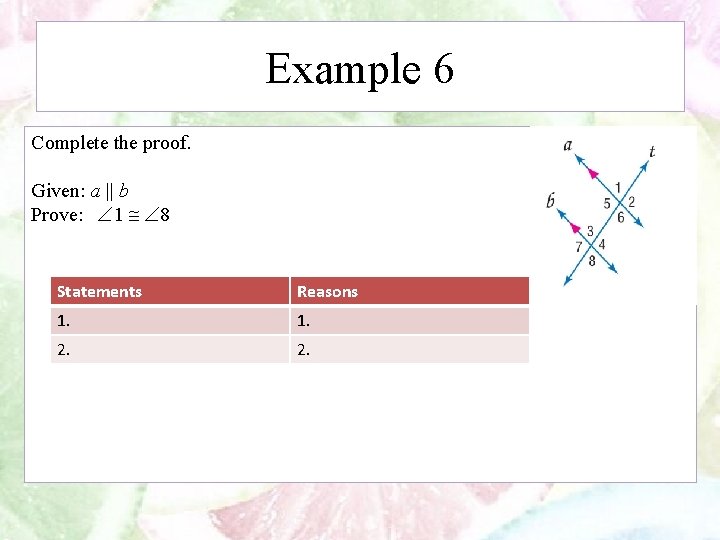

Example 6 Complete the proof. Given: a || b Prove: 1 8 Statements Reasons 1. 2.
