What’s so smart about the smart grid? Presentation at IAEE Annual Conference 10 October 2011 Washington, DC Perry Sioshansi Menlo Energy Economics San Francisco CA www. menloenergy. com

Smart Grid Nov 2011

What is the “smart grid? ” w Wrong question n Wrong answer: As many definitions as there are experts w Why all the interest in smart grid? n n Because current grid is outdated for what we need today Even more so for what we will need in the future w What sort of grid do we need? n A more versatile and accommodating grid

What sort of grid do we want? One that meets industry’s changing needs w A more enabling delivery infrastructure n 1. More “reliable”, of course l n 2. More “integrated” l n CA Gov. Brown envisions 12 GW of DG by 2025 5. A “two-way” conduit connecting load & generation l n Not 10%, 20% or 30% but 80% and more as in Germany 4. Allows integration of more distributed generation l n Better balancing of supply & demand in real time 3. Capable of absorbing more renewable energy resources l n Self-detecting, self-healing & plain “smart” No longer transferring central generation to major load centers 6. Allows “prices-to-devices” revolution l Smart prices to smart devices leading to smart energy usage

Proposed outline w Few examples/anecdotes for each of the 6 n w w To convince those who are not already convinced Q: What’s real and what is hype? Q: What obstacles/challenges remain? Q: Why the lingering skepticism? Discussion

Aug 03 Northeast Blackout Need a “smart grid” that is self-correcting, self-healing ON NY MI CT PA OH NJ

Better balancing of load/generation CA’s summer peaks are aggravated by flat pricing Source: David Hungerford, CEC

RPS mandates in US WECC Source: Black & Veatch

80% by 2050! German target post Fukushima

Numbers talk Annual and cumulative installed wind capacity, in MW Source: 2010 Wind Technologies Market Report, Ryan Wiser and Mark Bolinger, Lawrence Berkeley National Laboratory, June 2011

US wind contribution Contribution of wind as % of new capacity additions, 2000 -10 Source: 2010 Wind Technologies Market Report, Ryan Wiser and Mark Bolinger, Lawrence Berkeley National Laboratory, June 2011

US wind capacity, annual & cumulative, GW Source: 2010 Wind Technologies Market Report, Ryan Wiser and Mark Bolinger, Lawrence Berkeley National Laboratory, June 2011

Room to grow Wind generations as % of total electricity consumption Source: 2010 Wind Technologies Market Report, Ryan Wiser and Mark Bolinger, LBL, June 2011

Distributed generation California Gov. envisions 12 GW of DG by 2025

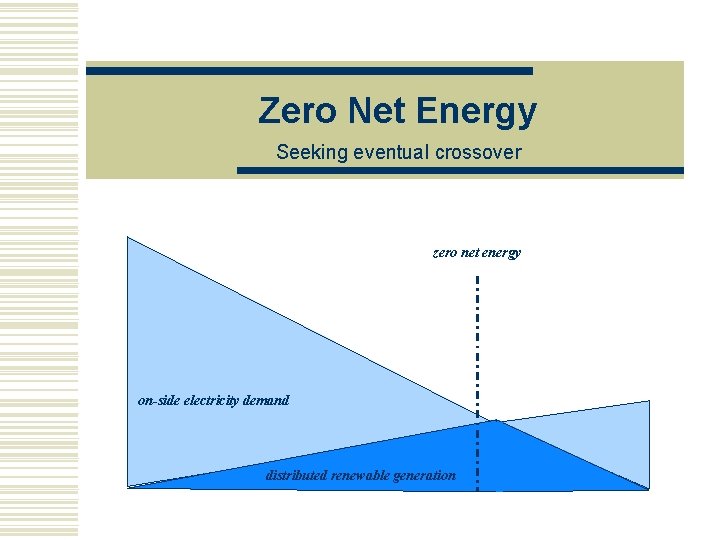

Zero Net Energy Seeking eventual crossover zero net energy on-side electricity demand distributed renewable generation

Prices-to-devices Key feature of smart grid: Delivering time-variable pricing Source: A. Faruqui, Brattle Group, Aug 2010

What is real and what is not? Sometimes lost in hyperbole w w w Renewables & DG – real Integration issues – real headaches EVs – two edged sword Dynamic pricing – regulators with back bone Smart devices – chicken & egg problem Taken together? n These are exciting times to be in industry

Challenges & skepticisms Not everyone is convinced, for different reasons w Enormous up-front costs, elusive distant gains l How do we finance, how do we distribute pains/gains? w Investment, regulatory & policy misalignment? l Utilities, are by and large, heavily regulated w Technology – a lot more is expected l Rapidly evolving on multiple fronts w Integration l Huge issue – getting various components to “synergize” w Implementation & execution l What is easy on paper is often difficult in practice w Managing public expectations l Many more painful lessons to be learned along the way

Few take away points w Current grid may not be smart but ain’t dumb l Considered a significant “engineering achievement” w Rapid progress on multiple fronts l Ample funding, R&D and entrepreneurial zest w Expect more setbacks/surprises l l Regulators reluctant to mandate dynamic pricing Small but vocal opposition to smart meters, data privacy, etc w No panacea, but a critical step in right direction l Driven by desire for cleaner/greener/more efficient future

Questions? w Thank you

Back up slides w Most likely NOT used

Smart Grid It is contagious Source: Smart from the start, Pw. C, 2010

Renewables are for real Sun. Power claims it can install 1 MW per day

Balancing in real time Based on simulated CA data for 25 July 2012, MW Source:

Wind not available when needed CA wind capacity during all-time summer peak load in 2006 Source:

Think of it as massive sponge EV batteries can store energy & feed it back to the grid

EV Penetration Alternative projections of # EVs on PG&E system

EVs massive load on network A fast charging EV more than an entire house load

Will EVs fry the grid? EV charging must be strictly curtailed during peak periods

No more power plants? Texas ACEEE study, Mar 2007

California keeps it flat Per capita electricity consumption Source: A. Faruqui, Brattle Group, Aug 2010

664 TWh EE potential EPRI claims 14% energy reduction possible by 2030 Source: A. Faruqui, Brattle Group, Aug 2010

Costs and perhaps benefits? EPRI study Apr 2011 Source: Estimating the Costs and Benefits of the Smart Grid, EPRI, April 2011

The costs EPRI study Apr 2011 Source: Estimating the Costs and Benefits of the Smart Grid, EPRI, April 2011

And the benefits EPRI study Apr 2011 Source: Estimating the Costs and Benefits of the Smart Grid, EPRI, April 2011

Renewable portfolio standards US states with mandatory targets * Florida now has a 20% RPS by 2020 not reflected in the map. There may be other states as well that have adopted mandates since the map was published Source: Edison Electric Institute, 8 Apr 08

Exponential PV growth Customer installed PVs on PG&E system 1, 400 MW by 2015

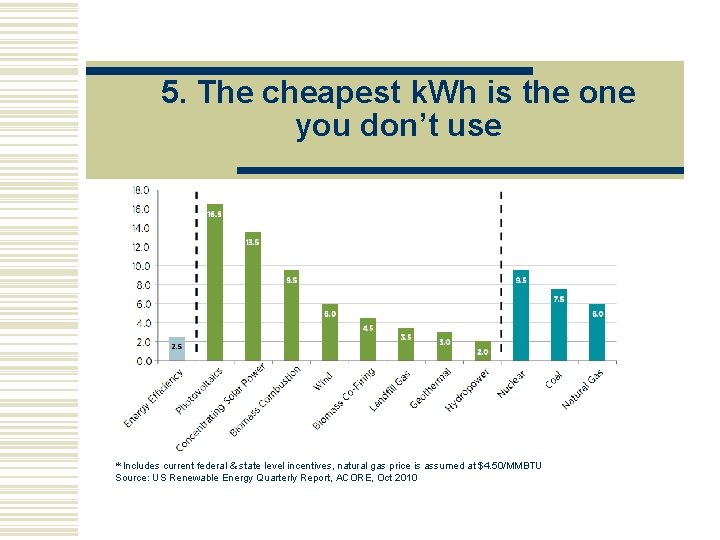

5. The cheapest k. Wh is the one you don’t use * Includes current federal & state level incentives, natural gas price is assumed at $4. 50/MMBTU Source: US Renewable Energy Quarterly Report, ACORE, Oct 2010

8. Demand Response As much as 20% of US peak load may be managed by DR

More renewable generation US non-hydro generation 1990 -2035, in bk. Wh Source: EIA’s Annual Energy Outlook 2011, 16 Dec 2010

California going low-carbon Don’t count on nuclear, CCS, cap-&-trade, or market signals Source: Black & Veatch
