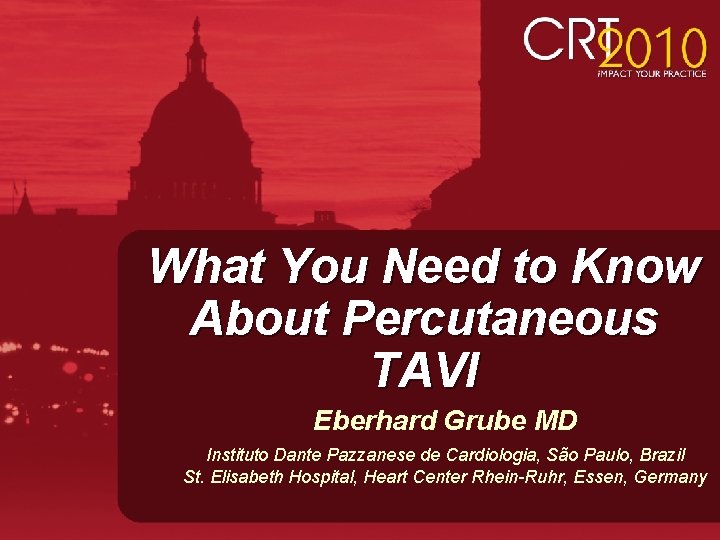

What You Need to Know About Percutaneous TAVI Eberhard Grube MD Instituto Dante Pazzanese de Cardiologia, São Paulo, Brazil St. Elisabeth Hospital, Heart Center Rhein-Ruhr, Essen, Germany

DISCLOSURES Eberhard Grube, MD Consulting Fees – Abbott Vascular, Boston Scientific Corporation, Cordis, a Johnson & Johnson Company, Medtronic Cardio. Vascular, Inc. Honoraria – Biosensors International , Boston Scientific Corporation, Medtronic Cardio. Vascular, Inc Ownership Interest (Stocks, Stock Options or Other Ownership Interest) – Biosensors International , Medtronic Cardio. Vascular, Inc. I intend to reference unlabeled/ unapproved uses of drugs or devices in my presentation. I intend to reference off-label use of stents and valve prosthesis.

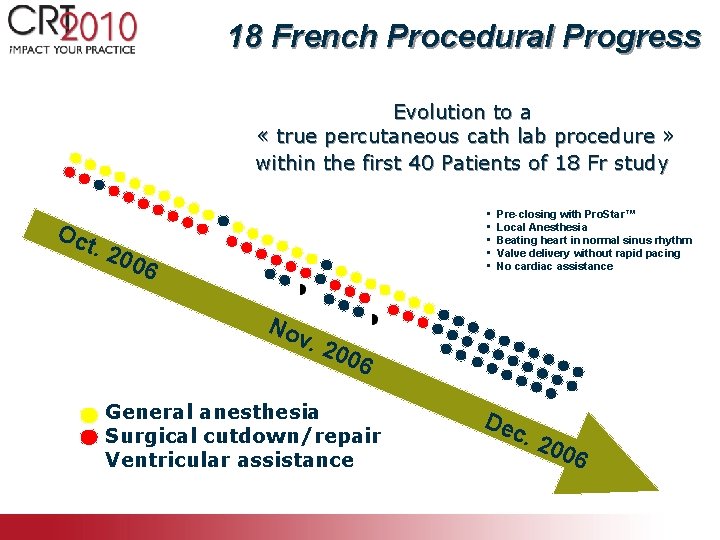

18 French Procedural Progress Evolution to a « true percutaneous cath lab procedure » within the first 40 Patients of 18 Fr study • • • Oc t. 2 006 No Pre-closing with Pro. Star™ Local Anesthesia Beating heart in normal sinus rhythm Valve delivery without rapid pacing No cardiac assistance v. 2 006 General anesthesia Surgical cutdown/repair Ventricular assistance Dec . 20 06

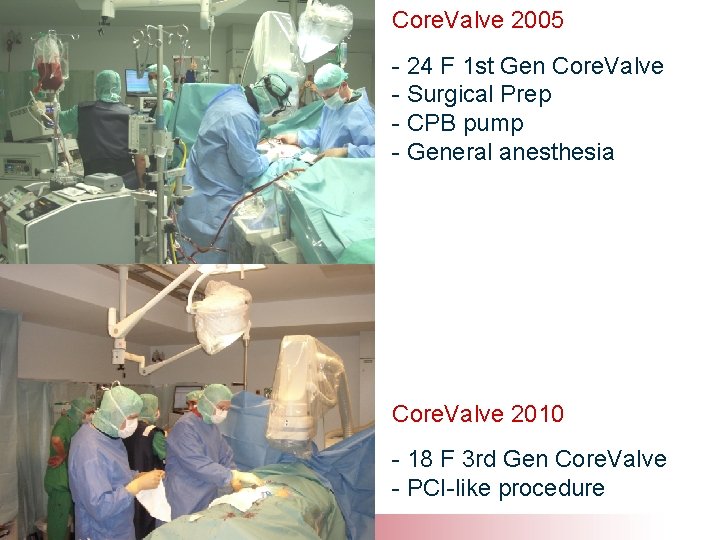

Core. Valve 2005 - 24 F 1 st Gen Core. Valve - Surgical Prep - CPB pump - General anesthesia Core. Valve 2010 - 18 F 3 rd Gen Core. Valve - PCI-like procedure

Transcatheter AVR Current Generation Devices Edwards ~7, 500 patients Core. Valve ~7, 500 patients

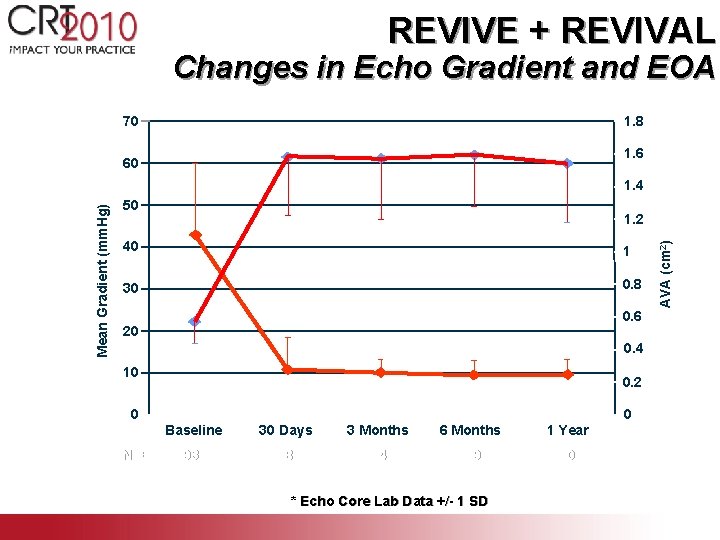

REVIVE + REVIVAL Changes in Echo Gradient and EOA * p < 0. 001 vs. baseline 70 * 60 * * * 1. 8 1. 6 50 1. 2 40 1 30 0. 8 * 20 10 0 N= 0. 6 * * * 0. 4 0. 2 0 Baseline 30 Days 3 Months 6 Months 1 Year 93 98 94 79 60 * Echo Core Lab Data +/- 1 SD AVA (cm 2) Mean Gradient (mm. Hg) 1. 4

Pre- and Post-operative Gradients Peak Gradient (mm. Hg) Mean Gradient (mm. Hg) 76. 3 75. 5 49. 6 46. 4 17. 7 17. 0 9. 3 8. 4 6

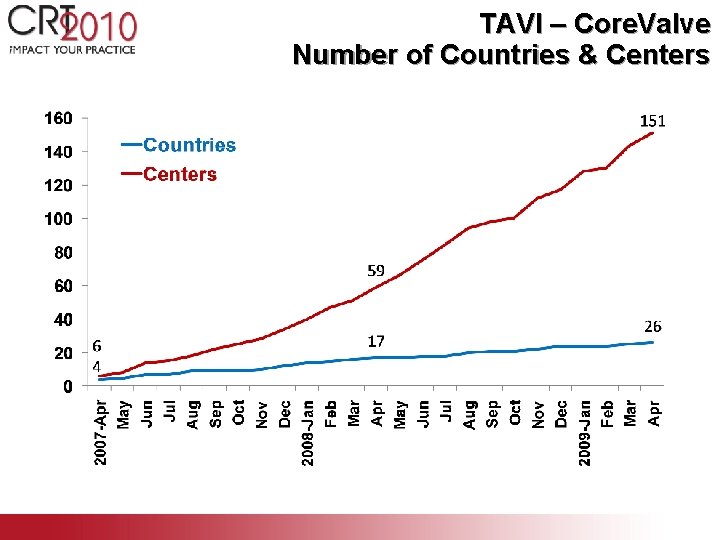

TAVI – Core. Valve Number of Countries & Centers

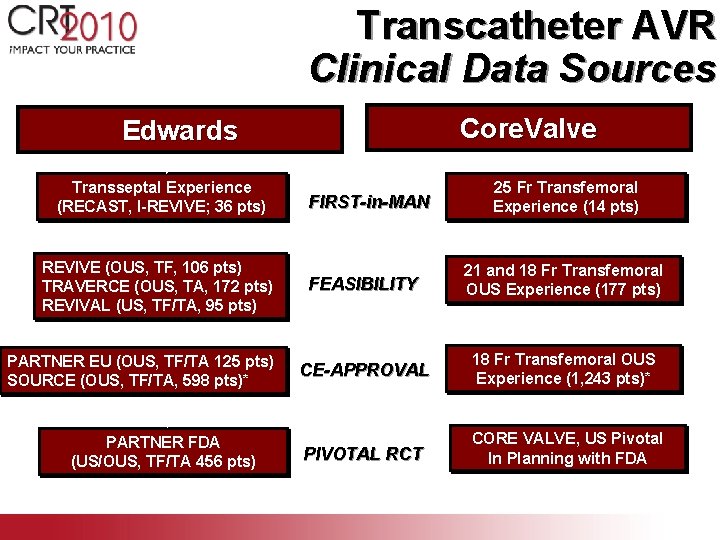

Transcatheter AVR Clinical Data Sources Core. Valve Edwards Transseptal Experience (RECAST, I-REVIVE; 36 pts) REVIVE (OUS, TF, 106 pts) TRAVERCE (OUS, TA, 172 pts) REVIVAL (US, TF/TA, 95 pts) PARTNER EU (OUS, TF/TA 125 pts) SOURCE (OUS, TF/TA, 598 pts)* PARTNER FDA (US/OUS, TF/TA 456 pts) FIRST-in-MAN 25 Fr Transfemoral Experience (14 pts) FEASIBILITY 21 and 18 Fr Transfemoral OUS Experience (177 pts) CE-APPROVAL 18 Fr Transfemoral OUS Experience (1, 243 pts)* PIVOTAL RCT CORE VALVE, US Pivotal In Planning with FDA

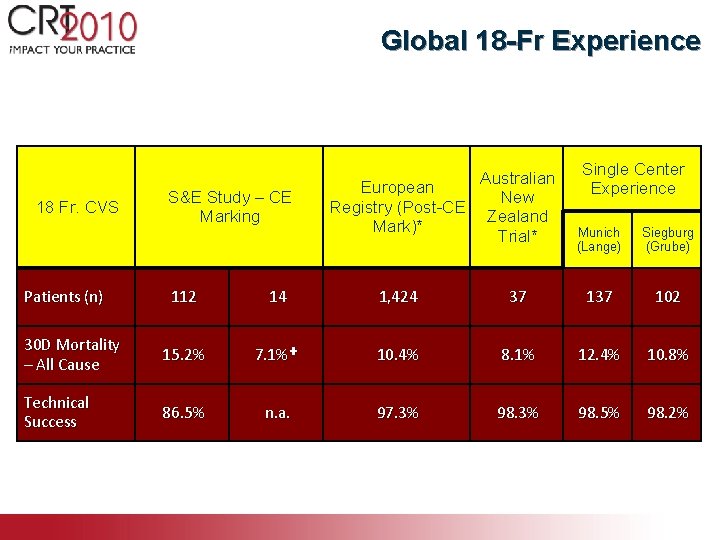

Global 18 -Fr Experience 18 Fr. CVS S&E Study – CE Marking Patients (n) Australian European New Registry (Post-CE Zealand Mark)* Trial* Single Center Experience Munich (Lange) Siegburg (Grube) 112 14 1, 424 37 102 30 D Mortality – All Cause 15. 2% 7. 1%✚ 10. 4% 8. 1% 12. 4% 10. 8% Technical Success 86. 5% n. a. 97. 3% 98. 5% 98. 2% * Site reported ✚ Un-adjudicated

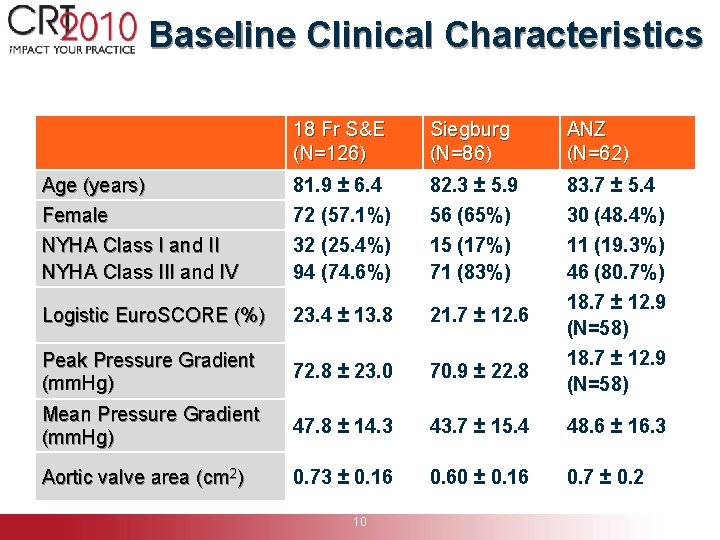

Baseline Clinical Characteristics 18 Fr S&E (N=126) Siegburg (N=86) ANZ (N=62) Age (years) Female NYHA Class I and II NYHA Class III and IV 81. 9 ± 6. 4 72 (57. 1%) 32 (25. 4%) 94 (74. 6%) 82. 3 ± 5. 9 56 (65%) 15 (17%) 71 (83%) 83. 7 ± 5. 4 30 (48. 4%) 11 (19. 3%) 46 (80. 7%) Logistic Euro. SCORE (%) 23. 4 ± 13. 8 21. 7 ± 12. 6 Peak Pressure Gradient (mm. Hg) 72. 8 ± 23. 0 70. 9 ± 22. 8 Mean Pressure Gradient (mm. Hg) 47. 8 ± 14. 3 43. 7 ± 15. 4 48. 6 ± 16. 3 Aortic valve area (cm 2) 0. 73 ± 0. 16 0. 60 ± 0. 16 0. 7 ± 0. 2 10 18. 7 ± 12. 9 (N=58)

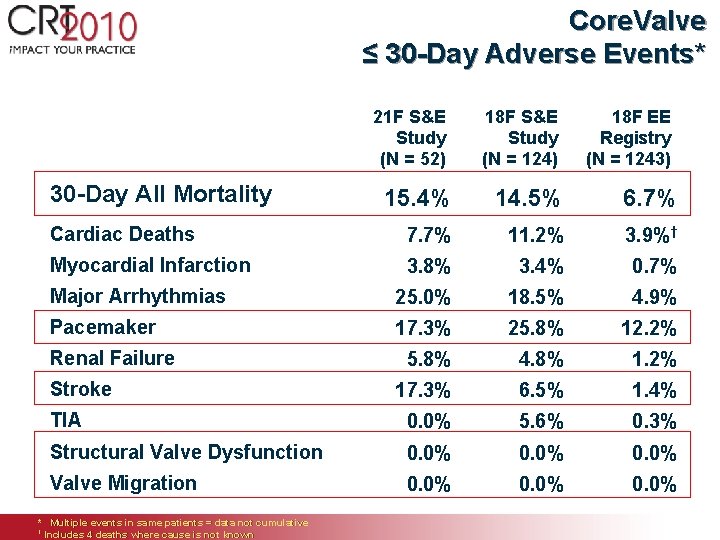

Core. Valve ≤ 30 -Day Adverse Events* 21 F S&E Study (N = 52) 30 -Day All Mortality 18 F S&E Study (N = 124) 18 F EE Registry (N = 1243) 15. 4% 14. 5% 6. 7% Cardiac Deaths 7. 7% 11. 2% 3. 9%† Myocardial Infarction 3. 8% 3. 4% 0. 7% Major Arrhythmias 25. 0% 18. 5% 4. 9% Pacemaker 17. 3% 25. 8% 12. 2% 5. 8% 4. 8% 1. 2% 17. 3% 6. 5% 1. 4% TIA 0. 0% 5. 6% 0. 3% Structural Valve Dysfunction 0. 0% Valve Migration 0. 0% Renal Failure Stroke * Multiple events in same patients = data not cumulative † Includes 4 deaths where cause is not known

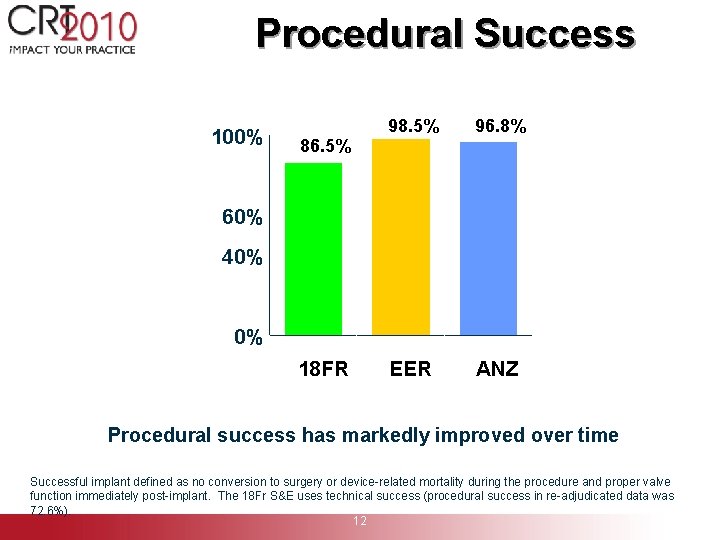

Procedural Success 100% 86. 5% 98. 5% 96. 8% EER ANZ 80% 60% 40% 20% 0% 18 FR S&E Procedural success has markedly improved over time Successful implant defined as no conversion to surgery or device-related mortality during the procedure and proper valve function immediately post-implant. The 18 Fr S&E uses technical success (procedural success in re-adjudicated data was 72. 6%). 12

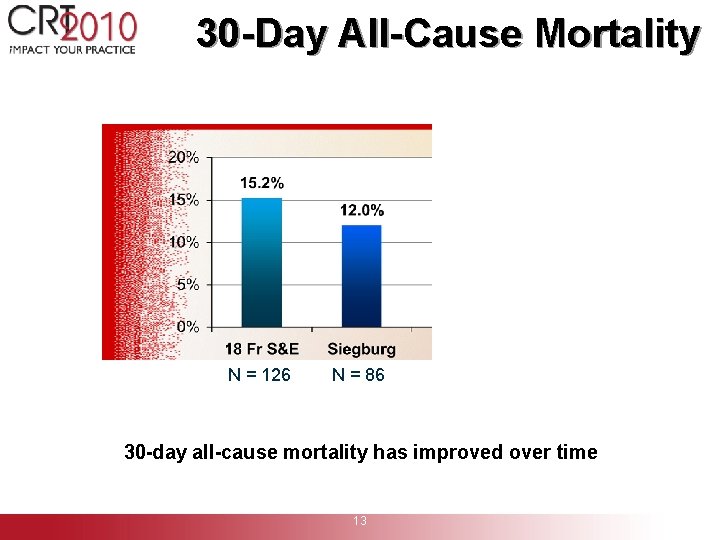

30 -Day All-Cause Mortality N = 126 N = 86 30 -day all-cause mortality has improved over time 13

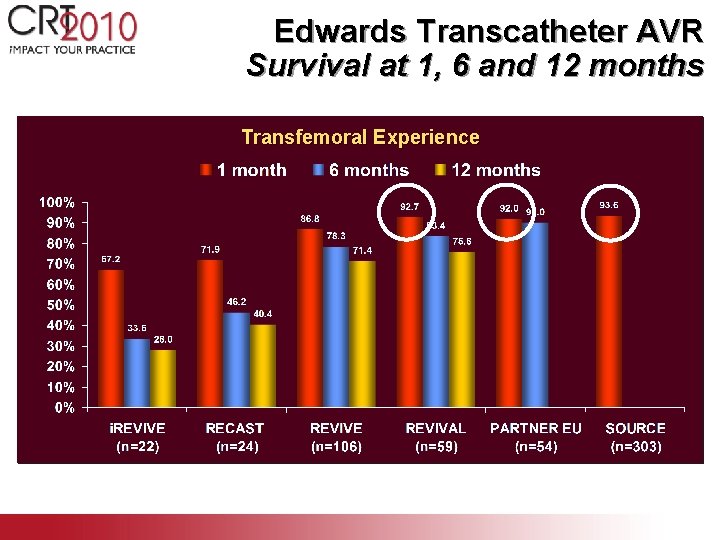

Edwards Transcatheter AVR Survival at 1, 6 and 12 months Transfemoral Experience

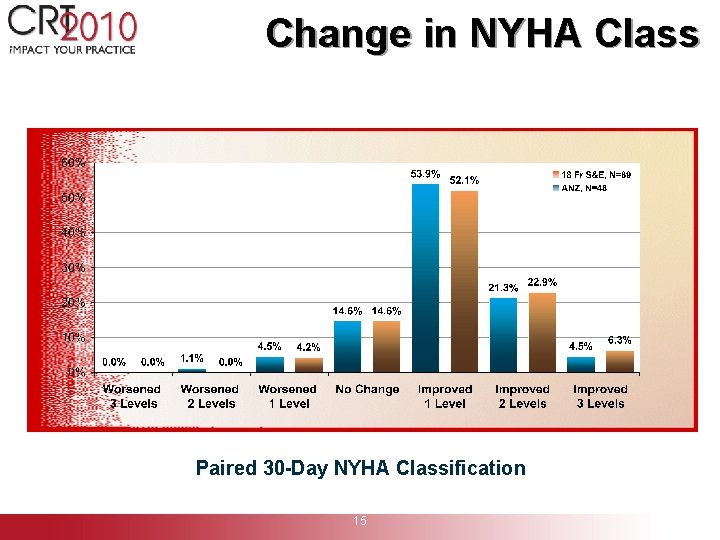

Change in NYHA Class Paired 30 -Day NYHA Classification 15

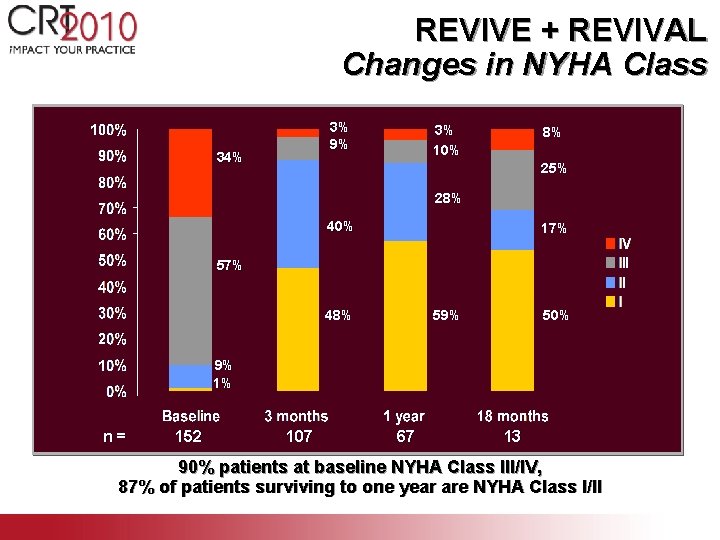

REVIVE + REVIVAL Changes in NYHA Class 3% 9% 34% 3% 10% 8% 25% 28% 40% 17% 59% 48% 50% 9% 1% n= 152 107 67 13 90% patients at baseline NYHA Class III/IV, 87% of patients surviving to one year are NYHA Class I/II

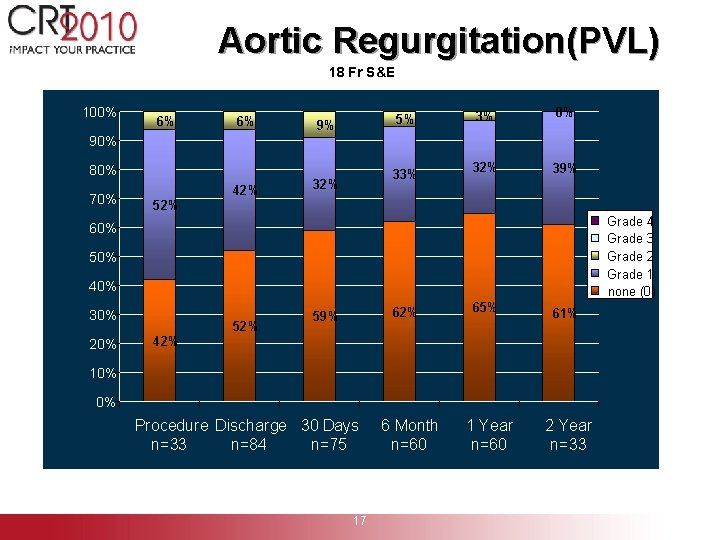

Aortic Regurgitation(PVL) 18 Fr S&E 100% 6% 6% 5% 9% 3% 0% 32% 39% 90% 80% 70% 52% 42% 33% 32% Grade 4 Grade 3 Grade 2 Grade 1 none (0) 60% 50% 40% 30% 20% 42% 52% 62% 59% 65% 61% 1 Year n=60 2 Year n=33 10% 0% Procedure Discharge 30 Days n=33 n=84 n=75 6 Month n=60 Source: 18 Fr S&E 17

TAVI Candidate Today: Who is Eligible? Morphological Criteria: (Mandatory) • • Logistic Euro. SCORE ≥ 20% (21 F) ≥ 15% (18 F) Clinical Criteria: ? Native Aortic Valve Disease Severe AS: AVAI ≤ 0. 6 cm 2/m 2 27 mm ≥AV annulus ≥ 20 mm Sino-tubular Junction ≤ 43 mm Age ≥ 80 y (21 F) ≥ 75 y (18 F) Age ≥ 65 y plus 1+ of the following: • • • Liver cirrhosis (Child A or B) Pulmonary insufficiency: FEV 1<1 L Previous cardiac surgery PHT (PAP>60 mm. Hg) Recurrent P. E’s RV failure Hostile thorax (radiation, burns, etc) Severe connective tissue disease Cachexia

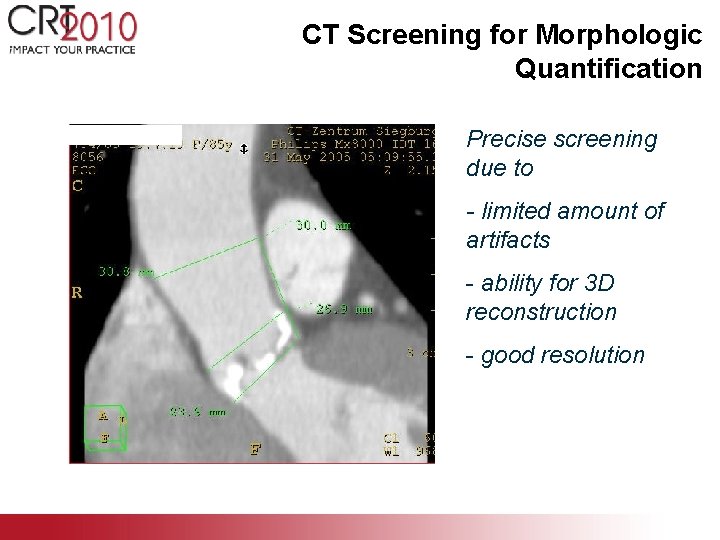

CT Screening for Morphologic Quantification Precise screening due to - limited amount of artifacts - ability for 3 D reconstruction - good resolution

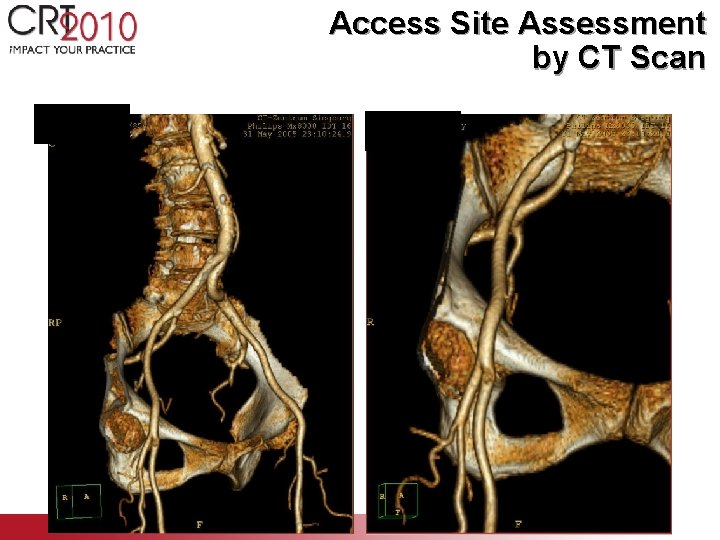

Access Site Assessment by CT Scan

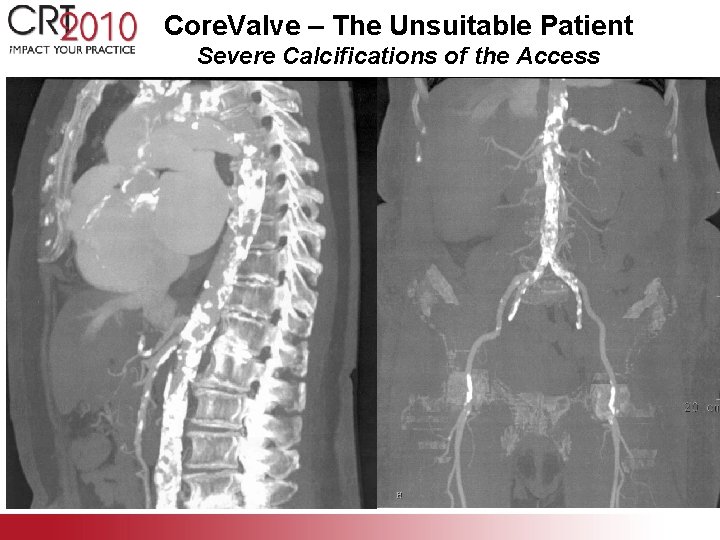

Core. Valve – The Unsuitable Patient Severe Calcifications of the Access

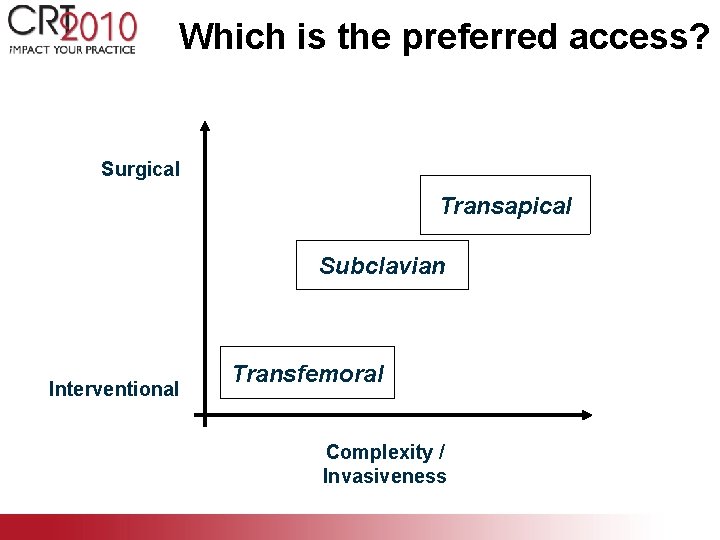

Which is the preferred access? Surgical Transapical Subclavian Interventional Transfemoral Complexity / Invasiveness

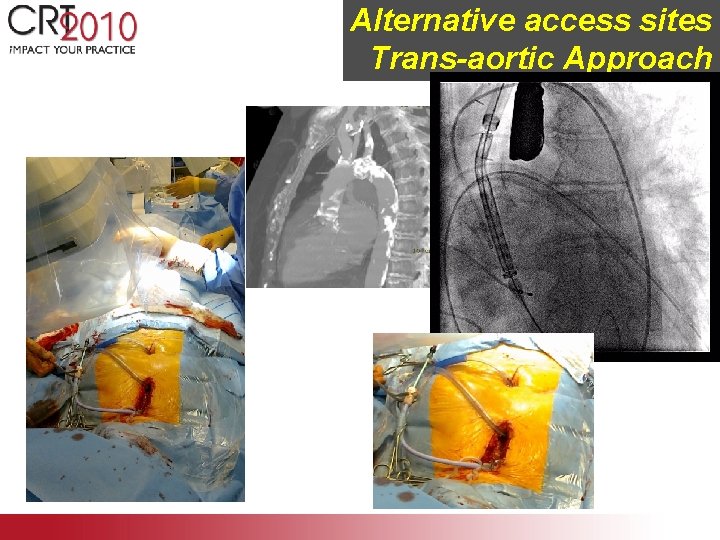

Alternative access sites Trans-aortic Approach

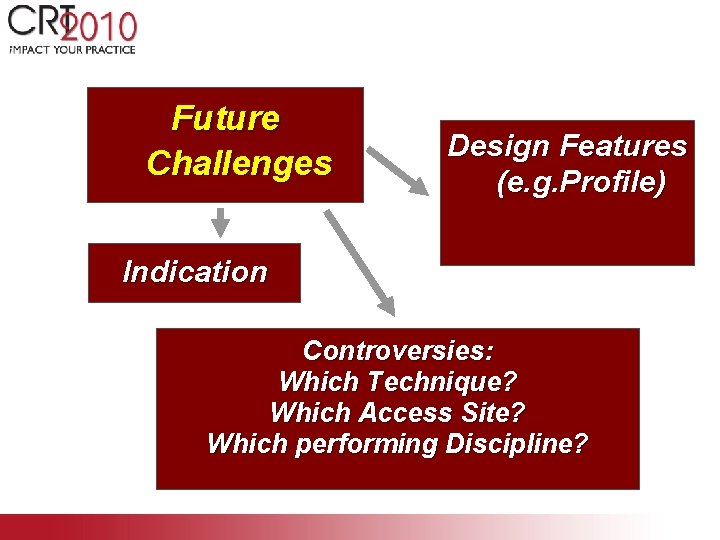

Future Challenges Design Features (e. g. Profile) Indication Controversies: Which Technique? Which Access Site? Which performing Discipline?

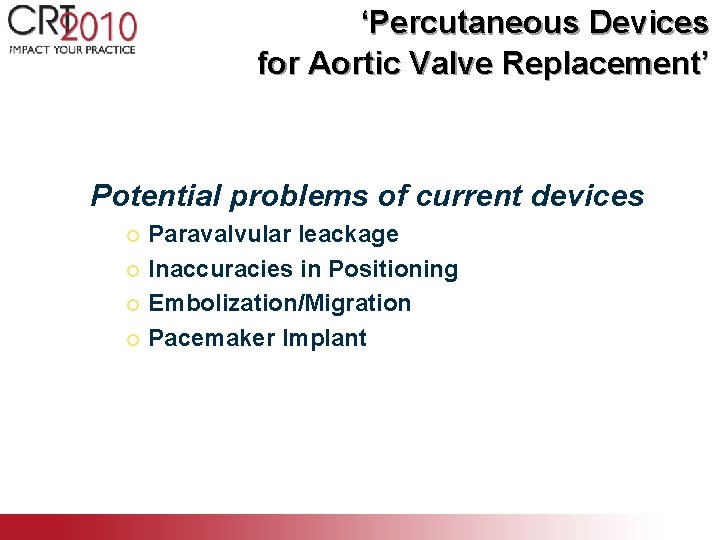

‘Percutaneous Devices for Aortic Valve Replacement’ Potential problems of current devices Paravalvular leackage ¡ Inaccuracies in Positioning ¡ Embolization/Migration ¡ Pacemaker Implant ¡

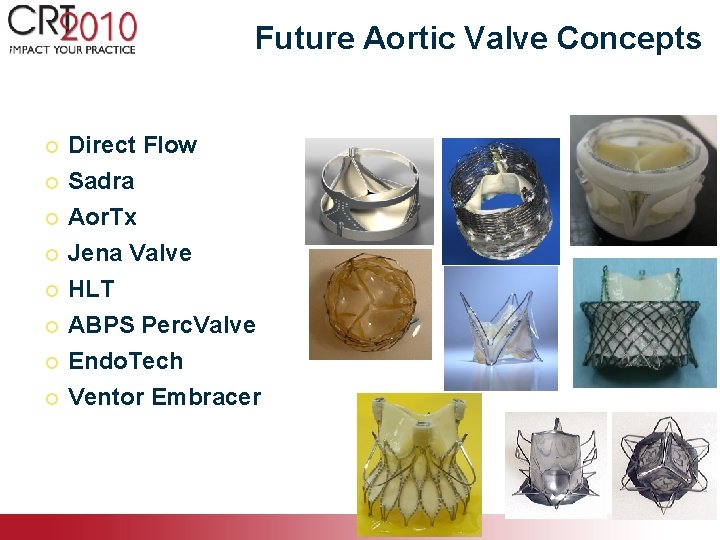

Future Aortic Valve Concepts ¡ Direct Flow ¡ Sadra ¡ Aor. Tx ¡ Jena Valve ¡ HLT ABPS Perc. Valve ¡ Endo. Tech ¡ Ventor Embracer ¡

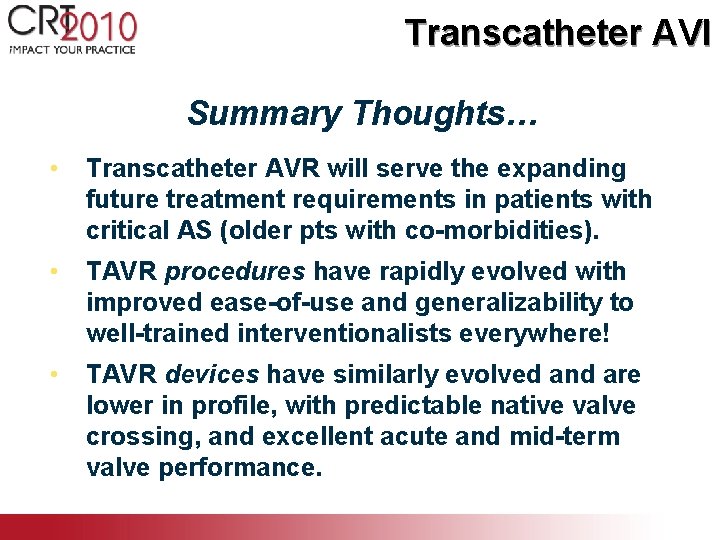

Transcatheter AVI Summary Thoughts… • Transcatheter AVR will serve the expanding future treatment requirements in patients with critical AS (older pts with co-morbidities). • TAVR procedures have rapidly evolved with improved ease-of-use and generalizability to well-trained interventionalists everywhere! • TAVR devices have similarly evolved and are lower in profile, with predictable native valve crossing, and excellent acute and mid-term valve performance.

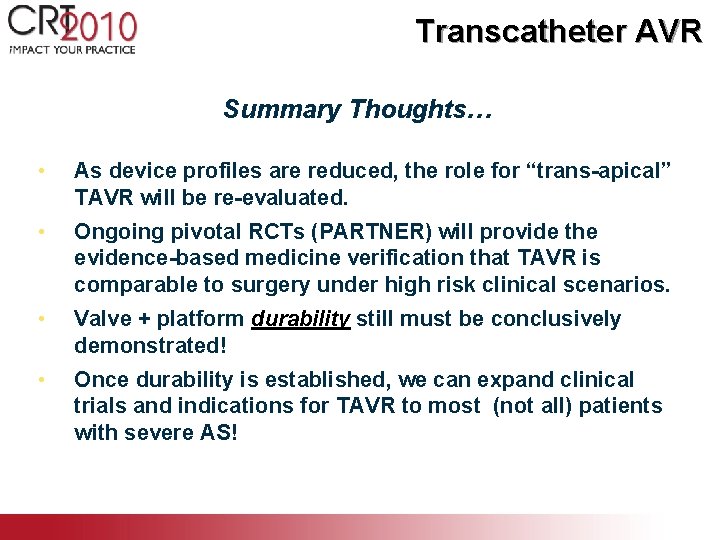

Transcatheter AVR Summary Thoughts… • As device profiles are reduced, the role for “trans-apical” TAVR will be re-evaluated. • Ongoing pivotal RCTs (PARTNER) will provide the evidence-based medicine verification that TAVR is comparable to surgery under high risk clinical scenarios. • Valve + platform durability still must be conclusively demonstrated! • Once durability is established, we can expand clinical trials and indications for TAVR to most (not all) patients with severe AS!
