What You Need to Know About LEED Presented
What You Need to Know About LEED® Presented by: Michelle Leader, LEED AP Marketing Specialist Sto Corp. Silke Niemann Marketing Coordinator Sto Corp.

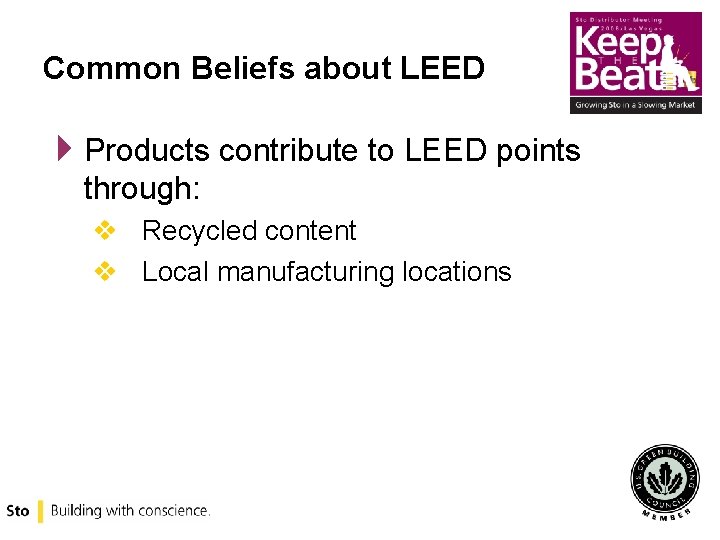

Common Beliefs about LEED 4 Products contribute to LEED points through: v Recycled content v Local manufacturing locations

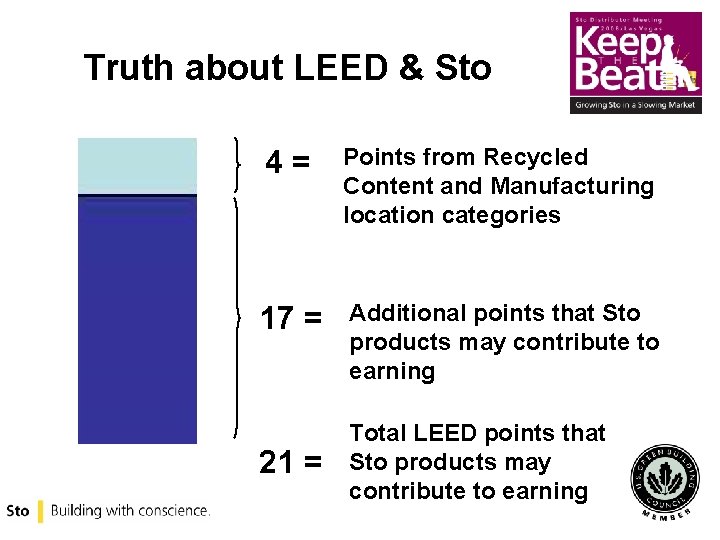

Truth about LEED & Sto 4= Points from Recycled Content and Manufacturing location categories 17 = Additional points that Sto products may contribute to earning 21 = Total LEED points that Sto products may contribute to earning

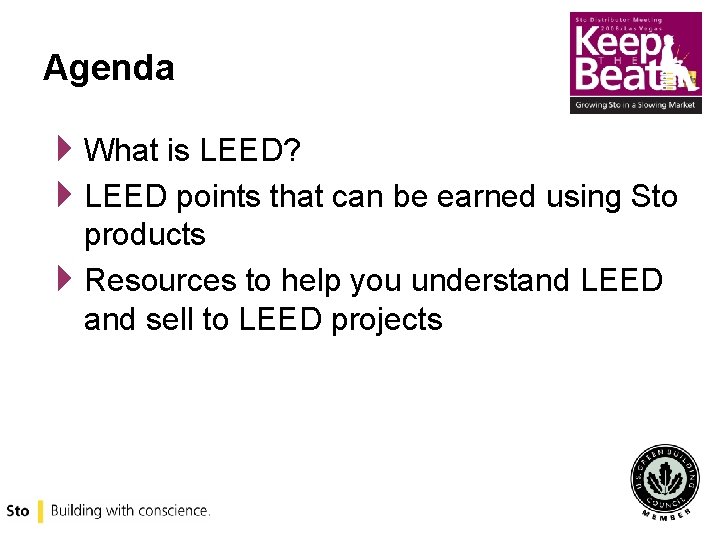

Agenda 4 What is LEED? 4 LEED points that can be earned using Sto products 4 Resources to help you understand LEED and sell to LEED projects

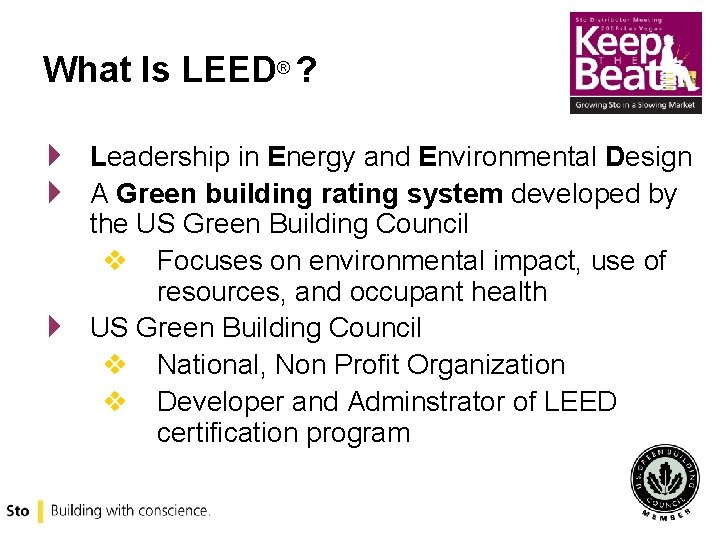

What Is LEED® ? 4 4 4 Leadership in Energy and Environmental Design A Green building rating system developed by the US Green Building Council v Focuses on environmental impact, use of resources, and occupant health US Green Building Council v National, Non Profit Organization v Developer and Adminstrator of LEED certification program

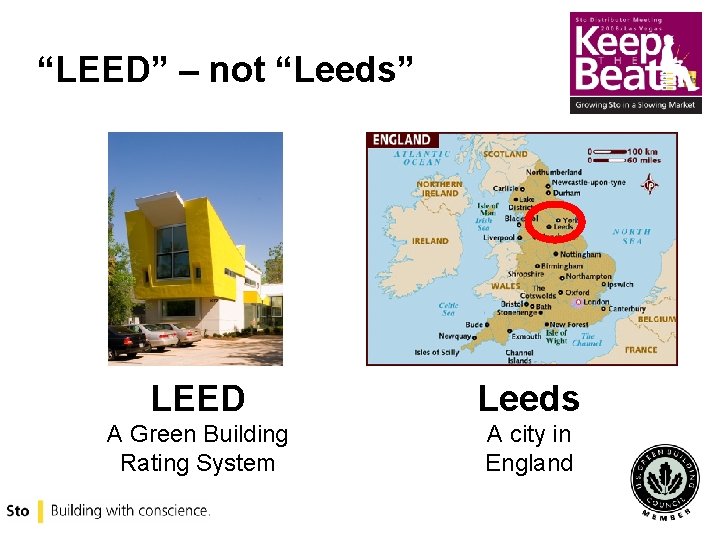

“LEED” – not “Leeds” LEED Leeds A Green Building Rating System A city in England

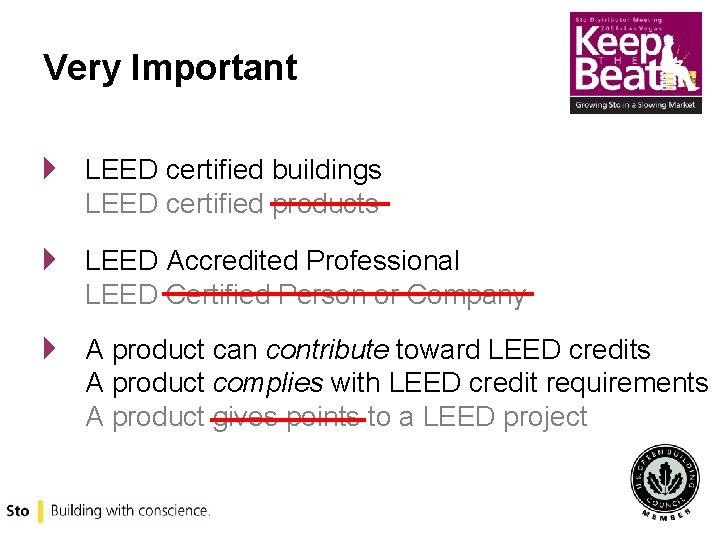

Very Important 4 LEED certified buildings LEED certified products 4 LEED Accredited Professional LEED Certified Person or Company 4 A product can contribute toward LEED credits A product complies with LEED credit requirements A product gives points to a LEED project

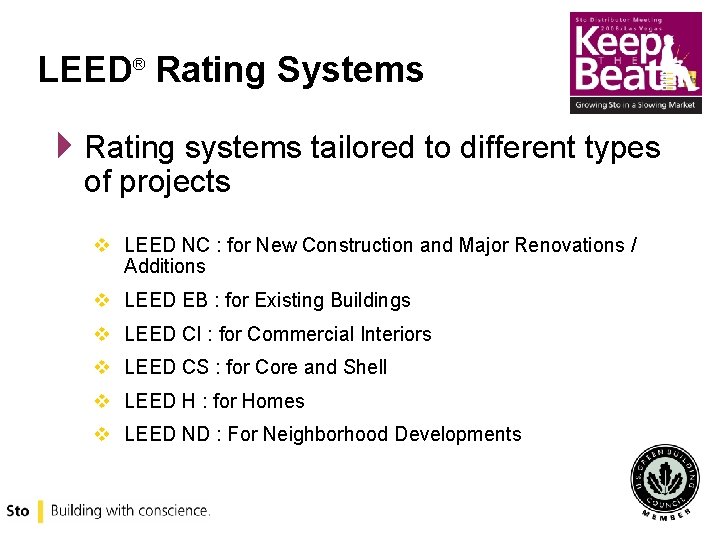

LEED® Rating Systems 4 Rating systems tailored to different types of projects v LEED NC : for New Construction and Major Renovations / Additions v LEED EB : for Existing Buildings v LEED CI : for Commercial Interiors v LEED CS : for Core and Shell v LEED H : for Homes v LEED ND : For Neighborhood Developments

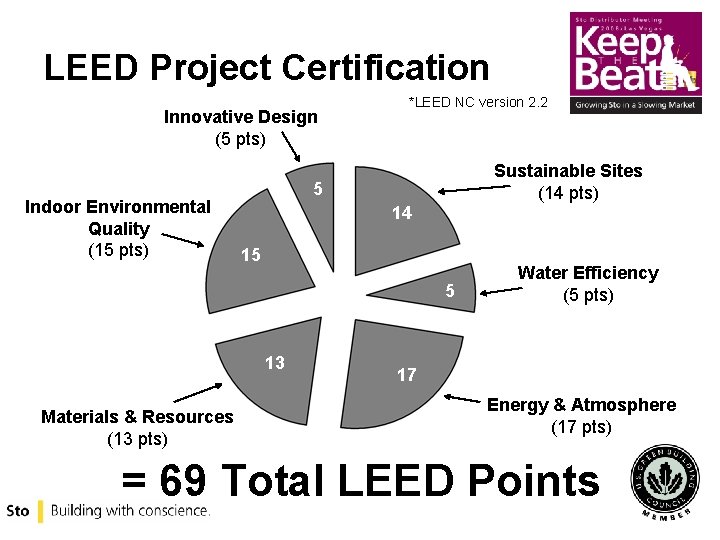

LEED Project Certification Innovative Design (5 pts) Indoor Environmental Quality (15 pts) *LEED NC version 2. 2 Sustainable Sites (14 pts) 5 14 15 5 13 Materials & Resources (13 pts) Water Efficiency (5 pts) 17 Energy & Atmosphere (17 pts) = 69 Total LEED Points

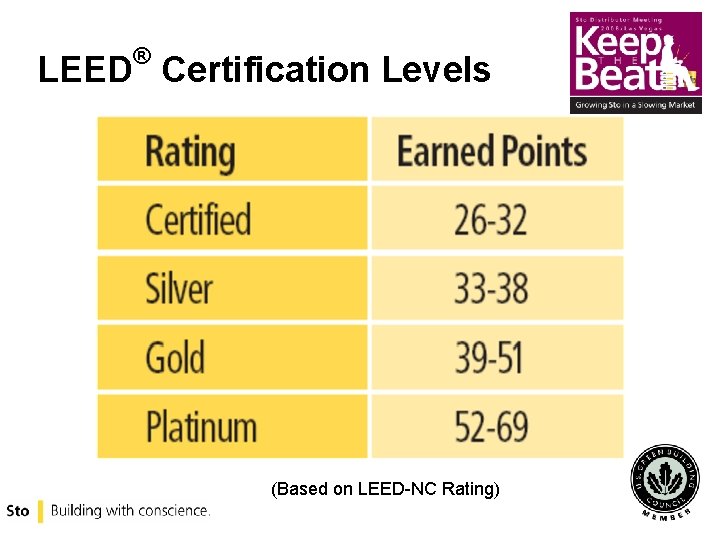

® LEED Certification Levels (Based on LEED-NC Rating)

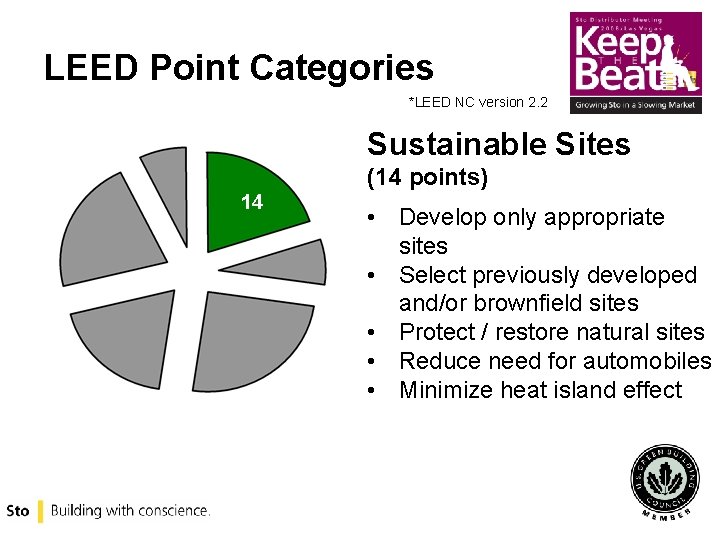

LEED Point Categories *LEED NC version 2. 2 Sustainable Sites (14 points) 14 • 14 Develop only appropriate sites • Select previously developed and/or brownfield sites • Protect / restore natural sites • Reduce need for automobiles • Minimize heat island effect

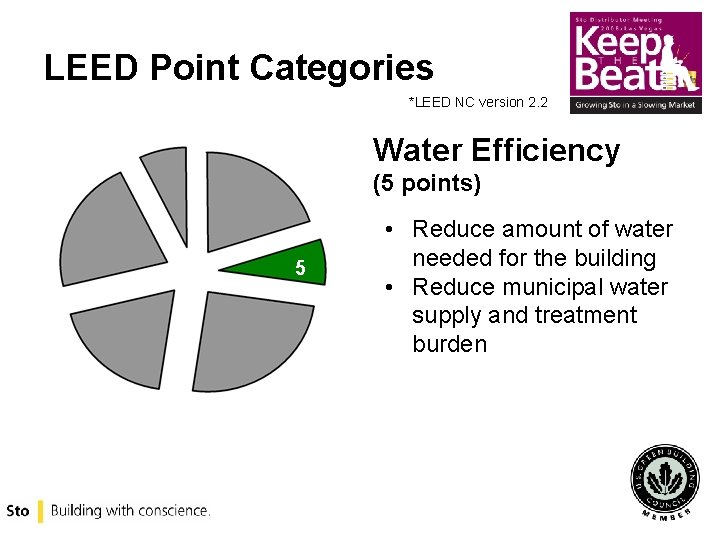

LEED Point Categories *LEED NC version 2. 2 Water Efficiency (5 points) 14 5 • Reduce amount of water needed for the building • Reduce municipal water supply and treatment burden

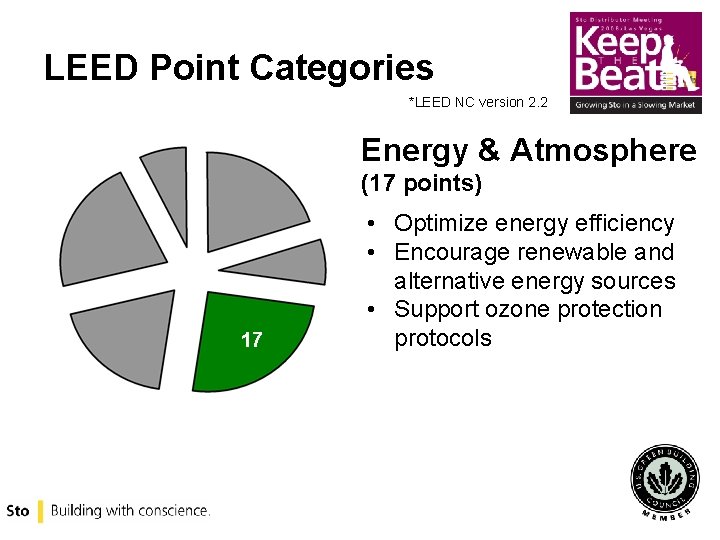

LEED Point Categories *LEED NC version 2. 2 Energy & Atmosphere (17 points) 17 • 14 Optimize energy efficiency • Encourage renewable and alternative energy sources • Support ozone protection protocols

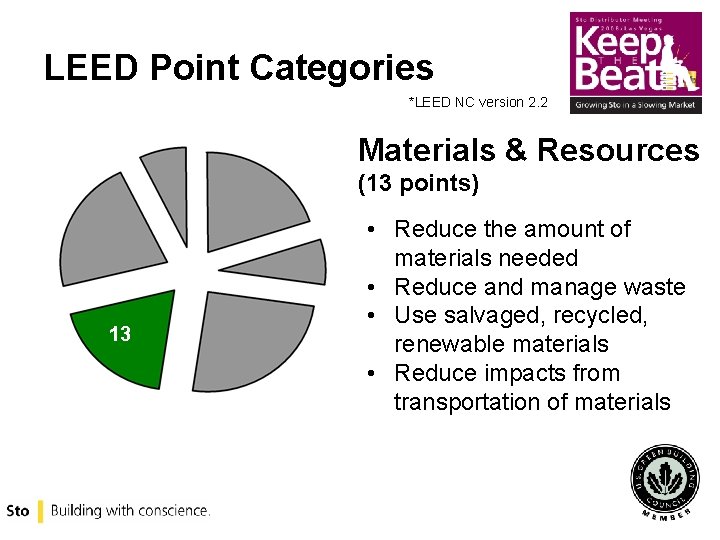

LEED Point Categories *LEED NC version 2. 2 Materials & Resources (13 points) 14 13 • Reduce the amount of materials needed • Reduce and manage waste • Use salvaged, recycled, renewable materials • Reduce impacts from transportation of materials

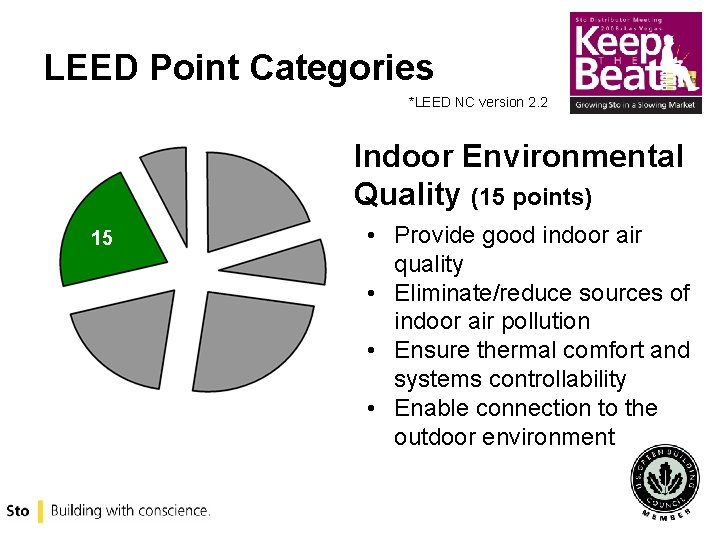

LEED Point Categories *LEED NC version 2. 2 Indoor Environmental Quality (15 points) 14 15 • Provide good indoor air quality • Eliminate/reduce sources of indoor air pollution • Ensure thermal comfort and systems controllability • Enable connection to the outdoor environment

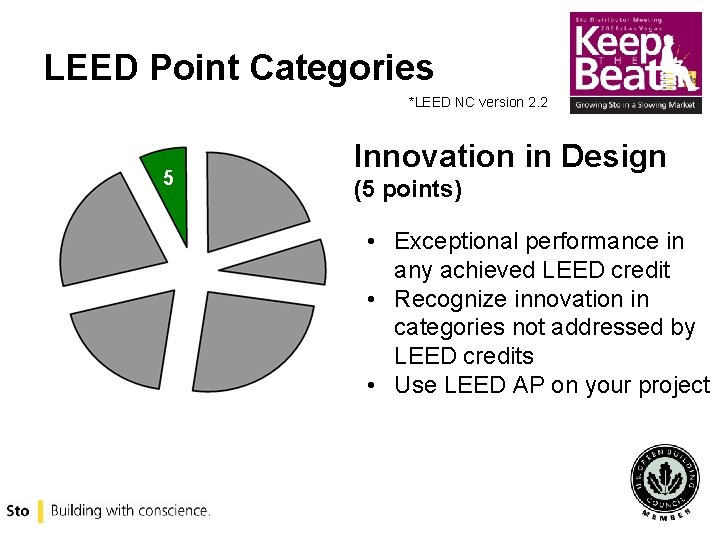

LEED Point Categories *LEED NC version 2. 2 5 Innovation in Design (5 points) 14 • Exceptional performance in any achieved LEED credit • Recognize innovation in categories not addressed by LEED credits • Use LEED AP on your project

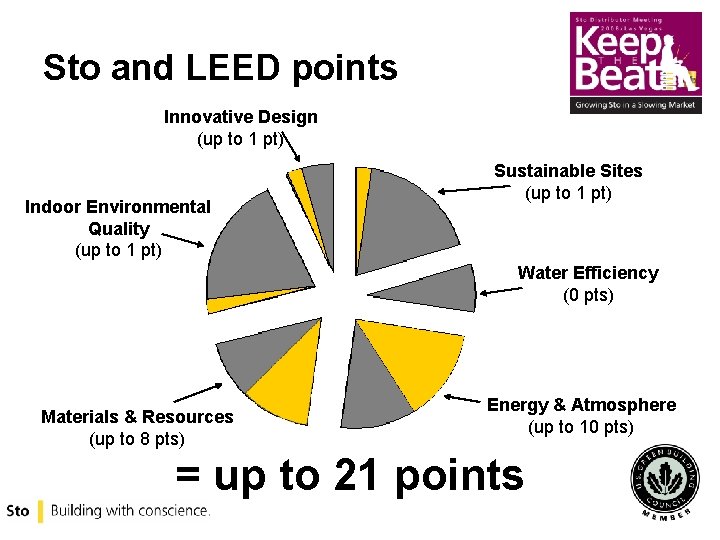

Sto and LEED points Innovative Design (up to 1 pt) Indoor Environmental Quality (up to 1 pt) Sustainable Sites (up to 1 pt) Water Efficiency (0 pts) Materials & Resources (up to 8 pts) Energy & Atmosphere (up to 10 pts) = up to 21 points

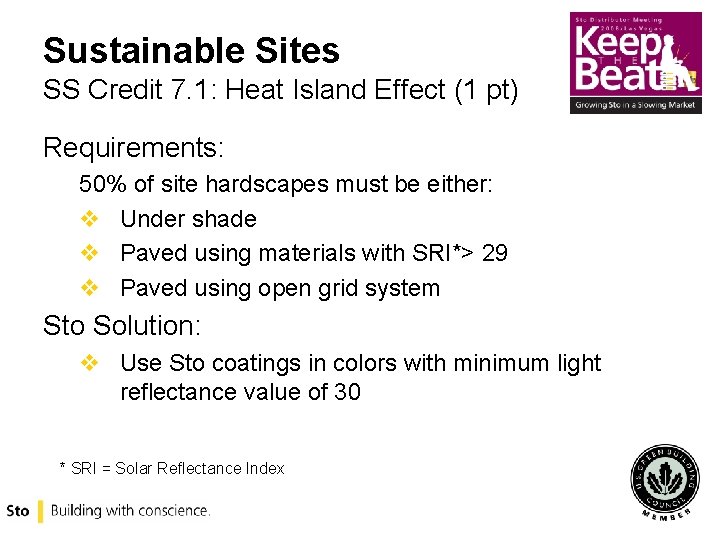

Sustainable Sites SS Credit 7. 1: Heat Island Effect (1 pt) Requirements: 50% of site hardscapes must be either: v Under shade v Paved using materials with SRI*> 29 v Paved using open grid system Sto Solution: v Use Sto coatings in colors with minimum light reflectance value of 30 * SRI = Solar Reflectance Index

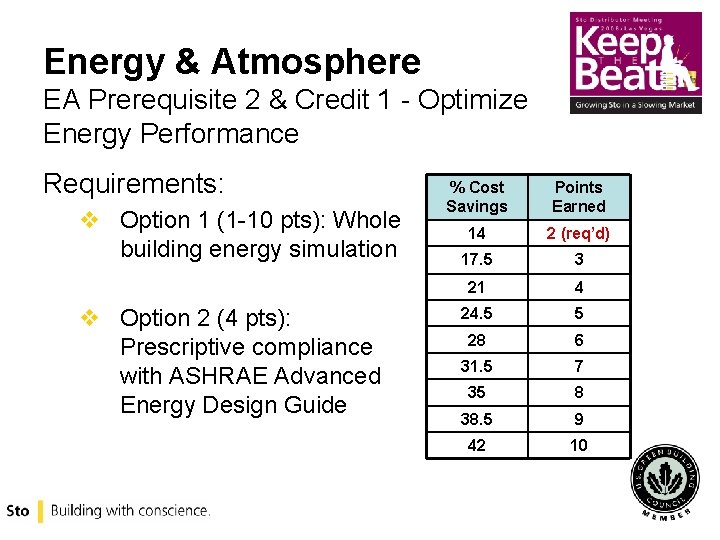

Energy & Atmosphere EA Prerequisite 2 & Credit 1 - Optimize Energy Performance Requirements: v Option 1 (1 -10 pts): Whole building energy simulation v Option 2 (4 pts): Prescriptive compliance with ASHRAE Advanced Energy Design Guide % Cost Savings Points Earned 14 2 (req’d) 17. 5 3 21 4 24. 5 5 28 6 31. 5 7 35 8 38. 5 9 42 10

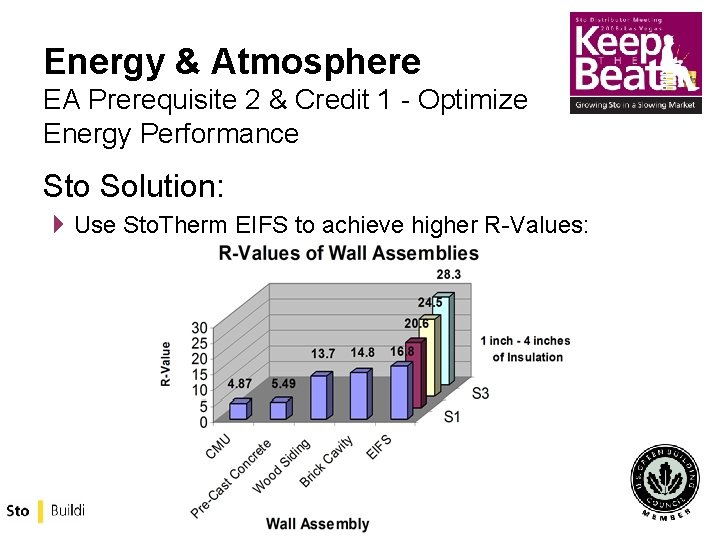

Energy & Atmosphere EA Prerequisite 2 & Credit 1 - Optimize Energy Performance Sto Solution: 4 Use Sto. Therm EIFS to achieve higher R-Values:

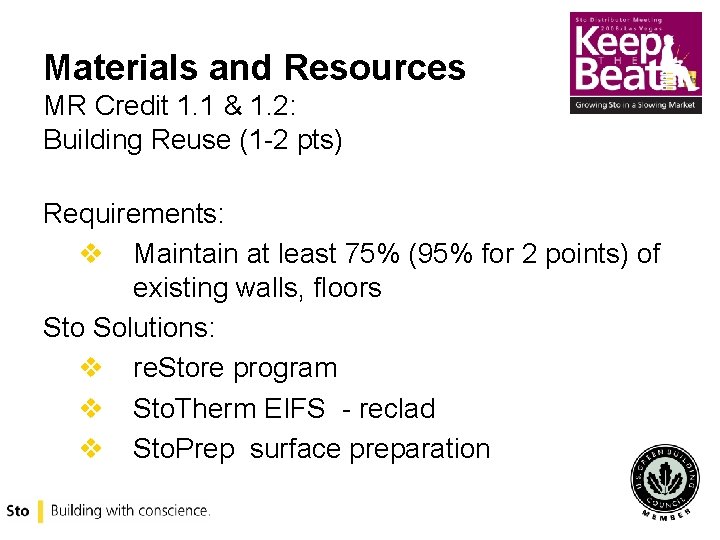

Materials and Resources MR Credit 1. 1 & 1. 2: Building Reuse (1 -2 pts) Requirements: v Maintain at least 75% (95% for 2 points) of existing walls, floors Sto Solutions: v re. Store program v Sto. Therm EIFS - reclad v Sto. Prep surface preparation

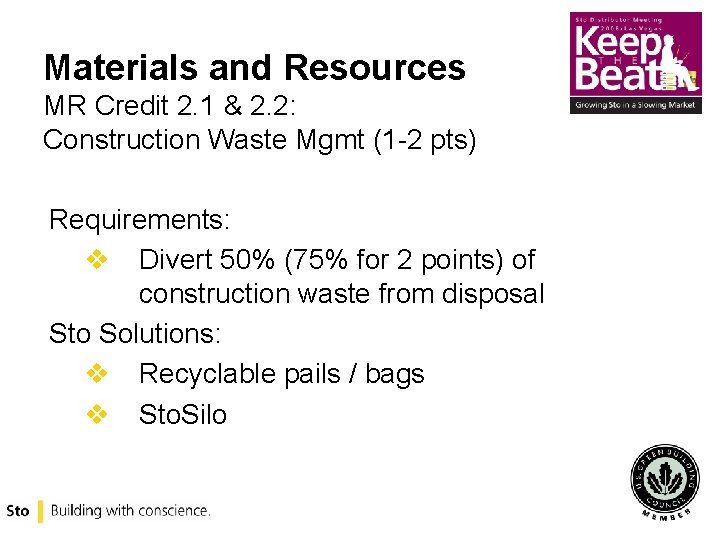

Materials and Resources MR Credit 2. 1 & 2. 2: Construction Waste Mgmt (1 -2 pts) Requirements: v Divert 50% (75% for 2 points) of construction waste from disposal Sto Solutions: v Recyclable pails / bags v Sto. Silo
Materials and Resources MR Credit 4. 1 & 4. 2: Recycled Content (1 -2 pts) Requirements: v Minimum of 10% (20% for 2 pts) of products used on project made from recycled materials Sto Solutions: v Products containing recycled content: © Sto BTS & BTS Silo © Sto. Guard Gold Coat & Emerald. Coat

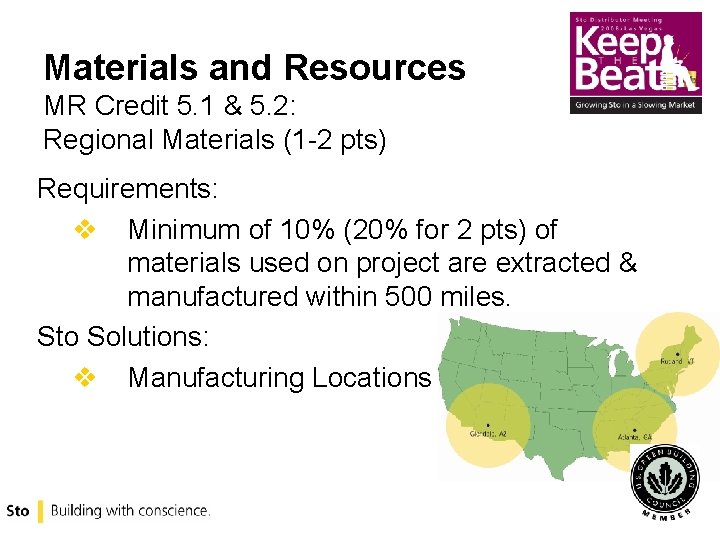

Materials and Resources MR Credit 5. 1 & 5. 2: Regional Materials (1 -2 pts) Requirements: v Minimum of 10% (20% for 2 pts) of materials used on project are extracted & manufactured within 500 miles. Sto Solutions: v Manufacturing Locations

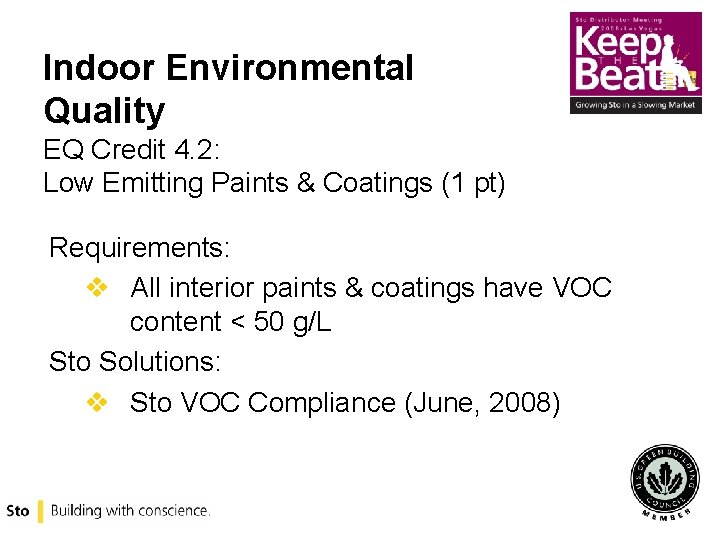

Indoor Environmental Quality EQ Credit 4. 2: Low Emitting Paints & Coatings (1 pt) Requirements: v All interior paints & coatings have VOC content < 50 g/L Sto Solutions: v Sto VOC Compliance (June, 2008)

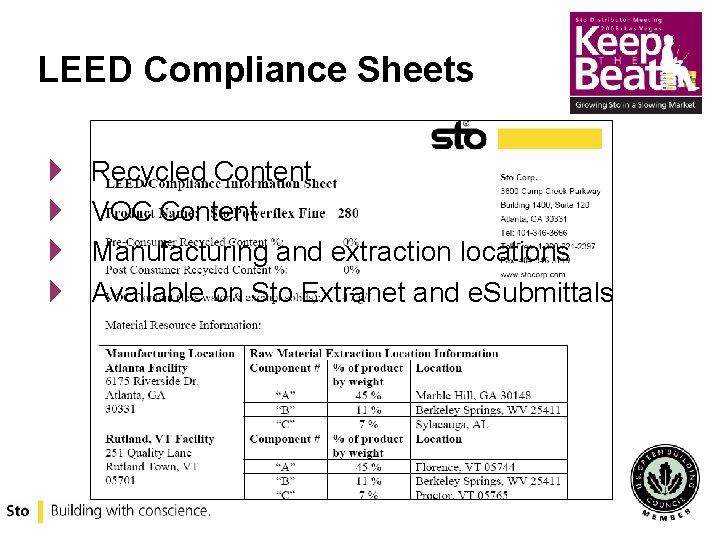

LEED Compliance Sheets 4 4 Recycled Content VOC Content Manufacturing and extraction locations Available on Sto Extranet and e. Submittals

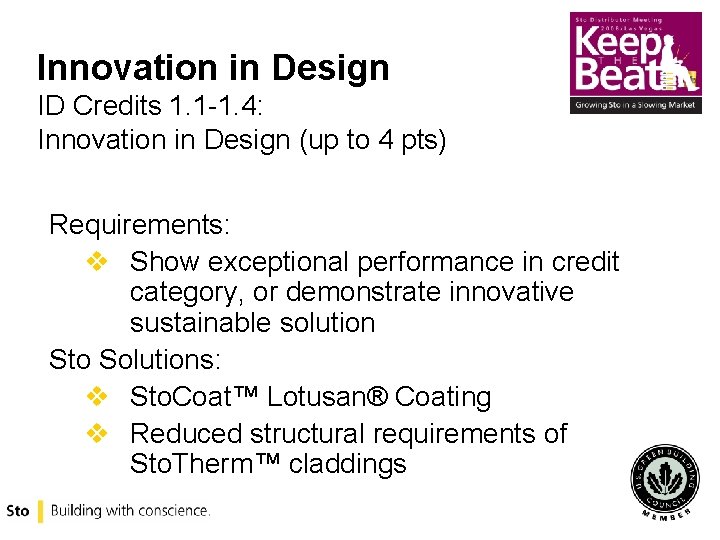

Innovation in Design ID Credits 1. 1 -1. 4: Innovation in Design (up to 4 pts) Requirements: v Show exceptional performance in credit category, or demonstrate innovative sustainable solution Sto Solutions: v Sto. Coat™ Lotusan® Coating v Reduced structural requirements of Sto. Therm™ claddings
Sto & LEED Credit Summary

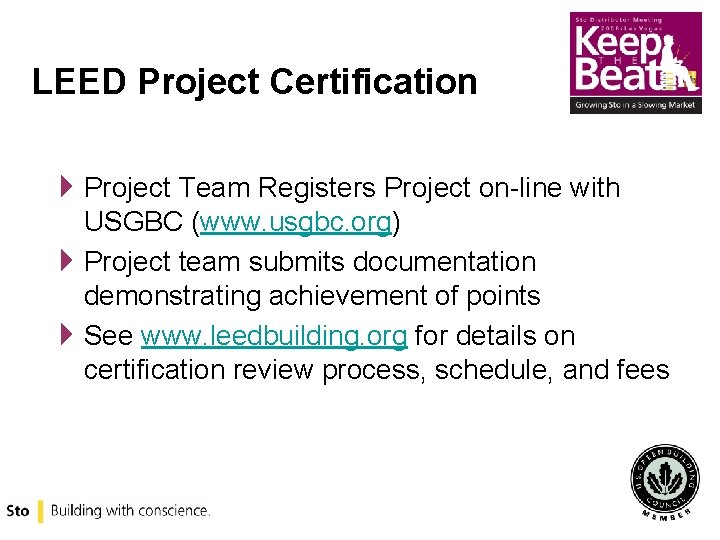

LEED Project Certification 4 Project Team Registers Project on-line with USGBC (www. usgbc. org) 4 Project team submits documentation demonstrating achievement of points 4 See www. leedbuilding. org for details on certification review process, schedule, and fees

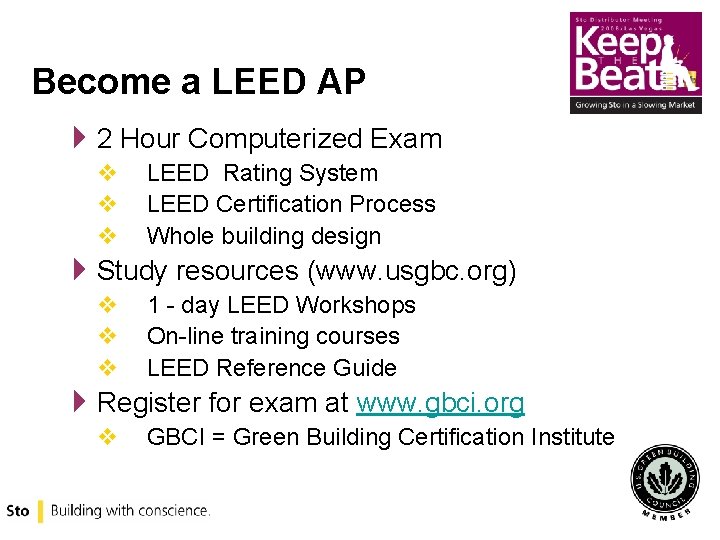

Become a LEED AP 42 Hour Computerized Exam v v v LEED Rating System LEED Certification Process Whole building design 4 Study resources (www. usgbc. org) v v v 1 - day LEED Workshops On-line training courses LEED Reference Guide 4 Register for exam at www. gbci. org v GBCI = Green Building Certification Institute

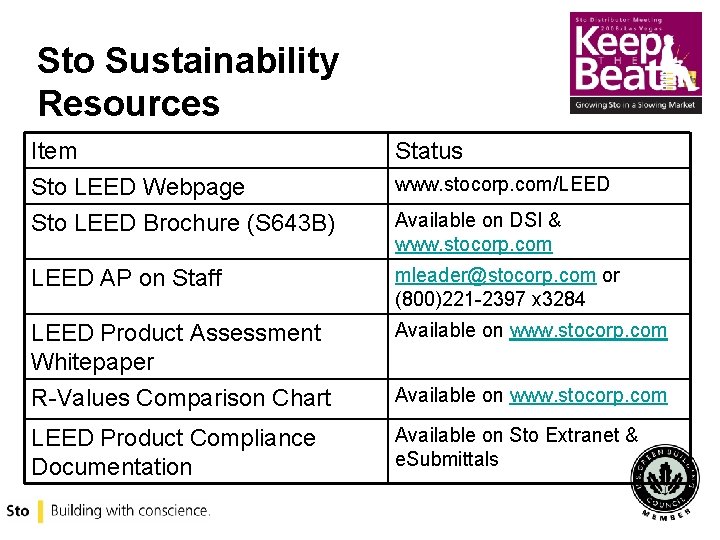

Sto Sustainability Resources Item Sto LEED Webpage Sto LEED Brochure (S 643 B) Status LEED AP on Staff mleader@stocorp. com or (800)221 -2397 x 3284 LEED Product Assessment Whitepaper R-Values Comparison Chart Available on www. stocorp. com LEED Product Compliance Documentation Available on Sto Extranet & e. Submittals www. stocorp. com/LEED Available on DSI & www. stocorp. com Available on www. stocorp. com

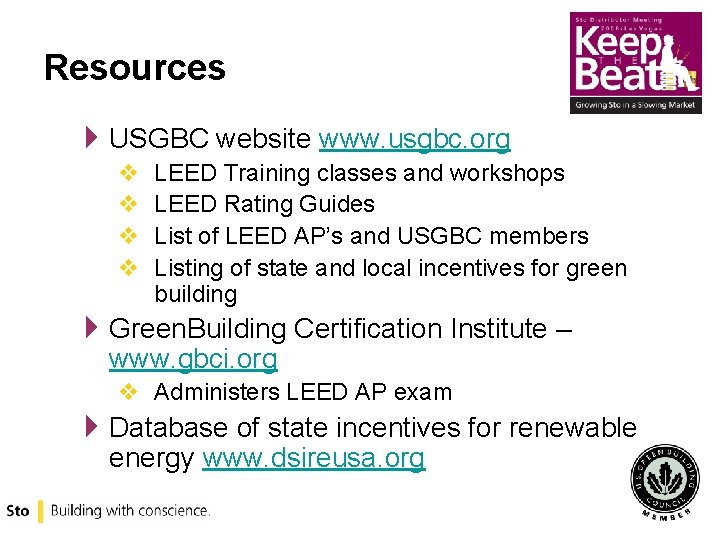

Resources 4 USGBC website www. usgbc. org v v LEED Training classes and workshops LEED Rating Guides List of LEED AP’s and USGBC members Listing of state and local incentives for green building 4 Green. Building Certification Institute – www. gbci. org v Administers LEED AP exam 4 Database of state incentives for renewable energy www. dsireusa. org

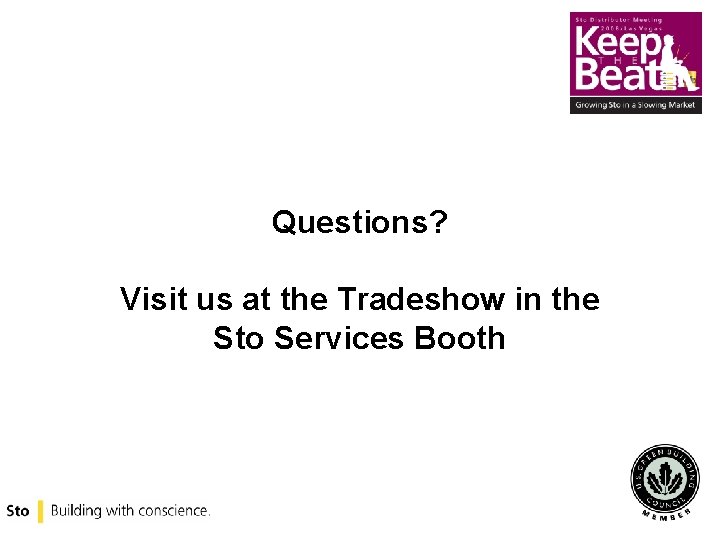

Questions? Visit us at the Tradeshow in the Sto Services Booth
