What makes the Manufactured Goods Flow Chart Symbols

What makes the Manufactured Goods

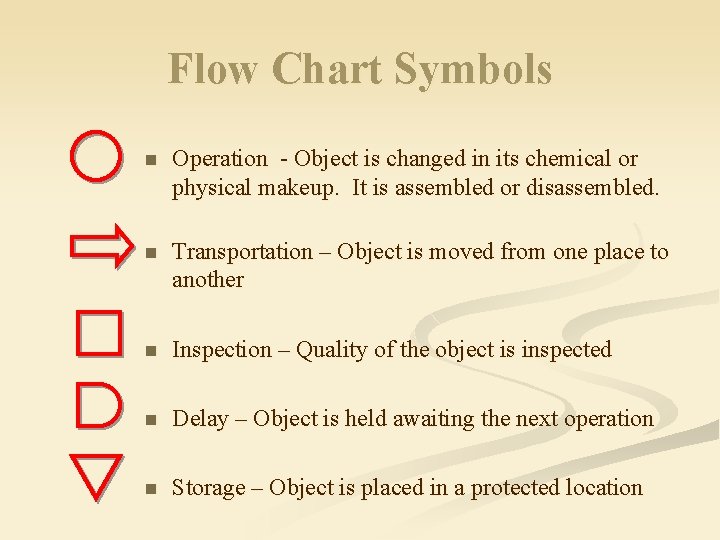

Flow Chart Symbols n Operation - Object is changed in its chemical or physical makeup. It is assembled or disassembled. n Transportation – Object is moved from one place to another n Inspection – Quality of the object is inspected n Delay – Object is held awaiting the next operation n Storage – Object is placed in a protected location

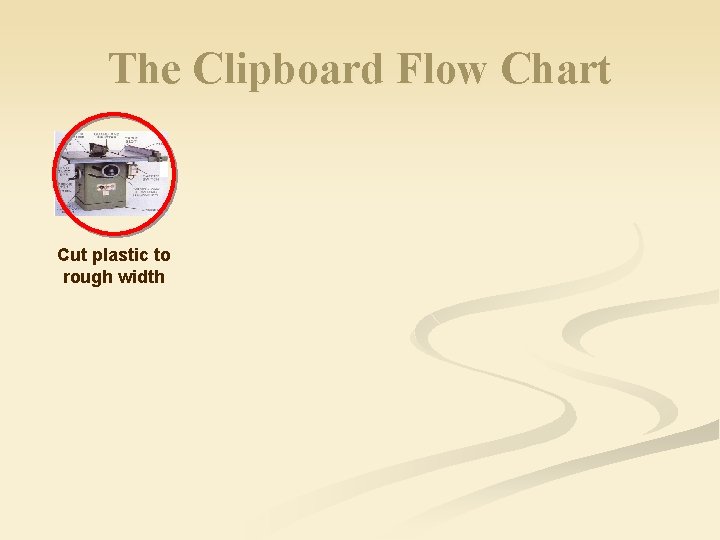

The Clipboard Flow Chart Cut plastic to rough width

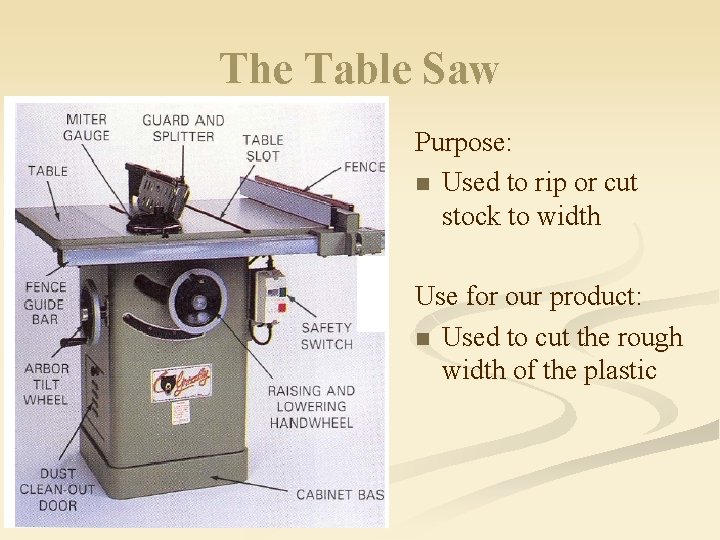

The Table Saw Purpose: n Used to rip or cut stock to width Use for our product: n Used to cut the rough width of the plastic

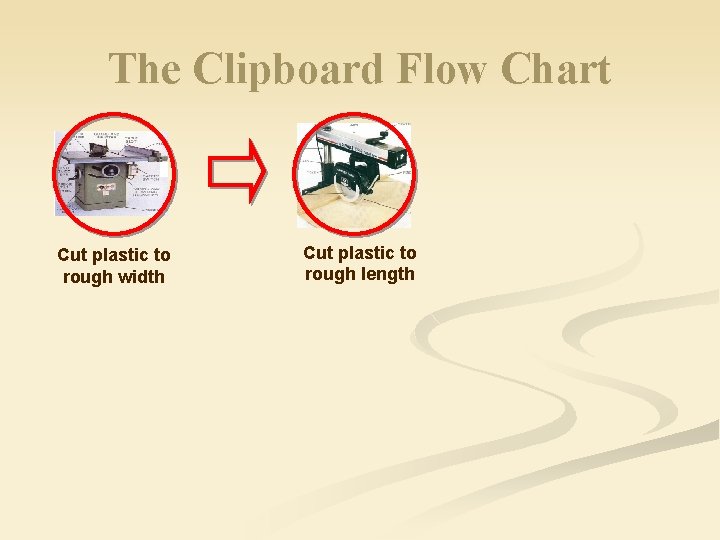

The Clipboard Flow Chart Cut plastic to rough width Cut plastic to rough length

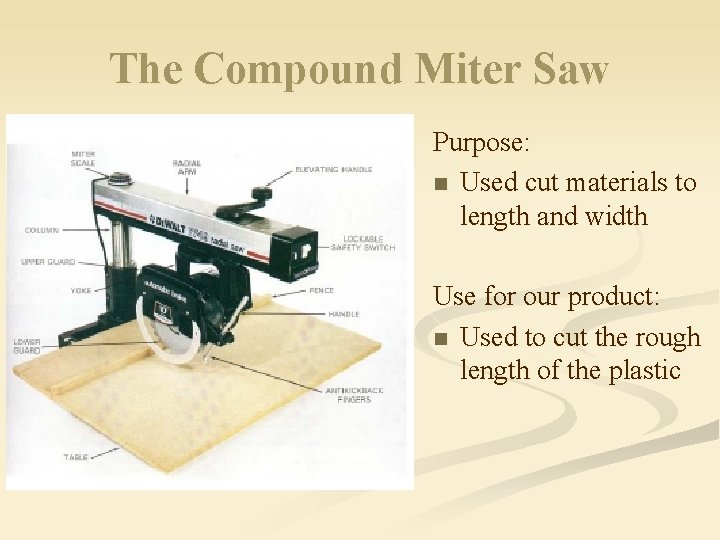

The Compound Miter Saw Purpose: n Used cut materials to length and width Use for our product: n Used to cut the rough length of the plastic

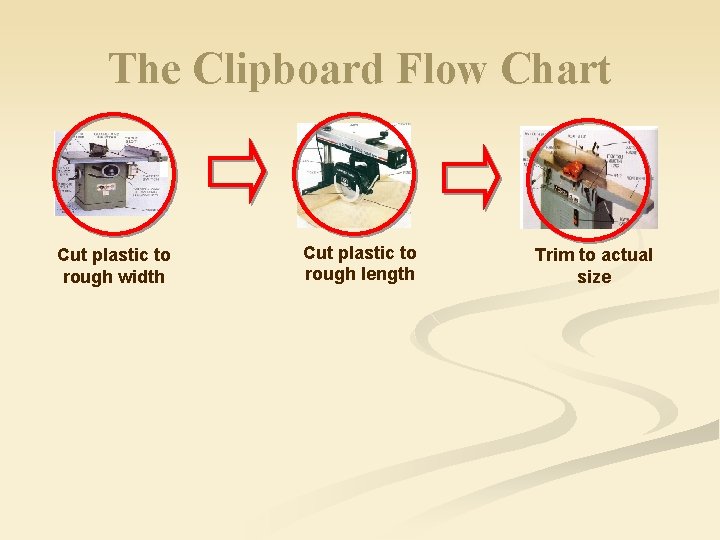

The Clipboard Flow Chart Cut plastic to rough width Cut plastic to rough length Trim to actual size

The Jointer Purpose: n Used to join edges or square stock Use for our product: n Used to trim edges to actual size

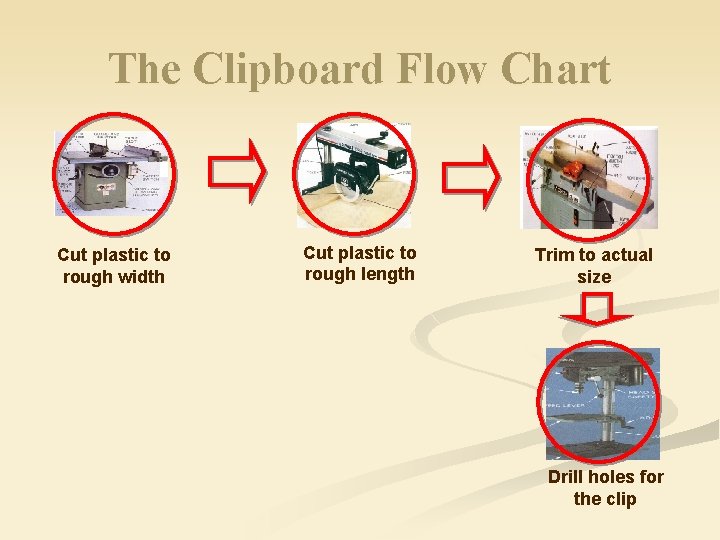

The Clipboard Flow Chart Cut plastic to rough width Cut plastic to rough length Trim to actual size Drill holes for the clip

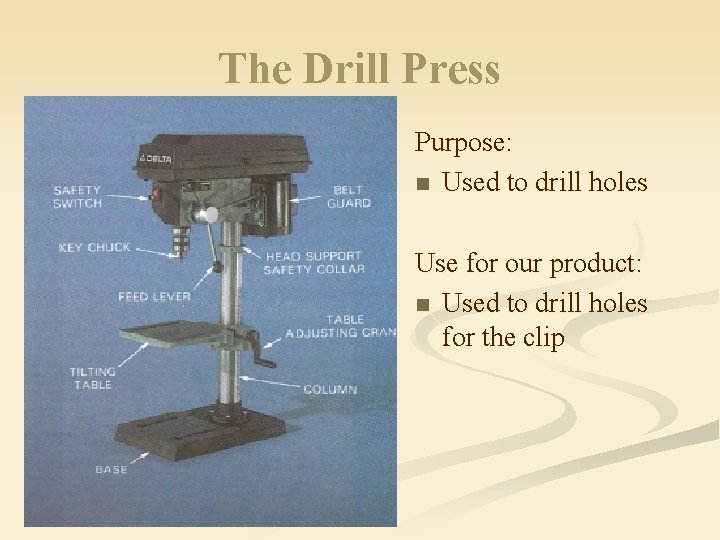

The Drill Press Purpose: n Used to drill holes Use for our product: n Used to drill holes for the clip

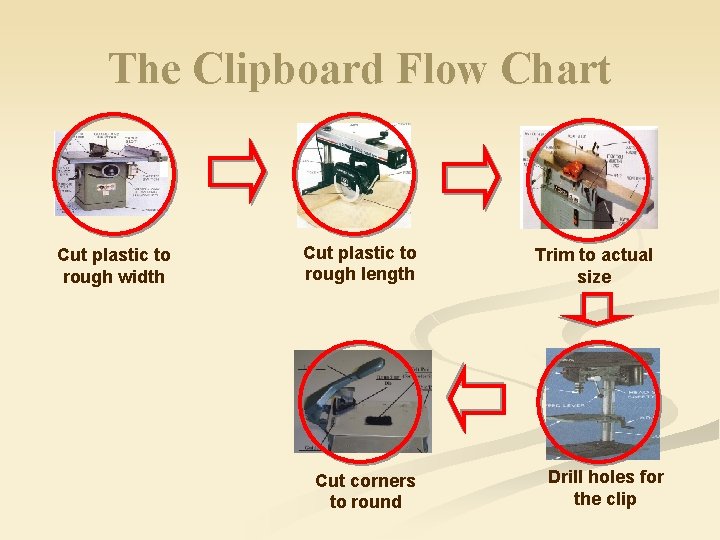

The Clipboard Flow Chart Cut plastic to rough width Cut plastic to rough length Cut corners to round Trim to actual size Drill holes for the clip

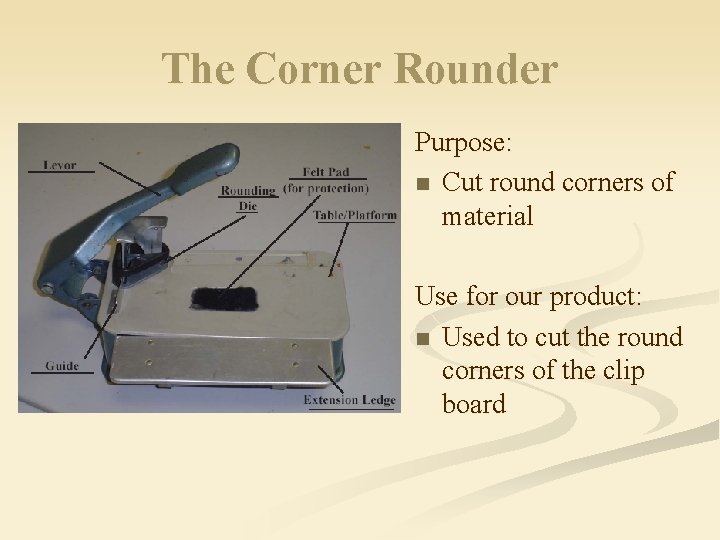

The Corner Rounder Purpose: n Cut round corners of material Use for our product: n Used to cut the round corners of the clip board

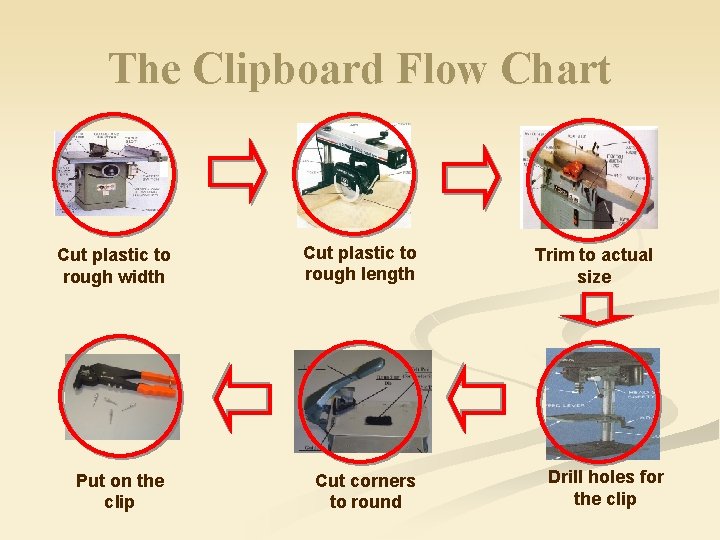

The Clipboard Flow Chart Cut plastic to rough width Put on the clip Cut plastic to rough length Cut corners to round Trim to actual size Drill holes for the clip

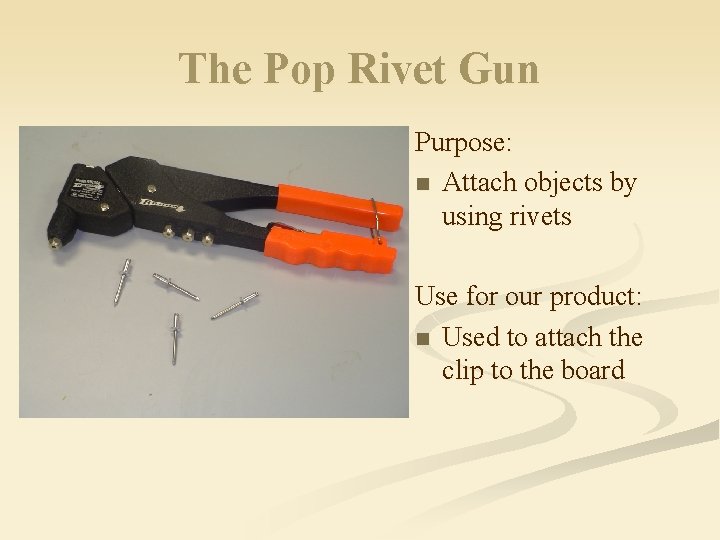

The Pop Rivet Gun Purpose: n Attach objects by using rivets Use for our product: n Used to attach the clip to the board

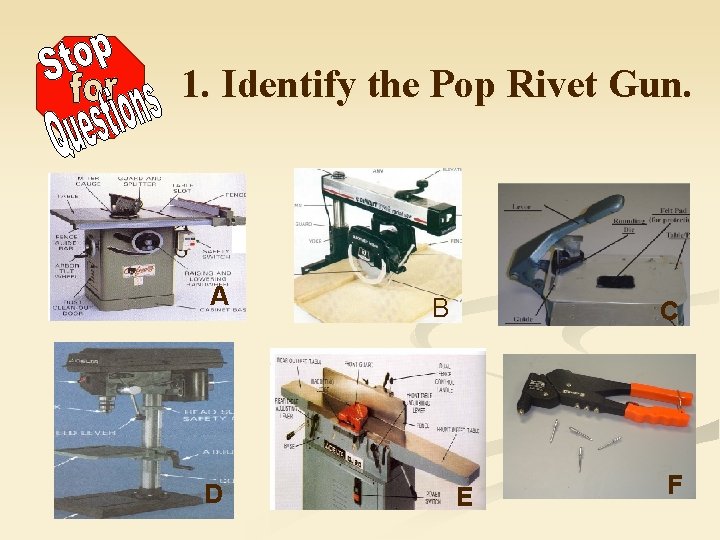

1. Identify the Pop Rivet Gun. A D B C E F

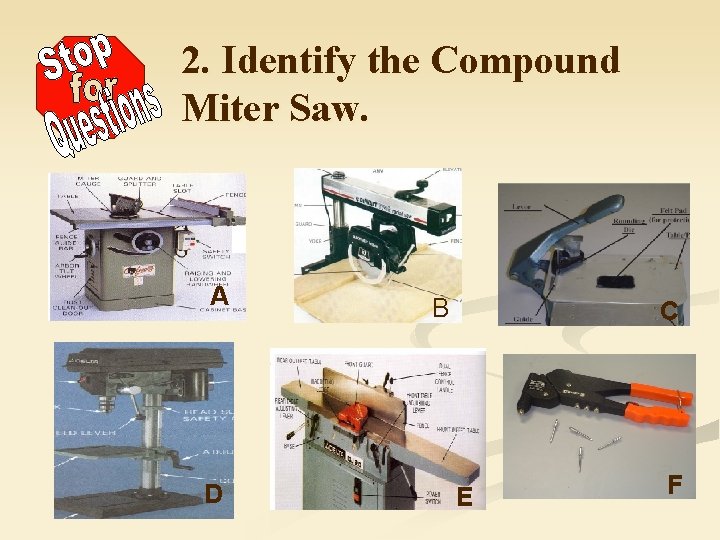

2. Identify the Compound Miter Saw. A D B C E F

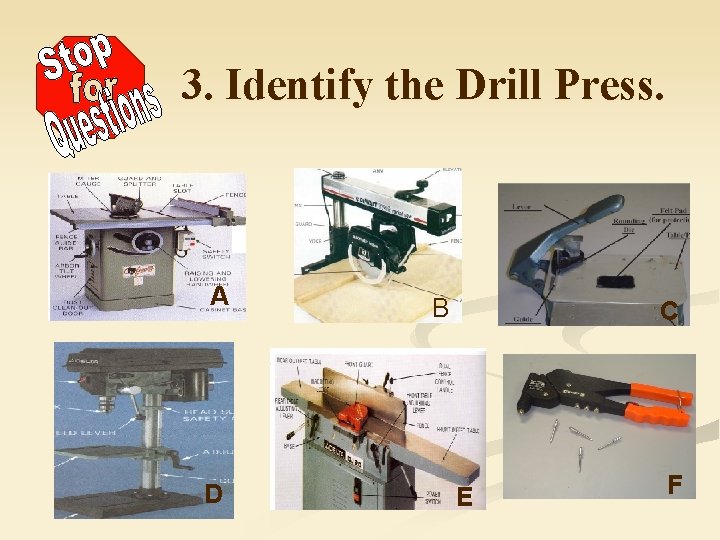

3. Identify the Drill Press. A D B C E F

4. Identify the Corner Rounder. A D B C E F

5. Identify the Table Saw. A D B C E F

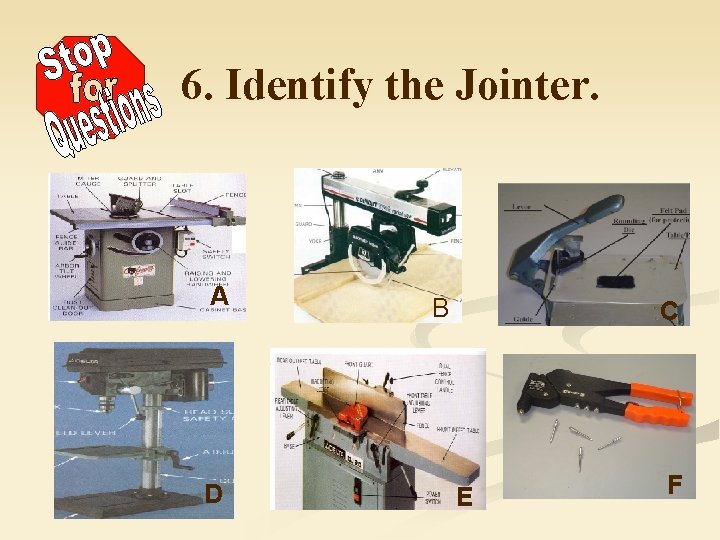

6. Identify the Jointer. A D B C E F

7. What is the operation of the Pop Rivet Gun? A. B. C. D. E. F. Used to rip or cut stock to width Used to cut the corners Used to drill holes Used to hold things together using rivets Used to cut material to length Used to join edges or square stock

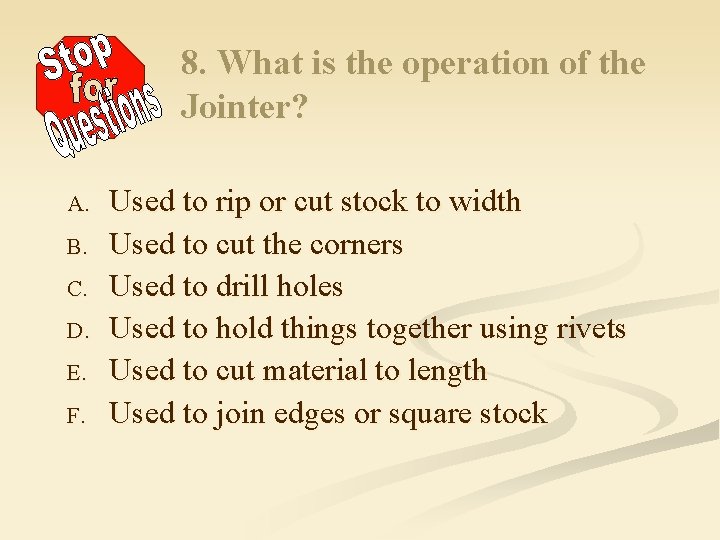

8. What is the operation of the Jointer? A. B. C. D. E. F. Used to rip or cut stock to width Used to cut the corners Used to drill holes Used to hold things together using rivets Used to cut material to length Used to join edges or square stock

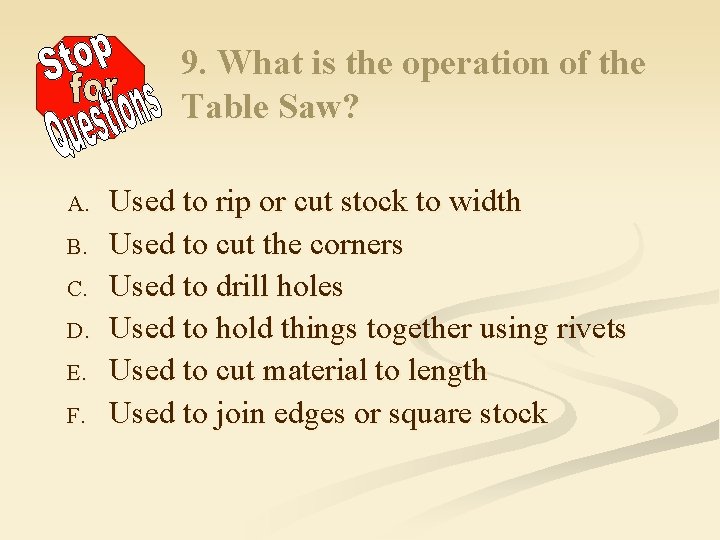

9. What is the operation of the Table Saw? A. B. C. D. E. F. Used to rip or cut stock to width Used to cut the corners Used to drill holes Used to hold things together using rivets Used to cut material to length Used to join edges or square stock

10. What is the operation of the Corner Rounder? A. B. C. D. E. F. Used to rip or cut stock to width Used to cut the corners Used to drill holes Used to hold things together using rivets Used to cut material to length Used to join edges or square stock

11. What is the operation of the Drill Press? A. B. C. D. E. F. Used to rip or cut stock to width Used to cut the corners Used to drill holes Used to hold things together using rivets Used to cut material to length Used to join edges or square stock

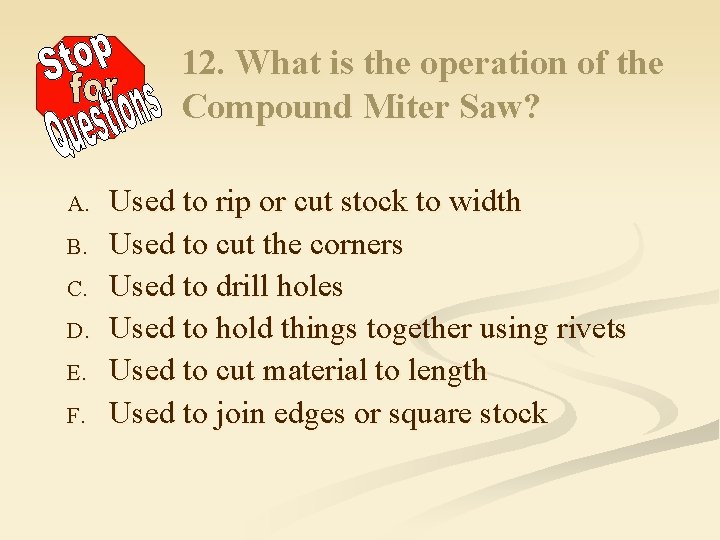

12. What is the operation of the Compound Miter Saw? A. B. C. D. E. F. Used to rip or cut stock to width Used to cut the corners Used to drill holes Used to hold things together using rivets Used to cut material to length Used to join edges or square stock
