What is sound define define Changes in air

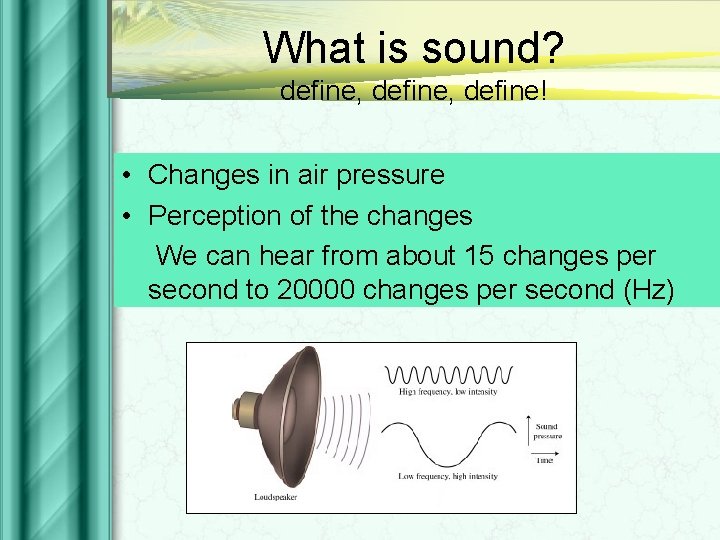

What is sound? define, define! • Changes in air pressure • Perception of the changes We can hear from about 15 changes per second to 20000 changes per second (Hz)

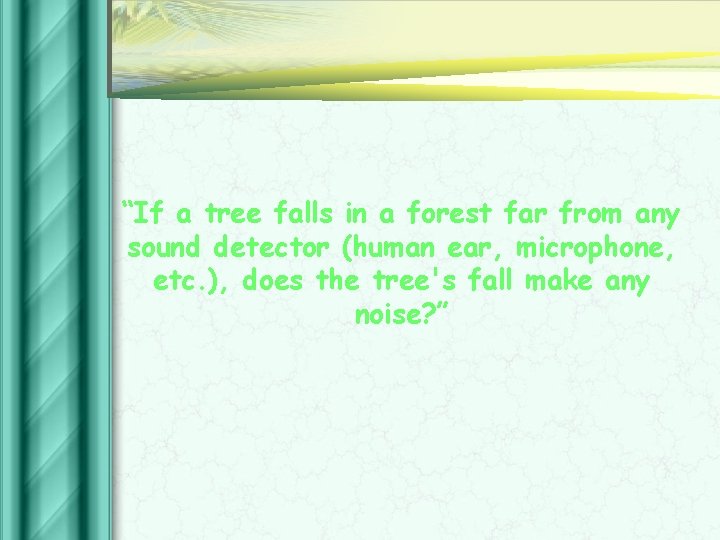

“If a tree falls in a forest far from any sound detector (human ear, microphone, etc. ), does the tree's fall make any noise? ”

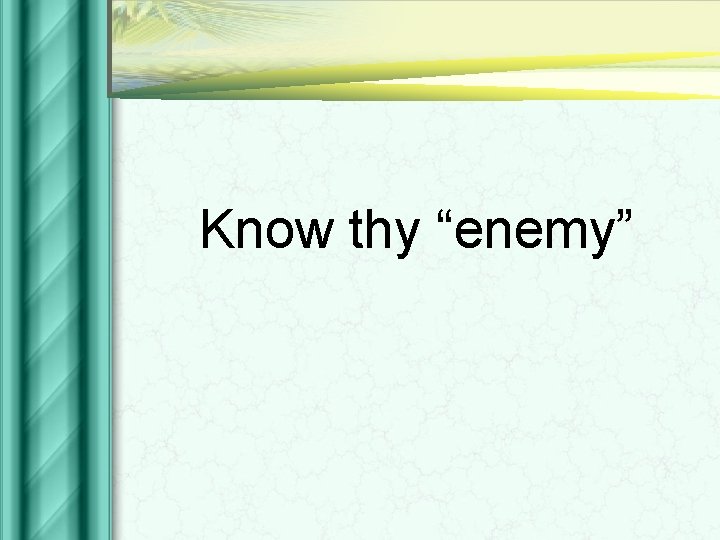

Know thy “enemy”

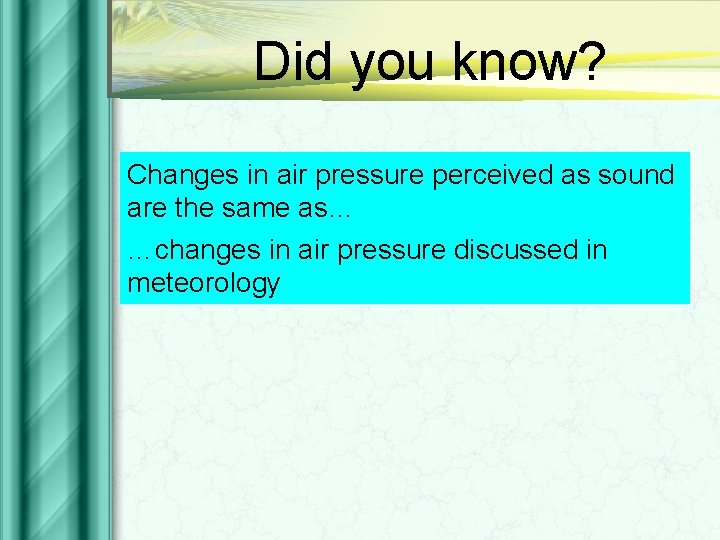

Did you know? Changes in air pressure perceived as sound are the same as…

Did you know? Changes in air pressure perceived as sound are the same as… …changes in air pressure discussed in meteorology

Did you know? Changes in air pressure perceived as sound are the same as… …changes in air pressure discussed in meteorology Difference? Weather – greater magnitude, and change far more slowly

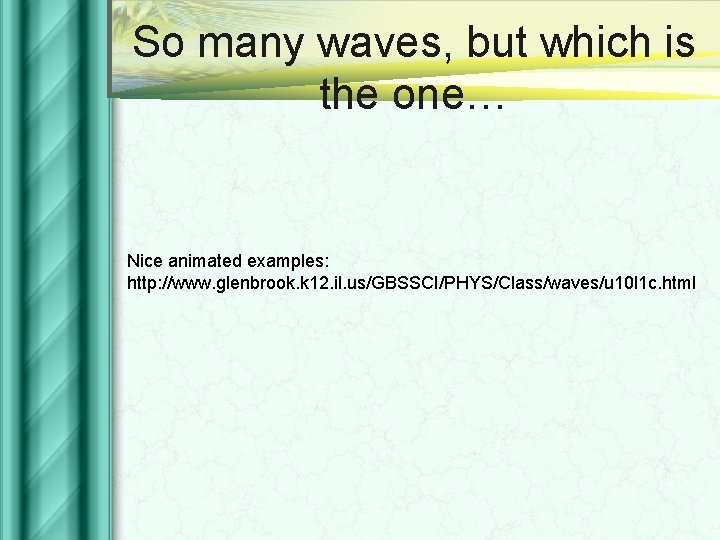

So many waves, but which is the one… Nice animated examples: http: //www. glenbrook. k 12. il. us/GBSSCI/PHYS/Class/waves/u 10 l 1 c. html

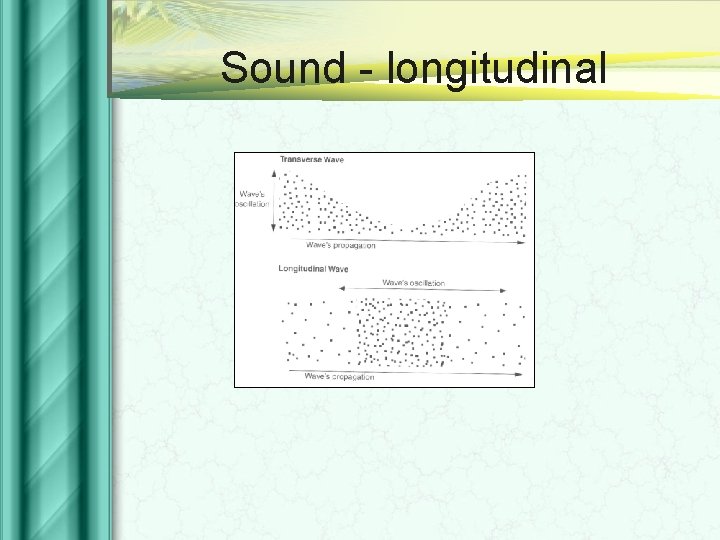

Sound - longitudinal

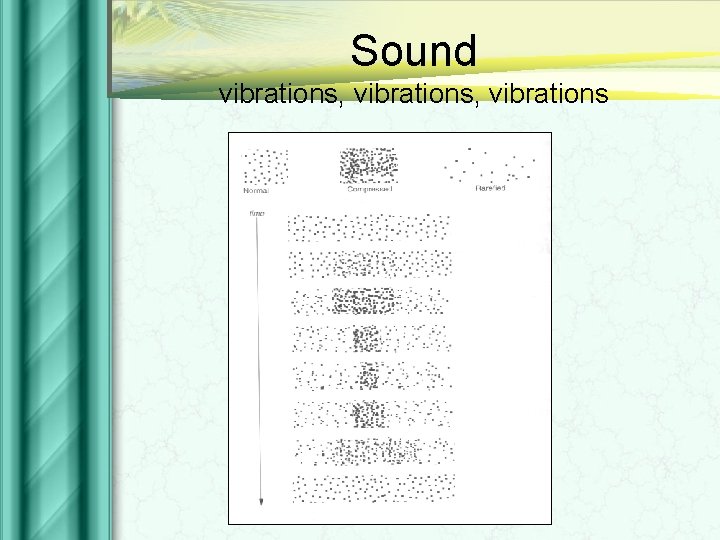

Sound vibrations, vibrations

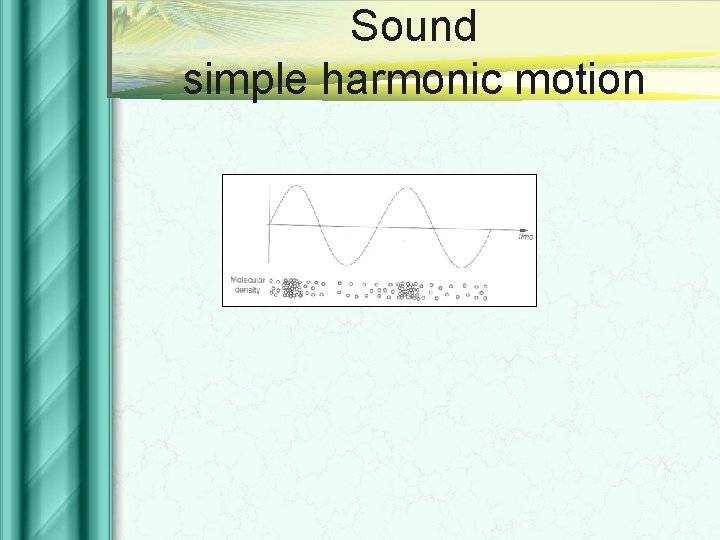

Sound simple harmonic motion

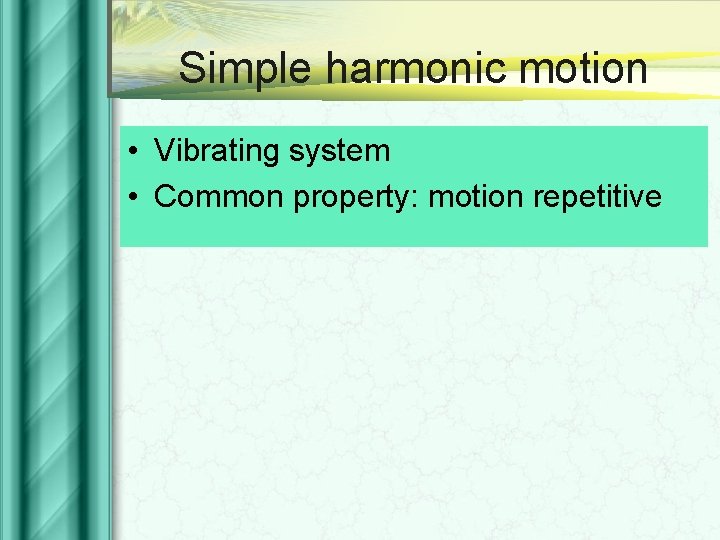

Simple harmonic motion • Vibrating system • Common property: motion repetitive

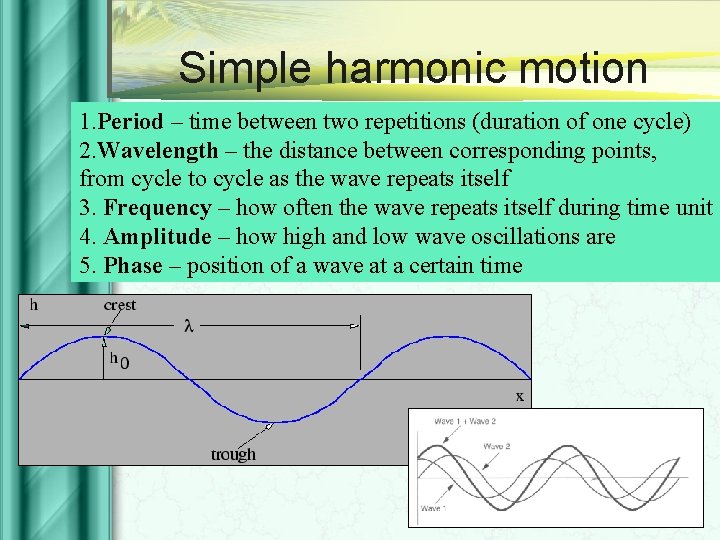

Simple harmonic motion 1. Period – time between two repetitions (duration of one cycle) 2. Wavelength – the distance between corresponding points, from cycle to cycle as the wave repeats itself 3. Frequency – how often the wave repeats itself during time unit 4. Amplitude – how high and low wave oscillations are 5. Phase – position of a wave at a certain time

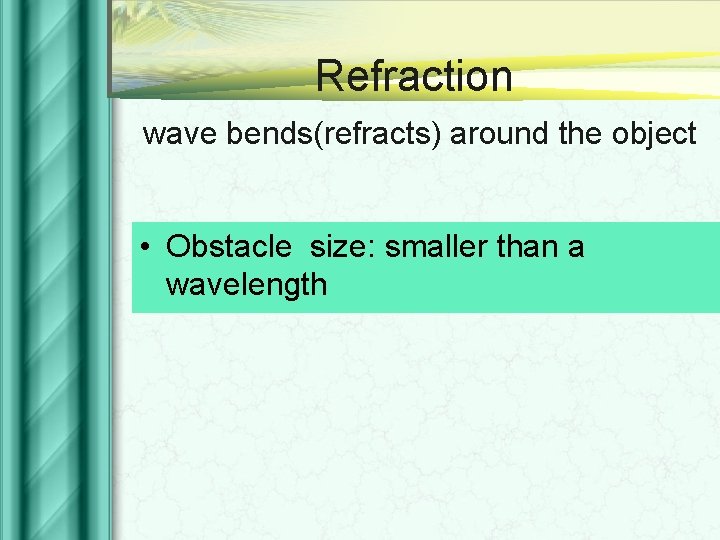

Refraction wave bends(refracts) around the object • Obstacle size: smaller than a wavelength

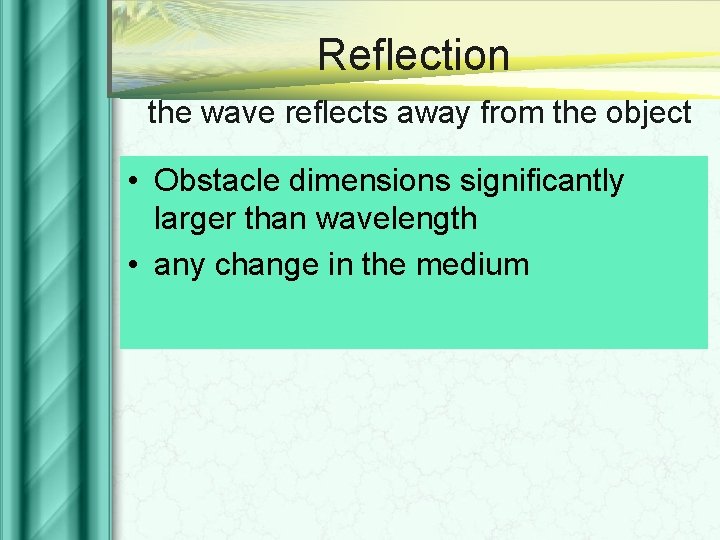

Reflection the wave reflects away from the object • Obstacle dimensions significantly larger than wavelength • any change in the medium

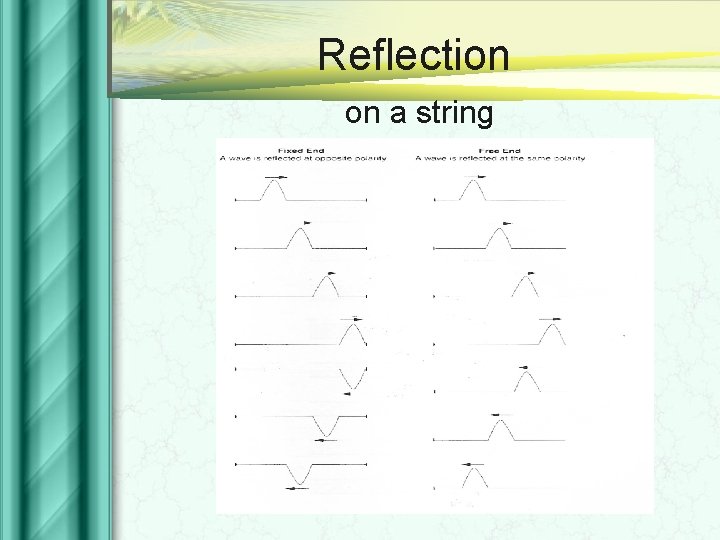

Reflection on a string

Reflection within a tube

Superposition waves in a crowd

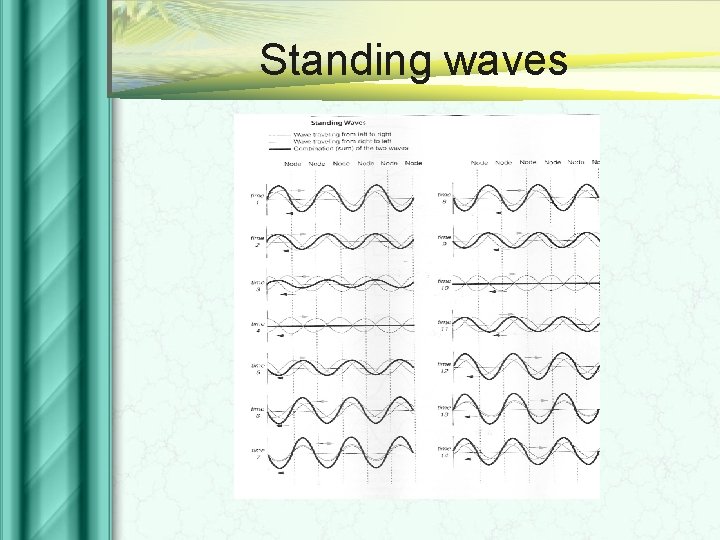

Standing waves

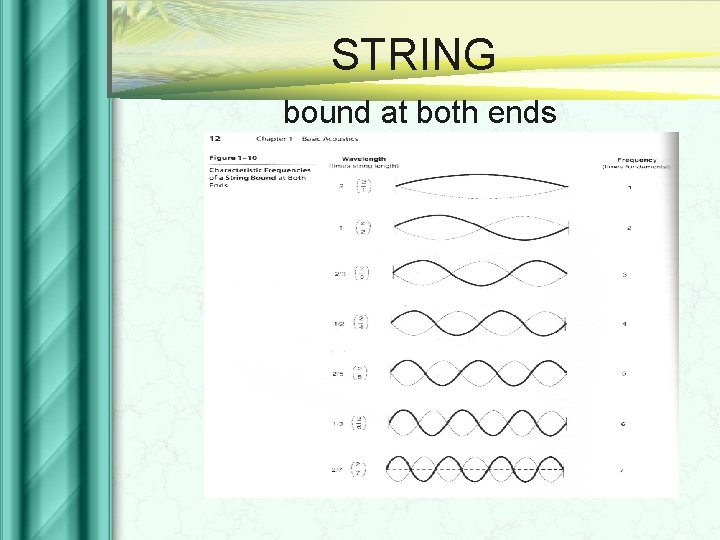

STRING bound at both ends

Tube closed at both ends

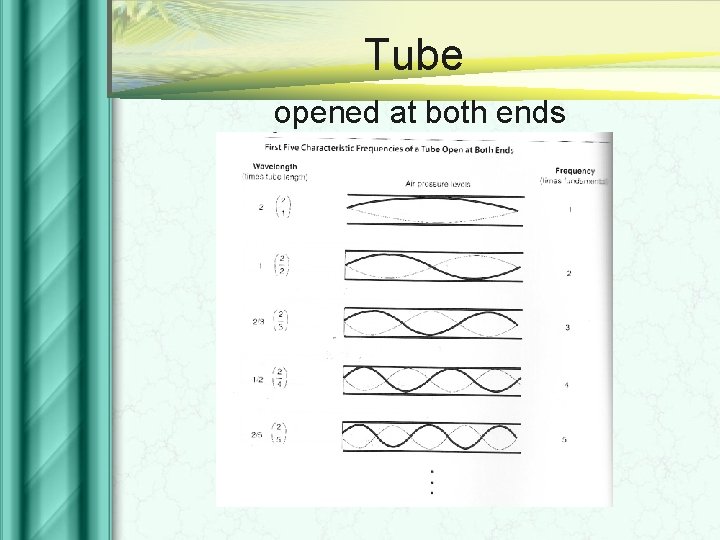

Tube opened at both ends

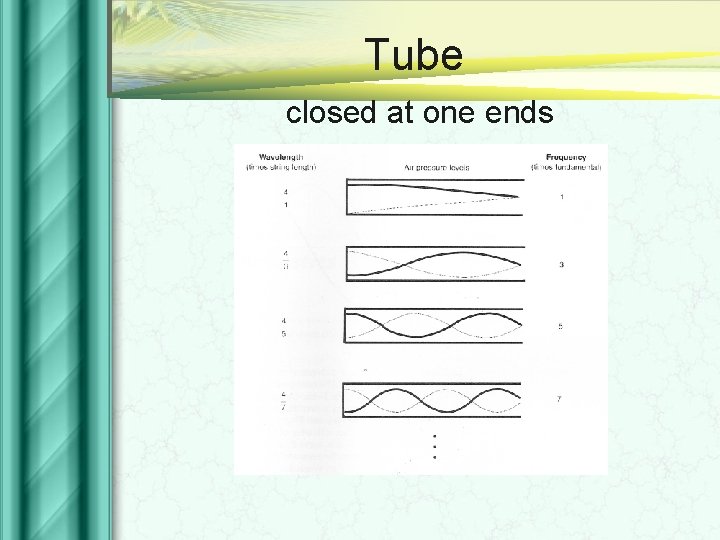

Tube closed at one ends

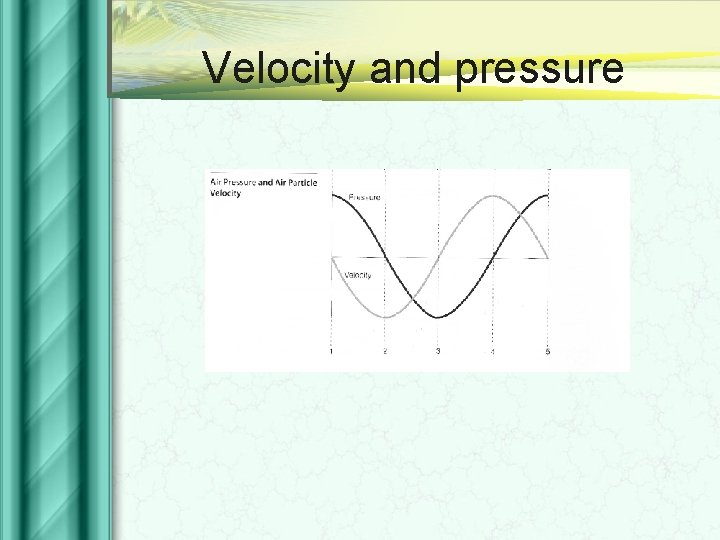

Velocity and pressure
