What is Pain An unpleasant sensory and emotional

What is Pain? • “An unpleasant sensory and emotional experience associated with actual or potential tissue damage, or described in terms of such damage. ” – International Association for the Study of Pain

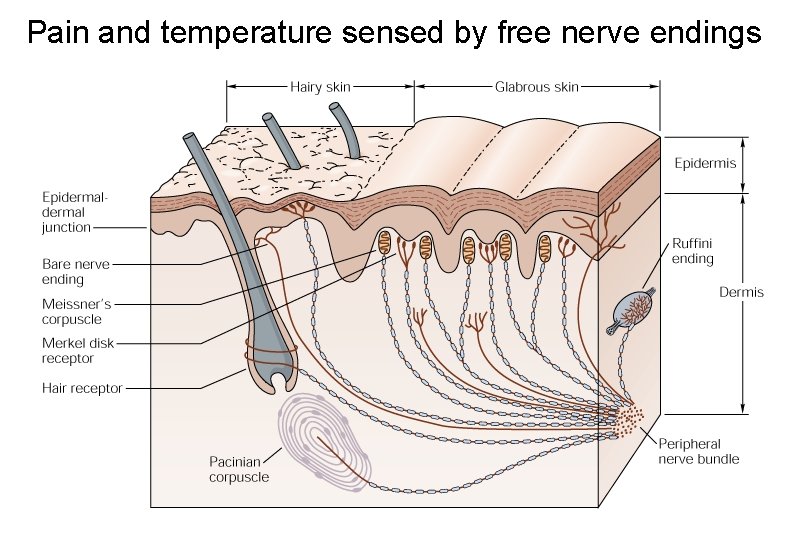

Pain and temperature sensed by free nerve endings

Fiber diameter profile of peripheral nerves

Heat and cold stimulate pain receptors (nociceptors)

Temperature Sense • Normal skin temperature: T = 30 -32 °C • Thermal sensations span four ranges: 1. Cold (T < 15 °C) 2. Cool (T > 15 °C and < 30 °C) 3. Warm (T > 35 °C and < 45 °C) 4. Hot (T > 45 °C) • Specific temperature-sensitive receptors code each range

Thermal Receptors • Cold Receptors (TRPM 8) – A-d fibers (thinly myelinated) – Stimulus: Cooling between T = 8 °C and 40 °C – Most sensitive at T = 25 °C – Saturate at T < 8 °C • Warm Receptors (TRPV 3) – C fibers (unmyelinated) – Stimulus: Warming between T = 35 °C and 45 °C – Most sensitive at T = ~42 °C – Saturate at T > 45 °C

Cold fibers signal rapid skin cooling

Dynamic Response to Temperature

Warm Receptors Code T > 35 °C

Warm Receptors Saturate at High T

Thermo-TRPs respond to specific temperature ranges TRP = Transient receptor potential

Heat Nociceptors … and Burning Pain • A-d fibers (NS) or C fibers (HPC) • • Express TRPV 1 and/or TRPV 2 receptors Firing rate signals heat intensity at T > 45 °C Response outlasts heat stimulus Sensitize to repeated heat stimuli

Noxious Cold (T < 10 °C) • Cold Fibers (TRPM 8) – A-d fibers (thinly myelinated) – Saturate at T < 8 °C • Polymodal Nociceptors (Heat. Pinch. Cold) – – – C fibers (unmyelinated) Firing rate signals degree of cooling at T < 25 °C Fire at highest rates at T < 0 °C Express TRPA 1, TRPV 1 and TRPM 8 receptors Paradoxical Cold: Freezing temperatures are perceived as burning pain

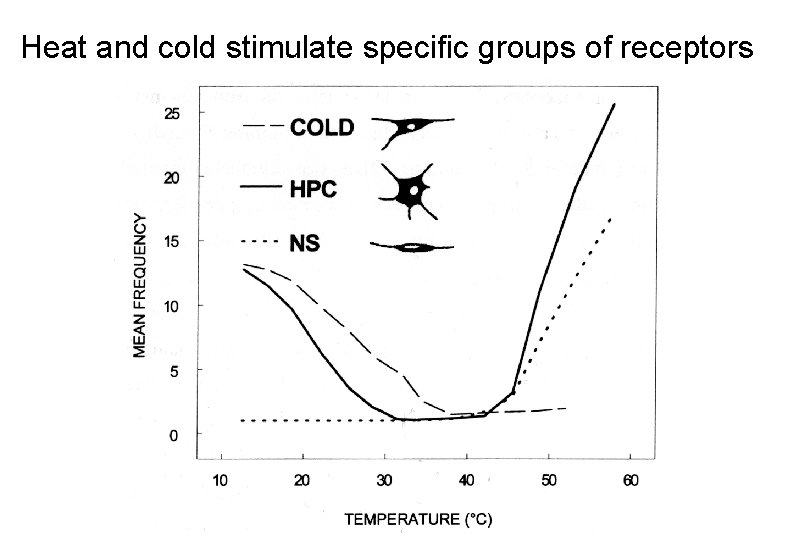

Heat and cold stimulate specific groups of receptors

What is Pain? • Aversive sensation • Intensity ranges from unpleasant to horrible • Various classes of pain – – pricking, stabbing, pinching (mechanical ) burning, freezing (thermal ) aching, stinging, soreness (chemical ) visceral (mechanical, chemical ) • Emotional component (pain tolerance) • Protective function – Warn of injury that should be avoided or treated

Four classes of noxious (painful) sensations Heat pain Chemical Mechanical Cold pain

Mechanical Nociceptors • Receptors specialized for painful mechanical stimuli (Nociceptive Specific) – A-d fibers (thinly myelinated) – Do not respond to light touch (high threshold) – Excited by strong pressure, pinch or squeezing – Mediate pain from skeletal muscle or viscera due to excessive stretch or contractile force – Most respond to noxious heat (T > 45 °C)

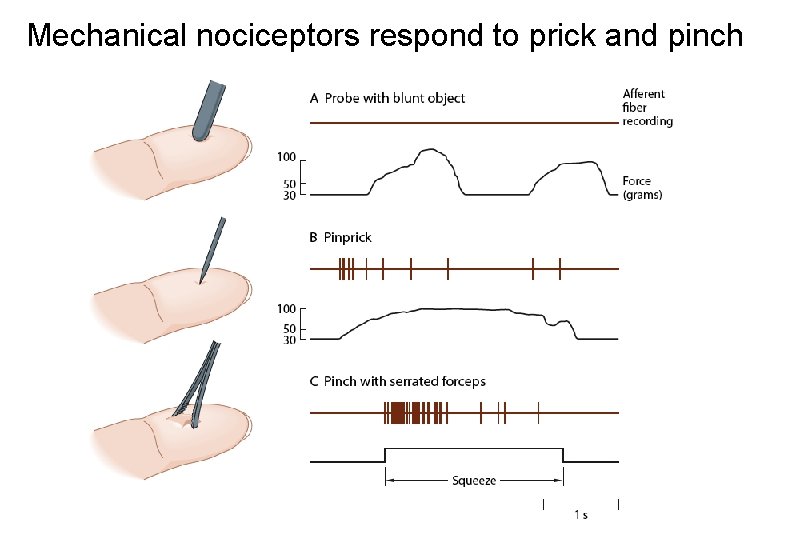

Mechanical nociceptors respond to prick and pinch

Polymodal nociceptors • • C fibers (unmyelinated free nerve endings) Respond to heat, pinch and cold (HPC receptors) Express TRPV 1, TRPA 1 and other TRP receptors Respond to irritant chemicals – – – Capsaicin (chili peppers): TRPV 1 receptors Mustard oil, garlic, horseradish: TRPA 1 receptor Low p. H (acids) Endogenous peptides: Bradykinin, NGF Environmental irritants and pollutants

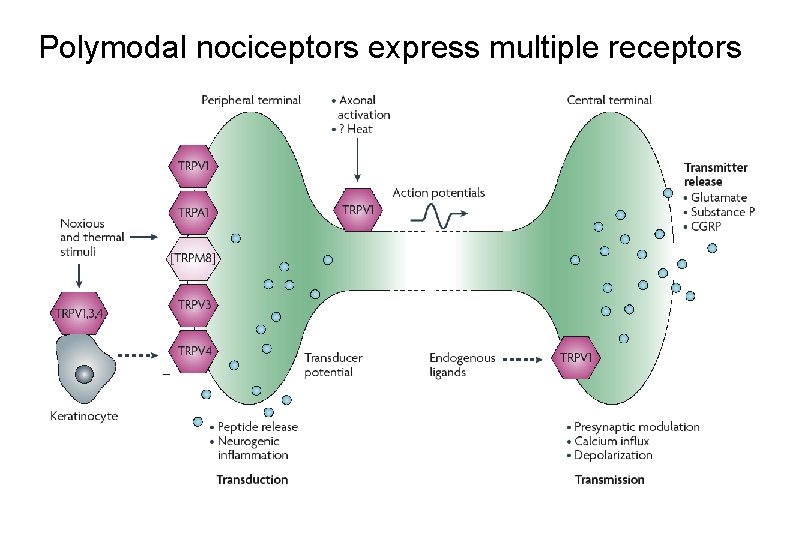

Polymodal nociceptors express multiple receptors

Nociceptors Respond to Chemicals • Exogenous chemicals that penetrate skin – Acids, alkalis, organic molecules – Capsaicin, Mustard oil • Intracellular molecules released by cell injury – Cations [K+, H+] – Peptides, neurotransmitters – Prostaglandins, histamine • Toxins [micro-organisms, insect bites, venom] • Pathological substances released by diseased tissue

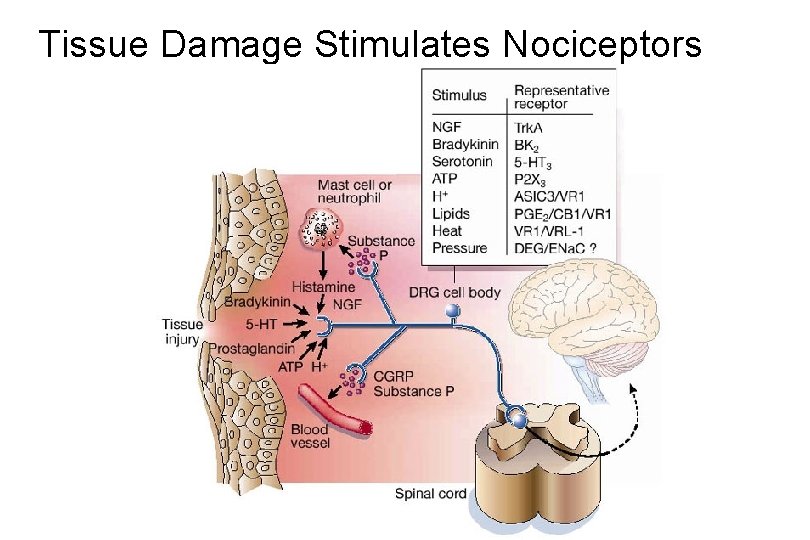

Tissue Damage Stimulates Nociceptors

TRP receptors respond to pungent chemicals Garlic, radishes, mustard oil Menthol Camphor Capsaicin

Irritant chemicals activate TRP receptors

Inflammation sensitizes nociceptors

Noxious stimuli are spread by axon reflexes

Hyperalgesia

Touch and pain fibers project to distinct spinal laminae

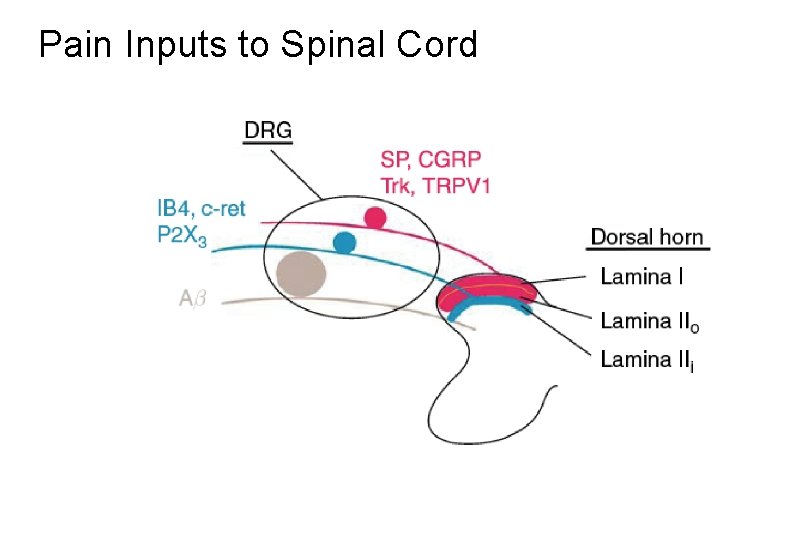

Pain Inputs to Spinal Cord

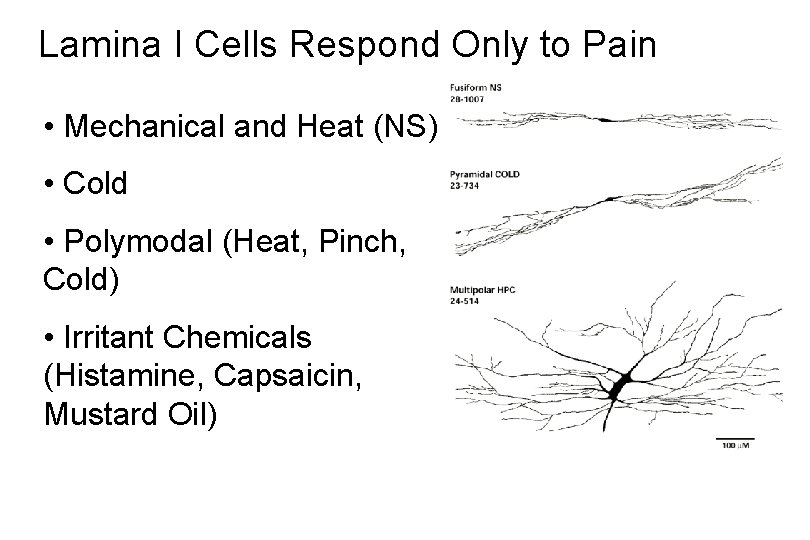

Lamina I Cells Respond Only to Pain • Mechanical and Heat (NS) • Cold • Polymodal (Heat, Pinch, Cold) • Irritant Chemicals (Histamine, Capsaicin, Mustard Oil)

Small Fiber Inputs to Spinal Cord

Touch and pain fibers project to distinct spinal laminae

Referred Pain: Wide Dynamic Range Neurons

Touch and Pain Ascend in Separate Tracts

Visceral pain transmitted in the dorsal columns T 10 Willis WD, et al. PNAS 96: 7675 -7679, 1999 Central gray matter

Pain Pathways to Thalamus and Cortex II

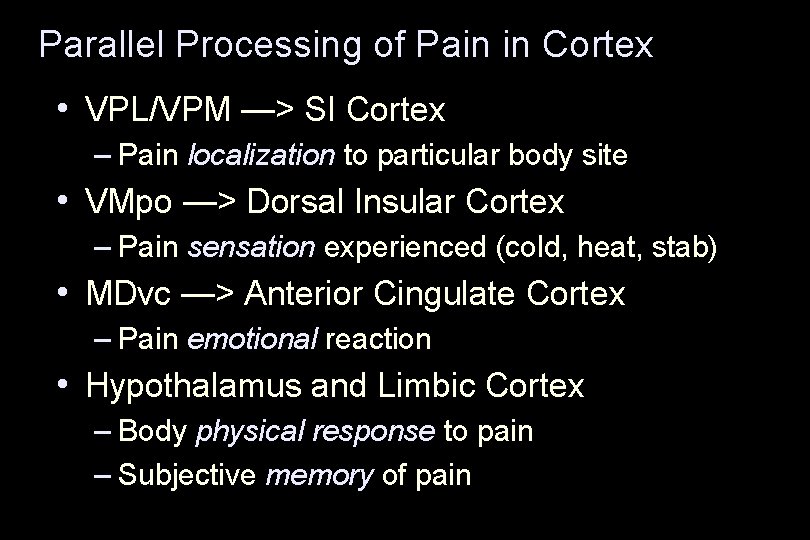

Parallel Processing of Pain in Cortex • VPL/VPM —> SI Cortex – Pain localization to particular body site • VMpo —> Dorsal Insular Cortex – Pain sensation experienced (cold, heat, stab) • MDvc —> Anterior Cingulate Cortex – Pain emotional reaction • Hypothalamus and Limbic Cortex – Body physical response to pain – Subjective memory of pain

Pain Centers in the Brain Apkarian et al. Eur J Pain 9: 463 -484, 2005

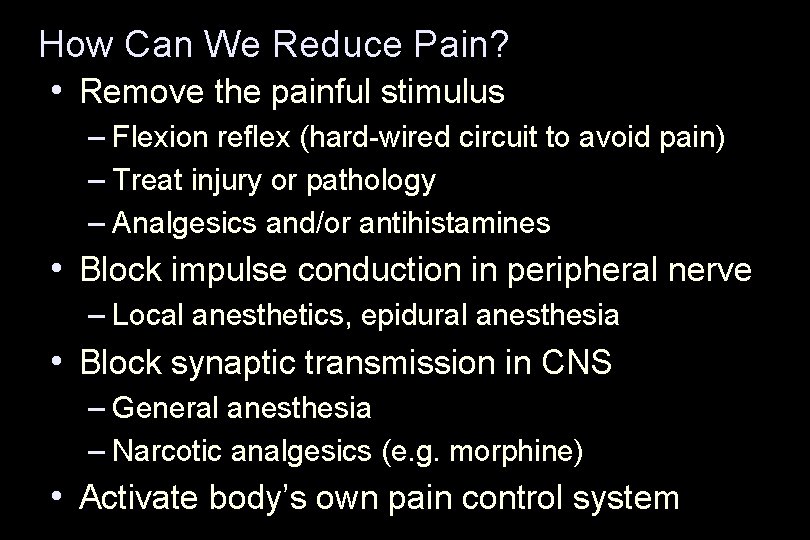

How Can We Reduce Pain? • Remove the painful stimulus – Flexion reflex (hard-wired circuit to avoid pain) – Treat injury or pathology – Analgesics and/or antihistamines • Block impulse conduction in peripheral nerve – Local anesthetics, epidural anesthesia • Block synaptic transmission in CNS – General anesthesia – Narcotic analgesics (e. g. morphine) • Activate body’s own pain control system

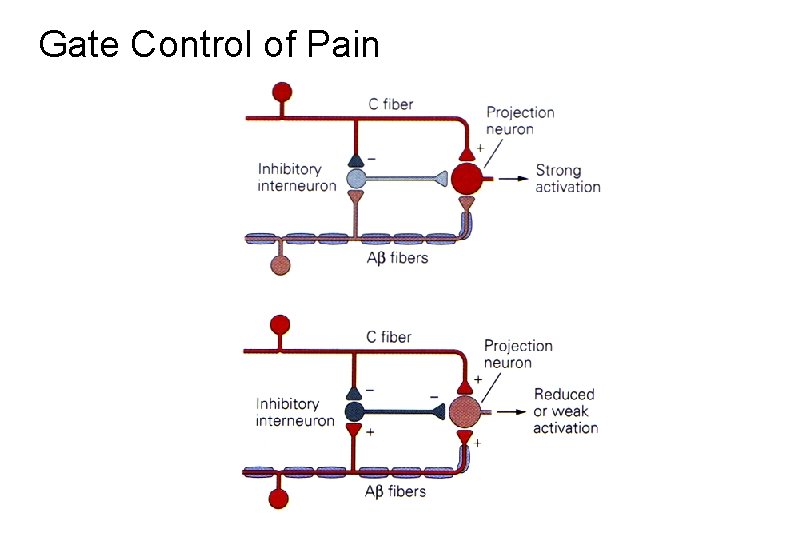

Gate Control of Pain

Emotions Modulate Pain Transmission (nucleus cuneiformis) (periaqueductal gray) (dorsolateral pontine tegmentum)

Endogenous Pain Inhibition

Endogenous Opioid Peptides • Leucine-enkephalin – Tyr-Gly-Phe-Leu-OH • Methionine-enkephalin – Tyr-Gly-Phe-Met-OH • b-endorphin – Tyr-Gly-Phe-[26 amino acids]-OH • Dynorphin – Tyr-Gly-Phe-[13 amino acids]-OH

Opiates & Opioids Modulate Pain

Pain Prevention • Local anesthetics as supplements or • • alternatives to general anesthesia Intrathecal morphine intraoperatively Postoperative pain relief Physical therapy to stimulate large fibers Psychotherapy to optimize use of descending pain control pathways and improve pain tolerance

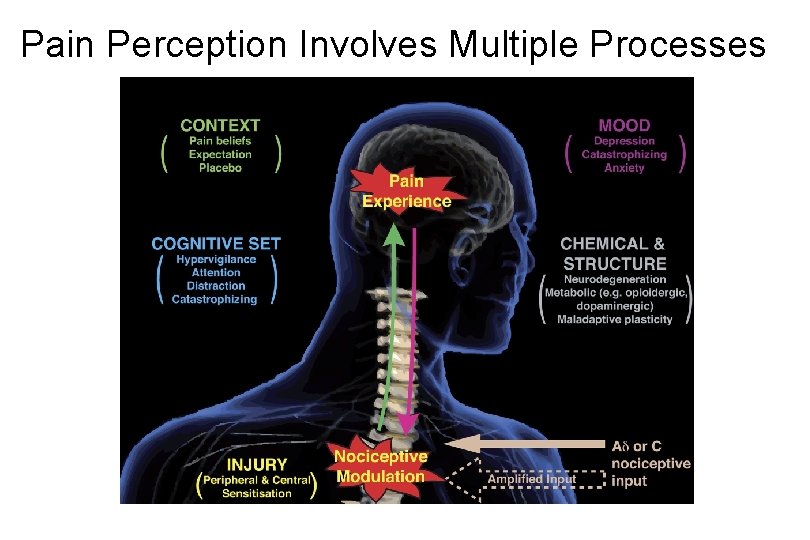

Pain Perception Involves Multiple Processes

Nociceptive Pain: Somatosensory response

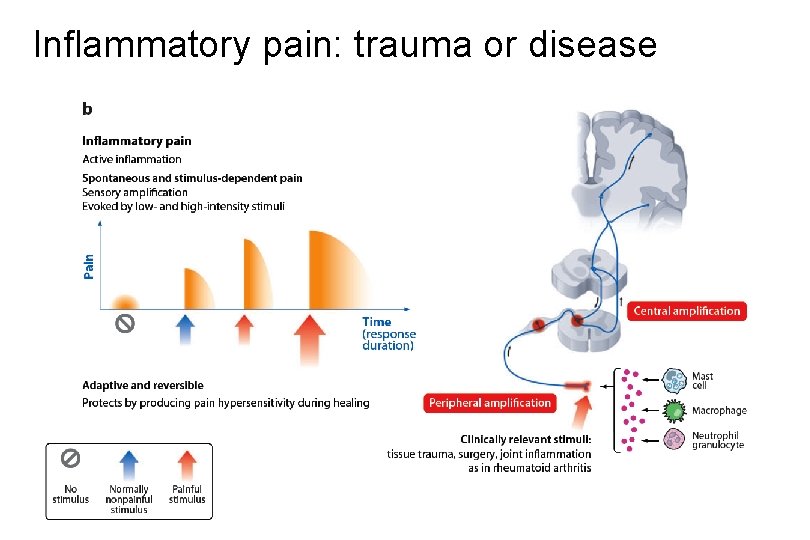

Inflammatory pain: trauma or disease

Two Classes of Pain • Nociceptive or Inflammatory Pain (Acute) – Sensation transmitted by free nerve endings – Stimulus provided by noxious (harmful) mechanical, thermal or chemical input – Protective function • Neuropathic Pain (Chronic) – Abnormal firing pattern in PNS or CNS – Caused by lesion or trauma to nerve or CNS – Sensitization of central pathways due to excessive painful input

Neuropathic Pain • Elicited by prolonged strong activation of nociceptors • Result of major injury – Trauma – Severe burns – Major surgery – Limb amputation – Peripheral nerve injury or neuroma – Postherpetic neuralgia

Neuropathic pain: Nerve injury or CNS lesion

Peripheral Sensitization

Peripheral nerve injury

Injured Schwann cells sensitize nociceptors

DRG neurons respond to cytokines and ATP

Central Sensitization … and Neuropathic Pain • Nociceptor synapses are glutaminergic • Strong stimulation activates NMDA receptors • LTP-like process increases synaptic efficacy through protein synthesis • Spinal synapses become more responsive to pain (hyperalgesia) and touch (allodynia)

Glutamate receptor mechanisms

Silent synapses and LTP

Central Sensitization Mechanisms

Pain begets pain (Pro-nociception pathways)

Dysfunctional Pain: unknown cause

Recommended additional readings (optional) Patapoutian A, Tate S, Woolf CJ. Transient receptor potential channels: targeting pain at the source. Nature Reviews: Drug Discovery 8: 55 -68, 2009 Craig AD. How do you feel? Intero-ception: the sense of the physiological condition of the body. Nature Reviews Neuroscience 3: 655 -666, 2002 Apkarian AV, Bushnell MC, Treede R-D, Zubieta J-K. Human brain mechanisms of pain perception and regulation in health and disease. Eur J Pain 9: 463 -484, 2005 Tracey I, Mantyh PW. The cerebral signature for pain perception and its modulation. Neuron 55: 377 -391, 2007 Porreca F, Ossipov MH, Gebhart GF. Chronic pain and medullary descending facilitation. Trends Neuroscience 25: 319 -325, 2002 Costigan M, Scholz J, Woolf CJ. Neuropathic pain: A maladaptive response of the nervous system to damage. Annu Rev Neurosci 32: 1 -32, 2009

Pain vocabulary • Hyperalgesia – Sensitization: enhanced sensation to noxious stimuli following injury – Stimulus provided by noxious mechanical, thermal or chemical input • Allodynia – Sensitization: abnormal response to touch – Caused by lesion or trauma to nerve or CNS • Analgesia – Pain relief and/or attenuation
