What is Internet: its history and development Onno W. Purbo Computer Network Research Group Institute of Technology Bandung yc 1 dav@cnrg. itb. ac. id yc 1 dav@garuda. drn. go. id Computer Network Research Group ITB
Visi Akses Internet yang terjangkau bagi semua orang (Rp. 100 -500 / bulan / orang? ? ? ) Computer Network Research Group ITB
Outline Sejarah Internet di Dunia. l Sepintas Internet di Indonesia. l Internet - Network of Networks. l Revolusi Teknologi Informasi. l l Akses Internet bagi semua orang Rp. 100 -500 / bulan / orang!!!! Computer Network Research Group ITB
Perkembangan Internet Dunia Baca “Hobbes’ Internet Time Line v. 2. 3 l Baca “Bruce Sterling’s Internet History” l Terlampir. . l Computer Network Research Group ITB
Inti Sejarah Internet Berawal dari ide / konsep di tahun 1962. l 1969 - Landmark terbentuknya ARPANET. l 1986 - National Science Foundation (NSF) Backbone dibentuk. l 1996 - Internet World Expo. l Computer Network Research Group ITB
Filosofi Internet l Dimulai dari orang-orang yang mempunyai Visi. . . Visionary l Dibentuk orang-orang yang berdedikasi & bukan birokrat. Computer Network Research Group ITB
Contoh Komentar Para Legendaris di Internet “Either lead or follow but please don’t block the road for those who would move forward” - Phil Karn. “The IETF rejects presidents, kings and voting. We believe in rough consensus and working code” - David Clarke. Computer Network Research Group ITB
Internet Network of Networks Computer Network Research Group ITB
Ciri Khas Internet Network of Networks l Di backup oleh banyak volunteer yang berdedikasi. l Teknologi dikembangkan sendiri oleh Internet Engineering Task Force (IETF) l Teknologi diarahkan oleh Internet Engineering Steering Group (IESG). l Computer Network Research Group ITB
Bagaimana Internet di Bentuk Secara fisik hanya Internet Service Provider (ISP) yang saling menyambung satu dengan lainnya. l Akhirnya dibentuk Network of Networks l Computer Network Research Group ITB
Mengapa Internet populer? l Murah l . . . Bayangkan: – Sewa Satelit 64 Kbps VSAT US$10001500/bulan – Dibagi 10, 000 mahasiswa. – Setiap mahasiswa hanya terbebani Rp. 100 -500 / bulan / orang!!!! Computer Network Research Group ITB

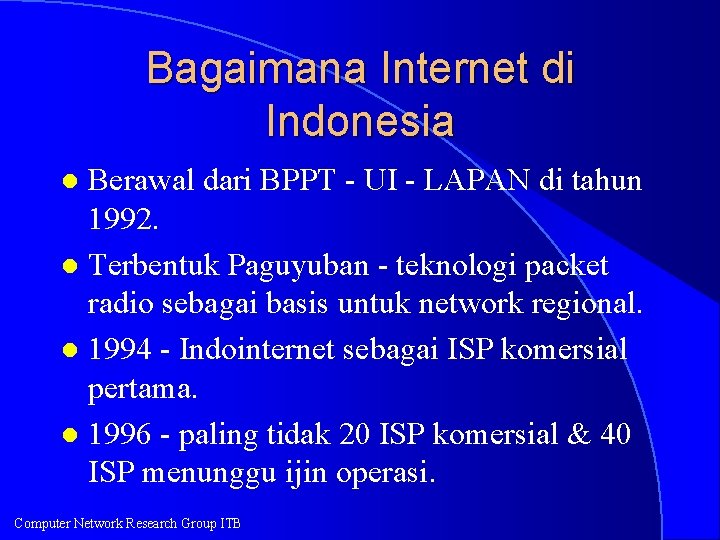

Bagaimana Internet di Indonesia Berawal dari BPPT - UI - LAPAN di tahun 1992. l Terbentuk Paguyuban - teknologi packet radio sebagai basis untuk network regional. l 1994 - Indointernet sebagai ISP komersial pertama. l 1996 - paling tidak 20 ISP komersial & 40 ISP menunggu ijin operasi. l Computer Network Research Group ITB

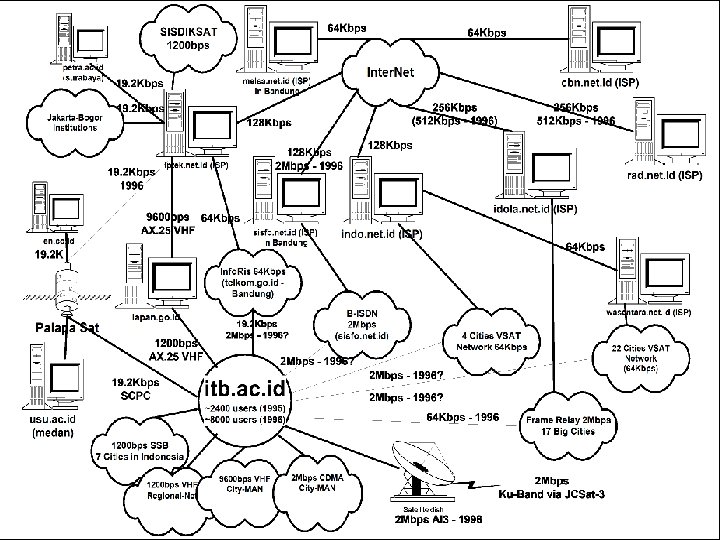

Indonesia Internet Computer Network Research Group ITB

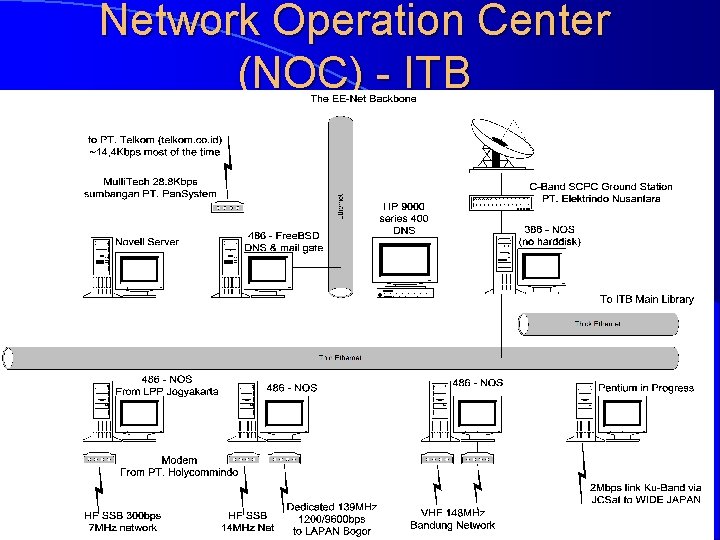

Network Operation Center (NOC) - ITB Computer Network Research Group ITB
Computer Network Research Group ITB
Link 2 Mbps ke Internet! Setiap Universitas dapat mengakses dengan sewa satelit 64 Kbps - US$1000 -1500 / bulan. l Universitas sekitar dapat tersambung ke regional node - dengan Wave. LAN adalah alternatif murah US$3000 / node! l Semakin banyak mahasiswa mengakses semakian baik l l Rp / orang menjadi rendah. Computer Network Research Group ITB
Visi AI 3 -ITB Pembangunan SDM Teknologi Informasi di Indonesia. l Penguasaan, Pengembangan & Pemanfaatan low cost Teknologi Informasi Internet. l Pengembangan low cost Teknologi Informasi untuk akses bagi Rural & Pedesaan. l Computer Network Research Group ITB
AI 3 Acceptable Use Policy Any traffic related to academic and research activities. l Any traffic for operation and management of the AI 3 network, which includes direct support by commercial entities. l Computer Network Research Group ITB
IT / Internet is not just a technology SDM merupakan kunci utama keberhasilan IT / Internet di Indonesia. l Jaringan Internet antar Universitas akan sangat strategis bagi kelangsungan pembangunan Indonesia - menyongsong APEC, AFTA & GATT. l ITB committed untuk membantu pengembangan jaringan antar Universitas di Indonesia. l Computer Network Research Group ITB
Mari Berhitung. . Menparpostel mentargetkan 5 juta saluran sambungan untuk repelita ini. . l Jumlah Univ. Negeri hanya 75 buah. Jumlah Univ. Swasta mendekati 1500 buah. l Secara pesimistik jumlah potensial di dunia pendidikan 3 -4 juta pengguna = 10% pengguna Internet di dunia. l Kontribusi 1500 saluran (0. 03%) akan mengubah struktur Internet di Indonesia. l Computer Network Research Group ITB
Beberapa Contoh Clinton launch US$1. 5 zillion program untuk mengintegrasikan High School ke Internet. l AT&T akan launch Internet sebagai basic service complement dengan basic service telepon yg selama ini ada. l Thailand (AIT) mengintegrasikan High School ke Internet. l Computer Network Research Group ITB
Konfigurasi Hardware Melalui Packet Radio l Melalui Wireless LAN l Melalui Satelit l Melalui Telepon l Melalui Local Area Network l Computer Network Research Group ITB
Parameter Penentu Harga l Kecepatan Pengiriman Data l Jarak Jangkau l Computer Network Research Group ITB

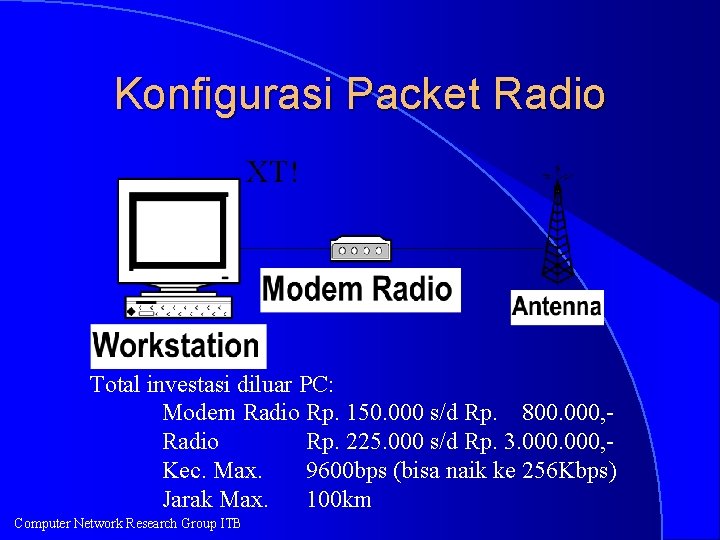

Konfigurasi Packet Radio XT! Total investasi diluar PC: Modem Radio Rp. 150. 000 s/d Rp. 800. 000, Radio Rp. 225. 000 s/d Rp. 3. 000, Kec. Max. 9600 bps (bisa naik ke 256 Kbps) Jarak Max. 100 km Computer Network Research Group ITB
Konfigurasi Wireless LAN Card Inside 2 Mbps Total investasi diluar komputer (PC) Wireless LAN US$2000 (satu pasang / 2 buah) Kecepatan Max. 2 Mbps (bisa naik ke 10 Mbps) Jarak Max. 15 km Computer Network Research Group ITB

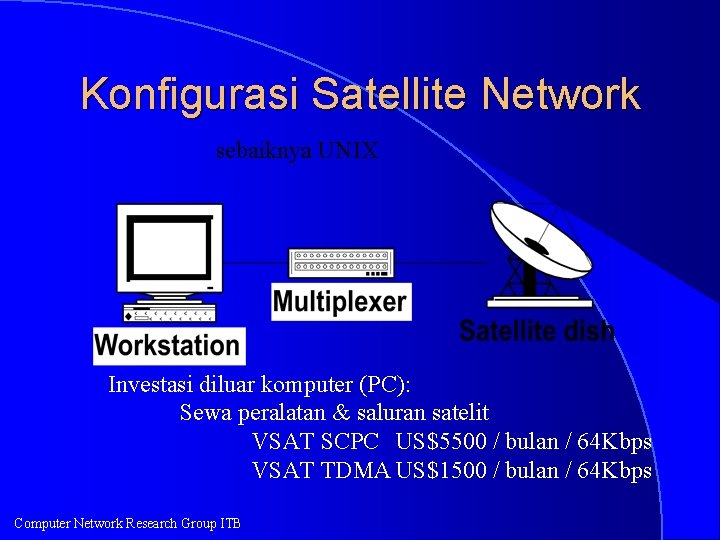

Konfigurasi Satellite Network sebaiknya UNIX Investasi diluar komputer (PC): Sewa peralatan & saluran satelit VSAT SCPC US$5500 / bulan / 64 Kbps VSAT TDMA US$1500 / bulan / 64 Kbps Computer Network Research Group ITB

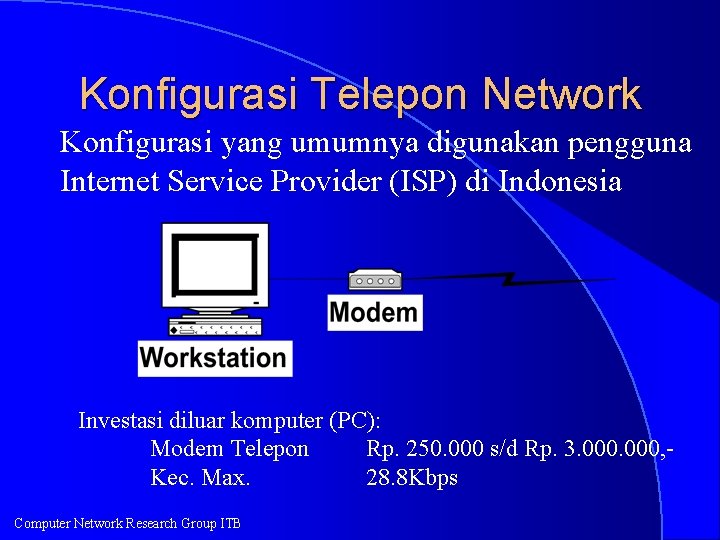

Konfigurasi Telepon Network Konfigurasi yang umumnya digunakan pengguna Internet Service Provider (ISP) di Indonesia Investasi diluar komputer (PC): Modem Telepon Rp. 250. 000 s/d Rp. 3. 000, Kec. Max. 28. 8 Kbps Computer Network Research Group ITB
Konfigurasi Local Area Network Investasi diluar komputer (PC): Ethernet card Rp. 90. 000 s/d Rp. 500. 000 Kabel dan Hub Ethernet Kec. Max. 10 -100 Mbps. Jarak Max. 500 meter Computer Network Research Group ITB
Frequently Asked Questions? Bagaimana cara menyambungkan sebuah Corporate Wide Area Network? l Peralatan apa saja yang dibutuhkan? l Bagaimana konfigurasi peralatan tersebut? l Computer Network Research Group ITB
Corporate / Campus Internet Seluruh Kampus / Corporate Terhubung ke Internet melalui sebuah kabel telepon & modem Computer Network Research Group ITB
Beberapa Revolusi Teknologi CU-see-Me. . l Internet Terminal / Internet Toaster : -). . l Wireless LAN l Computer Network Research Group ITB
CU-see-Me Computer Network Research Group ITB
Low Cost CU-see-Me Merupakan alternatif low cost video conferencing system & de-factor standard Internet. l PC-based + kamera + soundblaster. l As low as Rp. 350. 000 additional equipment to PC!!! l Bisa dijalankan di 14. 4 Kbps : -). . . tidak tergantung pada deployment ISDN. l Computer Network Research Group ITB

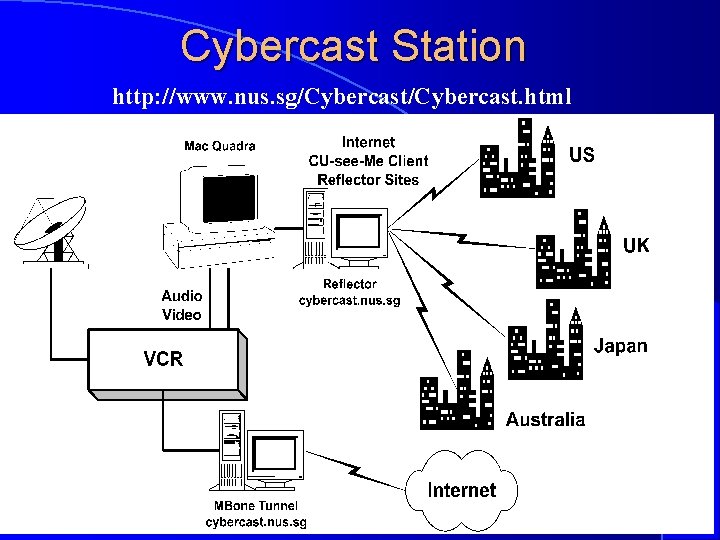

Cybercast Station http: //www. nus. sg/Cybercast. html Computer Network Research Group ITB
Internet Appliances Internet Toaster US$500 : -). . l Processor + 4 Mb RAM + Modem - US$250. . . l Computer Network Research Group ITB
Peralatan Wireless WAN Card Wireless Ethernet l Speed 2 Mbps s/d 10 Mbps l Distance 15 -40 km : -). . l Antenna Yagi / Disc l PC sebagai router ke LAN Ethernet l Computer Network Research Group ITB

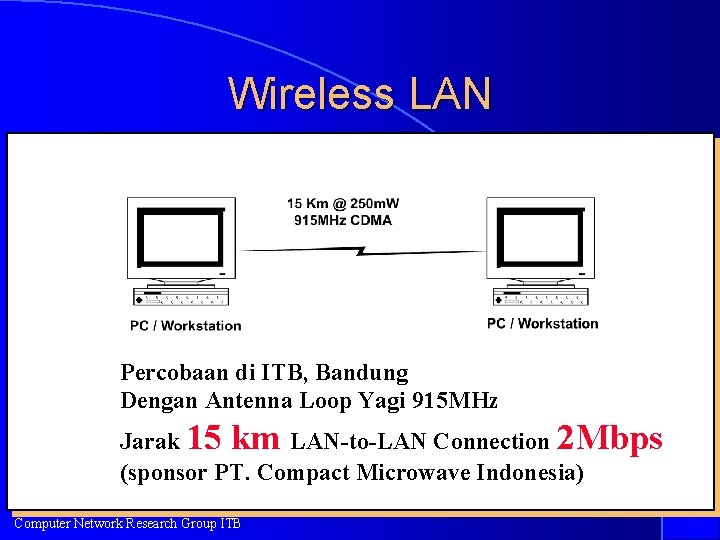

Wireless LAN Percobaan di ITB, Bandung Dengan Antenna Loop Yagi 915 MHz Jarak 15 km LAN-to-LAN Connection 2 Mbps (sponsor PT. Compact Microwave Indonesia) Computer Network Research Group ITB
Konsekuensi Revolusi Teknologi Internet menjadi komoditi yang sangat murah! Rp. 100 -500 / bulan / orang!! Computer Network Research Group ITB
Rangkuman Internet adalah komoditi untuk seluruh lapisan masyarakat. l Kunci utama keberhasilan: l – Sumber Daya Manusia. – Kolektif / Koperasi User Internet. l Teknologi & Funding bukan masalah utama. Computer Network Research Group ITB
