What is DSP Converting a continuously changing waveform

What is DSP? Converting a continuously changing waveform (analog) into a series of discrete levels (digital) and then performing Digital Computations

What is DSP? The analog waveform is sliced into equal segments and the waveform amplitude is measured in the middle of each segment The collection of measurements make up the digital representation of the waveform

A/D Parameters 1. Sampling Frequency – The rate at which we convert the analog data into digital 2. Dynamic range – The ratio between the highest to lowest value (which is not zero)

What is DSP?

Converting Analog into Digital Electronically The device that does the conversion is called an Analog to Digital Converter (ADC) There is a device that converts digital to analog that is called a Digital to Analog Converter (DAC)

Converting Digital to Analog Electronically The simplest form of DAC uses a resistance ladder where the different bits close a gate enabling more current to flow through the resistors and create the corresponding analog voltage.

Converting Analog into Digital Electronically The output of the resistance ladder is compared to the analog voltage in a comparator When there is a match, the digital equivalent (switch configuration) is captured

Analog to Digital (Ladder Comparison)

Converting Analog into Digital Computationally The binary search is a mathematical technique that uses an initial guess, the expected high, and the expected low in a simple computation to refine a new guess The computation continues until the refined guess matches the actual value (or until the maximum number of calculations is reached) Faster way, start with previous value as the initial guess

First Pacemaker: 1957

Pacemaker / Defribliator

Congestive Heart Failure Detector

VHDL: A QUICK PRIMER

Let’s Start Simple • Support different description levels – Structural (specifying interconnections of the gates), – Dataflow (specifying logic equations), and – Behavioral (specifying behavior)

VHDL Description of Combinational Networks

Entity-Architecture Pair entity name port names reserved words port mode (direction) punctuation port type

VHDL Program Structure

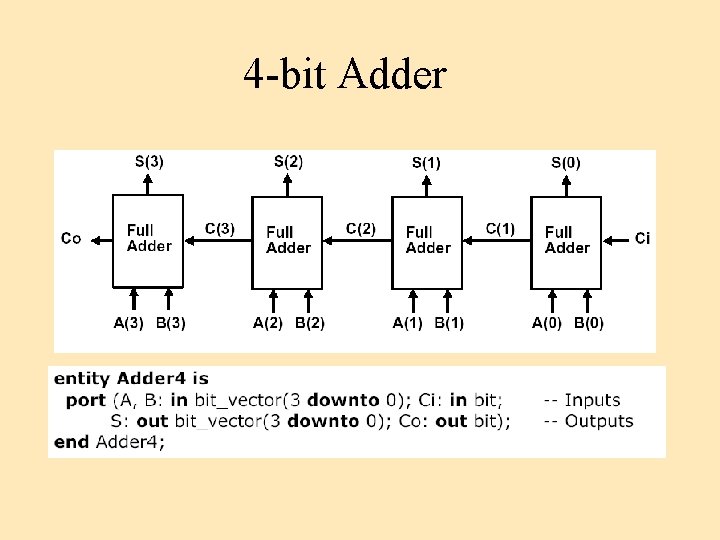

4 -bit Adder

(4 -bit Adder (cont’d

4 -bit Adder - Simulation

Modeling Flip-Flops Using VHDL Processes General form of process Whenever one of the signals in the sensitivity list • changes, the sequential statements are executed in sequence one time

D Flip-flop Model Bit values are enclosed in single quotes

JK Flip-Flop Model

JK Flip-Flop Model

Using Nested IFs and ELSEIFs

VHDL Models for a MUX If a MUX model is used inside a process, the MUX can be modeled using a CASE statement (cannot use a concurrent statement): Sel represents the integer equivalent of a 2 bit binary number with bits A and B

MUX Models (1) library IEEE; use IEEE. std_logic_1164. all; use IEEE. std_logic_unsigned. all; entity SELECTOR is port ( A : in std_logic_vector(15 downto 0); SEL : in std_logic_vector( 3 downto 0); Y : out std_logic); end SELECTOR; architecture RTL 1 of SELECTOR is begin p 0 : process (A, SEL) begin if (SEL = "0000") then Y <= A(0); elsif (SEL = "0001") then Y <= A(1); elsif (SEL = "0010") then Y <= A(2); elsif (SEL = "0011") then Y <= A(3); elsif (SEL = "0100") then Y <= A(4); elsif (SEL = "0101") then Y <= A(5); elsif (SEL = "0110") then Y <= A(6); elsif (SEL = "0111") then Y <= A(7); elsif (SEL = "1000") then Y <= A(8); elsif (SEL = "1001") then Y <= A(9); elsif (SEL = "1010") then Y <= A(10); elsif (SEL = "1011") then Y <= A(11); elsif (SEL = "1100") then Y <= A(12); elsif (SEL = "1101") then Y <= A(13); elsif (SEL = "1110") then Y <= A(14); else Y <= A(15); end if; end process; end RTL 1;

MUX Models (2) library IEEE; use IEEE. std_logic_1164. all; use IEEE. std_logic_unsigned. all; entity SELECTOR is port ( A : in std_logic_vector(15 downto 0); SEL : in std_logic_vector( 3 downto 0); Y : out std_logic); end SELECTOR; • • • architecture RTL 3 of SELECTOR is begin with SEL select Y <= A(0) when "0000", A(1) when "0001", A(2) when "0010", A(3) when "0011", A(4) when "0100", A(5) when "0101", A(6) when "0110", A(7) when "0111", A(8) when "1000", A(9) when "1001", A(10) when "1010", A(11) when "1011", A(12) when "1100", A(13) when "1101", A(14) when "1110", A(15) when others; end RTL 3;

MUX Models (3) library IEEE; use IEEE. std_logic_1164. all; use IEEE. std_logic_unsigned. all; entity SELECTOR is port ( A : in std_logic_vector(15 downto 0); SEL : in std_logic_vector( 3 downto 0); Y : out std_logic); end SELECTOR; • • • architecture RTL 2 of SELECTOR is begin p 1 : process (A, SEL) begin case SEL is when "0000" => Y <= A(0); when "0001" => Y <= A(1); when "0010" => Y <= A(2); when "0011" => Y <= A(3); when "0100" => Y <= A(4); when "0101" => Y <= A(5); when "0110" => Y <= A(6); when "0111" => Y <= A(7); when "1000" => Y <= A(8); when "1001" => Y <= A(9); when "1010" => Y <= A(10); when "1011" => Y <= A(11); when "1100" => Y <= A(12); when "1101" => Y <= A(13); when "1110" => Y <= A(14); when others => Y <= A(15); end case; end process; end RTL 2;

MUX Models (4) library IEEE; use IEEE. std_logic_1164. all; use IEEE. std_logic_unsigned. all; entity SELECTOR is port ( A : in std_logic_vector(15 downto 0); SEL : in std_logic_vector( 3 downto 0); Y : out std_logic); end SELECTOR; • • • architecture RTL 4 of SELECTOR is begin Y <= A(conv_integer(SEL)); end RTL 4;

Moore FSM Output depends • ONLY on current state Outputs associated with • each state are set at clock transition

Mealy FSM Output depends on inputs • AND current state Outputs are set during • transitions

Coding FSMs in Altera

Process Statement Process computes outputs of sequential • statements on each clock tick with respect to the sensitive signals. Sensitivity list

EVENT’ ’EVENT is an Altera construct that represents • when the signal is transitioning IF statement reads: If Clock is making a positive transition THEN

VHDL codes for FSM Mealy FSM – see mealy 1. vhd on the web • Moore FSM - see moore. vhd on the web • Now let’s take a look how to edit, compile, • simulate and synthesize your design using Altera software …. …. (proceed with hands on tutorial) •

FSMs in VHDL Finite State Machines Can Be Easily • Described With Processes Synthesis Tools Understand FSM • Description If Certain Rules Are Followed State transitions should be described in a – process sensitive to clock and asynchronous reset signals only Outputs described as concurrent statements – outside the process

(FSM States (1 architecture behavior of FSM is type state is (list of states); signal FSM_state: state; begin process(clk, reset) begin if reset = ‘ 1’ then FSM_state <= initial state; else case FSM_state is

(FSM States (2 case FSM_state is when state_1 => if transition condition 1 then FSM_state <= state_1; end if; when state_2 => if transition condition 2 then FSM_state <= state_2; end if; end case;

Moore FSM - Example 1 Moore FSM that Recognizes Sequence 10 • 0 1 S 0 / 0 reset 1 0 S 1 / 0 0 1 S 2 / 1

Moore FSM in VHDL type state is (S 0, S 1, S 2); signal Moore_state: state; U_Moore: process(clock, reset) Begin if(reset = ‘ 1’) then Moore_state <= S 0; elsif (clock = ‘ 1’ and clock’event) then case Moore_state is when S 0 => if input = ‘ 1’ then Moore_state <= S 1; end if; when S 1 => if input = ‘ 0’ then Moore_state <= S 2; end if; when S 2 => if input = ‘ 0’ then Moore_state <= S 0; else Moore_state <= S 1; end if; end case; end if; End process; Output <= ‘ 1’ when Moore_state = S 2 else ‘ 0’;

Mealy FSM - Example 1 Mealy FSM that Recognizes Sequence 10 • 0/0 1/0 S 0 reset 1/0 S 1 0/1

Mealy FSM in VHDL type state is (S 0, S 1); signal Mealy_state: state; U_Mealy: process(clock, reset) Begin if(reset = ‘ 1’) then Mealy_state <= S 0; elsif (clock = ‘ 1’ and clock’event) then case Mealy_state is when S 0 => if input = ‘ 1’ then Mealy_state <= S 1; end if; when S 1 => if input = ‘ 0’ then Mealy_state <= S 0; end if; end case; end if; End process; Output <= ‘ 1’ when (Mealy_state = S 1 and input = ‘ 0’) else ‘ 0’;

Moore FSM – Example 2: State diagram Reset w = 1 w = 0 A¤z=0 B¤z = 0 w = 1 w = 0 C¤z = 1 w = 1

Moore FSM – Example 2: State table Next state Present state w= 0 w= 1 A B C A A A B C C Output z 0 0 1

Moore FSM Input: w Transition function Next State: Memory (register) Output function Present State: y Output: z

Moore FSM – Example 2: VHDL code (1) USE ieee. std_logic_1164. all ; ENTITY simple IS PORT (Clock, Resetn, w : IN STD_LOGIC ; z: OUT STD_LOGIC ) ; END simple ; ARCHITECTURE Behavior OF simple IS TYPE State_type IS (A, B, C) ; SIGNAL y : State_type ; BEGIN PROCESS ( Resetn, Clock ) BEGIN IF Resetn = '0' THEN y <= A ; ELSIF (Clock'EVENT AND Clock = '1') THEN con’t. . .

Moore FSM – Example 2: VHDL code (2) CASE y IS WHEN A => IF w = '0' THEN y <= A ; ELSE y <= B ; END IF ; WHEN B => IF w = '0' THEN y <= A ; ELSE y <= C ; END IF ; WHEN C => IF w = '0' THEN y <= A ; ELSE y <= C ; END IF ; END CASE ; END IF ; END PROCESS ; z <= '1' WHEN y = C ELSE '0' ; END Behavior ;

Moore FSM Input: w Next State: y_next Transition function Memory (register) Output function Present State: y_present Output: z

Alternative VHDL code (1) ARCHITECTURE Behavior OF simple IS TYPE State_type IS (A, B, C) ; SIGNAL y_present, y_next : State_type ; BEGIN PROCESS ( w, y_present ) BEGIN CASE y_present IS WHEN A => IF w = '0' THEN y_next <= A ; ELSE y_next <= B ; END IF ; WHEN B => IF w = '0' THEN y_next <= A ; ELSE y_next <= C ; END IF ;

Alternative VHDL code (2) WHEN C => IF w = '0' THEN y_next <= A ; ELSE y_next <= C ; END IF ; END CASE ; END PROCESS ; PROCESS (Clock, Resetn) BEGIN IF Resetn = '0' THEN y_present <= A ; ELSIF (Clock'EVENT AND Clock = '1') THEN y_present <= y_next ; END IF ; END PROCESS ; z <= '1' WHEN y_present = C ELSE '0' ; END Behavior ;

Mealy FSM – Example 2: State diagram Reset w= 1¤z= 0 w= 0¤z= 0 A B w= 0¤z= 0 w= 1¤z= 1

Mealy FSM – Example 2: State table Next state Present state w= 0 w= 1 A B A A B B Outputz w= 0 w= 1 0 0 0 1

Mealy FSM Input: w Transition function Next State Present State: y Memory (register) Output function Output: z

Mealy FSM – Example 2: VHDL code (1) LIBRARY ieee ; USE ieee. std_logic_1164. all ; ENTITY mealy IS PORT ( Clock, Resetn, w : IN STD_LOGIC ; z: OUT STD_LOGIC ) ; END mealy ; ARCHITECTURE Behavior OF mealy IS TYPE State_type IS (A, B) ; SIGNAL y : State_type ; BEGIN PROCESS ( Resetn, Clock ) BEGIN IF Resetn = '0' THEN y <= A ; ELSIF (Clock'EVENT AND Clock = '1') THEN CASE y IS WHEN A => IF w = '0' THEN y <= A ; ELSE y <= B ; END IF ;

Mealy FSM – Example 2: VHDL code (2) WHEN B => IF w = '0' THEN y <= A ; ELSE y <= B ; END IF ; END CASE ; END IF ; END PROCESS ; with y select z <= w when B, z <= ‘ 0’ when others; END Behavior ;

Compilation and Simulation of VHDL Code Compiler (Analyzer) – checks the VHDL source code • does it conforms with VHDL syntax and semantic rules – are references to libraries correct – Intermediate form used by a simulator or by a synthesizer Elaboration create ports, allocate memory storage, create interconnections, . . . – establish mechanism for executing of VHDL processes – • •
