What is an e Cube A Product Invented

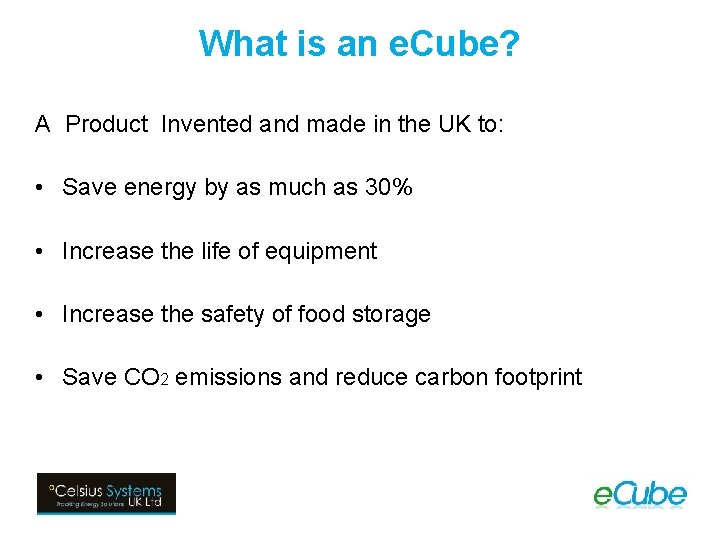

What is an e. Cube? A Product Invented and made in the UK to: • Save energy by as much as 30% • Increase the life of equipment • Increase the safety of food storage • Save CO 2 emissions and reduce carbon footprint

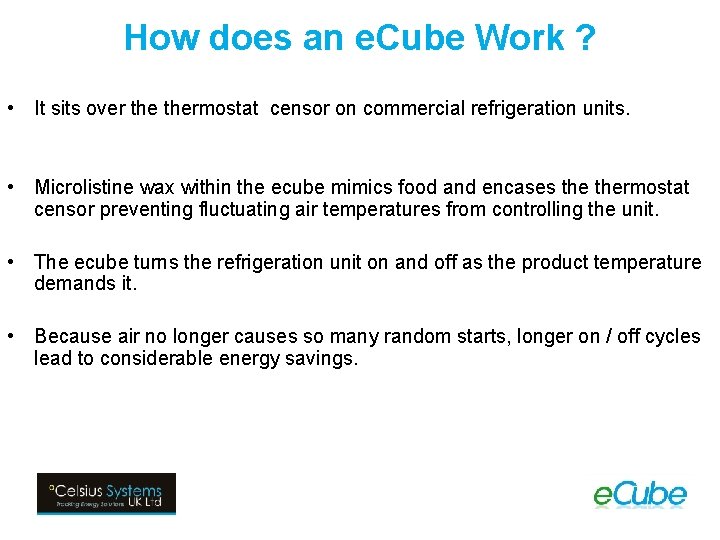

How does an e. Cube Work ? • It sits over thermostat censor on commercial refrigeration units. • Microlistine wax within the ecube mimics food and encases thermostat censor preventing fluctuating air temperatures from controlling the unit. • The ecube turns the refrigeration unit on and off as the product temperature demands it. • Because air no longer causes so many random starts, longer on / off cycles lead to considerable energy savings.

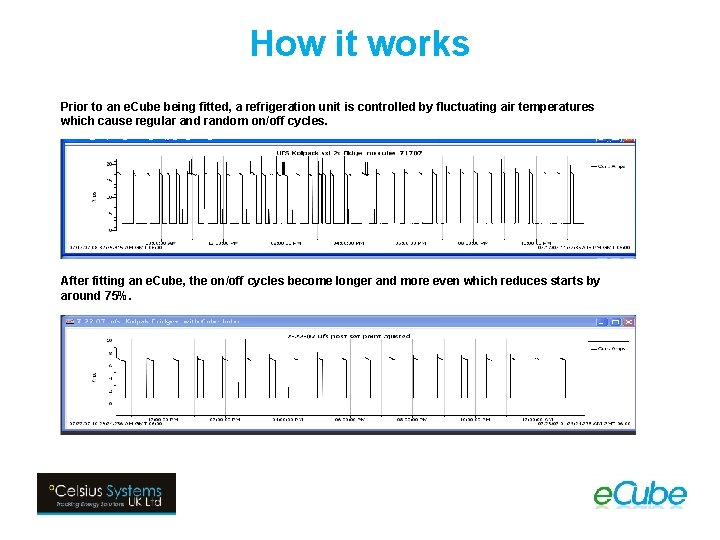

How it works Prior to an e. Cube being fitted, a refrigeration unit is controlled by fluctuating air temperatures which cause regular and random on/off cycles. After fitting an e. Cube, the on/off cycles become longer and more even which reduces starts by around 75%.

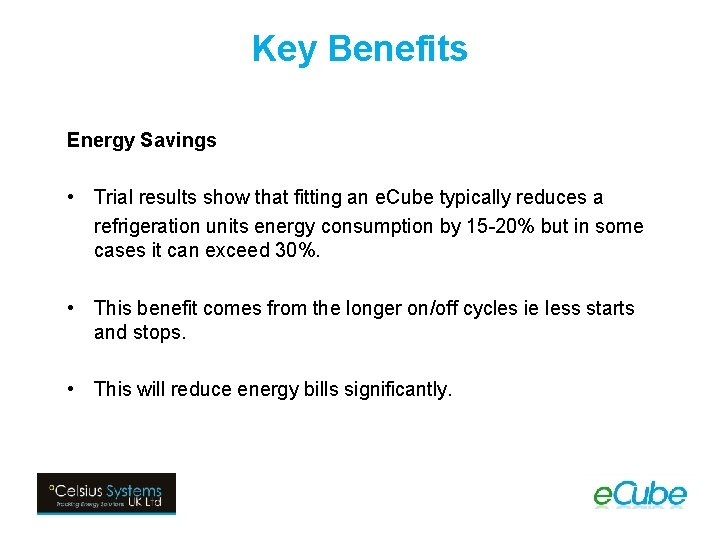

Key Benefits Energy Savings • Trial results show that fitting an e. Cube typically reduces a refrigeration units energy consumption by 15 -20% but in some cases it can exceed 30%. • This benefit comes from the longer on/off cycles ie less starts and stops. • This will reduce energy bills significantly.

Key Benefits The Environment • As previously mentioned, fitting an e. Cube will reduce energy consumption from a refrigeration unit by 15 -20% on average. • This will lead to a similar saving in CO 2 emissions which in the current environmental climate is significant.

Key Benefits Extended Equipment Life • The less starts and stops caused by the e. Cube will extend the lifespan of a refrigeration unit, especially thermostat and compressor. • This will lead to fewer plant failures, less engineering call out charges and reduce expenditure on replacement parts.

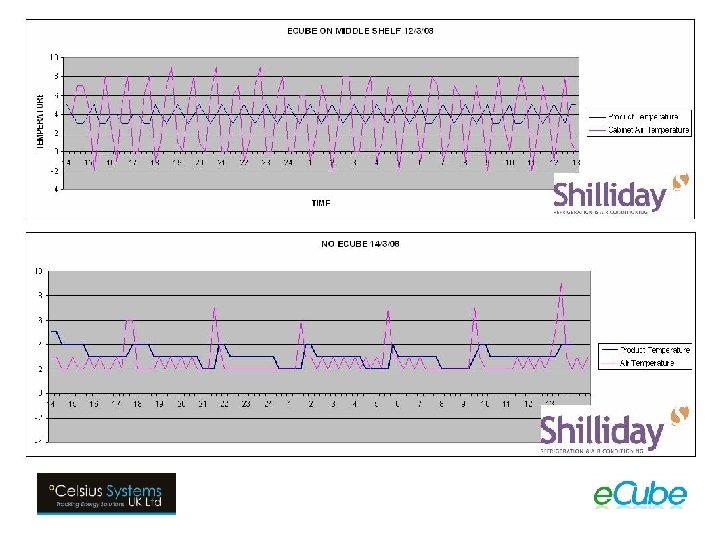

Energy Saving

Food Safety To whom it may concern We have carried out a trial with e. Cube in one of our customer sites, Roadchef services Northampton – North/southbound. Backed up by our high quality technical service and support with a high regard for the environment we carefully monitored the refrigeration equipment and food temperatures. The e. Cube allows the refrigeration equipment to manage the temperature of the food product rather than the fluctuating air temperature. The concluded results and benefits are as follows: • Temperature of the monitored equipment was kept stable resulting in less frequent refrigeration cycles. • More efficient use of the refrigeration equipment, less wear and tear thus energy efficient. • It has been proved that the refrigeration cycles have been reduced whilst still keeping the food temperature constant within its legislative limits. • It has been proved that within a busy environment, doors left open for short periods or constantly in and out the cabinets the e. Cube keeps the temperature stable as it only monitors the product temperature and not the fluctuating air temperature therefore unnecessary refrigeration cycles. I can see the benefit of the e. Cube for the more efficient use of the refrigeration equipment, safer food and energy savings solutions to the food manufacturing and storage industry. Everyone at e. Cube have been considerately helpful, I have no hesitation to recommend this product to others. Kind regards, Vince Presti (Capital Cooling) Central Regional Manager Capital Cooling Ltd

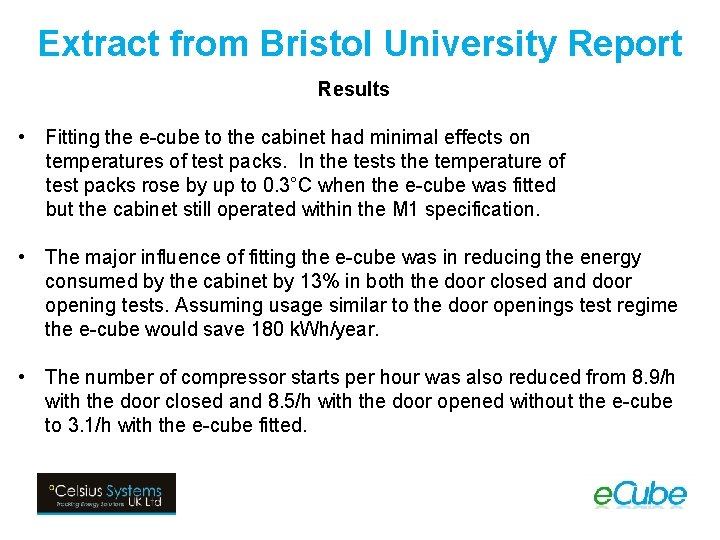

Extract from Bristol University Report Results • Fitting the e-cube to the cabinet had minimal effects on temperatures of test packs. In the tests the temperature of test packs rose by up to 0. 3°C when the e-cube was fitted but the cabinet still operated within the M 1 specification. • The major influence of fitting the e-cube was in reducing the energy consumed by the cabinet by 13% in both the door closed and door opening tests. Assuming usage similar to the door openings test regime the e-cube would save 180 k. Wh/year. • The number of compressor starts per hour was also reduced from 8. 9/h with the door closed and 8. 5/h with the door opened without the e-cube to 3. 1/h with the e-cube fitted.

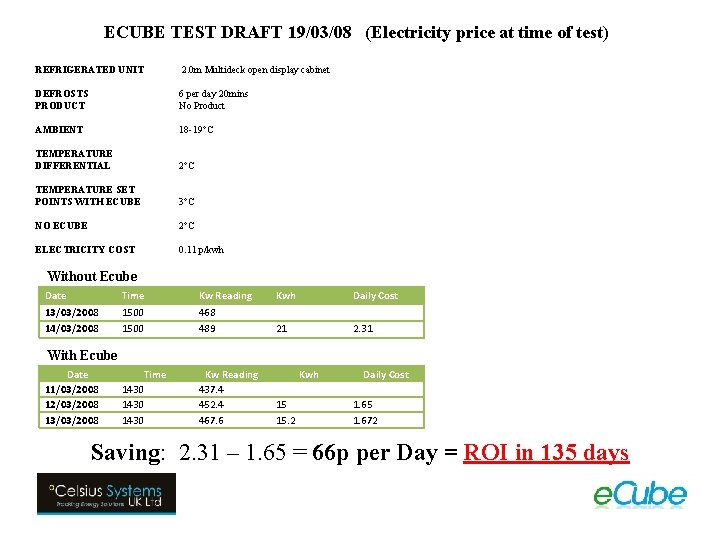

ECUBE TEST DRAFT 19/03/08 (Electricity price at time of test) REFRIGERATED UNIT 2. 0 m Multideck open display cabinet DEFROSTS PRODUCT 6 per day 20 mins No Product AMBIENT 18 -19°C TEMPERATURE DIFFERENTIAL 2°C TEMPERATURE SET POINTS WITH ECUBE 3°C NO ECUBE 2°C ELECTRICITY COST 0. 11 p/kwh Without Ecube Date Time Kw Reading 13/03/2008 1500 468 14/03/2008 1500 489 Time 1430 Kw Reading 437. 4 452. 4 467. 6 Kwh Daily Cost 21 2. 31 With Ecube Date 11/03/2008 12/03/2008 13/03/2008 Kwh 15 15. 2 Daily Cost 1. 65 1. 672 Saving: 2. 31 – 1. 65 = 66 p per Day = ROI in 135 days

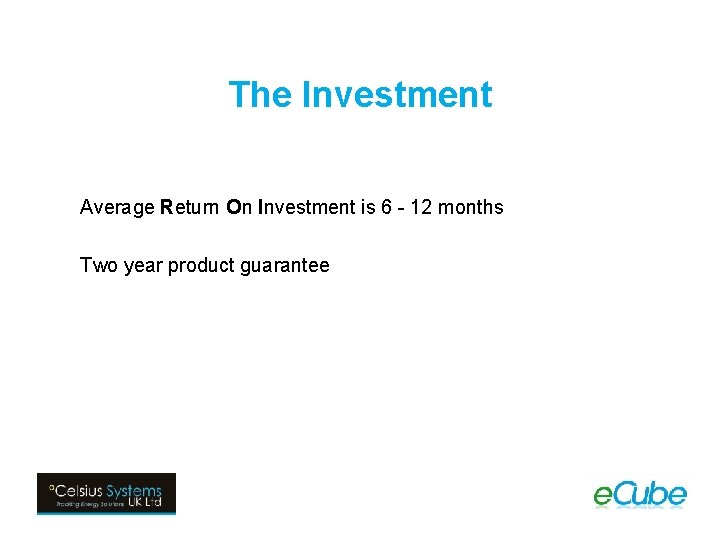

The Investment Average Return On Investment is 6 - 12 months Two year product guarantee

Celsius Systems UK Ltd Tel: 0845 527 8161 Email: sales@ecubeuk. co. uk Web: www. ecubeuk. co. uk For refrigeration data temperature monitoring visit: www. celsius-systems. co. uk
