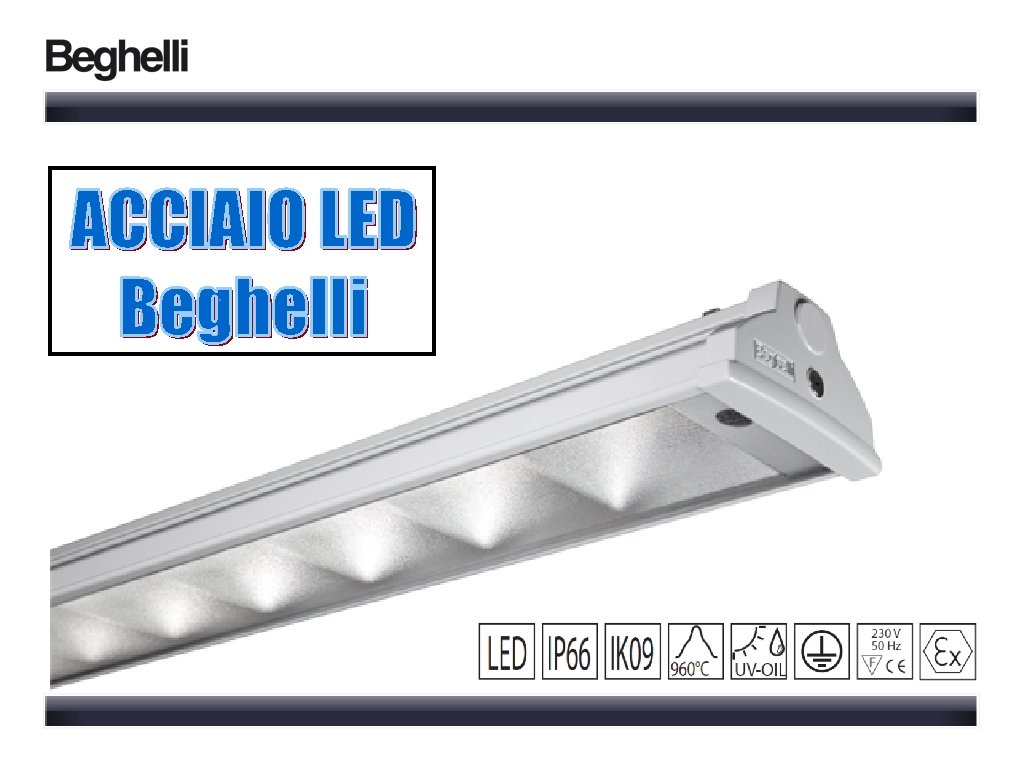

WHAT IS ACCIAIO LED Acciaio Beghelli LED is

WHAT IS ACCIAIO LED ? Acciaio Beghelli LED is a water and shock proof LED steel & glass lighting fixture featuring an innovative fast installation, easy maintenance and modular emergency system.

WHY ACCIAIO ? 1. High quality material 3. Modular emergency version 2. Fast and easy installation 4. High optical efficiency

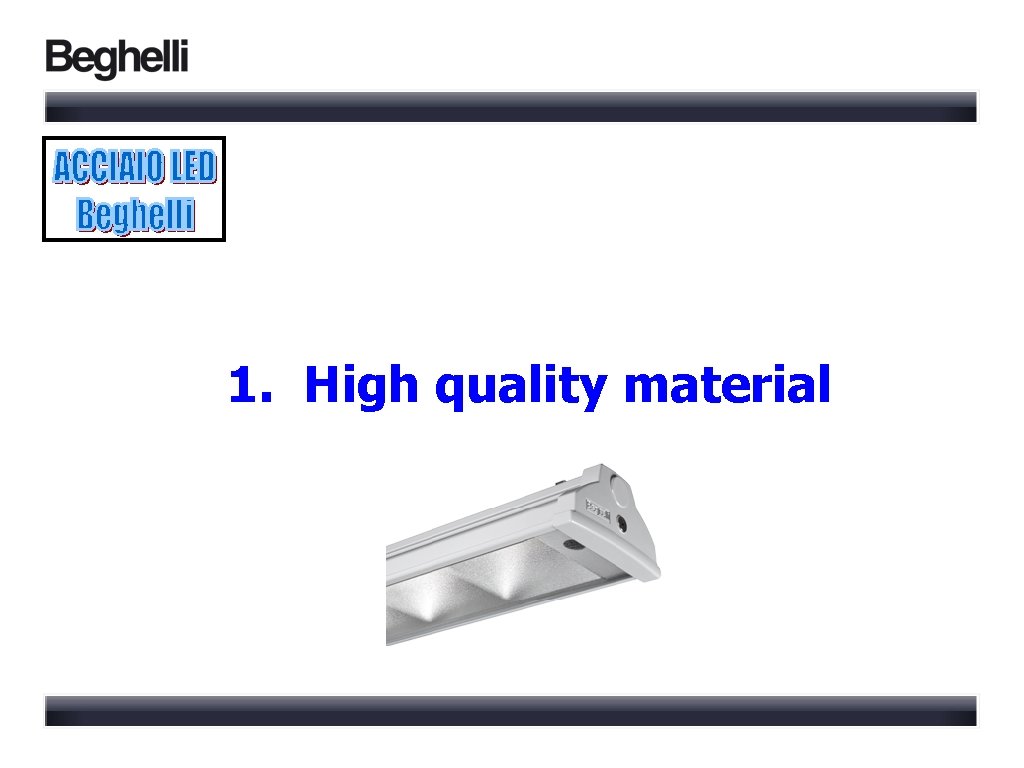

1. High quality material

STEEL, AN ETERNAL AND ENDLESS RECYCLABLE MATERIAL

ACCIAIO TECHNICAL DESCRIPTION Galvanized and epoxy-polyester painted steel body Glass with crimped silicone gasket Die-cast aluminium and caps and tempered glass without any closing clips

ACCIAIO Beghelli: a long lasting and reliable waterproof lighting fixture IP 66 • Zinc plated and painted steel body + • Crimped silicone gasket + • Tempered glass without any closing clips _______________ + PROTECTION DEGREE IP 66 =

The advantages in comparison with plastic industrial luminaires ü body in zinc steel painted – higher mechanical resistance ü suitable for aggressive chemical environments ü UV stabilized ü degree of protection IP 66 ü protection level IK 09 ü working temperature -20°C to 40°C ü energy-efficient LED lighting solution

2. Fast and easy installation

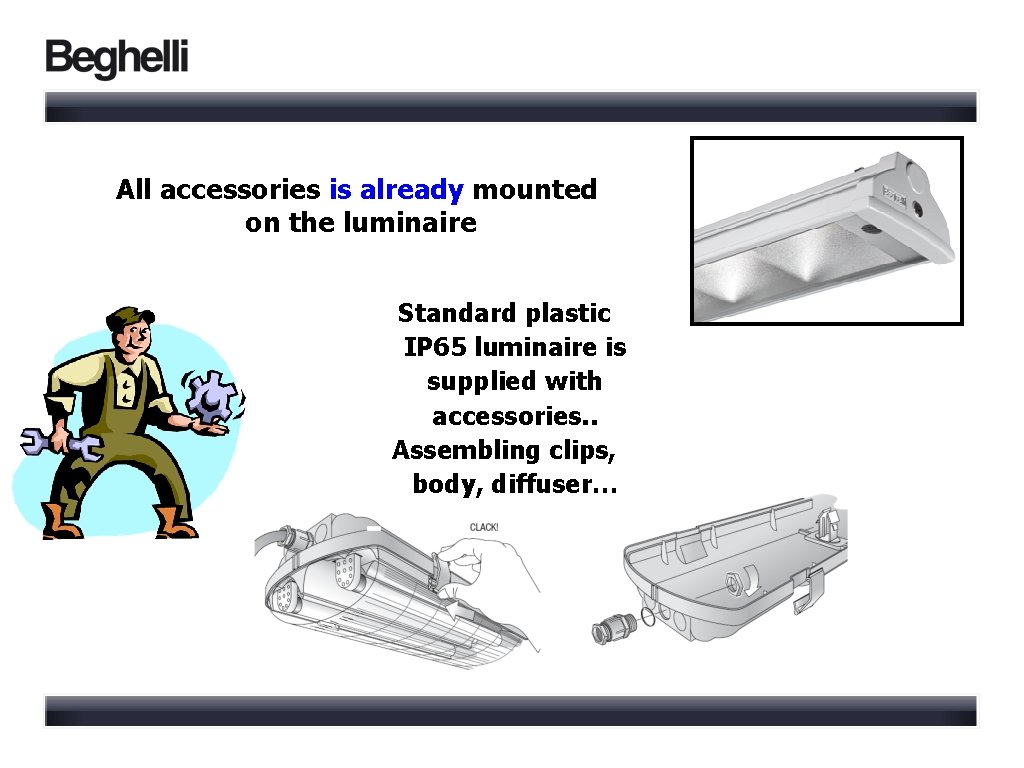

All accessories is already mounted on the luminaire Standard plastic IP 65 luminaire is supplied with accessories. . Assembling clips, body, diffuser…

ACCIAIO TECHNICAL DESCRIPTION for easy access to el. components Maintenance position

Loosening of single fixing screw and removing end cap Access to electronic components

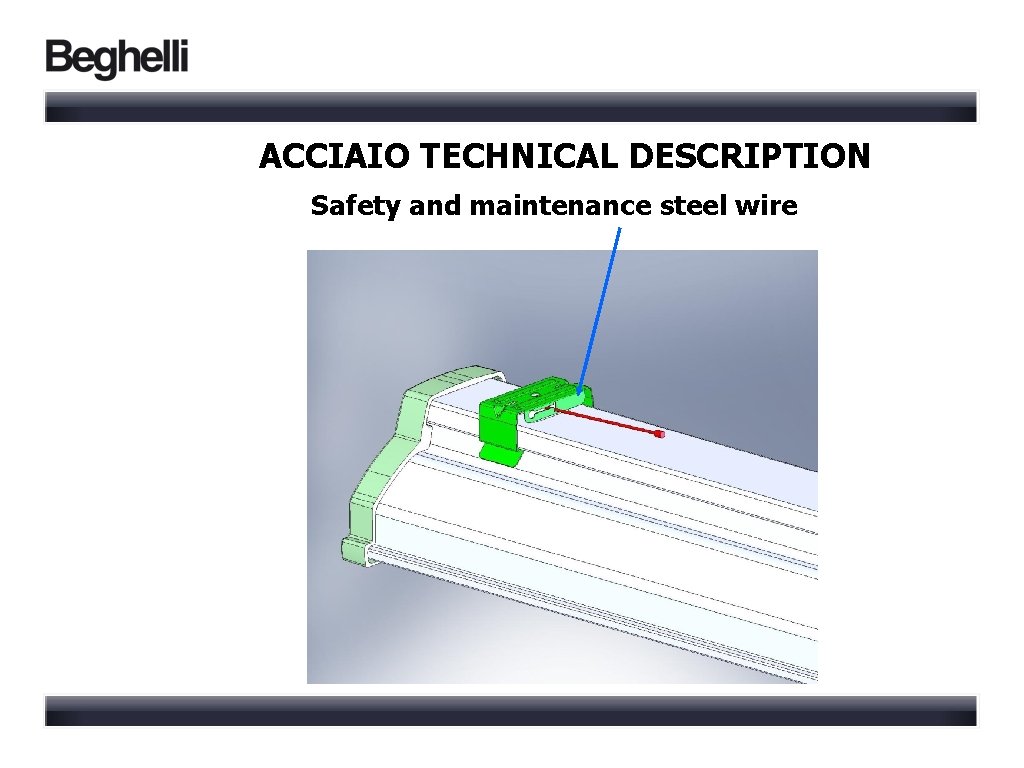

ACCIAIO TECHNICAL DESCRIPTION Safety and maintenance steel wire

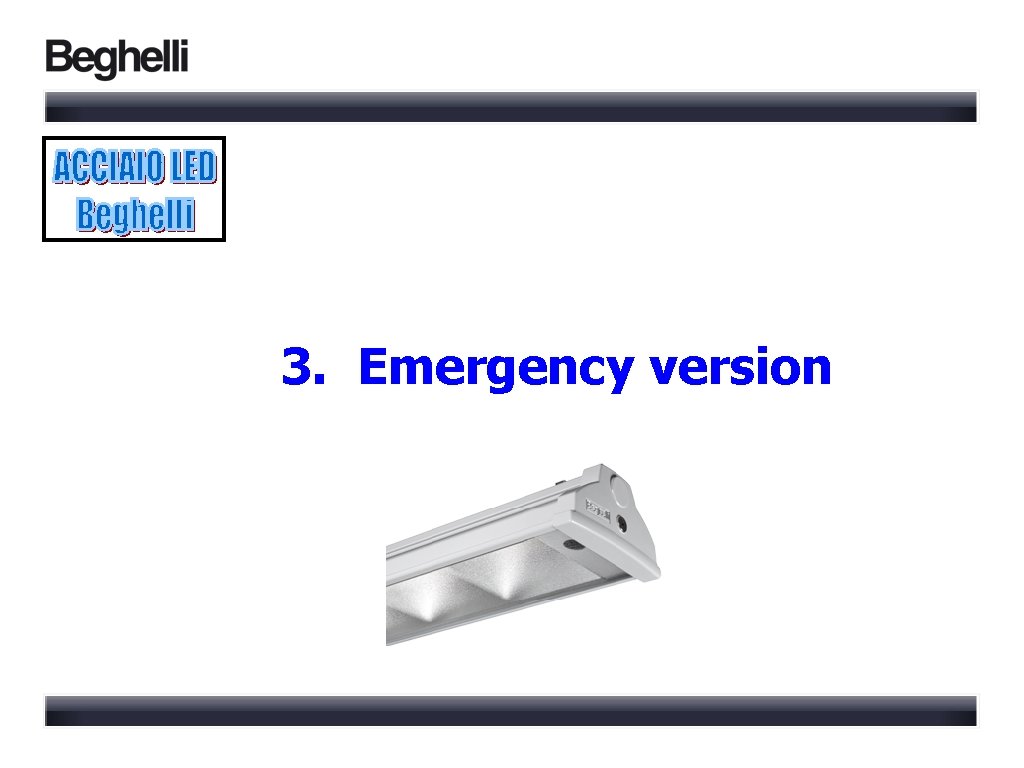

3. Emergency version

ACCIAIO EMERGENCY VERSION

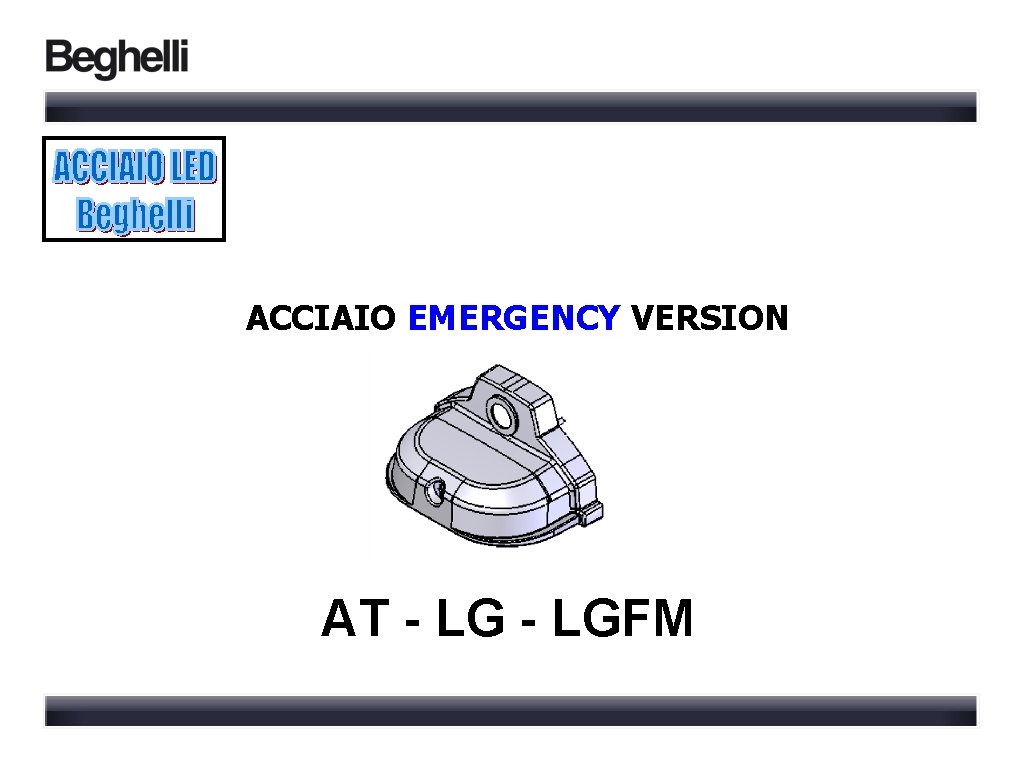

ACCIAIO EMERGENCY VERSION AT - LGFM

ACCIAIO EMERGENCY LED MODULE : TOTAL INNOVATION High efficency lentiform LED optics High efficency long life LED + signalling LED Ba ele tter ctr y p on ac ic k a ch nd arg er inv ert er

Emergency version AT CT Logica intelligent controller 1 h 3 h Version Autotest – self-contained lum. with battery and duration for 1 or 3 hours able to provide full duration and functionality tests. Version Logica – monitoring and control of the luminaire is centralized in Logica central unit.

Emergency version Logica control unit manages and controls emergency fixtures of the Logica FM range. The Logica FM system uses very low-power radio waves to avoid any type of interference The signal transmitted by by the CU is received by the first fixture and than transmitted to the successive fixture

4. High optical efficiency

21

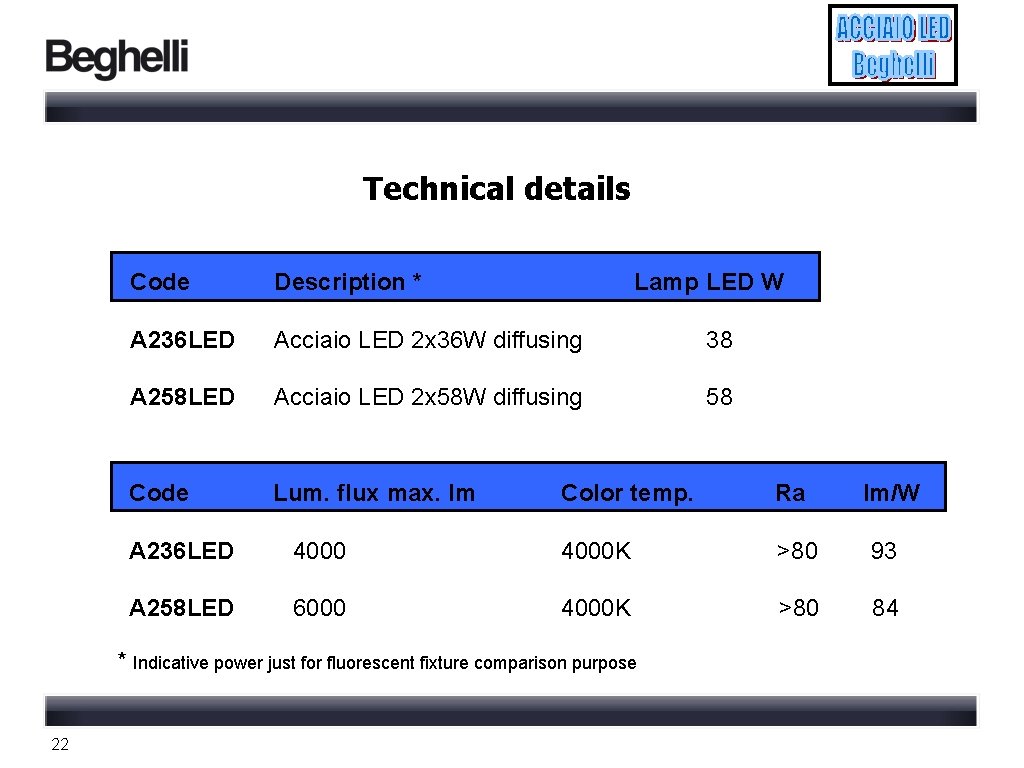

Technical details Code Description * Lamp LED W A 236 LED Acciaio LED 2 x 36 W diffusing 38 A 258 LED Acciaio LED 2 x 58 W diffusing 58 Code Lum. flux max. lm Color temp. Ra A 236 LED 4000 K >80 93 A 258 LED 6000 4000 K >80 84 * Indicative power just for fluorescent fixture comparison purpose 22 lm/W

ACCIAIO SPECS IN BRIEF ü Protection degree: IP 66 ü Shock protection : IK 09 ü LED technology ü Working temperature : -20°C + 40°C ü Efficiency (lm/W) : 84/93 ü Conformity : En 60598 -1

ACCIAIO ADVANTAGES Ø Design and Innovation Ø High light output performance Ø Long life and Resistance Ø High luminous efficiency Ø Energy saving 50% Ø Installation time, 75% less than standard plastic fixture Ø Maintenance, easy, safe and reduced Ø Modular system for LED emergency versions

ACCIAIO LED DIMENSIONS 25
