WHAT IS A MESH Something That Moves Something
- Slides: 26
WHAT IS A MESH? Something That Moves Something, created by Ohad Meyuhas, architect
CREATE AN EGG
IN THIS LESSON • Review of geometry terms • Things to consider when preparing a mesh file How to create a smooth and watertight mesh
GEOMETRY TERMS WHAT AM I? ?
GEOMETRY TERMS WHAT AM I? POINT • I am a unique location in Euclidean space. • I do not have any length, area, volume, or any other dimensional attribute.
GEOMETRY TERMS WHAT AM I? LINE • I include (but am not limited to) an infinitely extended, one-dimensional figure with no curvature. • I am equally extended between two points. • I do not have any area, volume, or width.
GEOMETRY TERMS WHAT AM I? SURFACE • I am a two-dimensional, topological manifold. • I am at least three lines defined by at least three points.
GEOMETRY TERMS WHAT AM I? POLYGON • I am a two-dimensional surface on one plane. • I am created by a chain of at least three straight lines on the same plane.
GEOMETRY TERMS WHAT AM I? SOLID I am a three-dimensional, watertight closed model.
GEOMETRY TERMS WHAT or MESH AM POLYSURFACE I? • I am a way to represent solid objects through polygon division.
GEOMETRY TERMS WHATMESH OPEN AM I? • Not all meshes are closed and watertight
GEOMETRY TERMS • • Point Line Surface Polygon Solid Mesh / Polysurface Open mesh
GEOMETRY TERMS WHAT IS THIS?
GEOMETRY TERMS WHAT IS THIS?
GEOMETRY TERMS A mesh is a computer representation of a 3 D object created with an array of finite elements. POINTS LINES SURFACES POLYGONS MESH
GEOMETRY TERMS A mesh is a computer representation of a 3 D object created with an array of finite elements. POINTS LINES SURFACES POLYGONS MESH
IN THIS LESSON • Review of geometry terms • Things to consider when preparing a mesh file How to create a smooth and watertight mesh
PREPARING A MESH FILE THINGS TO CONSIDER • Resolution • Mesh holes • File format

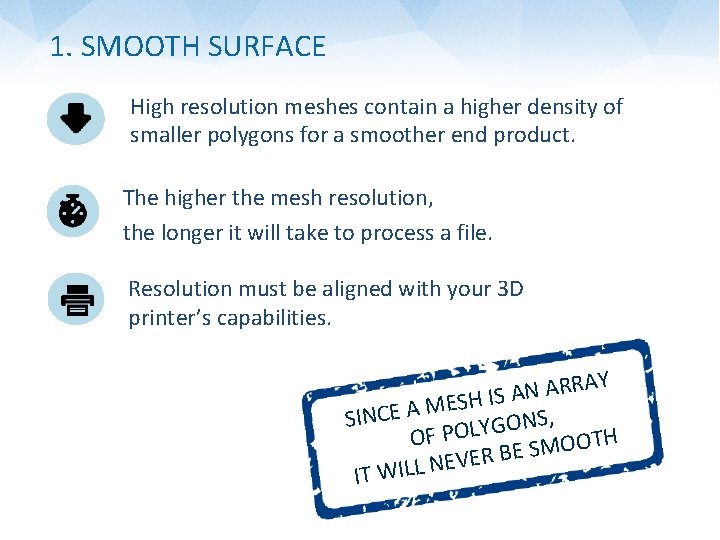

1. SMOOTH SURFACE High resolution meshes contain a higher density of smaller polygons for a smoother end product. The higher the mesh resolution, the longer it will take to process a file. Resolution must be aligned with your 3 D printer’s capabilities. Y A R R A N IS A H S E M SINCE A NS, O G Y L O OF P TH O O M S E B R E V E N L IT WIL
1. SMOOTH SURFACE Y A R R A N IS A H S E M A BECAUSE POLYGONS, OF TH O O M S BE R E V E N IT WILL
2. MESH HOLES Mesh must be watertight for 3 D printing d a h O s • n i ill s e c o r p St Mesh repair software: magics, netfabb, autodesk print utility
3. FILE FORMAT Initial CAD file Convert to mesh format Save as an STL file Mesh ASCII Mesh BINARY Save for future modification Use for CAM program
PREPARING A MESH FILE THINGS TO CONSIDER • Resolution • Mesh holes • File format
IN THIS LESSON • Review of geometry terms • Things to consider when preparing a mesh file How to create a smooth and watertight 3 D mesh
LEGAL This document is part of the Stratasys Education Open Curriculum Program and is subject to Stratasys Education Open Curriculum Program - Terms of use available at http: //www. stratasys. com/industries/education/educators/curriculum/terms-of-use. Notwithstanding the foregoing, the information provided herein, including any data, material and/or content (“Content”), is provided for informational purposes only. The Content is provided “as is”. Stratasys makes no representations or warranties in relation to the Content. Permission is granted to you to display, copy, distribute, and download the Content for your own internal use only, You may not, however disclose, copy, reproduce, distribute, publish, display, transmit, sell or offer for resale, the Content, or any part thereof, outside of your organization , without Stratasys’ express written permission. © 2014 Stratasys. All rights reserved. Stratasys, Stratasys logo, Objet, For a 3 D World, Poly. Jet, FDM, FDM Technology, Fortus, Finishing Touch, Insight, ABSplus, ABS-ESD 7, ABS - M 30, ABS – M 30 i, ABSi, PC – ISO, SR-20, SR-30, SR-100, SR-110, Water. Works, Mojo, Dimension, Catalyst, Wave. Wash 55, Ecoworks, u. Print, Objet Studio, Full. Cure, Eden, Connex, Tango, Vero. Dent, Durus, Endur, Poly. Jet Matrix, Digital ABS and Digital ABS 2 are trademarks of Stratasys Ltd. and/or its subsidiaries or affiliates and may be registered in certain jurisdictions. Power. Point is a registered trademark of Microsoft Corporation in the United States and/or other countries. Quick. Time is a trademark of Apple Inc. , registered in the U. S. and other countries. All other trademarks belong to their respective owners.
