What is a Machine Materials Input Machine Object

What is a Machine? Materials Input Machine Object Product Output

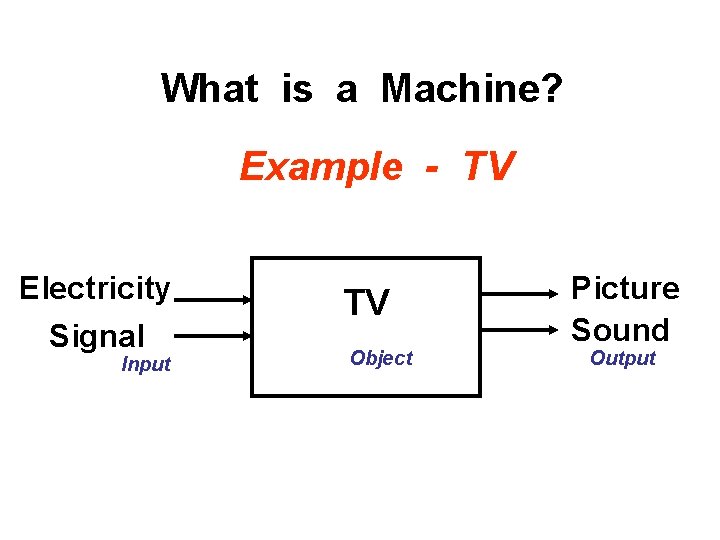

What is a Machine? Example - TV Electricity Signal Input TV Object Picture Sound Output

What is a Machine? Simple Machine Force Input Simple Machine Object Force Output

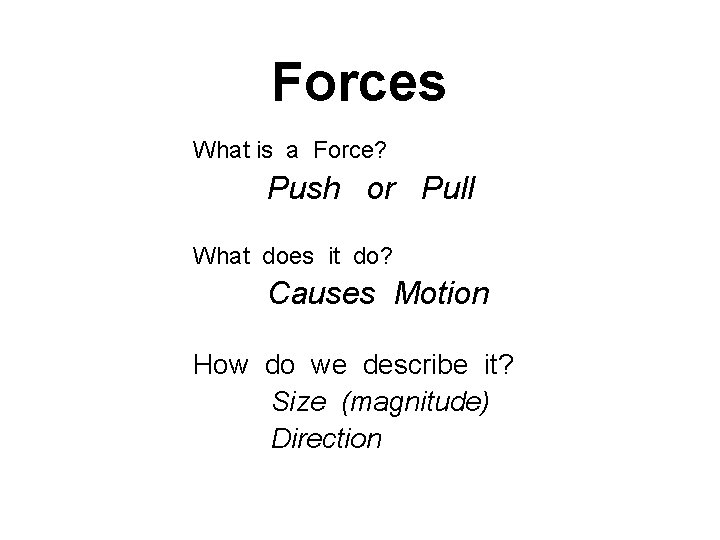

Forces What is a Force? Push or Pull What does it do? Causes Motion How do we describe it? Size (magnitude) Direction

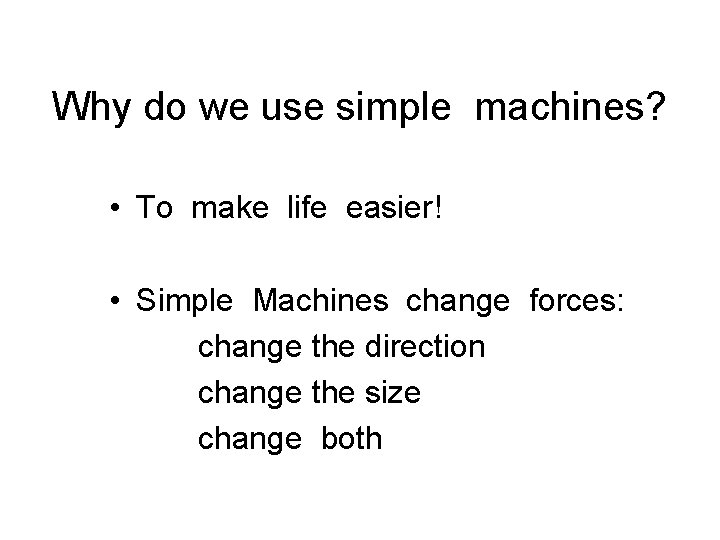

Why do we use simple machines? • To make life easier! • Simple Machines change forces: change the direction change the size change both

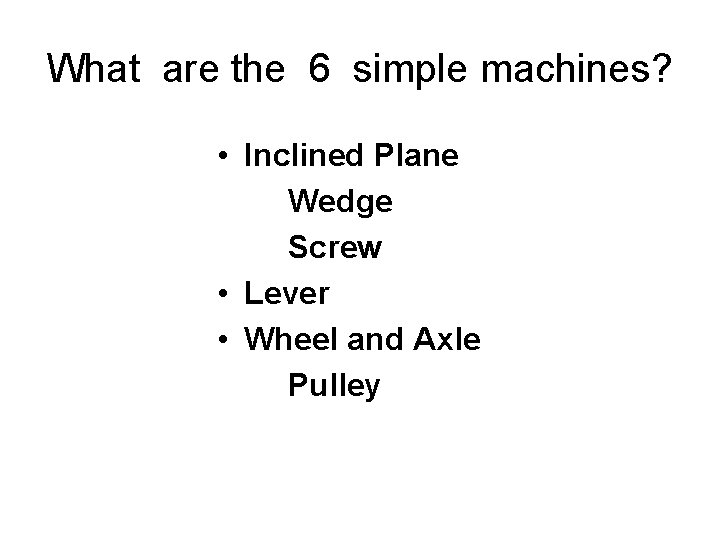

What are the 6 simple machines? • Inclined Plane Wedge Screw • Lever • Wheel and Axle Pulley

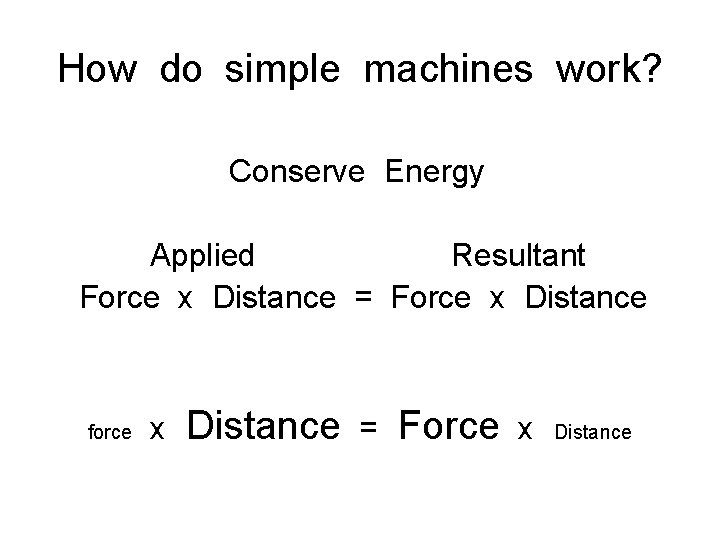

How do simple machines work? Conserve Energy Applied Resultant Force x Distance = Force x Distance force x Distance = Force x Distance

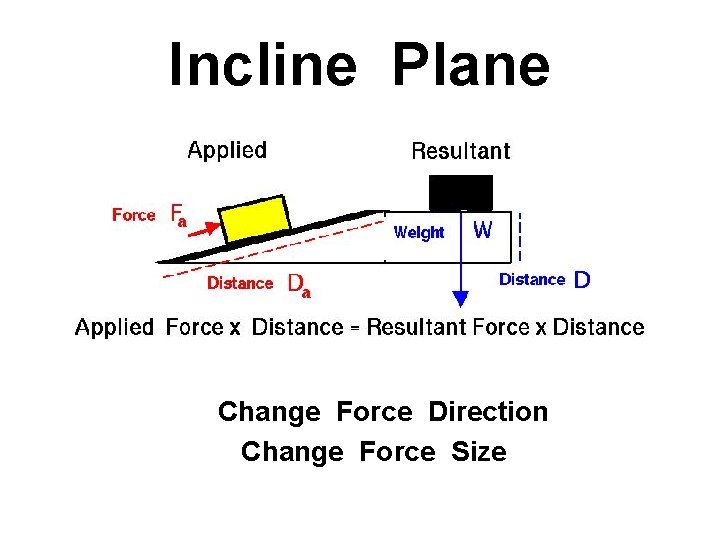

Incline Plane Change Force Direction Change Force Size

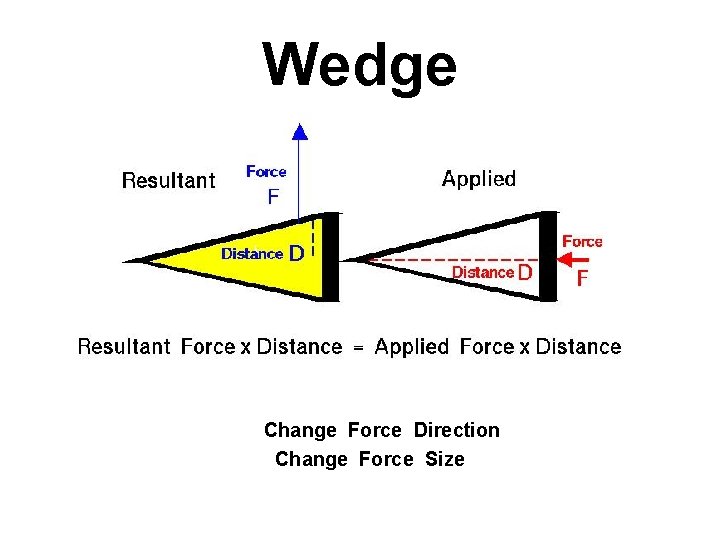

Wedge Change Force Direction Change Force Size

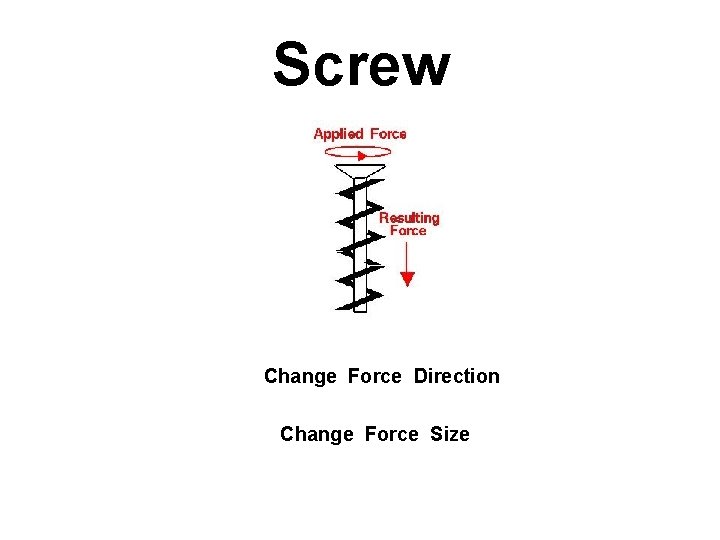

Screw Change Force Direction Change Force Size

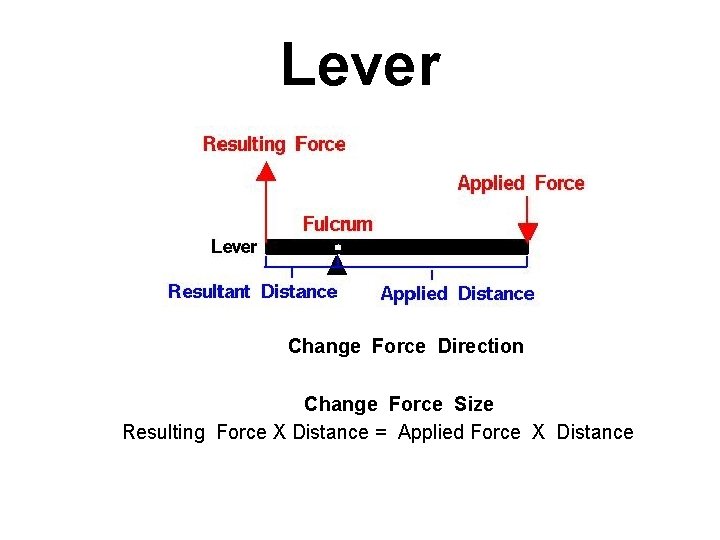

Lever Change Force Direction Change Force Size Resulting Force X Distance = Applied Force X Distance

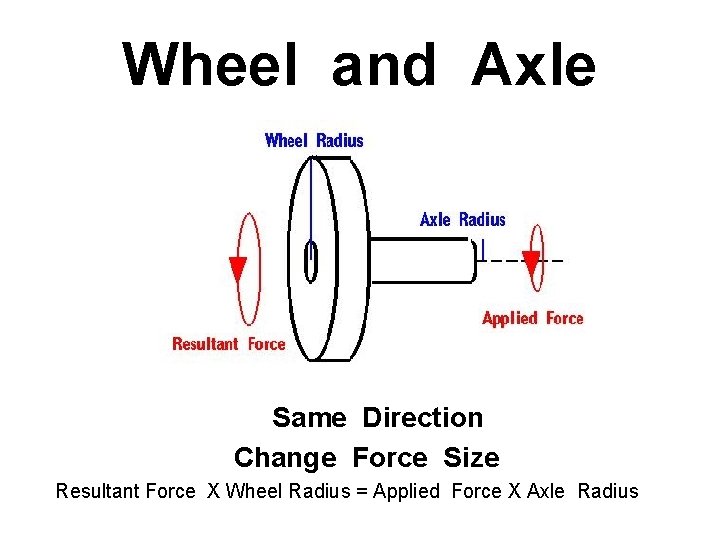

Wheel and Axle Same Direction Change Force Size Resultant Force X Wheel Radius = Applied Force X Axle Radius

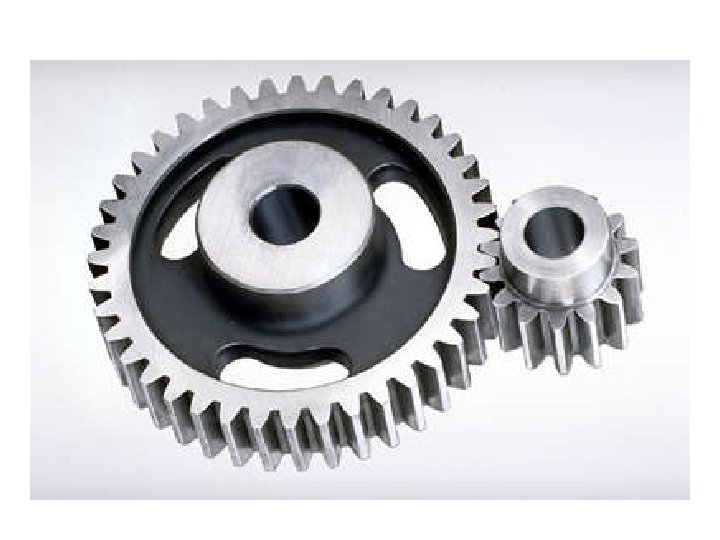

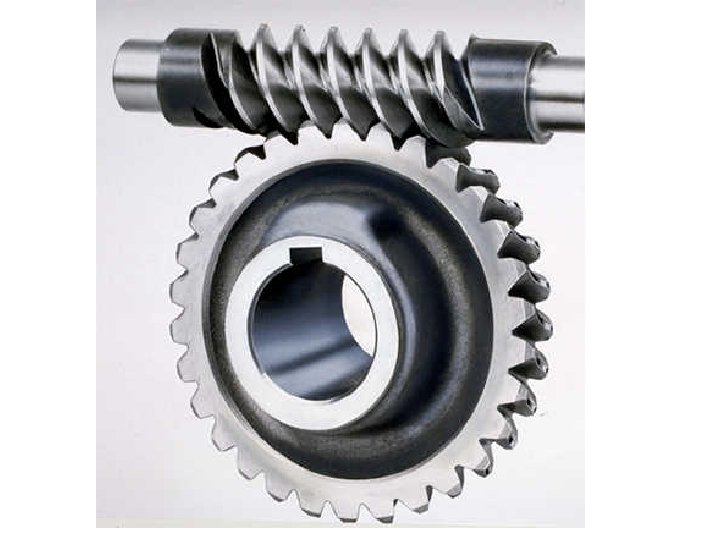

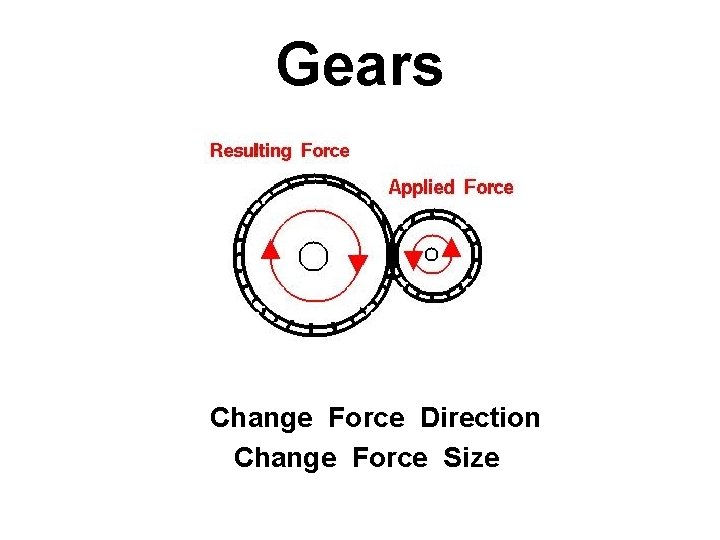

Gears Change Force Direction Change Force Size

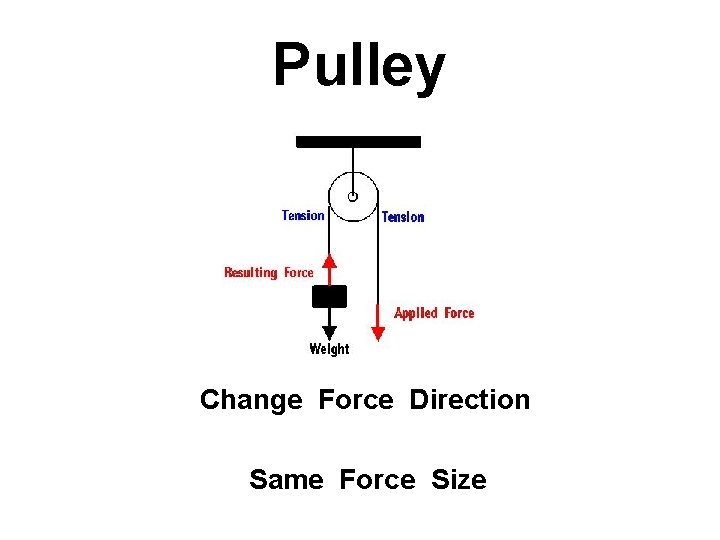

Pulley Change Force Direction Same Force Size

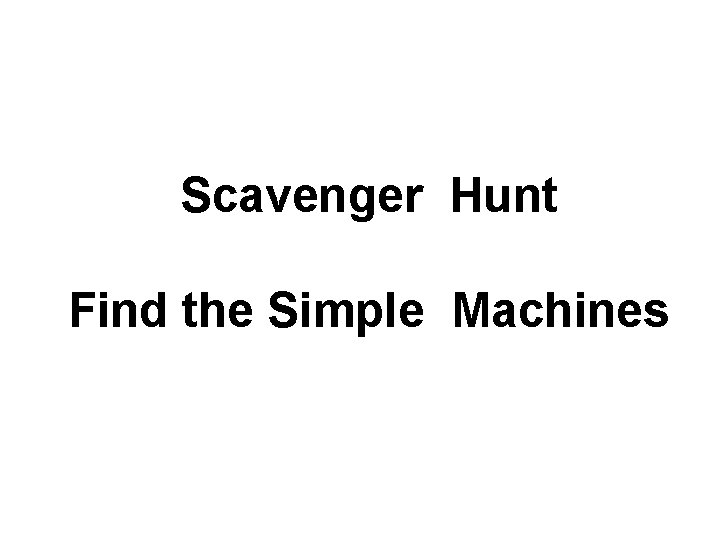

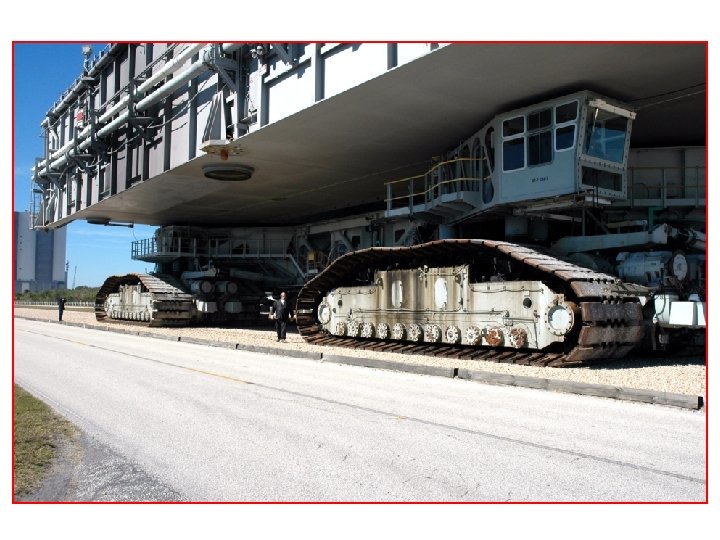

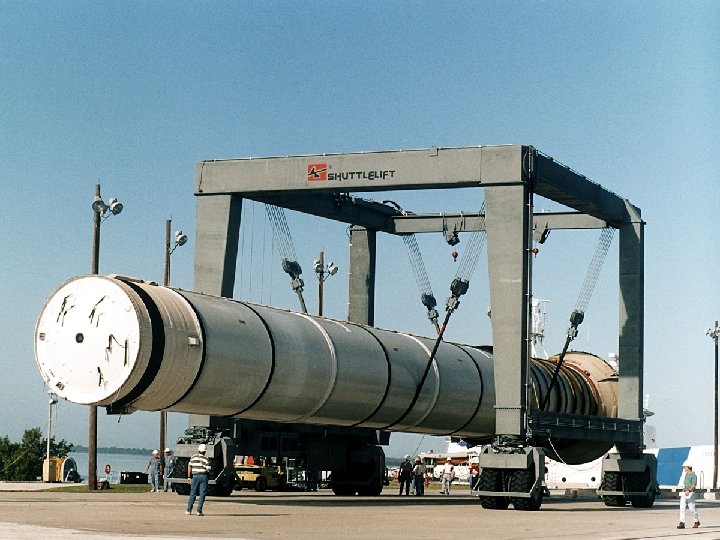

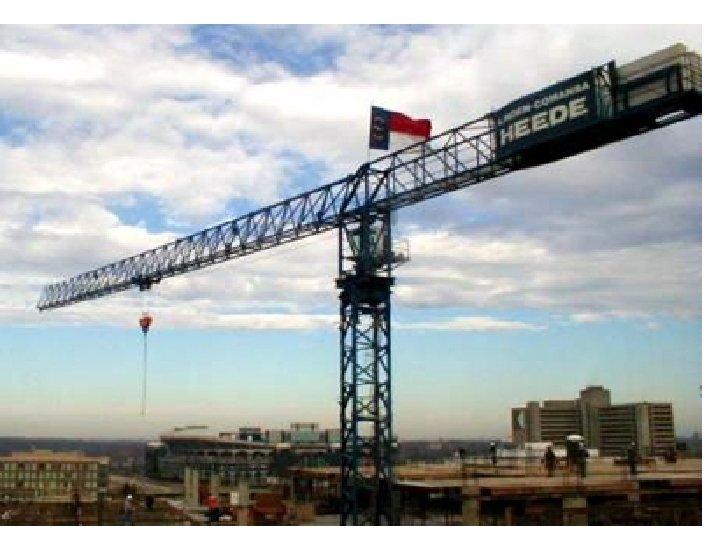

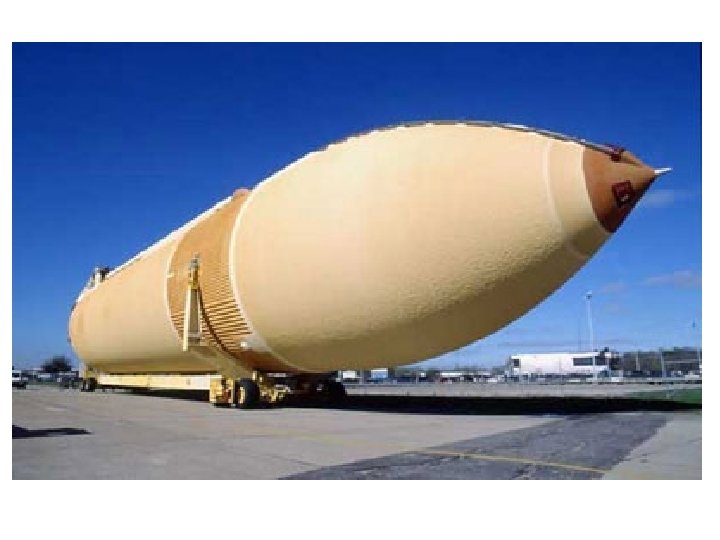

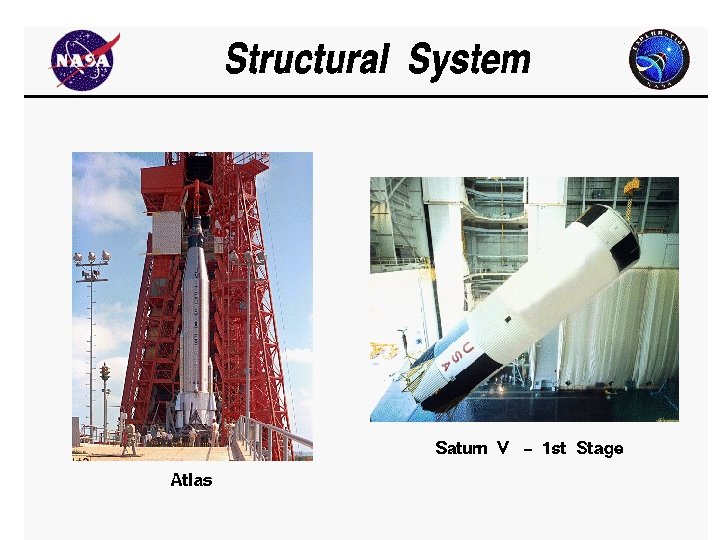

Scavenger Hunt Find the Simple Machines

In Your Classroom

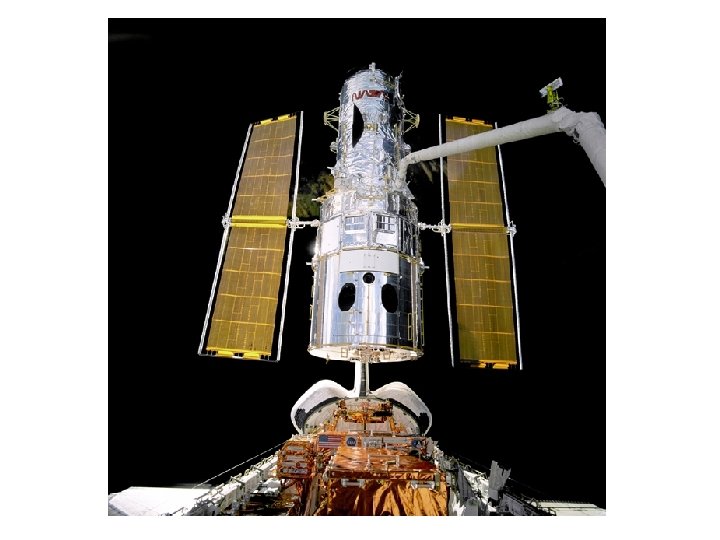

Hubble!
