- Slides: 43
![](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-1.jpg)
![What is a fastener A device to locate or hold parts As What is a fastener? • A device to locate or hold parts • As](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-2.jpg)
What is a fastener? • A device to locate or hold parts • As a repair technician you will become skilled at removing, reconditioning, replacing, and installing fasteners. • An important skill to learn is how to remove a stuck fastener without breaking it off. • (You will get lots of practice with this as a technician)
![](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-3.jpg)
![How do you remove a stuck fastener An easy treatment for stuck nuts How do you remove a stuck fastener? • An easy treatment for stuck nuts](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-4.jpg)
How do you remove a stuck fastener? • An easy treatment for stuck nuts and bolts is Penetrating Oil (like WD-40). • Some brands work better than others, so ask what works and experiment on your own. • Spray it on the threads and shock or vibrate the fastener (hit it with a hammer) to get the oil to sink in. • You must allow time for oil to work into threads. • I spray and shock a stuck bolt, then go work on another job for an hour or so to let the magic happen
![Remove a stuck fastener After spraying with oil and waiting for it to soak Remove a stuck fastener? (After spraying with oil and waiting for it to soak](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-5.jpg)
Remove a stuck fastener? (After spraying with oil and waiting for it to soak in. ) • Use a six point wrench or socket
![Remove a stuck fastener After spraying with oil and waiting for it to soak Remove a stuck fastener? (After spraying with oil and waiting for it to soak](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-6.jpg)
Remove a stuck fastener? (After spraying with oil and waiting for it to soak in. ) • You might also use a breaker bar with a 6 -point socket • Breaker bars are longer and stronger than ratchets • Never put a pipe on a ratchet handle to get more torque • It will damage the gears in the head of the ratchet
![Remove a stuck fastener After spraying with oil and waiting for it to soak Remove a stuck fastener? (After spraying with oil and waiting for it to soak](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-7.jpg)
Remove a stuck fastener? (After spraying with oil and waiting for it to soak in. ) • Use a six point wrench or socket • Try to tighten slightly, then loosen • An impact can help shock the fastener loose • A strong impact will often break off the bolt
![What about using Vice Grips to remove a stuck bolt Vice Grips locking What about using Vice Grips to remove a stuck bolt? • Vice Grips (locking](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-8.jpg)
What about using Vice Grips to remove a stuck bolt? • Vice Grips (locking pliers) damage the head of a bolt or nut and make it MUCH more difficult to remove. • Use Vice Grips to hold or grip objects. • They should never be used as a wrench, or a socket.

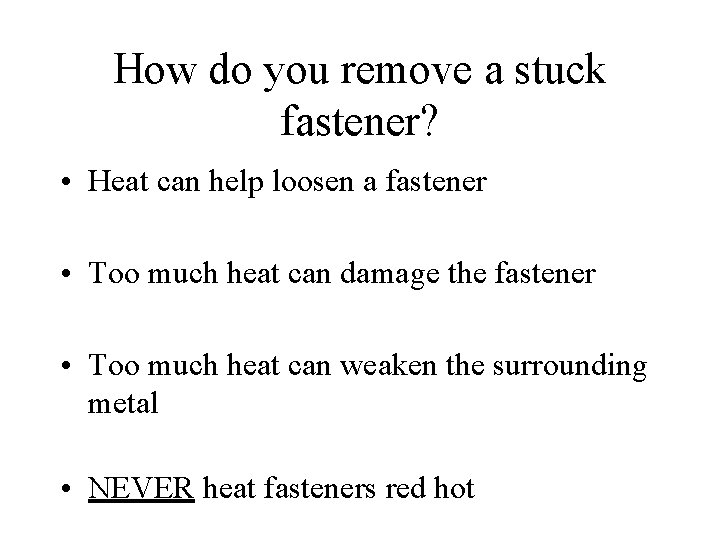

![How do you remove a stuck fastener Heat can help loosen a fastener How do you remove a stuck fastener? • Heat can help loosen a fastener](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-9.jpg)
How do you remove a stuck fastener? • Heat can help loosen a fastener • Too much heat can damage the fastener • Too much heat can weaken the surrounding metal • NEVER heat fasteners red hot
![When do you use a new fastener If it is damaged in any When do you use a new fastener? • If it is damaged in any](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-10.jpg)
When do you use a new fastener? • If it is damaged in any way such as: • corrosion or stretched threads • Always replace Torque to Yield bolts
![What is a torque to Yield Bolt Most commonly used for head bolts What is a torque to Yield Bolt? • Most commonly used for head bolts](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-11.jpg)

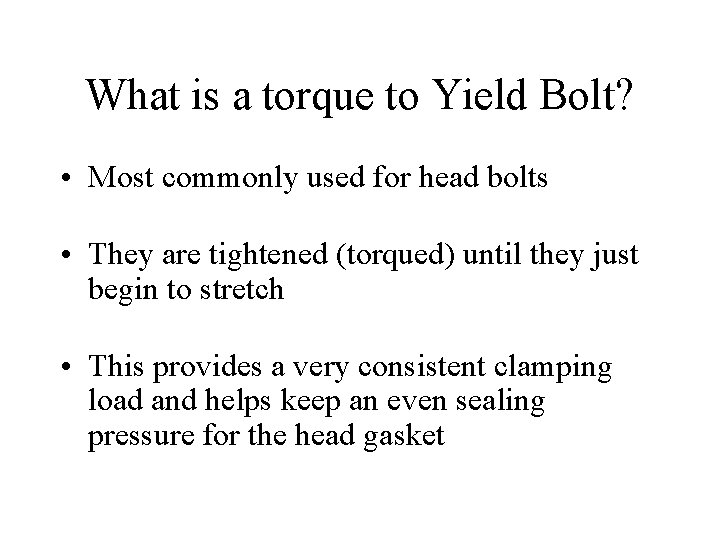

What is a torque to Yield Bolt? • Most commonly used for head bolts • They are tightened (torqued) until they just begin to stretch • This provides a very consistent clamping load and helps keep an even sealing pressure for the head gasket

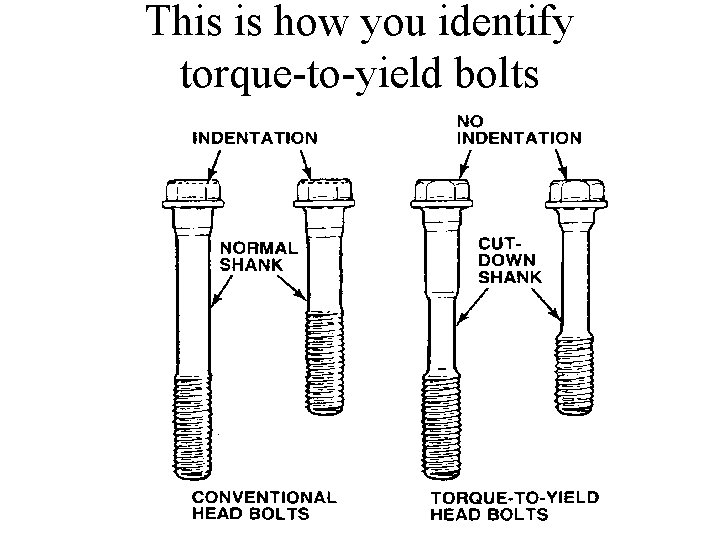

![This is how you identify torquetoyield bolts This is how you identify torque-to-yield bolts](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-12.jpg)
This is how you identify torque-to-yield bolts
![Torque to Yield bolts require special procedures Tighten to the specified torque Torque to Yield bolts require special procedures • Tighten to the specified torque •](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-13.jpg)
Torque to Yield bolts require special procedures • Tighten to the specified torque • Continue to turn the fastener just enough to cause it to begin to stretch • This will be specified in degrees of rotation
![This tool is used so you can see exactly how many degrees you are This tool is used so you can see exactly how many degrees you are](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-14.jpg)
This tool is used so you can see exactly how many degrees you are turning a torque to yield bolt
![What replacement fastener should you use Same Length Same Diameter Same What replacement fastener should you use? • • • Same Length Same Diameter Same](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-15.jpg)

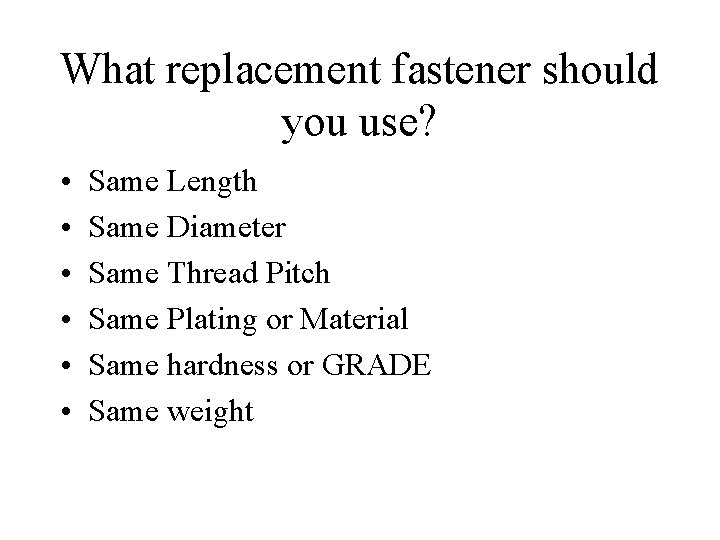

What replacement fastener should you use? • • • Same Length Same Diameter Same Thread Pitch Same Plating or Material Same hardness or GRADE Same weight
![Bolt Length and Diameter Bolt Length and Diameter](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-16.jpg)
Bolt Length and Diameter

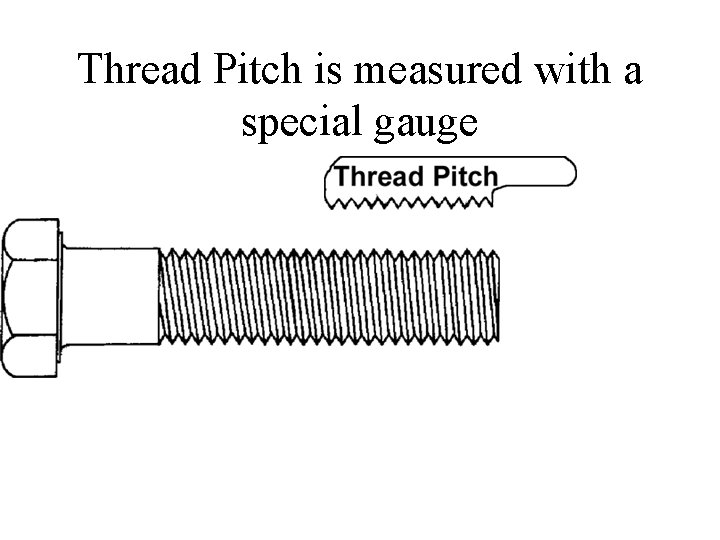

![Thread Pitch is measured with a special gauge Thread Pitch is measured with a special gauge](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-17.jpg)
Thread Pitch is measured with a special gauge
![The correct gauge will match the grooves of the bolt The correct gauge will match the grooves of the bolt](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-18.jpg)
The correct gauge will match the grooves of the bolt
![This gauge has a the same thread pitch as the bolt This gauge has a the same thread pitch as the bolt](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-19.jpg)
This gauge has a the same thread pitch as the bolt
![This gauge has a different thread pitch than the bolt This gauge has a different thread pitch than the bolt](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-20.jpg)

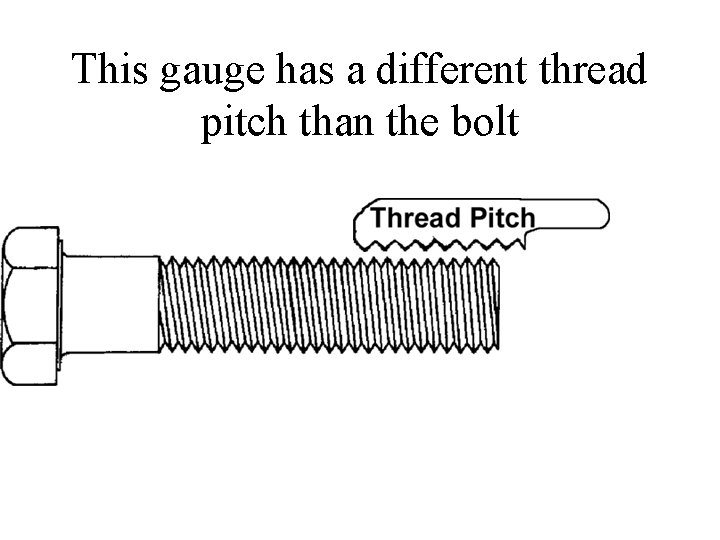

This gauge has a different thread pitch than the bolt
![Same Pitch Same Pitch](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-21.jpg)
Same Pitch
![Different Pitch Different Pitch](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-22.jpg)
Different Pitch
![These gauges can measure the diameter pitch and bolt length These gauges can measure the diameter, pitch and bolt length](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-23.jpg)
These gauges can measure the diameter, pitch and bolt length
![What replacement fastener should you use Same Length Same Diameter Same What replacement fastener should you use? • • • Same Length Same Diameter Same](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-24.jpg)
What replacement fastener should you use? • • • Same Length Same Diameter Same Thread Pitch Same Plating or Material Same hardness or GRADE Same weight
![Always use the same plating or material as the original fastener Nuts and Always use the same plating or material as the original fastener • Nuts and](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-25.jpg)

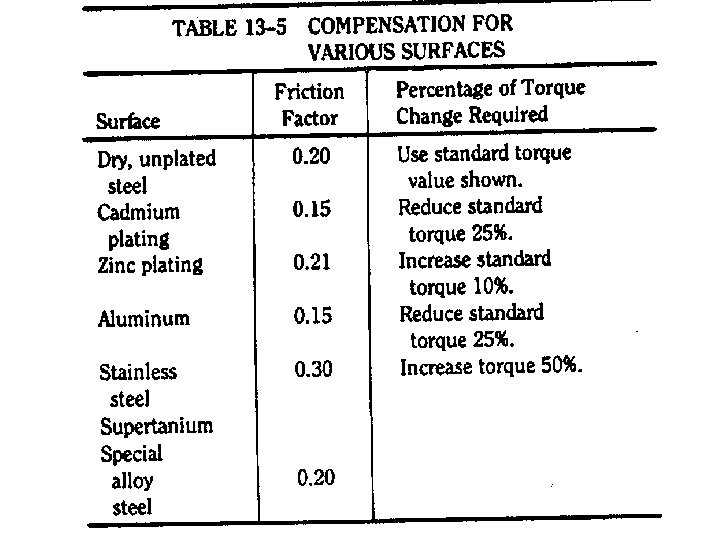

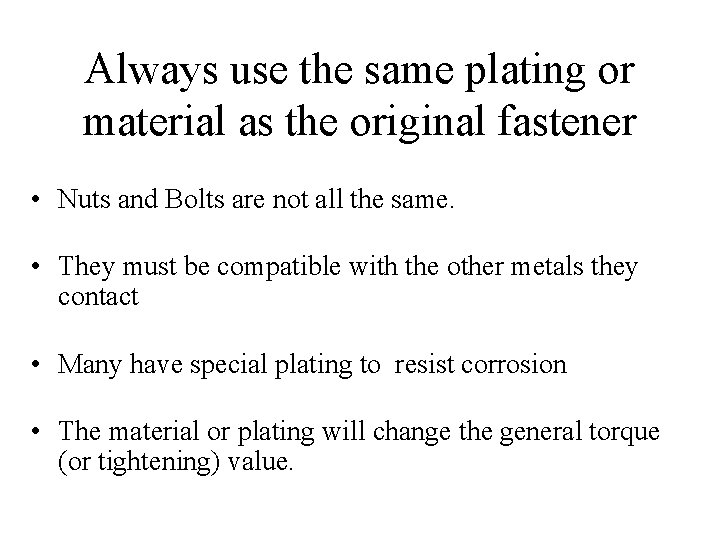

Always use the same plating or material as the original fastener • Nuts and Bolts are not all the same. • They must be compatible with the other metals they contact • Many have special plating to resist corrosion • The material or plating will change the general torque (or tightening) value.
![](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-26.jpg)

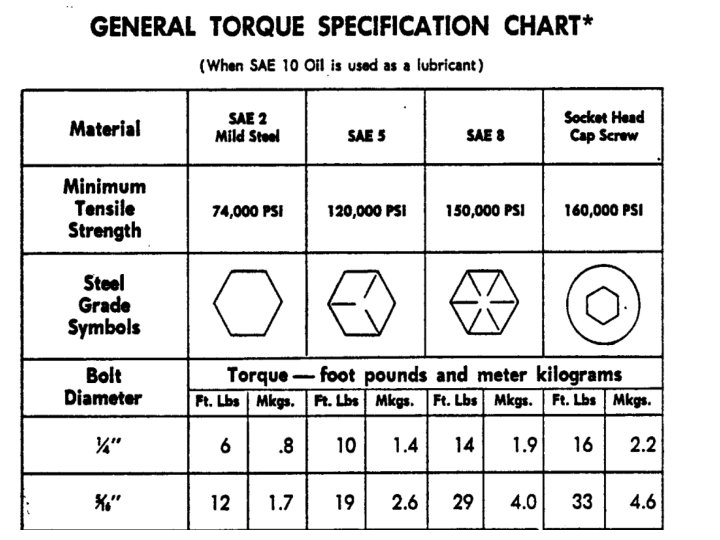

![](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-27.jpg)
![What replacement fastener should you use Same Length Same Diameter Same What replacement fastener should you use? • • • Same Length Same Diameter Same](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-28.jpg)
What replacement fastener should you use? • • • Same Length Same Diameter Same Thread Pitch Same Plating or Material Same hardness or GRADE Same weight
![Bolt Grade Bolt Grade is important and easy to identify A good Bolt Grade • Bolt Grade is important and easy to identify • A good](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-29.jpg)
Bolt Grade • Bolt Grade is important and easy to identify • A good article on this is at http: //www. rockcrawler. com/techreports/fas teners/index. asp
![Bolt Grade Both bolt heads marked A are the same grade Both Bolt Grade • Both bolt heads marked A are the same grade • Both](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-30.jpg)
Bolt Grade • Both bolt heads marked A are the same grade • Both bolt heads marked B are the same grade • The top are SAE, the bottom are metric • Which bolts are stronger, A or B?
![When do fasteners have to be the same weight Any time the nut When do fasteners have to be the same weight? • Any time the nut](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-31.jpg)
When do fasteners have to be the same weight? • Any time the nut or bolt is on a rotating part • Cooling fans • Drive pulleys • Flywheel or clutch or torque converter • Lug nuts Drive shafts
![Rotating parts If you replace one fastener on a rotating part Replace Rotating parts • If you replace one fastener on a rotating part… • Replace](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-32.jpg)
Rotating parts • If you replace one fastener on a rotating part… • Replace them all to keep them the same weight • Failure to do this may cause vibration and an unhappy customer

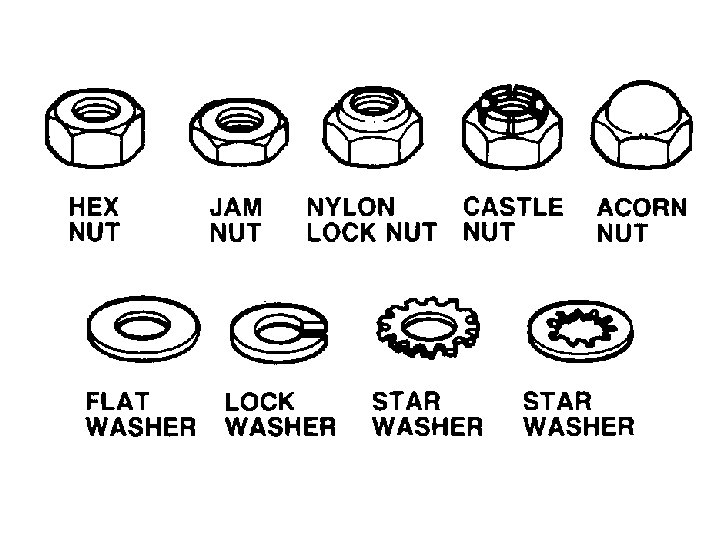

![](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-33.jpg)
![How do fasteners lock in place Proper torque is usually the only thing How do fasteners lock in place? • Proper torque is usually the only thing](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-34.jpg)
How do fasteners lock in place? • Proper torque is usually the only thing that keeps a bolt or nut from vibrating loose • Sometimes lock washers are used, especially when a light fastening torque is desired • Over-tightening a lock washer will ruin it’s ability to hold • Do not any washers unless they were used by the manufacturer

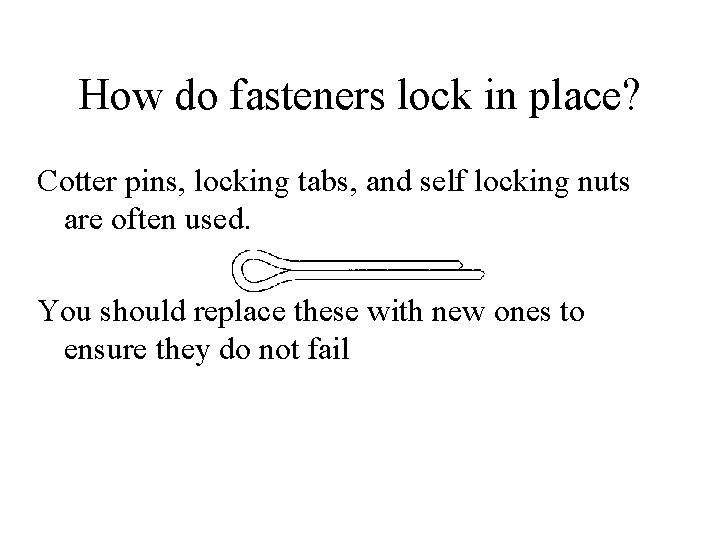

![How do fasteners lock in place Cotter pins locking tabs and self locking nuts How do fasteners lock in place? Cotter pins, locking tabs, and self locking nuts](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-35.jpg)
How do fasteners lock in place? Cotter pins, locking tabs, and self locking nuts are often used. You should replace these with new ones to ensure they do not fail
![How do fasteners lock in place Thread locking compounds are often used How do fasteners lock in place? • Thread locking compounds are often used •](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-36.jpg)
How do fasteners lock in place? • Thread locking compounds are often used • Two types that are widely available are… Red Loc. Tite© and Blue Loc. Tite© • Use the BLUE unless specified. Using Red Loc. Tite© will make a bolt almost impossible to remove after it the Loc. Tite cures • It is O. K. to use Blue Loc. Tite© for most applications
![Do not reuse Cotter pins Nuts in critical locations such as connecting Do not re-use • Cotter pins • Nuts in critical locations such as connecting](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-37.jpg)
Do not re-use • Cotter pins • Nuts in critical locations such as connecting rod nuts
![Always use a NEW cotter pin Always use a NEW cotter pin](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-38.jpg)
Always use a NEW cotter pin
![Use new fasteners in highly critical locations like this connecting rod Use new fasteners in highly critical locations like this connecting rod](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-39.jpg)
Use new fasteners in highly critical locations like this connecting rod
![Inspect all self locking nuts Some lock nuts are distorted at the top to Inspect all self locking nuts Some lock nuts are distorted at the top to](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-40.jpg)

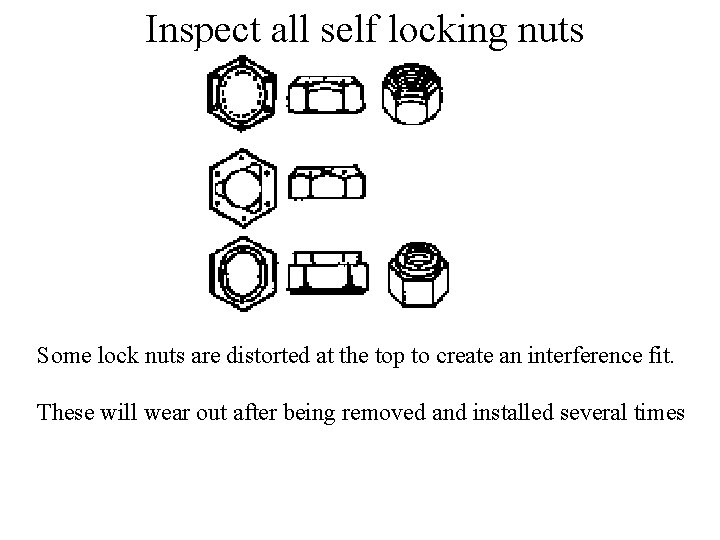

Inspect all self locking nuts Some lock nuts are distorted at the top to create an interference fit. These will wear out after being removed and installed several times
![Inspect all self locking nuts Some lock nuts use a nylon insert that Inspect all self locking nuts • Some lock nuts use a nylon insert that](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-41.jpg)
Inspect all self locking nuts • Some lock nuts use a nylon insert that may wear out if they are removed and installed too often
![Inspect all self locking nuts Self locking nuts should feel tight when the Inspect all self locking nuts • Self locking nuts should feel tight when the](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-42.jpg)
Inspect all self locking nuts • Self locking nuts should feel tight when the threads of the bolt reach the top of the nut. • If they spin on with little resistance you should replace them with new ones.
![What do you put on threads Antiseize compound will make it easier to What do you put on threads? • Anti-seize compound will make it easier to](https://slidetodoc.com/presentation_image/6718458a9740ee91672c832a8a1bef24/image-43.jpg)
What do you put on threads? • Anti-seize compound will make it easier to disassemble nuts and bolts • Blue Loc. Tite© will help keep nuts and bolts from vibrating loose • Be sure to clean threads before using Lock. Tite
