What every good graph needs PLM Unit 1

What every good graph needs… PLM – Unit 1

Graphing Vocab X-axis: The horizontal line on a graph (runs left and right) Y-axis: The vertical line of a graph (runs up and down) Best fit line: A line that follows the trend of the majority of data points Slope: Rise over Run (how steep is the angle on a linear graph? ) Y intercept: The value of “y” where the line crosses the y-axis

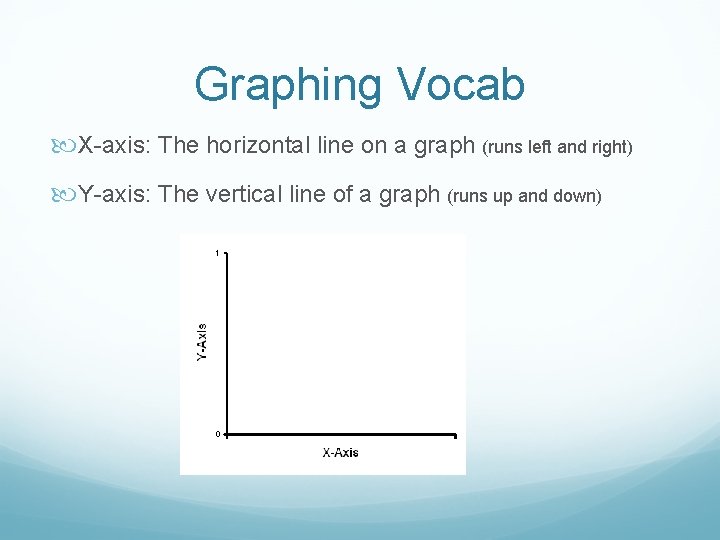

Graphing Vocab X-axis: The horizontal line on a graph (runs left and right) Y-axis: The vertical line of a graph (runs up and down)

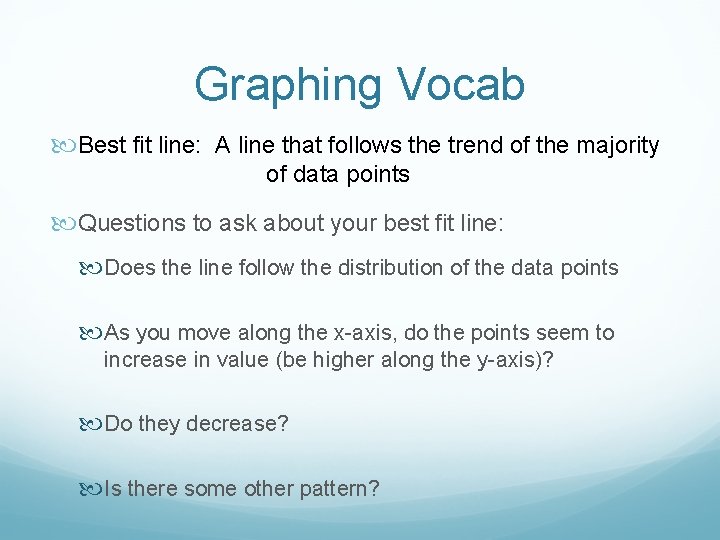

Graphing Vocab Best fit line: A line that follows the trend of the majority of data points Questions to ask about your best fit line: Does the line follow the distribution of the data points As you move along the x-axis, do the points seem to increase in value (be higher along the y-axis)? Do they decrease? Is there some other pattern?

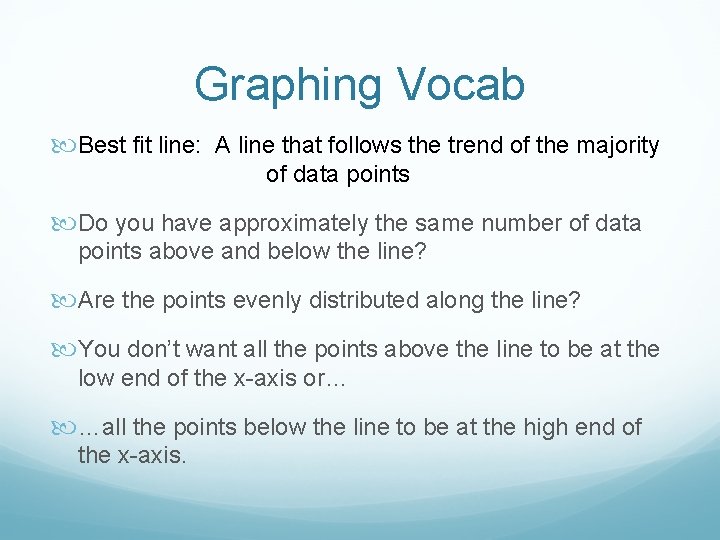

Graphing Vocab Best fit line: A line that follows the trend of the majority of data points Do you have approximately the same number of data points above and below the line? Are the points evenly distributed along the line? You don’t want all the points above the line to be at the low end of the x-axis or… …all the points below the line to be at the high end of the x-axis.

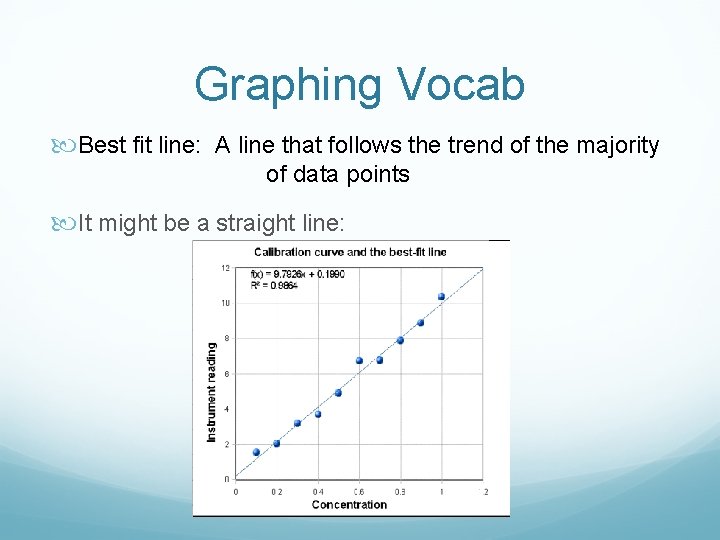

Graphing Vocab Best fit line: A line that follows the trend of the majority of data points It might be a straight line:

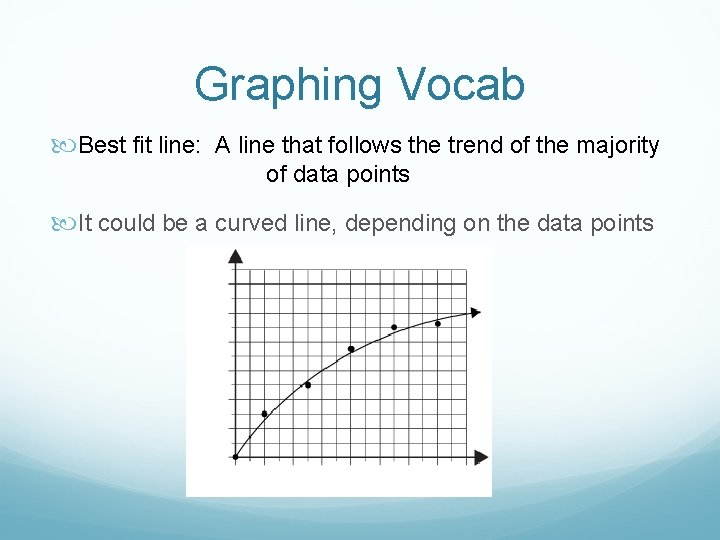

Graphing Vocab Best fit line: A line that follows the trend of the majority of data points It could be a curved line, depending on the data points

Graphing Vocab Which line do you think is the best “best fit line” for this graph? Sometimes you will need more information to in order to decide.

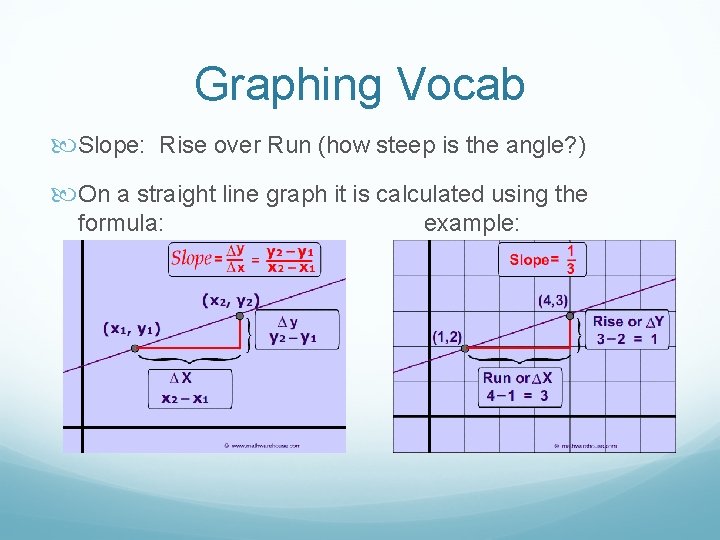

Graphing Vocab Slope: Rise over Run (how steep is the angle? ) On a straight line graph it is calculated using the formula: example:

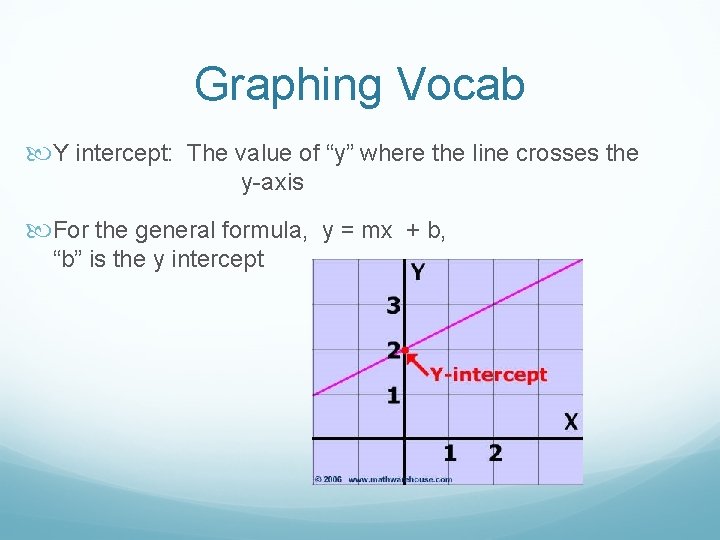

Graphing Vocab Y intercept: The value of “y” where the line crosses the y-axis For the general formula, y = mx + b, “b” is the y intercept

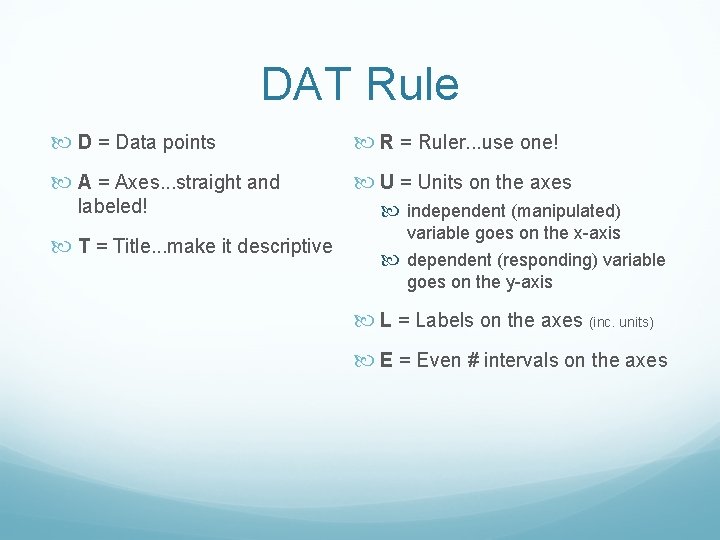

DAT Rule D = Data points R = Ruler. . . use one! A = Axes. . . straight and U = Units on the axes labeled! T = Title. . . make it descriptive independent (manipulated) variable goes on the x-axis dependent (responding) variable goes on the y-axis L = Labels on the axes (inc. units) E = Even # intervals on the axes

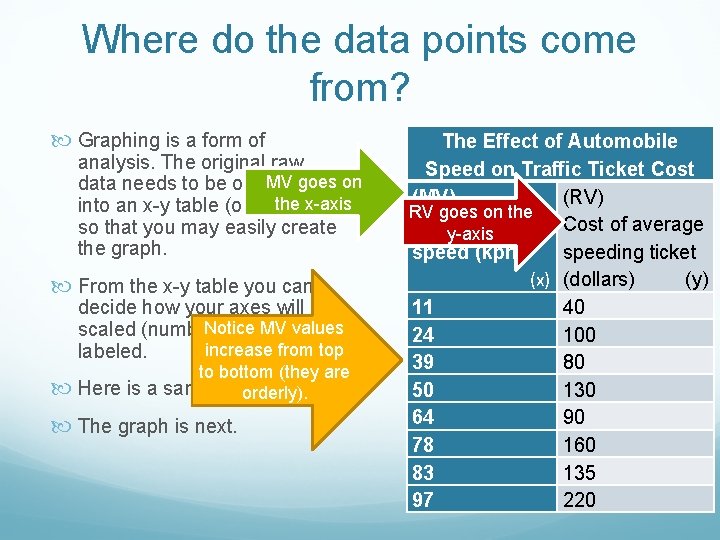

Where do the data points come from? Graphing is a form of analysis. The original raw MV goes on data needs to be organized the x-axis into an x-y table (or t-table) so that you may easily create the graph. From the x-y table you can decide how your axes will be Noticeand MV values scaled (numbered) increase from top labeled. to bottom (they are Here is a sample x-y table: orderly). The graph is next. The Effect of Automobile Speed on Traffic Ticket Cost (MV) (RV) RV goes on the Automobile Cost of average y-axis speed (kph) speeding ticket (x) (dollars) (y) 11 40 24 100 39 80 50 130 64 90 78 160 83 135 97 220

Is this a good graph? Looking at your DAT Rule, identify (circle, highlight, etc) each component of a good graph.
