What are Xml Web Services 1 A Web

What are Xml Web Services? 1. A Web Service simply an application that exposes a Webaccessible API. 2. Web services are a new, standard platform for building interoperable distributed applications. – The Web services platform is a set of standards that applications follow to achieve interoperability via the Web. – You write your Web services in whatever language and on any platform you like, as long as those Web services can be viewed and accessed according to the Web services standards.

About Web Services • Web Services, unlike DCOM or CORBRA, are founded on universal, nonproprietary standards including XML and HTTP and offer a model that is platform independent; communicate using platform-independent and languageneutral Web protocols. • The Web services platform uses XSD as its type system. XML provides a simple way of representing data, but it says nothing about the standard set of data types available and how to extend that set. The data types you use must be translated to XSD types to conform to the Web services standards. • Web services are not exclusive to. NET. • NET includes several tools and a degree of support which simplify development of Web Services by automating many tasks involved and shielding the developer form many of the technical details.

More About Web Services • Your Web service will sit behind a Web server, typically Internet Information Server (IIS). • Support loosely coupled connections between systems. • Works through existing proxies and firewalls. • Can take advantage of HTTP authentication. • Encryption for free with SSL. • Web services only receive and return XML. • Provide a stateless model similar to the singlecall activation mode. When a client invokes a remote method, the Server automatically constructs the relevant object, executes the method, returns any results, and discards the object. It is possible however, to maintain between method calls using the ASP. NET session object.

How are web services different from earlier models of distributed computing, such as Corbra? Key differences: 1. 2. loosely specified and coupled build on top of existing, ubiquitous infrastructure like HTTP and XML.

How are Web Services Described? • Web Services are described using WSDL (Web Services Description language). These descriptions may be stored with the service itself or published in a UDDI registry. • WSDL is an XML-based grammar for describing Web services, their functions, parameters, and return values. • . NET’s web service infrastructure will automatically generate the necessary WSDL to fully describe a. NET web service. • . NET also provides tools that can consume WSDL descriptions of services and use these descriptions to generate proxy classes for use in client applications. So developers using. NET can remain ignorant of WSDL (and even SOAP) and create Web Services.

<? xml version="1. 0"? > <service. Description xmlns: s 0="http: //tempuri. org/" name="Terra. Service" target. Namespace="http: //tempuri. org/" xmlns="urn: schemas-xmlsoap-org: sdl. 2000 -01 -25"> <httpget xmlns="urn: schemas-xmlsoap-org: get-sdl-2000 -01 -25"> <service> <request. Response name="Get. Place. List" href="http: //207. 46. 235. 37/terranet/terraservice. asmx/Get. Place. List"> <request> <param name="place. Name"/> <param name="Max. Items"/> <param name="image. Presence"/> </request> <response> <mime. Xml ref="s 0: Array. Of. Place. Facts"/> </response> </request. Response> </service> </httpget> </service. Description>

How to Create a Web Service To build a. NET Web service you create a file with the. asmx extension.

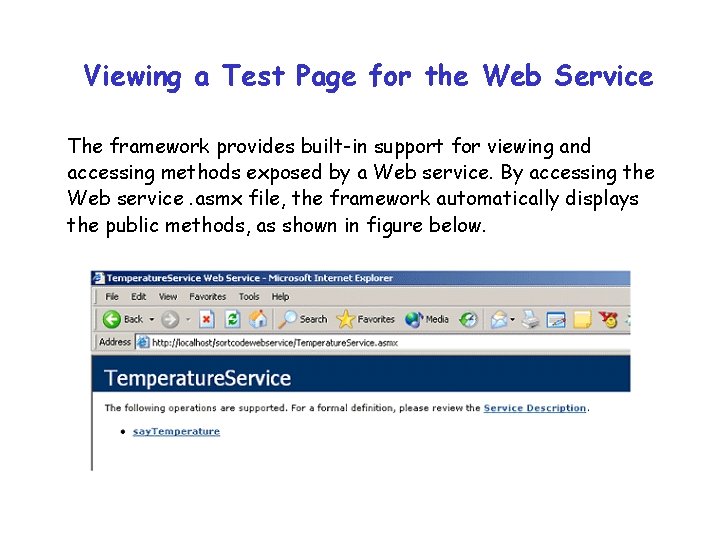

Viewing a Test Page for the Web Service The framework provides built-in support for viewing and accessing methods exposed by a Web service. By accessing the Web service. asmx file, the framework automatically displays the public methods, as shown in figure below.

Testing the Web Service Continued • The service method help page shows the XML representation of the request and response for the Web service, its arguments, and return types. You can also use the displayed HTML form to test the method.

How are Web Services Invoked? • Soap (Simple Object Access Protocol) is the communications protocol for Xml Web Services. • The Soap specification provides standards for the format of a SOAP message and how SOAP should be used over HTTP, which it uses as the transport layer to move structured type information across the Internet. • SOAP also builds on XML and XSD to provide standard rules for encoding data as XML. • Invoking a Web service from either a Web or desktop application is a simple matter of object instantiation and invocation. But which Object? This is where the proxy class comes into play.

Example of a SOAP Request

Proxy Classes • The Proxy class is responsible for the following: • The developer tools provided with the. NET SDK and Visual Studio. NET remove the need for the developer to work at the SOAP level. Instead, clients may calls against a proxy object derived from System. Web. Services. Protocols. Soap. Http. Client. Protocol and. NET takes care of setting up, formatting and transmitting messages. • The proxy class can be generated automatically using the commandline utility wsdl. exe. • Contains not only the default constructor, but also methods to invoke the web service both synchronously and asynchronously. – – – Generate SOAP request Send to the target service Receive the SOAP response Parse the SOAP Generate an object Return the object as a result

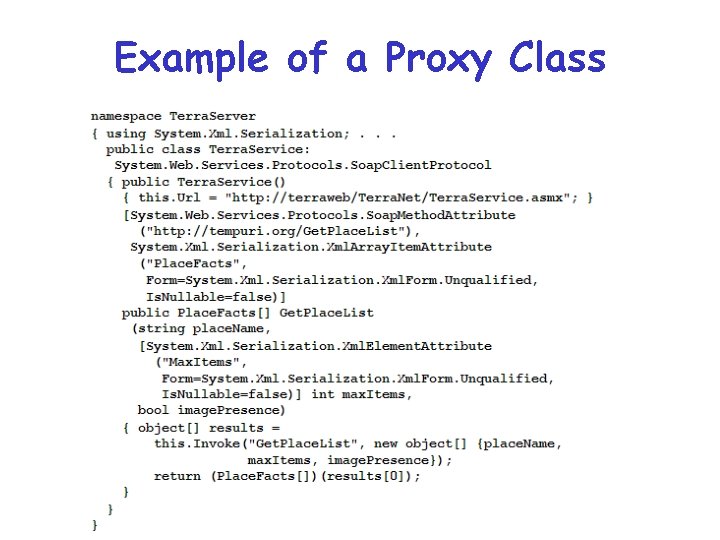

Example of a Proxy Class

Example for invoking a temperature Web service from an ASP. NET Web page

What is UDDI? • Result of the combined efforts of several technology companies (chiefly IBM and Microsoft) to produce a global Internet-based registry of businesses and the web services they provide. • UDDI represents a set of protocols and a public directory for the registration and real-time lookup of web services and other business processes. • “Yellow pages” of Web Services

UDDI continued Consists of 2 parts: 1. First, UDDI is a technical specification for building a distributed directory of businesses and Web services. Data is stored within a specific XML format, and the UDDI specification includes API details for searching existing data and publishing new data. 2. Second, the UDDI Business Registry is a fully operational implementation of the UDDI specification. The UDDI registry enables anyone to search existing UDDI data, for example, for providers of service in a specified geographic location or for businesses of a specified type. It also enables any company to register themselves and their services.

UDDI continued The data captured within UDDI is divided into three main categories: • White Pages: This includes general information about a specific company. For example, business name, business description, and address. • Yellow Pages: This includes general classification data for either the company or the service offered. For example, this data may include industry, product, or geographic codes based on standard taxonomies. • Green Pages: This includes technical information about a Web service. Generally, this includes a pointer to an external specification, and an address for invoking the Web service.

When to Use Web Services? Web Services offer the most benefit in cases where applications need to communicate across platform boundaries and over the Internet: Business to Business Integration Integrating business processes across multiple businesses is commonly referred to as business-to-business integration. By using Web services, a business can expose vital business processes to authorized suppliers and customers. Example: You can expose electronic ordering and invoicing thereby enabling your customers to electronically send you purchase orders and your suppliers to electronically send you invoices.

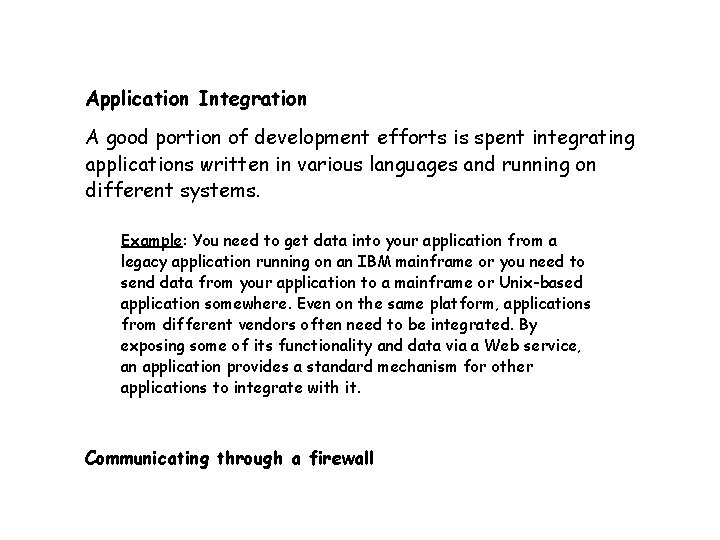

Application Integration A good portion of development efforts is spent integrating applications written in various languages and running on different systems. Example: You need to get data into your application from a legacy application running on an IBM mainframe or you need to send data from your application to a mainframe or Unix-based application somewhere. Even on the same platform, applications from different vendors often need to be integrated. By exposing some of its functionality and data via a Web service, an application provides a standard mechanism for other applications to integrate with it. Communicating through a firewall

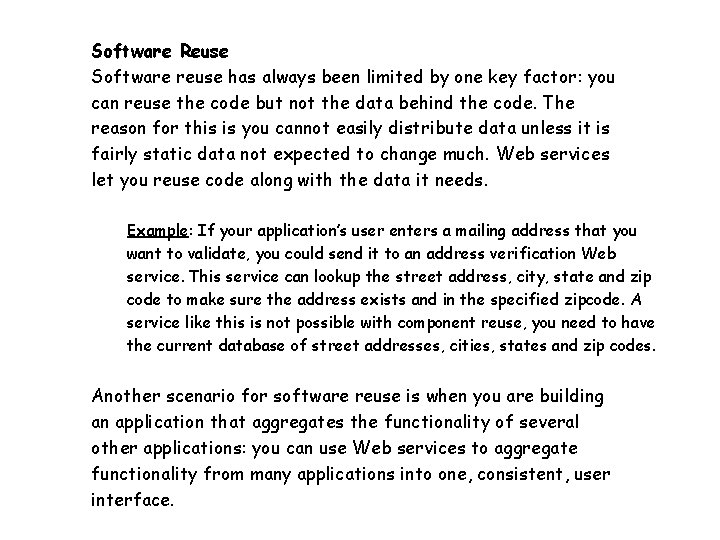

Software Reuse Software reuse has always been limited by one key factor: you can reuse the code but not the data behind the code. The reason for this is you cannot easily distribute data unless it is fairly static data not expected to change much. Web services let you reuse code along with the data it needs. Example: If your application’s user enters a mailing address that you want to validate, you could send it to an address verification Web service. This service can lookup the street address, city, state and zip code to make sure the address exists and in the specified zipcode. A service like this is not possible with component reuse, you need to have the current database of street addresses, cities, states and zip codes. Another scenario for software reuse is when you are building an application that aggregates the functionality of several other applications: you can use Web services to aggregate functionality from many applications into one, consistent, user interface.

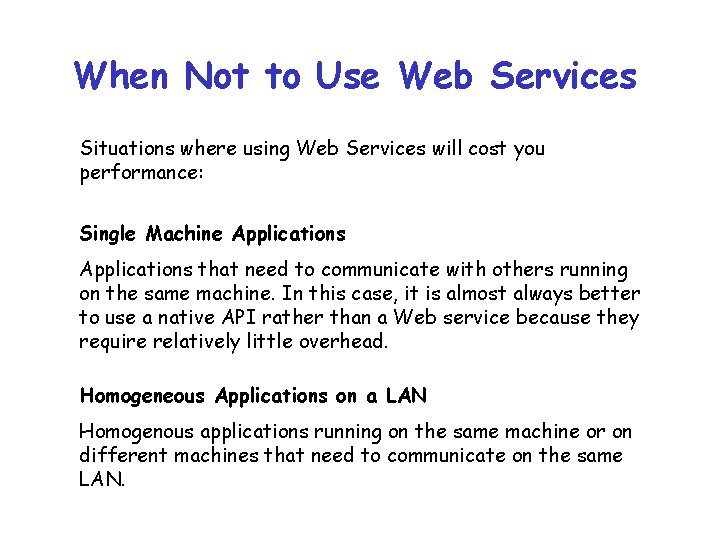

When Not to Use Web Services Situations where using Web Services will cost you performance: Single Machine Applications that need to communicate with others running on the same machine. In this case, it is almost always better to use a native API rather than a Web service because they require relatively little overhead. Homogeneous Applications on a LAN Homogenous applications running on the same machine or on different machines that need to communicate on the same LAN.

Web Service Review Service Side • Write the service code –Expects SOAP as input • Define the externally visible methods • Create the WSDL description of those methods • Publish the WSDL • Run the service Client Side • Locate the WSDL • Load the WSDL • Convert to a client proxy • Write the client code, calling proxy –Generates and sends SOAP
