What are Grids and e-Science? David Fergusson EGEE is funded by the European Union under contract IST-2003 -508833 Induction: What are Grids and e-Science? –May 18 th, 2004 - 1

Acknowledgements • This talk is based on a module of the tutorials delivered by the EDG training team and slides from • • Andrew Grimshaw, University of Virginia Bob Jones, EGEE Technical Director Mark Parsons, EPCC the EDG training team Roberto Barbera, INFN Ian Foster, Argonne National Laboratories Jeffrey Grethe, SDSC The National e-Science Centre • Prepared by Dave Berry Induction: What are Grids and e-Science? –May 18 th, 2004 - 2

Goals of this module • Introduce grid concepts and definitions • Why Grids? • A brief outline of history leading to EGEE • Provide some brief examples of middleware components • The strategic direction will be covered tomorrow Induction: What are Grids and e-Science? –May 18 th, 2004 - 3

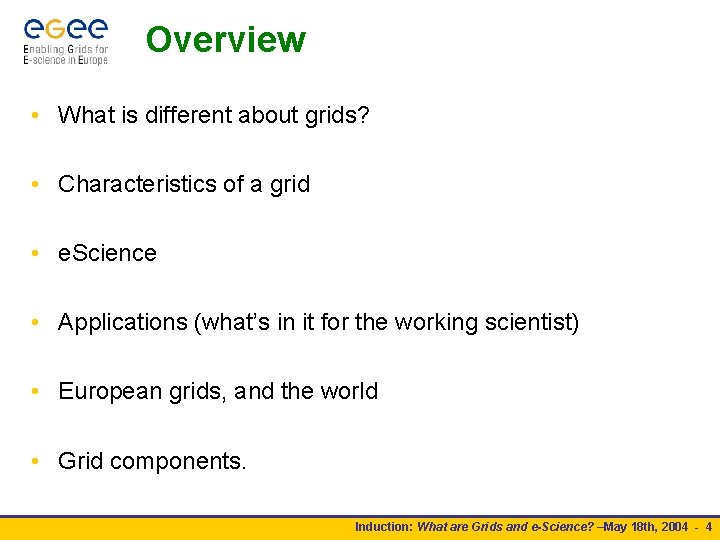

Overview • What is different about grids? • Characteristics of a grid • e. Science • Applications (what’s in it for the working scientist) • European grids, and the world • Grid components. Induction: What are Grids and e-Science? –May 18 th, 2004 - 4

What is different about grids? Induction: What are Grids and e-Science? –May 18 th, 2004 - 5

What is Grid Computing? • A Virtual Organisation is: People from different institutions working to solve a common goal • Sharing distributed processing and data resources • • Grid infrastructure enables virtual organisations “Grid computing is coordinated resource sharing and problem solving in dynamic, multi-institutional virtual organizations” (I. Foster) Induction: What are Grids and e-Science? –May 18 th, 2004 - 6

Grids vs. Distributed Computing • Distributed applications already exist, but they tend to be specialised systems intended for a single • purpose or user group • Grids go further and take into account: • Different kinds of resources • Not always the same hardware, data and applications • Different kinds of interactions • User groups or applications want to interact with Grids in different ways • Dynamic nature • Resources and users added/removed/changed frequently Induction: What are Grids and e-Science? –May 18 th, 2004 - 7

Characteristics of a grid Induction: What are Grids and e-Science? –May 18 th, 2004 - 8

What are the characteristics of a Grid system? Numerous Resources Connected by Heterogeneous, Multi-Level Networks Ownership by Mutually Distrustful Organizations & Individuals Different Security Requirements & Policies Required Different Resource Management Policies Potentially Faulty Resources Geographically Separated Resources are Heterogeneous Induction: What are Grids and e-Science? –May 18 th, 2004 - 9

What are the characteristics of a Grid system? Numerous Resources Connected by Heterogeneous, Multi-Level Networks Ownership by Mutually Distrustful Organizations & Individuals Different Security Requirements & Policies Required Different Resource Management Policies Potentially Faulty Resources Geographically Separated Resources are Heterogeneous Induction: What are Grids and e-Science? –May 18 th, 2004 -

How Different 2004 is from 1994 • Moore’s law everywhere Instruments, detectors, sensors, scanners, … • Organising their effective use is the challenge • • Enormous quantities of data: Petabytes For an increasing number of communities • Gating step is not collection but analysis • • Huge quantities of computing: >100 Top/s Moore’s law gives us all supercomputers • Organising their effective use is the challenge • • Ultra-high-speed networks: >10 Gb/s Global optical networks • Bottlenecks: last kilometre & firewalls • Induction: What are Grids and e-Science? –May 18 th, 2004 -

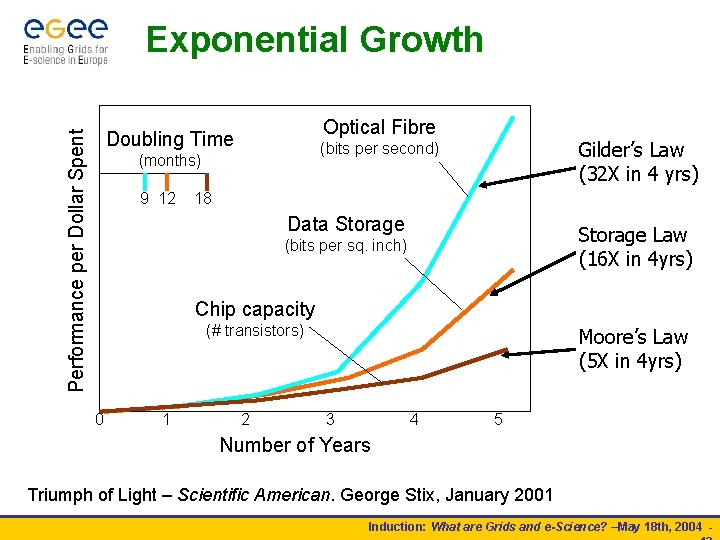

Exponential Growth Optical Fibre Performance per Dollar Spent Doubling Time 9 12 Gilder’s Law (32 X in 4 yrs) (bits per second) (months) 18 Data Storage Law (16 X in 4 yrs) (bits per sq. inch) Chip capacity (# transistors) 0 1 2 Moore’s Law (5 X in 4 yrs) 3 4 5 Number of Years Triumph of Light – Scientific American. George Stix, January 2001 Induction: What are Grids and e-Science? –May 18 th, 2004 -

The main drivers behind Grid • The relentless increase in microprocessor performance • you can buy multi-gigaflop systems for less than € 800 • The availability of reliable high performance networking in Europe the GEANT network links 32 countries at speeds of up to 10 Gbps (and beyond) • in the UK we have gone from 100 Mbps -> 10 Gbps academic backbone since 2000 • 1 Gbps is commonly available to the desktop • • The desire to push the boundaries of scientific discovery by computational analysis and simulation – e-Science Induction: What are Grids and e-Science? –May 18 th, 2004 -

e. Science Induction: What are Grids and e-Science? –May 18 th, 2004 -

The Emergence of e-Science • Invention and exploitation of advanced computational methods • To generate, curate and analyse research data • From experiments, observations and simulations • Quality management, preservation and reliable evidence • To develop and explore models and simulations • Computation and data at extreme scales • Trustworthy, economic, timely and relevant results • To enable dynamic distributed virtual organisations • Facilitating collaboration with information and resource sharing • Security, reliability, accountability, manageability and agility Induction: What are Grids and e-Science? –May 18 th, 2004 -

Why use Grids for Science? • Scale of the problems • Science increasingly done through distributed global collaborations enabled by the internet • Grids provide access to: Very large data collections • Terascale computing resources • High performance visualisation • Connected by high-bandwidth networks • • e-Science is more than Grid Technology It is what you do with it that counts Induction: What are Grids and e-Science? –May 18 th, 2004 -

Challenges • Must share data between thousands of scientists with multiple interests • Must ensure that all data is accessible anywhere, anytime • Must be scalable and remain reliable for more than a decade • Must cope with different access policies • Must ensure data security Induction: What are Grids and e-Science? –May 18 th, 2004 -

The Grid Vision Researchers perform their activities regardless geographical location, interact with colleagues, share and access data The Grid: networked data processing centres and ”middleware” software as the “glue” of resources. Scientific instruments and experiments provide huge amount of data Induction: What are Grids and e-Science? –May 18 th, 2004 -

The Emergence of Global Knowledge Communities Slide from Ian Foster’s ssdbm 03 keynote

Applications (What’s in it for working scientists) Induction: What are Grids and e-Science? –May 18 th, 2004 -

Grid Applications • Medical/Healthcare (imaging, diagnosis and treatment ) • Bioinformatics (study of the human genome and proteome to understand genetic diseases) • Nanotechnology (design of new materials from the molecular scale) • Engineering (design optimization, simulation, failure analysis and remote Instrument access and control) • Natural Resources and the Environment (weather forecasting, earth observation, modeling and prediction of complex systems) Induction: What are Grids and e-Science? –May 18 th, 2004 -

CERN: Data intensive science in a large international facility • The Large Hadron Collider (LHC) • The most powerful instrument ever built to investigate elementary particles physics • Data Challenge: 10 Petabytes/year of data !!! • 20 million CDs each year! • Mont Blanc (4810 m) • Simulation, reconstruction, analysis: • LHC data handling requires computing power equivalent to ~100, 000 of today's fastest PC processors! Downtown Geneva Induction: What are Grids and e-Science? –May 18 th, 2004 -

Cross. Grid • 1. Interactive biomedical simulation and visualization • 2. Flooding crisis team support • 3. HEP distributed data analysis • 4. Weather forecasting and air pollution modelling Induction: What are Grids and e-Science? –May 18 th, 2004 -

Connecting People: Access Grid Remote video Visualisation Microphones Cameras Induction: What are Grids and e-Science? –May 18 th, 2004 -

European grids And the world Induction: What are Grids and e-Science? –May 18 th, 2004 -

Major EU GRID projects European Data. Grid (EDG) www. edg. org LHC Computing GRID (LCG) cern. ch/lcg Cross. GRID www. crossgrid. org Data. TAG www. datatag. org Grid. Lab www. gridlab. org EUROGRID www. eurogrid. org European National Projects: • INFNGRID, • UK e-Science Programme, • Nordu. Grid Induction: What are Grids and e-Science? –May 18 th, 2004 -

EU Data. Grid at a glance People Application Testbed ~20 regular sites 500 registered users > 60, 000 jobs submitted (since 09/03, release 2. 0) 12 Virtual Organisations Peak >1000 CPUs 21 Certificate Authorities 6 Mass Storage Systems >600 people trained 456 person-years of effort 170 years funded Software > 65 use cases 7 major software releases (> 60 in total) > 1, 000 lines of code Scientific Applications 5 Earth Obs institutes 10 bio-medical apps 6 HEP experiments Induction: What are Grids and e-Science? –May 18 th, 2004 -

Grid projects Many Grid development efforts — all over the world • UK – OGSA-DAI, Reality. Grid, Geo. Dise, • NASA Information Power Grid Comb-e-Chem, Discovery. Net, DAME, • DOE Science Grid Astro. Grid, Grid. PP, My. Grid, GOLD, e. Diamond, Integrative Biology, … • NSF National Virtual Observatory • Netherlands – VLAM, Polder. Grid • NSF Gri. Phy. N • Germany – UNICORE, Grid proposal • DOE Particle Physics Data Grid • France – Grid funding approved • NSF Tera. Grid • Italy – INFN Grid • DOE ASCI Grid • Eire – Grid proposals • DOE Earth Systems Grid • Switzerland - Network/Grid proposal • DARPA Co. ABS Grid • Data. Grid (CERN, . . . ) • Hungary – Demo. Grid, Grid proposal • NEESGrid • Euro. Grid (Unicore) • Norway, Sweden - Nordu. Grid • Data. Tag (CERN, …) • DOH BIRN • Astrophysical Virtual Observatory • NSF i. VDGL • GRIP (Globus/Unicore) • GRIA (Industrial applications) • Grid. Lab (Cactus Toolkit) • Cross. Grid (Infrastructure Components) • EGSO (Solar Physics) Induction: What are Grids and e-Science? –May 18 th, 2004 -

Grid components Induction: What are Grids and e-Science? –May 18 th, 2004 -

Virtual Data Toolkit • Grid Middleware components from several projects Packaged and tested together • Foundation of EGEE/ LCG • • Globus Toolkit Condor Chimera EDG & LCG tools NCSA Tools Other Tools Induction: What are Grids and e-Science? –May 18 th, 2004 -

Globus Toolkit • Grid Security Infrastructure (GSL) • X. 509 authentication with delegates and single sign-on • Grid Resource Allocation Mgmt (GRAM) • Remote allocation, reservation, monitoring, control of compute resources • Grid. FTP protocol (FTP extensions) • High-performance data access & transport • Grid Resource Information Service (GRIS) + Monitoring and Discovery Service (MDS) • Access to structure & state information • XIO • TCP, UDP, IP multicast, and file I/O • Others… Induction: What are Grids and e-Science? –May 18 th, 2004 -

Condor • “Cycle-stealing” • Use idle CPU cycles for productive work • “High Throughput Computing” Using all available compute power over periods of days, weeks, … • “Embarrassingly parallel” problems • • Fault tolerance Algorithms must allow for failure • Checkpointing and process migration • • DAGMan • Workflow specification Induction: What are Grids and e-Science? –May 18 th, 2004 -

Chimera • Technology for collaborative management of data, programs & computations • Virtual data system Virtual data catalog • Virtual data language • Automated data derivation • Provenance tracking • • Pegasus • AI planning system for Grid workflows Induction: What are Grids and e-Science? –May 18 th, 2004 -

Tools • NCSA My. Proxy • GSI Open. SSH • • EDG & LCG Make Gridmap (Authorisation control) • Certificate Revocation List Updater • GLUE Schema (Monitoring) • • Others VDT System Profiler • Configuration software • KX 509 (X. 509 <-> Kerberos) • Induction: What are Grids and e-Science? –May 18 th, 2004 -

Summary Internet Induction: What are Grids and e-Science? –May 18 th, 2004 -

Questions? Induction: What are Grids and e-Science? –May 18 th, 2004 -

Virtual Data Language Chimera Abstract Worfklow Request Manager Workflow Planning Replica Loc a tio n Available Re ource s Data Management Workflow Reduction n m at io in fo r Concrete W orkflow Globus Monitoring and Discovery Service Application Models Grid M on ito ri n g workflow executor (DAGman) Execution Data Publication Dynamic information Submission and Monitoring System Replica and Resource Selector Globus Replica Location Service Information and Models s sk ta Grid Raw data detector Induction: What are Grids and e-Science? –May 18 th, 2004 -
