WFD Reporting - River Basin Management Plans 2016 Workshop: INSPIRE MIG-P/MSCPs and reporting under environmental acquis 27 – 28 January 2015 Darja Lihteneger, Fernanda Nery (EEA) Joaquim Capitao (DG ENV) Robert Tomas (JRC) 27. 01. 2015
Outline • Water Framework Directive (WFD): – – Objectives Water management approach River Basin Management Plans (RBMP) cycle Reporting requirements on RBMPs • 2016 WFD Reporting and INSPIRE – Spatial objects and INSPIRE spatial data themes & specifications – Conceptual mapping between WFD & INSPIRE application schemas – Roadmap • Lessons learnt for future work
Water Framework Directive • Provides the framework for EU water policy • Complemented by and related to other legislation regulating specific aspects of water use • Water management integration with other policies WFD River basin management plans – key tools for implementing WFD Complemented by Groundwater Directive Environmental Quality Standards Directive Commission Decision on ecological status Related legislation Urban Waste-water Treatment Directive Nitrates Directive Bathing Waters Directive Extended scope for integrated water management Floods Directive Marine Strategy Framework Directive Source: Water Framework Directive; http: //ec. europa. eu/environment/pubs/pdf/factsheets/water-framework-directive. pdf
WFD water management approach • The river basin approach – the best way to manage water and to achieve good ecological, chemical or quantitative (GWB) status River basins (catchments) Entire river system, from sources of tributaries to the estuary, including ground-waters River basin districts: cover river basins and associated coastal areas National and international / cross border (36%) river basin districts (e. g. Danube, Rhine, Odra, Po, …) River basin management plans (RBMPs): to safeguard each river basin district Reporting cycles: 2016 / 2022 / (every 6 years)
River Basin Management Plans At National level: 1 st RBMPs in 2009; next cycle in 2015 Reporting to the European Commission: 2010, 2016 (and every 6 years) EU Member States must: • prevent deterioration in the status of aquatic ecosystems, protect them and improve the ecological condition of waters; • aim to achieve at least good status for all waters. Where this is not possible, good status should be achieved by 2021 or 2027; • promote sustainable use of water as a natural resource. Source: http: //www. eea. europa. eu/themes/water-management/river-basin-management-plansand-programme-of-measures
WFD Reporting: current schemas & guidance River basin districts, their sub-units and competent authorities Surface water bodies, pressures and status of waters Ground-water bodies, pressures and status of waters Protected areas (protection of waters, conservation of habitats and species) Surface water monitoring stations Ground-water monitoring stations Monitoring information (water status) Programmes of measure, environmental objectives, water use Surface waters related background documentation Ground waters related background documentation WFD common (code lists) Guidance for spatial data
2016 WFD Reporting and INSPIRE
WFD Reporting and alignment with INSPIRE • Boundary conditions: – WFD Reporting guidance document has been endorsed by the Water Directors – Potential changes to WFD Reporting shall fit into the roadmap of WFD Reporting 2016 – Priority in 2015 is on adaptation of tools used for reporting and testing – Foreseen reporting – delivery period: October 2015 – March 2016 • Work on alignment at conceptual level (mapping) in 2014: – Lead: DG ENV + consultants – Support by EEA, JRC
Conceptual mapping • Identification of spatial objects in WFD and relationships with INSPIRE applications schemas / specifications • Mapping between WFD schemas and INSPIRE applications schemas • Proposed changes to the WFD Guidance and reporting schemas
WFD spatial objects & links to INSPIRE data specif. • River basin districts and their subunits • Surface waters - water bodies: – Inland waters (except groundwater): lake, a reservoir, a stream, river, etc. – Transitional waters – Coastal waters – Territorial waters (for specific cases of chemical status) – Artificial water body – Heavily modified water body • Groundwater bodies • Monitoring stations (SWB, GWB) • Protected areas: Protection of surface water & groundwater or conservation of habitats and species directly depending on water (not provided elsewhere) INSPIRE Area management/ restriction/ regulation zones and reporting units Proposed application schema Water Framework Directive INSPIRE Hydrography INSPIRE Geology INSPIRE Environmental monitoring facilities INSPIRE Protected sites
Mapping – outcomes 1/4 • Positive mapping: – Geometry – Several attributes in WFD Reporting schemas can be conceptually mapped to INSPIRE attributes – Examples - INSPIRE AM: • European codes for RBD, SWB, GWB > part of INSPIRE Identifier • Member States codes for RBD, SWB, GWB > INSPIRE thematic. Id • Names of RBD, SWB, GWB > INSPIRE name • Competent authority for RBD and RBD sub-units
Mapping – outcomes 2/4 • For several INSPIRE properties, “default values” can be used in WFD Reporting: – Examples – INSPIRE AM: • zone. Type = river. Basin. District or water. Body. For. WFD • environmental. Domain = water • legal. Basis = reference to the EU legislation – Water Framework Directive • INSPIRE properties are proposed to be included in WFD Reporting schemas: – Examples – INSPIRE AM: • • Language of names Designation period Life cycle information Information on RBMP (plan)
Mapping – outcomes 3/4 • INSPIRE properties that are identified as voidable from WFD Reporting point of view: – Information might be provided from the point of view of INSPIRE implementation but are not requested by WFD Reporting Links between water bodies (SWB, GWB) & – Examples – INSPIRE AM: related hydrographic (surface waters) or hydrogeology spatial objects (ground waters) in proposed WFD application schema Competent authorities at level of water bodies (SWB, GWB)
Mapping – outcomes 4/4 • Concepts in WFD Reporting need extensions of INSPIRE code lists: – Semantic alignment between INSPIRE and WFD – Examples: INSPIRE data specs INSPIRE code list Proposed values to add EF – Environmental Purpose. Of. Collection. Value monitoring facilities (empty code list) Specific values for WFD AM – Area management … categories for WFD surface water bodies (coastal, transitional, river, lake, etc. ) Specialised. Zone. Type. Code (empty code list)
WFD Reporting 2016 - Roadmap WFD Reporting guidance document endorsed by the Water Directors Updated WFD Reporting guidance (as feasible) and schemas (finalizing January 2015) Identify related INSPIRE data models / specifications (IR, TG) Mapping of WFD schemas with INSPIRE app. schemas (IR, TG) Update of WFD schemas and guidelines Testing, prepare reporting at MS level (tools) Operational testing Delivery INSPIRE specifications, application schemas Matching tables, Proposed updates 2014 2015 - 2016 Tools finalization (Feb 2015), some tools later Mar – Jun 2015 Oct 2015 – Mar 2016

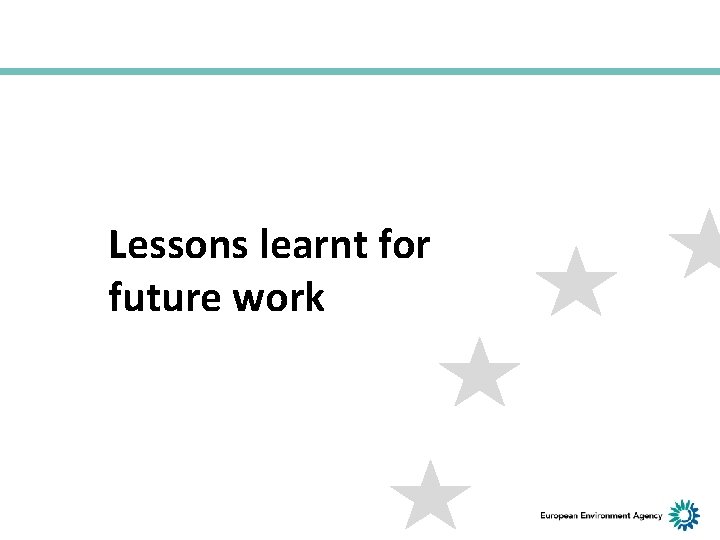

Lessons learnt for future work
Streamlining European Environmental Reporting with INSPIRE – expected benefits • Compatibility of spatial data sets used in Reporting – By preserving semantics of INSPIRE and thematic Directives – Spatial data sets will be provided according to the same INSPIRE application schemas and specifications (for example: RBD as INSPIRE AM and not as INSPIRE Hydrography) • Comprehensive implementation of obligations related to INSPIRE Directive and thematic Directives • Progressive use of INSPIRE infrastructure for reporting data flows • Progressive contribution to INSPIRE infrastructure access to environmental spatial data
Data oriented approach • Data level - conceptual mapping is the first step: – Include thematic and INSPIRE knowledge – Take decisions and document mapping – Information how to map (interpret) INSPIRE common elements (base types) is advantage and time saver in this activity (identifiers, data types, code lists, extensions, …) • Setting operational e-Reporting requires: – Several steps and cycles: • Steps: policy (uses case), semantics, data, tools • System development cycles: analysis - design – development - testing – operational implementation – maintenance • Training – Resources for adaptation and capacity of stakeholders (MS, EC, EEA) – Responsibility and governance (EU - national level)
Coordination and cooperation • Coordination should involve: – Interested stakeholders: thematic experts, networks, nominated working groups, authorities responsible for reporting or for INSPIRE implementation – Levels: Members States and European levels – Tighter links with INSPIRE MIG and coordination structures: • INSPIRE MIG • INSPIRE Thematic Clusters (established December 2014) https: //themes. jrc. europa. eu/ • INSPIRE coordination structures in MS • Cooperation as: – Workshops – E-Reporting pilots and projects
Thank you eea. europa. eu
